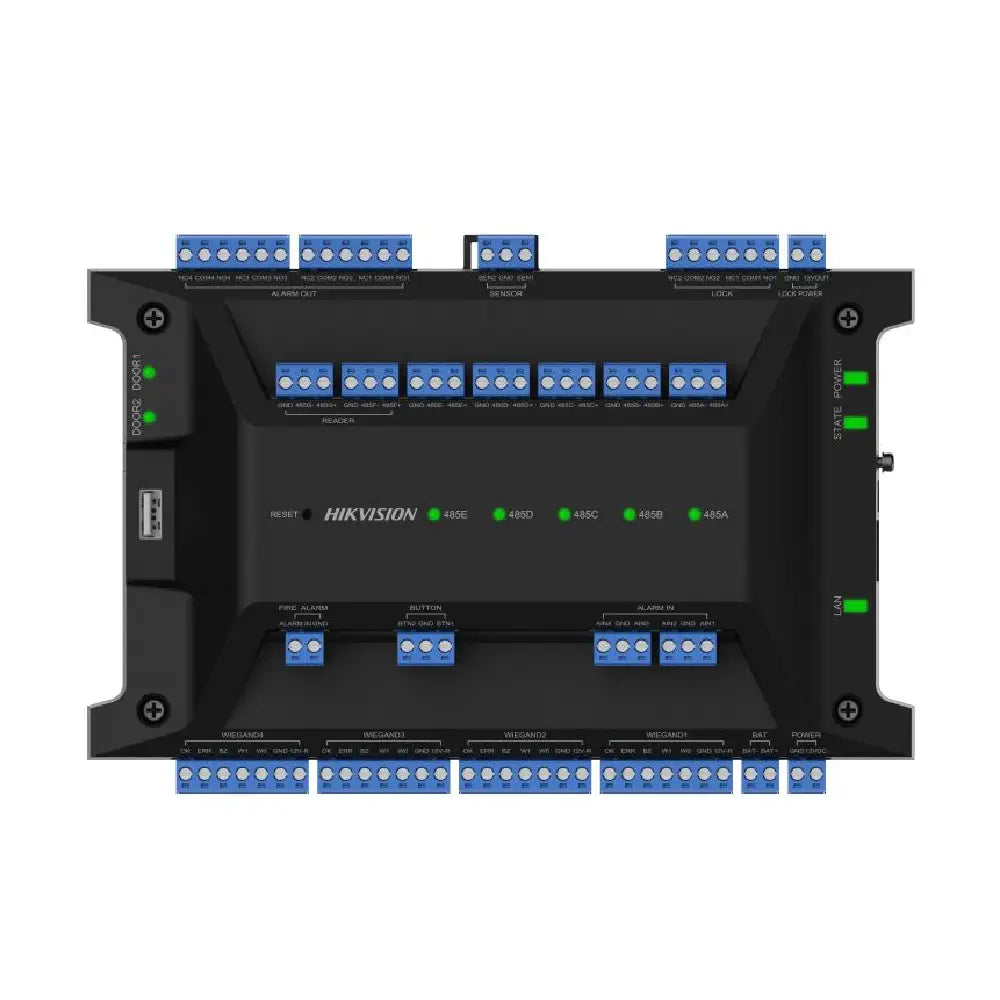

Hikvision DS-K2702X(P) 2-Door Enterprise Access Controller

Description

Hikvision Ultra Series

Enterprise-Grade Access Security with Web-Based Management

The Hikvision DS-K2702X-P is an advanced 2-door access controller designed for demanding commercial, industrial, and high-density enterprise environments. Built on a resilient Linux architecture, this controller operates seamlessly via native web browser management, eliminating the need for standalone client software installations. Engineered for scalable deployments, it natively manages 2 doors and can expand to control up to 126 doors across complex facilities such as commercial towers, transit hubs, and banking centers.

Door Capacity
2-Door Native / Max 126 Doors
User & Event Storage
100k Users / 600k Events
Interface Integration
7x RS-485 & 4x Wiegand
Power & Climate
12 VDC / Battery Backup

Advanced Infrastructure Redundancy & Professional Access Logic

Featuring downstream RS-485 redundancy wiring across 5 dedicated communication channels, the Hikvision DS-K2702X-P 2-Door Controller ensures dual-bus loop isolation to prevent communication loss in critical security installations. It natively supports high-level access functions including 32 anti-passback routes, 32 multi-door interlocking groups, multi-factor authentication (card, fingerprint, PIN), and direct fire alarm relay integration for automatic emergency lock release.

Redundant Downstream Communication

Features 5-channel downlink RS-485 interface options that allow dual-bus loop connections with physical isolation, ensuring uninterrupted credential verification and signal stability across all sub-modules.

Embedded Web Configuration

Simplifies deployment by offering comprehensive system setup, access group management, time schedules, and diagnostic health monitoring directly through standard web browsers without requiring local management software.

Technical Specification Matrix
Camera Model DS-K2702X-P
Operating System Linux Embedded
Linked Door Capacity Native: 2 Doors | Extended: Up to 126 Doors (via 62 RS-485 modules)
User & Credential Capacity 100,000 Users | 200,000 Cards | 10,000 Fingerprints
Event Log Storage 600,000 Offline Event Records
Reader Compatibility 4x RS-485 (OSDP Protocol) & 4x Wiegand (26/34-bit)
I/O Interfaces 2 Lock Relays, 2 Exit Buttons, 2 Door Contacts, 4 Alarm Inputs, 4 Alarm Outputs, 1 Fire Input, 1 Tamper
Network Interface 1x RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
Power & Consumption 12 VDC ± 15%, Max. 72 W | Integrated Battery Charging/Discharging Support
How do I configure the Hikvision DS-K2702X-P controller?

The unit features a built-in web server. You can access all network settings, user privileges, access schedules, and diagnostic logs using any standard web browser by entering the unit's IP address.

How many doors can be expanded from this single unit?

While managing 2 doors out of the box, it can expand up to 126 total doors by connecting up to 62 Hikvision DS-K2M002X sub-access modules over RS-485 bus loops.

Does this controller support power backup in case of mains outage?

Yes, the controller includes integrated battery management terminals that support automatic charging and seamless switchover to standard 12V backup batteries during power failures.

What reader protocols are supported by this unit?

It supports up to 4 Wiegand readers (standard 26/34 format or custom) and up to 4 RS-485 readers utilizing secure OSDP protocol.

Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
3-Year Commercial Warranty
Aust-Wide Delivery

Hikvision DS-K2702X(P) 2-Door Enterprise Access Controller

Product form

SKU: DS-K2702X(P)

$660.00  $579.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 24, 2026 14:00:00 +1000
    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
