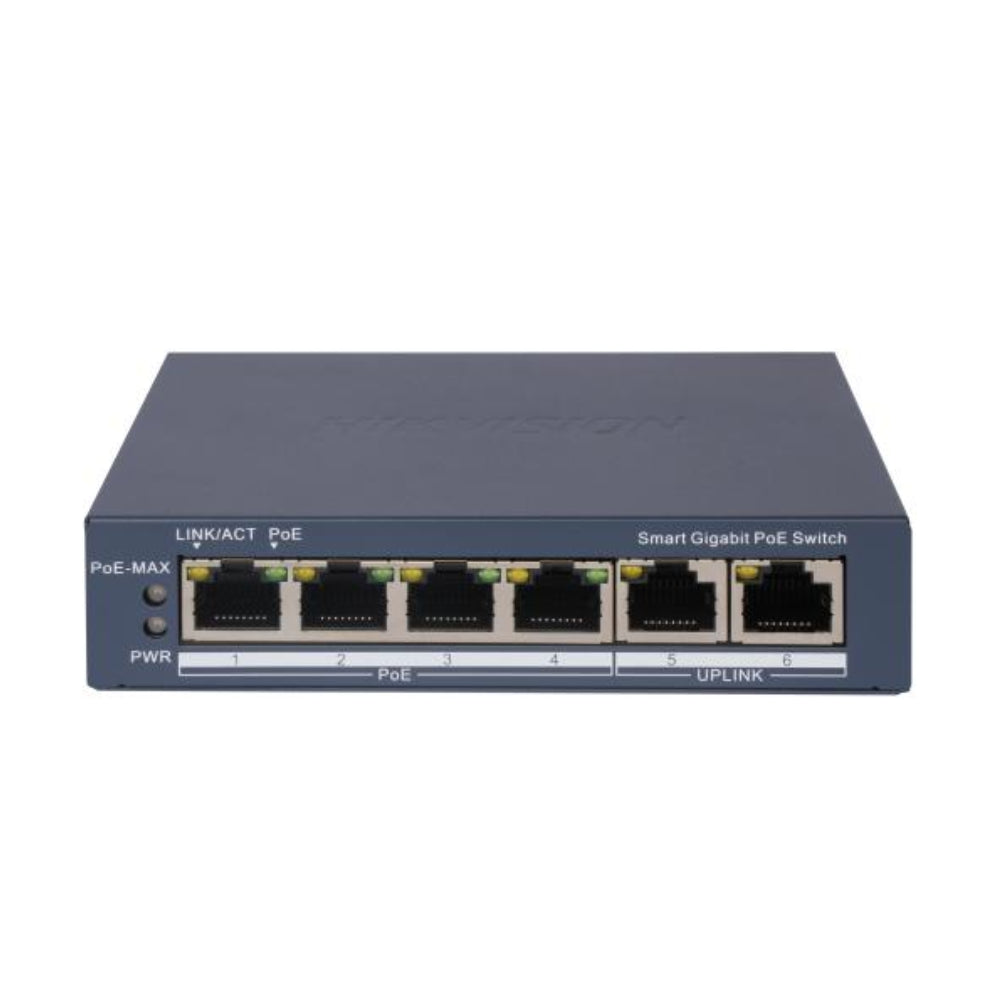

Hikvision DS-3E1506P-EI 4-Port Gigabit Smart Managed PoE Switch

Description

Hikvision Smart Managed Series

Intelligent 4-Port Gigabit Smart Managed Power over Ethernet Switch

Simplify deployment, monitoring, and remote network maintenance across commercial and residential IP surveillance systems with the Hikvision DS-3E1506P-EI. Designed to deliver enterprise-class stability in a compact footprint, this smart managed Layer 2 Gigabit switch provides 4 Gigabit PoE ports alongside 2 dedicated Gigabit RJ45 uplink ports, delivering up to 60 W of total PoE power budget for high-demand IP security cameras and access points.

Port Configuration
4 × 1G PoE + 2 × 1G Uplink
PoE Power Budget
60 W Total (30 W Max/Port)
Transmission & Range
300m Extended PoE Support
Protection & Health
6 kV Surge & PoE Watchdog

Remote Cloud Management & Automated Self-Healing Architecture

The DS-3E1506P-EI integrates seamlessly with Hikvision’s Hik-Partner Pro platform, allowing system integrators to remotely monitor network health, inspect topology visualizer maps, and receive instant alarm notifications on mobile or desktop interfaces. Featuring automated PoE Watchdog technology, the switch continuously detects offline cameras and performs intelligent port power reboots without requiring onsite technician intervention. Integrated 802.1Q VLAN support, port isolation, STP/RSTP loop prevention, and 6 kV surge protection ensure maximum system uptime even during severe electrical surges or adverse outdoor wiring conditions.

Automated PoE Watchdog & Long-Range PoE

Continuous monitoring auto-detects unresponsive IP cameras and soft-resets individual ports to restore connection. Extended long-range transmission mode extends power and data connectivity up to 300 metres on ports 1 through 4.

Hik-Partner Pro Cloud Topology Visualizer

Visualizes network topology in real time, displays bandwidth utilisation and PoE consumption, and enables remote device upgrades and cable health diagnostics directly from the cloud platform.

Technical Specification Matrix
Switch Model DS-3E1506P-EI
Network Ports 4 × Gigabit PoE RJ45, 2 × Gigabit RJ45 Uplink
PoE Standard IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget 60 W Total (30 W Max per port)
Switching Capacity 14 Gbps
Packet Forwarding Rate 10.42 Mpps
MAC Address Table 2 K
Long Range PoE Up to 300 metres (Ports 1 to 4)
Surge Protection 6 kV (PoE and Power Ports)
Construction & Mounting Solid Metal Shell; Desk or Wall-Mounted

Compare Hikvision Smart PoE Switches

Model PoE Ports Speed Best For
DS-3E1105P-EI 4 Fast Ethernet Compact camera and intercom systems
DS-3E1506P-EI 4 Gigabit Small high-throughput systems
DS-3E1510P-EI 8 Gigabit Growing small-to-medium systems
DS-3E1318P-EI 16 Fast Ethernet Medium camera systems with Gigabit uplinks
DS-3E1518P-EI 16 Gigabit High-throughput 16-camera networks
DS-3E1326P-EI 24 Fast Ethernet High-density surveillance networks
DS-3E1526P-EI 24 Gigabit Large high-bandwidth deployments

Frequently Asked Questions

How does the PoE Watchdog feature work on the DS-3E1506P-EI?

The PoE Watchdog continuously sends ping requests to connected IP cameras. If a camera stops responding due to a system crash, the switch automatically power-cycles that specific port to reboot and re-establish camera connectivity.

Can this switch transmit power and data over long distances?

Yes, by enabling Long Range mode via the Hik-Partner Pro platform or web UI, power and data transmission distance on ports 1 to 4 can be extended up to 300 metres.

Can I manage this switch remotely without being on-site?

Yes, the switch supports cloud management via Hik-Partner Pro, allowing technicians to inspect network topology, check PoE consumption, perform cable diagnostics, and restart ports remotely.

Is the DS-3E1506P-EI protected against lighting and electrical surges?

Yes, it features 6 kV surge protection across all network ports to safeguard connected IP security equipment against voltage spikes.

Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-3E1506P-EI 4-Port Gigabit Smart Managed PoE Switch

Product form

SKU: DS-3E1506P-EI

$115.00  $89.00 Incl. GST
