Hikvision Smart Managed · 16 PoE Ports · Gigabit
High-Capacity Gigabit PoE for Commercial Camera Networks

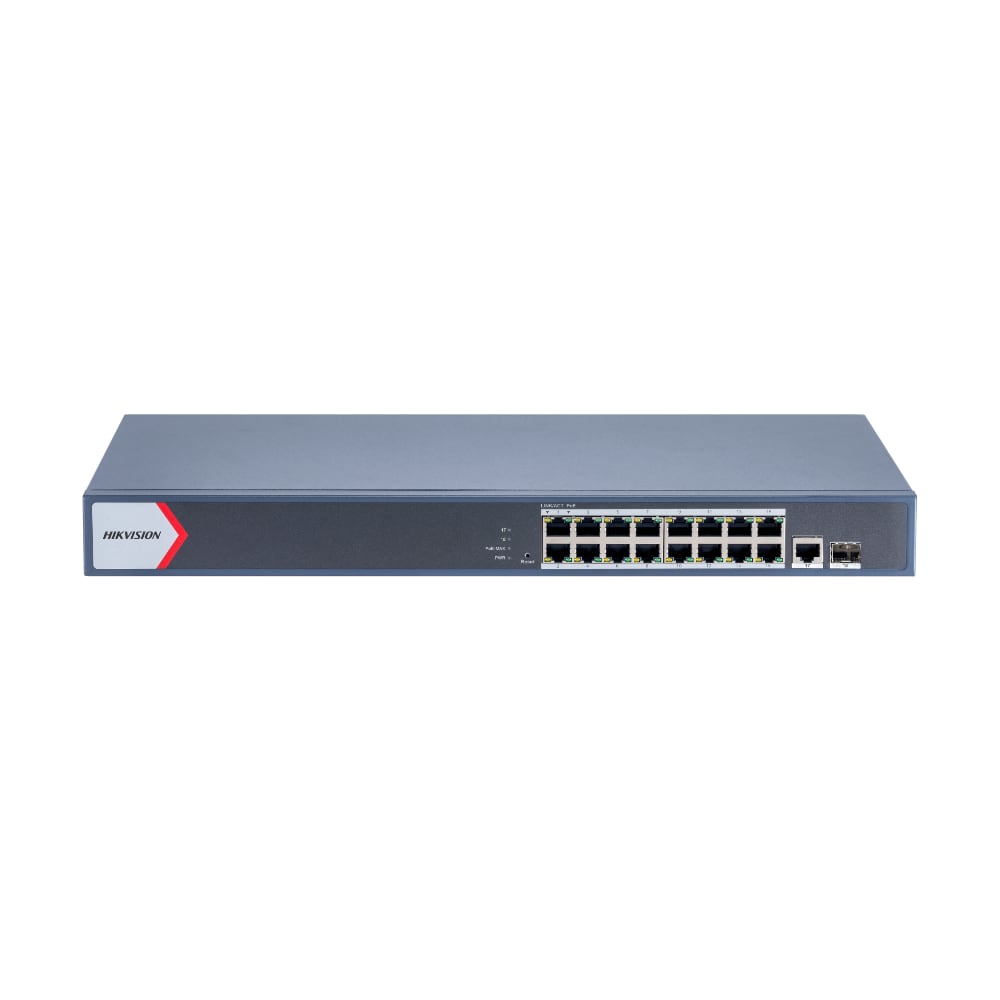

The Hikvision DS-3E1518P-EI is a smart-managed PoE switch designed for commercial surveillance networks that require full Gigabit throughput and a substantial PoE budget. It combines 16 × 10/100/1000 Mbps PoE RJ45 ports with 2 × Gigabit SFP/RJ45 combo uplinks, creating a dependable power and data platform for Hikvision cameras, intercoms and compatible network devices.
Smart monitoring, PoE watchdog, VLAN support and cable diagnostics help installers manage network health and recover unresponsive devices. Long-range mode supports transmission up to 300 metres on compatible PoE links, while 6kV surge protection helps protect connected equipment from electrical transients.
Built for Reliable Surveillance Networks
Automatic PoE RecoveryPoE watchdog can restart an unresponsive connected camera or endpoint, helping reduce unnecessary site visits.
Gigabit ConnectivityAll 16 powered ports run at Gigabit speed, supported by two combo uplinks for flexible copper or fibre network design.
Long-Range PoEExtended transmission supports suitable surveillance links up to 300 metres when used with compatible devices and quality cabling.
Smart ManagementNetwork topology, health monitoring, VLAN, loop prevention and cable diagnostics provide better control than an unmanaged switch.
Technical Specifications
| Official model |
DS-3E1518P-EI |
| PoE ports |
16 × 10/100/1000 Mbps PoE RJ45 ports |
| Uplinks |
2 × Gigabit SFP/RJ45 combo uplinks |
| PoE standards |
IEEE 802.3af / IEEE 802.3at |
| Total PoE budget |
230W total |
| Maximum power per port |
30W |
| Switching capacity |
36 Gbps |
| MAC address table |
8K |
| Mounting |
19-inch rack mount, fanless |
| Long-range transmission |
Up to 300m in extended mode |
| Smart functions |
PoE watchdog, VLAN, loop prevention, topology and cable diagnostics |
| Surge protection |
6kV |
Compare Hikvision Smart PoE Switches
| Model |
PoE Ports |
Speed |
Best For |
| DS-3E1105P-EI |
4 |
Fast Ethernet |
Compact camera and intercom systems |
| DS-3E1506P-EI |
4 |
Gigabit |
Small high-throughput systems |
| DS-3E1510P-EI |
8 |
Gigabit |
Growing small-to-medium systems |
| DS-3E1318P-EI |
16 |
Fast Ethernet |
Medium camera systems with Gigabit uplinks |
| DS-3E1518P-EI |
16 |
Gigabit |
High-throughput 16-camera networks |
| DS-3E1326P-EI |
24 |
Fast Ethernet |
High-density surveillance networks |
| DS-3E1526P-EI |
24 |
Gigabit |
Large high-bandwidth deployments |
Important Before You Buy
- Confirm the number of PoE devices and their combined power consumption before selecting the switch.
- Check that the combined connected-device load remains within the 230W total budget and 30W per-port limit.
- Long-range mode can reduce port speed and should be enabled only where additional cable distance is required.
- Use quality solid-copper network cable and appropriate surge protection for the installation environment.
Frequently Asked Questions
How many PoE devices can it connect?It provides 16 PoE ports. Actual capacity also depends on the total PoE power budget and each device's power draw.
Are the camera ports Gigabit?Yes. All 16 powered RJ45 ports and both combo uplinks support Gigabit Ethernet.
What does PoE watchdog do?It can detect an unresponsive powered device and restart its PoE connection automatically.
When should I choose another model?Choose a nearby 4-, 8-, 16- or 24-port sibling when you need a different device count, PoE budget or network speed.
