Hikvision Smart Managed Switch · 24 PoE · 2 Gigabit Combo

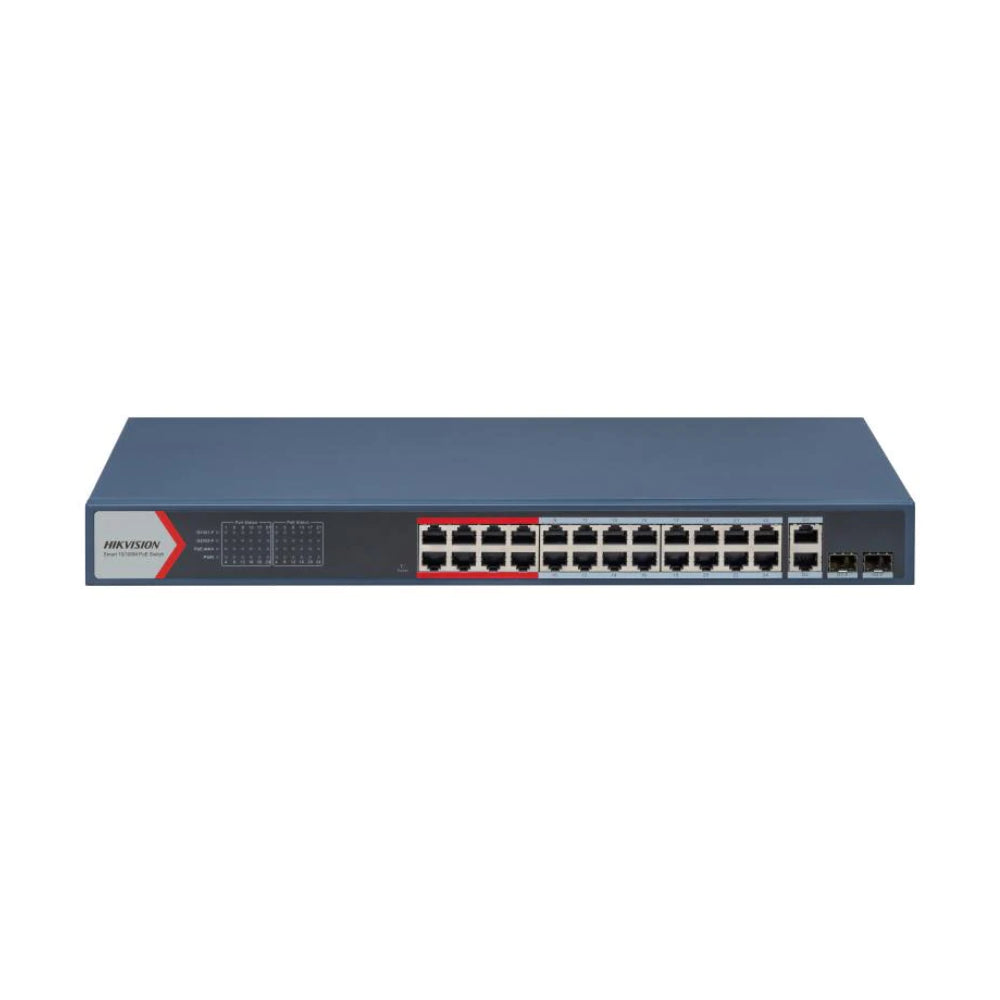

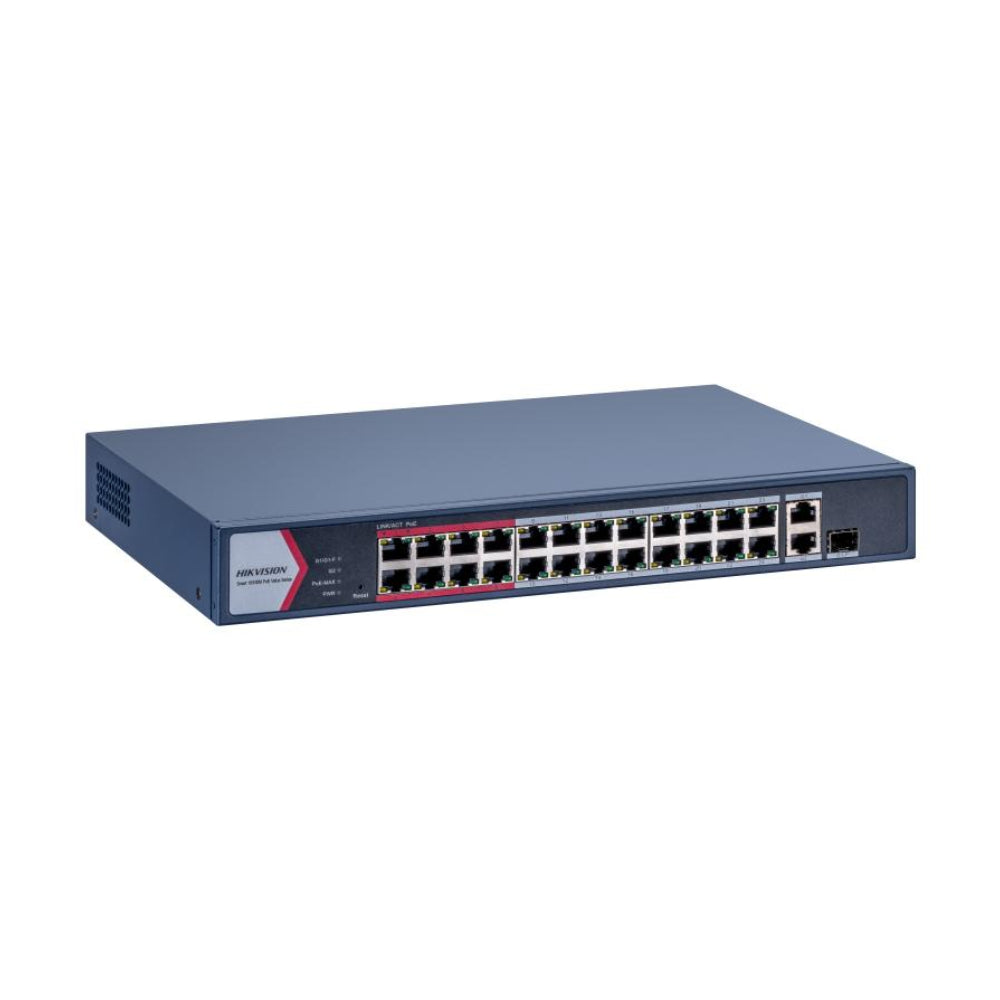

DS-3E1326P-EI — Hikvision 24-Port Fast Ethernet Smart Managed PoE Switch
The Hikvision DS-3E1326P-EI is a 26-port smart managed PoE switch built for mid-to-large CCTV deployments. It pairs 24 × 10/100 Mbps PoE RJ45 ports with 2 × Gigabit SFP/RJ45 combo uplinks, giving you the port density to power a full bank of IP cameras while keeping a high-speed path back to the NVR or core network.
Smart management adds network topology visualisation, alarm push and health monitoring, while 6 kV surge protection and up to 300 m long-range PoE keep cameras stable on long, exposed cable runs.
26 Ports Total
24 × 100 Mbps PoE + 2 × Gigabit SFP/RJ45 combo uplinks.
802.3af / at PoE
Standards-based PoE powering AF and AT IP cameras and devices.
300 m Long Range
Extend mode pushes AF/AT cameras up to 300 m over a single cable.
6 kV Surge Protection
Protects PoE ports against power surges on outdoor runs.
Technical Specifications
| Model |
DS-3E1326P-EI |
| Ports |
24 × 10/100 Mbps PoE RJ45, 2 × Gigabit SFP/RJ45 combo uplink |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Long Range |
Up to 300 m (extend mode) |
| Management |
Smart managed — topology, alarm push, health monitor |
| Surge Protection |
6 kV on PoE ports |
Are all 26 ports Gigabit?
No. Ports 1–24 are 10/100 Mbps PoE. Only the two uplink ports (25 and 26) are Gigabit SFP/RJ45 combos.
How far can it power a camera?
Up to 300 m in extend mode for AF/AT cameras on a single Cat-rated cable run.
A practical, high-density Hikvision PoE switch for surveillance networks that need plenty of camera ports plus fast Gigabit uplinks back to the recorder.
