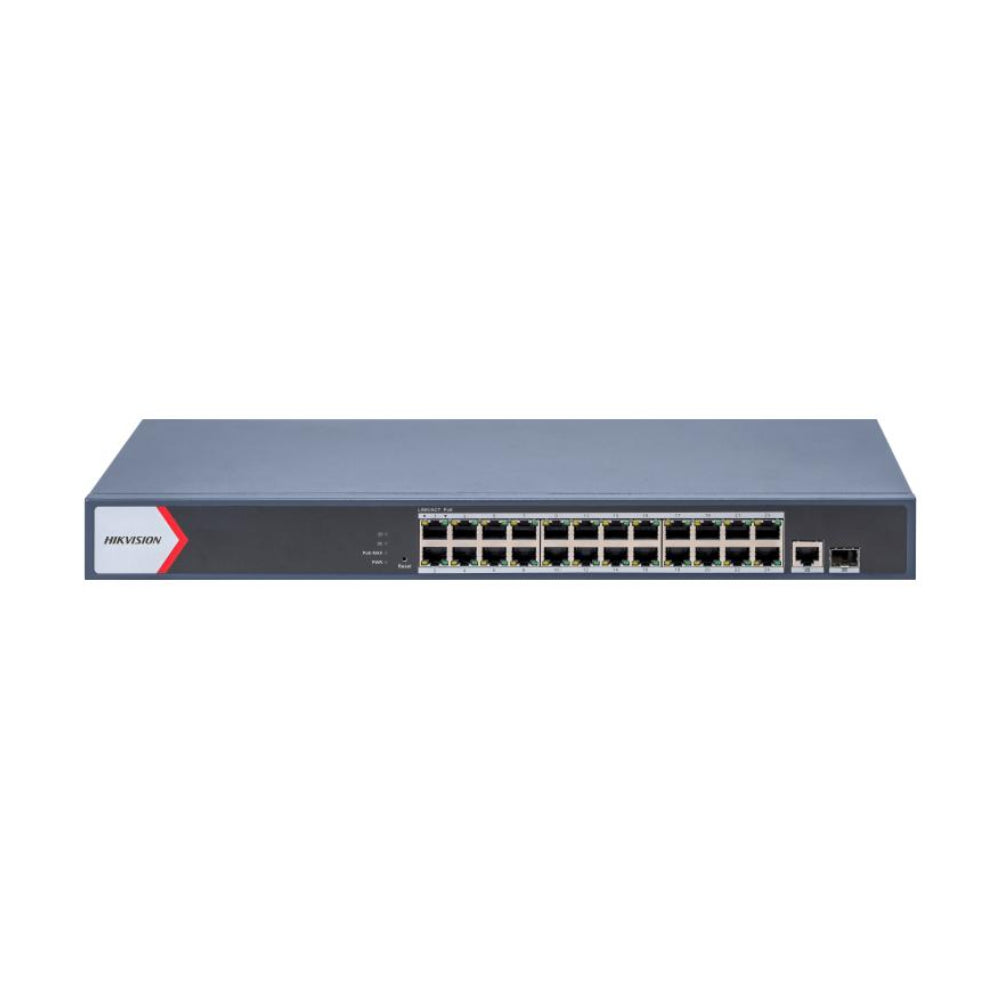

Hikvision DS-3E1526P-EI 24-Port Gigabit Smart Managed PoE Switch

Description

Hikvision Smart Managed Series

Enterprise High-Density 24-Port Gigabit Smart Managed Power over Ethernet Switch

Streamline large-scale IP surveillance networks, commercial access controls, and high-density camera deployments with the Hikvision DS-3E1526P-EI. Purpose-built for robust multi-channel video distribution, this smart managed 1U rack-mountable switch delivers 24 Full Gigabit PoE RJ45 ports alongside dedicated Gigabit uplink options (1× Gigabit RJ45 + 1× Gigabit SFP Optical Fibre), supported by a high-capacity 370 W total PoE power budget.

Port Configuration
24 × 1G PoE + 1G RJ45 / SFP Uplink
PoE Power Budget
370 W Total (30 W Max/Port)
Transmission Range
300m Extended PoE Support
Protection & Management
6 kV Surge & PoE Watchdog

Unified Cloud Topology Management & Self-Healing Network Security

The DS-3E1526P-EI seamlessly connects to Hikvision’s Hik-Partner Pro cloud platform, providing network visualizer mapping, real-time bandwidth and PoE consumption monitoring, and instant device alarm pushes. Featuring automated PoE Watchdog functionality across all 24 ports, the switch continuously checks camera connectivity and automatically reboots unresponsive IP cameras to prevent system downtime without requiring manual technician intervention. Layer 2 management tools including 802.1Q VLANs, STP/RSTP loop prevention, static link aggregation, port isolation, and 6 kV surge protection ensure secure and stable operation across critical enterprise networks.

High-Capacity 370 W Power & 300m Extended Range

Generous 370 W PoE budget easily powers a full system of up to 24 HD IP cameras. Extend mode allows data and power transmission over distances up to 300 metres across Cat5e/Cat6 cables on all 24 PoE ports.

PoE Watchdog & Cloud Maintenance

Self-healing PoE Watchdog automatically power-cycles frozen camera ports. Integration with Hik-Partner Pro allows remote device status checks, cable diagnostics, port rebooting, and firmware upgrades anywhere.

Technical Specification Matrix
Switch Model DS-3E1526P-EI
Network Ports 24 × Gigabit PoE RJ45, 1 × Gigabit RJ45 Uplink, 1 × Gigabit SFP Fibre Optical Port
PoE Standard IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget 370 W Total (30 W Max per port)
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.66 Mpps
MAC Address Table 8 K
Long Range PoE Mode Up to 300 metres (Ports 1 to 24)
Surge Protection 6 kV (PoE Ports)
Chassis Form Factor Solid Metal 1U 19-inch Rack-Mountable (Mounting ears included)

Compare Hikvision Smart PoE Switches

Model PoE Ports Speed Best For
DS-3E1105P-EI 4 Fast Ethernet Compact camera and intercom systems
DS-3E1506P-EI 4 Gigabit Small high-throughput systems
DS-3E1510P-EI 8 Gigabit Growing small-to-medium systems
DS-3E1318P-EI 16 Fast Ethernet Medium camera systems with Gigabit uplinks
DS-3E1518P-EI 16 Gigabit High-throughput 16-camera networks
DS-3E1326P-EI 24 Fast Ethernet High-density surveillance networks
DS-3E1526P-EI 24 Gigabit Large high-bandwidth deployments

Frequently Asked Questions

How many cameras can the DS-3E1526P-EI power simultaneously?

With a total PoE power budget of 370 W, the DS-3E1526P-EI can easily power 24 standard IP cameras (drawing around 6 W to 12 W each) across all PoE ports at full Gigabit speeds.

How far can power and data travel using Long Range mode?

When Long Range mode is enabled, power and network data transmission distances can reach up to 300 metres across Cat5e or Cat6 cables on ports 1 through 24.

What happens if a connected camera freezes or loses connection?

The integrated PoE Watchdog continuously tests responsiveness on ports 1 through 24 and automatically performs an individual port power cycle to restart frozen cameras.

What uplink connections are included on the DS-3E1526P-EI?

The switch includes two dedicated Gigabit uplinks: one 10/100/1000 Mbps RJ45 copper port and one Gigabit SFP fibre optical port for long-distance backbone connectivity to NVRs or core switches.

Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-3E1526P-EI 24-Port Gigabit Smart Managed PoE Switch

Product form

SKU: DS-3E1526P-EI

$722.00  $669.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
