Hikvision DS-K1T502 Series
Commercial Grade Weather Protection for Access Control Terminals

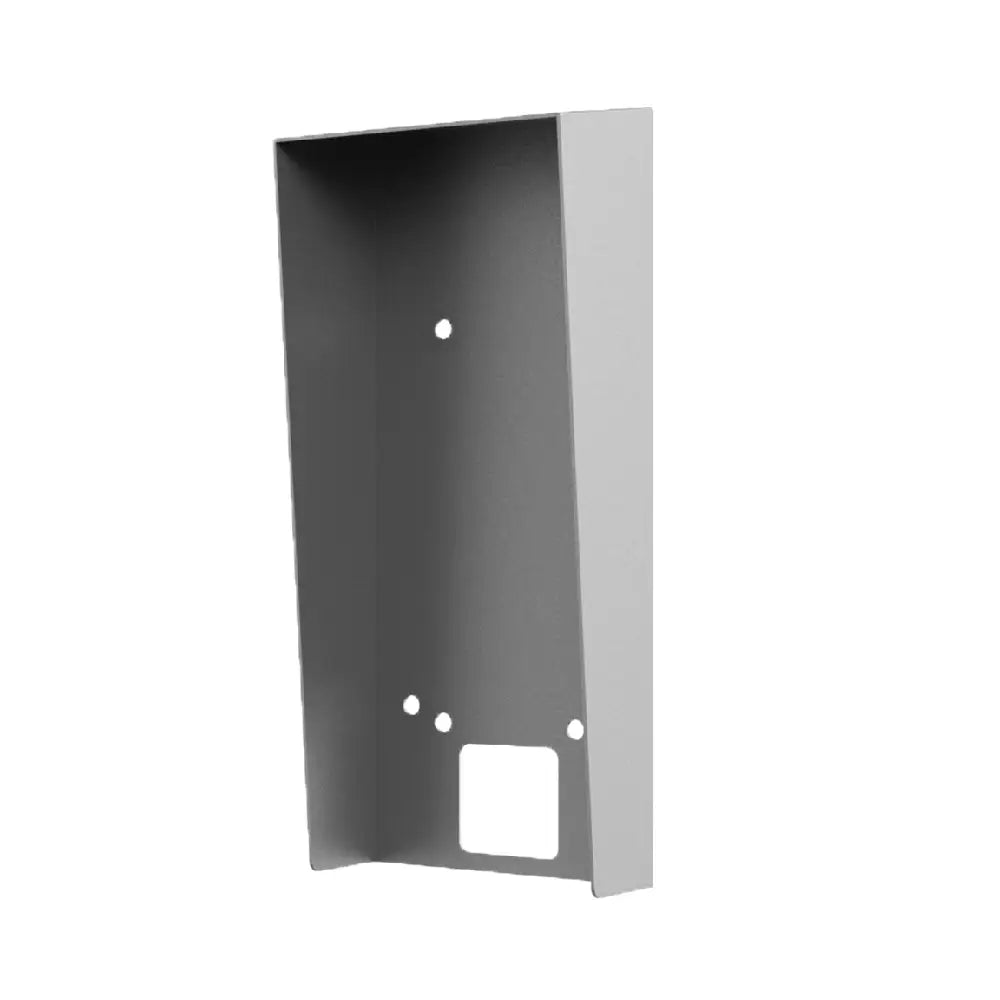

The DS-KAB502-S1 is a high-durability protective rain shield engineered specifically for Hikvision DS-K1T502 series access control terminals. Constructed from heavy-duty Electro-Galvanized Cold-Rolled Steel (SECC), this protective accessory safeguards delicate authentication devices against driving rain, direct UV glare, dust, and physical impact. Designed for high-density commercial entries, perimeter gates, apartment building foyers, and outdoor staff access points, it provides an intentional, sleek installation finish while significantly extending hardware service life in harsh environments.
Material Build
SECC Steel Shell
Compatibility
DS-K1T502 Series
Environment
Weather Resistant
Form Factor
188.6 x 85 x 42mm
Seamless Surface Integration & Model-Matched Fit
Rather than using generic universal brackets, opting for the hikvision-ds-kab502-s1-protective-rain-shield ensures precise dimensional alignment with Hikvision terminal geometry. The shield's engineered canopy overhang diverts water away from the optical scanner and card reader interface, preventing water streak interference during biometrics processing. At a light weight of just 242.5g and a tight profile depth of 42mm, it installs neatly onto standard doorframes, concrete masonry, and hollow wall partitions without adding unnecessary bulk or obscuring terminal sightlines.
Industrial SECC Construction
Manufactured using high-grade SECC steel, providing superior structural integrity, wear resistance, and long-term protection against harsh exterior conditions and everyday physical impacts.
Optimized Canopy Angle
Custom-contoured overhang minimizes direct glare on card readers and reduces water drop accumulation across optical lenses, guaranteeing unhindered operation in stormy conditions.
Technical Specification Matrix
| Camera Model |
DS-KAB502-S1 |
| Product Type |
Protective Rain Shield / Surface Mount Bracket |
| Compatible Device Series |
Hikvision DS-K1T502 Series Access Control Terminals |
| Construction Material |
SECC Steel |
| Dimensions (H x W x D) |
188.6 mm x 85.0 mm x 42.0 mm (7.4" x 3.3" x 1.7") |
| Item Weight |
242.5 g (0.53 lbs) |
| Mounting Type |
Surface Wall Mounting |
| Application Environment |
Indoor / Outdoor Weather Protected Installation |
Which access control models are compatible with this protective shield?
The DS-KAB502-S1 is custom-engineered specifically for the Hikvision DS-K1T502 access control terminal series (including card, biometric, and video models).
Does installing this rain hood affect terminal screen visibility or reader range?
No. The canopy overhang is precision-contoured to protect the terminal face from weather elements while leaving all optical sensors, keypads, screen areas, and card readers fully visible and accessible.
Is additional hardware required for mounting?
The shield aligns directly with standard wall mounting points for the DS-K1T502 terminal series, allowing straightforward installation using basic mounting hardware onto flat surfaces.
What material is used to prevent rust and corrosion?
It is fabricated from SECC (Electro-Galvanized Cold-Rolled Steel), offering high durability and corrosion resistance suitable for outdoor and commercial entryways.
