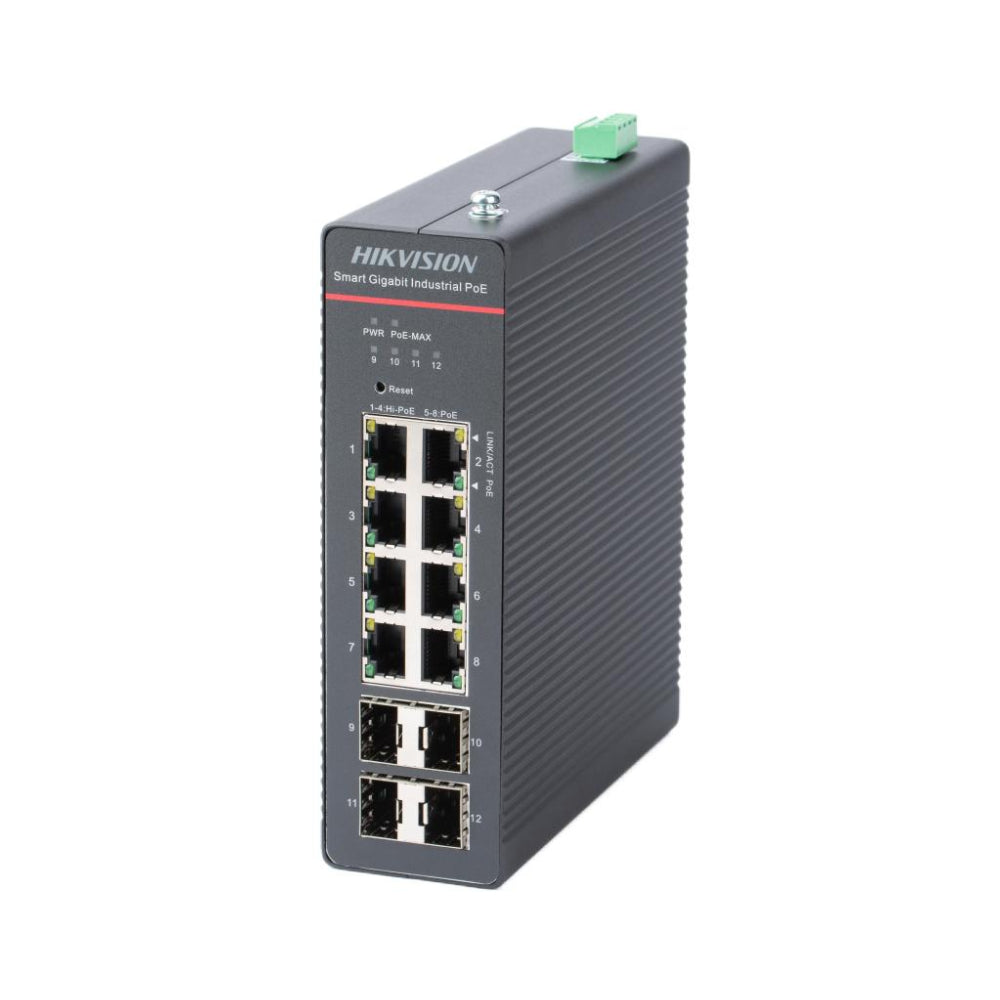

Hikvision DS-3T1512HP-SI-8P4F 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch

Description

Hikvision Smart Industrial Series

Rugged 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch with 4 SFP Optical Uplinks

Engineered for mission-critical video surveillance networks, factory automation, and extreme outdoor cabinet deployments, the Hikvision DS-3T1512HP-SI-8P4F delivers uncompromising industrial-grade performance. Housed in an IP40-rated heavy-duty metal enclosure, this Layer 2 smart managed switch combines 8 Full Gigabit PoE RJ45 ports with 4 dedicated Gigabit SFP fibre optic slots for long-distance trunk backhauls. Ports 1 through 4 adopt the ultra-high-power IEEE 802.3bt Hi-PoE standard—supplying up to 90 W on a single port—allowing heavy-duty PTZ cameras, thermal imagers, and multi-sensor units to be powered directly over network cabling without external field power supplies.

Port Configuration
8 × 1G PoE + 4 × 1G SFP Fibre
Power & Standard
90 W Hi-PoE (802.3bt) / 300 W Budget
Transmission Range
300m Extended Range Mode
Industrial Protection
-40°C to 75°C & 6 kV Surge

ERPS Ring Redundancy & Smart Remote Topology Management

Built for extreme thermal conditions ranging from -40 °C to +75 °C, the DS-3T1512HP-SI/8P4F supports G.8032 ERPS (Ethernet Ring Protection Switching) to ensure sub-50ms network failover recovery in critical ring topologies. System administrators can remotely monitor network topology, inspect PoE power loads, execute port diagnostics, and receive real-time fault alerts via Hik-Partner Pro or Hik-Central Pro cloud platforms. Automated hardware PoE Watchdog continuously polls connected devices and automatically reboots frozen cameras without site visits. Dual redundant DC power inputs with hot backup guarantee unbroken operations during primary supply disruptions.

Quad 90 W IEEE 802.3bt Hi-PoE Ports & 300 W Budget

Ports 1 through 4 output up to 90 W per port using 802.3bt Hi-PoE technology, backed by a total 300 W PoE budget. Long Range mode extends power and data delivery up to 300 metres across Cat5e/Cat6 wiring.

IP40 Fanless Metal Shell & Dual Power Inputs

Hardened, fanless IP40 metal chassis withstands severe shock, vibration, and extreme temperature swings. Dual 48–57 VDC terminal block inputs provide hot-backup power redundancy for mission-critical installations.

Technical Specification Matrix
Switch Model DS-3T1512HP-SI-8P4F
Network Interfaces 8 × Gigabit PoE RJ45 Ports, 4 × Gigabit SFP Fibre Slots
PoE Standard Ports 1–4: IEEE 802.3af/at/bt (Hi-PoE); Ports 5–8: IEEE 802.3af/at
Max Output Power per Port Ports 1–4: Up to 90 W; Ports 5–8: Up to 30 W
Total PoE Power Budget 300 W
Switching Capacity 56 Gbps (Whole-Device) / 24 Gbps (Port Performance)
Packet Forwarding Rate 41.66 Mpps (Whole-Device)
Redundancy & Loop Prevention G.8032 ERPS, IEEE 802.1D STP, IEEE 802.1w RSTP
Operating Temperature & Protection -40 °C to +75 °C (-40 °F to +167 °F); 6 kV Surge; IP40 Metal Shell
Power Input & Mounting 48 to 57 VDC Dual Inputs with Hot Backup; DIN-Rail or Desk Mounting

Frequently Asked Questions

What equipment can be powered by the 90 W Hi-PoE ports?

Ports 1 to 4 support IEEE 802.3bt Hi-PoE up to 90 W per port, making them ideal for high-draw hardware like outdoor PTZ speed domes with internal heaters, multi-sensor panos, and illuminators.

Does this switch come with an included power supply?

Industrial switches utilize external 48–57 VDC DIN-rail power supplies (such as Mean Well NDR-240-48 or NDR-480-48) connected to its terminal blocks, allowing power capacity selection based on total system PoE load.

How does G.8032 ERPS ring protection benefit industrial security networks?

G.8032 ERPS creates redundant ring network topologies that automatically recover from fibre optic or copper link failures in less than 50 milliseconds, ensuring uninterrupted camera feeds.

Can I monitor this switch remotely via Hik-Partner Pro?

Yes, the switch integrates natively with Hik-Partner Pro and Hik-Central Pro, enabling technicians to inspect visual topology, check PoE consumption, perform cable health tests, and power-cycle ports remotely.

Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-3T1512HP-SI-8P4F 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch

Product form

SKU: DS-3T1512HP-SI-8P4F

$367.00  $339.00 Incl. GST
