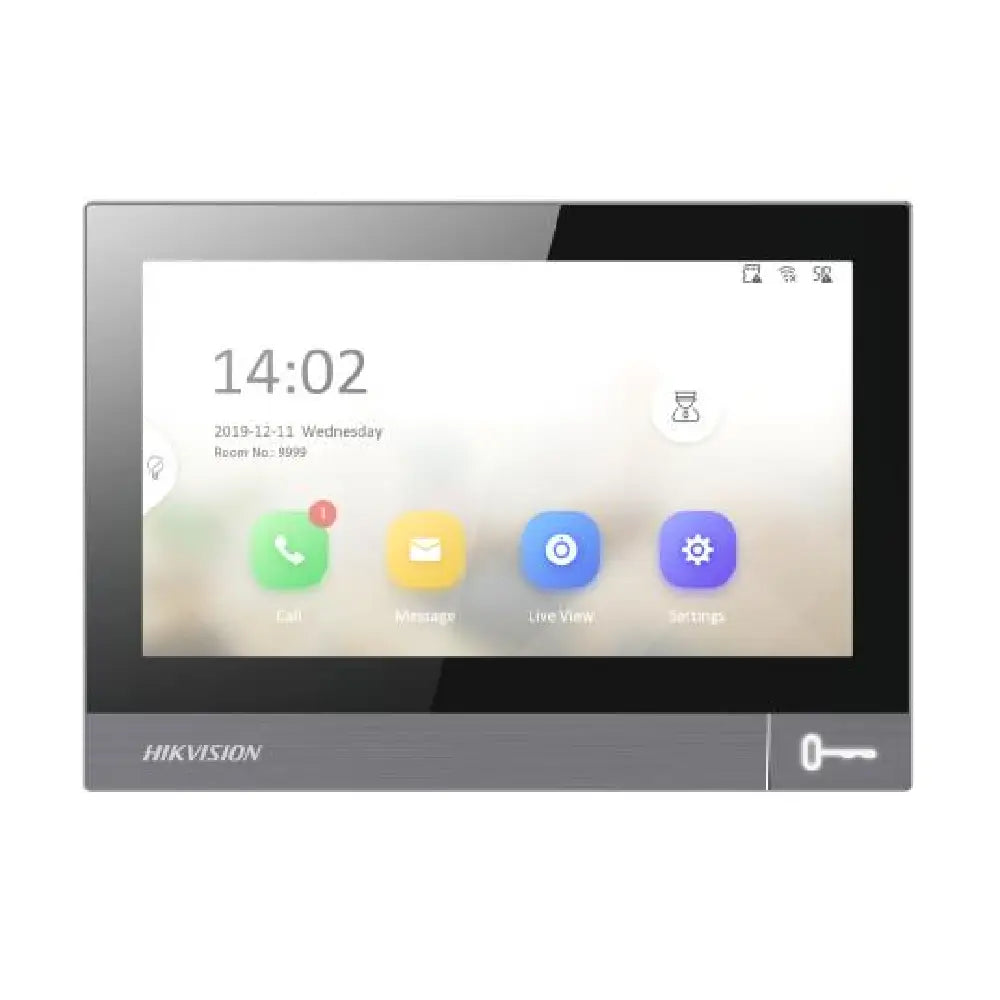

Hikvision 7" IP Intercom Station
Hikvision DS-KH8381-WTE1/Flush — 7" Android IP Intercom Indoor Station with PoE, Wi-Fi, Echo Cancellation & Flush Mount Design
The Hikvision DS-KH8381-WTE1/Flush is a premium 7-inch Android-powered IP video-intercom indoor monitor — the in-room answering device paired with Hikvision's IP door stations for villas, apartments, luxury estates and commercial reception. A 1024 × 600 IPS touchscreen, embedded Android OS, and built-in echo cancellation deliver a phone-like conversation quality on the intercom call, while PoE 802.3af and dual-band Wi-Fi 802.11 b/g/n give you a single-cable install or fully wireless retrofit. Integrates with any Hikvision IP door station, unlocks the door on a tap, and shows live video from any Hikvision IP camera on your NVR so you can verify a visitor before granting access. 3-year Australian warranty from CCTV Guru.
Display
7" IPS Touch · 1024 × 600
Operating System
Embedded Android
Connectivity
PoE 802.3af + Wi-Fi b/g/n
Audio
Full-Duplex · AEC + Noise Suppression
Alarm I/O
8 Inputs · 2 Relay Outputs · RS-485
Mounting
Flush · Low-Profile Architectural
Why This Is the Indoor Station to Choose
The DS-KH8381-WTE1/Flush is the top-tier indoor answering unit in Hikvision's IP intercom range — chosen for premium builds where a plain 4-inch monitor won't cut it. The 7-inch IPS touchscreen sits flush with the wall behind an included architectural bracket; there's no protruding chassis to catch the eye. Android under the hood means the UI feels like a phone — swipe, tap, quick response. Full-duplex audio with echo cancellation gives you natural conversation with the person at the door, and you can pull up a live feed from any Hikvision IP camera on your NVR to verify a visitor before you unlock. Alarm inputs (8) and relay outputs (2) turn the monitor into a small building-management panel — connect door sensors, glass-break sensors, or trigger a driveway light on visitor arrival.
Full-Duplex Audio with Echo Cancellation
Acoustic Echo Cancellation (AEC) plus digital noise reduction. Two-way conversation without the walkie-talkie "you have to stop talking" awkwardness — critical for a commercial reception setting where the impression matters.
Camera Preview from the Intercom
Tap through to any Hikvision IP camera on your network. Verify a visitor from the driveway camera before you unlock the door, or check the delivery bay from the reception monitor. Cameras don't need to be on the same door station.
PoE + Wi-Fi Flexibility
PoE 802.3af for a single-cable retrofit; Wi-Fi 802.11 b/g/n for locations where running Ethernet is impractical. Also accepts 12 VDC for legacy or off-grid installs.
8 Alarm Inputs + 2 Relay Outputs
Wired inputs for door sensors, glass break, PIR or panic buttons. Two relay outputs to trigger driveway lights, sirens, gates or auxiliary door strikes. RS-485 bus for larger integrations.

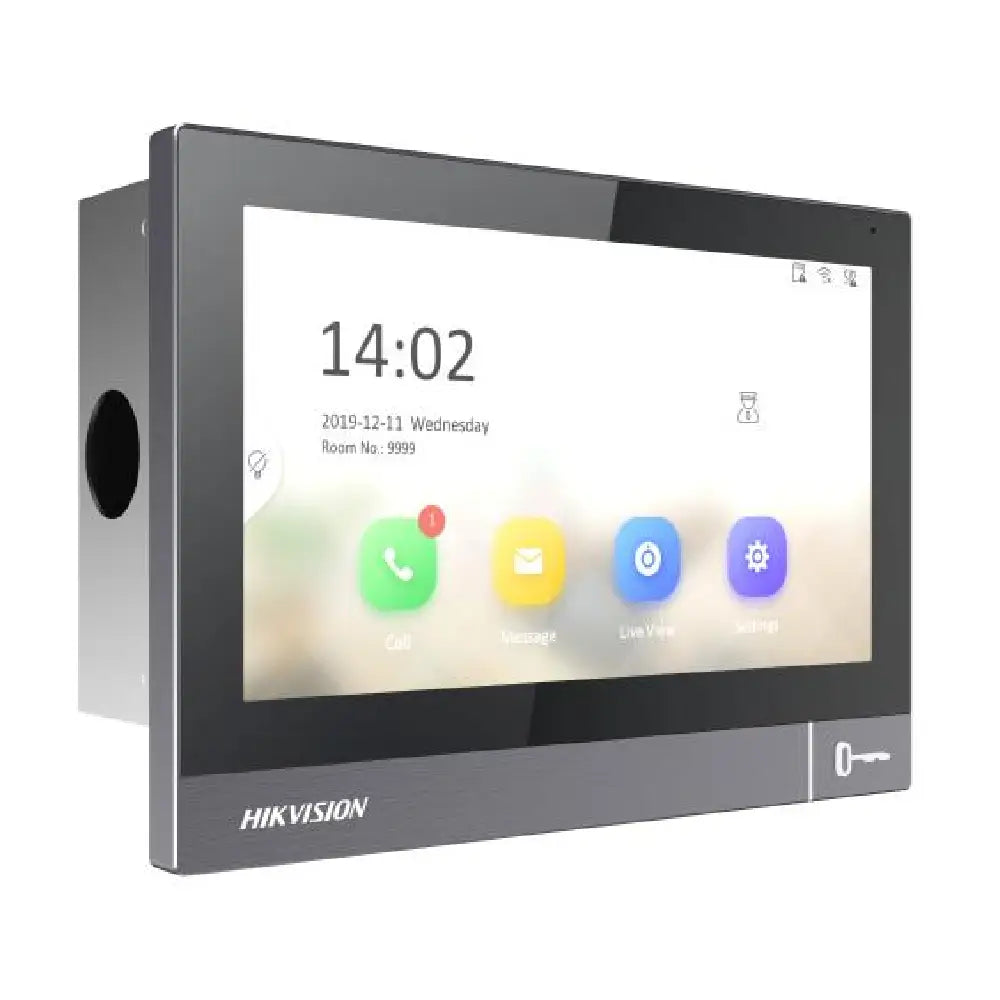

Flush Architectural Mount
Included bracket sits the monitor cleanly in the wall cavity — no protruding chassis. Suits luxury villa entries, boutique-hotel reception, high-end apartment lobbies where visible-tech looks unwelcome.
Multi-Tenant Scalability
Fits Hikvision's IP intercom system for buildings up to 4,000 monitors across a single site — apartment complexes, mixed-use developments, campuses. Works with entrance stations, villa door stations, master stations and Hik-Connect for remote answer on smartphone.
Where This Indoor Station Belongs
Luxury Villas & Estates
The 7-inch touchscreen sitting flush in an entry-hall wall — natural answering point without a chunky corded handset. Pair with an outdoor DS-KV8x13 or DS-KV6x13 IP villa door station.
Apartment Buildings & Body Corp
One indoor station per unit answering to a shared IP entrance station. Individual call routing per apartment, master station for building manager, Hik-Connect for smartphone answer when tenants are out.
Boutique Reception & Hospitality
Hotel front desk, day spa reception, medical practice — anywhere you want a discreet, premium-looking answering device with integrated camera preview.
Small Commercial & Serviced Offices
Suite entry monitoring — check the corridor camera from the desk before buzzing someone in. RS-485 and relay outputs let you integrate with electric strike locks and driveway barriers.
Technical Specifications
DS-KH8381-WTE1/Flush · Full Specifications
| SKU |
DS-KH8381-WTE1/Flush (AU stock) |
| Device Type |
Hikvision Pro IP Video Intercom · Indoor Answering Monitor · Flush Mount |
| Operating System |
Embedded Android |
| Display |
7-inch Colour IPS Touchscreen |
| Display Resolution |
1024 × 600 |
| Audio Input / Output |
Built-in omnidirectional microphone + built-in loudspeaker |
| Audio Enhancement |
Acoustic Echo Cancellation (AEC) + Digital Noise Reduction · Full-Duplex |
| Ethernet |
1× RJ-45 10/100 Mbps self-adaptive |
| Wi-Fi |
802.11 b/g/n (2.4 GHz) |
| Alarm Inputs |
8 channels · dry/wet contact configurable |
| Alarm Outputs |
2× relay outputs (configurable per event) |
| Serial Interface |
1× RS-485 |
| Power |
PoE 802.3af · or 12 VDC (2 A) local input |
| Power Consumption |
≤ 12 W typical |
| Mounting |
Flush mount · architectural bracket included |
| System Capacity |
Fits Hikvision IP intercom systems up to 4,000 indoor stations per site |
| Camera Preview |
Live view from any Hikvision IP camera on the same network |
| Remote Access |
Hik-Connect (smartphone answer, remote unlock, snapshot review) |
| Client Software |
iVMS-4200 · Hik-Central Professional |
| Compatible Door Stations |
DS-KV8x13, DS-KV6x13, DS-KD8003-IME, DS-KD-ACF3 series and other Hikvision IP door stations |
| Operating Temperature |
−10 °C to +55 °C |
| Operating Humidity |
≤90 % |
| Warranty |
3-Year Australian Warranty (back-to-base) |
What You'll Need to Complete the System
Outdoor IP Door Station
Pair with a Hikvision IP door station — DS-KV8x13 or DS-KV6x13 for villas, DS-KD8003-IME for apartments. Handles the visitor-side call, camera and unlock command. Browse Hikvision IP door stations →
PoE Switch (Optional)
Single Ethernet cable powers and connects the indoor station via any PoE 802.3af port. If you don't have a PoE switch yet, a small unmanaged PoE switch is the cheapest way to power the whole intercom system. View network switches →
Frequently Asked Questions
Does it need a separate power supply if I use PoE?No. A single Cat 5e/6 Ethernet run from a PoE 802.3af switch carries both data and power. The 12 VDC input is only needed if you're powering the monitor over Wi-Fi (no Ethernet) or in a legacy install.
Can I view Hikvision IP cameras from the indoor station?Yes. Tap into any Hikvision IP camera on your network — during a call, or standby. Useful for checking the driveway camera before unlocking the front door, or the loading dock from the reception monitor.
What are the benefits of the flush-mount design?The flush bracket recesses the monitor into the wall cavity so the screen sits nearly flush with the plaster — no protruding chassis. Better aesthetics for luxury villas, boutique reception, apartment lobbies. Also more resistant to knocks and tampering than a surface mount.
Can I answer the intercom from my phone if I'm not home?Yes — the indoor station links to Hik-Connect on Android and iOS. Incoming door calls forward to your phone, you can talk to the visitor from anywhere and unlock the door remotely. Works over Wi-Fi or mobile data.
How many door stations can I connect?The Hikvision IP intercom system supports up to 8 door stations per indoor station and up to 4,000 indoor stations per project — from a single-villa install to a large apartment complex. Master stations can be added for a concierge / building manager.
What door strikes and locks does it work with?The 2 relay outputs are dry-contact and configurable — compatible with any standard electric strike, magnetic lock or gate motor that accepts a dry-contact input. Some door stations also have their own relay outputs — you can wire the strike from the door station side instead if it's closer to the door.
Downloads & Resources
Order the Hikvision DS-KH8381-WTE1/Flush from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision IP video intercom range. The DS-KH8381-WTE1/Flush is the premium indoor answering monitor for luxury residential, apartment developments and boutique commercial installs. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, project pricing for multi-unit installs, and specialist intercom advice from our Sydney team. Request a free quote or contact our Australian team.
