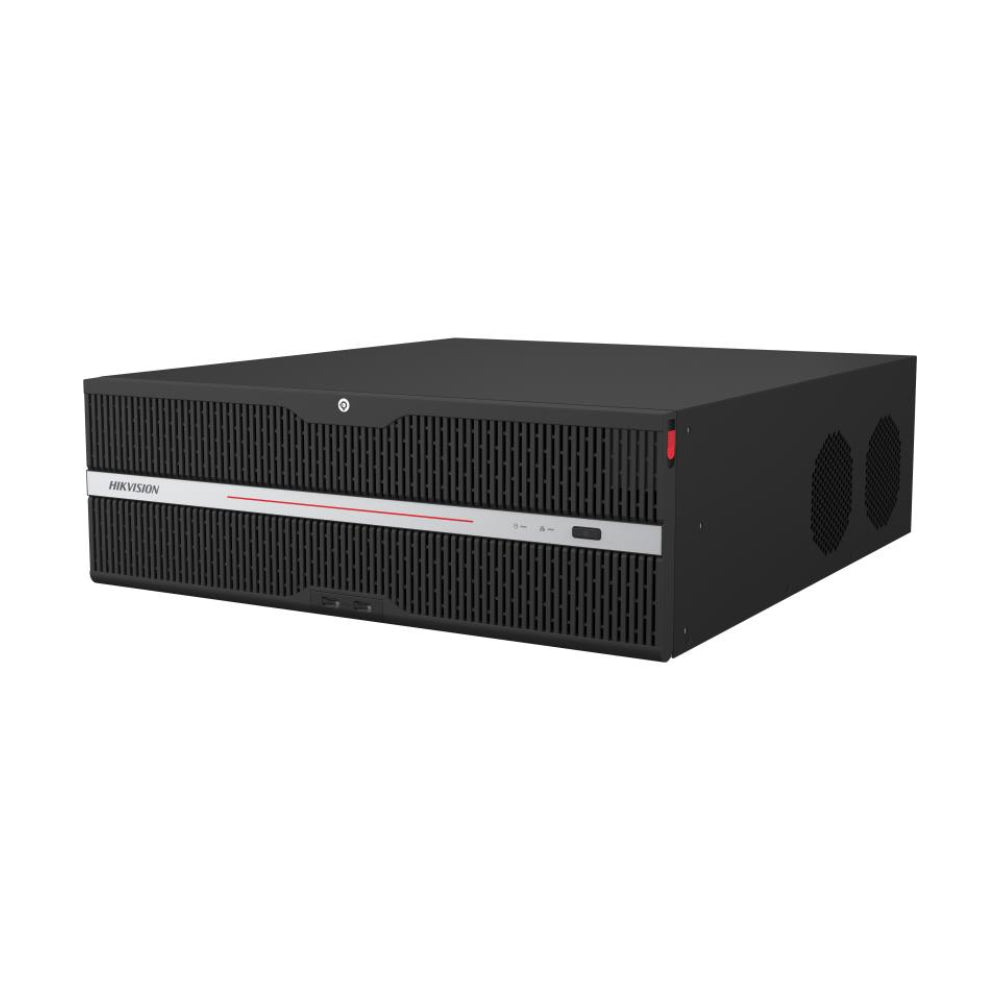

Hikvision DS-96128NXI-S16R 128-Channel 8K Ultra Series DeepinMind NVR

Description

Hikvision Ultra Series · DeepinMind

Enterprise-Grade 128-Channel High-Density AI Network Video Recorder

Engineered for ultra-large-scale commercial deployments, critical infrastructure, and high-density surveillance hubs, the Hikvision DS-96128NXI-S16R delivers unprecedented decoding power and AI analytics integration. Capable of supporting up to 128 IP camera channels with resolution support up to 8K, this DeepinMind series recorder ensures high-availability recording with redundant power supplies, hot-swappable hard drive bays, and robust RAID storage array configurations.

Decoding / Resolution
Up to 8K / 32 MP Recording
Storage Capacity
16 SATA Interfaces (Hot-Swap)
Incoming Bandwidth
512 Mbps High-Throughput
System Redundancy
Dual Power & RAID 0/1/5/6/10

DeepinMind Deep Learning Video Analytics & High-Availability Architecture

The DS-96128NXI-S16R leverages advanced deep-learning algorithms to perform real-time perimeter protection, facial recognition, and human/vehicle target classification across multi-channel streams. Built on a server-class 3U rack chassis, it accommodates 16 SATA hard drives with hot-swappable HDD arrays supporting RAID 0, 1, 5, 6, 10, and N+1 hot spare configurations. Dual redundant power units guarantee non-stop system operation even during primary power supply maintenance.

Hot-Swappable RAID Array Protection

Supports enterprise storage configurations including RAID 0, 1, 5, 6, and 10 across 16 SATA interfaces. Drives can be replaced on-the-fly without taking the recording server offline or interrupting critical footage capture.

DeepinMind Structural Video Analytics

Reduces false alarms caused by environmental noise using hardware-accelerated deep learning algorithms, enabling high-accuracy perimeter protection, face identification, and target search capabilities across connected streams.

Technical Specification Matrix
NVR Model DS-96128NXI-S16R
IP Video Input 128 Channels
Incoming / Outgoing Bandwidth 512 Mbps / 512 Mbps
Recording Resolution Up to 32 MP / 8K Resolution Support
HDMI Output 2-ch HDMI (HDMI 1 supports up to 8K output)
SATA Storage Interfaces 16 SATA Interfaces (Up to 16 TB capacity per HDD)
RAID Configurations RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, N+1 Hot Spare
Network Interfaces 4 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Ports
Power Supply Redundancy 100–240 VAC, Dual Redundant Power Supply Units
Chassis Form Factor 3U Rack-Mounted Installation Chassis

Frequently Asked Questions

How many camera channels can the DS-96128NXI-S16R manage simultaneously?

It supports up to 128 IP video channels with an total incoming bandwidth capacity of up to 512 Mbps, accommodating high-resolution 4K and 8K streams across enterprise camera deployments.

What storage redundancy options are supported on this NVR?

The unit features 16 hot-swappable SATA bays supporting RAID 0, 1, 5, 6, 10, and N+1 hot spare, protecting continuous footage against individual hard drive failures.

Does the unit feature redundant power supplies?

Yes, the DS-96128NXI-S16R incorporates dual redundant power supply modules to maintain operational continuity in the event of a power supply module failure.

What video outputs are available for multi-monitor display setup?

It provides dual independent HDMI outputs (with HDMI 1 supporting up to 8K resolution display output) alongside VGA ports for multi-screen monitoring centers.

Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-96128NXI-S16R 128-Channel 8K Ultra Series DeepinMind NVR

Product form

SKU: DS-96128NXI-S16R

$9,554.00  $6,429.00 Incl. GST
