Hikvision Ultra Series · DeepinMind

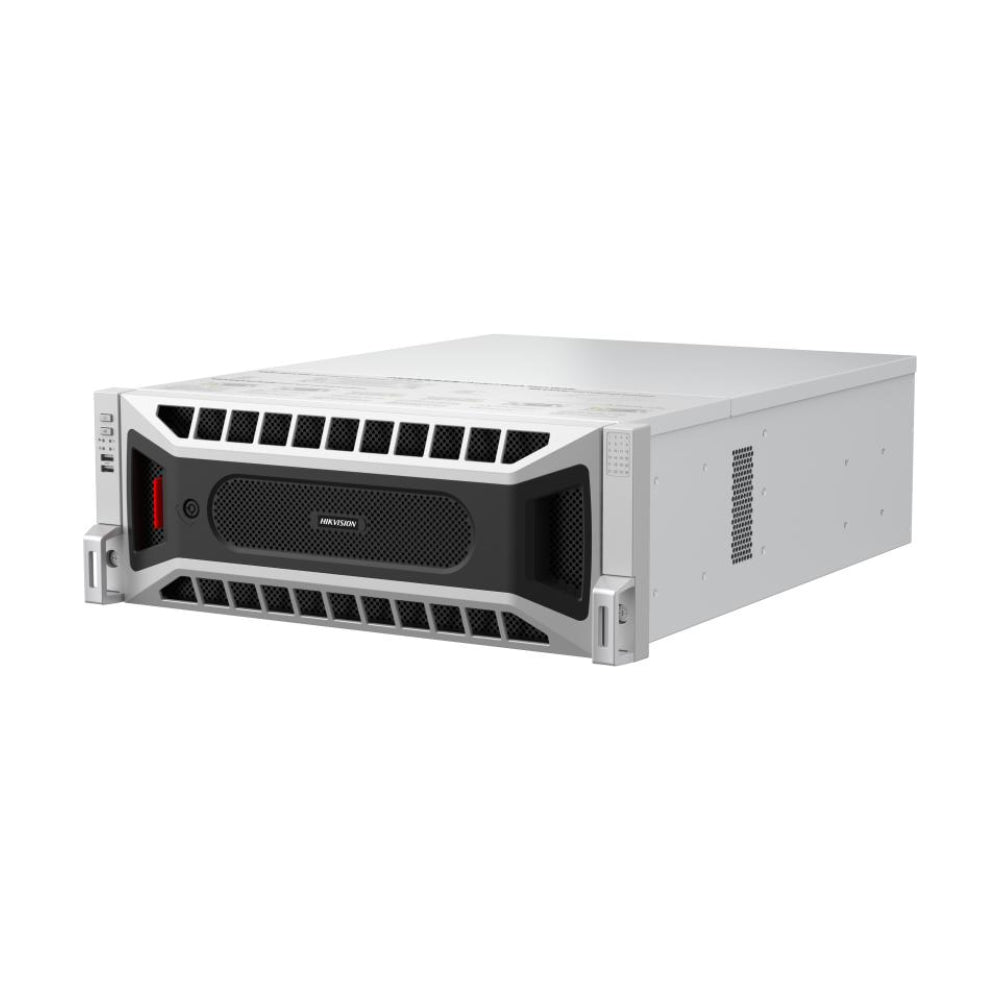

Enterprise-Grade 128-Channel High-Density AI Network Video Recorder
Built for large-scale enterprise infrastructure, transportation hubs, and critical security command centers, the Hikvision DS-96128NXI-S24R provides massive video decoding capabilities and deep learning analytics integration. Supporting up to 128 IP camera channels with video recording resolutions up to 8K, this Ultra Series DeepinMind recorder guarantees maximum operational uptime through 24 hot-swappable SATA drive bays, dual redundant power supplies, and multi-tier RAID storage configurations.
Decoding / Resolution
Up to 8K / 32 MP Recording
Storage Capacity
24 SATA Interfaces (Hot-Swap)
Incoming Bandwidth
512 Mbps High-Throughput
System Redundancy
Dual Power & RAID 0/1/5/6/10
DeepinMind Structural AI Analytics & High-Density Storage Management
The DS-96128NXI-S24R utilizes GPU-accelerated deep learning processing to deliver high-precision perimeter defense, face recognition, and multi-target classification across continuous camera streams. Designed into a high-density 4U rack enclosure, it supports 24 hot-swappable SATA hard drives with comprehensive RAID 0, 1, 5, 6, 10, and N+1 hot spare redundancy options. Hot-swappable dual redundant power supply units ensure uninterrupted operation, rendering it ideal for mission-critical video surveillance centers.
High-Density 24-Bay RAID Array Redundancy
Features 24 hot-swappable SATA drive bays supporting enterprise RAID 0, 1, 5, 6, and 10 configurations. Drive replacement and storage expansion can be executed on-the-fly without service interruption or video recording downtime.
DeepinMind Structural Deep Learning Analytics
Hardware-accelerated AI algorithms significantly filter out false alarms triggered by environmental factors, enabling target detection, human/vehicle classification, and ultra-fast forensic search across high-channel deployments.
Technical Specification Matrix
| NVR Model |
DS-96128NXI-S24R |
| IP Video Input |
128 Channels |
| Incoming / Outgoing Bandwidth |
512 Mbps / 512 Mbps |
| Recording Resolution |
Up to 32 MP / 8K Resolution Support |
| HDMI Output |
2-ch HDMI (HDMI 1 supports up to 8K resolution) |
| SATA Storage Interfaces |
24 SATA Interfaces (Up to 16 TB capacity per HDD) |
| RAID Configurations |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, N+1 Hot Spare |
| Network Interfaces |
4 × RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Ports |
| Power Supply Redundancy |
100–240 VAC, Dual Redundant Power Supply Units |
| Chassis Form Factor |
4U Rack-Mounted Installation Chassis |
Frequently Asked Questions
How many camera streams can the DS-96128NXI-S24R decode and record?
It supports up to 128 IP video channels with an incoming bandwidth capacity of 512 Mbps, capable of handling high-density 4K and 8K resolution video streams simultaneously.
What drive capacity and RAID levels does this recorder support?
The system features 24 hot-swappable SATA bays supporting up to 16 TB per drive, with RAID 0, 1, 5, 6, 10, and N+1 hot spare support for high data redundancy.
Does this model include redundant power supplies?
Yes, the DS-96128NXI-S24R includes dual hot-swappable redundant power supply units, ensuring operational continuity if a power module needs replacement.
What is the difference between the S16R and S24R models?
The DS-96128NXI-S24R provides 24 SATA drive bays in a 4U rack chassis for expanded storage retention, whereas the S16R offers 16 SATA drive bays in a 3U chassis.
