Dahua DHI-LM27-L200N — 27" Full HD 100Hz LED CCTV Monitor (Light Series, 1080p, VESA 100×100, 24/7 Rated)

Description

DAHUA LIGHT SERIES · 27" 100Hz · 24/7 SURVEILLANCE MONITOR

DHI-LM27-L200N 27" Full HD 100Hz LED Monitor — Australian Stock & 3-Year Warranty

The Dahua DHI-LM27-L200N is a purpose-built 27-inch Full HD CCTV monitor from Dahua's Light Series, engineered for continuous 24/7 surveillance operation. A 1920×1080 VA panel at 100 Hz over HDMI with 178°/178° viewing angles, 3000:1 static contrast and 250 cd/m² ELED backlight delivers stable, judder-free playback from any recorder or IP camera live view — ideal for guardhouses, retail counters, IT rooms and small business control rooms.

Slim 51.9 mm depth, standard VESA 100×100 mount pattern, external 12 VDC power adapter and HDMI + VGA inputs make it a drop-in replacement for legacy PC monitors that aren't rated for round-the-clock use.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why this monitor for CCTV

Built for 24/7 duty

Rated for 7×24 h continuous operation — unlike consumer PC monitors that overheat or fail early when left on live-view for months. The right chassis for a guardhouse or unattended NVR display.

100 Hz over HDMI

100 Hz refresh smooths fast pans and cursor motion when you scrub timelines. Response time OD 5 ms keeps moving subjects clean without ghost trails.

VA panel, wide angle

178° horizontal + 178° vertical viewing so the picture stays true from any position around the counter. 3000:1 static contrast keeps night footage crisp instead of hazy.

Universal signal inputs

HDMI 1.4 (1080p @ 100 Hz) + VGA (1080p @ 60 Hz) covers current Dahua/Hikvision/UNV NVRs, older analogue DVRs and any PC-based VMS — no dongles.

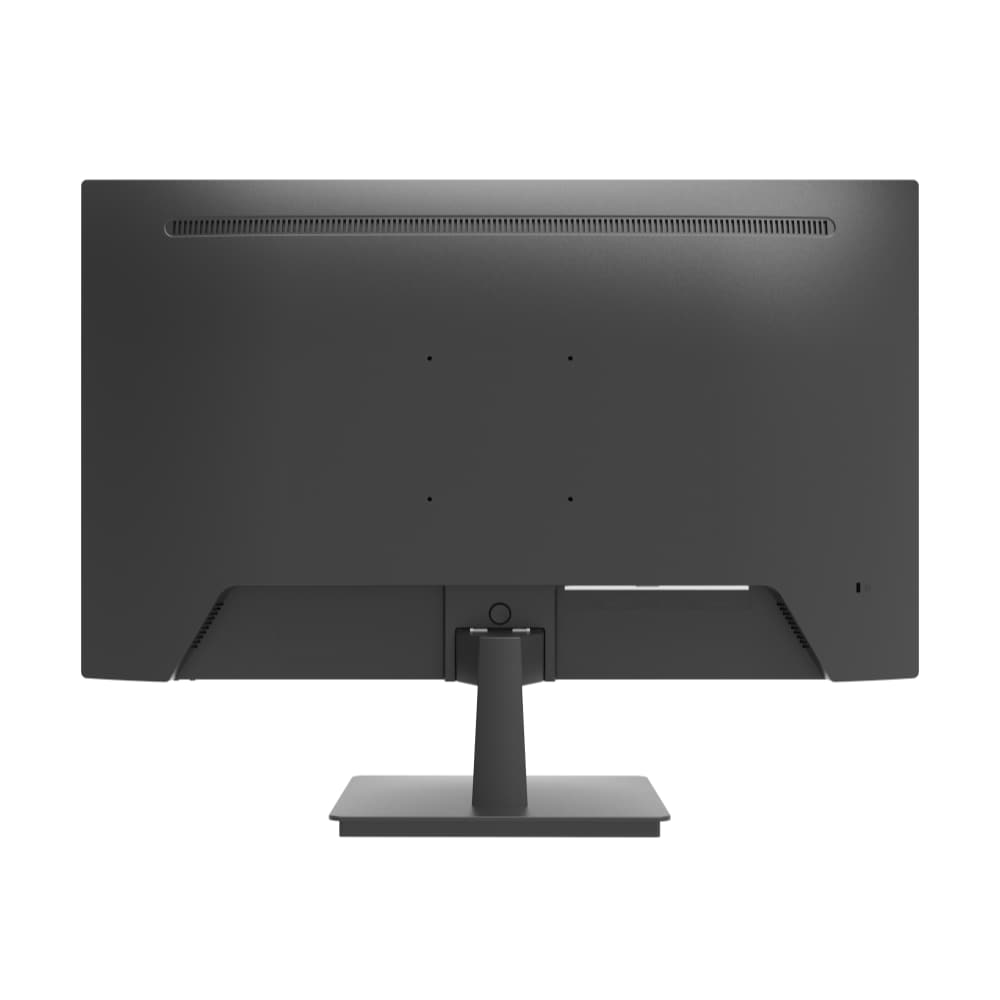

Slim + VESA-mount ready

Just 51.9 mm deep and 3.8 kg net weight with a VESA 100×100 pattern — wall mount above a desk, arm-mount over a counter, or leave it on the included base.

Low power, low heat

18.5 W typical and <0.5 W standby off the external 12 VDC / 3 A supply. Runs cool 24/7 with no fan noise.

Display & picture
Screen size 27" (16:9)
Panel technology VA LCD, ELED backlight
Native resolution 1920 × 1080 (Full HD)
Refresh rate 100 Hz over HDMI · 60 Hz over VGA
Response time OD 5 ms
Brightness 250 cd/m² (typ.)
Contrast ratio 3000:1 (static)
Colour depth 8-bit
Colour gamut 72% NTSC (typ.)
Viewing angle 178° horizontal · 178° vertical
Duty cycle 7 × 24 h continuous operation
Bezel colour Black
Connectivity & mount
Video inputs 1 × HDMI 1.4 · 1 × VGA
Built-in speakers No
Audio jack No
USB / DisplayPort None
VESA mount pattern 100 × 100 mm
Included stand Yes — desktop base
Power, physical & environment
Power supply 12 VDC / 3 A (external adapter, included)
Power consumption 14 W (basic) · 18.5 W (typical) · 19 W (max)
Standby power < 0.5 W
Dimensions (W×H×D) 615.0 × 365.7 × 51.9 mm (without base)
Net weight 3.8 kg
Operating temperature 0 °C to +40 °C
Operating humidity 10% – 85% RH
Storage temperature −20 °C to +60 °C
Certifications CE EMC · CE LVD · CE ERP
Best used for

Guardhouse & reception

Continuous NVR live-view display beside a front-desk operator — runs 24/7 with a wall-mount arm.

Retail counter & back office

Compact 27" screen for split-view monitoring at POS, IT room or manager's desk.

Small business control room

Pair two side-by-side on a VESA arm for a 2-up 1080p wall — sub $ per pixel vs a dedicated video wall.

Legacy DVR replacement

VGA input keeps older HDCVI/analogue DVRs going while HDMI supports current 4K NVRs downscaled to 1080p.

Works with

Dahua NVRs & XVRs

HDMI output from every current Dahua WizSense / WizMind NVR and XVR series — native 1080p on this panel.

Hikvision & HiLook recorders

HDMI 1.4 input matches all M-Series and DeepinMind NVR HDMI outs at 1080p.

UNV & other IP NVRs

Standard HDMI signalling — works with any recorder that outputs 1080p or lower on HDMI.

Older analogue DVRs

VGA fallback for legacy HDCVI / analogue installs still on VGA-only outputs.

Installation notes
  • Included in box: monitor, desktop base, HDMI cable, external 12 VDC power adapter, QSG.
  • No built-in speakers — drive audio from your NVR's dedicated audio output to external speakers if you need sound at the display.
  • For wall/arm mount, source a VESA 100×100 bracket (not included). Screw specification per QSG.
  • HDMI cable run length: keep under 10 m using a standard HDMI 1.4 cable for reliable 1080p @ 100 Hz. For longer runs, use an HDBaseT or fibre HDMI extender.
  • Operating temperature is 0 – 40 °C — not suitable for un-cooled outdoor kiosks in AU summer without shade + ventilation.
Frequently asked questions
Is this monitor rated for 24/7 CCTV use?
Yes — Dahua rate the LM27-L200N for 7×24 h continuous operation. That's the key difference vs a consumer desktop monitor, which is only warrantied for ~10 hrs/day of use.
What's the highest resolution it supports?
Native 1920×1080 (Full HD) at 100 Hz over HDMI. If your NVR outputs 4K, it will downscale to 1080p on this panel.
Does it have built-in speakers?
No — there are no speakers and no headphone jack on this model. Use your NVR's dedicated audio output to external powered speakers.
Can I wall-mount it?
Yes — standard VESA 100×100 mm pattern. Any VESA 100 wall mount or monitor arm will fit. Bracket not included.
What's the difference between HDMI and VGA on this monitor?
HDMI 1.4 supports 1080p at 100 Hz. VGA runs at 60 Hz max. Use HDMI wherever possible for smoother playback.
Will it work with my old analogue DVR?
Yes — the VGA input keeps older HDCVI/analogue DVRs working. If your DVR has HDMI out, use HDMI instead for cleaner picture.
What warranty does it come with?
3 years Australian warranty, supported locally by CCTV Guru. Return direct to us for RMA — no overseas shipping required.
Is the power supply included?
Yes — a 12 VDC / 3 A external adapter is included in the box. Plugs into standard AU wall power via IEC cable.
Downloads
Datasheet (PDF)

Full user manual and installation guide are supplied in-box with the monitor (paper QSG + QR code to the online manual). Contact CCTV Guru if you need a digital copy for pre-sales review.
