Hikvision ACCESS CONTROL ACCESSORIES

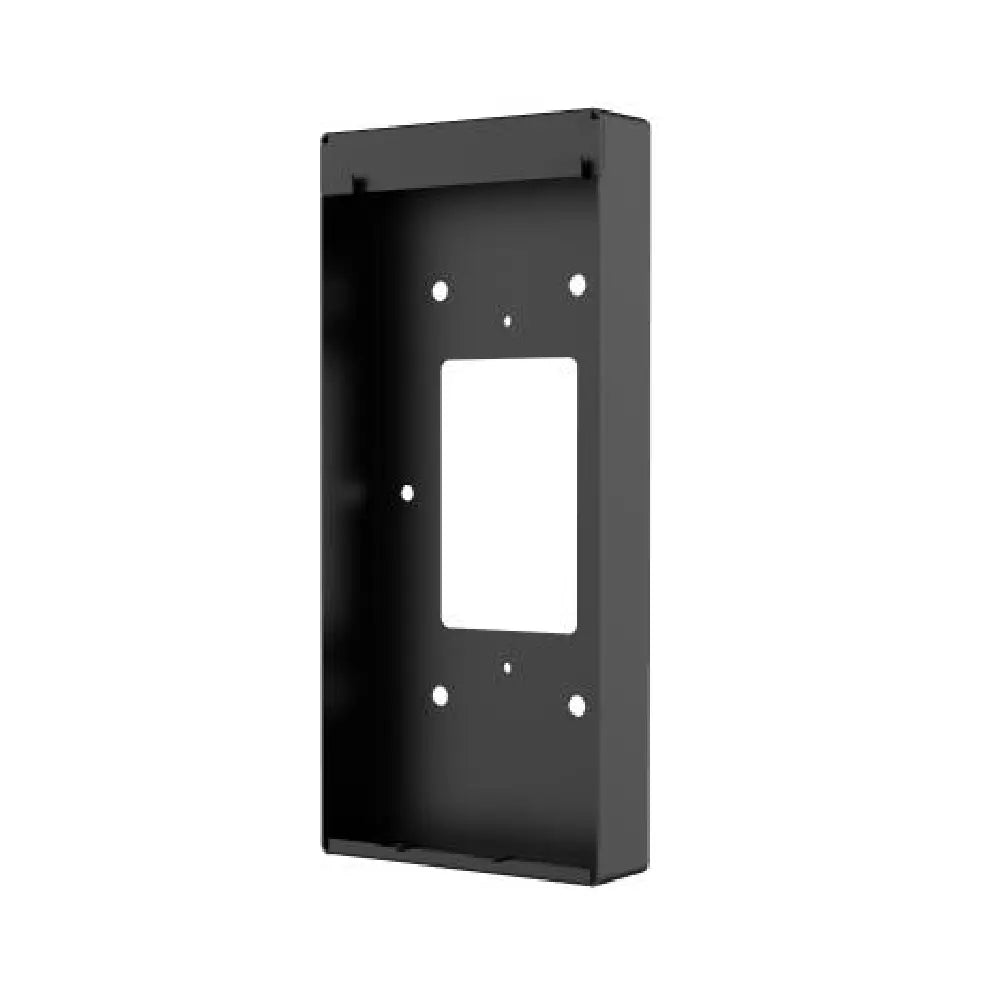

Professional Surface Mounting Base for Access Terminals
The Hikvision DS-KAB502-S2 surface mounting box provides a clean, robust, and reliable wall-mounting interface engineered specifically for the Hikvision DS-K1T502 series access control terminals. Built to streamline commercial entry deployments, this surface back box eliminates complex wall recessing while ensuring structural stability and protected cable routing across office lobbies, multi-residential entry points, and high-density secure facilities.
Mounting Type
Surface Mount Base
Material Build
Durable SECC Steel
Compatibility
DS-K1T502 Series
Dimensions
176 × 80 × 22.8 mm
Engineered for Fast Retrofits & Cable Protection
Designed as a purpose-matched mounting solution, the Hikvision DS-KAB502-S2 simplifies installation where recessed wall cutting is impractical or prohibited. Constructed from high-quality electrolytic zinc-coated cold-rolled steel (SECC), it maintains structural integrity and corrosion resistance over long-term operation. The low-profile back box securely encloses wire connections, mitigating cable strain and preventing tampering while preserving a sleek commercial finish.
Precision Alignment & Quick Installation
Custom-engineered mounting hole patterns directly match DS-K1T502 terminals, eliminating custom bracket fabrication and significantly cutting installation time for security technicians.
Rugged SECC Steel Construction
Manufactured with commercial-grade SECC steel to shield terminal wiring connections against accidental impact, wear, and physical tampering in busy access environments.
Technical Specification Matrix
| Camera / Device Model |
DS-KAB502-S2 |
| Product Type |
Surface Mounting Box / Wall Mounting Bracket |
| Compatible Devices |
Hikvision DS-K1T502 Series Access Control Terminals |
| Material |
SECC (Electrolytic Zinc-Coated Cold-Rolled Steel) |
| Dimensions (W × H × D) |
176 mm × 80 mm × 22.8 mm (6.9" × 3.1" × 0.9") |
| Weight |
Approx. 145.1 g (0.32 lb) |
| Mounting Method |
Wall Surface Mount |
| Compatibility Note |
Not compatible with rain shield DS-KAB502-S1 |
Which devices are compatible with the DS-KAB502-S2?
This surface mounting box is specifically designed for Hikvision DS-K1T502 series access control terminals and intercom units.
What material is used in the construction of this mounting back box?
The DS-KAB502-S2 is crafted from high-strength SECC steel (electrolytic zinc-coated cold-rolled steel), offering long-term durability and corrosion resistance.
Can this mounting box be used alongside the DS-KAB502-S1 rain shield?
No, this surface back box is not compatible with the DS-KAB502-S1 rain shield. Please verify your installation environment requirements before selection.
Why choose surface mounting over recessed installation?
Surface mounting avoids cutting or chasing walls, making it ideal for retrofits, solid concrete surfaces, or decorative walls where recessed mounting is impractical.
