Hikvision DeepinView · 8MP 4K · DarkFighter · 120 dB WDR · Face Capture
Hikvision DeepinView 4K Dome

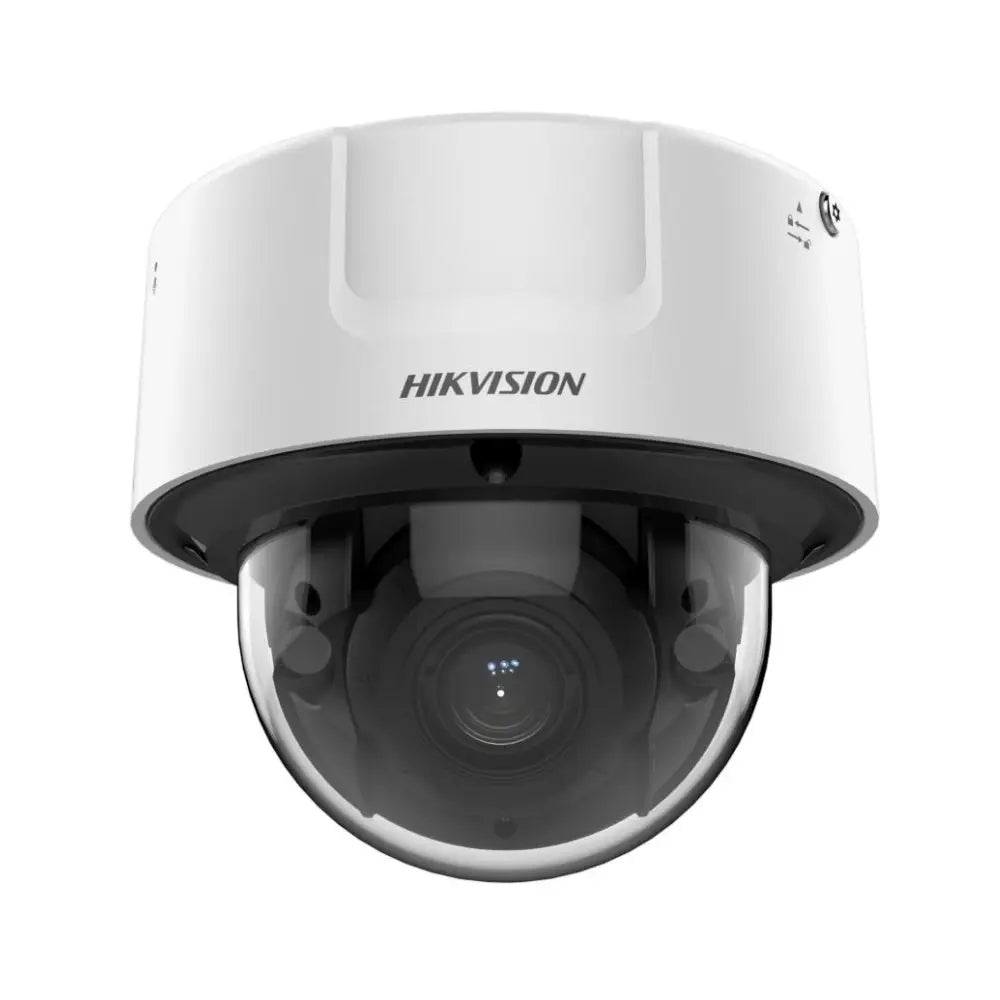

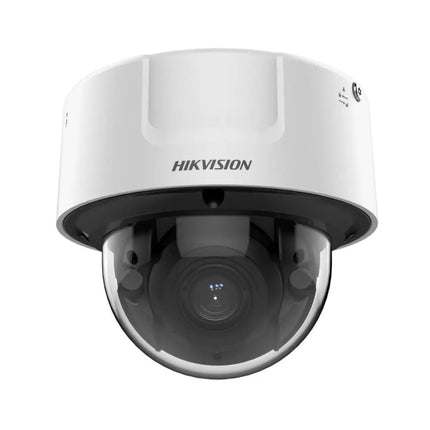

Hikvision iDS-2CD7186G0-IZS — 8MP 4K DeepinView Motorized Varifocal Dome with DarkFighter, Deep Learning Face Capture & Perimeter Protection
The Hikvision iDS-2CD7186G0-IZS is a premium DeepinView intelligent dome camera engineered for critical infrastructure, commercial campuses, transport hubs and high-security enterprise sites where a standard AcuSense camera isn't enough. A 1/1.8" progressive CMOS streams true 4K UHD (3840 × 2160), and a 2.8-12 mm motorized varifocal lens gives you remote scene setup without a ladder. Backed by DarkFighter ultra-low-light (0.003 lux colour), 120 dB True WDR and 30 m Smart IR for round-the-clock imaging. Onboard deep-learning analytics deliver face capture, human/vehicle perimeter protection, multi-target detection and queue management — trained models running natively on the camera, no server needed. 3-year Australian warranty, back-to-base through Hikvision Australia by CCTV Guru.
Resolution
8 MP · 3840 × 2160 · 4K UHD
Lens
2.8-12 mm Motorized Varifocal · F1.2
Low-Light
DarkFighter · 0.003 lux · 30 m Smart IR
Wide Dynamic Range
120 dB True WDR
DeepinView AI
Face Capture · Perimeter · Multi-Target
Protection
IK10 · IP67 · Vandal-Resistant
DeepinView — What Actually Makes This Camera Different
DeepinView is Hikvision's dedicated AI camera family — one step above AcuSense in the range hierarchy. Where AcuSense filters false alarms on humans and vehicles, DeepinView runs trained deep-learning models on the camera itself: face capture with attribute detection, multi-target tracking across the frame, queue-length analytics, and perimeter classification tuned per-scene. The camera reduces false alarms by up to 90% versus a conventional analytics camera because it's actually recognising the object type — not just detecting motion. For sites where an operator can't afford to chase phantom alerts (retail loss prevention, transport terminals, campus perimeters), DeepinView pays for itself in labour hours saved.
DarkFighter Ultra-Low-Light Imaging
0.003 lux colour sensitivity at F1.2 with AGC on, 0 lux with IR. Full colour imaging in near-total darkness — useful for retail, hospitality and public spaces where night IR washout looks unwelcoming. Auto switch to monochrome IR when ambient drops further.
Face Capture with Attribute Detection
Onboard face capture with age / gender / glasses / mask attribute detection. Faces are extracted, cropped and timestamped in real time — reduces bandwidth compared to full-frame recording and simplifies post-incident search on the NVR side.
Perimeter Protection with H/V Classification
Line crossing, intrusion, region entrance and exit rules — all with human and vehicle classification so the alarm only fires on what actually matters. Ignores animals, foliage, headlights and precipitation.
Multi-Target Detection & Queue Management
Tracks multiple people or vehicles simultaneously across the frame — useful for entry counts, dwell-time analytics, and monitoring queue lengths at checkouts, boarding gates and reception areas.
120 dB True WDR
Handles high-contrast scenes — sunlit doorways backed by dark interiors, sunrise glare, indoor-to-outdoor transitions. Preserves detail in both the bright and dark regions of the frame simultaneously.
2.8-12 mm Motorized Varifocal Lens
Remote-adjustable focal length and auto-focus. Installers set the frame once from a laptop or NVR — no lens twiddling on a ladder. Wide 2.8 mm for entry monitoring; 12 mm long-throw for corridor or lot-boundary detail.
Ideal Deployments — Where DeepinView Earns Its Price
Retail Loss Prevention
Face capture at entries and checkout aisles, plus queue-length monitoring for staffing decisions. Deep-learning classification catches the shoplifter walk-out pattern that simple motion analytics misses.
Transport Terminals & Boarding Gates
High-throughput environments where operators can't watch every screen. Face capture streams the metadata to the NVR for later search; multi-target detection tracks flow rates and dwell times.
Campus Perimeters & Building Approaches
Human/vehicle classified line-crossing along fences, boundaries and access driveways — filters out wildlife, wind-blown vegetation and headlight reflections. Alerts operations only on real events.
Financial & Enterprise Reception
Face capture at building entries with attribute detection — feeds into visitor management workflows and after-hours access review. IK10 vandal resistance for public-space installs.
Technical Specifications
iDS-2CD7186G0-IZS · Full Specifications
| SKU |
iDS-2CD7186G0-IZS (AU stock) |
| Camera Type |
Hikvision DeepinView Series · 4K Motorized Varifocal Dome · Deep Learning AI |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 (8 MP / 4K UHD) |
| Main Stream |
25/30 fps @ 3840 × 2160 · 2560 × 1440 · 1920 × 1080 |
| Lens |
2.8-12 mm Motorized Varifocal · Auto-Focus · F1.2 |
| Field of View |
111°–43.7° (horizontal, wide to tele) |
| Min. Illumination |
Colour: 0.003 lux @ F1.2 (AGC ON) · 0 lux with IR |
| Wide Dynamic Range |
120 dB True WDR |
| Shutter Speed |
1 s to 1/100,000 s |
| IR Distance |
Up to 30 m · Smart IR intensity + angle auto-adjust |
| Video Compression |
H.265+ · H.265 · H.264+ · H.264 · MJPEG |
| Deep Learning Functions |
Face Capture · Perimeter Protection (H/V classified) · Multi-Target Detection · Queue Management |
| Face Capture |
Attribute detection (age / gender / glasses / mask) · Face library matching (via NVR) |
| Perimeter Rules |
Line crossing · Intrusion · Region entrance · Region exiting · Human + Vehicle classification |
| Audio |
1× audio in, 1× audio out (3.5 mm) · G.711 / G.722.1 / G.726 / MP2L2 · Audio detection |
| Alarm I/O |
1 input · 1 output |
| Ethernet |
1× RJ-45 10/100 Mbps |
| Protocols |
IPv4/IPv6 · HTTPS · 802.1X · QoS · FTP · SMTP · UPnP · SNMP · DNS · DDNS · NTP · RTSP · TCP · UDP · IGMP · DHCP · Bonjour · SRTP · TLS |
| Storage |
microSD / SDHC / SDXC up to 256 GB · NAS · ANR (Auto Network Replenishment) |
| API |
ISAPI · Hikvision SDK · ONVIF (Profile S / G / T)
|
| Client Software |
iVMS-4200 · Hik-Central Professional · Hik-Connect |
| Power |
12 VDC · 24 VAC · PoE 802.3af Class 3 (max ≈ 12 W with IR) |
| Weatherproof |
IP67 (IEC 60529) |
| Vandal Resistance |
IK10 |
| Operating Temperature |
−30 °C to +60 °C · humidity ≤95 % |
| Warranty |
3-Year Australian Warranty (back-to-base) |
Pair with a Hikvision AcuSeek or DeepinMind NVR
DeepinView cameras generate rich metadata — face captures, attribute tags, human/vehicle detections. That metadata is only fully useful if your NVR indexes it. Standard M-Series NVRs record the camera reliably, but for natural-language search across the recording, step up to an AcuSeek (VPro) or DeepinMind NVR that indexes the DeepinView metadata for post-incident search.
AcuSeek VPro Series
Natural-language search across recordings — "show me all people wearing red between 2 pm and 4 pm at Camera 3." Indexes face-capture metadata from DeepinView cameras. Browse AcuSeek NVRs →
DeepinMind AI NVRs
Enterprise AI NVR family — face-library matching, cross-camera tracking, alarm correlation. For 4-16+ DeepinView cameras. Browse DeepinMind range →
Frequently Asked Questions
What's the difference between DeepinView and AcuSense?AcuSense filters false alarms with human/vehicle classification. DeepinView runs deep-learning trained models on the camera — face capture with attribute detection, multi-target tracking, queue analytics, plus everything AcuSense does. DeepinView is the tier above AcuSense in Hikvision's range.
How does the motorized varifocal lens work?The 2.8-12 mm zoom and focus are controlled remotely via the NVR, web interface, iVMS-4200 or Hik-Connect app. Installers set the frame once from a laptop, then leave the camera alone. No ladder needed for scene adjustments.
Does face capture require a separate face-recognition server?Face capture (detection + attribute tagging + cropping) runs on the camera itself. Face recognition / matching against a library requires a DeepinMind NVR or Hik-Central server. The camera streams the captured face images for the server to match.
What power supply options does the camera support?PoE 802.3af Class 3, 12 VDC, or 24 VAC. Runs on any standard Hikvision NVR PoE port — no Hi-PoE injector needed. Full max power draw approximately 12 W with IR at full range.
Is the camera vandal- and weather-rated?Yes — IP67 weather-rated (dust-tight + immersion) and IK10 vandal-rated (20-joule impact resistance). Suitable for outdoor mounting under eaves, on approach paths, in car parks, on wall mounts and at accessible ceiling heights in indoor public spaces.
Can I integrate with a non-Hikvision VMS?Yes — the camera speaks ONVIF Profile S, G and T and RTSP. Compatible with Milestone XProtect, Genetec, Exacq, Immix and most other Australian VMS platforms. Note: DeepinView-specific metadata (face captures, attribute tags) is only fully indexed on Hikvision NVRs / Hik-Central.
Downloads & Resources
Order the Hikvision iDS-2CD7186G0-IZS from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision DeepinView range. The iDS-2CD7186G0-IZS is a specialist AI camera — for buyers who understand the DeepinView tier and know why they want it. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, and specialist pre-sales advice on face-capture / perimeter deployments from our Sydney team. Request a free quote or contact our Australian team.
