Hikvision PREMISES DISTRIBUTION · NDAA & TAA COMPLIANT
Commercial-Grade 12U Storage for Critical Infrastructure

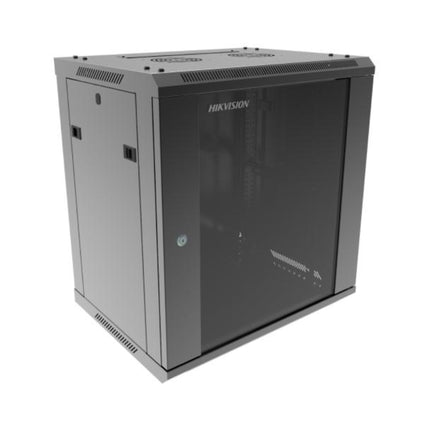

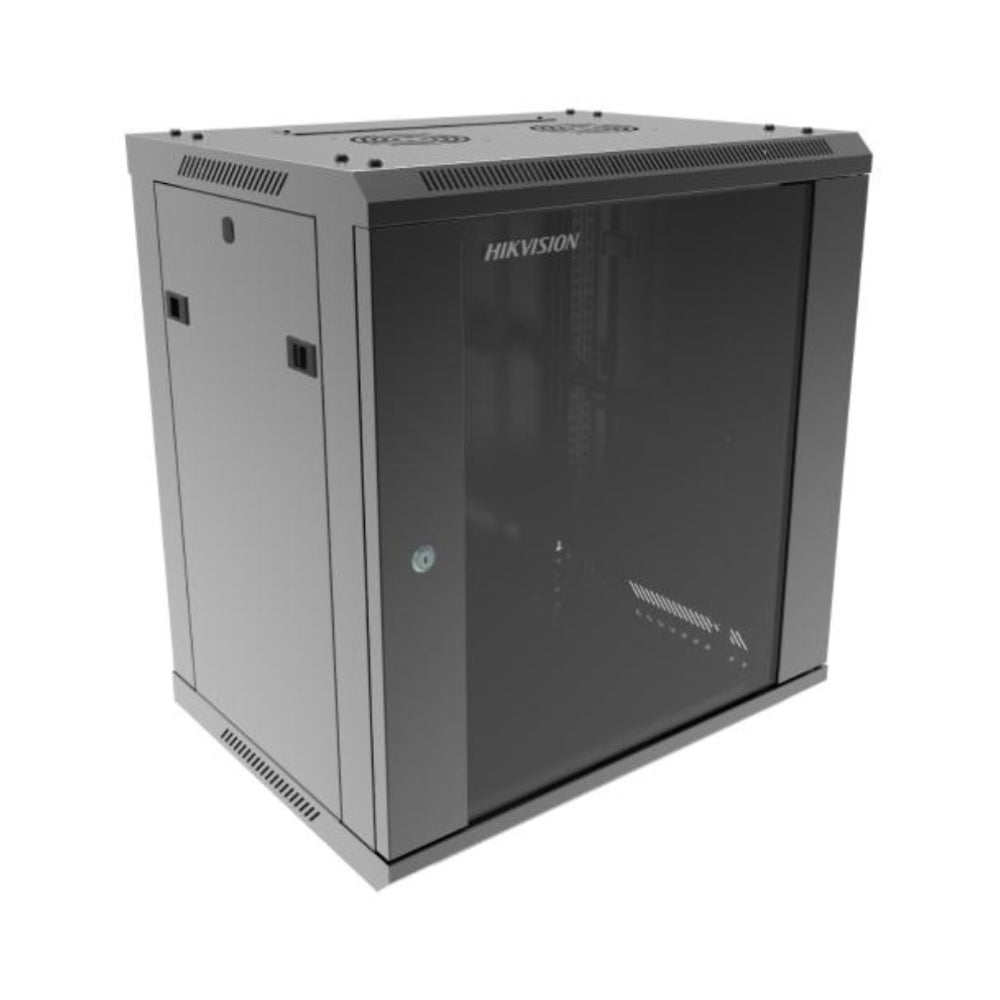

The DS-XS6412-S/B from Hikvision delivers a reliable, organized, and secure housing solution tailored for enterprise networking equipment, NVR systems, PoE switches, and patch panels. Engineered specifically for commercial security installations, telecommunications rooms, and edge computing environments, this 12U rack unit combines heavy-duty cold-rolled steel construction with a compact wall-mounting footprint. It keeps critical hardware safe, well-ventilated, and easy to maintain in space-constrained operational hubs.
Rack Standard
12U 19-Inch
Dimensions
600 × 450 × 635mm
Load Capacity
40 kg Static Rating
Enclosure Security
Lockable Glass Door
Optimized Thermal Management and Seamless Accessibility
Building high-uptime security and network deployments requires intuitive cable routing and efficient thermal control. The Hikvision DS-XS6412-S/B Enclosure features top and bottom closeable cable entry ports alongside 78% front-door ventilation cutouts to keep operational temperatures low under continuous load. Equipped with a 4mm toughened safety-glass door and quick-release side panels, technicians gain rapid visual inspection and 360-degree maintenance access while maintaining complete lockable physical security against unauthorized access.
Industrial SPCC Cold-Rolled Steel Construction
Manufactured using heavy-gauge SPCC steel (1.5mm vertical rails, 1.2mm frame beams, and 1.0mm side panels) to support active electronic workloads up to 40 kg without chassis deflection.
Simplified Cable Routing & Maintenance
Features top and bottom cable knockouts and removable snap-in side panels, simplifying complex fiber and Ethernet patching during initial installation or system upgrades.
Technical Specification Matrix
| Camera Model |
DS-XS6412-S-B |
| Rack Capacity |
12U (19-inch ETSI standard compliant) |
| External Dimensions (W × D × H) |
600 mm × 450 mm × 635 mm |
| Static Load Rating |
40 kg (88 lbs) |
| Front Door Type |
4mm Tempered Glass with 1.0mm SPCC Steel Frame |
| Door Opening Angle |
78% Front Door Opening Angle |
| Steel Thickness Specifications |
Rails: 1.5mm | Frame: 1.2mm | Panels: 1.0mm |
| Color & Finish |
Black Powder Coat (RAL 9005) |
| Net Enclosure Weight |
21 kg (empty) |
How much total equipment weight can the DS-XS6412-S/B support safely?
The cabinet supports a maximum static load of 40 kg. Always verify that your wall mounting hardware and substrate are rated to carry the combined weight of the cabinet (21 kg) and internal equipment (up to 61 kg total).
Will standard 19-inch rackmount NVRs and PoE switches fit inside this depth?
Yes. With a 450mm outer depth, it comfortably accommodates standard 19-inch patch panels, managed PoE switches, and short-depth NVR/DVR units along with rear cable bend clearance.
Are fans, shelves, or Power Distribution Units (PDUs) included?
No, active cooling fan kits, internal cantilever shelves, and rack-mount PDUs are optional modular accessories ordered separately based on specific thermal and power requirements.
Is the front tempered glass door reversible and lockable?
Yes, the front 4mm tempered glass door comes with a dedicated key lock assembly to safeguard your active networking hardware against unauthorized tampering.
