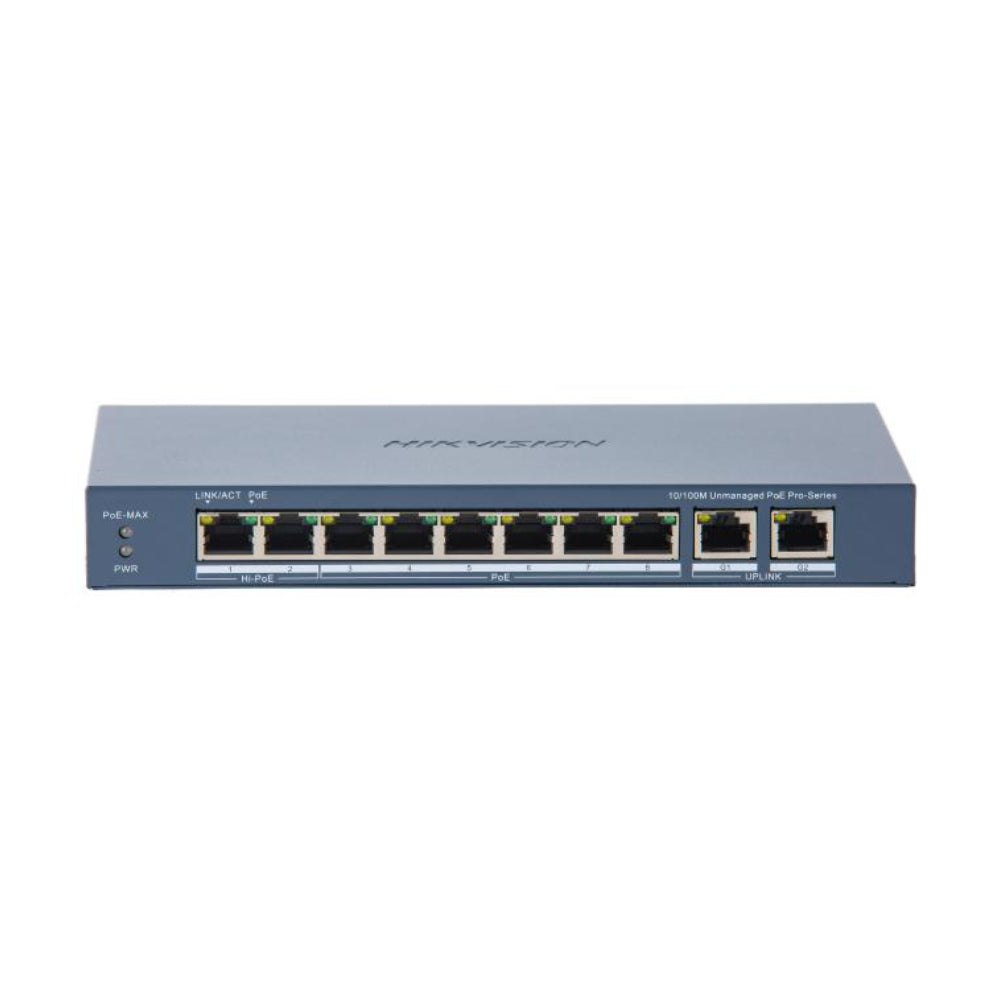

Hikvision DS-3E0310HP-E-C 8-Port Fast Ethernet Unmanaged Hi-PoE Switch

Description

HIKVISION UNMANAGED SERIES

High-Power 8-Port Unmanaged Hi-PoE Switch with Dual Gigabit Uplinks

Streamline high-power IP camera installations, PTZ speed domes, and edge surveillance networks with the HIKVISION DS-3E0310HP-E(C). Engineered to deliver reliable power and data transmission in plug-and-play environments, this Layer 2 unmanaged switch features 8 Fast Ethernet PoE ports alongside 2 dedicated Full Gigabit RJ45 uplink ports. Ports 1 and 2 conform to the ultra-high-power IEEE 802.3bt Hi-PoE standard, supplying up to 90 W on a single port to drive heavy-duty outdoor heating PTZs and access control panels with ease.

Port Configuration
8 × 10/100M PoE + 2 × 1G Uplink
Power Delivery
90 W Hi-PoE (Ports 1-2) / 110 W Budget
Transmission Range
300m Extended Mode Support
Protection & Self-Healing
6 kV Surge & PoE Watchdog

Hardware DIP Switch Control & Automated Camera Recovery

Built for maximum reliability in harsh installation sites, the DS-3E0310HP-E(C) incorporates hardware DIP switches for instant feature toggling without software setup. Engage Long Range mode to extend power and data transmission up to 300 meters on ports 1 through 8 over Cat5e/Cat6 cabling. Turn on Port Isolation to prevent broadcast storms and insulate camera feeds from internal network sniffing. With built-in hardware PoE Watchdog, the switch continuously checks connected IP cameras and automatically performs a port power reset if a camera stops responding, preventing unnecessary maintenance callouts.

Dual 90 W IEEE 802.3bt Hi-PoE Ports

Ports 1 and 2 deliver up to 90 W output per port using 802.3bt Hi-PoE technology, providing high power to PTZ domes, long-range infrared illuminators, and multi-sensor cameras without requiring external power injectors.

Fanless Metal Housing & 6 kV Surge Rating

Encased in a durable, fanless metal shell designed for silent, reliable heat dissipation. Integrated 6 kV surge protection shields all network interfaces against outdoor lighting strikes and high electrical surges.

Technical Specification Matrix
Switch Model DS-3E0310HP-E(C)
Network Ports 8 × 10/100 Mbps PoE RJ45, 2 × 10/100/1000 Mbps RJ45 Uplinks
PoE Standard Ports 1-2: IEEE 802.3af/at/bt; Ports 3-8: IEEE 802.3af/at
Max Output Power per Port Ports 1-2: Up to 90 W per port; Ports 3-8: Up to 30 W per port
Total PoE Power Budget 110 W
Switching Capacity 5.6 Gbps
Packet Forwarding Rate 4.17 Mpps
Long Range PoE Mode Up to 300 meters (Ports 1 to 8)
Surge Protection 6 kV (PoE Ports)
Housing & Power Supply Metal Shell (Fanless); 54 VDC, 2.22 A Power Adapter Included

Frequently Asked Questions

What type of devices should I connect to the Hi-PoE ports?

Ports 1 and 2 support IEEE 802.3bt Hi-PoE up to 90 W per port, making them ideal for power-hungry devices like motorized PTZ speed domes, thermal cameras, or multi-sensor cameras.

How does the 300-meter Long Range mode function?

When Long Range mode is enabled via the front-panel switch, ports 1 through 8 extend network and power delivery up to 300 meters at a stabilized 10 Mbps connection speed.

How does PoE Watchdog prevent camera downtime?

PoE Watchdog continuously monitors communication with connected IP devices. If an IP camera becomes unresponsive, the switch automatically cycles power on that port to force a hard reboot.

Why are Gigabit uplink ports important on this switch?

The 2 dedicated Gigabit RJ45 uplink ports provide high-bandwidth connections directly to your NVR or core network router, preventing video bottlenecking from the 8 Fast Ethernet camera ports.

Technical Datasheet Quick Start Guide
Official HIKVISION Stock
Commercial Warranty
Aust-Wide Delivery
