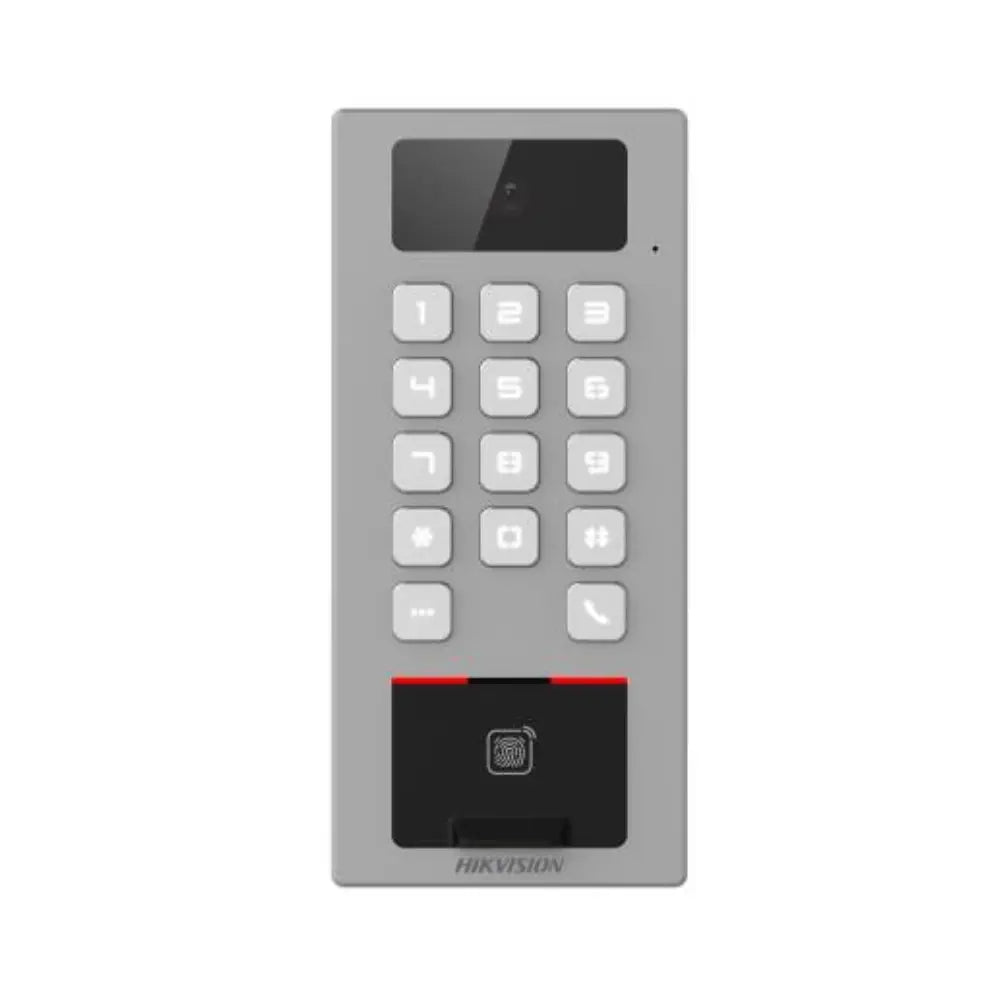

Hikvision DS-K1T502DBFWX-CE1 2MP IP65 IK09 Pro Series Fingerprint & Card Access Control Terminal

Description

Hikvision Pro Series

Next-Gen Multi-Credential Security for High-Traffic Commercial Facilities

The DS-K1T502DBFWX-CE1 is a high-performance access control and video intercom terminal designed for demanding commercial, industrial, and multi-tenant residential environments. Engineered with a heavy-duty zinc alloy enclosure rating at IP65 weather resistance and IK09 vandal protection, this Pro Series terminal delivers robust perimeter defense against environmental hazards and unauthorized physical tampering. Combining high-capacity biometric fingerprint scanning, 13.56 MHz Mifare/DESFire card recognition, digital PIN entry, Bluetooth mobile credentials, and dynamic QR code authentication, the unit provides complete versatility for enterprise access management.

Camera & Capacity
2MP HD / 10,000 Fingerprints
Authentication
Biometric, Card, PIN, QR & BT
Connectivity
PoE, Wi-Fi & SIP Intercom
Protection
IP65 Weather / IK09 Vandal

Unified Video Security & Intelligent Access Protocols

Featuring an integrated 2MP full HD camera with wide field-of-view (110° HFOV) and two-way audio supporting SIP 2.0 protocols, the Hikvision DS-K1T502DBFWX-CE1 bridges the gap between traditional door controllers and smart video intercoms. Security operators can perform live video verification, communicate directly with visitors, and execute remote door releases via the Hik-Connect mobile app or iVMS-4200 management platform. Standard IEEE 802.3at/af PoE capability allows streamlined single-cable deployments, while full Wiegand and RS-485 interfaces ensure seamless backward compatibility with existing master access controllers.

Capacitive Biometrics & Multi-Factor Auth

Equipped with an advanced optical/capacitive fingerprint sensor processing fast matching under 1 second. Supports up to 10,000 fingerprints and 100,000 card records with dual-factor combinations for elevated security zones.

SIP 2.0 Two-Way Audio Intercom

Features built-in microphone and loudspeaker supporting standard SIP protocols for integration with IP-PBX systems, indoor master stations, or cloud mobile devices.

Technical Specification Matrix
Camera Model DS-K1T502DBFWX-CE1
Operating System Linux
Camera Resolution & Lens 2 MP HD, HFOV = 110°, VFOV = 81°, DFOV = 122°
Capacity 10,000 Fingerprints, 100,000 Cards, 300,000 Event Records
Credential Types Fingerprint, Mifare (13.56 MHz), DESFire, PIN, Dynamic QR Code, Bluetooth
Network & Communication TCP/IP (10/100M Ethernet), Wi-Fi 2.4G, RS-485, Wiegand (Hik 26/34 bit)
Door Interfaces Lock Control Relays x2, Door Contact Input x1, Exit Button Input x1, Alarm Input x2, Alarm Output x1
Ingress & Impact Protection IP65 Dust/Water Resistant, IK09 Anti-Vandal Cast Alloy Housing
Power Supply & Draw Standard IEEE 802.3at/af PoE / 12 VDC to 24 VDC (1 A, Max 24 W)
Operating Temperature -40 °C to +65 °C (-40 °F to 149 °F)
How does the DS-K1T502DBFWX-CE1 handle outdoor installations?

The unit features an IP65 ingress rating and an IK09 vandal-proof zinc alloy housing, making it resilient against continuous rain, extreme temperatures (-40°C to +65°C), dust, and physical impact.

Can this device operate direct door lock power?

Yes, when powered via standard PoE, the unit supports direct 12V 1A power output to trigger connected electronic door strikes or magnetic locks without requiring an additional local power supply.

What software platforms are compatible with this unit?

The terminal integrates directly with Hikvision iVMS-4200, HikCentral Enterprise software, and the Hik-Connect mobile app for cloud-based remote access and mobile notifications.

Does it support legacy access controllers via Wiegand?

Yes, it includes standard Wiegand (26/34 bit) output and RS-485 interfaces, allowing it to function as a slave biometric reader connected to existing master control panels.
