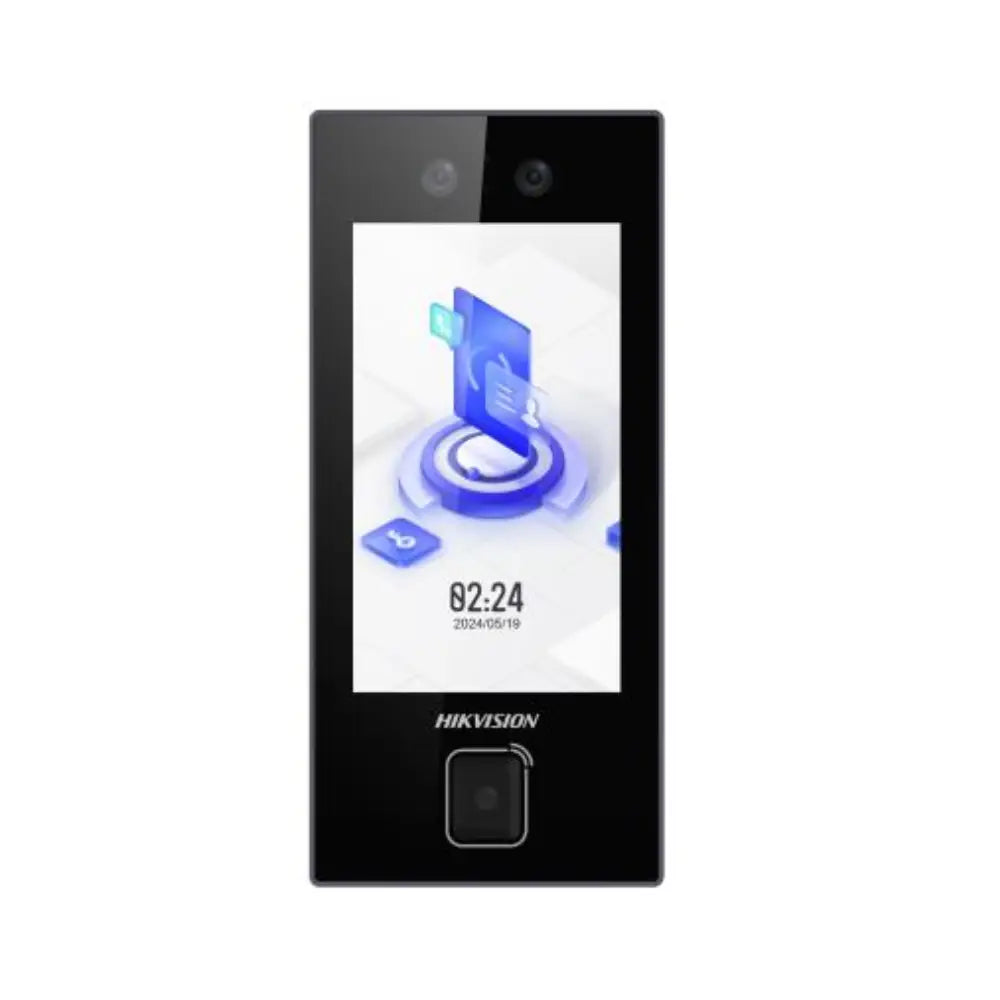

Hikvision DS-K1T344MBWX-QRE1 2MP 4.5" Touchscreen Face Recognition Terminal

Description

Hikvision Value Series

Enterprise Biometric Access & Time Attendance Terminal

The Hikvision DS-K1T344MBWX-QRE1 is a high-performance, versatile face recognition access control terminal designed for high-density commercial facilities, corporate office towers, and financial institutions. Built around an advanced deep learning algorithm, this terminal delivers rapid authentication in under 0.2 seconds per user with an accuracy rate exceeding 99%. Featuring a vibrant 4.5-inch LCD color touchscreen, dual 2MP wide-angle lenses, and an integrated M1 card module, the unit supports seamless contactless authentication across diverse commercial environments.

Resolution / Key Spec
2MP Dual Lens / 4.5" Touch
Optics / Features
Face, M1 Card, QR & PIN
Connectivity
Wi-Fi, Bluetooth & PoE
Protection Rating
IP65 Weatherproof

Multi-Factor Authentication & System Integration

Engineered for modern security requirements, the Hikvision DS-K1T344MBWX-QRE1 combines biometric security with flexible access control options. Supporting dynamic QR codes, 13.56 MHz Mifare cards, PIN codes, and Bluetooth authentication via Hik-Connect, it ensures frictionless throughput for employees and guests alike. When deployed with standard PoE, the device delivers a dedicated 12V DC output to power direct electronic door locks, simplifying wiring architecture. Additionally, full two-way audio integration turns this terminal into a functional video door entry panel compatible with client software and indoor stations.

Deep Learning Anti-Spoofing Biometrics

Equipped with dual 2MP wide-angle lenses and anti-spoofing technology, the terminal prevents fraudulent access attempts using printed photos, video loops, or masks. Its intelligent recognition engine operates at distances between 0.3m and 1.5m with exceptional accuracy.

Robust Outdoor IP65 Construction

Designed to operate reliably in challenging exterior conditions, the IP65 weather-rated enclosure resists dust and rain while operating across an extreme temperature range of -30°C to +60°C (-22°F to 140°F).

Technical Specification Matrix
Camera Model DS-K1T344MBWX-QRE1
Display Screen 4.5-inch LCD Color Touchscreen (480 x 854 resolution)
Camera Lens Dual-Lens 2 Megapixel Wide-Angle Lens
Capacity 3,000 Faces, 3,000 Cards, 150,000 Event Records
Authentication Modes Face, Mifare Card (13.56 MHz), Dynamic QR Code, PIN, Bluetooth
Facial Recognition Speed < 0.2 seconds per user (> 99% accuracy rate)
Interfaces & Networks TCP/IP, Wi-Fi, Bluetooth, Wiegand, RS-485, USB, Lock Relay, Tamper
Protection Rating & Temp IP65 Weatherproof | -30 °C to 60 °C (-22 °F to 140 °F)
Power Supply 12 VDC / 1A or Standard PoE (IEEE 802.3af/at)
How does the facial recognition system handle spoofing attempts?

The DS-K1T344MBWX-QRE1 utilizes dual optical camera sensors and deep learning algorithms to analyze depth and optical texture, effectively blocking fake attempts via photos, videos, or 3D masks.

Can this access terminal power an electronic door lock directly?

Yes. When powered using standard PoE, the unit provides a 12V DC / 1A power output that can directly energize connected lock hardware without requiring an external power supply.

What software platforms can manage this device?

It integrates seamlessly with Hikvision iVMS-4200, iVMS-4200 AC, and the Hik-Connect mobile application for user management, schedule creation, and remote unlock functions.

Is the terminal suitable for outdoor building entrances?

Yes, its housing is IP65 weather-rated and designed to operate reliably in outdoor environments exposed to harsh weather between -30°C and +60°C.

Technical Datasheet Quick Start Guide
User Manual
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-K1T344MBWX-QRE1 2MP 4.5" Touchscreen Face Recognition Terminal

Product form

SKU: DS-K1T344MBWX-QRE1

$593.00  $438.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Oct 08, 2026 14:00:00 +1100
    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
