HIKVISION IP INTERCOM SERIES
Comprehensive Villa Security with HD Video Access Control

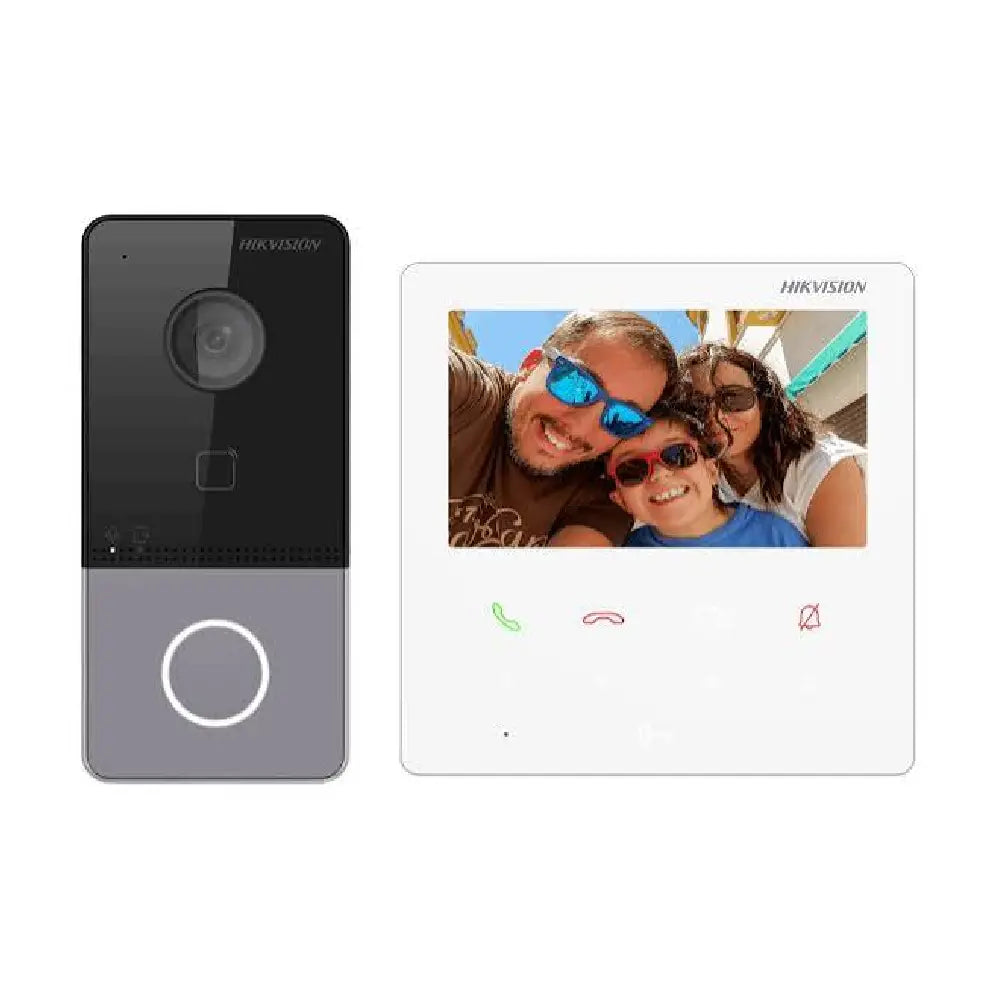

The DS-KIS606-P IP Video Intercom Kit delivers an all-in-one perimeter security and access control solution tailored for residential homes, villas, and small commercial offices. Anchored by a high-definition 2MP outdoor door station and a sleek 4.3-inch indoor station monitor, this kit ensures seamless visitor communication, remote lock release, and real-time visual verification. Engineered for simple setup and dependable daily operation, the system enables property owners to manage entryway calls directly from the indoor monitor or remotely through smart devices.
Field of View
131° Horizontal
Connectivity
Wi-Fi & Standard PoE
Protection
IP65 Weatherproof
Advanced Integration & Mobile Control with Hik-Connect
Designed for flexible networking, the DS-KIS606-P kit incorporates 2.4 GHz Wi-Fi connectivity and standard IEEE 802.3af PoE power support across system components. With built-in noise suppression and echo cancellation algorithms, two-way audio conversations remain crisp and intelligible regardless of surrounding ambient noise. The outdoor station features an integrated Mifare card reader supporting up to 10,000 cards for convenient keyless entry, while instant mobile notifications and live preview streaming via the Hik-Connect application keep you connected to your entryways anywhere in the world.
Ultra-Wide 131° Lens with 120 dB WDR
Capture expansive doorway angles without missing critical peripheral activity. Equipped with 120 dB True WDR and 3-meter IR light supplementation, the door station provides clear video quality under extreme backlight conditions and pitch-black nocturnal environments.
Versatile Keyless Entry & Lock Control
Featuring a built-in 13.56 MHz Mifare proximity card reader and relay control output, the outdoor panel functions as both an intercom and an access controller. Unlock connected electronic door locks directly via access cards, the indoor monitor, or the Hik-Connect mobile application.
Technical Specification Matrix
| Intercom Kit Model |
DS-KIS606-P |
| Included Components |
DS-KV6113-PE1(C) Door Station, DS-KH6110-WE1 Indoor Station, Rain Shield, Power Supply |
| Door Station Camera |
2MP HD Camera (1920 × 1080p resolution) |
| Field of View (FOV) |
Horizontal: 131°, Vertical: 78° |
| Dynamic Range & Night Vision |
120 dB True WDR, IR Supplement Light up to 3 meters |
| Indoor Station Display |
4.3-inch colorful TFT screen (480 × 272 resolution) with 9 touch buttons |
| Audio Capabilities |
Two-way audio with built-in mic/speaker, noise suppression & echo cancellation |
| Access Control Capacity |
Built-in Mifare reader (13.56 MHz), supports up to 2,000 users & 10,000 cards |
| Network & Wireless |
10/100 Mbps Ethernet, Wi-Fi 802.11 b/g/n (Indoor Station), TCP/IP, RTSP, SIP |
| Power Supply & Protection |
Standard IEEE 802.3af PoE / 12 VDC; Outdoor unit IP65 weatherproof rated |
Can I receive video calls on my smartphone when I'm away from home?
Yes. The DS-KIS606-P kit integrates with the Hik-Connect mobile app. When a visitor presses the door station call button, call alerts and live video streams are pushed directly to your smartphone for remote viewing and two-way talk.
How are the door station and indoor monitor powered?
Both system devices support standard Power over Ethernet (IEEE 802.3af PoE) for single-cable power and network transmission, as well as local 12 VDC power adapters.
Is the outdoor door station weather resistant for direct outdoor installation?
Yes. The DS-KV6113-PE1(C) outdoor door station features an IP65 ingress protection rating and comes equipped with a protective rain shield, ensuring reliable operation in rain and dusty conditions.
Can additional indoor monitors be added to the system?
Yes. The kit supports expansion up to 16 linked indoor extensions, allowing you to install multiple monitors across different floors or rooms within the property.
3-Year Commercial Warranty
