Hikvision Smart Managed Series
Enterprise High-Density 24-Port Gigabit Smart Managed PoE Switch with 4 SFP Fibre Uplinks

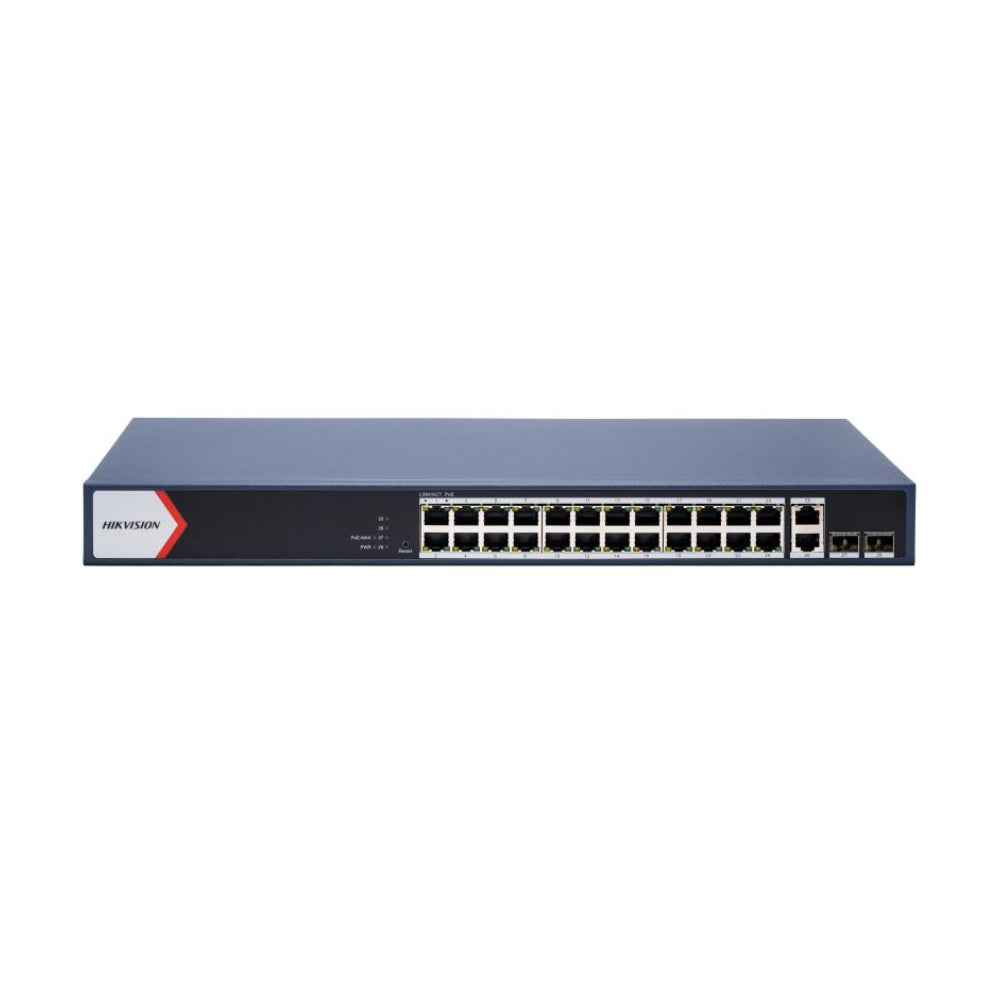

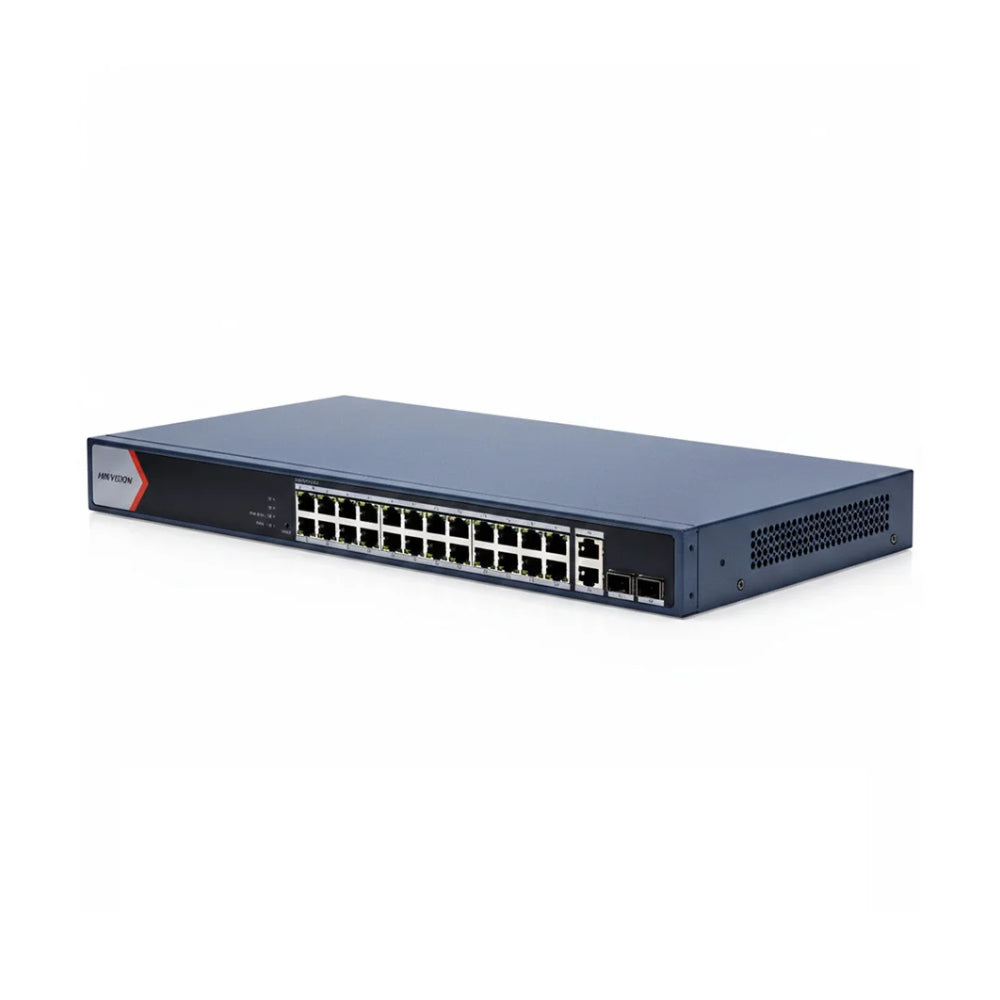

Optimize multi-site enterprise video networks, commercial IP infrastructure, and high-density surveillance setups with the Hikvision DS-3E1528P-EI. Engineered for high-throughput backbone connections, this smart managed 1U rackmount switch features 24 Full Gigabit PoE RJ45 ports paired with 4 dedicated Gigabit SFP optical fibre uplink ports, supported by a heavy-duty 370 W total PoE power budget for long-distance, high-bandwidth deployments.
Port Configuration
24 × 1G PoE + 4 × 1G SFP Fibre
PoE Power Budget
370 W Total (30 W Max/Port)
Transmission Range
300m Extended PoE Support
Protection & Management
6 kV Surge & PoE Watchdog
Quad SFP Uplinks & Intelligent Remote Cloud Topology
Designed for seamless integration into enterprise networks, the DS-3E1528P-EI connects directly to Hikvision’s Hik-Partner Pro cloud management platform. Network administrators gain real-time access to visual topology maps, remote port control, cable diagnostics, and instant system alerts. Equipped with quad Gigabit SFP slots, it enables long-distance fibre optic trunk links between server rooms and remote campus buildings. Intelligent PoE Watchdog continuously monitors active camera links, automatically power-cycling frozen endpoints to minimise system downtime. Comprehensive Layer 2 features—such as 802.1Q VLANs, STP/RSTP, port isolation, link aggregation, and 6 kV surge protection—ensure maximum reliability and bandwidth efficiency.
Quad SFP Slots & 370 W PoE Power
Features 4 dedicated Gigabit SFP slots for fibre optic backbones alongside 24 Gigabit PoE ports backed by a robust 370 W total power budget. Extended PoE mode supports power and data transmission up to 300 metres.
PoE Watchdog & Cloud Maintenance
Automated PoE Watchdog detects non-responsive IP devices and automatically restarts port power. Full Hik-Partner Pro cloud integration allows remote topology viewing, cable health testing, and batch updates.
Technical Specification Matrix
| Switch Model |
DS-3E1528P-EI |
| Network Ports |
24 × Gigabit PoE RJ45, 4 × Gigabit SFP Fibre Uplink Slots |
| PoE Standard |
IEEE 802.3af, IEEE 802.3at (PoE+) |
| PoE Power Budget |
370 W Total (30 W Max per port) |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.66 Mpps |
| MAC Address Table |
8 K |
| Long Range PoE Mode |
Up to 300 metres (Ports 1 to 24) |
| Surge Protection |
6 kV (PoE Ports) |
| Chassis Form Factor |
Solid Metal 1U 19-inch Rack-Mountable (Mounting ears included) |
Frequently Asked Questions
What is the advantage of having 4 SFP fibre ports on the DS-3E1528P-EI?
The 4 dedicated SFP slots allow high-speed fibre optic trunk connections to core switches or NVRs across large campuses and multi-floor buildings without consuming any of the 24 copper Gigabit PoE ports.
Can I run cameras at long distances with this switch?
Yes, by toggling Extend mode via the cloud or web management interface, power and data transmission on ports 1 through 24 can reach distances of up to 300 metres over standard Cat5e/Cat6 cabling.
How does PoE Watchdog improve network reliability?
PoE Watchdog continuously monitors communication with connected devices. If a camera becomes unresponsive, the switch automatically resets power to that specific port to bring the device back online.
How do I remotely monitor the switch health and network topology?
The switch integrates natively with Hikvision’s Hik-Partner Pro platform, letting you inspect visual network topology, check power loads, perform remote cable diagnostics, and receive instant alert notifications.
