Hikvision KH6 Series
Streamlined Residential Entry & Intercom Management

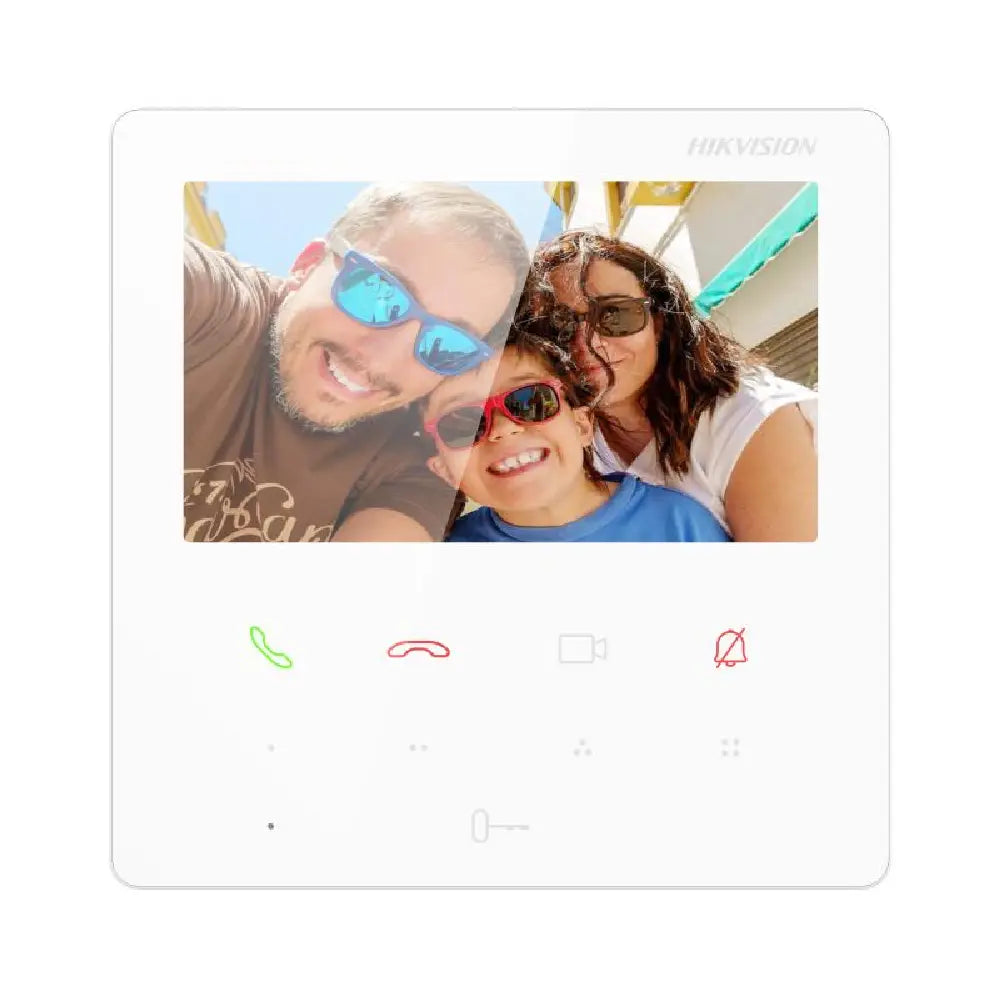

The DS-KH6110-WE1 is an entry-level 4.3-inch IP video intercom indoor station engineered to deliver intuitive, reliable access management for modern residential apartments, villas, and small commercial offices. Featuring a sleek white housing with a responsive capacitive touch display, the DS-KH6110-WE1 integrates seamless two-way audio communication with remote opening capabilities and mobile connectivity. Designed for fast deployment, this unit combines cost-effective hardware architecture with flexible network options to suit budget-conscious projects without compromising on core performance or user experience.
Display & Control
4.3" Touch (480×272)
Audio Processing
2-Way Noise Cancelled
Connectivity
Wi-Fi & 100M Ethernet
Power Architecture
Standard PoE / 12 VDC
Advanced Networking & Remote Control Integration
Engineered with versatile communication architecture, the hikvision-ds-kh6110-we1-4-3-ip-video-intercom-indoor-station supports standard SIP, TCP/IP, and RTSP protocols for unified integration across door stations and linked IP security cameras. Users can effortlessly view live camera feeds, answer incoming visitor calls, and unlock entryways directly from the station or remotely via the Hik-Connect mobile application. Equipped with 4 customizable touch buttons and standard IEEE 802.3af Power over Ethernet (PoE), installation is simplified to a single network cable run, reducing system overhead while maximizing operational reliability.
Customizable Quick Touch Controls
Features 9 total touch buttons, including 4 configurable shortcuts that allow occupants to instantly trigger unlock functions, call security, or access preferred camera views with a single tap.
Crystal-Clear Two-Way Audio
Integrated omnidirectional microphone and built-in loudspeaker utilize acoustic echo cancellation and hardware noise suppression for clear voice communication in dynamic indoor environments.
Technical Specification Matrix
| Camera Model |
DS-KH6110-WE1 |
| Display Screen |
4.3-inch Colorful TFT Capacitive Touch Screen (480 × 272 resolution) |
| Operating System |
Embedded Linux Operating System |
| Audio Parameters |
Built-in Omnidirectional Mic & Speaker, G.711 U/A, Noise Suppression & Echo Cancellation |
| Network Interfaces |
1× RJ45 10/100 Mbps Adaptive Ethernet + Wi-Fi 802.11 b/g/n (2.4 GHz) |
| Communication Protocols |
TCP/IP, SIP, RTSP, Hik-Connect P2P |
| Power Supply |
IEEE 802.3af Standard PoE or 12 VDC (Power consumption ≤ 4 W) |
| Dimensions & Mounting |
120 mm × 120 mm × 21 mm; Surface Wall or Table Mounting |
How is the DS-KH6110-WE1 powered?
The unit can be powered using standard Power over Ethernet (IEEE 802.3af PoE) via a direct network connection or through a standard 12 VDC external power adapter.
Can I connect this indoor station to the Hik-Connect mobile app?
Yes, the station features built-in Wi-Fi and Ethernet connectivity, allowing complete remote access via the Hik-Connect app for answering calls and remotely opening doors.
How many extensions can be linked to this unit?
The DS-KH6110-WE1 supports linking up to 16 indoor extensions for multi-room communication within a single residence or office network.
Can I view external IP cameras on this screen?
Yes, through RTSP protocol integration, you can stream live video feeds from linked Hikvision door stations and compatible network security cameras directly on the 4.3" screen.
