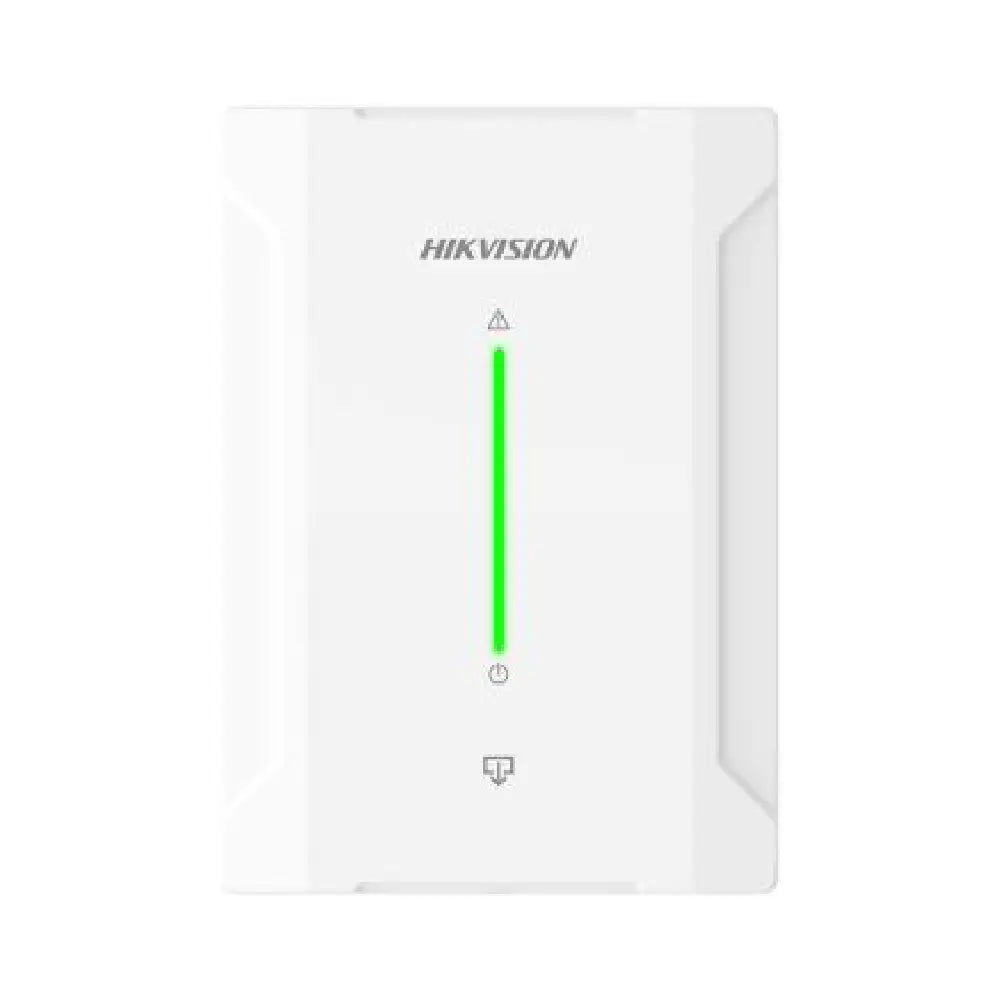

Hikvision DS-PM1-O4L-H AX Hybrid Pro 4-Way Low Current Relay Module

Description

HIKVISION AX HYBRID PRO SERIES

Flexible Output Expansion for AX Hybrid Pro Intrusion Alarm Systems

The DS-PM1-O4L-H is a professional wired 4-way low current relay expander engineered by Hikvision to extend the control capabilities of the AX Hybrid Pro intrusion alarm panel. Operating via Hikvision's high-speed Speed-X bus technology, this output module provides four onboard low current relays supporting 6 VDC to 30 VDC and up to 5A per channel. Designed for commercial, retail, and residential security automation, it enables seamless control of external devices such as strobe lights, sirens, access control gates, door strikes, and automation triggers.

Relay Outputs
4 Low Current Relays (5A)
Bus Communication
Speed-X Technology
Aux Power Output
12 VDC / Max 500mA
Anti-Tamper Shield
Front & Rear Tamper

High-Speed Speed-X Bus Cascading & Distributed Power Control

Engineered for complex alarm architectures, the Hikvision DS-PM1-O4L-H features dedicated uplink and downlink Speed-X bus ports. This allows installers to easily cascade multiple expander modules across long wiring runs back to the main AX Hybrid Pro panel. Additionally, the unit incorporates an auxiliary power output delivering up to 500mA (9 to 12 VDC) for directly powering low-voltage peripheral sensors, sirens, or status LEDs without requiring separate external power supplies.

4 Onboard Programmable Low Current Relays

Supports switching loads between 6 VDC and 30 VDC at up to 5A per output, allowing tailored response programming such as auto-locking doors, activating floodlights, or triggering external emergency dialers upon alarm events.

Dual Front & Rear Tamper Protection

Integrated micro-switches detect both front cover removal and wall-tear detachment, transmitting an immediate tamper alert signal via Speed-X bus to the control panel to prevent physical sabotage.

Technical Specification Matrix
Expander Model DS-PM1-O4L-H
Relay Outputs 4 × Low Current Relays (6-30 VDC, up to 5A per relay)
Bus Interface 2 × Speed-X Bus (1 Uplink for panel, 1 Downlink for cascade)
Auxiliary Power Output 1 × 9 to 12 VDC output (Maximum 500 mA)
Power Supply Input 11 to 24 VDC, 1A
Power Consumption Max current 153 mA @ 12 VDC; Quiescent current 70 mA @ 12 VDC
Tamper-Proof Protection Supported (Front cover and rear wall tear-off protection)
LED Status Indicators 2 × LEDs (1 for Power status, 1 for Fault/Communication)
Dimensions & Weight 110 mm × 155 mm × 32.5 mm | Weight: 285 g

Frequently asked questions

What control panels are compatible with the DS-PM1-O4L-H?

The DS-PM1-O4L-H is designed specifically for Hikvision AX Hybrid Pro intrusion panels (such as DS-PHA48-EP / DS-PHA64-Kit) utilizing Speed-X bus communication.

How many relay expanders can be cascaded together?

Multiple expander modules can be chained sequentially using the dedicated Speed-X uplink and downlink ports up to the maximum bus address limit (addresses 0 to 63) supported by the control panel.

What type of loads can the relays handle?

Each onboard relay supports low voltage DC circuits between 6V and 30V with a maximum current of 5A, making it ideal for electronic locks, buzzers, status LEDs, and relay coils.

Does the expander require separate power configuration?

It operates on 11 to 24 VDC supplied via the bus or local power supply, drawing maximum 153 mA at 12 VDC during full relay activation.

Technical Datasheet
Official HIKVISION Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-PM1-O4L-H AX Hybrid Pro 4-Way Low Current Relay Module

Product form

SKU: DS-PM1-O4L-H

$94.00  $89.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 23, 2026 14:00:00 +1000
    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
