NOTES: SINGLE UNIT NOT PAIR. Buy two for P2P.
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. Easily mountable to a pole/mast with mounting straps provided. In addition, the LocoStation can be mounted and adjusted in any direction in a 90-degree angle through the use the NanoBracket. The NanoBracket is sold separately
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Networking Interface: 1x 10/100 Ethernet Port
Wireless transmission speed: up to 300 Mbps
Operating Frequency: 2412-2462 MHz
Wi-Fi Standards: 802.11b/g/n
Operation mode: AP, Client, WDS
Encryption: WEP 64/128/152, WPA, WPA2, 802.1X
Gain: 8 dBi
Polarization: Dual Linear
Max. Power Consumption: 5.5 W
Max.output power: 23 dBm
Sensitivity: -83 dBm
Dimensions: 163x31x80 mm
Weight: 0.18 kg
Power Supply (PoE): 24V, 0.5A
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Operating Temperature: -30 ‒ 75° C
Operating Humidity: 5 - 95%
Supported OS: AirOS
Default IP: 192.168.1.20
Default name: ubnt
Default password: ubnt
Ubiquiti UniFi Protect Camera G5-Bullet, Next-gen indoor/outdoor 2K HD PoE Camera
Features:
2K (4MP) video resolution Flexible 3-axis adjust mount 9 m (30 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Without mount: Ø75.5 x 74.4 mm (Ø3 x 2.9")With mount: Ø75.5 x 150 mm (Ø3 x 5.9")
Weight
Without mount: 225 g (8 oz)With mount: 315 g (11.1 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Wall mount: aluminum alloy, polycarbonatePole mount: aluminum alloy
Weatherproofing
IPX4
Resistance
IK04
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 84.4°, V: 45.4°, D: 99.8°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
Installation Guide
Image Performance
Ubiquiti UniFi G5 Turret Ultra, Ultra-compact, Tamper-resistant IK04, IP66 Weatherproof 2K HD PoE Camera, Long-range Night Vision
Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
Features
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 30 m (98 ft) IR night vision AI event detections Record audio with an integrated microphone Connect and power using PoE Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø90 x 71.2 mm (Ø3.5 x 2.8")
Weight
330 g (11.6 oz)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate
Weatherproofing
IP66
Resistance
IK04
Cable jacket enclosure dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Cable jacket enclosure materials
Thermoplastic elastomer, polycarbonate, silicone rubber
Cable length
30 cm (1 ft)
Cable diameter
5 mm (0.2")
Cable jacket material
Polycarbonate
Cable connector type
RJ45
Optics
Sensor
1/2.4" CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
4W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Surface mount
Ambient operating temperature
-30 to 50º C (-22 to 122º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Downloads
UniFi G5 Turret Ultra Installation Guide
Ubiquiti Versatile 4 MP (1440p) indoor/outdoor bullet camera with 24 FPS video for day or night surveillance with infrared LEDs.The UniFi Camera G4 Bullet delivers clear 4MP, 24 fps video over Gigabit Ethernet. The ball joint mount design allows indoor or outdoor installation and offers flexible 3-axis adjustment. The camera has infrared LEDs with an automatic IR cut filter for day and night surveillance. It features a built-in microphone and supports PoE for power.Features:
4MP, 24 FPS video
Day or night with infrared LEDs
Weatherproof enclosure
Built-in microphone
Powered by PoE
Downloads
Datasheet Installation Guide
Ubiquiti UniFi Protect UVC-G5-PRO, IR Night Vision, 4K Resolution, 3x Optical Zoom, Intergrated microphone, PoE
G5 Professional
Indoor/outdoor 4K PoE Camera with exceptional image performance and 3x optical zoom lens.
4K (8MP) video resolution 3x optical zoom 25 m (82 ft) IR night vision AI event detections Built-in IR LEDs and an automatic IR cut filter Record audio with an integrated microphone Connect and power using PoE Optional Enhancer for integrated floodlight and extended IR* Weatherproof (outdoor exposed)
Technical Specifications
Mechanical
Dimensions
Ø86 x 154.3 mm (Ø3.4 x 6.1")
Weight
650 g (1.4 lb)
Enclosure materials
UV stabilized polycarbonate, aluminum alloy
Mount material
Aluminum alloy
Weatherproofing
IP65
Resistance
IK04
Optics
Sensor
1/2" 8MP sensor
Lens
F 4.1 - 12.3 mm; f/1.53 - f/3.3
View angle
Wide: H 109.9°, V 60°, D 127.7°Zoom: H 35°, V 19.8°, D 40°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
8MP 3840 x 2160 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A53 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
Device: 10WDevice with the Enhancer: 12.95W
Power method
PoE
Supported voltage range
37—57V DC
Button
Factory reset
Mounting
Wall, pole mount
Operating temperature
-20 to 50º C (-4 to 122º F)
Operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
Downloads
Installation Guide
Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices, POE-24-7W
Surge and clamping protection Maximum surge discharge Peak pulse current AC cable with earth ground
POE-24-7W-G-WH
Dimensions
72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight
72.1g (2.54 oz)
Output Voltage
24VDC @ 0.3A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
Yes
Reset Button
Yes
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.3A @ 120VAC, 0.2A @240VAC
Inrush Current
<40A Peak @ 120VAC, <70A Peak @ 230VAC
Efficiency
80+%
Output Ripple
1% Max.
Switching Frequency
65 kHz
Line Regulation
≤ 3%
Load Regulation
≤ 5%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
–
Operating Temperature
0 to 40°C (32 to 104°F)
Storage Temperature
-30 to 70°C (-22 to 158°F)
Operating Humidity
35 to 95% Non-Condensing
AC Connector
IEC-320 C6
Data IN / PoE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 _s) Power
Peak Pulse Current
36A (10/1000 _s) Data
Shunt Capacitance
<5 pf data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL
POE-24-12W-G
Dimensions
87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight
99.4 g (3.51 oz)
Output Voltage
24VDC @ 0.5A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
Yes
Reset Button
Yes
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current
<30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency
75+%
Output Ripple
1% Max.
Switching Frequency
50 kHz
Line Regulation
≤ 3%
Load Regulation
≤ 5%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
-
Operating Temperature
0 to 40° C (32 to 104° F)
Storage Temperature
-30 to 70°C (-22 to 158° F)
Operating Humidity
35 to 95% Noncondensing
AC Connector
IEC-320 C6
Data IN / PoE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 _s) Power
Peak Pulse Current
36A (10/1000 _s) Data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL
POE-24-24W-G
Dimensions
88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight
158.5 g (5.59 oz)
Output Voltage
24VDC @ 1.0A
LAN Activity Indicator
No
Gigabit LAN Port
Yes
Remote Reset Capability
Yes
Reset Button
Yes
Rated Voltage
100-240VAC @ 50/60Hz
Input Current
0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current
<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency
80+%
Output Ripple
1% Max.
Switching Frequency
65 kHz
Line Regulation
≤ 3%
Load Regulation
≤ 5%
2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
-
Operating Temperature
0 to 40° C (32 to 104° F)
Storage Temperature
-30 to 70°C (-22 to 158° F)
Operating Humidity
35 to 95% Noncondensing
AC Connector
IEC-320 C6
Data IN / PoE
RJ45 Shielded Socket
Surge Protection
Difference and Common Mode
Clamping Protection
11V Data, 60V Power
Max. Surge Discharge
1500A (8/20 μs) Power
Peak Pulse Current
36A (10/1000 μs) Data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL
Ubiquiti Dream Machine Special Edition, All-In-One Unifi Solution, 8x Gbe PoE RJ45 Ports, 3.5' HDD Bay. You can use this UDM-SE as all-in-one router and security gateway with an integrated PoE switch and NVR network video recorder.
The UniFi Dream Machine - Special Edition is the first UniFi Console that offers a full UniFi application suite right out of the box. Instantly run a complete UniFi deployment without the need for an additional PoE Switch, NVR, or Hard Disk Drive for storage. The UDM SE is an all-in-one router/security gateway that can power your UniFi devices directly from the integrated 8 port gigabit PoE switch and store your UniFi Protect recordings on the integrated 128GB internal hard drive. UDM SE is completely scalable and customizable, so you can easily expand your deployment.
Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Includes full UniFi application suite for device management 3.5+ Gbps routing with IDS/IPS (1) 10G SFP+*, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports (1) 3.5" NVR HDD bay Built-in 128 GB SSD for NVR detection recordings 1.3" touchscreen
Technical Specifications
Mechanical
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight
5 kg (10.9 lb)
Enclosure material
Aluminium CNC, SGCC steel
Mount material
SGCC steel
Hardware
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory
4 GB DDR4
On-board storage
16 GB eMMCIntegrated 128 GB SSD
Management interface
EthernetBluetooth
Networking interface
LAN:(8) GbE RJ45 ports(1) 10G SFP+ portWAN:(1) 2.5 GbE RJ45 port(1) 10G SFP+ port
PoE interface
(6) PoE (Pair A 1, 2+; 3, 6-)(2) PoE+ (Pair A 1, 2+; 3, 6-)
IDS/IPS throughput
3.5 Gbps**Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz(1) USP-RPS DC input, 52V DC, 3.94A
Power supply
AC/DC, internal, 240W
Supported voltage range
100—240V AC
Max. power consumption
50W (Excluding PoE output)
PoE budget
180W
Max. PoE wattage per port by PSE
PoE: 15.4WPoE+: 30W
Voltage range PoE mode
PoE: 44—57VPoE+: 50—57V
ESD/EMP protection
Air: ± 15kV, contact: ± 8kV
LCM display
(1) 1.3" touchscreen
Button
Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancingWiFi QoS with UniFi APsApplication, domain, and country-based QoSApplication and device type identificationAdditional internet failover with LTE BackupInternet quality and outage reporting
Next-generation security
Application-aware firewall rulesSignature-based IPS/IDS threat detectionContent, country, domain, and ad filteringVLAN/subnet-based traffic segmentationFull stateful firewall
Advanced networking
License-free SD-WANWireGuard, L2TP and OpenVPN serverOpenVPN clientOpenVPN and IPsec site-to-site VPNOne-click Teleport and Identity VPNPolicy-based WAN and VPN routingDHCP relayCustomizable DHCP serverIGMP proxyIPv6 ISP support
LEDs
Ethernet
White: link/activity
SFP+
White: link/activity
HDD
White: disk activityAmber: disk error
RPS
Blue: ready
Downloads
Installation Guide
Ubiquiti UniFi Protect Cam Dome Camera G5 2K HD PoE ceiling camera NHU-UVC-G5-DOME
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
2K (4MP) video resolution Ultra-wide viewing angle (102.4°) 9 m (30 ft) IR night vision AI event detections Integrated 2-way audio Connect and power using PoE Weather-resistant (outdoor covered) Vandal resistant
Technical Specifications
Mechanical
Dimensions
Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight
Without mount: 370 g (13.1 oz)With mount: 390 g (13.8 oz)
Enclosure material
Aluminum alloy, polycarbonate, hard-coated dome
Mount material
Polycarbonate, stainless steel
Weatherproofing
IPX4
Resistance
IK08
Optics
Sensor
5MP CMOS
Lens
Fixed focal length
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
4MP 2688 x 1512 (16:9)
Max. frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual-core Arm® Cortex®-A7 based chip
Networking interface
10/100 MbE RJ45 port
Max. power consumption
5W
Power method
PoE
Supported voltage range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Wall, ceiling mount
Ambient operating temperature
-20 to 40º C (-4 to 104º F)
Ambient operating humidity
0 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled)
Speaker
Yes
Software
Web application
UniFi Protect: Version 2.2.7 or 2.7.28 and later
Mobile app
UniFi Protect iOS™ and Android™: Version 1.10.0 and later
Downloads
DatasheetInstallation Guide
An 8-port, Layer 2 PoE switch supporting silent fanless cooling.Features:
(4) GbE, PoE+ RJ45 ports
(4) GbE RJ45 ports
52W total PoE supply*
Wall-mountable (kit included)
Managed with the UniFi Network application: Version 7.2.94 and later
*With an external 60W power adapter.
Technical Specifications
Mechanical
Dimensions
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
Weight
295 g (10.4 oz)
Enclosure material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
PoE interface
(4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput
8 Gbps
Switching capacity
16 Gbps
Power method
54V DC, 1.1A power adapter
Power supply
54V, external, 60W
Supported voltage range
50—57V DC
Max. power consumption
8W (Excluding PoE output)
Total available PoE
52W**With an external 60W power adapter.
Max. PoE wattage per port by PSE
PoE+: 30W
Button
Factory reset
Ambient operating temperature
-15 to 40° C (5 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
Switching Features
Layer 2 features
IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs
Layer 3 features
–
LEDs
System
Status
Ethernet
PoESpeed/link/activity
PoE
Link/activity
Application Requirements
UniFi Network
Version 7.2.94 and later
Downloads
DatasheetInstallation Guide
Ubiquiti AmpliFi MeshPoint HD - WiFi Extender
The AmpliFi MeshPoint HD features an adjustable super antenna. It can be used to expand the coverage of an AmpliFi Mesh System or turn an existing router or Wi-Fi cablebox into a powerful mesh network.
The AmpliFi MeshPoint features an adjustable Super Antenna and fits discreetly in any household, wherever dead spots need coverage. Add MeshPoints as needed to an AmpliFi network or turn an ordinary router into a powerful mesh network. Signal strength LEDs are integrated into the design to ensure the system is positioned for optimal performance.
MeshPoint Specifications
Dimensions243.83 x 54 x 57.75
Weight224 g
Max. TX Power26 dBm
Radios2
MIMO Chains6
Speed1750 Mbps
ESD/EMP Protection ±24kV Air/Contact
ButtonsReset
Antennas1x Dual-Band Antenna, Tri-Polarity
Wi-Fi Standards802.11ac
Power SaveSupported
Wireless SecurityWPA2-PSK AES/TKIP
Operating Temperature14 to 131° F (-10 to 55° C)
Operating Humidity5 to 95% Noncondensing
CertificationsFCC / CE / IC
Supported Data Rates802.11ac13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
A wall-mountable*, 16-port, Layer 2 PoE switch with a fanless cooling system.Features:
(8) GbE, PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE availability
Managed with the UniFi Network application: Version 7.2.94 and later
*Kit included.
Downloads
Datasheet
Installation Guide

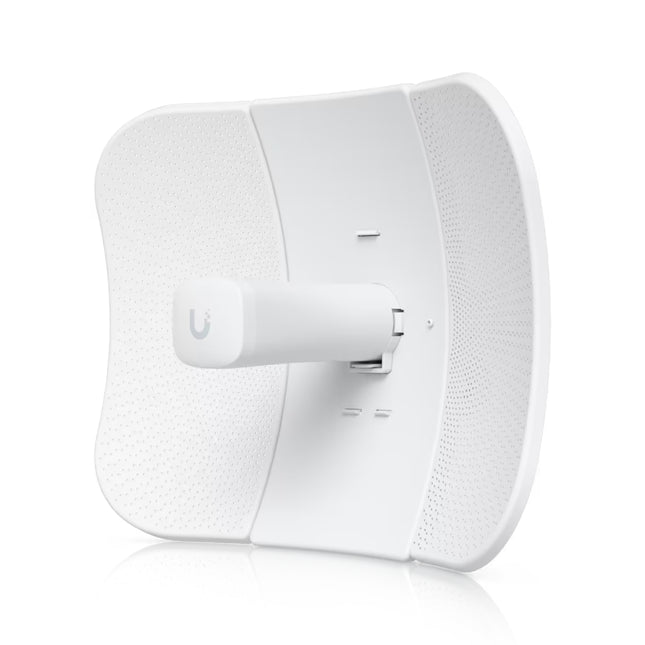

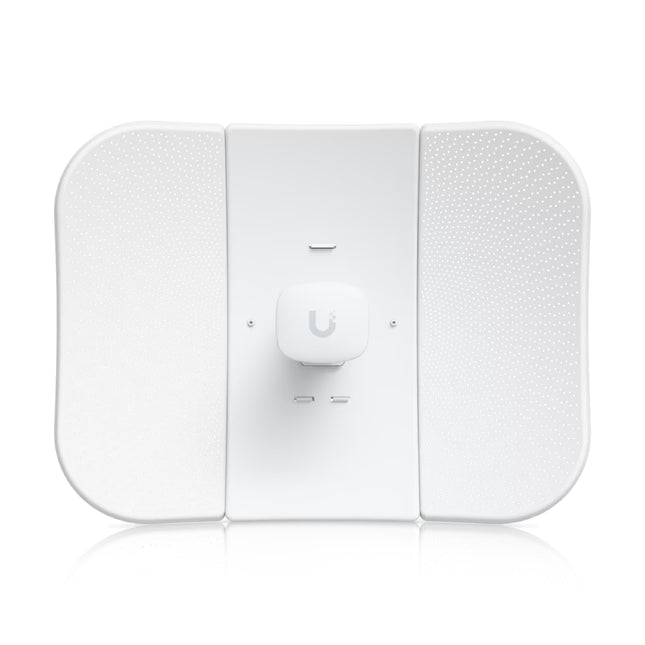

LiteBeam 5AC radio with built-in 120 Degree 16dBi Sector. 2 x 2 MIMOThe LiteBeam™ is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide 5 GHz frequency range with high-performance speeds.The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
The UVC G3 Flex Professional Wall Mount is a flexible outdoor mounting option for the UVC G3 Flex Camera. It's IPX4-rated for splash resistance and supports upside-down mounting. The camera image orientation is automatically adjusted in the UniFi Protect software.
All-in-one, enterprise-grade UniFi OS Console and security gateway designed to host the full UniFi application suite.Connect the Dream Machine Pro with a USP RPS to create an uninterruptible network.Features:
Pre-installed UniFi Network application
LAN ports: (8) GbE RJ45, (1) 10G SFP+
WAN ports: (1) GbE RJ45, (1) 10G SFP+
Threat management and traffic/client identification
(1) 3.5" HDD bay for storing UniFi Protect recordings
Downloads
Datasheet
Installation Guide
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application*.
High-performance, ceiling-mounted WiFi 6 access point designed for large offices.
Features:
WiFi 6 support (2.4/5 GHz bands)
5.3 Gbps aggregate throughput rate
(1) GbE RJ45 port (PoE In)
Downloads
Datasheet Installation Guide
Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input.The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.Features:
(1) GbE, 802.3af PoE RJ45 input
(4) GbE RJ45 ports
Compact, slim housing
Can be powered with a 5V, 1A USB-C adapter (Only Comes In Single Pack)
Downloads
Datasheet
Installation Guide
UDR - UniFi Dream Router
The Dream Router (UDR) is a next-generation WiFi 6 router that delivers unbeatable performance at an unmatched price. Featuring advanced 4x4 MU-MIMO and OFDMA technology, the UDR has an aggregate wireless throughput rate of up to 3 Gbps over its 2.4 and 5 GHz bands, ensuring quality connectivity for all of your devices. The UDR also has (5) GbE RJ45 ports, including two that supply PoE to compatible devices, and all of its connections can be conveniently monitored from the router's LCM color screen. Designed to be a comprehensive, easy-to-use network hub, the UDR can be set up and configured in minutes via the UniFi Network web application or mobile app.
Features:
Four-stream WiFi 6 technology
5 GHz band (4x4 MU-MIMO/OFDMA) with a 2.4 Gbps throughput rate
2.4 GHz band (4x4 MIMO) with a 600 Mbps throughput rate
128 GB of internal storage
(1) GbE RJ45 WAN port
(4) LAN ports, including (2) 802.3af PoE outputs
0.96" LCM color screen for network and connection monitoring
Micro SD memory card expansion slot*
*Requires a memory card with at least 128 GB of storage.
Downloads
Datasheet
Installation Guide
Compact PoE+ Injector capable of delivering 30 W of power to your Ubiquiti Access Points and Cameras
An adapter that can power UniFi PoE+ devices with wireless mesh applications, or offload PoE switch power dependencies.
Delivers up to 30W of PoE+ Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE+ output LED indicator for status monitoring
Compatibility
U7-Pro
U6-Enterprise
U6-LR
U6-Enterprise-IW
U6-IW
UTP-TouchMax
UVC-AI-DSLR
UVC-AI-Pro
Your premium UniFi doorbell with an enhanced package detection camera and integrated display.
HD (2MP) video resolution Programmable welcome display and secondary package-detection camera 20 ft IR night vision Wirelessly connected* AI event detections Integrated 2-way audio Weather-resistant (outdoor covered)*Auto-connect to UniFi WiFi.
Technical Specifications
Mechanical
Dimensions
160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")
Weight
Without mount: 253 g (8.92 oz)With flat wall mount: 286 g (10.08 oz)With 20° wedge mount: 325 g (11.46 oz)
Enclosure materials
Polycarbonate, aluminum alloy
Mount materials
Flat wall mount: aluminum alloy20° wedge mount: polycarbonate
Weatherproofing
IPX4
Optics
Sensor
Main camera: 5MP CMOS sensorPackage camera: 8MP CMOS sensor
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155°Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Video compression
H.264
Resolution
1600 x 1200 (4:3)
Max. frame rate
30 FPS
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
802.11a/b/g/n/ac WiFiBluetooth 5.0GbE support (with UACC-Adapter-DBPOE)
Max. power consumption
10W
Power requirements
16—24V AC, 1.25A max., 50/60 HzUSB-C power cable, 5V DC, 2A
Supported voltage range
37—57V DC
LED
Link/activity
Button
(1) Ring button(1) Factory reset
Mounting
Flat wall, 20° wedge (Included)
Operating temperature
-10 to 40º C (14 to 104º F)
Operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Yes (Can be disabled in software)
Speaker
Yes
Software
Web application
UniFi Protect: Version 1.21.0 and later
Mobile app
UniFi Protect iOS™: Version 1.5.8 and laterUniFi Protect Android™: Version 1.4.8 and later
Compatible Mechanical Chimes
ManufacturerBroan-NuToneBroan-NuToneHeath ZenithCraftmadeBroan-NuToneNewhouse Hardware
ModelLA126WHLA11WHSL-2735CTPW-RGLA39WHCHM3D
Compatible Digital Chimes
ManufacturerBroan-NuToneIQ AMERICAIQ AMERICA
ModelLA600WHDW-2850DW-2840
Dual-band WiFi 5 access point designed to support high-density networks and critical system applications.
Features:
2.4/5 GHz WiFi 5 bands (3x3 MIMO)
1.3 Gbps aggregate throughput rate
Balanced antenna pattern for enhanced mounting versatility
(1) GbE RJ45 port (PoE In)*
(1) GbE RJ45 port for extended devices
Managed with the UniFi Network application
Downloads
Datasheet
Quick Start Guide
Ubiquiti Full HD (1080p) Mini Turret Camera with Infrared LEDs and Versatile Mounting Options for Indoor and Outdoor InstallationsThe UniFi Camera G3 Flex is a Day/Night security camera that features crisp 1080p video with IR capability. The flexibility of mount allow to put the camera anywhere, like on-table, on the indoor wall, on the outdoor wall, on pole, even put them in or on the ceiling.Features:
1080p, 25 FPS video
Day and night recording with integrated IR LEDs
Weather-resistant with plastic injection parts
Versatile mounts for table, in/outdoor on-wall, pole, & in/on ceiling
Built-in microphone
PoE compliant
Managed with the UniFi Protect application
Downloads
Datasheet Installation Guide
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
48VDC @ 0.32A
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.Innovative Mechanical Design
Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
Easy removal The antenna feed can be detached with the push of a button.
Corrosion Resistance
Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
SPECIFICATION
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Operating Frequency: 2412 - 2472 MHz Worldwide
Net. Interface: (1) 10/100/1000 Ethernet Port
Gain: 13 dBi
Polarization: Dual Linear
Max. Power Consumption: 8.5W
Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight: 0.530 kg (1.17 lb)
Power Supply (PoE): 24V, 0.5A PoE
Mounting: Pole-Mount (Kit Included), Wall-Mount
Operating Temperature: -40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
UniFi Patch Cable Outdoor 8M White, all-weather, RJ45 Ethernet Cable, Category 5e, Weatherproof
Rugged, outdoor patch cable designed to function in the harshest environments
The UniFi Patch Cable Outdoor is an all-weather patch cable designed for outdoor UniFi deployments that require enhanced protection from the elements. It features a shielded RJ45 plug, internal foil shielding, and a built-in ESD drain wire—all encased in a weatherproof, insulating jacket. The UniFi Patch Cable Outdoor is available in multiple lengths (1, 2, 3, 5, and 8 meters) to ensure that you can reach all of your devices.Features:
Weatherproof, insulating jacket designed to offer extreme elemental protection.
Internal foil shielding.
Integrated ESD drain wire.
Shielded RJ45 plug.
24 AWG stranded copper wire.
Available in 1, 2, 3, 5 and 8-meter lengths
Downloads
Datasheet
The Instant PoE to USB Converter conveniently provides power to USB capable devices.
Supplies power to USB-powered devices Multipurpose use
The Instant 802.3af PoE to USB Converter works with your device’s USB port to efficiently supply power over its wired connection.The Instant 802.3af PoE to USB Converter integrates seamlessly with a variety of auto-sensing 802.3af PoE switches.Multipurpose Use, The Instant 802.3af PoE to USB Converter provides power to a wide variety of USB-powered devices. Use the converter to easily recharge various handheld devices, such as your smartphone or tablet.
Ubiquiti Unifi Wi-Fi 6 Mesh AP 4x4 Mu-/Mimo Wi-Fi 6, 2.4Ghz @ 573.5Mbps & 5GHz @ 4.8Gbps, PoE Injector IncludedIndoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The UniFi6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Features
High-efficiency 4x4 WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
Powered with PoE (PoE adapter included)
The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Ubiquiti high-resolution PoE camera designed for overhead and wide-area surveillance.
Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.Features:
4MP, 24 FPS Video
Day or Night with Infrared LEDs
IPx4 weatherproof Enclosure
Built-in Microphone & Speaker
Powered by Power over Ethernet (PoE)
Managed by UniFi Protect Software
IK08 vandal resistant
Note: UniFi Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine Pro or UniFi Protect Network Video Recorder
Downloads
Datasheet Installation Guide
The Ubiquiti UniFi® Building-to-Building Bridge is a 1+ Gbps Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m. The UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.Package Contents:
UniFi Building-to-Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
Power cord (x2)
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damageThe UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.Features:
1,000 ft (305 m) Category 5e cable
24 AWG solid copper conductor pairings
Insulated, weatherproof cable jacket
Internal foil shielding and drain wire for increased ESD damage protection
Increase throughput, maximize your connectivity, and improve relationships of various networks with the NanoStation M2 from Ubiquiti Network. It’s an affordable but reliable and compact wireless CPE bridge you can install immediately.
By purchasing the product, you are able to take advantage of the following:
Fast and Easy Installation Process
When you’re dealing with technologies such as hardware, setting them up is almost always an arduous process, taking a lot of time and energy. The NanoStation M2, however, is very user friendly and can be installed in less than 30 minutes. The bundle already comes with the universal pole mount, as well as the mounting straps, so you can properly secure the device in place. The software, AirOS, already includes all the tools you need for convenient setup and control.
Robust Compact Design
The NanoStation M2 is lightweight and easy to remove and reinstall. Nevertheless, despite its size, it’s very durable and is designed to withstand different environmental conditions with hardly interfering with the distribution or amplification of the Internet signal across devices and networks.
2x2 MIMO Technology
The NanoStation M2 uses the 2x2 MIMO Technology, which means it doesn’t just allow you to share your connection seamlessly to different users but it also boosts your throughput to twofold. It also scores quite well in cross-polarity isolation at 11dBi for 2.4GHz and a whopping 16 dBi for 5GHz. The ideal score is around 20 dBi. The technology also allows you to choose a channel with the least interference or the best strength. The NanoStation M2 has a long range of around 15 kilometers.
Integration of IP Video Camera
If you’re planning to use an IP video camera, you can do so with NanoStation M2. You just have to make use of 802.3af adapter to make the setup 802.3af 48V, producing enough power to make the camera work.
Compact CPE Design
The Rocket 2AC features revolutionary airPrism RF filtering technology and proprietary airMAX ac chipset. Deploy the Rocket 2AC for PtP or PtMP links using the 2.4 GHz radio band.Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas.Pair the Rocket 2AC Prism with airMAX antennas for optimal performance:• Point-to-Point (PtP)backhaul RocketDish™ Antenna• Point-to-MultiPoint (PtMP)links airMAX Sector Antenna2.4 GHz CoverageDeploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. TheRocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations)ROCKET 2AC PRISMDimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")Weight 400 g (14.11 oz)Networking Interface (1) 10/100/1000 Ethernet PortLEDs (4) Signal Strength, Power, LANMax. Power Consumption 8.5WPower Supply 24V, 0.5A Gigabit PoE Adapter (Included)Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)Operating Temperature -40 to 80° C (-40 to 176° F)Operating Humidity 5 to 95% NoncondensingCertifications CE, FCC, ICOperating Frequency Worldwide: 2412 - 2472 MHz
Ubiquiti 6U-sized device rack with a 24-port blank patch panel that can be assembled without tools
The Toolless Mini Rack (U Rack 6U TL) is a heavy-duty, 6U-sized device rack that can be easily assembled without tools. The U Rack 6U TL is equipped with a 24-port blank patch panel, lockable casters, and can house most rack-mountable Ubiquiti devices*.
Features:
6U-sized device rack
24-port blank patch panel
Toolless assembly and device mounting*
Lockable casters
The UniFi Protect Smart Sensor is a battery-operated smart multi-sensor that detects motion and environmental conditions. The Sensor transmits sensory data and alerts over Bluetooth to the UniFi Protect ecosystem.
Features:
Motion sensor (5 m / 16 ft maximum range)
Magnetic entry sensor for door or window open/close
Accelerometer for garage door open/close
Temperature sensor
Humidity sensor
Ambient light sensor
Alarm sound sensor (detects UL217 and UL2034 alarm patterns)
Water sensor for detecting leaks and floods (requires water sensor adapter accessory, only available in 3-pack at general release)
BLE connectivity from Access Point in indoor setting (recommended range 15 m / 49 ft, performance will vary based on environment)
Note:One of the following UniFi 6 access points is required to adopt and operate the smart sensor:
UniFi6 Long-Range (U6 LR) - Only GA models updated to Version 5.60.23 and later
UniFi6 Lite (U6 Lite) - Only GA models updated to Version 5.60.23 and later
UniFi6 Pro (U6 Pro) - Only GA models updated to Version 6.0.4 and later
Layer 3, PoE switch with (24) GbE RJ45 ports, including (16) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (2) 10G SFP+ ports.The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports. The USW Pro 24 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 PoE is the ideal access layer switch for any UniFi system. It combines up to 400W of PoE power with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.Features:
(1) 1.3" LCM color touchscreen with AR switch management
(16) GbE, 802.3at PoE+ RJ45 ports
(8) GbE, 802.3bt PoE++ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Near-silent cooling
Layer 3 switching features
Managed with the UniFi Network application: Version 5.10.5 and later
Downloads
Datasheet Installation Guide
Flexible five-port, Layer 2 PoE switch that can be powered with PoE++.Features:
(1) GbE, PoE++ RJ45 input
(4) GbE, PoE+ RJ45 ports
Up to a 46W total PoE supply*
Weatherproof design with multiple mounting options
Managed with the UniFi Network application: Version 5.10.3 and later
*When powered with a PoE++ switch or a 60W PoE adapter (sold separately).
DownloadsDatasheet Installation Guide
Ubiquiti UniFi AP AC Outdoor Mesh 1167Mbps, dual-omni antennas - PoE injector includedScalable Enterprise Wi-Fi ManagementUniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.
FeaturesSave money and save time - UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.Powerful Hardware - The UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology. Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.Expandable Unlimited scalability - build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.Antenna Flexibility - The UAP-AC-M can use any other 2.4GHz / 5GHz / Dual Band Ubiquiti airMAX antenna, be it Omni or Sector, to enhance coverage.
NanoStation Loco 5AC - Previousely Known as the 5ACLClassic Nano Station design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy U Mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
New Antenna
Improved Design
Management WiFi Radio/U-Mobile App
AirOS v8.1 New UI
High-performing The NanoStation Loco AC M5 is known for its much smaller size than the other NanoStation, which makes it ideal for residential or small building use. It has a good throughput of around 150 mbps, sufficient to cover multitudes of devices and users simultaneously. It has a great reach at 13dBi through its integrated antenna. It operates at a frequency of GHz, which is ideal if you want to maximize throughput. This signal is seldom interrupted by noise or clutter as most devices and appliances work on 2.4GHz frequency. NanoStation Loco AC M5 can be controlled via the software AirOS and AirController. It’s a web-based management interface. PoE The NanoStation Loco AC M5 is also compatible with a PoE (power over Ethernet setup) so you can deal with fewer wires. Moreover, you can now reset its power directly from the main source than on the equipment itself, saving you the hassle.
Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included
Dimensions 123 x 65 x 34 mm
Weight 299 g
Output Voltage 54VDC @ 1.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button 100-240AC @ 50/60Hz
Input Voltage 100-240AC @ 50/60Hz
Input Current 0.8A @ 120VAC
0.4A @ 240VAC
Inrush Current <80A Peak @ 120VAC,
<120A Peak @ 230VAC
Efficiency 87+%
Output Ripple 1% Max
Switching Frequency 100 kHz Max.
Line Regulation ± 1%
Load Regulation ± 3%
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
Toolless Quick-Mounts for Ubiquiti CPE Products.Designed for additional mounting flexibility and device alignment options, the Quick-Mount accessory kit features an easy-to-use, toolless design.
