Ubiquiti UMA-D UniFi AC Mesh Dual-Band Directional Antenna

Description

UniFi Accessory — NDAA Compliant

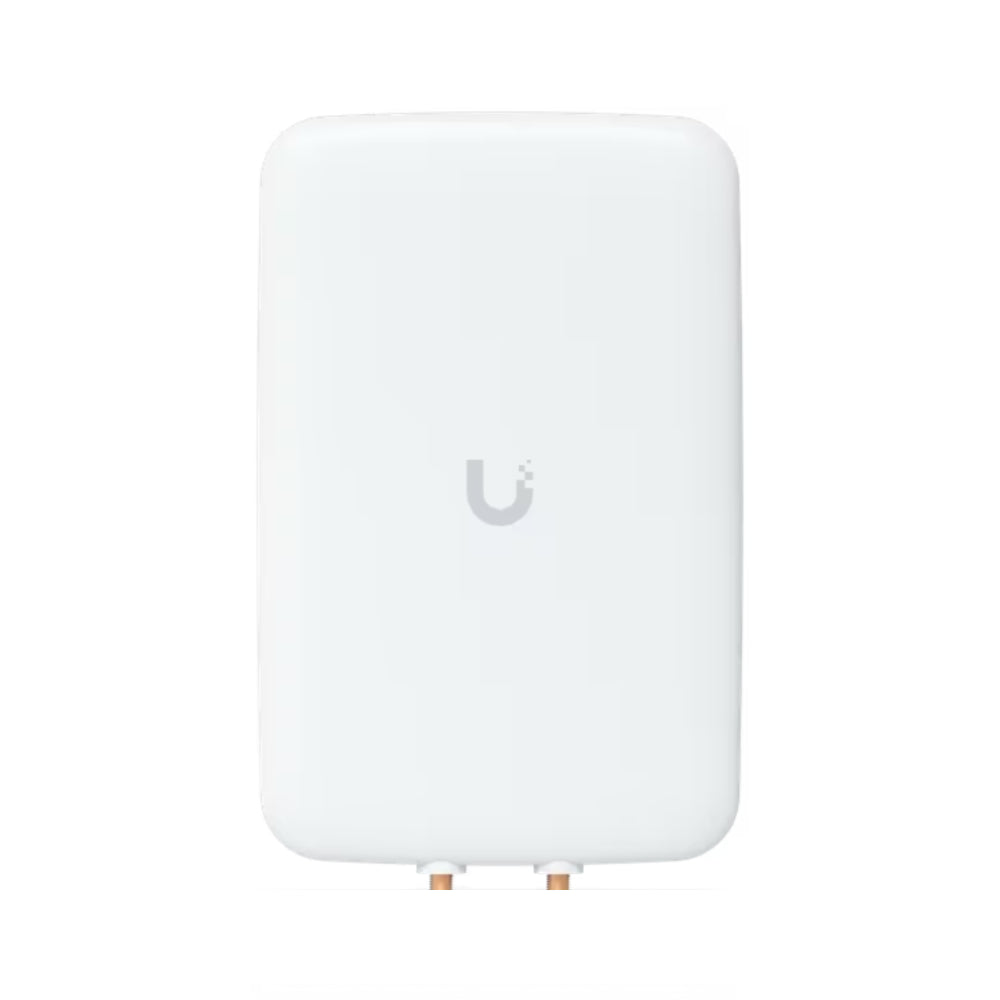

Ubiquiti UMA-D UniFi AC Mesh Dual-Band Directional Antenna

The Ubiquiti UMA-D is a high-efficiency, dual-band directional mesh antenna designed to extend the range and shape the coverage of the UniFi AC Mesh access point (UAP-AC-M). Optimised for 802.11ac, it delivers 15 dBi gain on 5 GHz and 10 dBi on 2.4 GHz with dual-linear polarisation, housed in an outdoor UV-stabilised enclosure for indoor or outdoor use. A ball-joint mount allows precise aiming on a pole or wall. Genuine Ubiquiti stock with fast Australia-wide shipping.

High Directional Gain

15 dBi at 5 GHz and 10 dBi at 2.4 GHz focuses signal where you need it, boosting range and link reliability for your UAP-AC-M.

Dual-Band Coverage Shaping

Supports 2.4–2.5 GHz and 5.1–5.9 GHz with a 45° (5 GHz) / 90° (2.4 GHz) beamwidth for customised pattern shaping.

Weather-Resistant Build

Encased in outdoor UV-stabilised plastic, the UMA-D is rated for indoor and outdoor installation in tough Australian conditions.

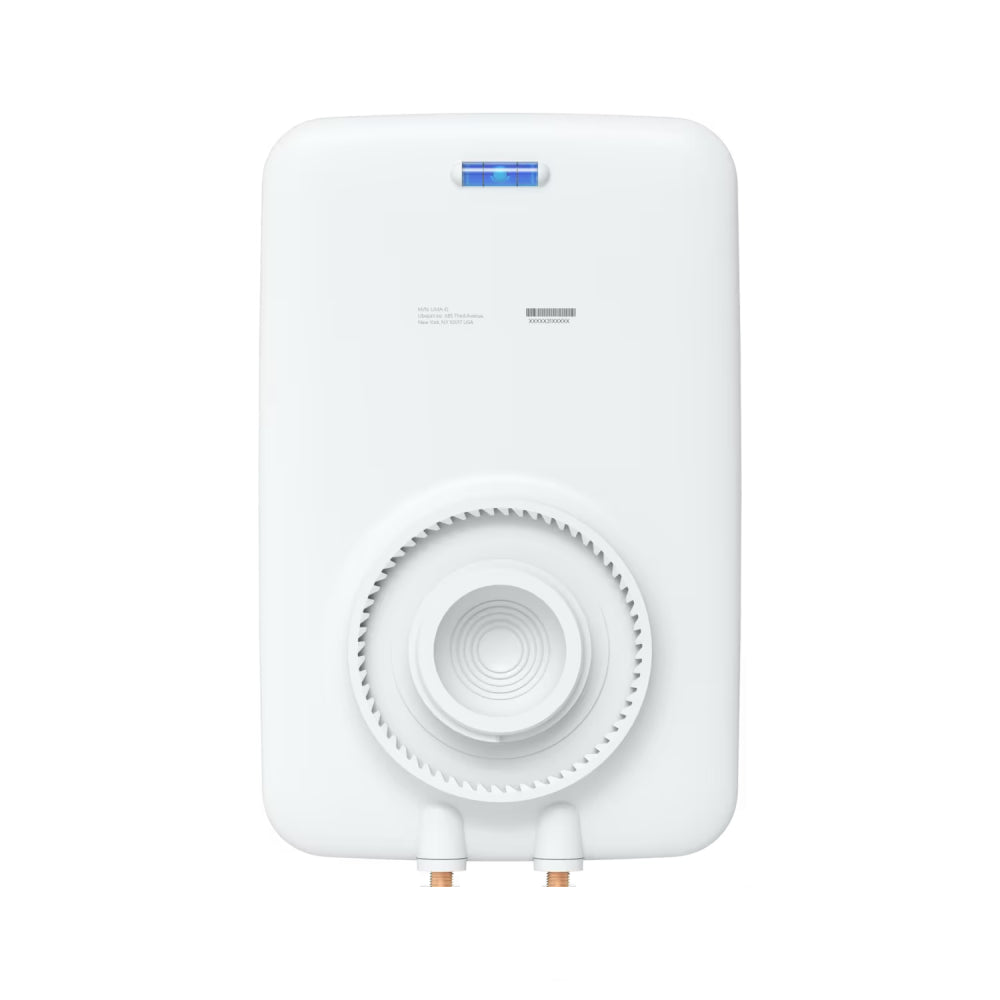

Precise Ball-Joint Mounting

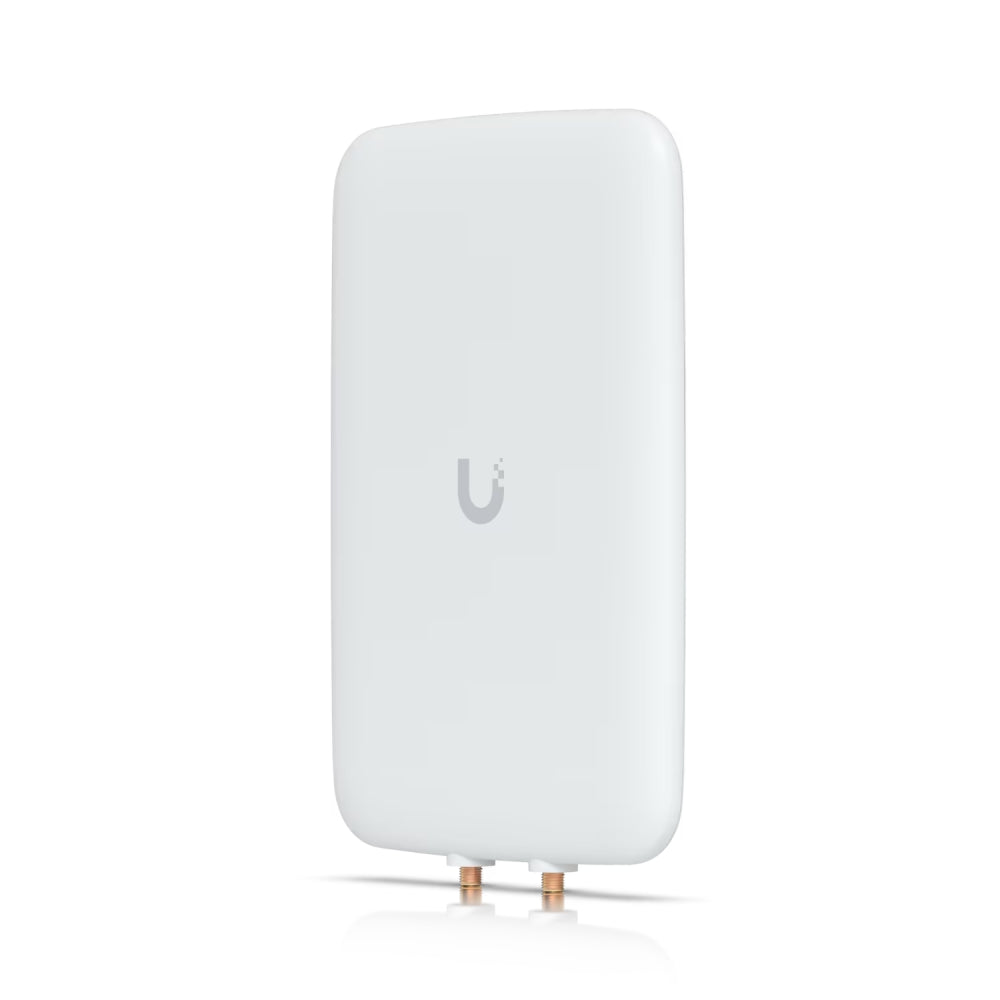

The integrated ball-joint mount enables accurate pole or wall aiming, with two RP-SMA connectors for the UAP-AC-M.

Technical Specifications

Model UMA-D
Compatibility UniFi AC Mesh AP (UAP-AC-M)
Supported Frequency 2.4–2.5 GHz • 5.1–5.9 GHz
Gain 15 dBi (5 GHz) • 10 dBi (2.4 GHz)
Beamwidth (HPOL / VPOL / Elevation) 45° (5 GHz) • 90° (2.4 GHz)
Polarisation Dual-linear
Max VSWR 2:1
Cross-Pol Isolation 30 dB (5 GHz) • 25 dB (2.4 GHz)
RF Connections (2) RP-SMA
Enclosure Material Outdoor UV-stabilised plastic
Mounting Ball-joint mount (pole or wall)
Dimensions 201.3 × 128 × 32.5 mm
Weight 400 g (without mount) • 480 g (with mount)
Compliance NDAA compliant
Certifications Anatel: 06187-19-08356

Downloads & Resources

UMA-D Tech Specs UMA-D Installation Guide
Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support

Ubiquiti UMA-D UniFi AC Mesh Dual-Band Directional Antenna

Product form

SKU: UMA-D

$174.80  $173.80 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 06, 2026 14:00:00 +1000
    • Warranty: 12 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    UniFi Accessory — NDAA Compliant

    Ubiquiti UMA-D UniFi AC Mesh Dual-Band Directional Antenna

    The Ubiquiti UMA-D is a high-efficiency, dual-band directional mesh antenna designed to extend the range and shape the coverage of the UniFi AC Mesh access point (UAP-AC-M). Optimised for 802.11ac, it delivers 15 dBi gain on 5 GHz and 10 dBi on 2.4 GHz with dual-linear polarisation, housed in an outdoor UV-stabilised enclosure for indoor or outdoor use. A ball-joint mount allows precise aiming on a pole or wall. Genuine Ubiquiti stock with fast Australia-wide shipping.

    High Directional Gain

    15 dBi at 5 GHz and 10 dBi at 2.4 GHz focuses signal where you need it, boosting range and link reliability for your UAP-AC-M.

    Dual-Band Coverage Shaping

    Supports 2.4–2.5 GHz and 5.1–5.9 GHz with a 45° (5 GHz) / 90° (2.4 GHz) beamwidth for customised pattern shaping.

    Weather-Resistant Build

    Encased in outdoor UV-stabilised plastic, the UMA-D is rated for indoor and outdoor installation in tough Australian conditions.

    Precise Ball-Joint Mounting

    The integrated ball-joint mount enables accurate pole or wall aiming, with two RP-SMA connectors for the UAP-AC-M.

    Technical Specifications

    Model UMA-D
    Compatibility UniFi AC Mesh AP (UAP-AC-M)
    Supported Frequency 2.4–2.5 GHz • 5.1–5.9 GHz
    Gain 15 dBi (5 GHz) • 10 dBi (2.4 GHz)
    Beamwidth (HPOL / VPOL / Elevation) 45° (5 GHz) • 90° (2.4 GHz)
    Polarisation Dual-linear
    Max VSWR 2:1
    Cross-Pol Isolation 30 dB (5 GHz) • 25 dB (2.4 GHz)
    RF Connections (2) RP-SMA
    Enclosure Material Outdoor UV-stabilised plastic
    Mounting Ball-joint mount (pole or wall)
    Dimensions 201.3 × 128 × 32.5 mm
    Weight 400 g (without mount) • 480 g (with mount)
    Compliance NDAA compliant
    Certifications Anatel: 06187-19-08356

    Downloads & Resources

    UMA-D Tech Specs UMA-D Installation Guide
