| Mechanical |
| Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight |
Without mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb) |
| Enclosure material |
SGCC steel |
| Hardware |
| Management interface |
Ethernet In-Band |
| Networking interface |

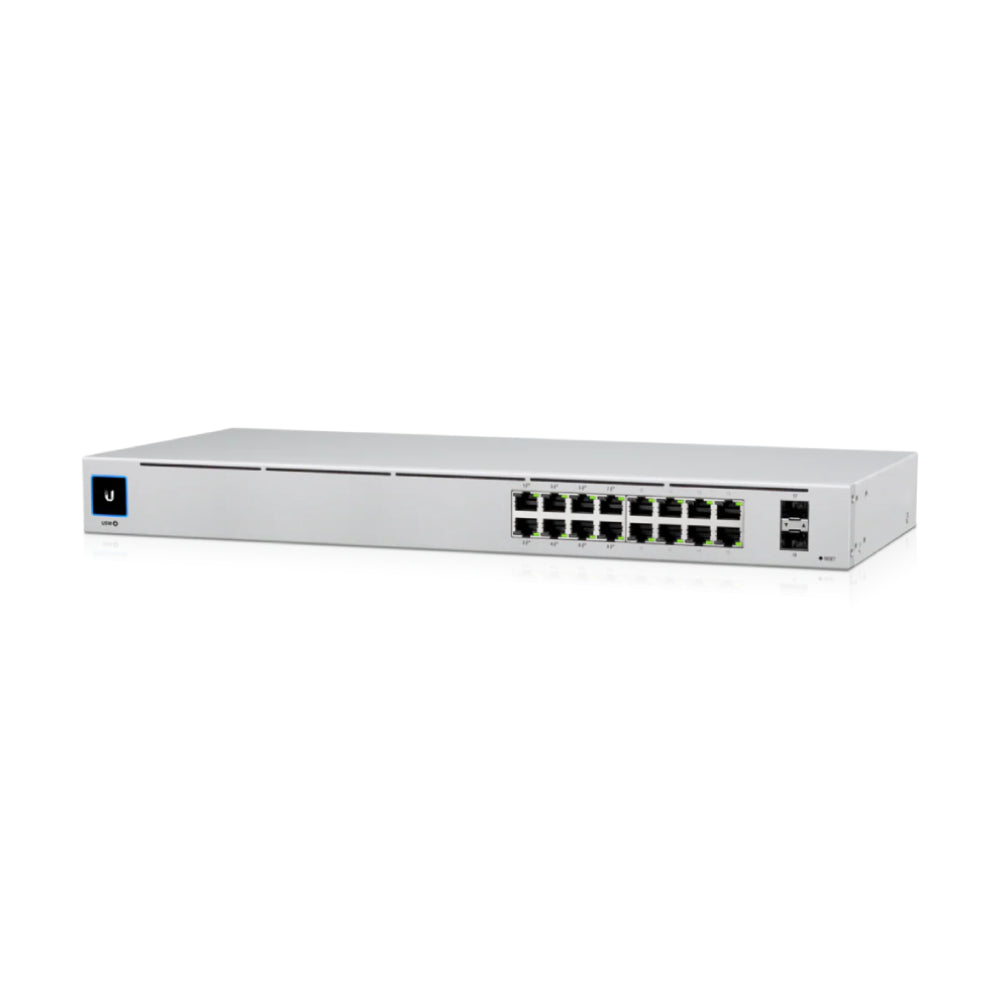

(16) GbE RJ45 ports
(2) 1G SFP ports |
| PoE interface |
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput |
18 Gbps |
| Switching capacity |
36 Gbps |
| Forwarding rate |
26.78 Mpps |

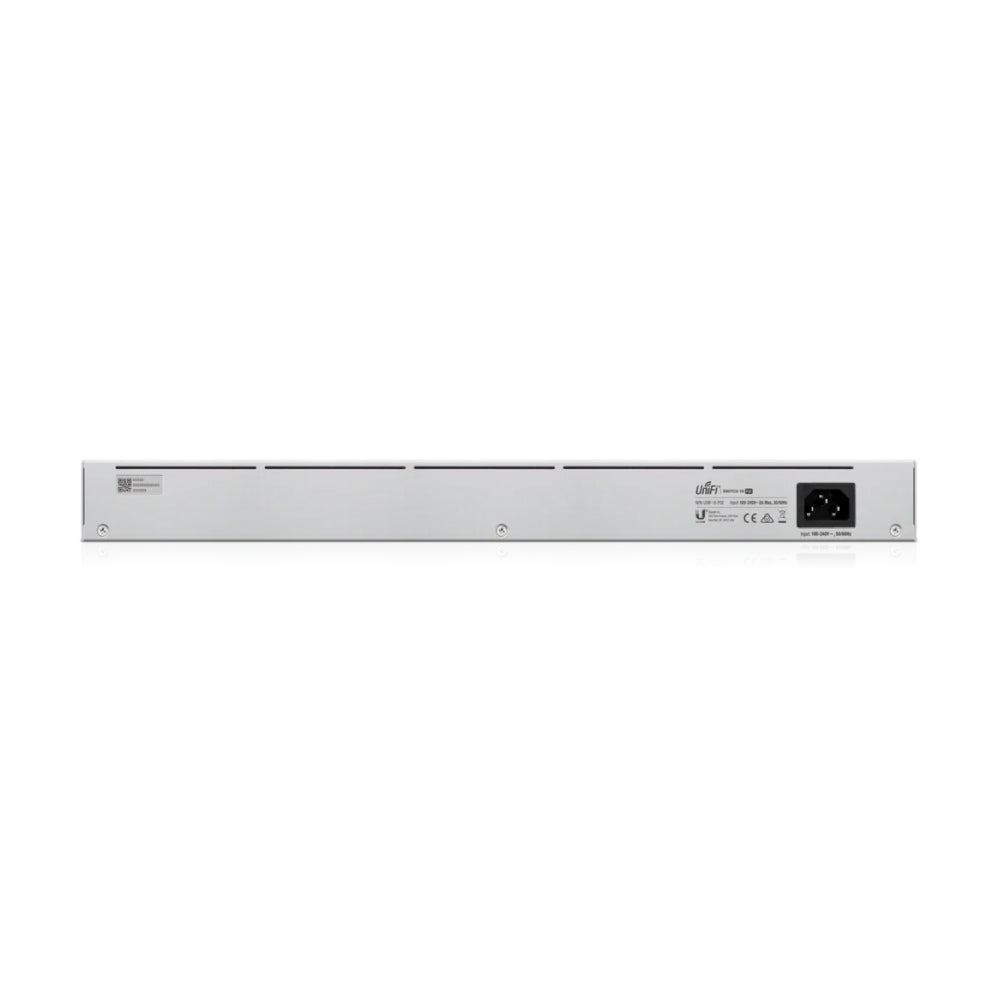

| Power method |
Universal input, 100—240V AC, 50/60 Hz |
| Power supply |
AC/DC, internal, 60W |
| Supported voltage range |
100—240V AC |
| Max. power consumption |
18W (Excluding PoE output) |
| Total available PoE |
42W |
| Max. PoE wattage per port by PSE |
PoE+: 32W |
| Voltage range PoE mode |
PoE: 44—57V
PoE+: 50—57V |
| ESD/EMP protection |
Air: ± 16kV, contact: ± 12kV |

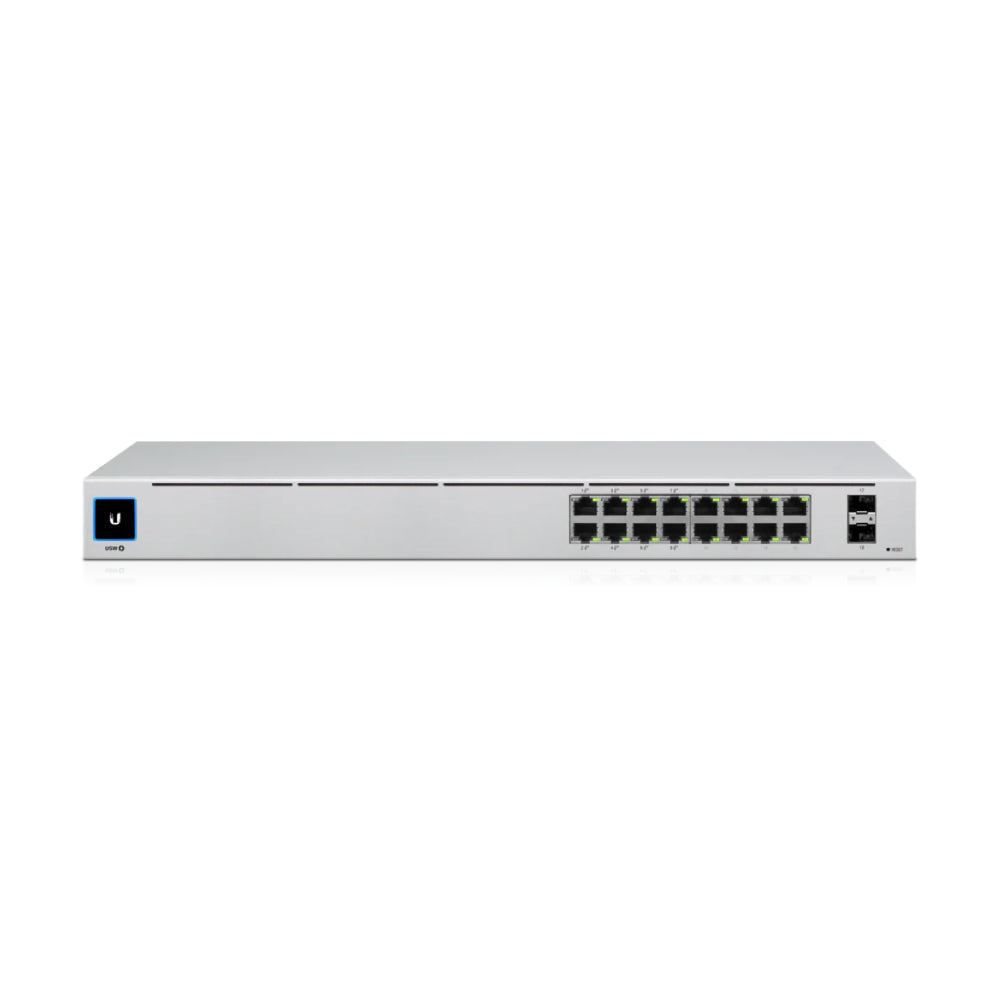

| LCM display |
(1) 1.3" touchscreen |
| Button |
Factory reset |
| Shock and vibration |
ETSI300-019-1.4 Standard |
| Ambient operating temperature |
-5 to 40° C (23 to 104° F) |
| Ambient operating humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Switching Features |
| Layer 2 features |
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
| Layer 3 features |
– |
| LEDs |
| System |
Status |
| Ethernet |
PoE
Speed/link/activity |
| SFP |
Link/activity |
| Application Requirements |
| UniFi Network |
Version 7.2.94 and later |
