Description
The Rocket 2AC features revolutionary airPrism RF filtering technology and proprietary airMAX ac chipset. Deploy the Rocket 2AC for PtP or PtMP links using the 2.4 GHz radio band.
Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas.
Pair the Rocket 2AC Prism with airMAX antennas for optimal performance:
• Point-to-Point (PtP)
backhaul RocketDish™ Antenna
• Point-to-MultiPoint (PtMP)
links airMAX Sector Antenna
2.4 GHz Coverage
Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The
Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations)

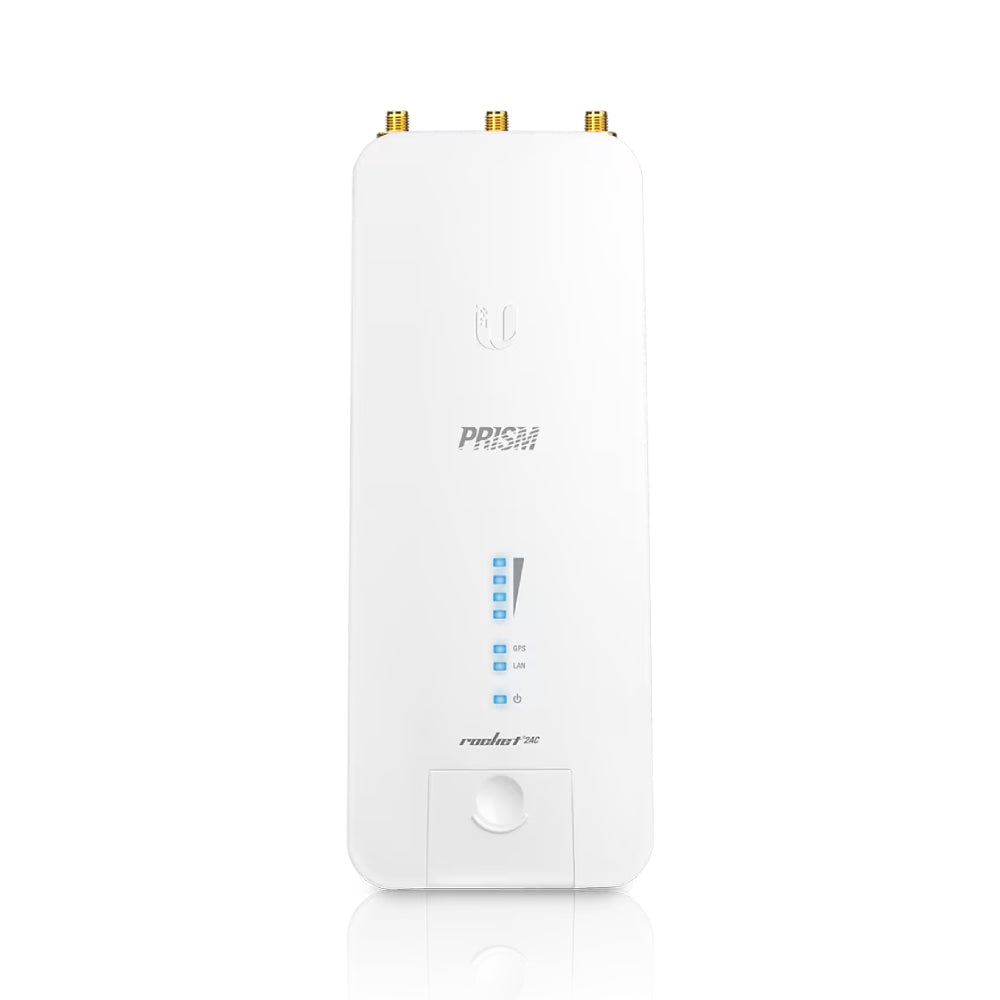

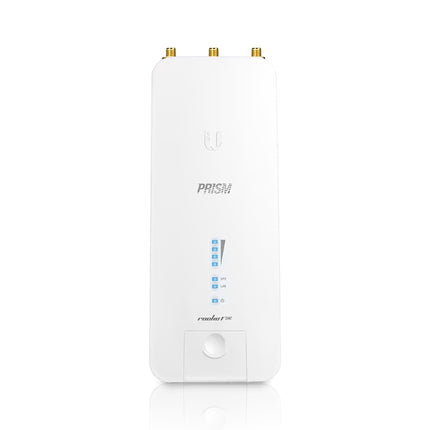

ROCKET 2AC PRISM
Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight 400 g (14.11 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
LEDs (4) Signal Strength, Power, LAN
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency Worldwide: 2412 - 2472 MHz
