Ubiquiti NanoStation 5AC Loco — 5 GHz airMAX ac Outdoor CPE / PtP Bridge (Loco5AC)

Description

airMAX ac CPE — NDAA Compliant

Ubiquiti NanoStation 5AC Loco — 5 GHz airMAX ac Outdoor CPE / PtP Bridge (Loco5AC)

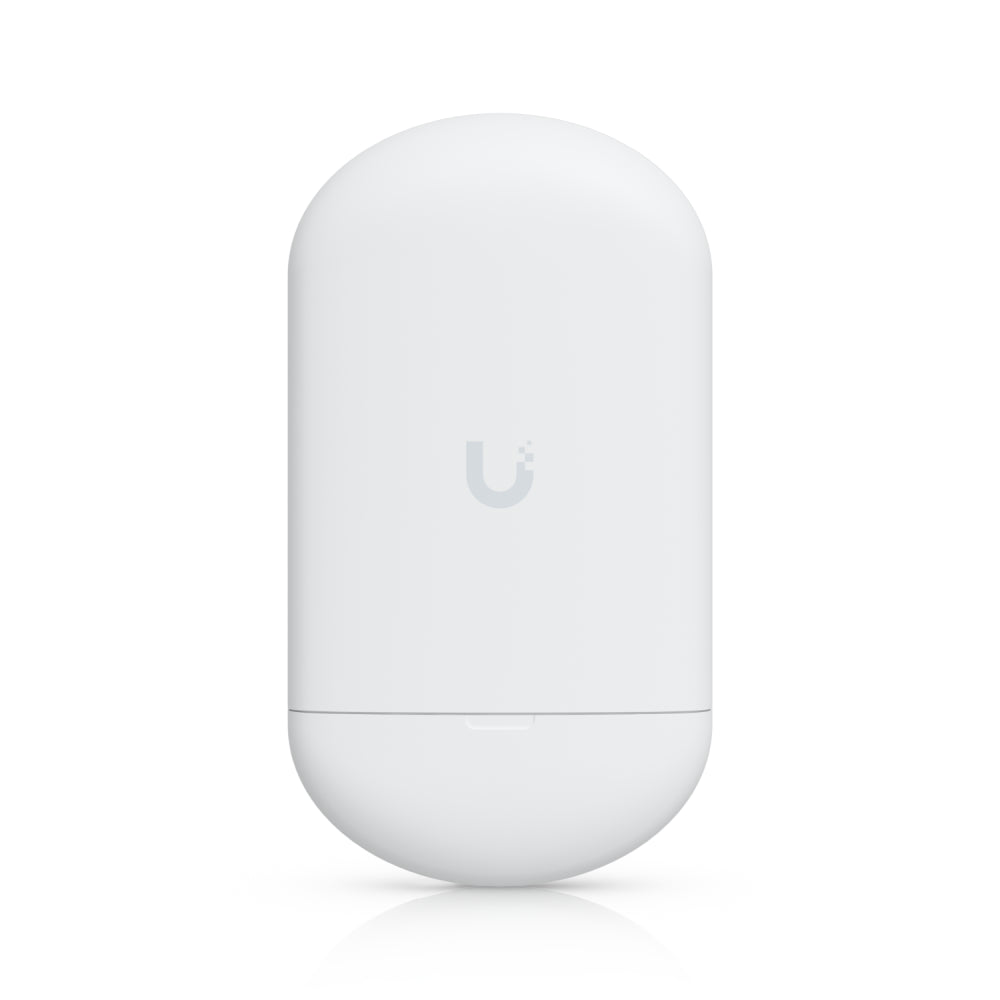

The Ubiquiti NanoStation 5AC Loco (Loco5AC) is a compact 5 GHz airMAX® ac outdoor CPE built for point-to-point bridges and point-to-multipoint client links. Its 13 dBi integrated antenna, dedicated 2.4 GHz management radio, and U-Mobile app setup make it a fast, low-cost way to extend a network across a property, between buildings, or out to a remote site. Fully NDAA compliant and backed by genuine Ubiquiti stock with fast Australia-wide shipping. Note: a 24V PoE injector is not included.

airMAX ac Performance

Proprietary airMAX® ac chipset with TDMA scheduling delivers high throughput and low latency for reliable long-distance wireless links across Australia.

13 dBi Integrated Antenna

A built-in dual-linear 13 dBi antenna with 45° beamwidth focuses signal for a clean, directional link in a small, easy-to-mount enclosure.

Management Wi-Fi & U-Mobile App

A dedicated 2.4 GHz management radio lets you configure and aim the unit from your phone via the U-Mobile app and the airOS® 8 web interface.

NDAA Compliant

NDAA Section 889 compliant for government, defence, and security-sensitive deployments where supply-chain integrity is required.

Technical Specifications

Model Loco5AC (airMAX NanoStation 5AC Loco)
Operating Frequency 5150–5875 MHz (worldwide)
Management Radio 2.4 GHz (2412–2472 MHz)
Antenna Gain 13 dBi, dual-linear polarisation
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Channel Bandwidths 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz
Cross-Pol Isolation 20 dB min.
Max. VSWR 1.8:1

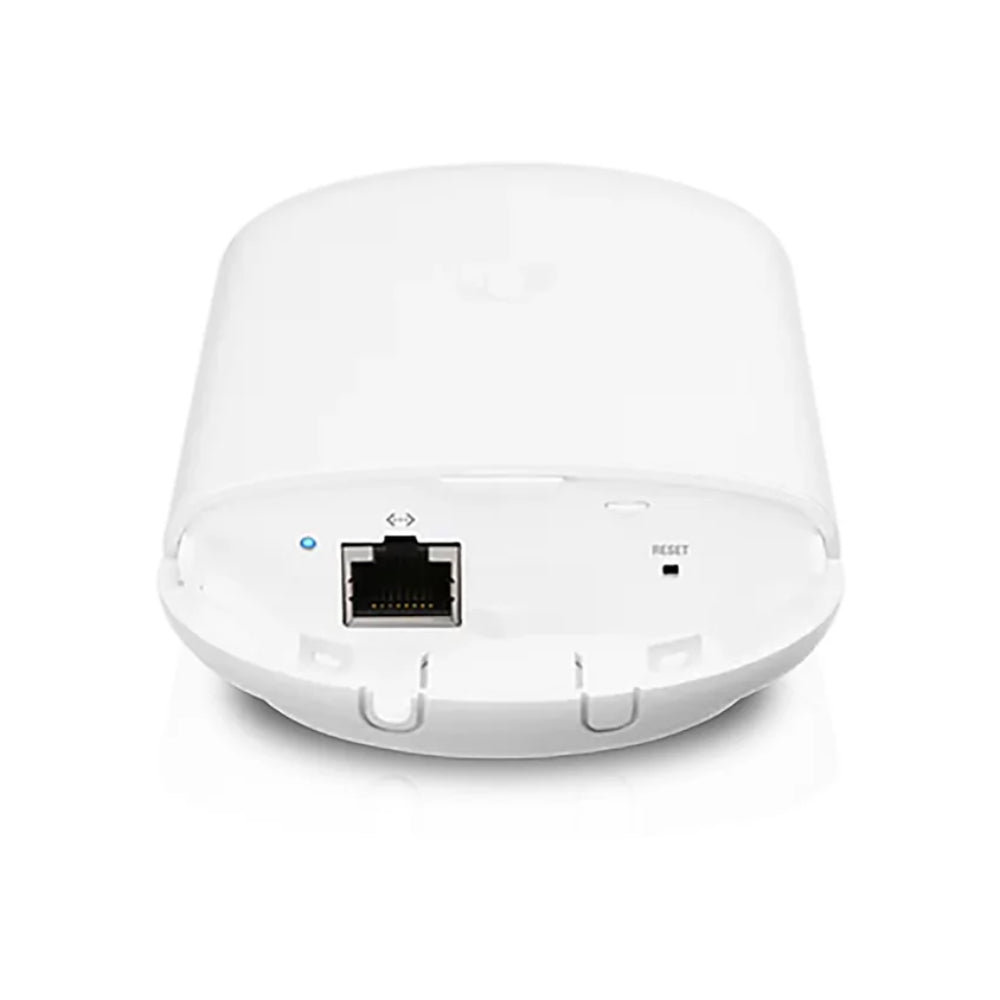

Networking Interface (1) GbE RJ45 port
Power Method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply 24V, 0.3A gigabit PoE (not included)
Supported Voltage Range 22–27 V DC
Max. Power Consumption 7 W
LEDs Power, Ethernet, (4) signal strength
Dimensions 179 × 77.5 × 59.1 mm
Weight 180 g
Enclosure UV-stabilised plastic

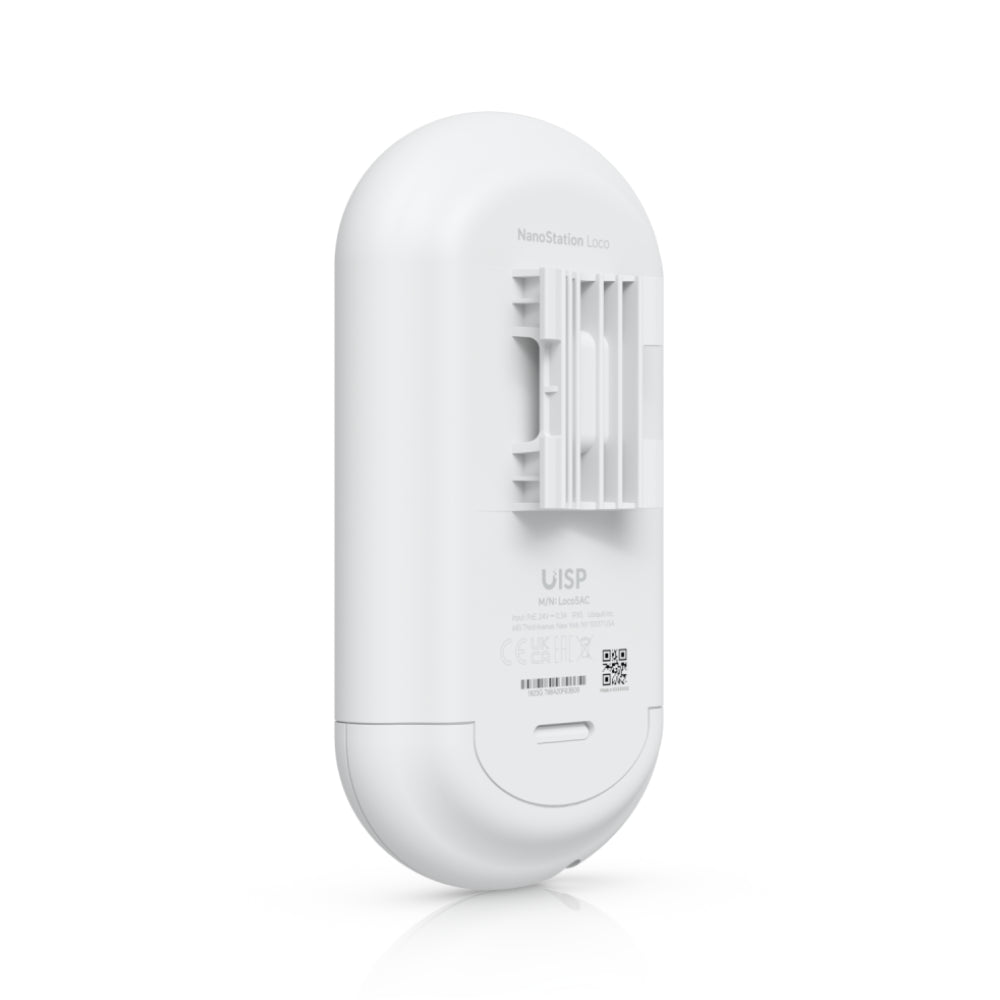

Mounting Pole mounting kit (included)
Operating Temperature −40°C to 70°C, 5–95% non-condensing
Certifications CE, FCC, IC
Compliance NDAA compliant

Downloads & Resources

Loco5AC Datasheet Loco5AC Installation Guide
Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support

Ubiquiti NanoStation 5AC Loco — 5 GHz airMAX ac Outdoor CPE / PtP Bridge (Loco5AC)

Product form

SKU: Loco5AC

$99.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 01, 2026 14:00:00 +1000
    • Warranty: 12 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
