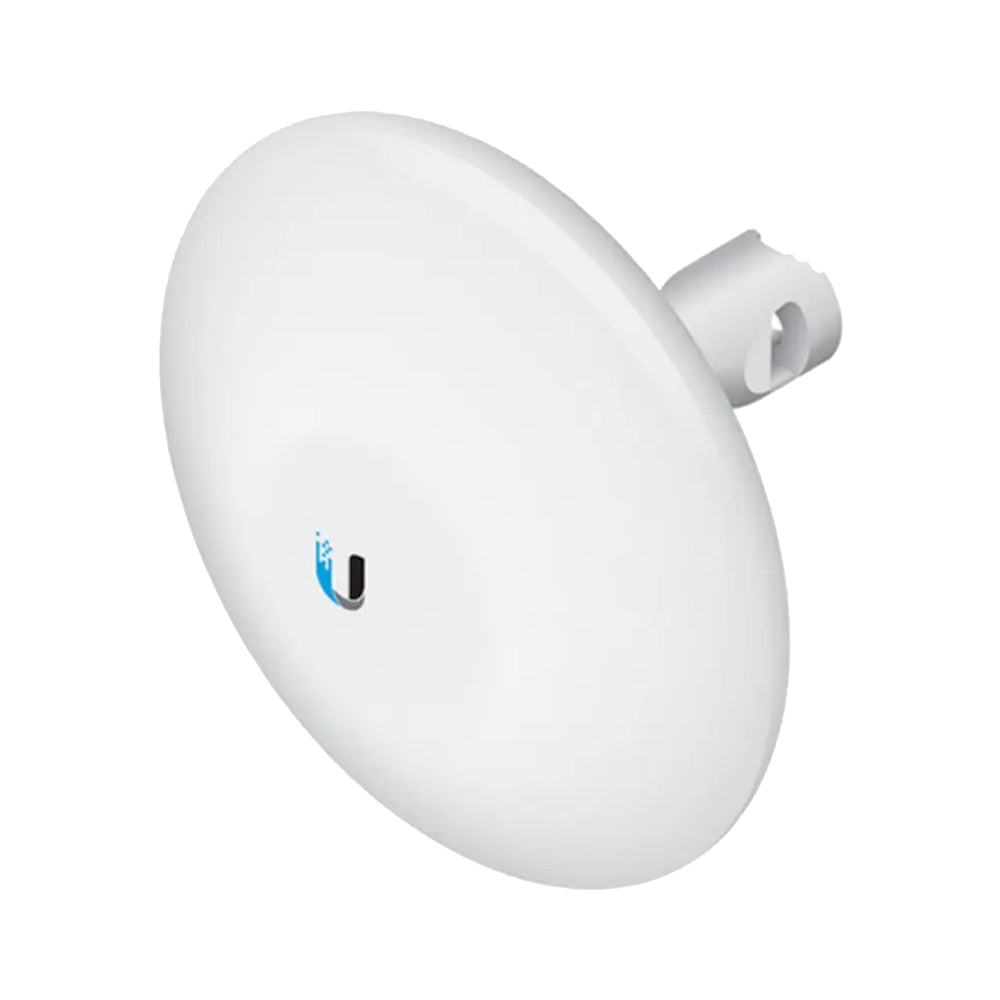

Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km

Description

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Innovative Mechanical Design
  • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
  • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
  • Easy removal The antenna feed can be detached with the push of a button.
Corrosion Resistance
  • Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
SPECIFICATION
  • Processor Specs: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2, 8 MB Flash
  • Operating Frequency: 2412 - 2472 MHz Worldwide
  • Net. Interface: (1) 10/100/1000 Ethernet Port
  • Gain: 13 dBi
  • Polarization: Dual Linear
  • Max. Power Consumption: 8.5W
  • Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
  • Weight: 0.530 kg (1.17 lb)
  • Power Supply (PoE): 24V, 0.5A PoE
  • Mounting: Pole-Mount (Kit Included), Wall-Mount
  • Operating Temperature: -40 to 80° C (-40 to 176° F)
  • Operating Humidity: 5 to 95% Noncondensing

Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km

Product form

SKU: NBE-2AC-13

The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially... Read more

$175.95 $170.50 Incl. GST

    • Warranty: 12 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

      Innovative Mechanical Design
      • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
      • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
      • Easy removal The antenna feed can be detached with the push of a button.
      Corrosion Resistance
      • Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
      SPECIFICATION
      • Processor Specs: Atheros MIPS 74Kc, 560 MHz
      • Memory: 64 MB DDR2, 8 MB Flash
      • Operating Frequency: 2412 - 2472 MHz Worldwide
      • Net. Interface: (1) 10/100/1000 Ethernet Port
      • Gain: 13 dBi
      • Polarization: Dual Linear
      • Max. Power Consumption: 8.5W
      • Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
      • Weight: 0.530 kg (1.17 lb)
      • Power Supply (PoE): 24V, 0.5A PoE
      • Mounting: Pole-Mount (Kit Included), Wall-Mount
      • Operating Temperature: -40 to 80° C (-40 to 176° F)
      • Operating Humidity: 5 to 95% Noncondensing
