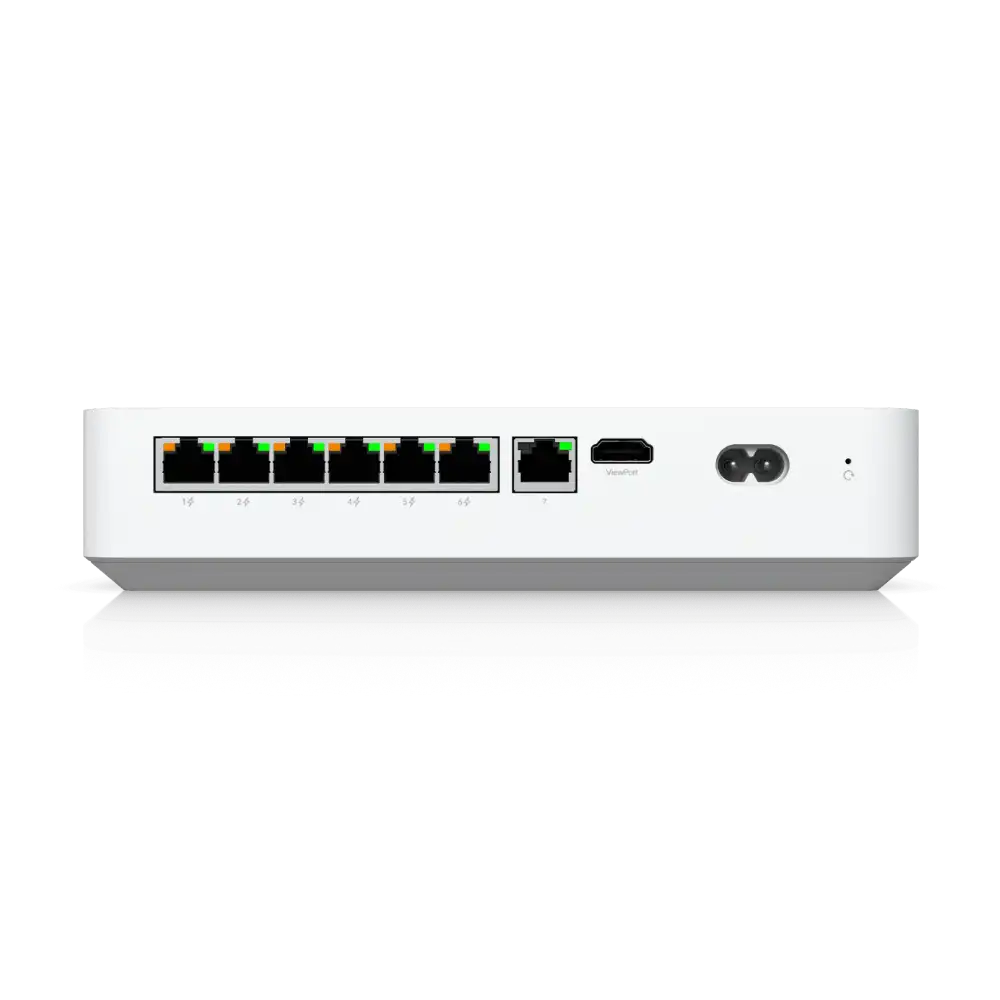

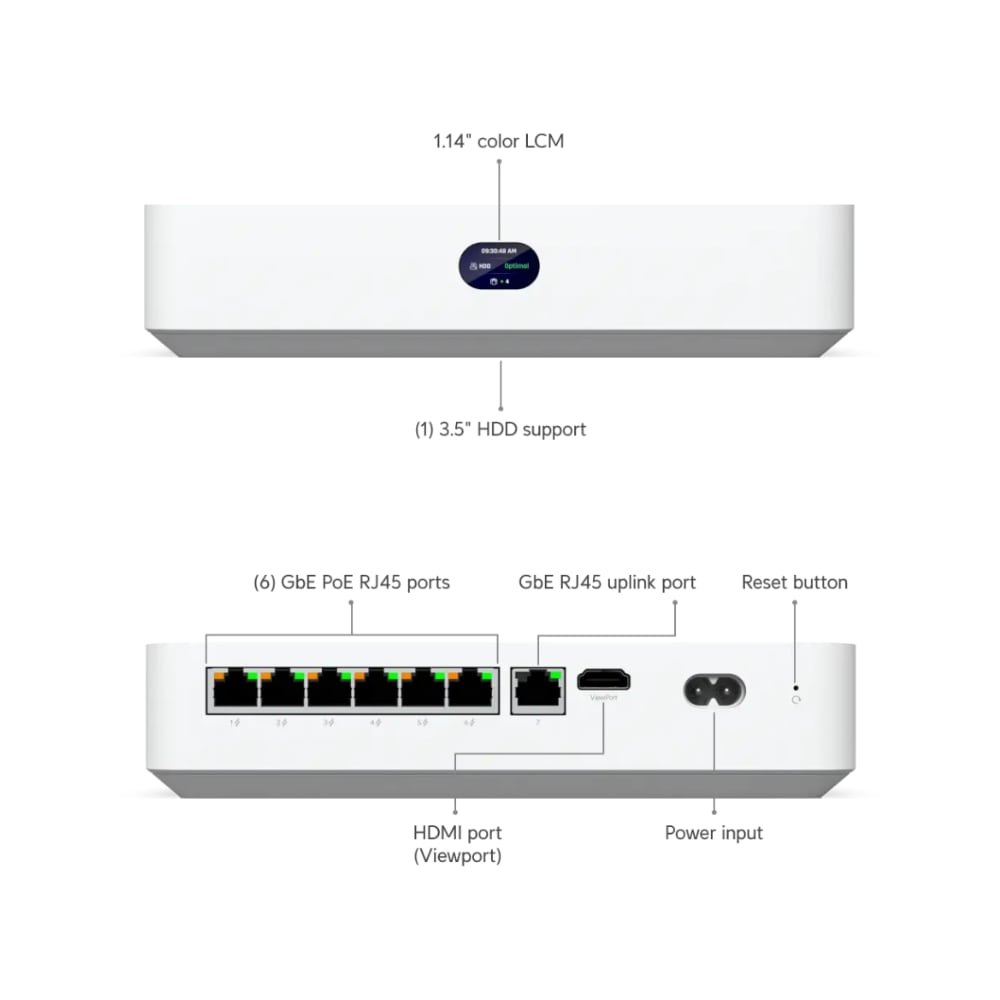

Built-in 6-Port Gigabit PoE Switch
Power and connect up to six UniFi cameras directly from the UNVR-Instant — no separate PoE switch required. A 40 W PoE budget delivers up to 15.4 W per port (802.3af PoE), plus a Gigabit RJ45 uplink to your network.

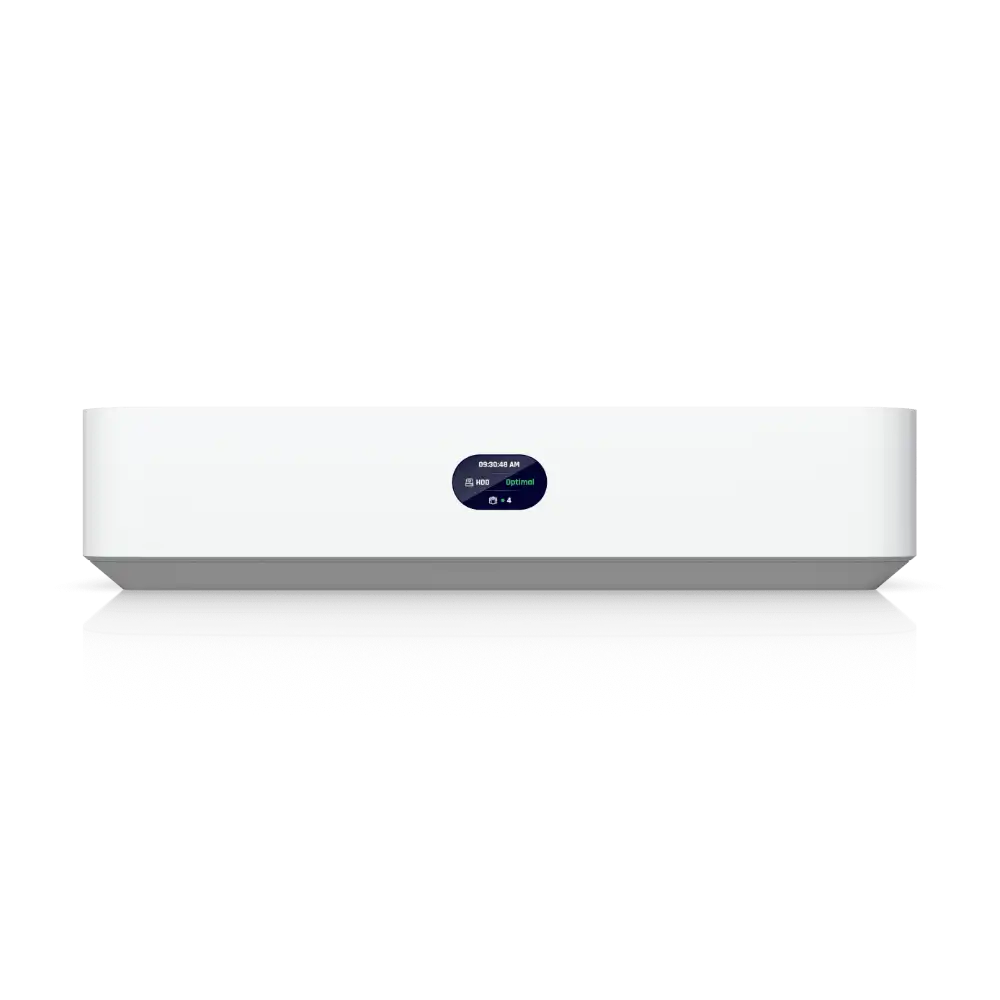

HDMI ViewPort — Live Local Display
Connect any HDMI TV or monitor to display live multi-camera feeds straight from the unit — no PC, tablet, or app required for on-site monitoring.
3.5″ HDD Bay — Local Storage
Install a compatible 3.5″ SATA hard drive for local recording, with built-in Data Protection to guard against drive failure. Keep full control of your footage — no cloud, no data leaving your premises.
Manage Up to 15 Cameras
Scale to suit your site — up to 6 × 4K, 8 × 2K, or 15 × HD UniFi Protect cameras, with mixed resolutions supported within those limits.
UniFi Protect & Access — No Subscription
Run UniFi Protect cameras and up to 50 UniFi Access hubs from one unit, managed via the UniFi app or web interface — fully local, with no monthly fees.
Plug-and-Play Camera Adoption
UniFi cameras connected to the PoE ports are automatically discovered and adopted into UniFi Protect — no manual IP configuration or complex setup required.
Compact Desktop Form Factor
At just 220 × 220 × 47 mm and 1.04 kg, the UNVR-Instant fits neatly on a shelf, in a comms cabinet, or wall / DIN-rail mounted — ideal for homes, small offices, and retail stores.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, education, and security-sensitive installations where supply-chain integrity is a mandatory requirement.

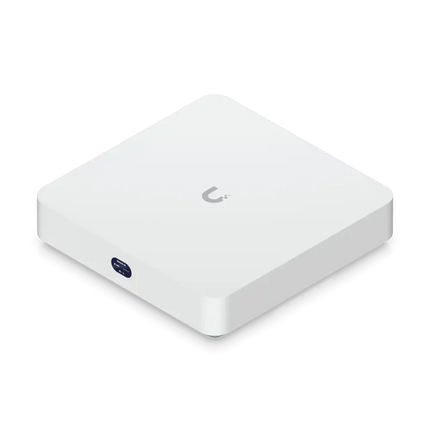

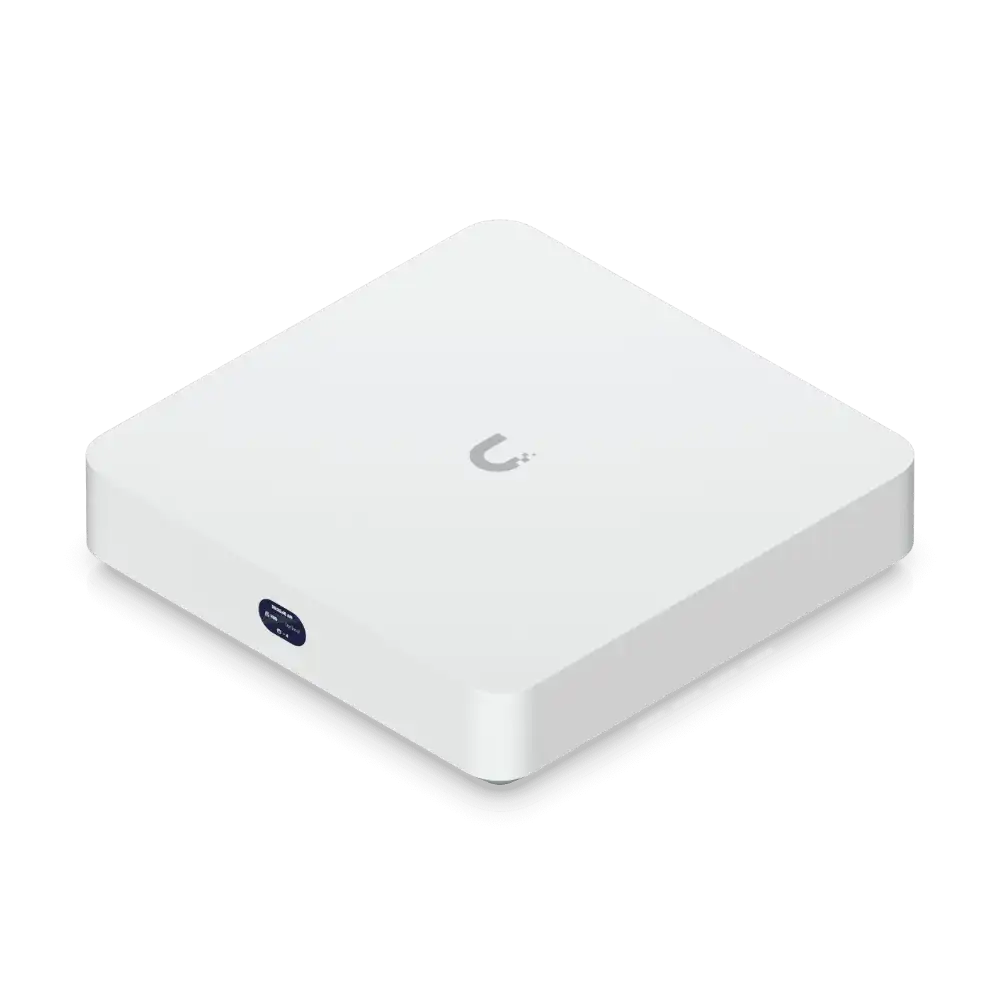

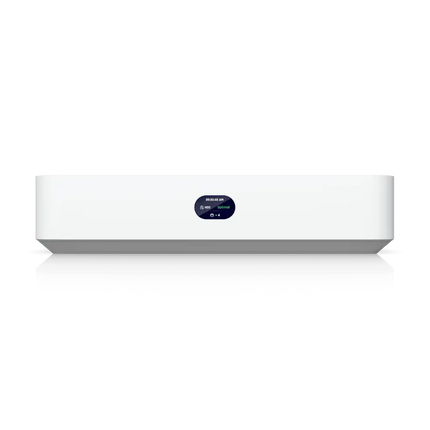

UNVR-Instant Unit
Compact UniFi Protect PoE NVR with a built-in 6-port PoE switch and HDMI ViewPort.
Mounting Kit
Wall and DIN-rail mounting hardware included.
Documentation
Quick-start guide and installation instructions.
Not Included
A 3.5″ SATA HDD and UniFi cameras are sold separately.
Does the UNVR-Instant require a UniFi Protect subscription?
No. UniFi Protect runs fully locally on the UNVR-Instant. There are no monthly fees and no cloud subscription required.
What hard drive do I need?
A compatible 3.5″ SATA HDD. Surveillance-grade drives such as WD Purple or Seagate SkyHawk are recommended for 24/7 recording. The drive is not included.
How many cameras can it support?
Up to 6 × 4K, 8 × 2K, or 15 × HD UniFi Protect cameras, with mixed resolutions supported within those limits.
Can I connect more than 6 cameras?
Yes. The six built-in PoE ports power local cameras directly; additional cameras can connect via a separate PoE switch on the Gigabit uplink, up to the unit's maximum camera count.
Which cameras are compatible?
All UniFi Protect cameras, including the G6 Turret, G6 Bullet, G6 Dome, and earlier G4/G5 series.
Can it also run UniFi Access?
Yes. The UNVR-Instant supports UniFi Access and can manage up to 50 Access hubs alongside UniFi Protect cameras.
