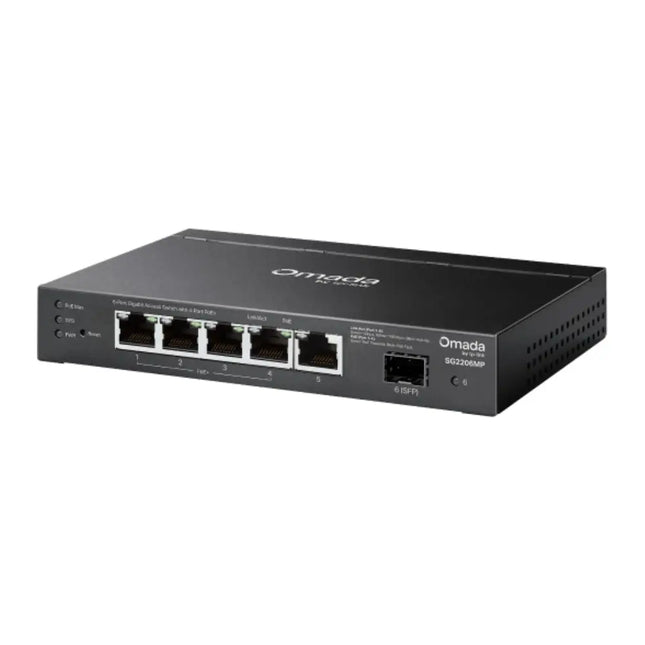

TP-Link Omada SG2206MP 6-Port Gigabit PoE+ Smart Switch
Compact PoE+ Switching for Small Business & Security Installations
The TP-Link Omada SG2206MP is a 6-port Gigabit PoE+ smart switch designed for small business networks, IP surveillance systems, and access control deployments. With a 126W PoE budget and full Omada SDN integration, it delivers reliable, centrally managed power and connectivity in a compact desktop form factor — ideal for Australian installers and IT professionals working in space-constrained environments.
Product Description
The SG2206MP features 4 Gigabit PoE+ ports and 2 Gigabit uplink ports, giving you the flexibility to power IP cameras, wireless access points, VoIP phones, and access control readers directly from the switch — no separate power injectors required. Managed via the Omada SDN platform (hardware controller, software controller, or Omada Cloud), it supports centralised configuration, monitoring, and zero-touch provisioning across your entire network.
Built for reliability, the SG2206MP supports advanced Layer 2 features including 802.1Q VLAN, RSTP, IGMP Snooping, and QoS — giving installers the tools to segment traffic, prioritise video streams, and maintain network stability across mixed-device environments.
Key Features
4× Gigabit PoE+ ports (802.3at/af) + 2× Gigabit uplink ports
126W total PoE power budget
Omada SDN compatible — manage via hardware controller, software controller, or Omada Cloud
802.1Q VLAN, RSTP, IGMP Snooping, and QoS support
Port mirroring, bandwidth control, and storm control
Fanless, silent operation — suitable for office and retail environments
Desktop or wall-mountable form factor
IPv6 management support
Supports PoE scheduling to reduce power consumption
Use Cases
IP Surveillance: Power and connect up to 4 IP cameras without additional injectors — ideal for small CCTV installations in retail, offices, or warehouses.
Wireless Access Points: Deploy Omada EAPs with seamless SDN integration for unified Wi-Fi and switching management.
Access Control: Power electromagnetic locks, card readers, and intercoms via PoE+ for a clean, cable-efficient installation.
VoIP Deployments: Prioritise voice traffic with QoS to ensure call quality across mixed-use networks.
Small Business Networks: A cost-effective managed switch for SMBs needing VLAN segmentation and centralised control without rack infrastructure.
Technical Specifications
Specification
Detail
Model
SG2206MP
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x
PoE Ports
4× Gigabit PoE+ (802.3at/af)
Uplink Ports
2× Gigabit RJ45
Total PoE Budget
126W
Switching Capacity
12 Gbps
Forwarding Rate
8.9 Mpps
MAC Address Table
8K
Jumbo Frame
9216 Bytes
VLAN
802.1Q VLAN, up to 4K VLAN groups
QoS
802.1p CoS/DSCP priority, 4 queues per port
Spanning Tree
STP, RSTP, MSTP
IGMP Snooping
IGMP v1/v2/v3 Snooping
Management
Omada App, Omada Cloud, Web UI, CLI (Telnet/SSH)
Mounting
Desktop / Wall-mount
Dimensions
158 × 101 × 25 mm
Power Input
100–240V AC, 50/60Hz
Max Power Consumption
154.6W
Cooling
Fanless
Operating Temperature
0–40°C
Certifications
CE, FCC, RoHS
Frequently Asked Questions
How many PoE devices can the SG2206MP power simultaneously?
The SG2206MP has a 126W total PoE budget across 4 PoE+ ports. The number of devices depends on each device's power draw — for example, it can power up to 4 standard IP cameras drawing approximately 15W each, with power to spare.
Does the SG2206MP require an Omada controller?
No. The switch can be managed standalone via its web interface or CLI. However, for centralised management, zero-touch provisioning, and advanced SDN features, an Omada hardware controller (e.g. OC200, OC300) or the Omada Software Controller is recommended.
Is the SG2206MP suitable for outdoor use?
No. The SG2206MP is designed for indoor use with an operating temperature range of 0–40°C. For outdoor or harsh-environment installations, consider a ruggedised PoE switch.
Can I use the SG2206MP with non-Omada devices?
Yes. The SG2206MP is a standards-based switch and will work with any 802.3af/at PoE-compatible device, including third-party IP cameras, access points, and VoIP phones.
What is the difference between 802.3af and 802.3at PoE?
802.3af (PoE) delivers up to 15.4W per port, while 802.3at (PoE+) delivers up to 30W per port. The SG2206MP supports both standards, making it compatible with a wide range of powered devices.
Does the SG2206MP support VLAN configuration?
Yes. It supports 802.1Q VLAN with up to 4K VLAN groups, allowing you to segment camera traffic, management traffic, and user traffic onto separate logical networks for improved security and performance.
