2.5G PoE++ Switching for High-Performance Wi-Fi 6E and Beyond

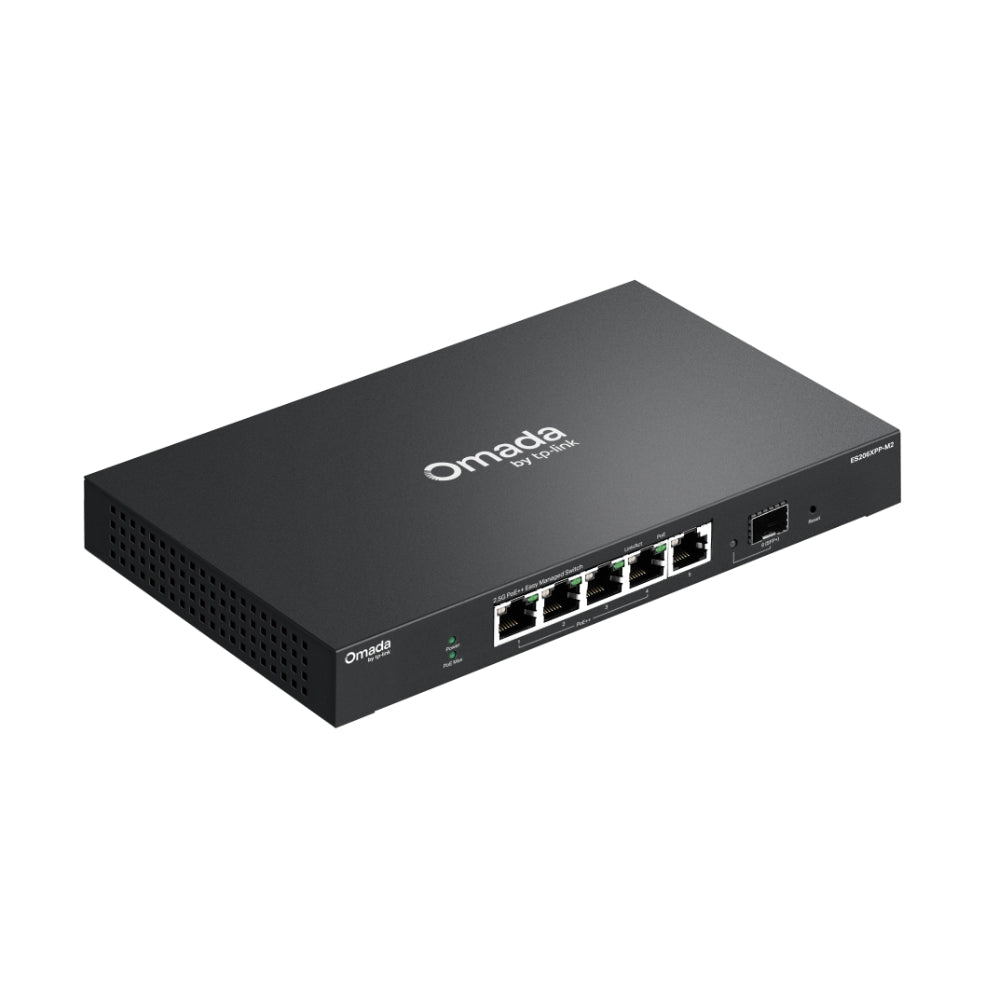

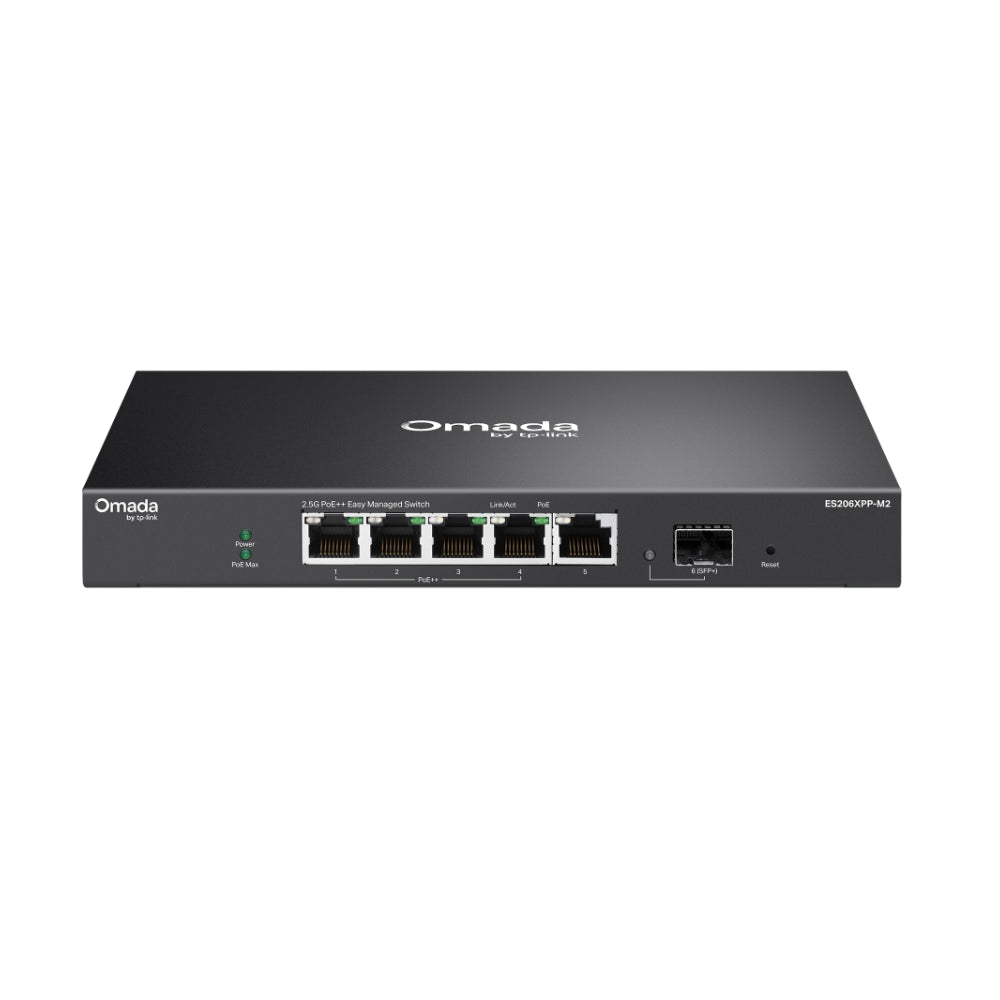

The TP-Link Omada ES206XPP-M2 is a 6-port 2.5 Gigabit PoE++ Easy Smart Switch purpose-built for powering and connecting the latest generation of high-performance network devices. With IEEE 802.3bt PoE++ on all six 2.5G ports, a 360W total PoE budget, and a 10G SFP+ uplink for high-speed backbone connectivity, it delivers the power and throughput that Wi-Fi 6E access points, PTZ cameras, and other high-draw devices demand — without the complexity of a fully managed switch.
Ideal for installers and IT teams deploying next-generation wireless infrastructure, the ES206XPP-M2 bridges the gap between basic unmanaged PoE switches and enterprise managed hardware, offering essential smart features through a straightforward web interface.
Key Features
- 6× 2.5 Gbps RJ45 ports with IEEE 802.3bt PoE++ — up to 60W per port
- 360W total PoE power budget for powering multiple high-draw devices simultaneously

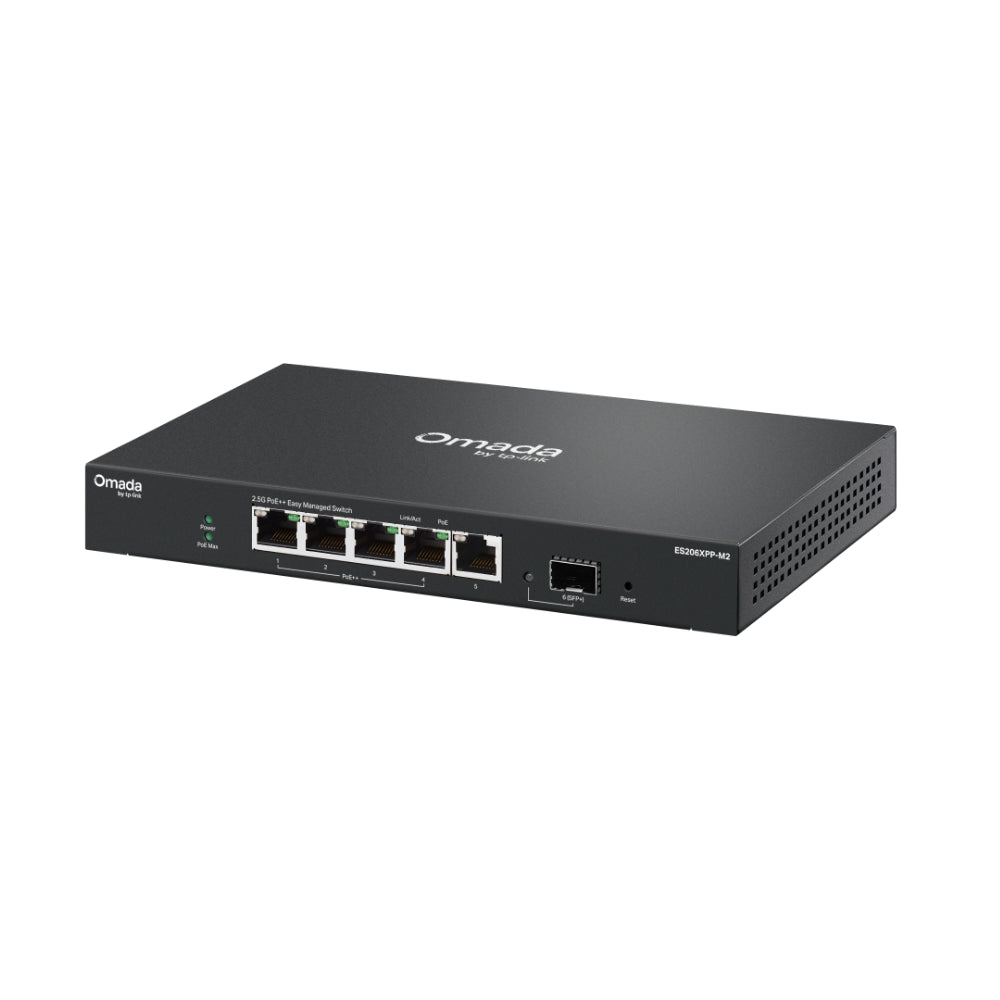

- 1× 10G SFP+ uplink port for high-speed fibre or DAC backbone connectivity
- 802.1Q VLAN support for network segmentation (up to 32 VLANs)
- QoS (Quality of Service) — 802.1p, DSCP, and port-based traffic prioritisation
- IGMP snooping v1/v2 for efficient multicast traffic management
- Loop prevention to protect against broadcast storms
- Web-based management interface — no software installation required
- PoE auto-recovery to automatically restart unresponsive powered devices
- PoE scheduling to control power delivery by time of day
- Desktop or rack-mountable form factor
- Compatible with Omada SDN ecosystem devices
Use Cases
-
Wi-Fi 6E Access Point Deployment: Power Omada EAP668 Outdoor HD and other 802.3bt-requiring Wi-Fi 6E access points directly — no separate PoE injectors needed.
-
PTZ & High-Power IP Camera Networks: Deliver up to 60W per port for PTZ cameras, multi-sensor cameras, and other high-draw surveillance devices.
-
Small Business Network Core: Use the 10G SFP+ uplink to connect to a core switch or NAS at full 10G speed while powering all edge devices from the 2.5G PoE++ ports.
-
Digital Signage & Interactive Displays: Power PoE-enabled displays and media players over 2.5G connections for smooth, high-bandwidth content delivery.
-
Education & Healthcare: Deploy high-performance wireless and powered devices across classrooms, wards, or meeting rooms with VLAN segmentation for network security.
-
Hospitality & Retail: Power and segment Wi-Fi 6E access points, POS terminals, and guest network devices from a single compact switch.
Technical Specifications
| Specification |
Detail |
| Model |
ES206XPP-M2 |
| RJ45 Ports |
6× 2.5 Gbps (100M/1G/2.5G auto-negotiation) |
| SFP+ Uplink |
1× 10G SFP+ |
| PoE Standard |
IEEE 802.3bt (PoE++), backward compatible with 802.3at/af |
| PoE Power per Port |
Up to 60W |
| Total PoE Budget |
360W |
| Switching Capacity |
45 Gbps |
| Forwarding Rate |
33.3 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
Up to 9216 bytes |
| VLAN |
802.1Q VLAN, Port-based VLAN (up to 32 VLANs) |
| QoS |
802.1p, DSCP, Port-based |
| IGMP Snooping |
v1, v2 |
| Loop Prevention |
Yes |
| PoE Auto-Recovery |
Yes |
| PoE Scheduling |
Yes |
| Management |
Web-based GUI (browser) |
| Power Input |
AC 100–240V, 50/60 Hz (AU plug) |
| Max Power Consumption |
Refer to datasheet |
| Operating Temperature |
0°C to 45°C |
| Form Factor |
Desktop / rack-mountable |
| Certifications |
CE, RoHS, FCC |
| In the Box |
ES206XPP-M2 switch, power cord, rack-mount kit, quick installation guide |
Recommended Accessories & Compatible Products
-
Omada EAP668 Outdoor HD (AXE7800 Wi-Fi 6E AP): 802.3bt-powered outdoor Wi-Fi 6E access point — the ES206XPP-M2 provides the PoE++ power it requires
-
Omada EAP670 (AX5400 Wi-Fi 6 AP): High-performance indoor Wi-Fi 6 access point powered directly from the ES206XPP-M2
-
Omada ISM321A-20 (10GBase-LR SFP+ Module): Single-mode fibre SFP+ module for the 10G uplink port — extends backbone connectivity up to 20 km
-
Omada TL-SG3428X (24-Port L2+ Managed Switch with SFP+): Core switch to connect to via the ES206XPP-M2’s 10G SFP+ uplink
-
Omada ES208GP (8-Port Gigabit PoE+ Easy Smart Switch): Gigabit PoE+ sibling for locations where 2.5G and 802.3bt are not required
-
Cat6A Patch Cables: Recommended for 2.5G runs to ensure full throughput and reliable PoE++ delivery
Downloads
Frequently Asked Questions
What is the difference between PoE, PoE+, and PoE++?
IEEE 802.3af (PoE) delivers up to 15.4W per port, 802.3at (PoE+) delivers up to 30W, and 802.3bt (PoE++) delivers up to 60W (Type 3) or 90W (Type 4) per port. The ES206XPP-M2 supports 802.3bt Type 3, providing up to 60W per port — sufficient for the most power-hungry Wi-Fi 6E access points, PTZ cameras, and multi-sensor devices. It is also backward compatible with 802.3at and 802.3af devices.
Why do I need 2.5G ports instead of standard Gigabit?
Wi-Fi 6 and Wi-Fi 6E access points can deliver aggregate wireless throughput that exceeds 1 Gbps in real-world deployments. A standard Gigabit uplink becomes the bottleneck in these scenarios. The ES206XPP-M2’s 2.5G ports ensure the wired uplink to each access point keeps pace with its wireless capability, eliminating a common performance limitation in modern Wi-Fi deployments.
Does the ES206XPP-M2 support Omada SDN or cloud management?
No. The ES206XPP-M2 is an Easy Smart switch managed via a local web browser interface only — it does not support the Omada SDN Controller or Omada Cloud. For centralised multi-site management, consider the Omada TL-SG2xxx or TL-SG3xxx fully managed switch series.
What cable type is required for 2.5G PoE++ performance?
Cat5e cable supports 2.5G speeds at distances up to 100 metres, but Cat6 or Cat6A is strongly recommended for new installations — particularly for PoE++ at higher wattages — to minimise heat build-up and ensure reliable power delivery over the full cable run.
Can I use the 10G SFP+ uplink with a DAC cable instead of a fibre module?
Yes. The 10G SFP+ port accepts standard SFP+ Direct Attach Copper (DAC) cables for short-range connections (typically up to 3–5 metres) to a core switch or NAS in the same rack or cabinet, as well as SFP+ fibre modules for longer runs. Verify DAC cable compatibility with the specific model before purchasing.
How does PoE auto-recovery work?
PoE auto-recovery monitors the connectivity of powered devices on each port. If a device becomes unresponsive — such as a frozen access point or camera — the switch automatically cuts and restores power to that port, effectively rebooting the device without any manual intervention. This is particularly valuable for remotely deployed devices where physical access is inconvenient.
