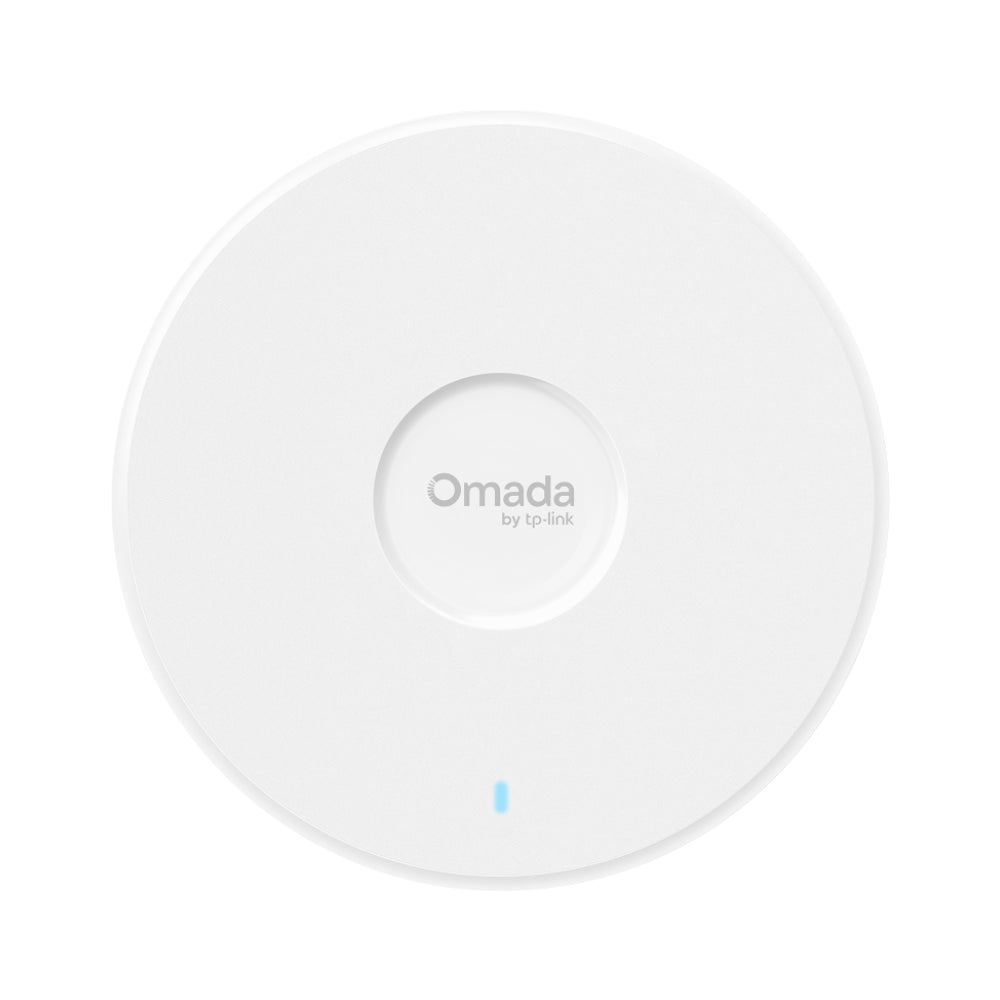

TP-Link Omada EAP770 — Wi-Fi 7 Ceiling Mount Access Point for Business
The TP-Link Omada EAP770 brings Wi-Fi 7 to the enterprise ceiling mount access point category, delivering BE9300 tri-band speeds, Multi-Link Operation (MLO), and a 2.5G PoE+ uplink in a sleek, low-profile design. Built for high-density business environments — offices, schools, hotels, healthcare facilities, and retail spaces — the EAP770 handles hundreds of simultaneous client connections with the efficiency and reliability that Wi-Fi 7 enables. Managed natively within the Omada SDN platform, it gives IT administrators centralised control over their entire network from a single interface, with no per-device licensing fees.
Key Features
-
Wi-Fi 7 (802.11be) Standard — The latest wireless standard with Multi-Link Operation (MLO), 4K-QAM, and 320 MHz channel bandwidth on the 6 GHz band for dramatically lower latency and higher throughput than Wi-Fi 6E.
-
BE9300 Tri-Band Speeds — Combined wireless throughput of up to 9300 Mbps across 2.4 GHz (688 Mbps), 5 GHz (2882 Mbps), and 6 GHz (5765 Mbps) bands.
-
Multi-Link Operation (MLO) — Simultaneously connects Wi-Fi 7 client devices across multiple bands for lower latency, higher throughput, and improved connection reliability — a key advantage in high-density environments.
-
2.5G PoE+ Uplink Port — Single 2.5 Gbps uplink powered via 802.3at PoE+, simplifying installation with a single cable for both power and high-speed data.
-
Omada SDN Integration — Centralised management via Omada Controller (hardware, software, or cloud-based) with zero-touch provisioning, unified monitoring, and no per-device licensing fees.
-
High Client Capacity — Engineered for high-density deployments with support for hundreds of simultaneous client connections across all three bands.
-
Seamless Roaming — Supports 802.11r/k/v fast roaming for uninterrupted connectivity as users move between access points across a site.
-
Advanced Security — WPA3, WPA2-Enterprise, and 802.1X port authentication for secure, standards-compliant wireless access in corporate and education environments.
-
Multiple SSIDs — Supports up to 16 SSIDs (8 per radio) for separating staff, guest, IoT, and management traffic on a single access point.
-
Band Steering & Airtime Fairness — Automatically guides clients to the optimal band and prevents slower devices from monopolising airtime in mixed-device environments.
-

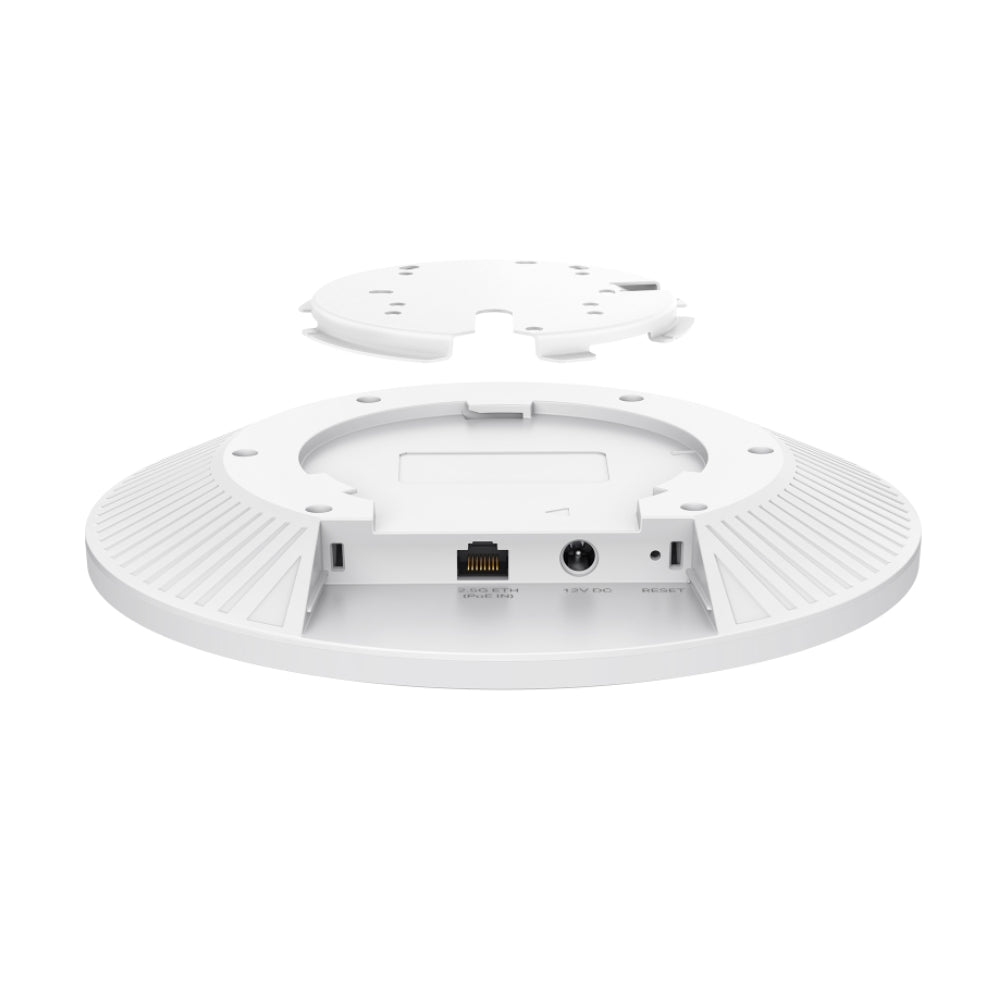

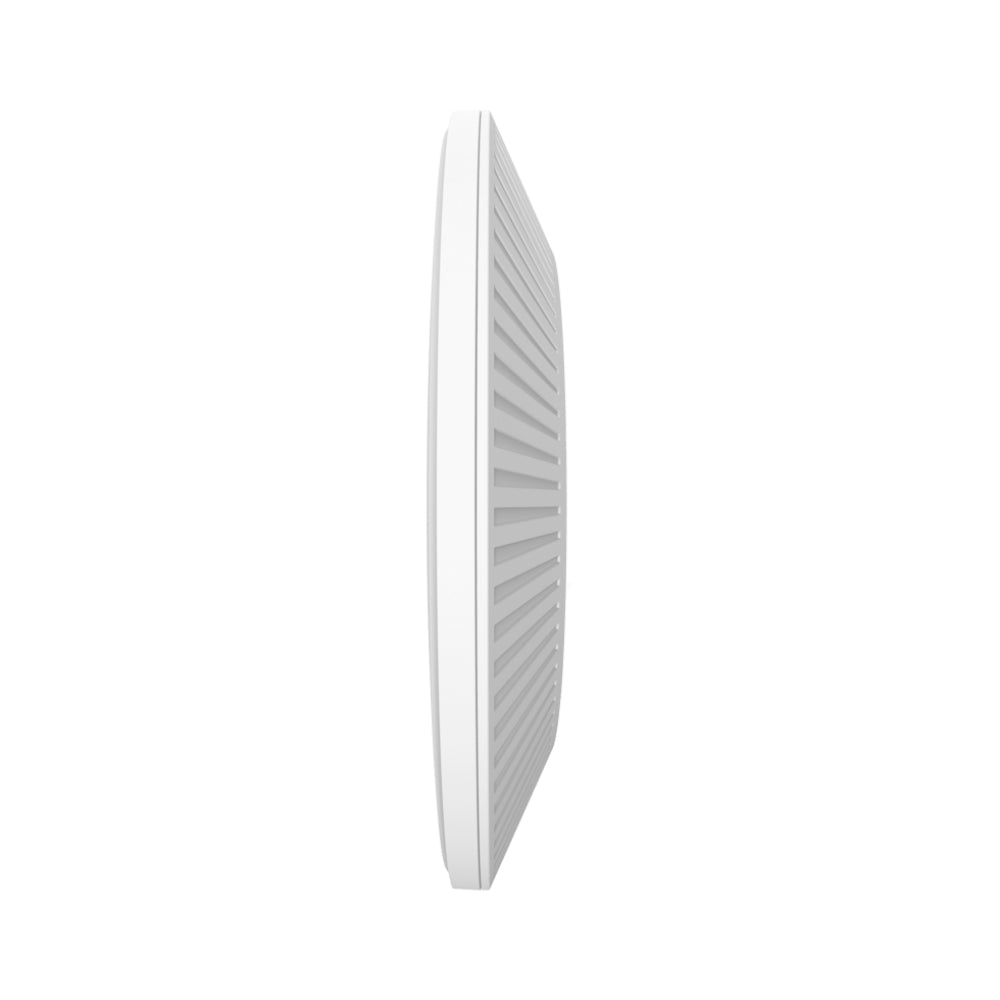

Discreet Ceiling-Mount Design — Low-profile white housing blends into commercial ceilings with a secure tool-assisted mounting bracket.
Use Cases
-
Corporate Offices — Deliver fast, reliable Wi-Fi 7 to open-plan workspaces, meeting rooms, and breakout areas with centralised Omada management and seamless roaming.
-
Schools & Universities — Support high-density student and staff connectivity across classrooms, libraries, and common areas with MLO-enhanced performance on Wi-Fi 7 devices.
-
Hotels & Hospitality — Provide seamless, high-speed guest Wi-Fi across rooms, lobbies, and conference facilities with SSID separation for guest and staff networks.
-
Healthcare Facilities — Deliver secure, segmented wireless connectivity for clinical staff, patient devices, and medical IoT equipment with WPA3 and 802.1X security.
-
Retail & Shopping Centres — Enable customer Wi-Fi, digital signage, and POS connectivity from a single managed Wi-Fi 7 access point per zone.
-
High-Density Event Spaces — Handle large numbers of simultaneous connections in conference halls, auditoriums, and co-working spaces with Wi-Fi 7’s improved spectral efficiency.
Technical Specifications
| Specification |
Details |
| Wi-Fi Standard |
Wi-Fi 7 (IEEE 802.11be/ax/ac/n/g/b/a) |
| Wi-Fi Speed |
BE9300 — 2.4 GHz: 688 Mbps | 5 GHz: 2882 Mbps | 6 GHz: 5765 Mbps |
| Wi-Fi Bands |
Tri-Band (2.4 GHz + 5 GHz + 6 GHz) |
| Key Wi-Fi 7 Features |
MLO, 4K-QAM, 320 MHz Channel, OFDMA, MU-MIMO |
| Antennas |
Internal Omni-Directional |
| Uplink Port |
1× 2.5 Gbps PoE+ (802.3at) |
| Power Supply |
PoE+ (802.3at, 25.5W) — PoE injector not included |
| SSIDs |
Up to 16 (8 per radio) |
| Roaming |
802.11r/k/v Fast Roaming |
| Security |
WPA3, WPA2, WPA2-Enterprise, 802.1X |
| Management |
Omada App, Omada Cloud Controller, Omada Hardware Controller, Standalone Web GUI |
| Mounting |
Ceiling Mount (bracket included) |
| Operating Temperature |
0°C to 40°C |
| Warranty |
3 Years (TP-Link Australia) |
Recommended Accessories
-
TP-Link Omada OC300 — Hardware Omada Controller for on-premises centralised management of EAP770 units alongside switches and routers in a complete Omada SDN deployment.
-
TP-Link Omada TL-SG2210XP — 8-Port Gigabit + 2× 10G SFP+ Smart PoE+ Switch for powering and connecting multiple EAP770 access points with high-speed uplinks.
-
TP-Link Omada POE5460X — 60W 2.5G PoE++ Injector for powering a single EAP770 where a PoE switch port is not available.
-
TP-Link Omada ER8411 — Multi-WAN 10G VPN Router for enterprise-grade core routing and firewall in large Omada SDN deployments.
-
Cat6A Ethernet Cable — For maximising 2.5G uplink performance between the EAP770 and your PoE switch or injector.
Downloads
Frequently Asked Questions
What is the difference between the EAP770 and the EAP723?
The EAP770 is a Wi-Fi 7 (802.11be) access point, while the EAP723 is a Wi-Fi 6 (802.11ax) access point. The EAP770 adds the 6 GHz band, Multi-Link Operation (MLO), 4K-QAM, and 320 MHz channel support — delivering significantly lower latency and higher peak throughput for Wi-Fi 7-capable client devices. Both share the same 2.5G PoE+ uplink and Omada SDN management platform. The EAP770 is the recommended choice for new deployments where future-proofing and Wi-Fi 7 client support are priorities.
Does the EAP770 require a PoE switch or injector?
Yes. The EAP770 is powered via PoE+ (802.3at, 25.5W) over its 2.5G uplink port. You will need a compatible PoE+ switch port or a standalone PoE+ injector such as the Omada POE5460X. A power adaptor is not included or supported.
Can the EAP770 be managed without the Omada Controller?
Yes. The EAP770 supports standalone mode for single-unit deployments, managed via a local web browser interface. For multi-AP sites, centralised management via the Omada Software Controller, OC300 Hardware Controller, or Omada Cloud is strongly recommended to enable seamless roaming, bulk configuration, and unified monitoring across all access points.
Do existing Wi-Fi 6 and Wi-Fi 5 devices benefit from the EAP770?
Yes. The EAP770 is fully backwards compatible with Wi-Fi 6, Wi-Fi 5, and older wireless standards. All existing devices connect and operate normally on the 2.4 GHz and 5 GHz bands. Wi-Fi 7-specific features such as MLO are only available to Wi-Fi 7-compatible client devices, but all devices benefit from the EAP770’s improved network management, OFDMA efficiency, and reduced congestion.
Does the EAP770 support WPA3 and enterprise security?
Yes. The EAP770 supports WPA3 and WPA2 personal and enterprise security modes, including 802.1X port-based authentication for integration with RADIUS servers in corporate, education, and healthcare environments.
Is the EAP770 compatible with existing Omada network equipment?
Yes. The EAP770 integrates fully with the Omada SDN ecosystem, including Omada routers, switches, and other access points (including Wi-Fi 6 EAPs). It can be managed alongside existing Omada devices from a single controller interface with no additional licensing fees, making it straightforward to introduce Wi-Fi 7 into an existing Omada deployment incrementally.
