Description
Affordable Smart Switching for Small Business and Home Networks

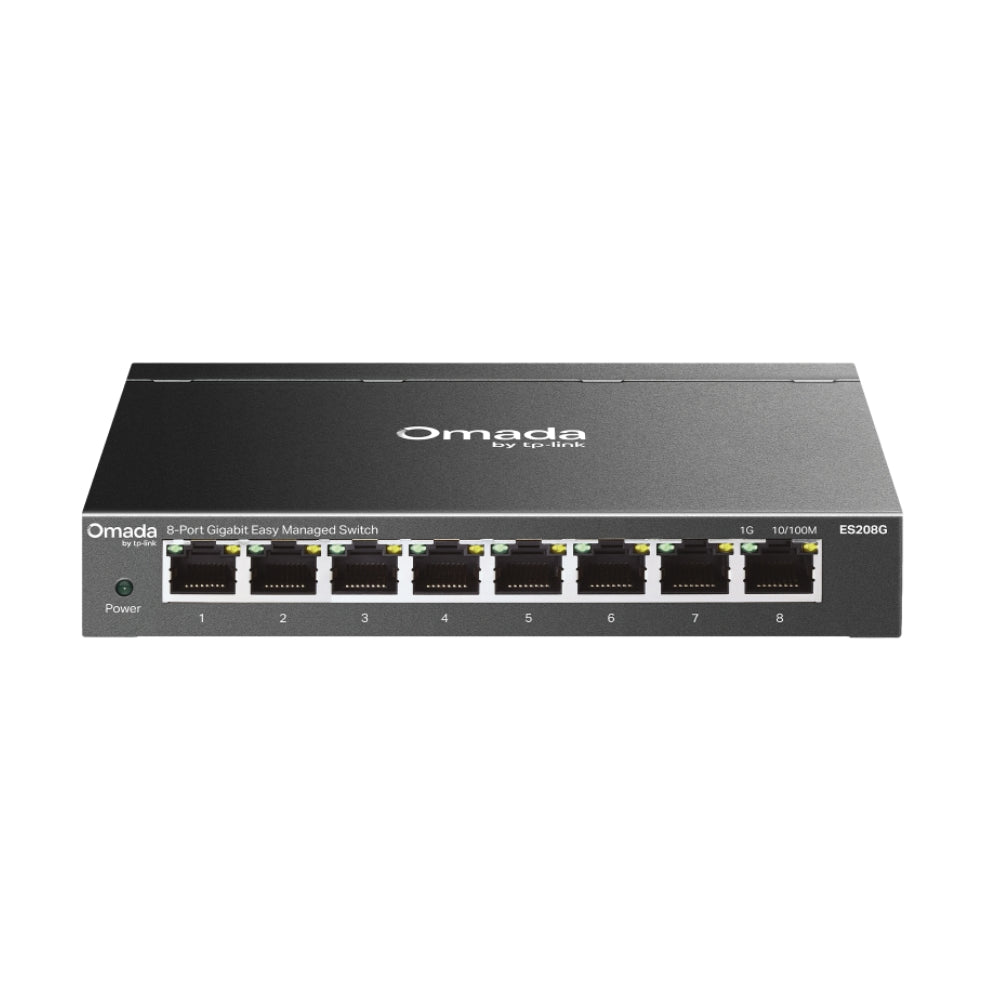

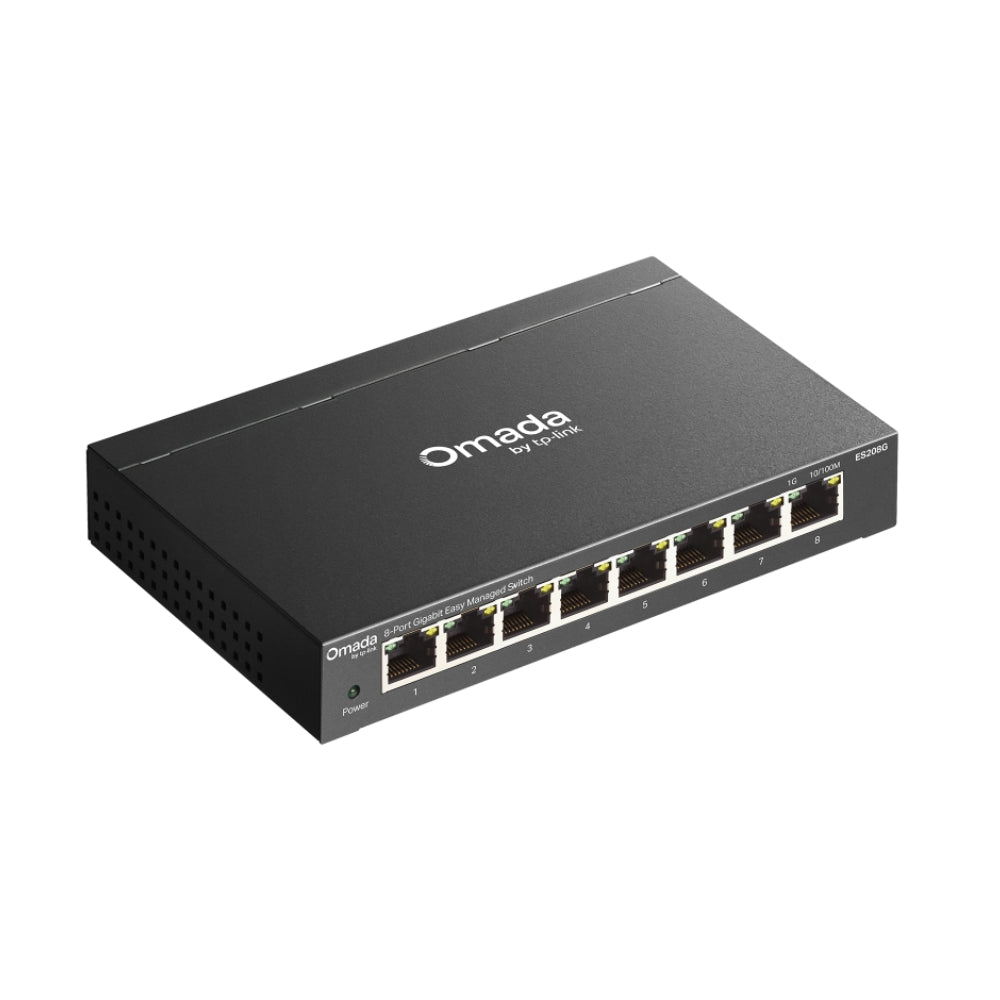

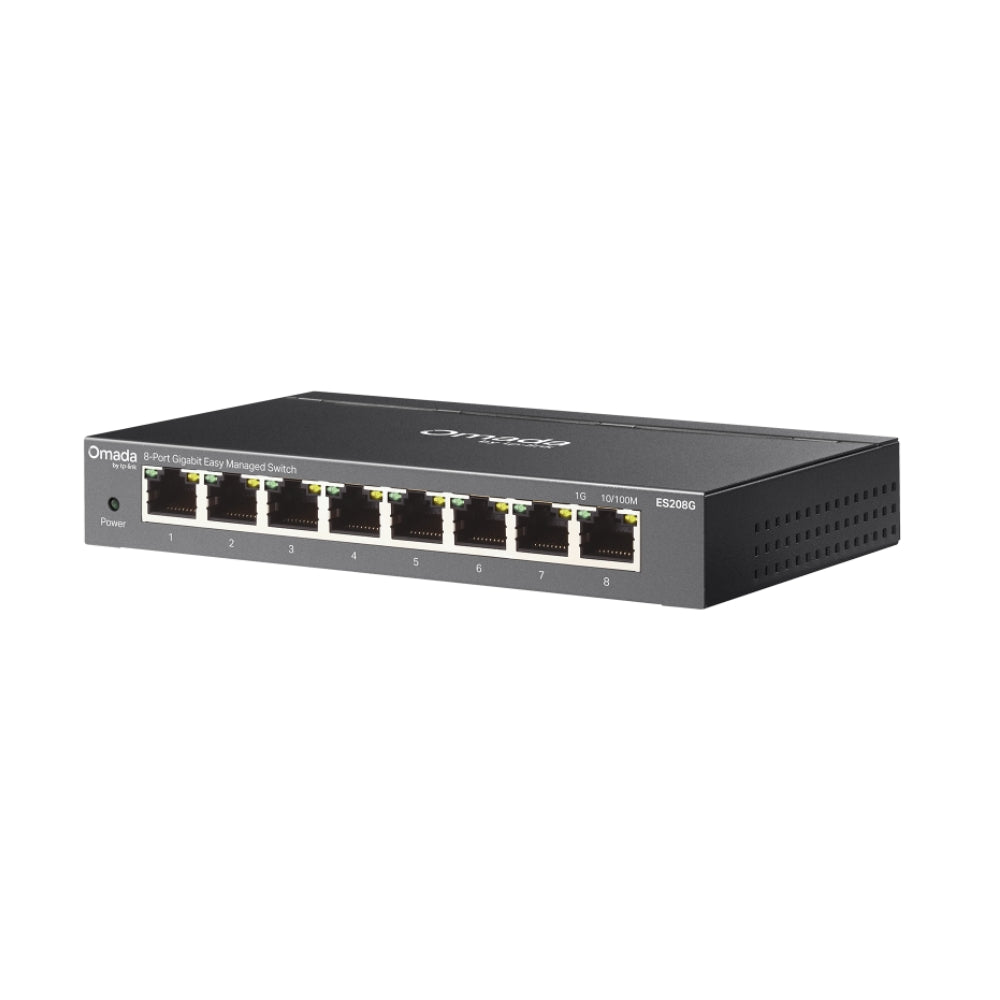

The TP-Link Omada ES208G is an 8-port Gigabit Easy Smart Switch that bridges the gap between unmanaged and fully managed switches. It delivers essential network management features — including 802.1Q VLAN, QoS, IGMP snooping, and loop prevention — through a simple web interface, without the complexity or cost of a full managed switch.
Ideal for small businesses, home offices, and installers looking to add basic network segmentation and traffic control to a wired network, the ES208G is a practical, cost-effective upgrade from a basic unmanaged switch.
Key Features
- 8× Gigabit RJ45 ports for full-speed wired connectivity
- 802.1Q VLAN support for network segmentation (up to 32 VLANs)
- QoS (Quality of Service) — 802.1p and DSCP-based traffic prioritisation
- IGMP snooping v1/v2 for efficient multicast traffic management
- Loop prevention to protect against network broadcast storms
- Port and tag-based VLAN for flexible network design
- Web-based management interface — no software installation required
- Plug-and-play with optional configuration via browser
- Fanless, silent operation — suitable for office and home environments
- Desktop form factor with metal housing
- IEEE 802.3x flow control for reliable data transfer
Use Cases
-
Small Business Networks: Segment staff, guest, and VoIP traffic onto separate VLANs without investing in a full managed switch.
-
Home Office & Power Users: Prioritise video conferencing or NAS traffic with QoS while keeping smart home devices isolated on a separate VLAN.
-
VoIP Deployments: Use 802.1p QoS to prioritise voice traffic and ensure call quality across the network.
-
Surveillance & CCTV Networks: Segment IP camera traffic onto a dedicated VLAN, keeping it separate from the main business network.
-
Retail & Hospitality: Separate POS systems, guest Wi-Fi, and back-office traffic with VLAN without requiring a complex managed switch configuration.
Technical Specifications
| Specification |
Detail |
| Model |
ES208G |
| Ports |
8× 10/100/1000 Mbps Gigabit RJ45 |
| Switching Capacity |
16 Gbps |
| Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K |
| Packet Buffer |
4 Mbit |
| Jumbo Frame |
Up to 9216 bytes |
| VLAN |
802.1Q VLAN, Port-based VLAN (up to 32 VLANs) |
| QoS |
802.1p, DSCP, Port-based |
| IGMP Snooping |
v1, v2 |
| Loop Prevention |
Yes |
| Flow Control |
IEEE 802.3x |
| Management |
Web-based GUI (browser) |
| Power Supply |
External power adapter (included) |
| Power Consumption |
Max 5.5W |
| Fanless |
Yes — silent operation |
| Operating Temperature |
0°C to 40°C |
| Form Factor |
Desktop, metal housing |
| Certifications |
CE, RoHS, FCC |
| In the Box |
ES208G switch, power adapter, quick installation guide |
Recommended Accessories & Compatible Products
-
Omada ES205G (5-Port Easy Smart Switch): Smaller sibling for locations needing fewer ports
-
Omada TL-SG2210P (8-Port Smart Switch with PoE): Step up to a fully managed switch with PoE for powering access points and IP cameras
-
Omada EAP Series Access Points: Pair with the ES208G to build a complete wired and wireless small business network
-
TP-Link Omada MC212CS Media Converter: Add a fibre uplink to your ES208G-based network for longer cable runs
-
Cat6 Patch Cables: Ensure full Gigabit performance with quality patch leads between the switch and connected devices
Downloads
Frequently Asked Questions
What is the difference between an Easy Smart switch and a fully managed switch?
An Easy Smart switch like the ES208G provides the most commonly used management features — VLAN, QoS, IGMP snooping, and loop prevention — via a simplified web interface. A fully managed switch adds advanced features such as STP/RSTP, SNMP, port mirroring, ACLs, and CLI access. For most small business and home office deployments, an Easy Smart switch provides the right balance of features and simplicity.
Does the ES208G support PoE to power access points or IP cameras?
No. The ES208G does not support Power over Ethernet (PoE). If you need to power Omada access points, IP cameras, or VoIP phones directly from the switch, consider the Omada TL-SG2210P or TL-SG108PE, which include PoE ports.
How many VLANs can I create on the ES208G?
The ES208G supports up to 32 active 802.1Q VLANs simultaneously, which is more than sufficient for most small business segmentation requirements.
Can I manage the ES208G remotely or via the Omada app?
The ES208G is managed via a local web browser interface only — it does not support the Omada SDN Controller or Omada Cloud management. For centralised cloud management across multiple sites, consider upgrading to an Omada Smart or fully managed switch in the TL-SG2xxx or TL-SG3xxx series.
Is the ES208G suitable for a home office or small retail environment?
Yes. Its fanless design, compact desktop form factor, and low power consumption (max 5.5W) make it well-suited for quiet office and retail environments. The web-based management interface is straightforward enough for non-technical users to configure basic VLANs and QoS settings.
Does the ES208G support link aggregation (LAG)?
Please refer to the official ES208G datasheet for the full feature list, as link aggregation support varies by firmware version and product revision.
