Description
Outdoor 5G Connectivity with Wi-Fi 6E Performance

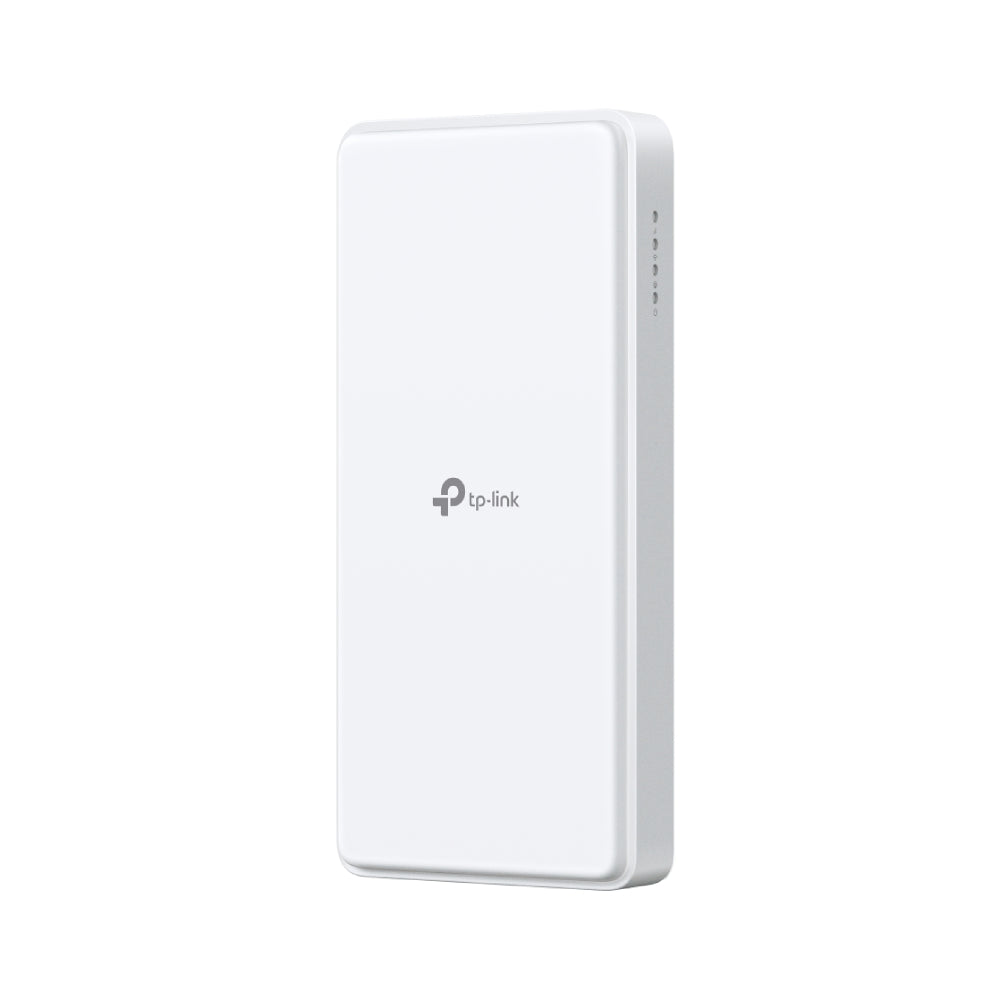

The TP-Link Archer NX500 is a purpose-built outdoor 5G router that brings fast, reliable fixed wireless internet to homes and businesses across Australia. Combining a 5G Sub-6 GHz modem with AXE5400 tri-band Wi-Fi 6E, it delivers high-speed connectivity in a weatherproof enclosure designed to be mounted outdoors — closer to the 5G signal source — for maximum reception and throughput.
Whether you’re in a regional area without fixed-line NBN, or simply want a high-performance wireless WAN alternative, the Archer NX500 is engineered to replace unreliable connections with a robust, future-ready 5G solution.
Key Features
- 5G Sub-6 GHz modem with 4G LTE fallback for continuous connectivity
- AXE5400 tri-band Wi-Fi 6E: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) + 2402 Mbps (6 GHz)
- Outdoor weatherproof enclosure — IP65-rated for rain, dust, and UV resistance
- Directional antenna array for enhanced 5G signal capture
- PoE-powered via included PoE injector — single cable installation
- Gigabit Ethernet port for wired connection to indoor router or switch
- Works as a standalone router or in bridge mode with your existing network
- Easy setup and management via the Tether app (iOS & Android)
- Supports Australian 5G bands (Sub-6 GHz) across major carriers
- Built-in signal strength indicator for optimal mounting position
Use Cases
-
Regional & Rural Australia: Ideal for properties beyond the NBN fixed-line footprint where 5G fixed wireless is the best available broadband option.
-
NBN Alternative: Replace slow or unreliable fixed-line NBN with a high-speed 5G connection, particularly in areas with strong 5G coverage from Telstra, Optus, or TPG.
-
Temporary & Construction Sites: Deploy fast internet quickly at job sites, events, or pop-up locations without waiting for fixed-line installation.
-
Farms & Large Properties: Mount on a shed, pole, or outbuilding to capture the best available 5G signal and distribute Wi-Fi across the property.
-
Business Continuity / WAN Failover: Use as a secondary WAN connection to maintain internet access if your primary fixed-line service goes down.
Technical Specifications
| Specification |
Detail |
| Model |
Archer NX500 |
| 5G Standard |
5G NR Sub-6 GHz (NSA/SA) |
| 4G Fallback |
Yes — LTE Cat 20 |
| Wi-Fi Standard |
Wi-Fi 6E (802.11ax) Tri-Band |
| Wi-Fi Speed |
AXE5400: 574 + 2402 + 2402 Mbps |

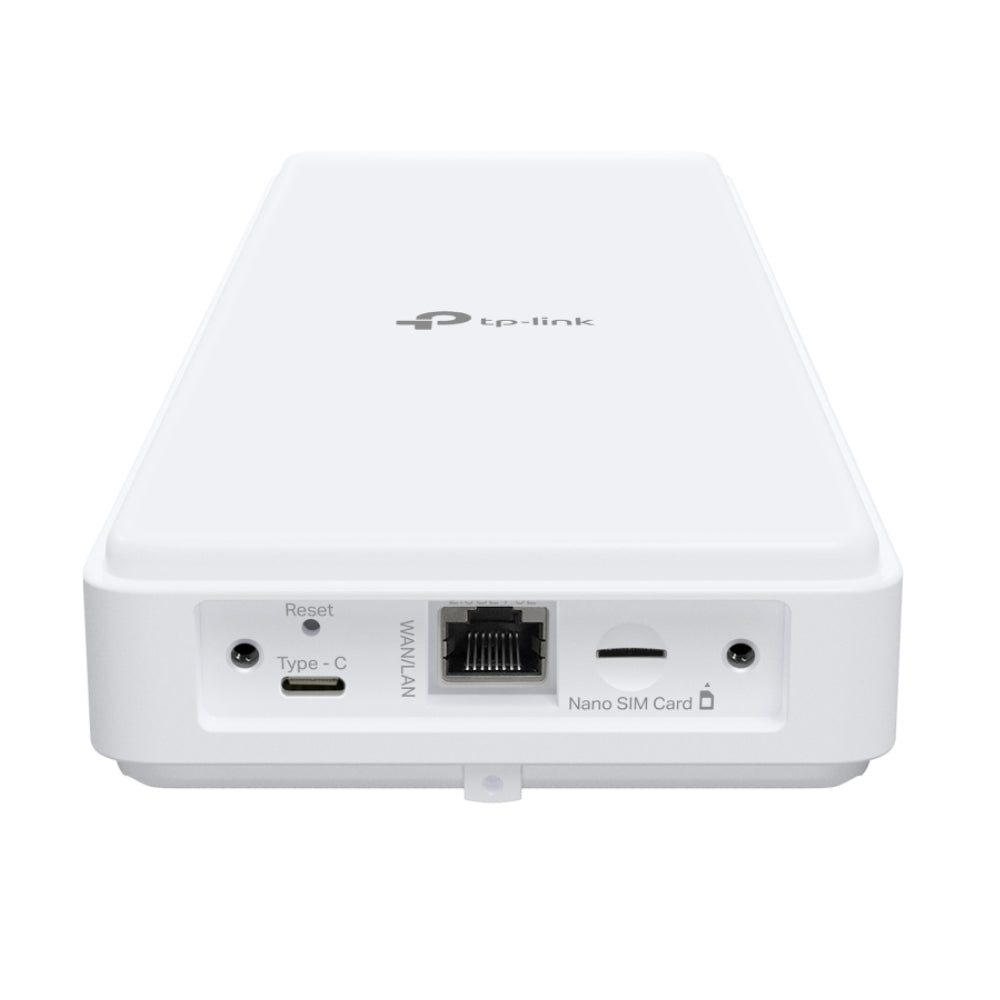

| SIM Card Slot |
1× Nano SIM |
| Ethernet Port |
1× Gigabit RJ45 (PoE in) |
| Power |
PoE (802.3at) via included PoE injector |
| IP Rating |
IP65 (weatherproof) |
| Operating Temperature |
-30°C to 60°C |

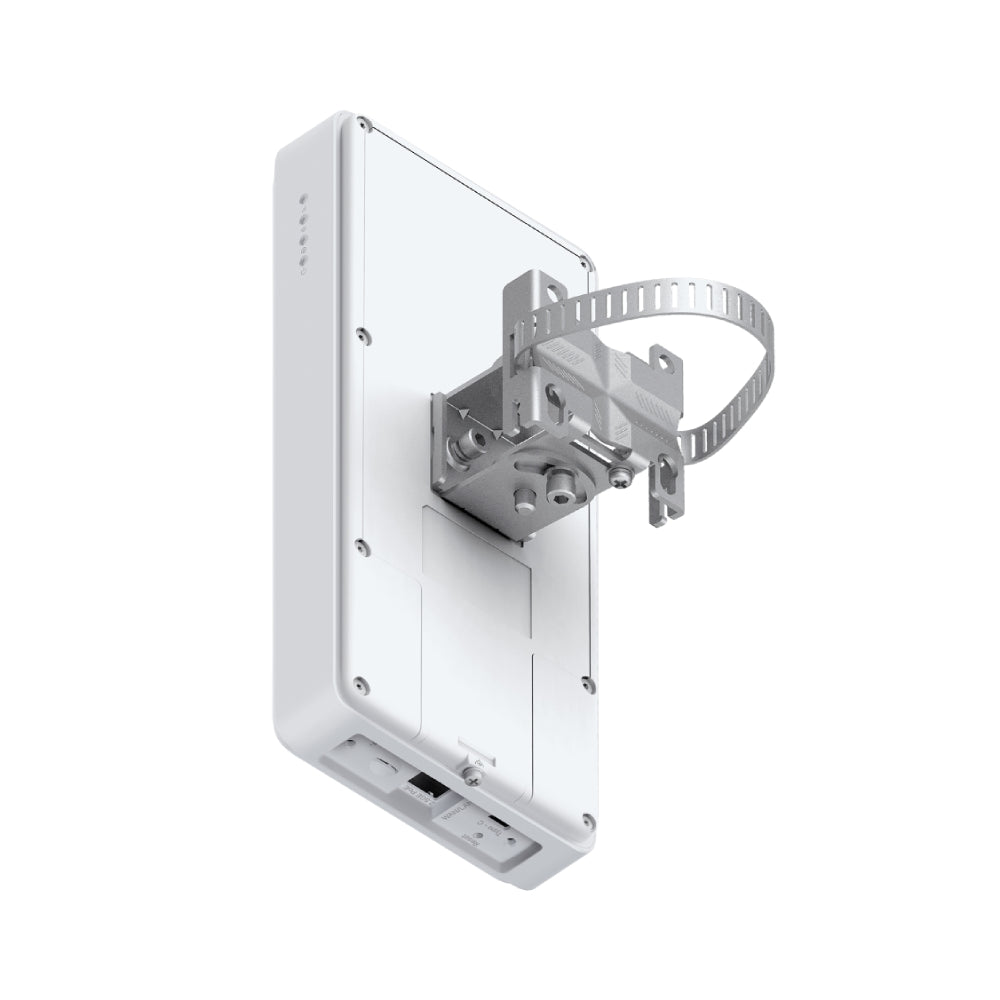

| Mounting |
Pole or wall mount (hardware included) |
| App Management |
TP-Link Tether (iOS & Android) |
| Operating Mode |
Router Mode, Bridge Mode |
| Certifications |
RCM (Australia), CE, RoHS |
| In the Box |
Archer NX500 unit, PoE injector, power adapter, mounting hardware, quick start guide |
Official Product Video
See how the Archer NX500 is installed and configured for outdoor 5G fixed wireless:
Watch Archer NX500 Videos on YouTube
Recommended Accessories & Compatible Products
-
TP-Link Deco XE75 Pro (AXE5400 Mesh): Pair with the NX500 in bridge mode to distribute Wi-Fi 6E throughout a large home or office
-
TP-Link TL-SG105 5-Port Gigabit Switch: Expand wired connections from the NX500’s single Ethernet output
-
TP-Link TL-POE160S PoE Injector (spare): Replacement or additional PoE injector for extended cable runs
-
Outdoor-rated Cat6 Ethernet Cable: UV-resistant, direct-burial rated cable for the outdoor run between the NX500 and your indoor equipment
-
TP-Link Tapo C500 Outdoor Camera: Add outdoor security cameras to your new 5G-powered network
Downloads
Frequently Asked Questions
Does the Archer NX500 work with Australian 5G networks?
Yes. The Archer NX500 supports 5G Sub-6 GHz bands used by Australian carriers including Telstra, Optus, and TPG/Vodafone. Check your carrier’s 5G coverage map to confirm signal availability at your location before purchasing.
Do I need an existing internet connection to use the NX500?
No. The Archer NX500 is a standalone 5G router. Simply insert a nano SIM card from a 5G-capable Australian carrier, mount the unit outdoors, and connect it via Ethernet to your indoor router or switch. No fixed-line connection is required.
How is the Archer NX500 powered?
The NX500 is powered via PoE (Power over Ethernet) using the included PoE injector. A single Ethernet cable carries both data and power from the indoor PoE injector to the outdoor unit — no separate power cable is needed at the mounting point.
How far can the Ethernet cable run between the NX500 and the PoE injector?
Standard PoE over Ethernet supports cable runs up to 100 metres. Use outdoor-rated, UV-resistant Cat5e or Cat6 cable for any exposed runs.
Can I use the NX500 in bridge mode with my existing router?
Yes. In bridge mode, the NX500 acts as a 5G WAN modem and passes the connection through to your existing router, which handles DHCP, firewall, and Wi-Fi distribution. This is ideal for integrating 5G into an existing network without replacing your current setup.
Is the Archer NX500 suitable for use in regional and rural Australia?
Yes — this is one of its primary use cases. The outdoor mounting and directional antenna design allow it to capture weaker 5G or 4G LTE signals that an indoor router may not reliably receive, making it well-suited for regional properties, farms, and areas at the edge of mobile coverage.
