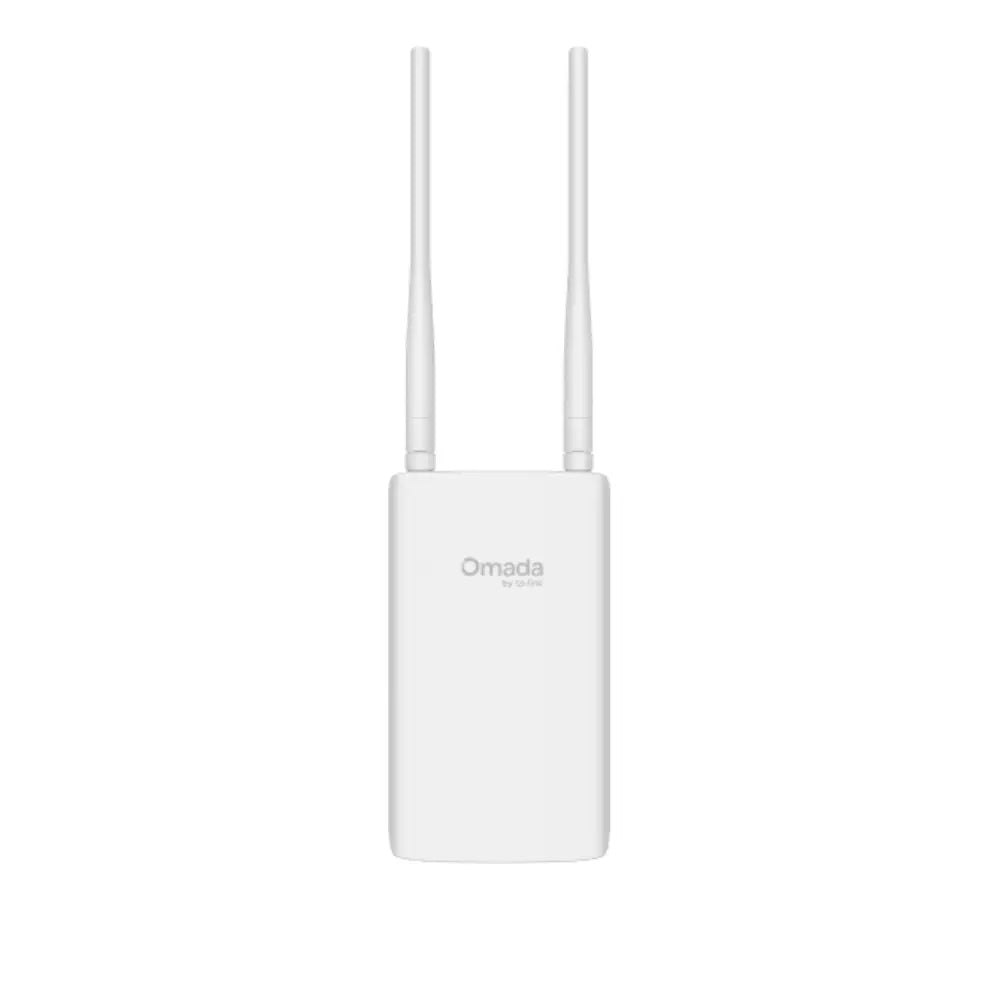

TP-Link Omada EAP603 Outdoor Wi-Fi 6 Access Point
Reliable Outdoor Wi-Fi 6 for Demanding Australian Environments
The TP-Link Omada EAP603 brings Wi-Fi 6 (802.11ax) performance to outdoor spaces, delivering fast, stable wireless connectivity for schools, hospitality venues, warehouses, carparks, and large residential properties across Australia. With an IP67-rated weatherproof enclosure and dual-band AX1800 speeds, the EAP603 is engineered to perform where standard access points simply can't.
Key Features
-
Wi-Fi 6 (802.11ax) Dual-Band: Up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz — total AX1800 throughput.
-
IP67 Weatherproof Rating: Fully dust-tight and protected against water immersion — built for Australian outdoor conditions.
-
OFDMA & MU-MIMO: Serves multiple clients simultaneously with reduced latency, ideal for high-density outdoor environments.
-
BSS Colouring: Minimises interference in congested RF environments such as shopping centres, stadiums, and multi-tenancy sites.
-
PoE Powered (802.3at): Single-cable installation via PoE — no separate power run required.
-
Omada SDN Controller Compatible: Manage via Omada Hardware Controller, Software Controller, or Omada Cloud — centralised, scalable network management.
-
Seamless Roaming: 802.11r/k/v support for smooth client handoff across multi-AP deployments.
-
Band Steering & Airtime Fairness: Automatically guides capable clients to the 5 GHz band for optimal performance.
-
Up to 1024 Clients: Supports large-scale deployments without compromising per-client performance.
Typical Use Cases
- School campuses and university outdoor areas
- Hotel courtyards, pool areas, and alfresco dining
- Warehouses, loading docks, and industrial yards
- Carparks and transport hubs
- Large residential properties and rural homesteads
- Retail precincts and outdoor event spaces
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Frequency Bands |
2.4 GHz & 5 GHz (Dual-Band) |
| Max Throughput |
AX1800 (574 Mbps @ 2.4 GHz + 1201 Mbps @ 5 GHz) |
| Antennas |
4× Internal Omni Antennas (2× 4 dBi @ 2.4 GHz, 2× 5 dBi @ 5 GHz) |
| Spatial Streams |
2×2 MU-MIMO |
| PoE Input |
802.3at PoE (Passive PoE 48V not supported) |
| Power Consumption |
Max 15.4 W |
| Ethernet Port |
1× Gigabit RJ45 (PoE In) |
| Max Clients |
1024 |
| SSIDs |
Up to 16 (8 per band) |
| Ingress Protection |
IP67 |
| Operating Temperature |
-30°C to 70°C |
| Mounting |
Wall / Pole Mount (hardware included) |
| Dimensions |
214.5 × 214.5 × 64.8 mm |
| Weight |
0.88 kg |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years (TP-Link Australia) |
Omada SDN — Centralised Network Management
The EAP603 integrates seamlessly into the TP-Link Omada Software Defined Networking (SDN) ecosystem. Manage your entire wireless network — including multiple sites — from a single dashboard using the Omada Hardware Controller (OC200/OC300), Software Controller, or the Omada Cloud portal. Features include zero-touch provisioning, real-time monitoring, captive portal, VLAN management, and detailed client analytics.
Recommended Accessories & Compatible Products
-
TP-Link TL-SG2210P — 8-Port Gigabit Smart PoE Switch (ideal for powering multiple EAPs)
-
TP-Link Omada OC200 — Hardware Controller for up to 100 Omada devices
-
TP-Link Omada OC300 — Hardware Controller for larger deployments (up to 500 devices)
-
TP-Link TL-POE150S — PoE Injector (802.3at) for single-unit installations
-
TP-Link Omada EAP670 — Indoor Wi-Fi 6 AX5400 Access Point (pair with EAP603 for seamless indoor/outdoor coverage)
Downloads
Frequently Asked Questions
Does the EAP603 require the Omada Controller to function?
No. The EAP603 can operate in standalone mode without a controller. However, for multi-AP deployments, centralised management, and advanced features such as captive portal and roaming, an Omada Controller (hardware or software) is strongly recommended.
What PoE standard does the EAP603 require?
The EAP603 requires 802.3at PoE (PoE+). Passive PoE (48V) adapters are not supported. Ensure your switch or injector is 802.3at compliant before installation.
Is the EAP603 suitable for Australian outdoor conditions?
Yes. The IP67 rating means the unit is fully protected against dust ingress and can withstand temporary water immersion. Its operating temperature range of -30°C to 70°C covers all Australian climate zones, from alpine to tropical.
How many access points can I manage with one Omada Controller?
The OC200 supports up to 100 Omada devices; the OC300 supports up to 500. The Omada Software Controller (installed on a server or NAS) scales further depending on hardware resources.

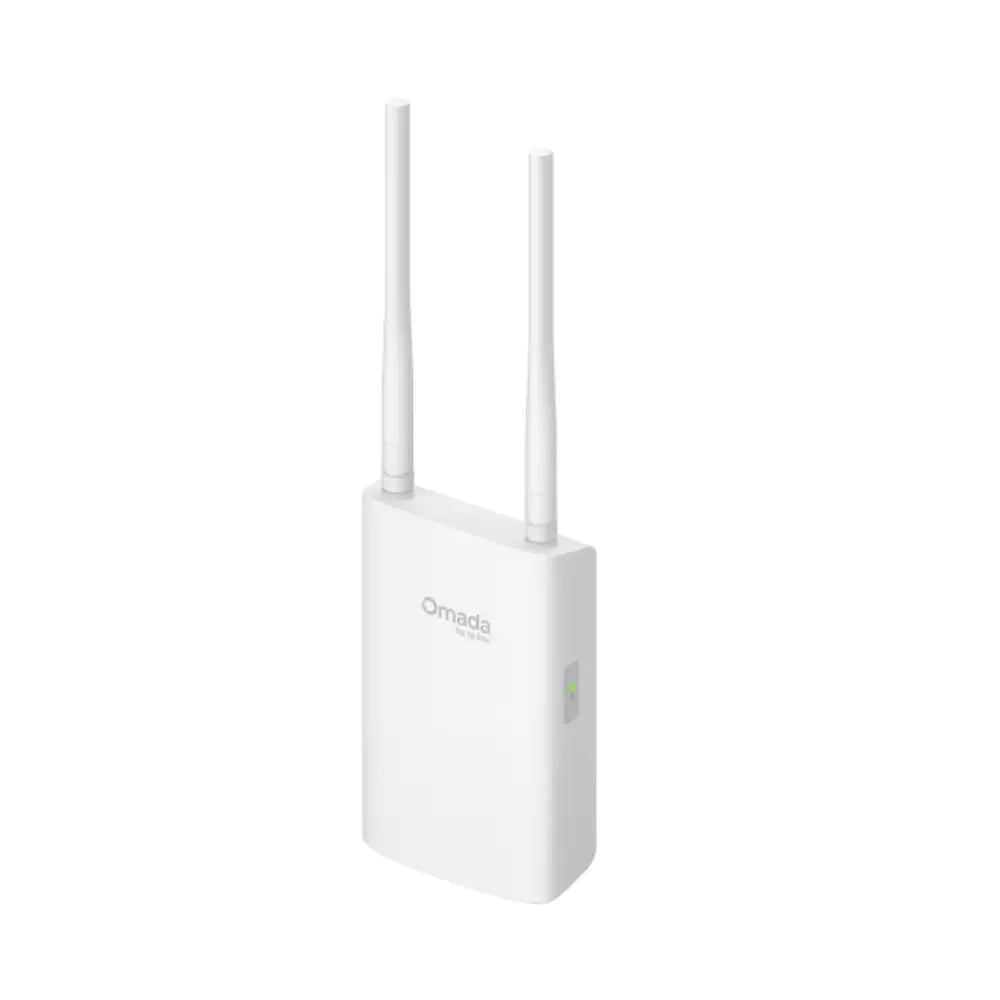

Can the EAP603 be pole-mounted?
Yes. The EAP603 ships with both wall-mount and pole-mount hardware, making it straightforward to deploy on light poles, fence posts, or building fascias.
Does the EAP603 support mesh networking?
The EAP603 supports Omada Mesh when managed via an Omada Controller, allowing wireless backhaul between EAP units where running cable is not practical.
