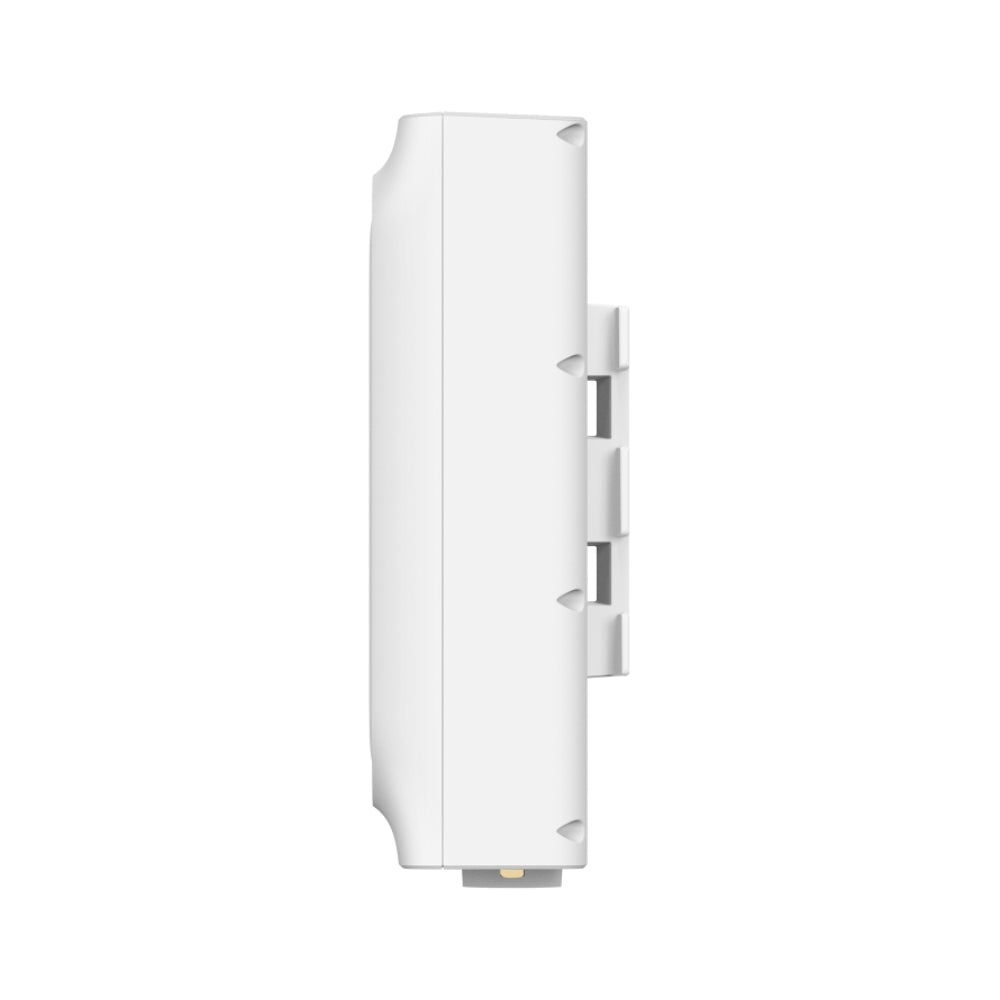

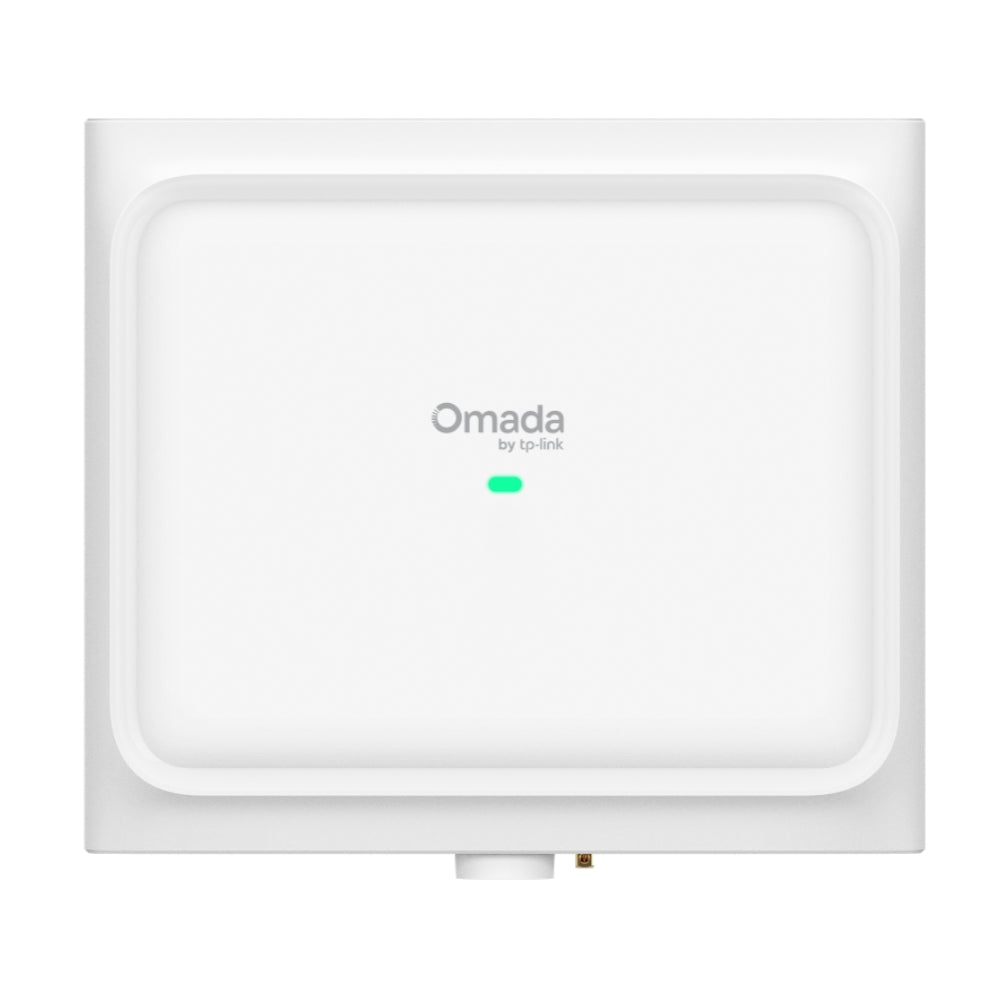

TP-Link Omada EAP772 — Outdoor Wi-Fi 7 Access Point for Business & Enterprise
The TP-Link Omada EAP772 brings Wi-Fi 7 performance to outdoor environments, delivering BE9300 tri-band speeds, IP67-rated weatherproofing, and seamless integration with the Omada SDN platform. Whether you're blanketing a school campus, hospitality venue, warehouse yard, or public space with reliable wireless coverage, the EAP772 is engineered to perform in Australia's harshest outdoor conditions — rain, heat, and dust included.
Key Features
-
Wi-Fi 7 (802.11be) Standard — Next-generation wireless with Multi-Link Operation (MLO), 4K-QAM, and 320 MHz channel support for dramatically improved throughput and lower latency.
-
BE9300 Tri-Band Speeds — Combined wireless throughput of up to 9.3 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands.
-

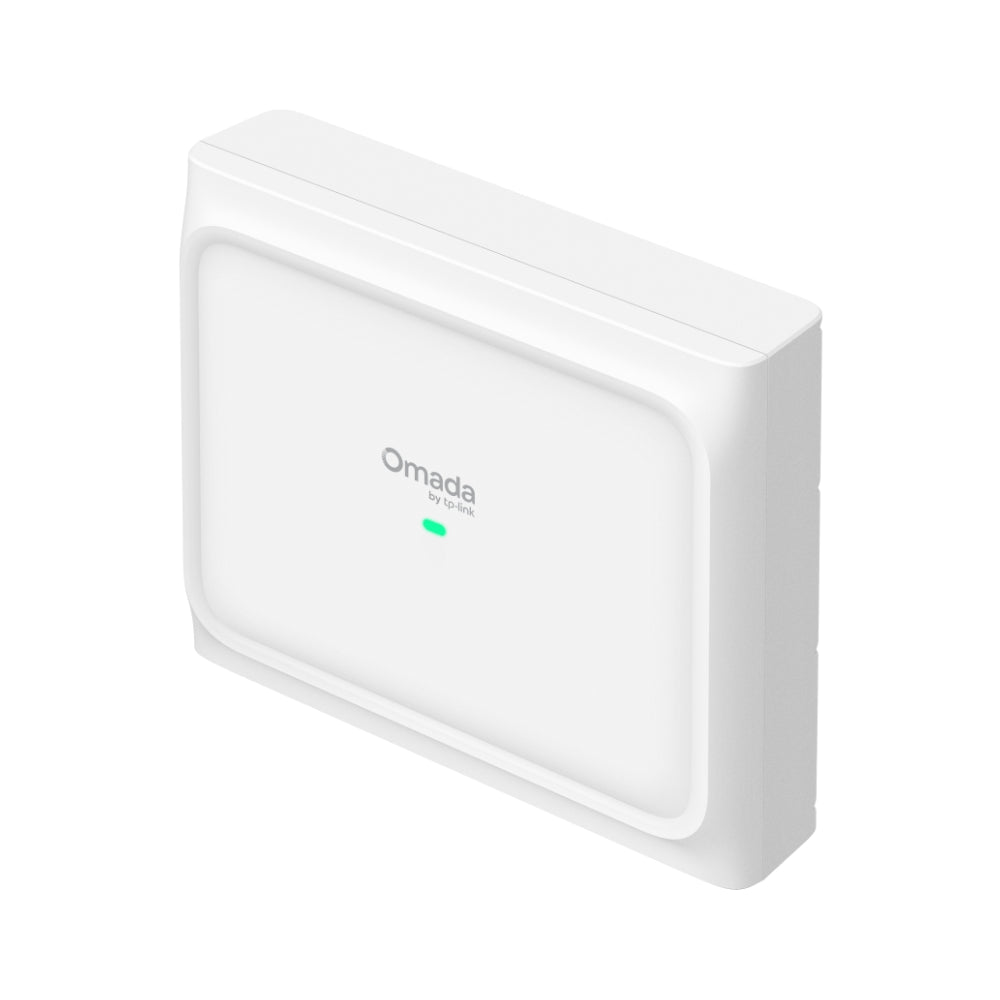

IP67 Weatherproof Rating — Fully dust-tight and protected against temporary water immersion, built to withstand Australian outdoor conditions year-round.
-

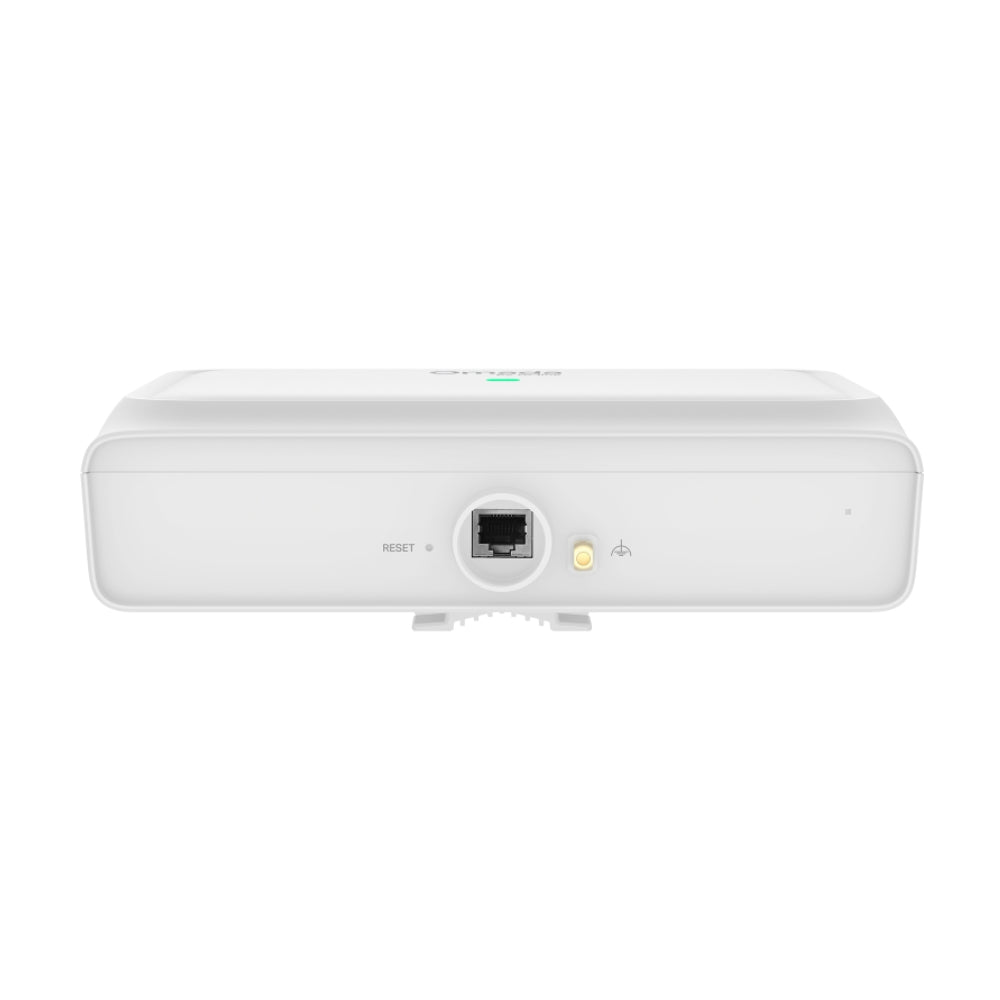

2.5G PoE+ Uplink Port — Single-cable power and data delivery via 802.3at PoE+, simplifying outdoor installation without the need for a separate power run.
-
Omada SDN Integration — Centralised management via Omada Controller (hardware, software, or cloud-based) for unified configuration, monitoring, and zero-touch provisioning across your entire network.
-
High-Gain Directional Antennas — Optimised radiation pattern for extended outdoor coverage and reduced interference from adjacent networks.
-
MU-MIMO & OFDMA — Serves multiple clients simultaneously with efficient spectrum use, ideal for high-density outdoor deployments.
-
Seamless Roaming — Supports 802.11r/k/v fast roaming for uninterrupted connectivity as users move across coverage zones.
-
Band Steering & Airtime Fairness — Automatically guides clients to the optimal band and prevents slower devices from monopolising airtime.
Use Cases
-
School & University Campuses — Extend reliable Wi-Fi to outdoor learning areas, sports fields, and walkways with centralised Omada management.
-
Hospitality & Resorts — Deliver seamless guest Wi-Fi across pool areas, outdoor dining, and event spaces.
-
Warehouses & Industrial Yards — Provide robust wireless connectivity for handheld scanners, forklifts, and IoT sensors in harsh outdoor environments.
-
Retail Car Parks & Shopping Centres — Enable outdoor Wi-Fi for customer engagement, digital signage, and operational systems.
-
Public Spaces & Councils — Deploy community Wi-Fi in parks, transport hubs, and pedestrian precincts with cloud-managed scalability.
-
Sports Venues & Stadiums — Handle high-density crowd connectivity with MU-MIMO and OFDMA efficiency.
Technical Specifications
| Specification |
Details |
| Wi-Fi Standard |
Wi-Fi 7 (IEEE 802.11be/ax/ac/n/g/b/a) |
| Wi-Fi Speed |
BE9300 — 2.4 GHz: 688 Mbps | 5 GHz: 2882 Mbps | 6 GHz: 5765 Mbps |
| Wi-Fi Bands |
Tri-Band (2.4 GHz + 5 GHz + 6 GHz) |
| Antennas |
Built-in High-Gain Directional Antennas |
| Uplink Port |
1× 2.5 Gbps PoE+ (802.3at) |
| Power Supply |
PoE+ (802.3at, 30W) — PoE injector not included |
| Max Clients |
1024 (recommended deployment varies by environment) |
| Ingress Protection |
IP67 (dust-tight, water immersion up to 1 m / 30 min) |
| Operating Temperature |
-30°C to 70°C |
| Mounting |
Pole / Wall mount (hardware included) |
| Security |
WPA3, WPA2, WPA2-Enterprise, 802.1X |
| Management |
Omada App, Omada Cloud Controller, Omada Hardware Controller, Standalone |
| Roaming |
802.11r/k/v Fast Roaming |
| Warranty |
3 Years (TP-Link Australia) |
Recommended Accessories
-
TP-Link Omada OC300 — Hardware Omada Controller for on-premises centralised management of up to 500 devices.
-
TP-Link Omada TL-SG2210P — 8-Port Gigabit Smart PoE+ Switch for powering and connecting multiple EAP772 units.
-
TP-Link Omada ER8411 — Multi-WAN VPN Router for enterprise-grade routing and load balancing in large deployments.
-
TP-Link TL-POE170S — PoE+ Injector (802.3at, 30W) for single-unit installations without a PoE switch.
-
Outdoor-rated Cat6A Cable — UV-resistant, direct-burial rated Ethernet cable for reliable outdoor runs.
Downloads
Frequently Asked Questions
Is the EAP772 suitable for Australian outdoor conditions?
Yes. The EAP772 carries an IP67 ingress protection rating, meaning it is fully dust-tight and can withstand temporary water immersion. It operates across a temperature range of -30°C to 70°C, making it well-suited to Australia's diverse climates from tropical north to alpine south.
Does the EAP772 require a PoE switch or injector?
Yes. The EAP772 is powered via PoE+ (802.3at, 30W) over its 2.5G uplink port. You will need a compatible PoE+ switch (such as the Omada TL-SG2210P) or a standalone PoE+ injector. A power adaptor is not included.
Can the EAP772 be managed without the Omada Controller?
Yes. The EAP772 supports standalone mode for single-unit deployments managed via a web browser. However, for multi-AP deployments, centralised management via the Omada Software Controller, OC300 Hardware Controller, or Omada Cloud is strongly recommended for seamless roaming, bulk configuration, and monitoring.
What is the maximum number of clients the EAP772 supports?
The EAP772 supports up to 1024 associated clients across all bands. Real-world capacity will depend on client device types, application usage, and RF environment. For high-density deployments, a site survey is recommended.
Does the EAP772 support seamless roaming between access points?
Yes. The EAP772 supports 802.11r (Fast BSS Transition), 802.11k (Neighbour Reports), and 802.11v (BSS Transition Management) for fast, seamless roaming — essential for voice calls, video streaming, and mobile device users moving across large outdoor areas.
Is the EAP772 compatible with existing Omada network equipment?
Yes. The EAP772 integrates fully with the Omada SDN ecosystem, including Omada routers, switches, and other access points. It can be managed alongside existing Omada devices from a single controller interface with no additional licensing fees.
