Description

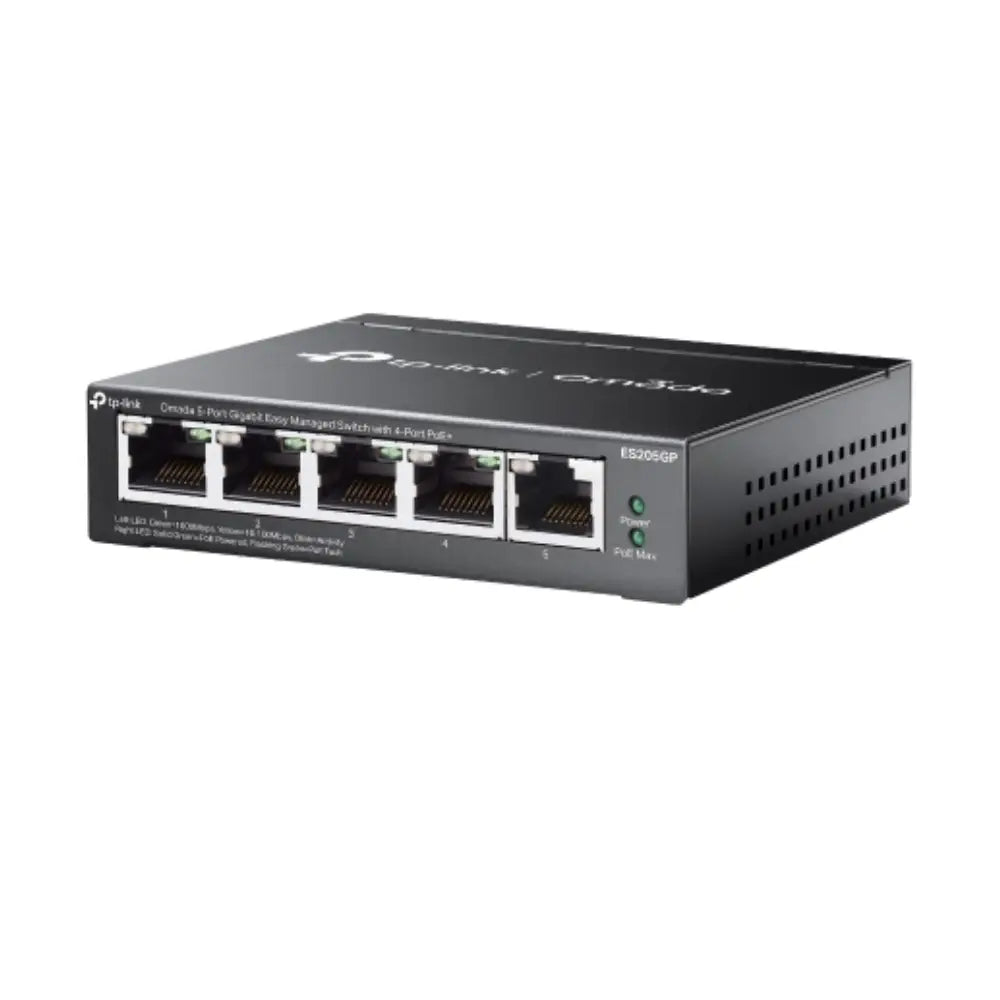

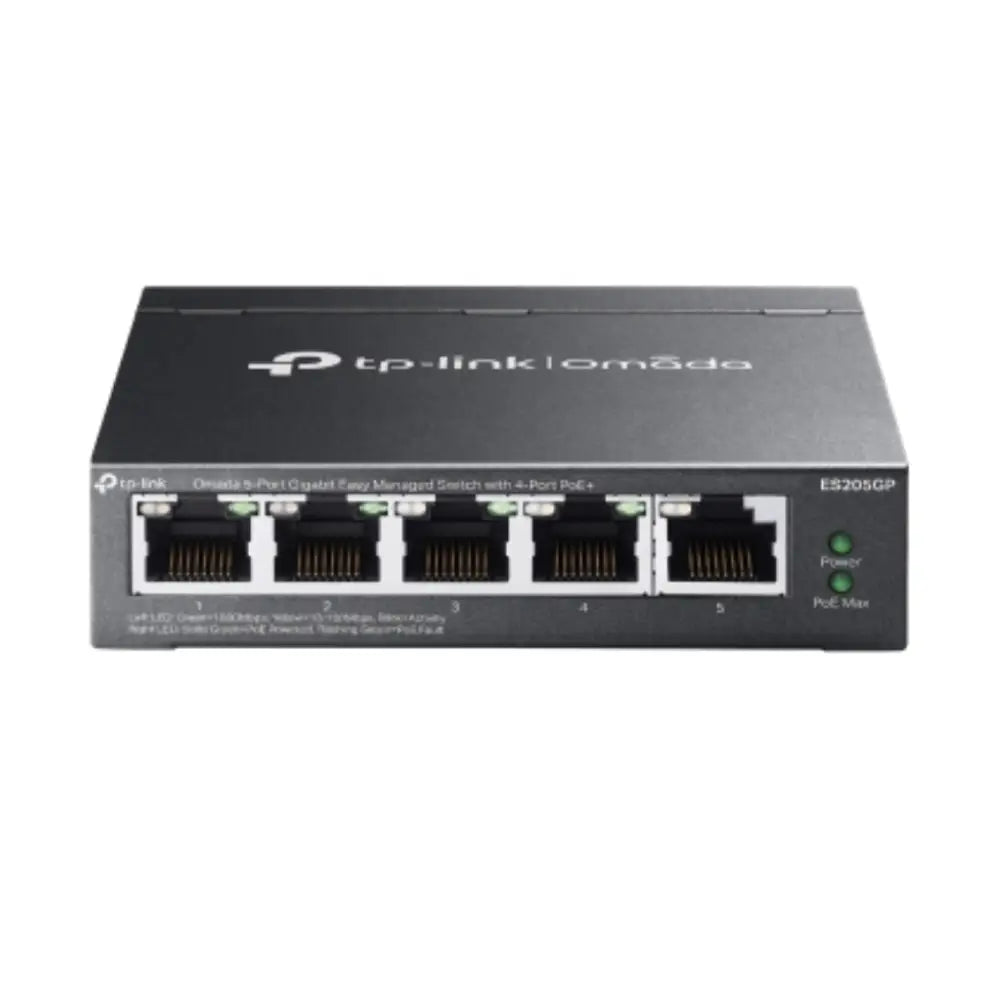

TP-Link Omada ES205GP 5-Port Gigabit PoE+ Switch
Power and Simplicity in One Compact Switch
The TP-Link Omada ES205GP is a plug-and-play 5-port gigabit PoE+ switch designed for small businesses, home offices, and security installations across Australia. With a 63W PoE budget and four powered ports, it delivers reliable power and data to IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices — all without the need for separate power adapters.
Key Features
- 4× Gigabit PoE+ ports (IEEE 802.3af/at) plus 1× Gigabit uplink port
- 63W total PoE power budget to support multiple powered devices simultaneously
- Plug-and-play setup — no configuration or software required
- Fanless, silent operation ideal for office and home environments
- Desktop or wall-mountable compact form factor
- IEEE 802.3x flow control for reliable data transmission
- Auto MDI/MDIX on all ports — no crossover cables needed
- LED indicators for easy port status monitoring
- Compatible with the TP-Link Omada SDN ecosystem
Common Use Cases
-
IP Security Cameras: Power and connect up to 4 PoE IP cameras without separate power supplies — perfect for small CCTV installations.
-
Wireless Access Points: Deploy PoE-powered Wi-Fi access points in offices, retail spaces, or warehouses.
-
VoIP Phones: Simplify desk phone installations by eliminating the need for individual power bricks.
-
Small Office Networks: Expand your network with a reliable, silent gigabit switch that fits neatly on any desk.
Technical Specifications
| Specification |
Detail |
| Model |
ES205GP |
| Total Ports |
5 × Gigabit RJ45 |
| PoE Ports |
4 × PoE+ (Ports 1–4) |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
63W |
| Max PoE Per Port |
30W |
| Switching Capacity |
10 Gbps |
| Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
9216 Bytes |
| Fan |
Fanless (Silent) |
| Mounting |
Desktop / Wall Mount |
| Power Input |
100–240V AC, 50/60Hz |
| Max Power Consumption |
77.6W |
| Dimensions (W × D × H) |
158 × 101 × 25 mm |
| Operating Temperature |
0–40°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
How many PoE devices can the ES205GP power at once?
The ES205GP has 4 PoE+ ports with a shared 63W power budget. The number of devices it can power simultaneously depends on each device's power draw. For example, it can comfortably power four standard IP cameras drawing around 10–15W each.
Does the ES205GP require any software or configuration?
No. The ES205GP is a plug-and-play unmanaged switch. Simply connect your devices and it works straight away — no software, login, or configuration required.
Is the ES205GP compatible with any brand of PoE camera or access point?
Yes. It supports the IEEE 802.3af and 802.3at PoE standards, making it compatible with virtually any standards-compliant PoE device regardless of brand.
Can I wall-mount the ES205GP?
Yes. The switch includes wall-mount slots and can be mounted on a wall for tidy cable management in installations where desk space is limited.
Does the ES205GP work with the Omada SDN controller?
The ES205GP is an unmanaged switch and does not integrate with the Omada SDN software controller. For managed Omada switching with centralised control, consider the Omada TL-SG2210P or similar managed models.
What is the warranty on the ES205GP in Australia?
TP-Link offers a limited lifetime warranty on the ES205GP in Australia. Please refer to TP-Link's official Australian warranty policy for full terms and conditions.
