Description
Reliable Point-to-Point Wireless Connectivity for Outdoor Environments

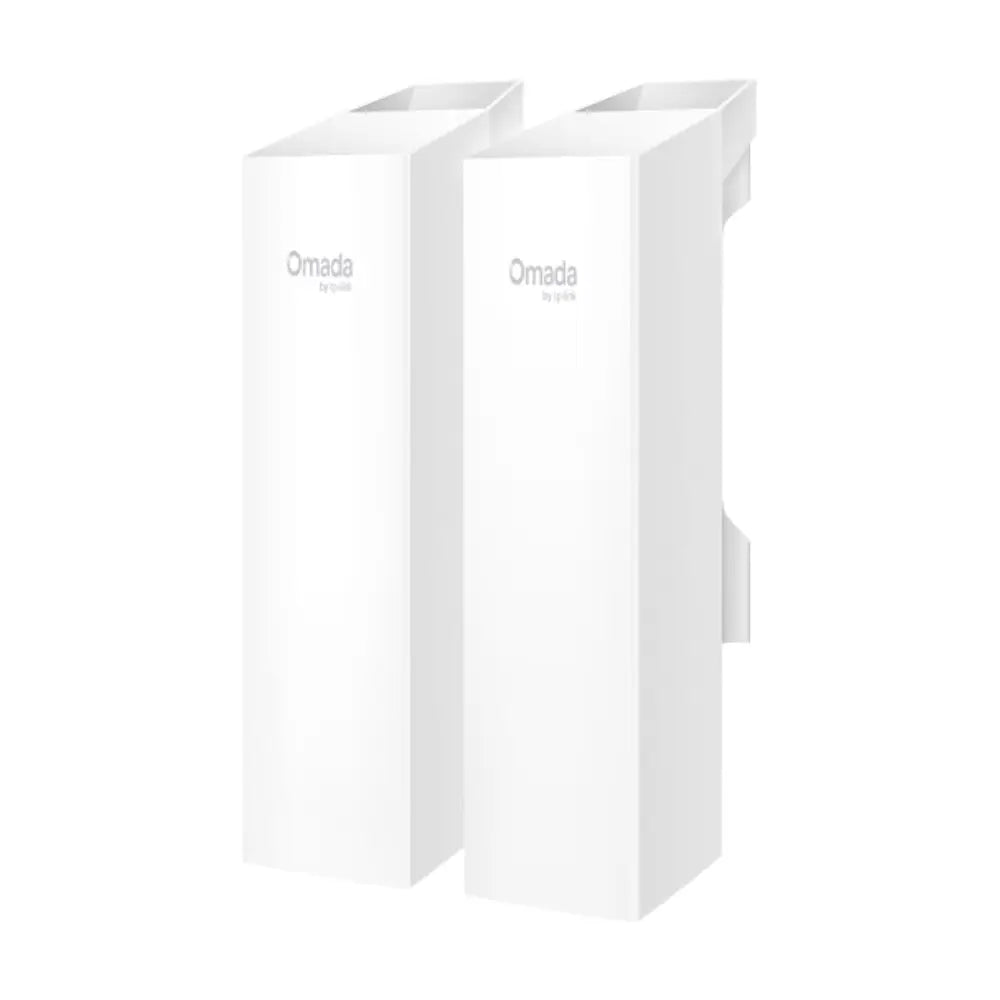

The TP-Link Omada EAP100 Bridge Kit delivers a ready-to-deploy 2.4GHz outdoor wireless bridge solution, purpose-built for connecting buildings, extending networks across open spaces, and supporting CCTV or data backhaul links — without the cost or complexity of running cable.
Key Features
-
Pre-paired bridge kit: Two EAP100 units pre-configured for instant point-to-point deployment
-
2.4GHz band: Better range and wall/obstacle penetration compared to 5GHz bridges
-
Up to 500m range: Suitable for cross-building and campus-style links in line-of-sight conditions
-
300Mbps throughput: Sufficient bandwidth for HD CCTV streams, VoIP, and general data traffic
-
IP65-rated enclosures: Weatherproof design built for Australian outdoor conditions
-
Passive PoE powered: Included PoE injectors simplify installation — no separate power runs required
-
Omada SDN compatible: Manage via Omada Controller (hardware, software, or cloud-based)
-
Directional antennas: Focused signal for improved link stability and reduced interference
Typical Use Cases
- Connecting two buildings on the same property without trenching cable
- Extending CCTV or NVR networks to remote areas such as car parks, warehouses, or outbuildings
- Providing network access across school campuses, industrial sites, or rural properties
- Temporary or semi-permanent network links for construction sites or events
Technical Specifications
| Specification |
Detail |
| Model |
EAP100 Bridge Kit (x2 units) |
| Wireless Standard |
IEEE 802.11b/g/n |
| Frequency Band |
2.4GHz |
| Max Throughput |
300Mbps |
| Max Range (Line of Sight) |
Up to 500m |
| Antenna |
Integrated directional antenna |
| Ingress Protection |
IP65 |
| Power Supply |
Passive PoE (injectors included) |

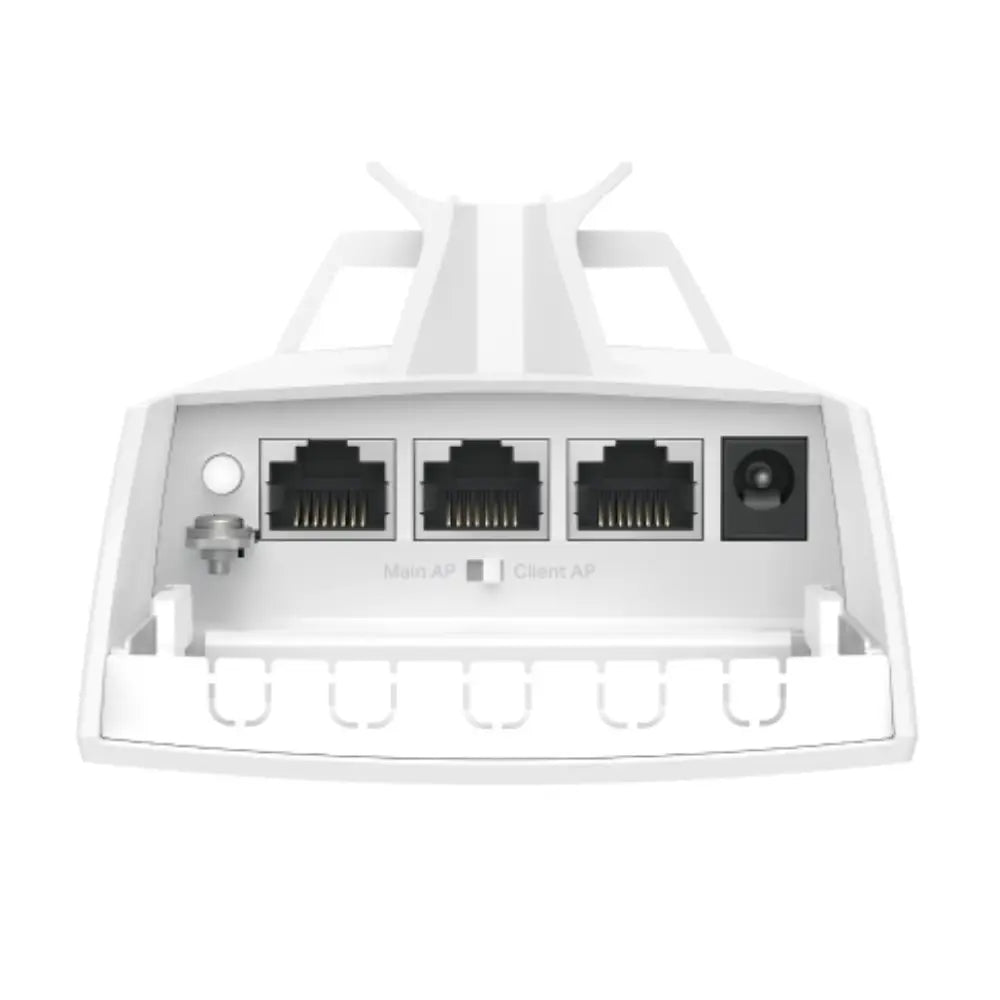

| LAN Port |
1× 10/100Mbps RJ45 |
| Operating Temperature |
-30°C to 70°C |
| Management |
Omada App, Omada Controller (cloud/software/hardware) |
| What's in the Box |
2× EAP100 units, 2× PoE injectors, mounting hardware, quick install guide |
Frequently Asked Questions
Does this kit require line-of-sight between the two units?
Yes. For best performance and to achieve the rated 500m range, a clear line-of-sight between both units is recommended. Obstructions such as trees or walls will reduce effective range.
Can I manage the EAP100 Bridge Kit through the Omada Controller?
Yes. The EAP100 is compatible with the Omada Software Controller, Hardware Controller (OC200/OC300), and the Omada Cloud-Based Controller, allowing centralised management alongside other Omada devices.
Is this suitable for CCTV camera backhaul?
Yes. The 300Mbps link is well-suited for carrying multiple HD or 4MP CCTV streams from a remote NVR or camera cluster back to a central recorder or switch.
Do I need any additional equipment to get started?
No. The kit includes both bridge units, PoE injectors, and mounting hardware — everything needed for a basic point-to-point link. You will need a network switch or router at each end to connect your devices.
What is the warranty on this product in Australia?
TP-Link products sold in Australia are covered by a standard 3-year warranty. Please refer to TP-Link Australia's warranty policy for full terms.
