TP-Link Omada ES216G — 16-Port Gigabit Smart Switch for Business Networks

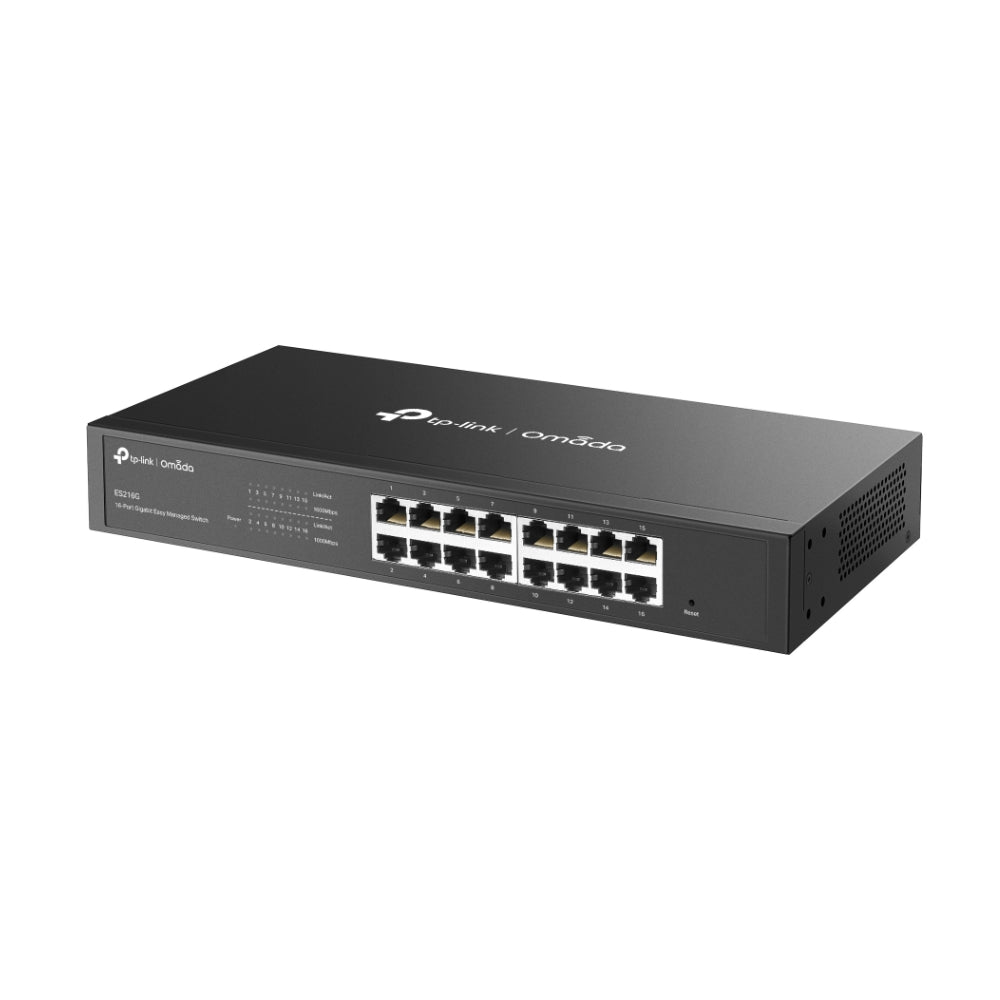

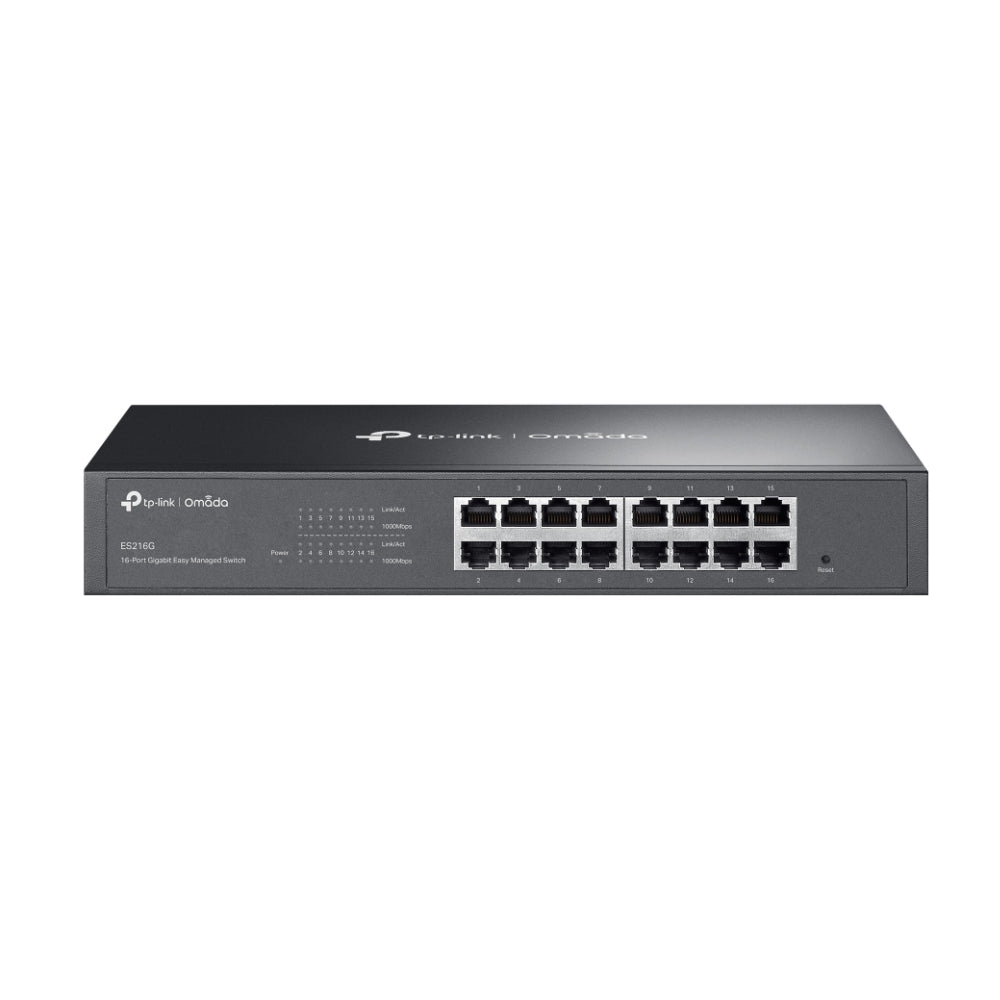

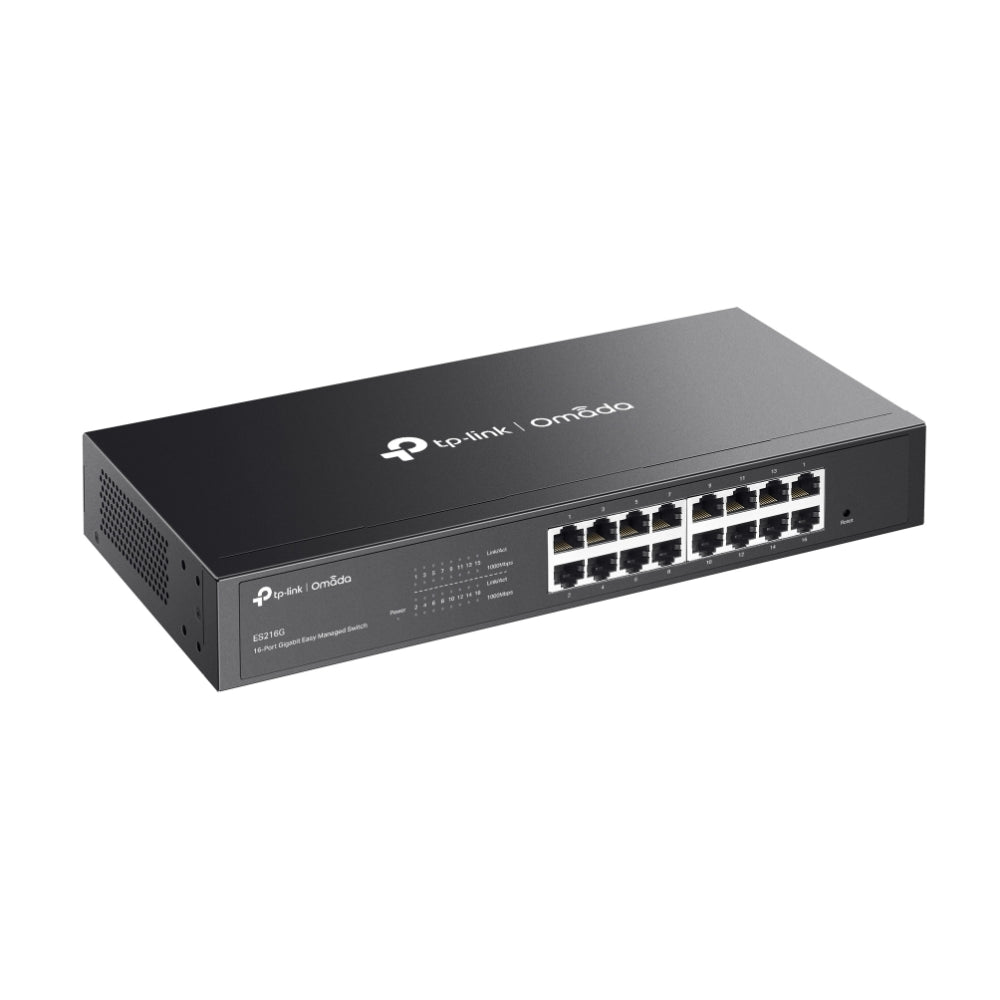

The TP-Link Omada ES216G is a 16-port Gigabit smart switch designed for small to medium-sized business networks that demand reliable performance, flexible VLAN segmentation, and centralised management. With 16 Gigabit RJ45 ports and 2 Gigabit SFP uplink slots, the ES216G slots seamlessly into the Omada SDN ecosystem — giving IT administrators a single pane of glass to manage switches, access points, and routers across their entire network.
Key Features
-
16× Gigabit RJ45 Ports — Full wire-speed Gigabit connectivity for workstations, IP cameras, VoIP phones, and access points.
-
2× Gigabit SFP Uplink Slots — Fibre or copper uplink flexibility for connecting to core switches or aggregation layers over longer distances.
-
Omada SDN Integration — Centralised management via Omada Controller (hardware, software, or cloud-based) with zero-touch provisioning and unified monitoring.
-
802.1Q VLAN Support — Segment network traffic for improved security, performance, and multi-tenant environments.
-
QoS (Quality of Service) — Prioritise latency-sensitive traffic such as VoIP and video conferencing for consistent call quality.
-
IGMP Snooping — Efficiently manages multicast traffic to reduce unnecessary bandwidth consumption across the network.
-
Link Aggregation (802.3ad LACP) — Bond multiple ports for increased uplink bandwidth and redundancy.
-
Spanning Tree Protocol (STP/RSTP/MSTP) — Prevents network loops and ensures a resilient, loop-free topology.
-
Port Mirroring & Traffic Monitoring — Simplifies network diagnostics and troubleshooting without additional hardware.
-
Fanless Silent Design — Quiet operation makes the ES216G suitable for office environments, reception areas, and noise-sensitive spaces.
-
Rack-Mountable — Standard 19-inch rack-mount form factor with mounting hardware included.
Use Cases
-
Small & Medium Business (SMB) Networks — Provide reliable Gigabit connectivity for staff workstations, printers, and shared network resources.
-
IP Surveillance Systems — Connect IP cameras with VLAN isolation to keep surveillance traffic separate from corporate data.
-
VoIP Deployments — Use QoS prioritisation to ensure crystal-clear voice calls across the network.
-
Wi-Fi Access Point Backhaul — Power and connect multiple Omada EAP access points as part of a unified Omada SDN deployment.
-
Multi-Tenant Offices & Co-Working Spaces — Use 802.1Q VLANs to logically separate tenant traffic on shared physical infrastructure.
-
Education & Healthcare Networks — Segment staff, student, and guest networks with robust VLAN and access control policies.
Technical Specifications
| Specification |
Details |
| RJ45 Ports |
16× 10/100/1000 Mbps Gigabit |
| SFP Slots |
2× Gigabit SFP |
| Switching Capacity |
36 Gbps |
| Forwarding Rate |
26.78 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
9216 Bytes |
| VLAN |
802.1Q VLAN, up to 4K VLAN Groups |
| QoS |
802.1p, DSCP, Port-based QoS; 4 queues per port |
| Link Aggregation |
802.3ad LACP, up to 8 groups, 8 ports per group |
| Spanning Tree |
STP, RSTP, MSTP |
| IGMP Snooping |
IGMP v1/v2/v3 Snooping |
| Management |
Omada App, Omada Cloud Controller, Omada Hardware Controller, Web GUI, CLI (Telnet/SSH) |
| Cooling |
Fanless |
| Form Factor |
19-inch Rack-Mountable, 1U |
| Power Consumption |
Max 10.6W |
| Operating Temperature |
0°C to 40°C |
| Warranty |
3 Years (TP-Link Australia) |
Recommended Accessories
-
TP-Link Omada OC300 — Hardware Omada Controller for on-premises centralised management of the ES216G alongside other Omada devices.
-
TP-Link Omada ER7206 — Multi-WAN Gigabit VPN Router for enterprise-grade routing and firewall in Omada SDN deployments.
-
TP-Link Omada EAP670 — Wi-Fi 6 Ceiling-Mount Access Point for pairing with the ES216G in a complete Omada wired and wireless network.
-
TP-Link TL-SM311LS — Gigabit SFP Single-Mode Fibre Module for long-distance uplink connections via the ES216G’s SFP slots.
-
TP-Link TL-SM311LM — Gigabit SFP Multi-Mode Fibre Module for shorter fibre runs within a building or campus.
Downloads
Frequently Asked Questions
What is the difference between the ES216G and a standard unmanaged switch?
Unlike an unmanaged switch, the ES216G is a smart (web-managed) switch that supports advanced features including 802.1Q VLANs, QoS traffic prioritisation, IGMP snooping, link aggregation, and port mirroring. These features give network administrators granular control over traffic flow, security segmentation, and network performance — essential for business environments.
Does the ES216G support PoE to power access points or IP cameras?
No. The ES216G is a non-PoE switch. If you need to power PoE devices such as IP cameras or wireless access points, consider pairing it with a PoE switch such as the Omada TL-SG2210P or TL-SG3428XPP, or use standalone PoE injectors.
Can the ES216G be managed via the Omada cloud?
Yes. The ES216G is fully compatible with the Omada SDN platform and can be managed via the Omada Cloud Controller, Omada Software Controller, or OC300 Hardware Controller. This enables remote monitoring, configuration, and zero-touch provisioning from anywhere with an internet connection.
How many VLANs does the ES216G support?
The ES216G supports up to 4096 VLAN groups using 802.1Q tagging, making it suitable for complex multi-tenant, multi-department, or multi-service network architectures.
Is the ES216G rack-mountable?
Yes. The ES216G is a 1U, 19-inch rack-mountable switch. Rack-mount brackets are included in the box, making it straightforward to install in a standard server rack or network cabinet.
Is the ES216G fanless?
Yes. The ES216G uses a fanless passive cooling design, making it completely silent in operation. This makes it an excellent choice for office environments, reception areas, classrooms, or any noise-sensitive space where a traditional fan-cooled switch would be disruptive.
