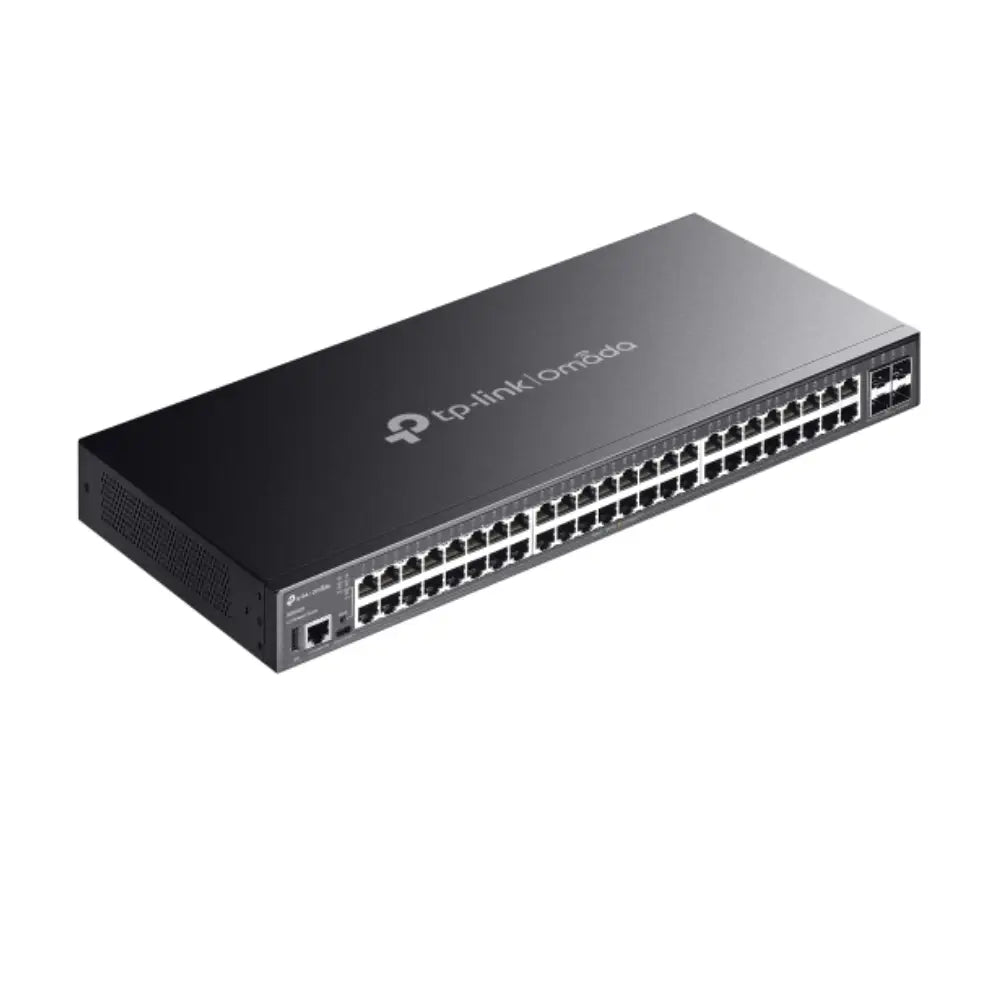

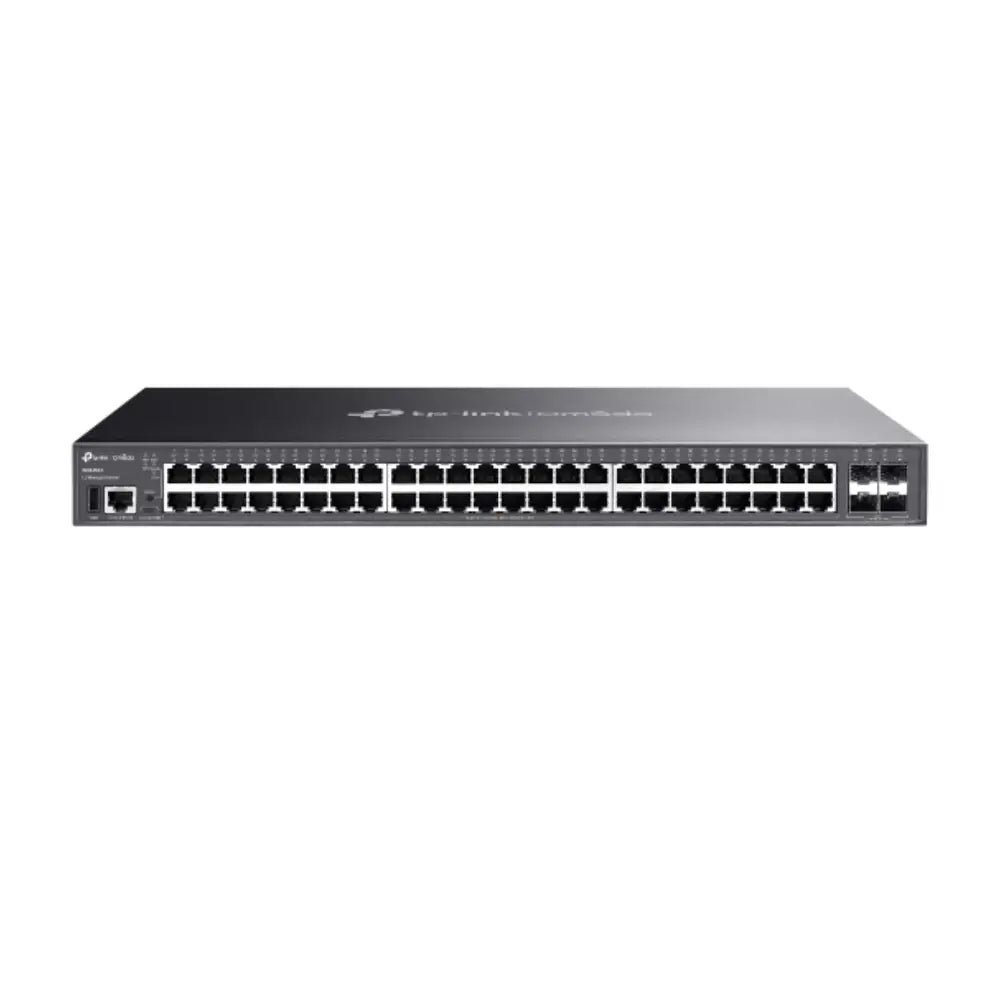

TP-Link Omada SG5452X — 48-Port Gigabit L3 Managed Switch with 4x 10G SFP+ Uplinks
The TP-Link Omada SG5452X is a high-performance Layer 3 managed switch designed for enterprise and growing SMB networks that demand reliability, scalability, and centralised control. With 48 Gigabit RJ45 ports and 4 dedicated 10G SFP+ uplink slots, it delivers the bandwidth and flexibility needed to support demanding applications across multi-floor offices, campuses, and data-intensive environments across Australia.
Product Description
Built on TP-Link's Omada SDN platform, the SG5452X integrates seamlessly into a software-defined network managed via the Omada Controller — whether hardware-based, software-based, or cloud-hosted. It supports advanced Layer 3 routing features including static routing and RIP, making it suitable as a core or aggregation switch in tiered network architectures. The switch is rack-mountable and engineered for 24/7 operation in professional environments.
Key Features
-
48x Gigabit RJ45 ports — high-density connectivity for workstations, IP cameras, VoIP phones, and access points
-
4x 10G SFP+ uplink ports — high-speed fibre or DAC uplinks to core switches or servers
-
Layer 3 routing — supports static routing and RIP for inter-VLAN routing and network segmentation
-
Omada SDN compatible — centralised management via Omada Controller (hardware, software, or cloud)
-
Advanced VLAN support — 802.1Q VLAN, voice VLAN, and surveillance VLAN for traffic segmentation
-
Comprehensive QoS — 802.1p/DSCP-based QoS to prioritise latency-sensitive traffic
-
Robust security — ACL, port security, IP-MAC-Port binding, DoS defence, and 802.1X authentication
-
IGMP snooping & MVR — efficient multicast management for video surveillance and IPTV deployments
-
Spanning Tree Protocol — STP/RSTP/MSTP for loop prevention and network redundancy
-
Link Aggregation (LACP) — up to 802.3ad dynamic link aggregation for increased uplink bandwidth
-
Fanless or low-noise design — suitable for noise-sensitive environments
-
Rack-mountable 1U form factor — standard 19-inch rack compatible
Use Cases
-
Enterprise access layer — connect end-user devices across large office floors with centralised policy control
-
SMB core switch — act as the routing and aggregation layer in small-to-medium business networks
-
IP surveillance networks — dedicated surveillance VLAN and IGMP snooping for camera-heavy deployments
-
Education & campus networks — scalable SDN management across multiple buildings or floors
-
Hospitality & retail — segment guest, POS, and staff networks with VLAN and QoS policies
-
Data centre top-of-rack — 10G SFP+ uplinks for server connectivity and inter-switch links
Technical Specifications
| Specification |
Detail |
| Model |
SG5452X |
| RJ45 Ports |
48 × 10/100/1000 Mbps |
| SFP+ Uplink Ports |
4 × 10G SFP+ |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| MAC Address Table |
32K |
| Packet Buffer |
12 Mbit |
| Jumbo Frame |
9216 Bytes |
| Layer |
Layer 3 |
| Routing |
Static routing, RIP v1/v2 |
| VLAN |
802.1Q, Voice VLAN, Surveillance VLAN, up to 4K VLANs |
| QoS |
802.1p, DSCP, 8 queues per port |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
802.3ad LACP, up to 8 groups, 8 ports per group |
| IGMP Snooping |
v1/v2/v3 |
| Security |
ACL, 802.1X, Port Security, IP-MAC-Port Binding, DoS Defence |
| Management |
Omada App, Omada Controller, Web GUI, CLI, SNMP v1/v2c/v3, RMON |
| Form Factor |
1U Rack-mountable (19-inch) |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Power Consumption (Max) |
45.6 W |
| Operating Temperature |
0°C to 45°C |
| Dimensions (W × D × H) |
440 × 220 × 44 mm |
| Weight |
3.56 kg |
| Certifications |
CE, FCC, RoHS |
Official Product Video
Watch the official TP-Link Omada SDN overview to see how the SG5452X fits into a centralised, cloud-managed network architecture:
View TP-Link Omada SG5452X Videos on YouTube
Recommended Accessories & Compatible Products
-
Omada Hardware Controller (OC300 / OC200) — on-premises SDN controller for managing your Omada network
-
TP-Link 10G SFP+ DAC Cables — direct-attach copper cables for short-range 10G inter-switch links
-
TP-Link 10G SFP+ Fibre Modules — single-mode or multi-mode transceivers for longer uplink runs
-
Omada Access Points (EAP series) — Wi-Fi 6/6E APs managed alongside the SG5452X via Omada Controller
-
Omada PoE Switches (SG2428P / SG2452P) — downstream PoE access switches for powering APs and IP cameras
-
19-inch Rack Enclosure — compatible rack cabinet for clean, professional installations
Downloads
Frequently Asked Questions
- Is the SG5452X compatible with the Omada Cloud Controller?
- Yes. The SG5452X supports all three Omada Controller deployment modes — hardware controller (OC300/OC200), software controller (Windows/Linux), and the Omada Cloud-Based Controller for remote management without on-site hardware.
- Does the SG5452X support PoE?
- No. The SG5452X is a non-PoE switch. If you need PoE for access points or IP cameras, pair it with an Omada PoE switch such as the SG2428P or SG2452P as downstream access switches.
- Can I use the SG5452X as a standalone switch without a controller?
- Yes. The SG5452X can be managed independently via its web GUI or CLI without requiring an Omada Controller. Controller adoption is optional but recommended for multi-device deployments.
- What SFP+ modules are compatible with the SG5452X?
- The SG5452X supports standard 10G SFP+ transceivers and DAC cables. TP-Link branded SFP+ modules are recommended for guaranteed compatibility. Third-party modules may also work but are not officially supported.
- Does the SG5452X support inter-VLAN routing?
- Yes. As a Layer 3 switch, the SG5452X supports inter-VLAN routing via static routes and RIP, allowing traffic to be routed between VLANs without a separate router.
- Is the SG5452X suitable for Australian power standards?
- Yes. The switch operates on 100–240 V AC at 50/60 Hz, making it fully compatible with Australian 230 V mains power.
