Reliable Outdoor Wi-Fi 6 Coverage — Built for the Elements

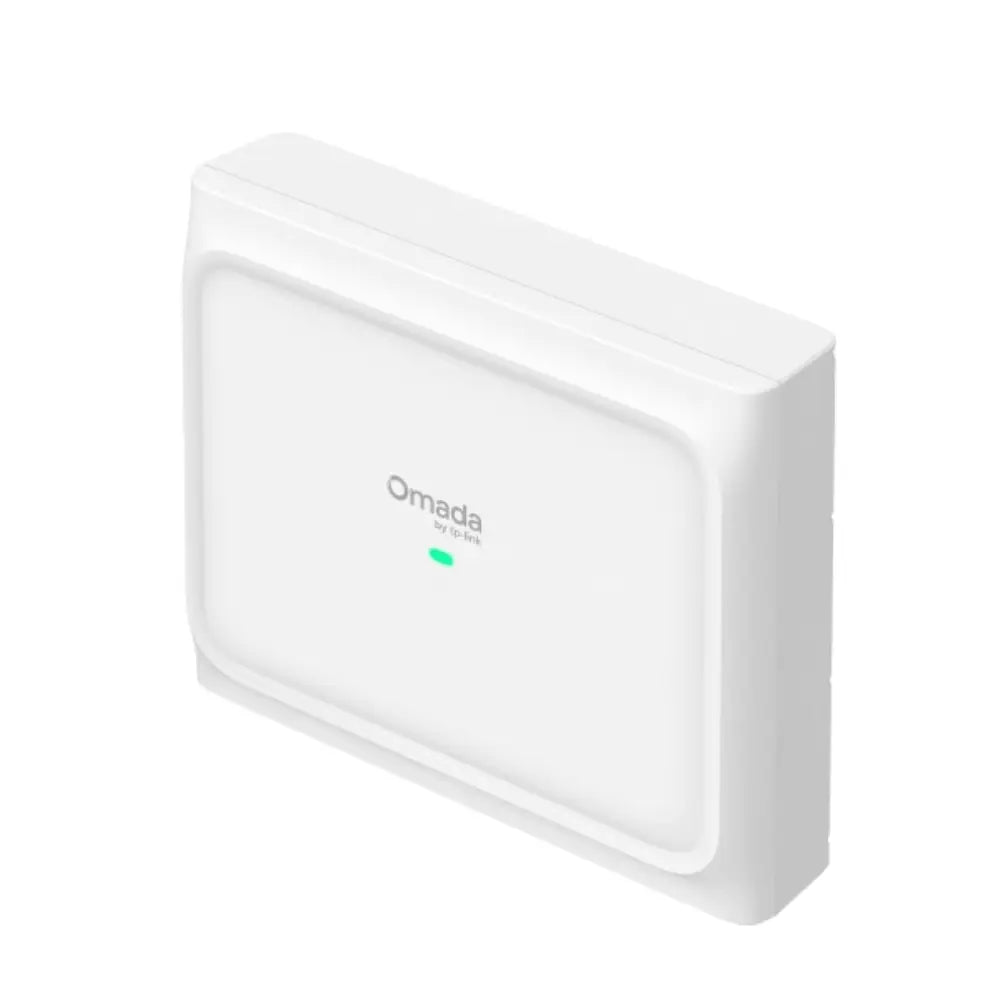

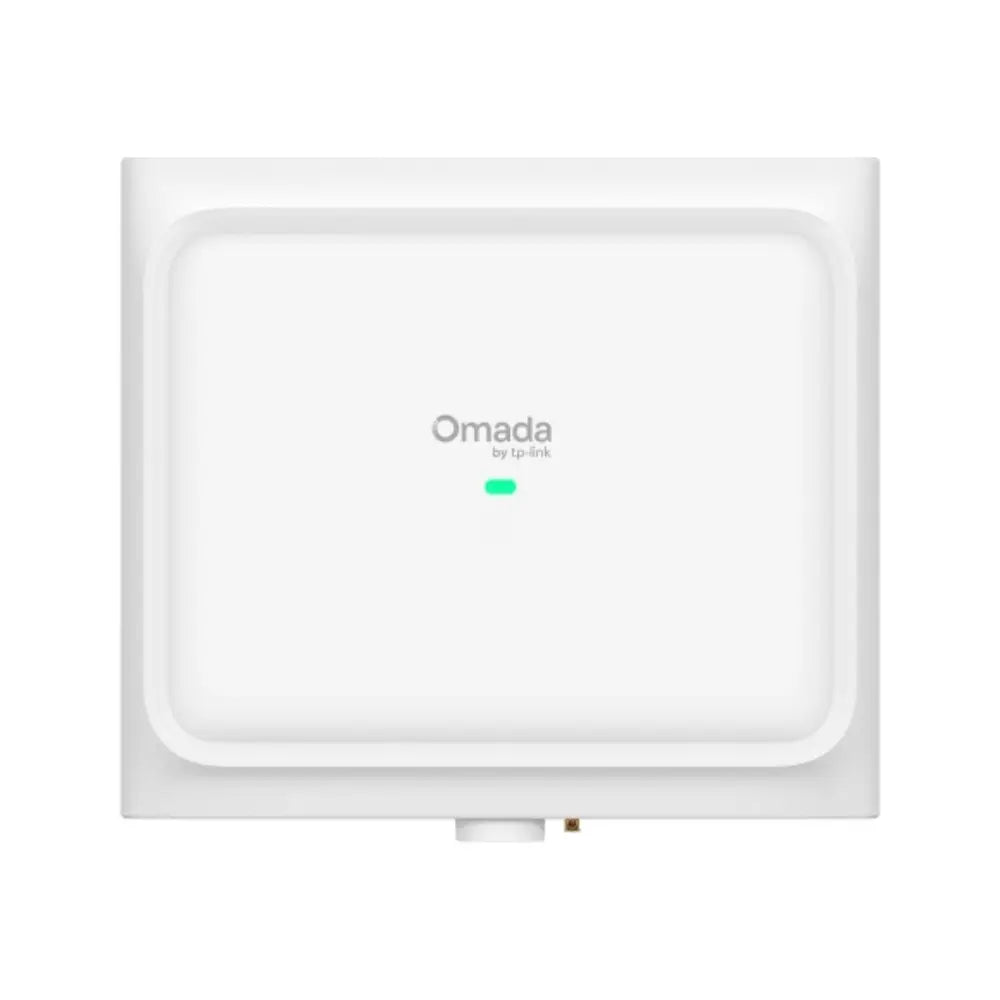

The TP-Link Omada EAP650-D30 is a high-performance outdoor Wi-Fi 6 (802.11ax) access point engineered for long-range, directional wireless coverage in demanding environments. With an AX3000 dual-band radio, a built-in 30° directional antenna, and an IP67-rated weatherproof enclosure, it's purpose-built for Australian outdoor deployments — from large commercial properties and caravan parks to stadiums, marinas, and enterprise campuses.
Key Features
-
Wi-Fi 6 (802.11ax) — AX3000: Up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for faster, more efficient wireless performance.
-
30° Directional Antenna: Focused beam coverage ideal for point-to-multipoint outdoor deployments and long-distance client connections.
-
IP67 Weatherproof Rating: Fully dust-tight and protected against temporary water immersion — built to withstand harsh Australian outdoor conditions.
-
OFDMA & MU-MIMO: Serves multiple clients simultaneously with reduced latency, ideal for high-density outdoor environments.
-
BSS Colouring: Minimises co-channel interference in congested RF environments.
-
PoE+ Powered: Single-cable installation via 802.3at PoE+ — no separate power run required.
-
Omada SDN Integration: Centralised management via Omada Controller (hardware, software, or cloud-based) for seamless multi-site deployments.
-
Seamless Roaming: Supports 802.11r/k/v for fast BSS transition — keeps mobile clients connected as they move.
-
Band Steering & Airtime Fairness: Automatically optimises client distribution across bands for consistent performance.
Use Cases
-
Caravan Parks & Campgrounds: Deliver reliable guest Wi-Fi across large open areas with directional coverage from a single mounting point.
-
Stadiums & Sports Venues: High-density outdoor connectivity for spectators and event staff.
-
Marinas & Waterfront Facilities: IP67 protection handles salt air and moisture — ideal for marine environments.
-
Enterprise Campuses: Extend secure, managed Wi-Fi to outdoor courtyards, car parks, and walkways.
-
Hospitality & Resorts: Seamless outdoor Wi-Fi for guests across pool areas, gardens, and alfresco dining.
-
Industrial & Logistics Sites: Rugged connectivity for warehouses, yards, and outdoor operational areas.
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wireless Speed |
AX3000 — 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Antenna |
Built-in directional antenna, 30° beamwidth |
| Antenna Gain |
23 dBi (5 GHz), 19 dBi (2.4 GHz) |
| Spatial Streams |
4×4 MU-MIMO |
| Ethernet Port |
1× Gigabit PoE+ (802.3at) |
| Power Supply |
802.3at PoE+ (Passive PoE adapter included) |
| Max Power Consumption |
22.0 W |
| IP Rating |
IP67 |
| Operating Temperature |
-30°C to 70°C |
| Max Clients |
Up to 512 associated clients |
| SSIDs |
Up to 16 SSIDs (8 per band) |
| Management |
Omada App, Omada Software Controller, OC200/OC300, Omada Cloud |
| Mounting |
Wall / pole mount (hardware included) |
| Dimensions |
270 × 270 × 90 mm |
| Weight |
1.65 kg |
| Certifications |
CE, FCC, RoHS |
Official Product Video
Watch the official TP-Link Omada EAP650-D30 overview to see how it performs in real-world outdoor deployments.
Recommended Accessories
-
TP-Link TL-SG2210P — 8-Port Gigabit Smart PoE+ Switch (ideal PoE source for EAP deployments)
-
TP-Link OC200 — Omada Hardware Controller (manage up to 100 EAPs on-site)
-
TP-Link OC300 — Omada Hardware Controller (manage up to 500 EAPs for larger sites)
-
TP-Link TL-POE150S — PoE+ Injector (single-port PoE+ power delivery)
-
TP-Link EAP670 — Omada Wi-Fi 6 Indoor Access Point (pair with EAP650-D30 for seamless indoor/outdoor roaming)
Downloads
Frequently Asked Questions
Does the EAP650-D30 require a controller to operate?
No — it can operate in standalone mode via the Omada app. However, for multi-AP deployments, centralised management via the Omada Software Controller, OC200, OC300, or Omada Cloud is strongly recommended for full feature access and seamless roaming.
What PoE standard does the EAP650-D30 require?
It requires 802.3at PoE+ (25.5 W). A passive PoE adapter is included in the box. Ensure your switch or injector supports PoE+ — standard 802.3af PoE (15.4 W) is not sufficient.
Is the EAP650-D30 suitable for Australian outdoor conditions?
Yes. The IP67 rating means it is fully dust-tight and can withstand temporary water immersion. Its operating temperature range of -30°C to 70°C covers the full spectrum of Australian climates, from alpine to tropical.
What is the coverage range of the directional antenna?
The 30° directional beam with up to 23 dBi gain on 5 GHz is designed for long-range point-to-multipoint links. Effective range depends on environment, but it is suited for distances of several hundred metres in open outdoor areas.
Can I mix the EAP650-D30 with other Omada EAPs on the same network?
Yes. All Omada EAPs are managed through the same Omada SDN platform, allowing you to mix indoor and outdoor models across a single unified network with consistent policies, SSIDs, and roaming.
Does it support VLAN and guest network isolation?
Yes. The EAP650-D30 supports VLAN tagging, guest network isolation, and per-SSID VLAN assignment — essential for separating guest, staff, and IoT traffic in commercial deployments.
