Description

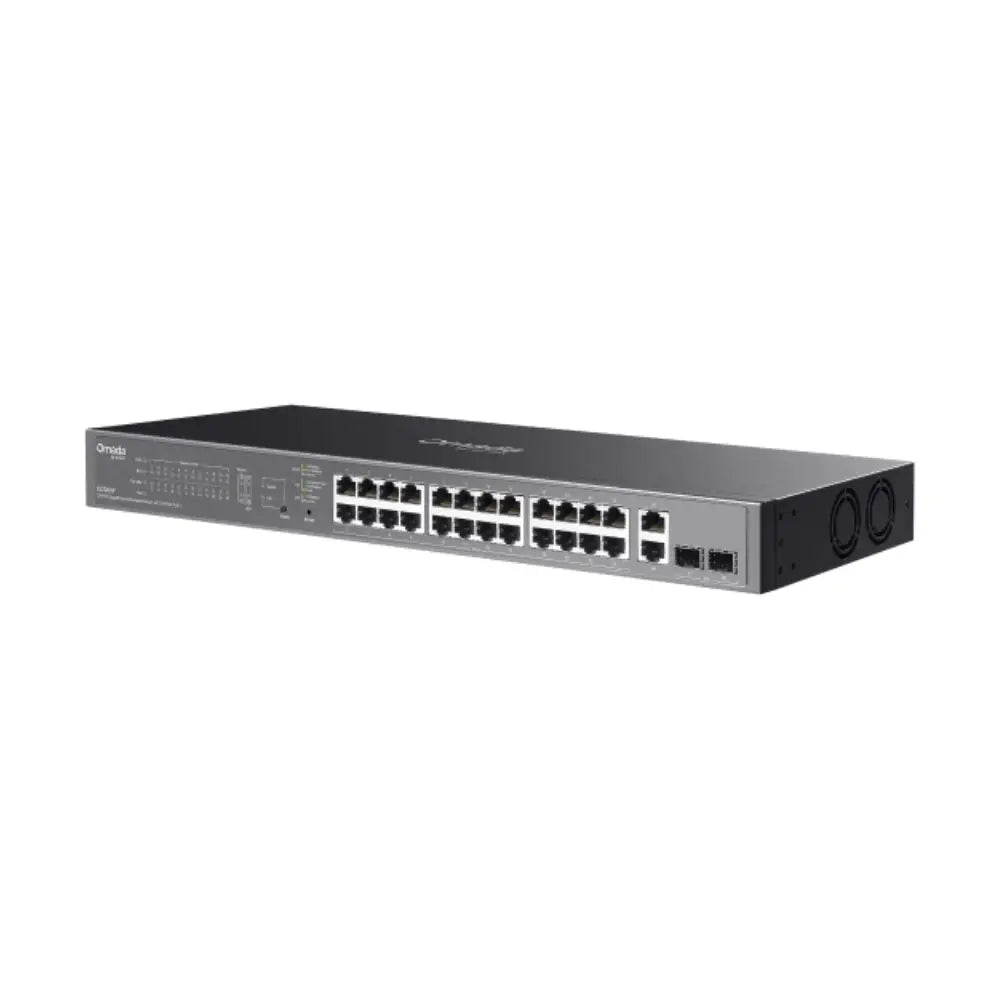

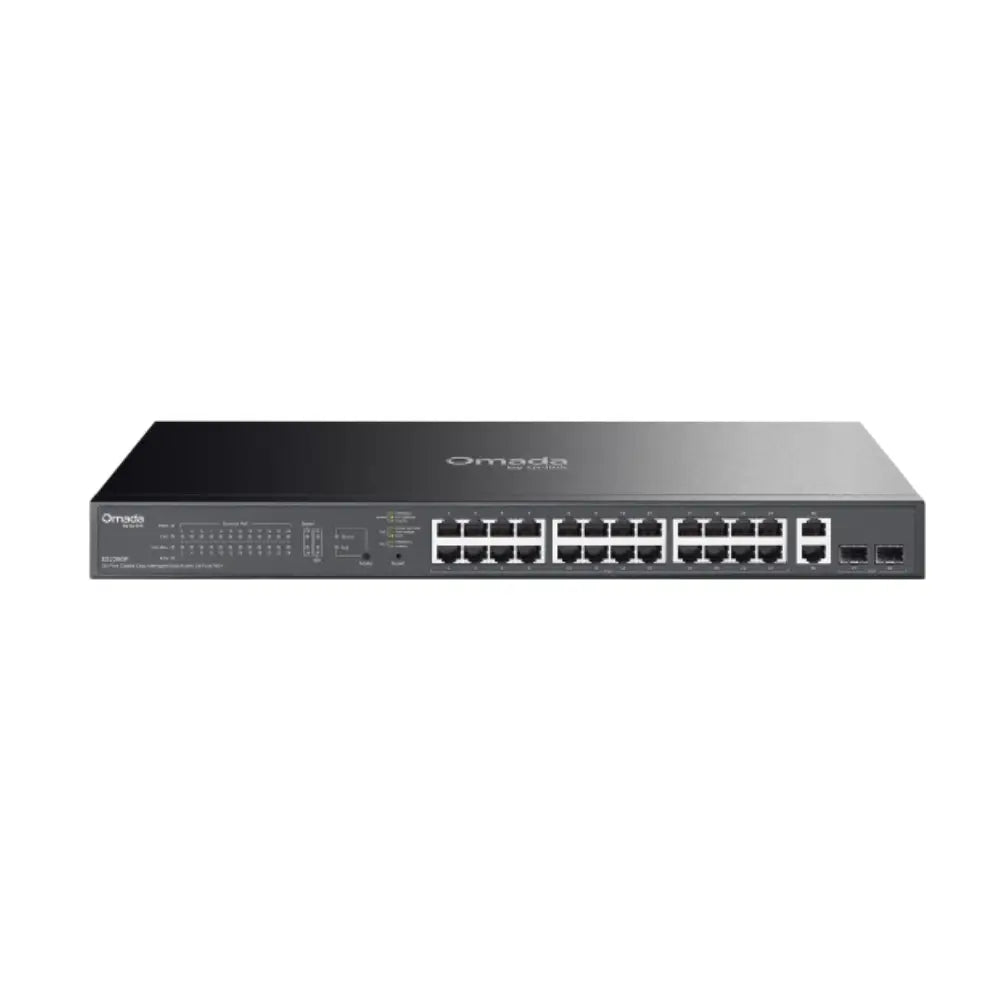

Omada ES228GP 24-Port Gigabit PoE+ Smart Switch
Overview
The TP-Link Omada ES228GP is a 24-port Gigabit PoE+ smart switch designed for small to medium-sized businesses that need reliable, centrally managed network infrastructure. With a 185W PoE budget, four SFP uplink ports, and full integration with the Omada SDN platform, it delivers enterprise-grade performance at a practical price point — ideal for Australian offices, schools, hospitality venues, and retail environments.
Key Features
- 24 × Gigabit RJ45 PoE+ ports (IEEE 802.3at/af) with a total 185W PoE budget
- 4 × Gigabit SFP uplink slots for fibre or long-distance connections
- Omada SDN compatible — manage via cloud, hardware controller, or software controller
- Advanced L2+ features: static routing, VLAN, RSTP, LACP, QoS, IGMP snooping
- Fanless design for silent operation in noise-sensitive environments
- Rack-mountable 1U form factor with included mounting kit
- Centralised management via Omada app or web portal
- PoE Auto Recovery — automatically restarts unresponsive powered devices
Use Cases
-
IP Surveillance: Power and connect up to 24 PoE cameras without separate power adapters
-
Wireless Access Points: Deploy Omada or third-party PoE APs across a floor or building
-
VoIP Phones: Prioritise voice traffic with QoS for clear, uninterrupted calls
-
SMB Office Networks: Segment departments with VLANs and manage bandwidth efficiently
-
Hospitality & Retail: Reliable switching for POS systems, guest Wi-Fi, and back-of-house devices
-
Education: Scalable infrastructure for classrooms, labs, and administration areas
Technical Specifications
| Specification |
Detail |
| Model |
ES228GP |
| RJ45 Ports |
24 × 10/100/1000Mbps PoE+ |
| SFP Slots |
4 × Gigabit SFP |
| PoE Standard |
IEEE 802.3at/af |
| PoE Budget |
185W total |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.67 Mpps |
| MAC Address Table |
16K |
| Jumbo Frame |
9216 Bytes |
| VLAN |
802.1Q VLAN, up to 4K VLAN groups |
| QoS |
8 priority queues, 802.1p/DSCP |
| Spanning Tree |
STP/RSTP/MSTP |
| Link Aggregation |
LACP (802.3ad), up to 8 groups |
| IGMP Snooping |
v1/v2/v3 |
| Management |
Omada Cloud, Omada App, Web UI, CLI, SNMP v1/v2c/v3 |
| Cooling |
Fanless |
| Power Input |
100–240V AC, 50/60Hz |
| Dimensions (W×D×H) |
440 × 180 × 44 mm (1U) |
| Operating Temperature |
0–45°C |
| Certifications |
CE, FCC, RoHS |
Recommended Accessories
-
Omada OC300 Hardware Controller — Centralised management for up to 500 Omada devices
-
Omada EAP670 Wi-Fi 6 Access Point — Pair with the ES228GP for a full Omada wireless solution
-
TP-Link TL-SM311LS SFP Module — 1000BASE-LX single-mode fibre module for SFP uplinks
-
TP-Link CAT6 Patch Cables — Reliable patch cables for clean rack installations
Downloads
Frequently Asked Questions
How many PoE devices can the ES228GP power simultaneously?
The ES228GP has a total PoE budget of 185W across all 24 ports. The number of devices it can power simultaneously depends on each device's power draw. For example, it can comfortably power 24 × 7.5W PoE cameras, or a mix of cameras, access points, and VoIP phones within the 185W limit.
Does the ES228GP require the Omada controller to function?
No. The switch operates fully as a standalone device and can be managed via its built-in web interface or CLI. The Omada controller (hardware or software) is optional but recommended for centralised management of multiple devices.
Is the ES228GP compatible with non-Omada PoE devices?
Yes. The ES228GP supports the industry-standard IEEE 802.3at (PoE+) and 802.3af (PoE) standards, making it compatible with any compliant PoE device regardless of brand.
Can I manage the ES228GP from my phone?
Yes. When used with an Omada controller, the switch can be managed remotely via the Omada mobile app on iOS and Android.
Does the ES228GP support stacking?
The ES228GP does not support hardware stacking. However, multiple switches can be logically managed together through the Omada SDN platform.
Is the ES228GP rack-mountable?
Yes. It is a standard 1U rack-mountable switch and includes a rack-mount kit in the box.
