Shop Dahua Turret cameras — genuine Dahua Turret-style IP security cameras with WizSense and WizColor options. Australian stock with local warranty and support.
Dahua · 2 × 8MP TiOC 3.0 + 4 × 8MP Smart Dual-Light · 8CH Standard or AcuPick NVR
TiOC + Dual Light

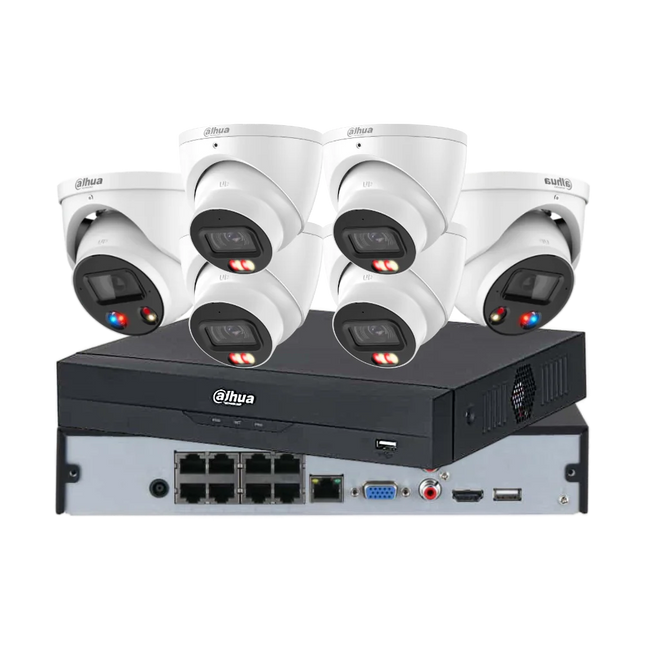

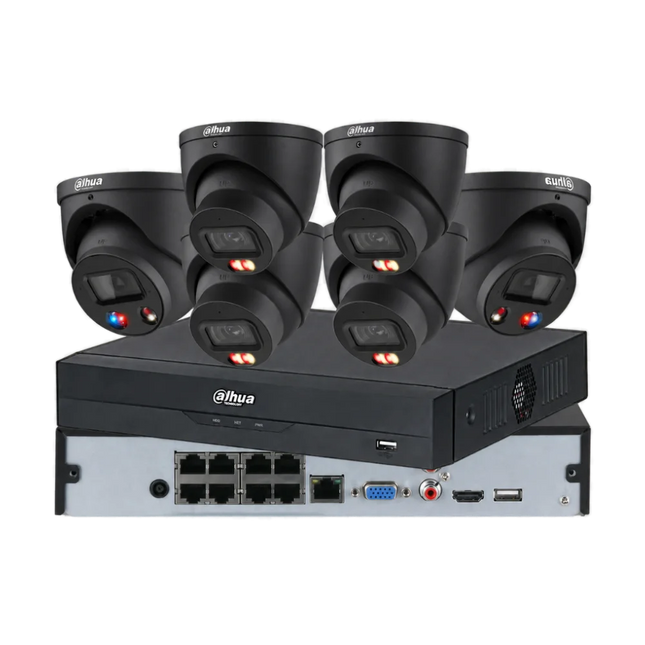

Dahua 6 × 8MP 24/7 Full-Colour CCTV Kit — 2 × TiOC 3.0 Active Deterrence + 4 × Smart Dual-Light + 8-Channel AI NVR
This Dahua 6-camera 8MP (4K) kit records true full colour around the clock and actively deters intruders instead of just filming them: 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle — perfect at gates and entries — while 4 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets give continuous full-colour coverage everywhere else. All six are 8MP 4K with SMD 4.0 AI, on an 8-channel WizSense AI NVR with 2 channels still free.
Choose your recorder. The cameras are AcuPick-native, so pick the NVR that suits how you search footage: the Standard NVR4108 gives Quick Pick target search, while the AcuPick NVR5208 adds full attribute smart search — find a person or vehicle by clothing colour, vehicle type or direction of travel in seconds. Select your NVR from the drop-down above.
Cameras
2 × TiOC + 4 × Dual Light
Recorder
8CH · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
2 × TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, the TiOC cameras fire a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
4 × Smart Dual-Light — 24/7 Full Colour
Each Dual-Light turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss, with no permanent light pollution.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
8-Channel PoE NVR — Standard or AcuPick
Compact, fanless and silent, the 8CH AI NVR has 8 built-in PoE ports for plug-and-play install, 4K HDMI output and free DMSS remote viewing — with 2 channels still free. Upgrade to the NVR5208 for full AcuPick attribute smart search.
What's Included
2 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Best at gates and entries.
4 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light, built-in mic, IP67. Continuous full-colour coverage for the rest of the property.
1 × Recorder
Choose at checkout: DHI-NVR4108HS-8P-AI/ANZ (Standard) — 8-channel 4K WizSense AI NVR, 8 built-in PoE ports, 1 SATA bay, 4K HDMI, SMD 4.0, Quick Pick, DMSS remote access. Or upgrade to the DHI-NVR5208-8P-AI/ANZ (AcuPick) — same 8 PoE ports plus full AcuPick attribute smart search (find a person or vehicle by clothing colour, vehicle type or direction). 6 channels used, 2 spare.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits six 8MP cameras for around 2–3 weeks of recording (2 TB ≈ 7–10 days on motion-only).
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Residential homes
TiOC at the front gate and driveway; Dual-Light cover of side gates, garage and backyard.
Retail & convenience
TiOC deters shoplifters at the entry; Dual-Light covers the POS counter and stockroom in colour.
Warehouses & industrial
TiOC at loading docks deters after-hours intruders; Dual-Light covers large open areas in 8MP.
Offices & commercial
Full-colour footage captures clothing and vehicle colour — critical for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
TiOC at entry points deters damage; MicroSD edge storage backs up if the NVR is tampered with.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×2)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ (×4)
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
AI
SMD · AcuPick (with 5-Series NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone (one-way)
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: put the 2 TiOC active-deterrence cameras at entry points (gates, doors, loading docks) and the 4 Dual-Light cameras across general coverage.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set TiOC siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3867EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and Dual-Light cameras?The 2 TiOC cameras add active deterrence — a siren, red/blue strobe and two-way voice warning — so they scare intruders off, not just record. The 4 Dual-Light cameras give continuous full-colour coverage. All six are 8MP 4K.
Do all cameras record in colour at night?Yes — all 6 use a warm-light illuminator for 24/7 full colour. If you'd prefer no visible light somewhere, the Dual-Light cameras can be switched to IR mode for discreet black-and-white at night.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option from the drop-down. The cameras are AcuPick-native, and the NVR5208 adds full attribute smart search: find a person or vehicle by clothing colour, vehicle type or direction of travel. The Standard NVR4108 option still gives Quick Pick target search.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 6 × 8MP on motion-only, ~2 TB gives 7–10 days, ~4 TB gives 14–20 days; choose more for continuous recording.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
AU Stock · 8MP 4K · WizSense · Smart Dual Light · AcuPick
Dahua 8MP Dual-Light Turret
Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light Turret Camera
The Dahua DH-IPC-HDW3867EM-S-IL-ANZ is an 8MP 4K WizSense fixed-lens IP turret camera for Australian homes, shops, offices and commercial sites. It combines a 1/2.7-inch CMOS sensor, wide 2.8 mm F1.4 lens, 30 m Smart Dual Light, SMD 4.0 human and vehicle classification, AcuPick compatibility, a built-in microphone and an IP67 metal housing.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HDW3867EM-S-IL-ANZ?
8MP 4K Video
Outputs up to 3840 × 2160 at 25/30 fps, providing detailed live view and playback for entrances, driveways, retail areas and general site surveillance.
Wide 2.8 mm Coverage
The F1.4 fixed lens provides a 110° horizontal, 58° vertical and 132° diagonal field of view for broad scene coverage.
Smart Dual Light
Combines up to 30 m infrared and 30 m warm light. The selected lighting mode can provide discreet IR monitoring or colour video when warm light is active.
SMD 4.0 Alerts
Classifies people and motor vehicles to reduce notifications caused by irrelevant motion such as animals and environmental movement.
AcuPick Compatible
Works with compatible Dahua back-end devices to match and locate human and vehicle targets in live and recorded video.
Flexible Recording
Supports compatible NVRs, NAS, FTP/SFTP and microSD cards up to 512 GB, with Smart H.265+ available to reduce storage and bandwidth requirements.
Smart Dual Light: Colour When It Matters
Dahua Smart Dual Light combines infrared and warm illumination. In the appropriate smart mode, IR can monitor the scene after dark and warm light can activate when a configured target enters the monitored area, allowing the camera to record colour information for key events. The warm light switches off after the target leaves, helping reduce unnecessary visible-light use.
Both IR and warm-light illumination are rated up to 30 m. Actual performance depends on installation height, target distance, nearby surfaces, ambient lighting and configuration.
AI and Smart Detection
SMD 4.0
Human and vehicle classification helps filter non-target motion and makes event review more useful.
Perimeter Protection
Tripwire and intrusion rules support accurate human and vehicle classification in configured areas.
AcuPick
Deep-learning target matching works with compatible back-end devices to locate people and motor vehicles in live and recorded video.
AI SSA
AI Scene Self-adaptation adjusts image parameters for conditions such as rain, fog, backlight, low light and flicker.
Smart Search
Works with a compatible Smart NVR for refined intelligent search, event extraction and merged event video.
Built-in Microphone
Captures one-way audio where enabled and lawful. This model has no built-in speaker and does not list external audio or alarm I/O.
2.8 mm Lens Coverage and DORI
The supplied 2.8 mm lens prioritises a broad scene. Dahua publishes the following DORI planning references under EN 62676-4. These values do not represent guaranteed intelligent-detection, facial-identification or number-plate-reading distances.
Field of View
Horizontal 110° · Vertical 58° · Diagonal 132°
Close Focus Distance
1.4 m
Detect
84.8 m
Observe
33.9 m
Recognise
17.0 m
Identify
8.5 m
Installation Notes
Set the View During Installation
This is a fixed-focal camera without optical zoom. Confirm the required scene width and target distance before mounting.
Flexible Eyeball Adjustment
Mechanical adjustment is pan 0°–360°, tilt 0°–80° and rotation 0°–360°.
Weatherproof the Connection
IP67 applies to the camera housing. Outdoor RJ-45 connections and cable joins still require correct sealing and a suitable junction box.
Avoid Night Reflections
Keep the illuminators away from close walls, gutters, glass and foliage that can reflect light back into the lens.
Technical Specifications
Camera and Lens
Model
DH-IPC-HDW3867EM-S-IL-ANZ
Camera Type
Fixed-focal eyeball / turret network camera
Image Sensor
1/2.7-inch CMOS
Maximum Resolution
3840 × 2160 (8MP 4K)
Frame Rate
Up to 25/30 fps at 8MP
Minimum Illumination
0.007 lux colour · 0.0007 lux B/W · 0 lux with illuminator on
Lens
2.8 mm fixed-focal · M12 mount · F1.4
Field of View
H 110° · V 58° · D 132°
Angle Adjustment
Pan 0°–360° · Tilt 0°–80° · Rotation 0°–360°
WDR
120 dB
Image Features
BLC · HLC · 3D NR · defog · privacy masking · LDC
Illumination and Intelligence
IR Illumination
Up to 30 m
Warm Light
Up to 30 m
Illuminators
2 multi-core IR + warm-light LEDs
Smart Motion Detection
SMD 4.0
Perimeter Protection
Tripwire and intrusion with human/vehicle classification
AcuPick
Yes, with compatible Dahua back-end devices
AI SSA
Yes
Smart Search
Yes, with compatible Smart NVR
Video, Audio and Storage
Compression
H.265 · H.264 · Smart H.265+ · Smart H.264+ · AI H.265/H.264 · MJPEG on sub stream
Streaming
Three streams
Main Stream
3840 × 2160 at 1–25/30 fps
Built-in Microphone
Yes
Audio Compression
PCM · G.711a · G.711Mu · G.726 · G.723
Local Storage
microSD card up to 512 GB
Network Storage
FTP · SFTP · NAS
Network, Power and Construction
Network
RJ-45 10/100 Base-T
Interoperability
ONVIF Profiles S, G, T and M · CGI
Mobile Client
Dahua DMSS for iOS and Android
Power
12 VDC or PoE 802.3af
Power Consumption
Basic 3.7 W at 12 VDC / 5.3 W PoE · Maximum 7.4 W at 12 VDC / 9.5 W PoE
Operating Conditions
–40 °C to +60 °C · ≤95% RH non-condensing
Protection
IP67 metal housing
Dimensions
105.5 mm × Ø122.0 mm
Weight
0.53 kg net · 0.71 kg gross
Frequently Asked Questions
What does Smart Dual Light mean?
The camera has both infrared and warm-light illuminators. Depending on configuration, it can monitor using IR and activate warm light for colour video when a relevant target enters the monitored area.
Does it record 4K at full frame rate?
It outputs 3840 × 2160 at up to 25/30 fps. Available frame rate can depend on stream and encoding configuration.
Does it have AcuPick?
Yes. AcuPick works with compatible Dahua back-end devices to match and locate human and motor-vehicle targets.
Does it have a microphone?
Yes, it has a built-in microphone for one-way audio capture. It does not have a built-in speaker.
Can I use a third-party NVR?
The camera supports ONVIF for compatible standard video recording. Dahua-specific AI and search functions may be limited on third-party recorders.
Can it record without an NVR?
Yes. It supports a microSD card up to 512 GB, as well as NAS and FTP/SFTP storage when correctly configured.
Can standard PoE power it?
Yes. The camera supports 802.3af PoE and has a maximum published PoE consumption of 9.5 W.
Is it suitable outdoors?
Yes. The metal housing is IP67 rated. Outdoor network connections still require correct sealing and weatherproof cable management.
Downloads
DH-IPC-HDW3867EM-S-IL-ANZ Datasheet
Dahua IP Turret Camera Quick Start Guide
Dahua IP Turret Camera Installation Guide
Dahua IP Turret Camera Operation Manual
Order from CCTV Guru Australia
Order the Dahua DH-IPC-HDW3867EM-S-IL-ANZ online in white or black. CCTV Guru supplies Australian stock with local technical support and a 3-year Australian warranty. For NVR compatibility, mounting accessories, bulk pricing or system design assistance, contact the CCTV Guru team.
Dahua TiOC 3.0 · 4K AcuPick · WizSense4K TiOC
Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP 4K TiOC 3.0 AcuPick Active Deterrence Turret
The Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 is the 8MP flagship of Dahua's TiOC 3.0 line-up — the camera Australian installers specify when a customer wants full 4K detail, AI detection, visible strobe deterrence, audible siren warnings and full-colour night evidence in a single unit. Built around a 1/2.7" CMOS sensor, a 2.8 mm wide-angle lens delivering a 106° horizontal field of view, and Dahua's WizSense AI engine, it captures crisp 3840 × 2160 detail by day and full-colour evidence by night while drawing under 10 W on standard PoE.
As part of the Dahua WizSense Series with TiOC 3.0 firmware, the S2 adds on-camera AcuPick indexing, SMD 4.0 false-alarm filtering and customisable voice broadcast on top of the proven red/blue strobe + siren chain. The vandal-resistant metal housing, IP67 seal and −40 °C to +60 °C operating range make it a confident choice for driveways, perimeters, retail frontages and tradie yards across every Australian climate. Available in White (DH-IPC-HDW3849H-AS-PV-ANZ-S2) and Black (DH-IPC-HDW3849H-AS-PV-ANZ-S2-BLK).
Resolution
8MP · 4K · 3840 × 2160
Field of View
106° H · 2.8 mm Lens
Night Vision
30 m Smart Dual-Light
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −40 °C to +60 °C
Power
PoE 802.3af · Max 9.5 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 in Australia
Australian installers specify the 3849H-AS-PV-ANZ-S2 because it does three things at once: it deters intrusion before it happens, captures 4K evidence-grade colour at the moment of the event, and makes after-the-fact target search trivial with AcuPick. The extra 33% pixel count over a 6MP sensor pays off where it matters — number plates at the driveway, faces at the front door, the brand of the bag a courier dropped at 11 pm. Whether it's a Western Sydney driveway, a Brisbane shopfront, a Perth tradie yard or a Tasmanian holiday home, this 8MP turret performs.
TiOC 3.0 — Three-in-One Active Deterrence
Red & blue strobe + on-board siren + custom voice broadcast fire automatically the moment AI confirms a human or vehicle — a complete deterrence chain in one camera, no extra hardware, no operator required.
True 4K Detail Across 106° of Coverage
Eight megapixels (3840 × 2160) across a 2.8 mm wide-angle lens means you cover the whole driveway in one camera and still digitally zoom into a number plate or face afterward without pixelation.
AcuPick AI Target Search
Paired with a Dahua 5-Series AcuPick NVR, AcuPick indexes every human and vehicle event by attribute — clothing colour, vehicle type, direction — so you find any face or plate across a week of footage in seconds, not hours.
Smart Dual-Light Night Vision
Invisible IR by default (30 m), auto-switching to a 30 m warm-light LED when a person or vehicle is detected — capturing clothing colour, hair colour and vehicle paint in full colour, exactly when it matters.
SMD 4.0 — Near-Zero False Alarms
Dahua's newest Smart Motion Detection runs on-camera, classifying humans and vehicles while ignoring spiders, possums, gum trees, headlights and washing on the line. Sleep through the night, not through the alarm.
Built Tough for Australia
IP67 ingress protection, metal housing, ±30% wide-voltage tolerance and a −40 °C to +60 °C operating range mean it shrugs off coastal salt, outback heat, Tasmanian frost and unstable rural mains.
Smart Features for Real-World Australian Sites
Dahua TiOC 3 & PRO Webinar 2024 — Official English Walkthrough
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
Two-Way Audio & Custom Voice
Dual built-in MICs and a 1-channel speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice.
Edge Recording — MicroSD up to 512 GB
On-camera MicroSD records days of 4K footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut.
One-Press Arming / Disarming
A single tap in the DMSS app arms or disarms the full TiOC chain. Disarm for parties and deliveries; rearm with one button for overnight and holidays.
Cyber-Hardened by Design
Trusted boot, HTTPS, 802.1x, IP/MAC filtering, X.509 certificate import and syslog — the same enterprise hardening Dahua deploys on government and critical-infrastructure cameras.
Plug & Play + Third-Party VMS
Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, two-way audio and the full TiOC deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. With 4K cameras the AcuPick payoff is even bigger: search jumps that would take an hour on a 6MP fleet finish in seconds. For any new installation we strongly recommend pairing the 3849H-AS-PV-ANZ-S2 with one of the recorders below.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3849H. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload.
Why Step Up to 8MP / 4K Over the 6MP TiOC?
The 8MP 3849 and the 6MP 3649H-AS-PV-ANZ-S2 share the same chassis, the same TiOC 3.0 deterrence chain, the same AcuPick AI and the same Smart Dual-Light system — the difference is pixels and reach. Three concrete reasons to specify the 8MP:
33% more pixels (4K vs 3K) — every digital zoom into recorded footage holds detail longer, critical for identifying faces, number plates and signage at distance
Wider 106° FOV — covers more of the driveway, frontage or yard from a single mounting point than the 6MP's 97°
Longer DORI ranges — Detect 91 m vs 66 m, Identify a face at 9.1 m vs 6.6 m. Same 2.8 mm lens, more usable distance
If you're protecting a wide property frontage, a multi-bay carpark, a long driveway or a retail forecourt with signage you need to read at distance, the 8MP is the better long-term choice. If you only need to cover a single doorway or a narrow side-passage, the 6MP saves money for no real loss in image quality.
Technical Specifications
DH-IPC-HDW3849H-AS-PV-ANZ-S2 · Full Specifications
SKU
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (White) · DH-IPC-HDW3849H-AS-PV-ANZ-S2-BLK (Black)
Camera Type
8MP 4K TiOC 3.0 WizSense IP Network Turret · Active Deterrence
Image Sensor
1/2.7" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8MP / 4K) @ 25/30 fps
Lens Type
Fixed-focal, 2.8 mm (F1.6) · M12 mount (3.6 mm option available)
Angular Field of View
H: 106° · V: 55° · D: 125° (2.8 mm)
DORI Distance (2.8 mm)
Detect 91.0 m · Observe 36.4 m · Recognise 18.2 m · Identify 9.1 m
Min. Illumination
Colour: 0.003 lux @ F1.6 · B/W: 0.0003 lux · 0 lux (IR ON)
Dynamic Range
120 dB True WDR
Day & Night
Auto (ICR) / Colour / B&W
Illuminators
1 × IR LED (30 m) · 1 × Warm-light LED (30 m) · Smart Dual-Light auto switching
Image Enhancement
3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · Image Rotation
Active Deterrence
Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported)
Intelligent Video
AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick · AI SSA
Video Compression
Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream)
Streaming
Triple Streaming — Main 3840×2160 · Sub 704×576 · Third 1920×1080
Audio Compression
G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio)
IP Camera Protocol
ONVIF Profile S/G/T · CGI · Milestone · P2P · RTMP
Network Protocols
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · SNMP · 802.1x
Cyber Security
Trusted boot · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption
Ethernet
RJ-45 (10/100BASE-T)
Alarm I/O
1 alarm in · 1 alarm out
Audio I/O
Dual built-in MIC · 1-channel speaker · 1 × RCA in / 1 × RCA out
Edge Storage
MicroSD up to 512 GB
Weatherproof Rating
IP67
Operating Temperature
−40 °C to +60 °C · < 95% RH
Power Source
12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage
Power Consumption
Basic 3.7 W (12 V DC) / 5.3 W (PoE) · Max 7.4 W (12 V DC) / 9.5 W (PoE)
Mobile App
DMSS (iOS & Android) · Smart PSS · DSS
Approvals
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1
Housing
Metal · White or Black
Dimensions
110.9 mm × Φ 122.0 mm
Weight
0.745 kg (net) · 0.915 kg (gross)
Warranty
3-Year Australian Warranty (back-to-base)
3849H-AS-PV-ANZ-S2 vs 3867EM-S-IL-ANZ — Which Dahua 8MP Should You Choose?
The DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) and DH-IPC-HDW3867EM-S-IL-ANZ (Smart Dual-Light AcuPick) share the same 8MP / 4K sensor, the same AcuPick AI stack and the same Smart Dual-Light system. The deciding question is simple: do you want the camera to actively warn intruders, or quietly record them? If you need red/blue strobe, siren, voice broadcast and two-way talk-down, choose the 3849 TiOC. If you only need silent 4K full-colour surveillance with AcuPick search, the 3867 is the cheaper pick.
Dahua 3849H-AS-PV-ANZ-S2 vs Dahua 3867EM-S-IL-ANZ
Feature
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (this camera)
DH-IPC-HDW3867EM-S-IL-ANZ
Series Position
TiOC 3.0 — Active Deterrence
Smart Dual-Light — Silent Surveillance
Max Resolution
8MP · 3840 × 2160 (4K) @ 25/30 fps
8MP · 3840 × 2160 (4K) @ 25/30 fps
Image Sensor
1/2.7" CMOS
1/2.7" CMOS
Lens (fixed)
2.8 mm · F1.6
2.8 mm · F1.6
Horizontal FOV
106°
~106°
IR Distance
30 m
30 m
Warm Light Distance
30 m
30 m
Smart Dual-Light
Yes — auto IR ⇄ warm light
Yes — auto IR ⇄ warm light
Red/Blue Strobe
Yes
No
Built-in Siren
Yes
No
Voice Broadcast
Yes — custom audio supported
No
Microphone
Dual built-in MIC
Single built-in MIC
Speaker
Yes — 1-channel
No
Two-Way Audio
Yes — talk-down via DMSS / NVR
No — listen-only
AcuPick AI Search
Yes — with 5-Series NVR
Yes — with 5-Series NVR
SMD Version
SMD 4.0
SMD 4.0
WDR
120 dB True WDR
120 dB True WDR
Video Compression
Smart H.265+ / H.264+
Smart H.265+ / H.264+
MicroSD
Up to 512 GB
Up to 512 GB
Power
PoE 802.3af · 12 V DC · Max 9.5 W
PoE 802.3af · 12 V DC · Max 9.5 W
Ingress Protection
IP67
IP67
Operating Temperature
−40 °C to +60 °C
−40 °C to +60 °C
Colour Options
White & Black
White & Black
Australian Warranty
3 years back-to-base
3 years back-to-base
Best For
Driveways, perimeters, tradie yards, shop fronts — anywhere you want the camera to actively stop intruders, not just record them in 4K.
Internal corridors, retail interiors, schools, aged-care and other sites where silent 4K monitoring matters more than active deterrence.
Compatible Mounts & Accessories
Dahua PFA137 Waterproof Junction Box
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Available in white and black to match the camera. View product →
Dahua PFB205W-E Wall Mount Bracket
Purpose-built wall arm for soffit, eave and external wall mounting. Available in white and black. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3849H turret onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with PFB205W-E and PFA137. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC turrets. View WD Purple 256 GB →
Frequently Asked Questions
What does TiOC 3.0 mean on the 3849?
TiOC = Three-in-One Camera: AI detection + visual deterrence (red/blue strobe) + audible deterrence (siren and voice) in a single unit. The 3849 is the 8MP / 4K flagship of the TiOC 3.0 line — same chassis as the 6MP 3649 with a higher-resolution sensor and wider 106° field of view.
Is 8MP / 4K worth the extra cost over 6MP?
If you cover wide property frontages, long driveways, multi-bay carparks or signage you need to read at distance, yes — 33% more pixels plus a wider 106° FOV and longer DORI Identify range (9.1 m vs 6.6 m on the 6MP) makes a real difference at the playback stage. For a single doorway or narrow passage, the 6MP 3649 is the better-value option.
Do I need a special NVR for AcuPick?
AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. SMD 4.0, IVS, two-way audio and the full TiOC deterrence chain work on every Dahua AI NVR — and via ONVIF on most third-party recorders. Shop AcuPick NVRs here →
Will the camera deter intruders automatically?
Yes. The TiOC deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What's the difference between White and Black?
Specifications are identical. DH-IPC-HDW3849H-AS-PV-ANZ-S2 is white; DH-IPC-HDW3849H-AS-PV-ANZ-S2-BLK is black. Choose black for dark eaves and charcoal fascia; white for traditional cream/render walls.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Combined with DMSS cloud push notifications, you have three redundant recording paths: NVR, MicroSD and event clips to your phone.
Can I speak through the camera?
Yes. Dual built-in microphones and a 1-channel speaker enable real-time two-way audio through the DMSS app or a compatible Dahua NVR — ideal for warning intruders, instructing couriers or speaking to family at the door.
Does this camera support facial recognition?
No — the 3849 focuses on human and vehicle classification rather than dedicated facial recognition. For most home, business and retail applications this is more than enough. If you need true facial-recognition-based access control, consider a dedicated Dahua face-recognition camera.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −40 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 Datasheet
Dahua Turret Quick Start Guide
Order the Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua TiOC 3.0 cameras. Order the 8MP 4K TiOC 3.0 AcuPick turret today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
Dahua WizSense · 6 × 5MP Turret · SMD+ AI · 30 m IR · 8CH PoE AI NVR
6× 5MP WizSense
Dahua 6 × 5MP WizSense AI CCTV Kit — 6 Turret Cameras + 8-Channel PoE AI NVR
A complete, plug-and-play 6-camera 5MP system for homes, offices and small businesses. The 6 × DH-IPC-HDW2541EMP-AS-ANZ WizSense turrets use SMD+ AI to tell people and vehicles apart from animals, foliage and weather — so you're only alerted when it matters — with 30 m IR night vision and a built-in mic. The 8-channel PoE AI NVR powers and records every camera over a single Cat6 cable each, with 2 channels still free.
Cameras
6 × 5MP Turret
Recorder
8CH AI NVR · 8 PoE
Resolution
5MP · 2880×1620
AI
WizSense SMD+
Night Vision
30 m IR
Weatherproof
IP67 Rated
WizSense SMD+ — Only Alerts That Matter
Smart Motion Detection Plus classifies motion as human or vehicle and ignores animals, foliage, rain and passing headlights — so you get push notifications only when a real person or vehicle is detected.
5MP Detail
2880×1620 captures more detail than 1080p or 4MP — faces at the door, plates in the driveway and labels at the counter stay identifiable in recorded footage.
Built-In Mic · 30 m IR
Every camera has a built-in microphone for audio capture and clear 30 m infrared night vision with automatic day/night switching.
8-Channel PoE NVR
Compact, fanless and silent, with 8 built-in PoE ports for plug-and-play install, 4K HDMI output and free DMSS remote viewing — with 2 channels still free.
What's Included
6 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense turret: SMD+ human/vehicle detection, 30 m IR, built-in mic, 120 dB WDR, MicroSD up to 256 GB, IP67. ANZ firmware.
1 × Recorder
DHI-NVR4108HS-8P-AI/ANZ — 8-channel 4K WizSense AI NVR, 8 built-in PoE ports, 1 SATA bay, 4K HDMI, SMD 4.0, DMSS remote access. 6 channels used, 2 spare.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits six 5MP cameras for around 2–3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Residential homes
Cover front, back, drive, garage, side gate and yard with 2 ports spare for later.
Shops & offices
5MP detail at the counter and entry; SMD+ cuts nuisance alerts during business hours.
Warehouses & yards
Perimeter Protection secures docks and boundaries; IP67 handles dust and moisture.
Childcare & schools
5MP footage for incident review and duty-of-care; SMD+ reduces nuisance alerts.
Airbnb & rentals
Monitor entries and shared areas via DMSS; MicroSD edge backup if the NVR is tampered with.
Trade & workshops
Cover tools, vehicles and access points; built-in mic adds audio context.
Camera — DH-IPC-HDW2541EMP-AS-ANZ (×6)
Camera Type
5MP WizSense Fixed IR Turret Network Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
5MP · 2880 × 1620 @ 20 fps
Lens
Fixed 2.8 mm
Night Vision
IR up to 30 m
AI
SMD+ · Perimeter Protection · Tripwire · Intrusion
Audio
Built-in microphone
WDR / Compression
120 dB WDR · Smart H.265+
Edge Storage
MicroSD up to 256 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: position each camera to cover an entry or approach for the best SMD+ detection accuracy.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›Audio: check local audio-recording laws before enabling the built-in microphones.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
Dahua Eyeball Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is WizSense SMD+?Smart Motion Detection Plus is Dahua's deep-learning AI that classifies motion as human or vehicle, filtering out animals, foliage and weather — so you only get alerted on what matters.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 6 × 5MP on motion-only, ~2 TB gives roughly 2–3 weeks; choose 4 TB+ for continuous recording.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras into the spare ports — no recorder upgrade needed.
Is remote viewing included?Yes — the free DMSS app (iOS/Android) gives live view, playback and push alerts from anywhere via P2P. No static IP or port forwarding required.
Are the cameras suitable for outdoors?Yes — all cameras are IP67 rated for outdoor installation in all Australian conditions, including coastal salt air and tropical rain.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 4 × 5MP Turret · SMD+ AI · 30 m IR · 4CH or 8CH PoE AI NVR
4× 5MP WizSense

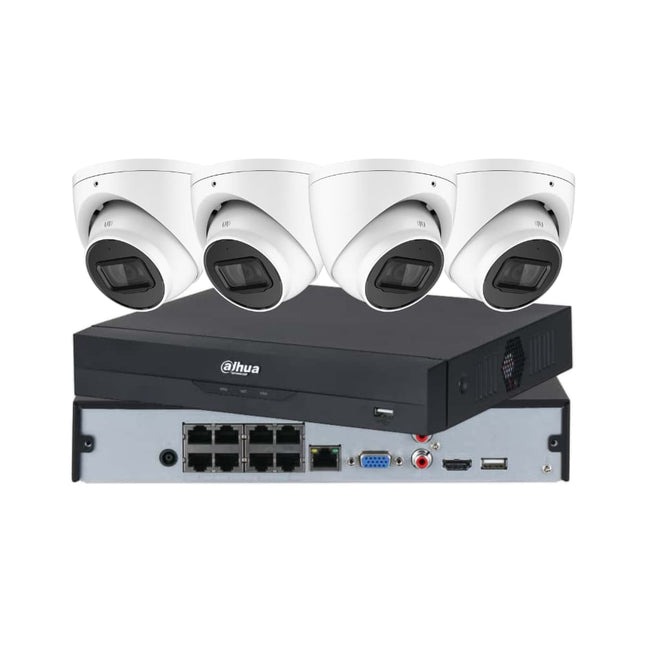

Dahua 4 × 5MP WizSense AI CCTV Kit — 4 Turret Cameras + 4-Channel or 8-Channel PoE AI NVR
A complete, plug-and-play 4-camera 5MP system for homes and small businesses. The 4 × DH-IPC-HDW2541EMP-AS-ANZ WizSense turrets use SMD+ AI to tell people and vehicles apart from animals, foliage and weather — so you're only alerted when it matters — with 30 m IR night vision and a built-in mic. Choose your recorder: the compact 4-channel NVR4104 for a tidy four-camera system, or the 8-channel NVR4108 with 4 spare PoE ports to expand later. Either way each camera runs on a single Cat6 cable carrying power and data.
Cameras
4 × 5MP Turret
Recorder
4CH or 8CH AI NVR
Resolution
5MP · 2880×1620
AI
WizSense SMD+
Night Vision
30 m IR
Weatherproof
IP67 Rated
WizSense SMD+ — Only Alerts That Matter
Smart Motion Detection Plus classifies motion as human or vehicle and ignores animals, foliage, rain and passing headlights — so you get push notifications only when a real person or vehicle is detected.
5MP Detail
2880×1620 captures more detail than 1080p or 4MP — faces at the door, plates in the driveway and labels at the counter stay identifiable in recorded footage.
Built-In Mic · 30 m IR
Every camera has a built-in microphone for audio capture and clear 30 m infrared night vision with automatic day/night switching.
Your Choice of NVR
Pick the 4-channel NVR4104 for a tidy four-camera install, or the 8-channel NVR4108 for 4 spare PoE ports to add cameras later. Both are fanless WizSense AI NVRs with 4K HDMI and free DMSS remote viewing.
What's Included
4 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense turret: SMD+ human/vehicle detection, 30 m IR, built-in mic, 120 dB WDR, MicroSD up to 256 GB, IP67. ANZ firmware.
1 × Recorder (your choice)
4CH — DHI-NVR4104HS-P-AI/ANZ (4-channel, 4 PoE) — a tidy four-camera system.8CH — DHI-NVR4108HS-8P-AI/ANZ (8-channel, 8 PoE, 4 spare) to expand later. Both: 4K WizSense AI NVR, 1 SATA bay, 4K HDMI, SMD 4.0, DMSS remote access.
Power
4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 5MP cameras for around 3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes & townhouses
Covers the four key approaches — front, back, drive and side gate — with AI alerts.
Shops & cafes
5MP detail at the counter and entry; SMD+ cuts nuisance alerts during business hours.
Small offices
Plug-and-play PoE and a silent fanless NVR suit comms cupboards and reception areas.
Airbnb & rentals
Monitor entries and shared areas via DMSS; MicroSD edge backup if the NVR is tampered with.
Garages & sheds
Cover vehicles, tools and access points; IP67 handles dust and damp.
Childcare (small)
5MP footage for incident review and duty-of-care; SMD+ reduces nuisance alerts.
Camera — DH-IPC-HDW2541EMP-AS-ANZ (×4)
Camera Type
5MP WizSense Fixed IR Turret Network Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
5MP · 2880 × 1620 @ 20 fps
Lens
Fixed 2.8 mm
Night Vision
IR up to 30 m
AI
SMD+ · Perimeter Protection · Tripwire · Intrusion
Audio
Built-in microphone
WDR / Compression
120 dB WDR · Smart H.265+
Edge Storage
MicroSD up to 256 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: position each camera to cover an entry or approach for the best SMD+ detection accuracy.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›Expansion: choose the 8-channel NVR4108 option (4 spare PoE ports) if you'll want to add cameras later — no recorder swap needed.
Set It Up — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is WizSense SMD+?Smart Motion Detection Plus is Dahua's deep-learning AI that classifies motion as human or vehicle, filtering out animals, foliage and weather — so you only get alerted on what matters.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 4 × 5MP on motion-only, ~2 TB gives roughly 3 weeks; choose 4 TB+ for continuous recording.
Do I need a separate PoE switch?No — the NVR has 4 built-in PoE ports. Each camera connects directly with a single Cat6 cable carrying power and video.
Can I add more cameras later?Yes — choose the 8-channel NVR4108 option and you get 4 spare PoE ports to add up to 4 more cameras. The 4-channel NVR4104 option uses all 4 ports.
Is remote viewing included?Yes — the free DMSS app (iOS/Android) gives live view, playback and push alerts from anywhere via P2P. No static IP or port forwarding required.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
AU Stock · 6MP · WizSense · Smart Dual Light · AcuPick
Dahua 6MP Dual-Light Turret
Dahua DH-IPC-HDW3667EM-S-IL-ANZ 6MP Smart Dual Light Turret Camera
The Dahua DH-IPC-HDW3667EM-S-IL-ANZ is a professional 6MP WizSense IP turret camera for Australian homes, shops, offices and commercial sites. Its wide 2.8 mm F1.4 fixed lens, Smart Dual Light, SMD 4.0, AcuPick compatibility, built-in microphone and IP67 metal housing make it a strong all-round choice for reliable outdoor surveillance.
3-Year Australian Warranty
Fast Australia-Wide Delivery
Australian Technical Support
Why choose the HDW3667EM-S-IL-ANZ?
Native 6MP detail
Outputs up to 3288 × 1850 at 25/30 fps for detailed live view and recorded evidence.
Wide 2.8 mm coverage
The 110° horizontal view suits entrances, standard driveways, yards, shop floors and broad overview positions.
Smarter alerts
SMD 4.0 classifies people and vehicles, while intrusion and tripwire rules support targeted perimeter monitoring.
AcuPick compatible
Compatible Dahua recorders and firmware can help locate human and vehicle targets in recorded footage more efficiently.
Clear difficult scenes
120 dB WDR, AI SSA, 3D noise reduction, BLC and HLC help maintain usable detail in changing light.
Flexible recording
Record to a compatible NVR, ONVIF recorder, NAS, FTP/SFTP or microSD card up to 512 GB.
Smart Dual Light: colour when it matters
The camera combines infrared and warm illumination. It can monitor discreetly using IR, provide colour video with warm light, or change lighting according to the selected smart-event configuration.
Rated illumination: up to 30 m IR and 30 m warm light. Actual performance depends on the scene, mounting height, surfaces, ambient light and settings.
2.8 mm lens coverage
The wide-angle lens prioritises broad scene coverage. Dahua publishes the following DORI planning references under EN 62676-4. They are not guaranteed AI, facial-identification or number-plate-reading distances.
Field of view
Horizontal 110° · Vertical 58° · Diagonal 132°
Close focus
1.4 m
Detect
84.8 m
Observe
33.9 m
Recognise
17.0 m
Identify
8.5 m
Ideal Australian applications
Homes
Eaves, entries, driveways, patios, yards and side access.
Retail
Shop entrances, aisles, stock access and POS overview.
Business
Offices, workshops, warehouses and loading areas.
Shared property
Lobbies and covered parking, subject to privacy requirements.
Technical specifications
Model
DH-IPC-HDW3667EM-S-IL-ANZ
Camera type
Fixed-focal eyeball / turret network camera
Image sensor
1/2.7-inch CMOS
Maximum resolution
3288 × 1850 (6MP) at up to 25/30 fps
Lens
2.8 mm fixed-focal, F1.4
Minimum illumination
0.005 lux colour · 0.0005 lux B/W · 0 lux with illuminator on
Illumination
Up to 30 m IR and 30 m warm light
Image processing
120 dB WDR · BLC · HLC · 3D NR · defog · AI SSA
Smart functions
SMD 4.0 · human/vehicle intrusion and tripwire · AcuPick · Smart Search
Audio
Built-in microphone; no built-in speaker
Storage
microSD up to 512 GB · FTP · SFTP · NAS
Compression
H.265 · H.264 · Smart H.265+ · Smart H.264+ · AI coding
Interoperability
ONVIF Profiles S, G, T and M · CGI
Power
12 VDC or PoE 802.3af
Maximum consumption
7.4 W at 12 VDC · 9.5 W via PoE
Protection
IP67 · metal housing
Operating conditions
–40 °C to +60 °C · ≤95% RH
Dimensions / weight
105.5 mm × Ø122.0 mm · 0.53 kg net
Mobile viewing
Dahua DMSS for iOS and Android
Installation advice
Frame the lens carefully
This is a fixed-lens camera with no optical zoom. Confirm the viewing width and target distance before mounting.
Weatherproof connections
IP67 applies to the housing. Outdoor RJ-45 plugs and joins still require correct sealing and a suitable junction box.
Avoid reflections
Keep the illuminators away from close walls, gutters, glass and foliage that can wash out the night image.
Match the NVR
Use a compatible Dahua NVR and firmware for the most complete SMD, event and AcuPick workflow.
Frequently asked questions
Does it record colour at night?Yes. Warm light supports colour video, while IR supports black-and-white monitoring. Behaviour depends on the selected Smart Dual Light mode.
Does it support two-way talk?No. It has a built-in microphone for audio capture but no built-in speaker.
Can I use a third-party NVR?It supports ONVIF for compatible standard recording. Proprietary Dahua AI features may be limited on third-party recorders.
Does it need separate power?Not with a compatible PoE NVR or 802.3af PoE switch. A suitable 12 VDC supply can also be used.
Is it suitable outdoors?Yes. The camera is IP67 rated, but the network connection and cable joints still need weatherproofing.
Does AcuPick work by itself?The full recorded-video search workflow requires compatible Dahua back-end equipment and firmware.
Video Guide
First-time Dahua NVR setup, step by step — Dahua Technology UK & Ireland
Downloads
DH-IPC-HDW3667EM-S-IL-ANZ Datasheet
Dahua IP Turret Camera Quick Start Guide
Dahua IP Turret Camera Installation Guide
Dahua IP Turret Camera Operation Manual
Specifications are based on Dahua's published ANZ information. Features can depend on firmware, recorder compatibility and system configuration.
Dahua · 2 × 8MP TiOC 3.0 + 2 × 8MP Smart Dual-Light · 4CH / 8CH / AcuPick NVR
TiOC + Dual Light
Dahua 4 × 8MP 24/7 Full-Colour CCTV Kit — 2 × TiOC 3.0 + 2 × Smart Dual-Light + 4CH, 8CH or AcuPick AI NVR
This Dahua 4-camera 8MP (4K) kit pairs active deterrence with full-colour coverage: 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle at your entries, while 2 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets give continuous full-colour coverage everywhere else. Choose your recorder: a 4-channel or 8-channel AI NVR with fast Quick Pick target search, or step up to the 8-channel AcuPick NVR5208 for full attribute search — find a person or vehicle by clothing colour, vehicle type and direction. The 8CH options leave 4 PoE ports free to grow; the TiOC and Dual-Light cameras are AcuPick-native.
Cameras
2 × TiOC + 2 × Dual Light
Recorder
4CH · 8CH · AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
2 × TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, the TiOC cameras fire a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Place them at your busiest entries.
2 × Smart Dual-Light — 24/7 Full Colour
Each Dual-Light turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
Pick the 4-channel NVR4104 for a tidy system, the 8-channel NVR4108 for 4 spare PoE ports, or the AcuPick NVR5208 for attribute smart search (find people or vehicles by colour, clothing and direction). All are fanless, silent WizSense AI NVRs with free DMSS remote viewing.
What's Included
2 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Best at gates and entries.
2 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light, built-in mic, IP67. Continuous full-colour coverage for the rest of the property.
1 × Recorder (your choice)
4CH Quick Pick — DHI-NVR4104HS-P-AI/ANZ (4 PoE).8CH Quick Pick — DHI-NVR4108HS-8P-AI/ANZ (8 PoE, 4 spare).8CH AcuPick — DHI-NVR5208-8P-AI/ANZ (8 PoE, 2 SATA bays, attribute search).
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 8MP cameras for roughly 2–3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Cameras available in white or black.
Best For
Homes & townhouses
TiOC at the front and back entries; Dual-Light covers the sides and yard in full colour.
Shops & cafes
TiOC deters shoplifters at the entry; Dual-Light covers the counter and stockroom in colour.
Driveways & entries
Two-way audio lets you warn off trespassers or greet visitors from your phone.
Small offices
Plug-and-play PoE and a silent fanless NVR suit comms cupboards and reception areas.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
Warehouses (compact)
Deterrence at the roller door plus full-colour coverage of the immediate yard.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×2)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ (×2)
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
AI
SMD · AcuPick (with 5-Series NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone (one-way)
Power / Ingress
PoE 802.3af · 12 VDC · IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your AI NVR
4CH AI NVR — NVR4104
4-channel 4K WizSense AI NVR · 4 PoE ports · 1 SATA bay · Quick Pick target search. Tidy four-camera system.
8CH AI NVR — NVR4108
8-channel 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · Quick Pick target search. 4 spare ports to expand.
AcuPick AI NVR — NVR5208
8-channel 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the cameras are AcuPick-native.
Installation Notes
›Camera placement: put the 2 TiOC active-deterrence cameras at entry points and the 2 Dual-Light cameras across general coverage.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›Audio & alarm: set TiOC siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3867EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and Dual-Light cameras?The 2 TiOC cameras add active deterrence — a siren, red/blue strobe and two-way voice warning. The 2 Dual-Light cameras give continuous full-colour coverage. All four are 8MP 4K.
Which NVR should I choose?The 4CH NVR4104 suits a fixed four-camera system; the 8CH NVR4108 leaves 4 spare PoE ports to expand. Choose the AcuPick NVR5208 if you want attribute smart search — find people or vehicles by colour, clothing and direction in seconds.
Do all cameras record in colour at night?Yes — all four use a warm-light illuminator for 24/7 full colour. The Dual-Light cameras can also be switched to IR-only mode for discreet black-and-white at night.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The 4CH and 8CH NVR options give Quick Pick target search. The cameras are AcuPick-native.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 4 × 8MP on motion-only, ~2 TB gives roughly 2–3 weeks; choose more for continuous recording.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua WizSense — ANZ Model
Dahua 5MP WizSense Turret
Dahua DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense Turret Camera
The Dahua DH-IPC-HDW2541EMP-AS-ANZ is a professional-grade 5 megapixel WizSense IP turret camera engineered for Australian residential and commercial surveillance. With AI-powered Smart Motion Detection Plus (SMD+), 30 m IR night vision, a built-in microphone, and an IP67-rated weatherproof housing, it delivers reliable 24/7 security in any environment — indoors or out.
Resolution
5MP / 2K
Night Vision
IR 30 m
Weather Rating
IP67
Power
PoE / 12V DC
Why Choose the Dahua DH-IPC-HDW2541EMP-AS-ANZ?
SMD+ AI Human & Vehicle Detection
WizSense Smart Motion Detection Plus filters out false alarms caused by animals, leaves, and lighting changes — only alerting you when a real human or vehicle is detected.
5MP 2K Clarity
A 1/2.7" CMOS sensor delivers crisp 2960 × 1668 @ 20 fps or 2688 × 1520 @ 25/30 fps footage — enough detail to identify faces, plates, and incidents clearly.
30 m IR Night Vision
Built-in IR LEDs illuminate up to 30 metres in complete darkness, ensuring clear footage around the clock without any additional lighting.
Perimeter Protection
Tripwire and intrusion detection let you define virtual boundaries. Get instant alerts the moment someone crosses a line or enters a restricted zone.
Built-in Microphone
Capture audio alongside video for richer evidence. The integrated mic eliminates the need for external audio hardware in most installations.
IP67 Weatherproof + PoE
Fully sealed against dust and rain for reliable outdoor use. Single-cable PoE (802.3af) simplifies installation — no separate power run needed.
Smart H.265+ Compression
Intelligent coding reduces bandwidth and storage consumption by up to 70% vs standard H.264, without sacrificing image quality.
256 GB MicroSD Edge Storage
Local microSD storage keeps footage safe even if your NVR or network goes down — up to 256 GB of on-camera backup recording.
Technical Specifications
Model
DH-IPC-HDW2541EMP-AS-ANZ
Image Sensor
1/2.7" 5MP CMOS
Max Resolution
2960 × 1668 @ 20 fps
Standard Resolution
2688 × 1520 @ 25/30 fps
Night Vision
Built-in IR LEDs, up to 30 m
AI Analytics
SMD+ (human/vehicle), Perimeter Protection (Tripwire, Intrusion)
Image Enhancements
WDR, 3D-NR, BLC, HLC, ROI, Rotation, Digital Watermarking
Abnormality Alerts
Video/audio tampering, SD card status, network errors
Audio
Built-in microphone
Video Compression
Smart H.265+, H.265, H.264+, H.264
Local Storage
MicroSD up to 256 GB
Power Supply
12V DC / PoE (802.3af)
Weatherproof Rating
IP67
SKU
DH-IPC-HDW2541EMP-AS-ANZ
Frequently Asked Questions
What is WizSense SMD+?
SMD+ (Smart Motion Detection Plus) uses AI to distinguish humans and vehicles from other motion triggers like animals or swaying trees, dramatically reducing false alarms.
Does this camera work with Dahua NVRs?
Yes. It's fully compatible with Dahua NVRs and the DSS/DMSS platform. It also supports ONVIF for third-party NVR integration.
Can it be used outdoors in Australian conditions?
Absolutely. The IP67 rating means it's fully sealed against dust and water ingress, making it suitable for Australian outdoor environments including coastal and high-humidity areas.
Does it need a separate power supply?
No — it supports PoE (802.3af), so a single Ethernet cable from a PoE switch or NVR provides both data and power. A 12V DC adaptor can also be used.
What lens size does it come with?
The ANZ model ships with a fixed 2.8 mm lens, providing a wide field of view ideal for entry points, hallways, and open areas.
Is local storage supported without an NVR?
Yes. Insert a microSD card (up to 256 GB) and the camera records locally — useful as a standalone solution or as a backup when the NVR is offline.
Downloads
Download Datasheet
Quick Start Guide
Fast AU Shipping
Genuine Dahua Stock
Expert AU Support
Dahua · 2 × 6MP TiOC 3.0 + 4 × 6MP Smart Dual-Light · 8CH Standard or AcuPick NVR
TiOC + Dual Light
Dahua 6 × 6MP Full-Colour CCTV Kit — 2 × TiOC 3.0 + 4 × Smart Dual-Light + 8-Channel AI NVR
This Dahua 6-camera 6MP (3K) kit films in true full colour around the clock and actively deters intruders at your key entries: 2 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, while 4 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets give continuous full-colour coverage everywhere else. All six are 6MP with SMD 4.0 AI, on an 8-channel WizSense AI NVR with 2 channels still free.
Choose your recorder. The cameras are AcuPick-native, so pick the NVR that suits how you search footage: the Standard NVR4108 gives Quick Pick target search, while the AcuPick NVR5208 adds full attribute smart search — find a person or vehicle by clothing colour, vehicle type or direction of travel in seconds. Select your NVR from the drop-down above.
Cameras
2 × TiOC + 4 × Dual Light
Recorder
8CH · Standard or AcuPick
Resolution
6MP · 3K Full Colour
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
2 × TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, the TiOC cameras fire a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
4 × Smart Dual-Light — 24/7 Full Colour
Each Dual-Light turret runs invisible IR after dark, then switches to full-colour warm light the instant AI spots a person or vehicle — capturing clothing and vehicle colour without permanently lighting up the property.
6MP 3K · SMD 4.0 AI
3288×1850 detail with WizSense SMD 4.0 — classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
8-Channel PoE NVR — Standard or AcuPick
Compact, fanless and silent, the 8CH AI NVR has 8 built-in PoE ports for plug-and-play install, 4K HDMI output and free DMSS remote viewing — with 2 channels still free. Upgrade to the NVR5208 for full AcuPick attribute smart search.
What's Included
2 × TiOC Cameras
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Best at gates and entries.
4 × Dual-Light Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP WizSense 3 Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light 30 m, built-in mic, 120 dB WDR, IP67. Continuous full-colour coverage.
1 × Recorder
Choose at checkout: DHI-NVR4108HS-8P-AI/ANZ (Standard) — 8-channel 4K WizSense AI NVR, 8 built-in PoE ports, 1 SATA bay, 4K HDMI, SMD 4.0, Quick Pick, DMSS remote access. Or upgrade to the DHI-NVR5208-8P-AI/ANZ (AcuPick) — same 8 PoE ports plus full AcuPick attribute smart search (find a person or vehicle by clothing colour, vehicle type or direction). 6 channels used, 2 spare.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~3 TB suits six 6MP cameras for around 2–3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Residential homes
TiOC at the front gate and driveway; Dual-Light cover of side gates, garage and backyard in full colour.
Retail & convenience
TiOC deters shoplifters at the entry; Dual-Light covers the POS counter and stockroom in colour.
Childcare & NDIS
Discreet eyeball turrets and 24/7 colour footage for incident review and duty-of-care.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Cafes & hospitality
Low-profile turrets blend into ceilings and awnings; warm light avoids harsh white-light wash.
Airbnb & rentals
TiOC at entry points deters damage; MicroSD edge storage backs up if the NVR is tampered with.
TiOC 3.0 Camera — DH-IPC-HDW3649H-AS-PV-ANZ-S2 (×2)
Camera Type
6MP TiOC 3.0 Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
6MP · 3200 × 1800 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · Perimeter Protection · Tripwire
Power / Ingress
PoE 802.3af · 12 VDC · IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Smart Dual-Light Camera — DH-IPC-HDW3667EM-S-IL-ANZ (×4)
Camera Type
6MP WizSense 3 Smart Dual-Light Eyeball Turret
Max. Resolution
6MP · 3288 × 1850 @ 25/30 fps
Lens
Fixed 2.8 mm F1.4 · 110° H FOV
Night Vision
Smart Dual Light · IR 30 m + Warm Light 30 m
WDR
120 dB
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection · AI SSA
Audio
Built-in microphone
Power / Ingress
PoE 802.3af · 12 VDC · 9.5 W max · IP67 · –40 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: put the 2 TiOC active-deterrence cameras at entry points (gates, doors) and the 4 Dual-Light cameras across general coverage.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set TiOC siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3667EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and Dual-Light cameras?The 2 TiOC cameras add active deterrence — a siren, red/blue strobe and two-way voice warning — so they scare intruders off, not just record. The 4 Smart Dual-Light cameras give continuous full-colour coverage. All six are 6MP.
Do all cameras record in colour at night?Yes — all 6 use a warm-light illuminator for 24/7 full colour. The Dual-Light cameras run invisible IR until AI detects a person or vehicle, then switch to warm light to capture colour.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option from the drop-down. The cameras are AcuPick-native, and the NVR5208 adds full attribute smart search: find a person or vehicle by clothing colour, vehicle type or direction of travel. The Standard NVR4108 option still gives Quick Pick target search.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 6 × 6MP on motion-only, ~2 TB gives 10–14 days, ~3 TB gives around 2–3 weeks; choose more for continuous recording.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
DAHUA TiOC PRO · 8 MP 4K · WIZCOLOR F1.0 · STROBE + SIREN + VOICE · ANZ
DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8 MP TiOC PRO WizColor AcuPick Turret — Australian Stock & 3-Year Warranty
The Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ is the PRO-tier 8 MP TiOC turret from Dahua's WizSense 3 range — the eyeball-form counterpart to the HFW3849 bullet, with the same premium 1/1.8″ sensor and F1.0 lens. Purpose-built for the Australian and New Zealand market with local firmware and a 3-year AU warranty. Available in White and Black at the same price.
The PRO tier gathers roughly 2.5× more light than a standard F1.6 camera and resolves usable colour down to 0.0008 Lux — clean 4K colour footage on moonless suburban streets, in undercover carparks and across long dark driveways where lesser cameras would fall back to grainy IR. When the AI detects a person or vehicle, the multi-core LEDs fire up to 30 m warm light, the red/blue strobe activates, the 110 dB SPL speaker plays a voice warning, and the SMD 4.0 event log fires an alarm to your NVR — all in the split-second before an intruder can reach the front door.
Dual built-in microphones + built-in speaker enable two-way audio through DMSS. WizSense 3 Pro AI runs on-camera Perimeter Protection with human/vehicle classification, SMD 4.0, face detection (full image), Lens Distortion Correction, AI Coding (~25% smaller files at same 4K quality) and AcuPick attribute search when paired with a Dahua 5-Series AcuPick NVR.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why the HDW3849H-AS-PV-PRO-ANZ
PRO tier — 1/1.8″ sensor + F1.0
Larger 1/1.8″ CMOS and F1.0 aperture gathers ~2.5× more light than a standard 1/2.7″ F1.6 turret — usable colour at 0.0008 Lux, one of the industry's lowest ratings.
Active deterrence — strobe + siren + voice
On-camera red/blue strobe, siren and 110 dB SPL speaker with pre-loaded voice warnings. Triggers automatically the moment SMD 4.0 confirms a human or vehicle in the alarm zone.
WizColor 24/7 full-colour
Multi-core LEDs blend warm light + IR for 30 m warm light full-colour identification and 30 m IR stealth reach. Colour identification of clothing, plates and vehicles all night.
WizSense 3 Pro AI + AcuPick
On-camera Perimeter Protection (tripwire, intrusion) with human/vehicle classification, face detection, plus AcuPick attribute search when paired with a Dahua 5-Series AcuPick NVR.
AI Coding + LDC
AI Coding shrinks file sizes by ~25% at the same 4K image quality — longer NVR retention on the same drive. LDC auto-corrects wide-angle barrel distortion so straight walls stay straight.
Turret form — discreet & low profile
Compact Φ122 × 116 mm eyeball chassis sits flush under eaves and soffits. Available in White or Black to blend with any wall colour.
Camera, lens & illumination
Model
DH-IPC-HDW3849H-AS-PV-PRO-ANZ (White) · DH-IPC-HDW3849H-AS-PV-PRO-ANZ-BLK (Black)
Form factor
TiOC PRO fixed-lens turret (HDW chassis, metal)
Image sensor
1/1.8″ CMOS progressive (PRO-tier large format)
Maximum resolution
3840 × 2160 (8 MP / 4K)
Frame rate
8 MP @ 25/30 fps · 1080p @ 25/30 fps
WDR
120 dB True WDR · HLC · BLC · 3D-NR · Defog · SSA
Minimum illumination
0.0008 Lux @ F1.0 (Colour) · 0.0004 Lux @ F1.0 (B/W) · 0 Lux (with illuminator)
Day / night
Auto (ICR) / Colour / B&W
Lens type
Fixed focal, M16 mount, fixed iris
Focal length
2.8 mm
Maximum aperture
F1.0
Field of view
H: 109° · V: 59° · D: 131°
DORI (2.8 mm)
Detect 82 m · Observe 32.8 m · Recognise 16.4 m · Identify 8.2 m
IR illumination
Up to 30 m (multi-core LED)
Warm-light illumination
Up to 30 m (multi-core LED, WizColor)
Smart Dual-Light / WizColor
Yes — auto or manual switching for 24/7 full-colour
TiOC active deterrence, Pro AI & audio
Active deterrence
Red/blue warning strobe · siren · voice broadcast (custom audio supported)
Speaker
Built-in speaker · 110 dB SPL @ 10 cm
Two-way audio
Yes (dual mic + speaker via DMSS)
AI engine
WizSense 3-Series (TiOC PRO / Pro AI)
Perimeter Protection
Tripwire · Intrusion (with human / vehicle classification)
SMD
SMD 4.0
AcuPick
Yes — with a compatible Dahua 5-Series AcuPick NVR
Face detection
Yes (full image, snapshot + enhancement + one-inch photo)
Lens Distortion Correction
Yes (LDC on-camera)
AI Coding
Yes — ~25% additional compression efficiency
Video compression
AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · MJPEG (sub-stream)
Streaming
3 streams · Main 3840×2160 · Sub 1920×1080 · Third 1920×1080
Video bitrate
3 – 16,384 kbps (16 Mbps)
Built-in microphone
Yes — dual mic
Audio I/O
1 in / 1 out (RCA)
Alarm I/O
1 in / 1 out
Network port
RJ-45 10/100 Base-T
ONVIF
Profile S, G, T · CGI · P2P · RTMP
Storage
microSD up to 512 GB · FTP / SFTP / NAS
Mobile client
DMSS · Smart PSS Lite · DoLynk Care (iOS / Android)
Power, environment & build
Power supply
12 VDC / PoE (802.3af) · ±30% wide voltage · dual-power backup
Power consumption
Basic 4.1 W (12 VDC) / 6 W (PoE) · Max 10 W (PoE) / 8.2 W (12 VDC)
Operating temperature
−40 °C to +60 °C
Humidity
≤ 95% RH non-condensing
Protection
IP67
Casing
Metal · White or Black
Dimensions
Φ 122.0 × 116.1 mm
Net weight
0.8 kg
Memory
ROM 256 MB · RAM 2 GB
Certifications
CE-LVD (EN 62368-1) · CE-EMC (2014/30/EU)
Australian warranty
3 years (via CCTV Guru)
Best used for
Premium residential frontage
Discreet turret form under the front eave. Full-colour night vision + strobe + voice deterrence covers driveway, front door and letterbox from a single position.
Retail & hospitality after-hours
Overnight self-defence for shops, cafes and workshops. Voice broadcast warns off would-be thieves without needing a monitored alarm.
Undercover carparks & loading docks
1/1.8″ sensor + F1.0 lens delivers clean colour where standard cameras go grainy. AcuPick makes vehicle-attribute review fast on a 5-Series NVR.
Commercial perimeter (low light)
Alpine-to-tropical −40 °C to +60 °C rating. IP67 metal build. Right pick for sites at the edge of street lighting where colour identification matters overnight.
Pair with a Dahua 5-Series AcuPick NVR
SMD 4.0, IVS rules, two-way audio and the full TiOC PRO deterrence chain all run on-camera — they work with any Dahua AI NVR or ONVIF third-party recorder. But to unlock AcuPick (attribute-based human and vehicle target search, similar-image cross-camera tracking, AI-accelerated playback), you need a compatible Dahua 5-Series AcuPick NVR.
DHI-NVR5208-8P-AI/ANZ
8 channels · 8 built-in PoE · 1U compact — ideal for a single-home or small-business fleet of 4–8 TiOC PRO cameras. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ
16 channels · 16 PoE · dual HDD — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ
32 channels · 16 PoE · 4 HDD — standard for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ
32 channels · no built-in PoE — for sites running a separate managed PoE switch. Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation.
Compatible mounts & accessories
Dahua PFA137 Waterproof Junction Box
Recessed IP66 junction box for clean cable concealment on brick, render or weatherboard. White or black to match the camera. View product →
Dahua PFB205W-E Wall Mount Bracket
Purpose-built wall arm for soffit, eave and external-wall mounting. White or black. View product →
Dahua PFA109 Mount Adapter
Adapter for fitting the 3849H PRO turret onto Dahua wall and pole brackets. View product →
WD Purple 256 GB Surveillance MicroSD
Purpose-built for 24/7 surveillance read/write cycles — recommended edge-recording card for TiOC PRO turrets. View WD Purple 256 GB →
Installation notes
This SKU is the 2.8 mm version (109° wide). CCTV Guru does not stock the 3.6 mm variant — contact us for special-order pricing if you need a narrower field of view.
The active deterrence chain can be armed/disarmed on a schedule via DMSS or the web UI — e.g. deterrence off during business hours, on overnight and weekends.
Voice broadcast supports pre-loaded warnings; custom voice files upload via the web UI.
Powered by PoE 802.3af or 12 VDC — max draw only 10 W. Fits any budget PoE switch or Dahua NVR PoE port.
microSD up to 512 GB for edge recording. Recommended: endurance-rated card for 24/7 recording.
Mount using the included base or a Dahua PFA109 adapter with PFB205W-E wall arm / PFA137 junction box for cable concealment.
Frequently asked questions
What does "PRO" mean on the 3849H-AS-PV-PRO-ANZ?PRO designates the higher-tier hardware variant. Compared to the standard 3849, PRO uses a larger 1/1.8″ sensor, an F1.0 aperture (vs F1.6), 2 GB RAM (vs 512 MB), adds AI Coding, face detection and Lens Distortion Correction, and produces clean colour image at 0.0008 Lux (vs 0.003 Lux).
Is the PRO worth the extra cost over the standard 3849?For sites where night-time image quality matters — dark driveways, undercover carparks, commercial perimeters at the edge of street lighting — yes, the F1.0 aperture and 1/1.8″ sensor make a visible difference. For well-lit sites, the standard 3849 delivers most of the same TiOC capability at a lower price.
Do I need a special NVR for AcuPick?Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC PRO deterrence chain, SMD 4.0, IVS, face detection and two-way audio all work on any Dahua AI NVR.
Does the PRO have face recognition?The PRO supports face detection (full image) — it detects and indexes faces as metadata for fast search and event tagging. It does not perform face recognition (watchlist matching) — that needs a dedicated face-recognition camera or a Dahua face-DB server.
Will the camera deter intruders automatically?Yes. The TiOC PRO deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe, siren and voice broadcast all run on-camera 24/7, without any operator, NVR command or mobile-app interaction.
What's the difference between the White and Black versions?Specifications are identical. DH-IPC-HDW3849H-AS-PV-PRO-ANZ is white; DH-IPC-HDW3849H-AS-PV-PRO-ANZ-BLK is black. Choose black for dark eaves and charcoal fascia; white for cream/render walls.
Do you stock the 3.6 mm lens version?No — CCTV Guru stocks the 2.8 mm version only (109° wide field of view). The 3.6 mm version is a special-order item — contact us if you need one for a narrower shot.
Will it keep recording if the NVR or internet goes down?Yes. The on-board microSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Dual-power backup (PoE + 12 VDC) keeps the camera running if one power source fails.
Is the camera suitable for Australian outdoor conditions?Yes. Rated IP67 and −40 °C to +60 °C — covers every AU climate from a Hobart winter to a Karratha summer.
Does it work with Hikvision NVRs or third-party VMS?Basic recording, streaming and motion work over ONVIF Profile S/G/T on Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology. However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
Downloads
DH-IPC-HDW3849H-AS-PV-PRO-ANZ Datasheet (PDF)
Dahua Turret Quick Start Guide (PDF)
Dahua · 6 × 8MP Smart Dual-Light · 8CH AI NVR — Standard or AcuPick
6× Dual Light 4K
Dahua 6 × 8MP 4K Full-Colour Smart Dual-Light CCTV Kit — 8-Channel PoE AI NVR
This Dahua 6-camera 8MP (4K) kit films in true full colour around the clock. Each of the 6 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets runs invisible IR after dark, then flips to warm white light the instant WizSense AI classifies a person or vehicle — capturing clothing colour, vehicle colour and faces that IR-only cameras miss. Both recorder options are 8-channel AI NVRs — the difference is search: the Standard AI NVR (NVR4108) gives fast Quick Pick target search, while the AcuPick AI NVR (NVR5208) adds full AcuPick attribute search — find a person or vehicle by clothing colour, vehicle type and direction. Either way, 8 PoE ports power every camera over a single Cat6 cable with 2 channels still free; these Dual-Light cameras are AcuPick-native, so the 5208 unlocks their full forensic search.
Cameras
6 × 8MP Dual-Light
Recorder
8CH AI NVR · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Night Vision
24/7 Full Colour
AI
SMD 4.0 · AcuPick
Weatherproof
IP67 Rated
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution for neighbours.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Built-In Mic · AcuPick-Native
Every camera has a built-in microphone for audio capture, and AcuPick-native firmware means the AcuPick NVR5208 option can search footage by person, vehicle, clothing colour and direction.
8-Channel AI NVR — Standard or AcuPick
Choose the Standard AI NVR (NVR4108 · Quick Pick) or the AcuPick AI NVR (NVR5208 · attribute search). Both are compact, fanless 8CH recorders with 8 PoE ports, 4K HDMI and free DMSS remote viewing — 2 channels still free.
What's Included
6 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light 30 m, built-in mic, SMD 4.0, IP67. Full-colour coverage day and night.
1 × Recorder (your choice)
Standard: DHI-NVR4108HS-8P-AI/ANZ — 8CH 4K WizSense AI NVR, 8 PoE, 1 SATA bay, Quick Pick target search.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8CH AcuPick AI NVR, 8 PoE, attribute smart search. 6 channels used, 2 spare either way.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits six 8MP cameras for around 2–3 weeks of recording (2 TB ≈ 7–10 days on motion-only).
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Residential homes
Full-colour cover of every entry, driveway, side gate and backyard, day and night.
Retail & convenience
Capture faces and clothing colour at the counter, aisles and stockroom in 8MP.
Warehouses & yards
Full-colour coverage of large open areas, aisles and loading zones at night.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
Clear full-colour coverage of entries and shared areas; remote monitoring via DMSS.
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ (×6)
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone (one-way)
Compression
Smart H.265+ / H.265 / H.264+ / H.264
Edge Storage
MicroSD up to 512 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 8-Channel AI NVR
Standard AI NVR — NVR4108
8CH 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · SMD 4.0 · Quick Pick target search. 6 channels used, 2 spare.
AcuPick AI NVR — NVR5208
8CH AI NVR · 8 PoE · higher bandwidth · AI by recorder & by camera · AcuPick attribute search — search by clothing colour, vehicle type & direction; the Dual-Light cameras are AcuPick-native.
Pick the 5208 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: mount at 2.5–3 m so the warm-light array reaches the target zone for full-colour capture at night.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Full-colour mode: leave Smart Dual-Light on auto for IR-to-colour hand-off, or force full-colour where you always want colour footage.
See It In Action & Set It Up — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
AcuPick — quick, accurate video search — Dahua ANZ (official)
Downloads & Resources
DH-IPC-HDW3867EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is Smart Dual-Light?The cameras use both IR and warm white light. They run on invisible IR until WizSense AI detects a person or vehicle, then switch to warm light for full-colour footage — so you get colour evidence only when it matters, without lighting up the property all night.
Do they record in colour at night?Yes — full colour 24/7 via the warm-light array. You can also lock them to IR-only mode for discreet black-and-white at night if you prefer no visible light.
Does this kit do AcuPick?Yes — choose the AcuPick AI NVR (NVR5208) option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The Standard AI NVR (NVR4108) option gives Quick Pick target search. Both are 8-channel AI NVRs; the cameras are AcuPick-native.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 6 × 8MP on motion-only, ~2 TB gives 7–10 days, ~4 TB gives 14–20 days; choose more for continuous recording.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 8 × 8MP TiOC 3.0 · 8CH AI NVR — Standard or AcuPick
8× TiOC Full Colour
Dahua 8 × 8MP TiOC 3.0 Full-Colour CCTV Kit — Active Deterrence, Two-Way Audio + 8-Channel PoE AI NVR
This Dahua 8-camera 8MP (4K) TiOC 3.0 kit turns every corner of your property into an active deterrent. All 8 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning the instant WizSense AI detects a person or vehicle, and film in true full colour around the clock. Both recorder options are 8-channel AI NVRs — the difference is search: the Standard AI NVR (NVR4108) gives fast Quick Pick target search, while the AcuPick AI NVR (NVR5208) adds full AcuPick attribute search — find a person or vehicle by clothing colour, vehicle type and direction across hours of footage. Either way it's a complete, fully-loaded 8-camera system; the TiOC cameras are AcuPick-native, so the 5208 unlocks their full forensic search.
Cameras
8 × 8MP TiOC 3.0
Recorder
8CH AI NVR · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
A warm-light illuminator delivers true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
8-Channel AI NVR — Standard or AcuPick
All 8 PoE ports drive all 8 cameras. Choose the Standard AI NVR (NVR4108 · Quick Pick) or the AcuPick AI NVR (NVR5208 · attribute search) — both fanless, silent, with 4K HDMI and free DMSS remote viewing.
What's Included
8 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black.
1 × Recorder (your choice)
Standard: DHI-NVR4108HS-8P-AI/ANZ — 8CH 4K WizSense AI NVR, 8 PoE, 1 SATA bay, Quick Pick target search.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8CH 5-Series AcuPick AI NVR, 8 PoE, 2 SATA bays, attribute smart search. All 8 channels used either way.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits eight 8MP cameras for roughly a week on motion-only — choose 6–8 TB for longer retention.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Cameras available in white or black.
Best For
Larger homes & acreage
Eight cameras cover every entry, side gate, driveway and outbuilding with active deterrence.
Retail & hospitality
Visible siren and strobe deter shoplifters; full colour captures faces across the whole floor.
Warehouses & yards
Active deterrence at every loading dock and gate; 8MP detail across large open areas.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Multi-tenant & strata
Cover shared entries, car parks and bin areas; two-way audio for live warnings.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×8)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
WDR / Compression
120 dB WDR · Smart H.265+
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 8-Channel AI NVR
Standard AI NVR — NVR4108
8CH 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · SMD 4.0 · Quick Pick target search.
AcuPick AI NVR — NVR5208
8CH 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC cameras are AcuPick-native.
Pick the 5208 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: position each camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Storage sizing: eight 8MP cameras generate a lot of data — fit a 6–8 TB surveillance HDD if you need more than a week of retention.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
Is this a complete 8-camera system?Yes — 8 cameras on an 8-channel NVR with all 8 PoE ports used. Just add a surveillance hard drive and Cat6 cabling to finish the install.
Does this kit do AcuPick?Yes — choose the AcuPick AI NVR (NVR5208) option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The Standard AI NVR (NVR4108) option gives Quick Pick target search. Both are 8-channel AI NVRs; the cameras are AcuPick-native.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 8 × 8MP on motion-only, ~4 TB gives roughly a week; choose 6–8 TB for longer retention.
Do the cameras record in colour at night?Yes — a warm-light illuminator gives 24/7 full colour. You can also switch to IR-only mode for discreet black-and-white at night if you prefer no visible light.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua TiOC 2.0 · 8MP 4K · Black · 2.8 mmBlack 8MP TiOC Camera with Smart Dual Illumination and Active Deterrence
The DH-IPC-HDW3849H-AS-PV-ANZ-BLK combines detailed 4K video, human and vehicle detection, two-way audio and red/blue warning lights in a compact black turret. Its wide-angle 2.8 mm lens suits driveways, entrances, shopfronts and building perimeters where you want to see what happened and respond to an event.
Available to order from supplier stock. Dispatch timing is confirmed after ordering. Supplier availability can change; contact CCTV Guru before ordering if you have a fixed installation date.
Choose the correct generation: this is the original non-S2 model. For the later version, see DH-IPC-HDW3849H-AS-PV-ANZ-S2. Specifications and accessories should be checked against the exact SKU.
Key Features
4K detail across a wide view
Capture up to 3840 × 2160 video with a 106° horizontal view. Choose the mounting position around the target distance: a wide view provides coverage, but does not guarantee identification at every distance.
Smart Dual Illumination
Use discreet infrared illumination, or configure warm-light colour capture when a relevant target enters the scene. Both illuminators are rated up to 30 m under suitable conditions.
Alerts focused on people and vehicles
SMD 4.0 and perimeter rules help filter unwanted motion. Set tripwire and intrusion zones around the areas you need to protect, then test them on site.
Visible and audible deterrence
Link the red/blue warning lights and sound alarm to configured events. Use appropriate schedules and volume settings for your property and neighbours.
Talk to visitors remotely
Dual microphones and an integrated speaker support two-way communication through compatible Dahua software. Remote access requires network setup and an internet connection.
Flexible recording and simple PoE
Connect one Ethernet cable to a suitable PoE port, then record to a compatible NVR or an optional surveillance microSD card up to 256 GB.
Recommended Setup and Accessories
Confirm recorder compatibility, camera position and the required viewing distance before installation.
Connect to an 802.3af PoE source using an appropriate 8ware Cat6 patch lead. Use protected routing; an indoor patch lead is not a substitute for outdoor-rated fixed cabling.
Activate the camera with a unique password, set the correct time and configure recording, alerts and DMSS access.
Add an optional WD Purple SC QD101 surveillance microSD card for local recording. Choose 128 GB or 256 GB for this model.
Test night lighting, detection zones, audio and recordings before completing the installation. Weatherproof all cable connections.
Dahua lists DH-PFA137 as the optional junction box; select its black option for a matching finish. Other listed mounting components include DH-PFA109, DH-PFB220C and DH-PFA152-E. These are alternative or combined mounting components, not items every installation needs. Ask us to confirm the complete assembly for your surface.
Technical Specifications
Model / colour
DH-IPC-HDW3849H-AS-PV-ANZ-BLK / Black; original non-S2 version
Sensor
1/2.8-inch progressive-scan CMOS
Maximum resolution
8 MP, 3840 × 2160
Main-stream frame rate
Up to 25/30 fps at 8 MP; simultaneous streams share encoding capacity
Lens supplied
2.8 mm fixed focal length, F1.0
Field of view
106° horizontal / 55° vertical / 125° diagonal
Minimum illumination
0.004 lux colour; 0.0004 lux B/W at F1.0, 30 IRE; 0 lux with illuminator on
Night illumination
Up to 30 m infrared and 30 m warm light; performance varies by scene
Wide dynamic range
120 dB WDR
Video compression
H.265 / H.264; Smart H.265+ / H.264+; AI H.265 / H.264
Streams
3 streams
Perimeter protection
Tripwire and intrusion with human/vehicle classification
Motion detection
SMD 4.0; conventional motion detection
Smart search
Quick Pick with a compatible Dahua AI NVR
Active deterrence
Red/blue warning lights, sound alarm and configurable voice prompts
Built-in audio
Dual microphones and one speaker; two-way talk
Audio connections
1 RCA input / 1 RCA output
Alarm connections
1 input / 1 output; alarm input supports arming/disarming linkage
Storage
microSD up to 256 GB; NAS; FTP / SFTP; compatible network recorder
Network
1 × RJ45 10/100 Mbps Ethernet
Integration
ONVIF Profiles S, G and T; CGI; compatible Dahua software
Mobile / management
DMSS; Smart PSS; DSS
Power
12 V DC or IEEE 802.3af PoE
Maximum consumption
10.2 W PoE / 9.2 W at 12 V DC under specified maximum load
Protection / housing
IP67; metal housing
Operating conditions
−40°C to +60°C; less than 95% RH
Dimensions
110.9 mm high × 122 mm diameter
Net weight
745 g
Warranty
3-year Australian warranty
Official Dahua Videos
Official TiOC series demonstrations and setup guidance. Menus and available functions vary with model, region and installed firmware.
Dahua Australia & New Zealand: TiOC 2.0 overview
Dahua UK & Ireland: TiOC 2.0 setup and configuration
Dahua UK & Ireland: DMSS active-deterrence setup
Frequently Asked Questions
Is this the S2 or TiOC 3.0 model?
No. This listing is the original DH-IPC-HDW3849H-AS-PV-ANZ-BLK in black, with a 1/2.8-inch sensor and up to 256 GB microSD storage. Check the separate S2 listing if you need the later model.
Does it record in colour at night?
The camera combines infrared and warm-light illumination. In Smart Dual Illumination mode it can use infrared normally, then switch to warm light and colour video for a configured target event. Colour capture depends on scene lighting and settings.
Can I hear and speak through the camera?
Yes. Built-in dual microphones and a speaker support two-way talk using compatible Dahua software and a correctly configured network.
Which memory card can I use?
Use a surveillance-grade microSD card up to 256 GB. The WD Purple SC QD101 128 GB and 256 GB options are within the stated capacity limit. The card is sold separately and must be initialised in the camera.
Is a power adaptor included?
This listing is for the camera. Power it through a suitable 802.3af PoE port, or use a correctly rated 12 V DC supply. Cables, recorder, memory card and optional mounting accessories are sold separately.
Will Quick Pick work with every recorder?
No. Quick Pick depends on a compatible Dahua AI NVR and suitable firmware. Ordinary video recording compatibility does not guarantee support for every camera-side smart feature.
Downloads
The datasheet is specific to this original black model and includes its dimensions and accessory list. The operation manuals cover multiple Dahua cameras: use the manual matching your camera’s web interface; not every described feature applies.
DH-IPC-HDW3849H-AS-PV-ANZ-BLK Datasheet (PDF)DH-IPC-HDW3849H-AS-PV-ANZ-BLK Web 3.0 Operation Manual (PDF)DH-IPC-HDW3849H-AS-PV-ANZ-BLK Web 5.0 Operation Manual (PDF)
Dahua · 6 × 6MP Smart Dual-Light · 8CH AI NVR (Standard or AcuPick)
6× Dual Light 3K
Dahua 6 × 6MP 3K Full-Colour Smart Dual-Light CCTV Kit — 8-Channel AI NVR (Standard or AcuPick)
This Dahua 6-camera 6MP (3K) kit films in true full colour around the clock. Each of the 6 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets runs invisible IR after dark, then flips to warm white light the instant WizSense AI classifies a person or vehicle — capturing clothing colour, vehicle colour and faces that IR-only cameras miss. Choose the standard 8-channel AI NVR, or step up to the DHI-NVR5208-8P-AI/ANZ AcuPick NVR for attribute search — find a person or vehicle by colour, clothing and direction across hours of footage in seconds.
Cameras
6 × 6MP Dual-Light
Recorder
8CH AI NVR · 8 PoE
Resolution
6MP · 3K Full Colour
Night Vision
24/7 Full Colour
AI
SMD 4.0 · AcuPick Option
Weatherproof
IP67 Rated
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution for neighbours.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — so only real events reach your phone.
AcuPick Option — Search by Appearance
Pick the NVR5208 AcuPick NVR and search recorded footage by attributes — “red top, dark trousers, walking east” — and pull every matching clip in seconds instead of scrubbing the timeline.
8-Channel PoE NVR
Compact, fanless and silent, with 8 built-in PoE ports for plug-and-play install, 4K HDMI output and free DMSS remote viewing — with 2 channels still free.
What's Included
6 × Dual-Light Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light 30 m, 120 dB WDR, built-in mic, SMD 4.0, IP67. Full-colour coverage day and night.
1 × Recorder (choose your option)
Standard — DHI-NVR4108HS-8P-AI/ANZ (8CH WizSense AI NVR, Quick Pick target search, 1 SATA bay).AcuPick — DHI-NVR5208-8P-AI/ANZ (8CH 5-Series AcuPick AI NVR — full attribute search, face detection, 2 SATA bays). Both have 8 built-in PoE ports.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
HDD not included. The standard NVR4108 has 1 SATA bay; the AcuPick NVR5208 has 2 SATA bays (up to 16 TB each). Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4 TB suits six 6MP cameras for around 3–4 weeks of recording (2 TB ≈ 1.5–2 weeks on motion-only).
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Residential homes
Full-colour cover of every entry, driveway, side gate and backyard, day and night.
Retail & convenience
Capture faces and clothing colour at the counter, aisles and stockroom; AcuPick speeds up review.
Warehouses & yards
Full-colour coverage of open areas and loading zones at night.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
Clear full-colour coverage of entries and shared areas; remote monitoring via DMSS.
Smart Dual-Light Camera — DH-IPC-HDW3667EM-S-IL-ANZ (×6)
Camera Type
6MP Smart Dual-Light Fixed-Focal Eyeball Turret (WizSense 3)
Image Sensor
1/2.7" CMOS
Max. Resolution
3288 × 1850 (6MP) @ 25/30 fps
Lens
Fixed 2.8 mm · F1.4 · 110° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
WDR
120 dB
AI
SMD 4.0 · AcuPick (with AcuPick NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone
Edge Storage
MicroSD up to 512 GB
Power / Ingress
PoE 802.3af · 12 VDC · 9.5 W max · IP67 · –40 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: mount at 2.5–3 m so the warm-light array reaches the target zone for full-colour capture at night.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›AcuPick: for full attribute search choose the DHI-NVR5208-8P-AI/ANZ AcuPick NVR variant — the standard NVR4108 still gives Quick Pick target search.
See It In Action & Set It Up — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
AcuPick — quick, accurate video search — Dahua ANZ (official)
Downloads & Resources
DH-IPC-HDW3667EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is Smart Dual-Light?The cameras use both IR and warm white light. They run on invisible IR until WizSense AI detects a person or vehicle, then switch to warm light for full-colour footage — colour evidence only when it matters, without lighting the property all night.
Why is this called 3K?6MP (3072 × 2048) sits between 1080p and 4K — commonly marketed as 3K. It gives noticeably more detail than 1080p while keeping storage and bandwidth lower than 4K.
What's the difference between the standard and AcuPick NVR?The standard NVR4108 gives Quick Pick target search. The NVR5208 AcuPick NVR adds full attribute search — find a person or vehicle by colour, clothing and direction across hours of footage in seconds — plus face detection and a second HDD bay.
Does a hard drive come included?No — the NVR ships without storage. For 6 × 6MP on motion-only, ~2 TB gives 1.5–2 weeks, ~4 TB gives 3–4 weeks; choose more for continuous recording. The AcuPick NVR5208 has 2 bays for greater capacity or redundancy.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
TiOC 3 · 6 MP · AcuPick · Active Deterrence
Dahua 6MP AcuPick Turret
Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6 MP TiOC 3 AcuPick Active Deterrence Full-Colour Starlight Turret WizSense Network Camera (3649 Series)
The Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 is the 3649-series TiOC 3 active-deterrence turret with native AcuPick — three cameras in one chassis: a 24/7 surveillance camera, a real-time alarm device and an audible/visible intruder deterrent. The 1/1.8" CMOS Starlight sensor outputs 6 MP (3288 × 1850) at 25/30 fps with Smart H.265+ encoding through a fixed-focal 2.8 mm F1.6 lens. Smart Dual Illumination pairs a 30 m IR illuminator with a 30 m warm-light array for full-colour night vision. When WizSense classifies a person or vehicle inside an IVS zone, the camera triggers red and blue strobe lighting and an audible alarm from the built-in siren and speaker. Two-way audio over the built-in mic and speaker means an operator can speak directly to the intruder via the DMSS app. WDR is 140 dB; the housing is IP67 sealed; SMD 4.0 filters animal and foliage motion at the edge. Edge AcuPick lets a paired Dahua AcuPick NVR search recorded footage by attributes. Backed by a 3-year Australian warranty.
Lens
2.8 mm F1.6 Fixed
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 30 m + Warm 30 m
AI Engine
WizSense + AcuPick
Active Deterrence
TiOC Strobe + Siren
Power
12 VDC / PoE 802.3af
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
See the Dahua TiOC Active Deterrence Platform in Action
Dahua's official TiOC highlight — red/blue strobe + audible alarm + smart dual light + full-colour evidence.
Why Choose the Dahua HDW3649H-AS-PV-ANZ-S2 TiOC Turret
Red & Blue Strobe + Built-in Siren
The TiOC active-deterrence stack triggers automatically when WizSense identifies a person or vehicle inside an IVS zone.
Two-Way Audio Talk-Down
The built-in microphone and speaker support live two-way talk through the free DMSS mobile app.
True 6 MP Full-Colour Night Vision
The 1/1.8" Starlight CMOS captures 3288 × 1850 in full colour down to extremely low light levels.
SMD 4.0 — Only Alerts on Real Targets
Smart Motion Detection 4.0 filters wind-blown branches, possums, shadows and small animals at the edge.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, you can search hours of recorded video by attributes.
Discreet Turret, IP67 Sealed
Compact eyeball form factor mounts cleanly to eaves, soffits, awnings and undercover ceilings.
Important Install Note
The HDW3649H-AS-PV-ANZ-S2 is fixed-focal — frame the camera carefully at install time. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording. Available in white (this listing) or black (HDW3649H-AS-PV-ANZ-BLK).
AI & Smart Detection Capabilities
TiOC Active Deterrence (Red & Blue + Siren)
Linkable to any IVS event — tripwire, intrusion, motion-by-target-type.
WizSense Human & Vehicle Classification
On-device deep-learning algorithms classify every motion event as human, vehicle, animal or "other".
AcuPick Attribute Search
Deep-learning attribute matching across people and vehicles — with a compatible Dahua AcuPick NVR.
SMD 4.0 Smart Motion
Motion alerts triggered only by humans and vehicles.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification.
Two-Way Audio via DMSS
Built-in mic and speaker support full-duplex two-way audio through the free DMSS mobile app.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HDW3649H-AS-PV-ANZ-S2
Form Factor
Eyeball turret (HDW chassis)
Image Sensor
1/1.8" CMOS Starlight
Maximum Resolution
3288 × 1850 (6 MP)
Minimum Illumination
0.0015 lux @ F1.6 (Colour) · 0 lux (warm light on)
WDR
140 dB
Day / Night
Auto (ICR) / Colour / B&W
Smart Dual Illumination
Yes (target-triggered IR / warm-light hand-off)
Available Colour
White (this listing) · Black variant available as HDW3649H-AS-PV-ANZ-BLK
Lens & Illumination
Lens Type
Fixed-focal
Focal Length
2.8 mm (this listing) · 3.6 mm variant also available
Maximum Aperture
F1.6
Field of View (2.8 mm)
H: ~106° · V: ~57°
IR Illumination
Up to 30 m
Warm Light Illumination
Up to 30 m
Intelligence, Active Deterrence & Video
AI Engine
WizSense (TiOC 3 platform · AcuPick-native)
IVS — Perimeter Protection
Tripwire, intrusion (with human + vehicle classification)
Smart Motion Detection
SMD 4.0
AcuPick
Yes (with compatible Dahua AcuPick NVR)
Active Deterrence — Light
Red & blue strobe warning
Active Deterrence — Sound
Built-in speaker with multiple alarm sounds + custom upload
Video Compression
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG (sub stream)
Main Stream
3288 × 1850 @ 1–25/30 fps
Audio, Alarm & Network
Built-in Microphone
Yes
Built-in Speaker
Yes (active deterrence + two-way talk)
Two-Way Talk
Yes (via DMSS app)
Alarm I/O
1 in / 1 out
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
FTP · SFTP · NAS · Micro SD card up to 512 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (IEEE 802.3af)
Power Consumption (Max.)
~10 W
Operating Temperature
–30 °C to +60 °C
Protection Rating
IP67
Certifications
CE-LVD · CE-EMC · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
Frequently Asked Questions
What does "TiOC 3" mean?
TiOC stands for "Three-in-One Camera" — combining 24/7 video surveillance, real-time AI alarms and active deterrence (strobe + siren + two-way audio) in one housing.
Does the camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense firmware. To search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR.
Is the active deterrence too loud for residential use?
No — the alarm volume is configurable from 0–100% and the play count is configurable from 1–10 times per trigger.
Can I use this camera for two-way intercom?
Yes — the built-in microphone and speaker support full-duplex two-way audio through Dahua's free DMSS mobile app.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of approximately 10 W.
Is the black version available?
Yes — the same camera is available in black as the DH-IPC-HDW3649H-AS-PV-ANZ-BLK SKU.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G and T.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android.
Downloads
DH-IPC-HDW3649H-AS-PV-ANZ-S2 Datasheet
Dahua IP Turret Camera Quick Start Guide
Dahua IP Turret Camera Installation Guide
Order Your Dahua HDW3649H-AS-PV-ANZ-S2 from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing or NVR compatibility check. Phone, email or live chat us through cctvguru.com.au/pages/contact.
Dahua · 4 × 6MP Smart Dual-Light · 4CH, 8CH or AcuPick AI NVR
4× Dual Light 3K
Dahua 4 × 6MP 3K Full-Colour Smart Dual-Light CCTV Kit — 4CH, 8CH or AcuPick NVR
This Dahua 4-camera 6MP (3K) kit films in true full colour around the clock. Each of the 4 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets runs invisible IR after dark, then flips to warm white light the instant WizSense AI classifies a person or vehicle — capturing clothing colour, vehicle colour and faces that IR-only cameras miss. Your choice of recorder — a 4-channel NVR4104 (Quick Pick), an 8-channel NVR4108 (Quick Pick) or an 8-channel AcuPick NVR5208 for full attribute search — powers and records every camera over a single Cat6 cable each.
Cameras
4 × 6MP Dual-Light
Recorder
4CH · 8CH · AcuPick
Resolution
6MP · 3K Full Colour
Night Vision
24/7 Full Colour
AI
SMD 4.0 · AcuPick Ready
Weatherproof
IP67 Rated
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — only real events reach your phone.
Built-In Mic · AcuPick Ready
Every camera has a built-in microphone, and AcuPick-native firmware lets you search footage by person or vehicle when paired with a Dahua 5-Series NVR.
Your Choice of NVR
Pick the 4-channel NVR4104 or 8-channel NVR4108 for a tidy Quick-Pick system, or step up to the 8-channel AcuPick NVR5208 — full attribute search, face detection and 2 HDD bays, with spare PoE ports to expand.
What's Included
4 × Dual-Light Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light 30 m, 120 dB WDR, built-in mic, SMD 4.0, IP67. Full-colour day and night.
1 × Recorder
Your choice: DHI-NVR4104HS-P-AI/ANZ (4CH, Quick Pick, 1 SATA bay), the DHI-NVR4108HS-8P-AI/ANZ (8CH, Quick Pick, 8 PoE) or the DHI-NVR5208-8P-AI/ANZ (8CH 5-Series AcuPick, full attribute search, face detection, 2 SATA bays). All are WizSense AI NVRs with built-in PoE.
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data. Network cabling is not included; Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 6MP cameras for around 3 weeks on motion-only.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Smart Dual-Light Camera — DH-IPC-HDW3667EM-S-IL-ANZ (×4)
Camera Type
6MP Smart Dual-Light Fixed-Focal Eyeball Turret (WizSense 3)
Max. Resolution
3288 × 1850 (6MP) @ 25/30 fps
Lens
Fixed 2.8 mm · F1.4 · 110° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
WDR / AI
120 dB WDR · SMD 4.0 · AcuPick (with AcuPick NVR) · IVS
Audio
Built-in microphone
Power / Ingress
PoE 802.3af · 12 VDC · 9.5 W max · IP67 · –40 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW3667EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the standard and AcuPick NVR?The 4-channel NVR4104 and 8-channel NVR4108 give Quick Pick target search. The 8-channel AcuPick NVR5208 adds full attribute search — find a person or vehicle by colour, clothing and direction — plus face detection, 2 HDD bays and room to add cameras.
What is Smart Dual-Light?The cameras use both IR and warm white light. They run on invisible IR until WizSense AI detects a person or vehicle, then switch to warm light for full-colour footage — colour evidence only when it matters, without lighting the property all night.
Why is this called 3K?6MP sits between 1080p and 4K — commonly marketed as 3K. More detail than 1080p, lower storage than 4K.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. ~2 TB gives roughly 3 weeks on motion-only for four 6MP cameras.
Can I add more cameras later?Yes — choose an 8-channel NVR (NVR4108 or AcuPick NVR5208) option and it has 4 spare PoE ports, so you can add up to 4 more cameras. The 4-channel NVR4104 option uses all 4 ports.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
WizSense 3 · 8 MP 4K · Motorised 2.7–13.5 mm · 40 m IRDahua WizSense 3 · 8 MP 4K Motorised TurretDahua DH-IPC-HDW3866TP-ZS-AUS — 8 MP 4K Motorised Vari-Focal Starlight IR Eyeball Turret WizSense 3 Network Camera (3866 Series, 2.7–13.5 mm)
The Dahua DH-IPC-HDW3866TP-ZS-AUS is the 3866 series 8 MP 4K WizSense 3 motorised eyeball turret in white housing — built around a 1/2.7" CMOS Starlight sensor capturing 3840 × 2160 (true 4K) at 15 fps and 4 MP at full 25/30 fps. The motorised 2.7–13.5 mm vari-focal lens delivers a wide 102° field at 2.7 mm down to a tight 27° pull at 13.5 mm — re-frameable from DMSS. Built-in IR reaches up to 40 m; WDR is 120 dB; the compact metal turret housing is IP67 sealed. WizSense 3 deep-learning Pro AI runs perimeter protection (tripwire, intrusion, fast-moving, loitering) with human and vehicle classification, plus SMD 4.0 and AcuPick attribute search. Built-in microphone, 1/1 RCA audio I/O. The classic white housing blends into white eaves, soffits and awnings — the standard finish for most Australian residential and commercial installs. Backed by a 3-year Australian warranty through CCTV Guru. SKU 3866 series.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HDW3866TP-ZS-AUS WizSense 3 4K Motorised Turret
True 4K Detail (8 MP)
Native 3840 × 2160 at 15 fps, or 4 MP at full 25/30 fps. 4× the pixel density of 1080p — identification-grade detail at distance.
Motorised 5× Vari-Focal
2.7–13.5 mm motorised vari-focal — install wide, then pull tight on the area of interest via DMSS.
Classic White Eyeball Form
Standard white metal eyeball turret — blends into white eaves, soffits and awnings.
WizSense 3 + AcuPick
Perimeter protection, SMD 4.0 and AcuPick attribute search on the WizSense 3 chip.
40 m IR + Starlight
1/2.7" Starlight sensor with usable colour in moonlight; 40 m IR for fully-dark coverage.
Built-in Mic + Audio I/O
Built-in microphone plus RCA audio I/O for two-way talk integration.
Important Install Note
The motorised vari-focal lens is remote-controllable via DMSS. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation. At full 4K, frame rate caps at 15 fps — drop to 4 MP for full 25/30 fps motion. For a black housing variant, see HDW3866TP-ZS-AUS-BLK.
AI & Smart Detection
AcuPick Attribute Search
Search recorded video by colour, clothing, vehicle type — with a Dahua AcuPick NVR.
SMD 4.0 Smart Motion
Motion alerts triggered only by humans and vehicles.
Perimeter Protection
Tripwire, intrusion, fast-moving and loitering with human/vehicle classification.
AI SSA
Scene self-adaptation for rain, fog, backlight.
Abnormality Detection
SD card, network, IP conflict, tampering events.
Two-Way Audio
Built-in mic + RCA audio I/O.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HDW3866TP-ZS-AUS
Form Factor
Eyeball turret (HDW chassis) — White
Image Sensor
1/2.7" CMOS Starlight
Maximum Resolution
3840 × 2160 (8 MP / 4K)
Frame Rate
4K @ 15 fps · 4 MP @ 25/30 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Motorised vari-focal
Focal Length
2.7–13.5 mm
Field of View
H: 102°–27°
IR Illumination
Up to 40 m
Intelligence, Audio & Network
AI Engine
WizSense 3 Series
IVS
Tripwire · intrusion · fast-moving · loitering (human/vehicle)
SMD
SMD 4.0
AcuPick
Yes (with Dahua AcuPick NVR)
Built-in Mic
Yes
Audio I/O
1 in / 1 out (RCA)
Network Port
RJ-45 (10/100)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 512 GB
Mobile Client
DMSS
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af)
Operating Temperature
−40 °C to +60 °C
Protection
IP67
Casing
Metal — White
Australian Warranty
3 Years (via CCTV Guru)
Recommended NVR Pairings
Dahua DHI-NVR5208-8P-AI/ANZ
View NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
View NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
View NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
View NVR5432-AI →
Frequently Asked Questions
True 4K?
Yes — native 3840 × 2160 at 15 fps.
Re-frame after install?
Yes — motorised vari-focal via DMSS.
AcuPick?
Yes — pair with a Dahua AcuPick NVR.
Standard PoE?
Yes — 802.3af.
Available in black?
Yes — DH-IPC-HDW3866TP-ZS-AUS-BLK.
Night vision?
Up to 40 m IR.
Audio?
Built-in mic + RCA audio I/O.
Third-party NVRs?
Yes — ONVIF Profile S, G, T.
Mobile viewing?
Yes — DMSS app.
Downloads
DH-IPC-HDW3866TP-ZS-AUS DatasheetDahua IP Turret Camera Quick Start GuideDahua IP Turret Camera Installation Guide
Order Your Dahua HDW3866TP-ZS-AUS from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 3-year Australian warranty. cctvguru.com.au/pages/contact.
Dahua · DH-HAC-HDW2802T-A · 8MP 4K HDCVI Turret · Starlight · 2.8mm / IR 50m
8MP 4K Turret
Dahua DH-HAC-HDW2802T-A 8MP 4K HDCVI Starlight Turret Camera
The Dahua DH-HAC-HDW2802T-A is an 8MP 4K (3840×2160) HDCVI Starlight turret that upgrades your existing coax cabling to cinematic Ultra HD without rewiring. A 1/2" CMOS sensor with F1.6 aperture and Starlight technology delivers clean, full-colour images in extreme low light, while a 2.8mm fixed lens gives a 110° ultra-wide view and Smart IR reaches up to 50m in the dark. As an HDCVI camera it connects over coax (BNC) to a Dahua XVR (Penta-brid DVR) — not an IP NVR.
Resolution
8MP 4K (3840×2160)
Lens
2.8mm Fixed
Night Vision
Smart IR 50m
Technology
HDCVI Starlight
Audio
Built-in Mic
Weatherproof
IP67 Metal
True 4K Over Coax
Four times the detail of 1080p, transmitted over your existing RG59/RG6 cable up to 700m — no network rewiring needed.
Starlight Low-Light
A large 1/2" sensor and F1.6 aperture keep footage in full colour down to 0.005 Lux, where ordinary cameras go grainy or mono.
120dB True WDR
Balances bright and dark areas so faces aren't silhouetted against doorways, windows or headlights.
Audio & Multi-Format
Built-in microphone records audio over the same coax, and the output switches between HDCVI/AHD/TVI/CVBS for legacy DVRs.
Specifications — DH-HAC-HDW2802T-A
Model
DH-HAC-HDW2802T-A (2.8mm)
Resolution
8MP / 4K (3840×2160)
Image Sensor
1/2" CMOS
Lens
2.8mm fixed, ~110° horizontal FOV
Night Vision
Smart IR up to 50m
Low-Light
Starlight, F1.6 aperture, 0.005 Lux colour
WDR
120dB true WDR, 3D NR
Audio
Built-in mic (audio-over-coax)
Form Factor
Turret (eyeball), full metal IP67
Power
12V DC
Signal Type
HDCVI (also AHD/TVI/CVBS) — connect to a Dahua XVR
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DH-HAC-HDW2802T-A DatasheetDahua HDCVI Camera Quick Start GuideDahua HDCVI Camera User Manual
What recorder do I need for this camera?A Dahua HDCVI XVR (Penta-brid DVR) that supports 4K/8MP input, such as the XVR5000-4KL or 7000 series. It connects over coax, not a network NVR.
Can I run it on my existing coax cabling?Yes. HDCVI sends 4K video over standard RG59/RG6 coax up to 700m, so you can upgrade older analogue runs without re-cabling.
Does it record audio?Yes, it has a built-in microphone and sends audio over the same coax cable to a compatible XVR.
How is the night vision?Starlight sensor plus Smart IR to 50m gives full-colour low-light performance down to 0.005 Lux and clear mono footage in total darkness.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua TiOC PRO · WizColor · AcuPick · 1/1.8″ SensorTiOC PRO Camera
Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ — 6MP TiOC PRO WizColor AcuPick Active Deterrence Turret
The Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ is the PRO step-up of Dahua's 6MP TiOC line — same red/blue strobe, siren and voice deterrence chain as the standard 3649, but built around a much larger 1/1.8" CMOS sensor and an extraordinary F1.0 aperture. Translation: the PRO gathers more than 2.5× as much light as the standard 3649 and resolves usable colour down to 0.0005 lux — a 6× improvement that produces clean, low-noise colour footage on moonless suburban streets, in undercover carparks and across long dark driveways where the standard model would need to fall back to IR.
Combined with WizColor full-colour night vision, AcuPick attribute target search, SMD 4.0 false-alarm filtering, and Dahua's latest AI Coding (≥25% additional compression efficiency), the PRO is the camera to specify for premium residential frontages, commercial perimeters and any site where image quality at night is the deciding factor — without paying the 4K-storage premium of the 8MP PRO. Available in White (DH-IPC-HDW3649H-AS-PV-PRO-ANZ) and Black (DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK). Australian stock with 3-year warranty.
Resolution & Sensor
6MP · 1/1.8″ CMOS
Aperture & FOV
F1.0 · 109° H · 2.8 mm
Low-Light
0.0005 Lux · WizColor
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −40 °C to +60 °C
Power
PoE 802.3af · Max 10 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ in Australia
The PRO is for installers and customers who refuse to compromise on night-time image quality but don't need the 4K resolution of the 8MP PRO. A larger 1/1.8" sensor, an F1.0 aperture and Dahua's newest WizColor illumination together deliver clean colour at light levels where most cameras have long fallen back to grainy black-and-white. Combined with the full TiOC PRO active-deterrence chain and AcuPick AI, this is the camera Australian integrators reach for on premium homes, perimeters, commercial frontages and high-value loading docks — at a more accessible price point than the 8MP PRO sibling.
1/1.8″ Sensor — A Genuine Image-Quality Upgrade
The PRO swaps the standard 3649's 1/2.7" sensor for a much larger 1/1.8" CMOS. Bigger pixels mean more light per pixel, lower noise, higher dynamic range and noticeably better colour fidelity — especially in dawn, dusk and mixed-light conditions.
F1.0 Aperture — 2.5× More Light Than F1.6
Dahua's largest aperture in the WizSense 3-Series. F1.0 lets in more than 2.5× the light of the standard 3649's F1.6 lens — the single biggest factor in why this camera produces clean colour where others can't.
0.0005 Lux Colour · WizColor Full Colour
Minimum colour illumination drops to 0.0005 Lux (vs 0.003 Lux on the standard 3649) — a 6× improvement that produces usable full-colour footage on a moonless suburban street with nothing but distant streetlight. Even better low-light than the 8MP PRO thanks to larger per-pixel area.
TiOC PRO Active Deterrence — Strobe + Siren + Voice
Same proven TiOC 3.0 deterrence chain: red/blue strobe, on-board siren and custom voice broadcast fire the instant SMD 4.0 confirms a human or vehicle — no operator, no extra hardware required.
AcuPick AI Target Search
AcuPick attribute search runs with a 5-Series NVR — clothing colour, vehicle type, direction — locate any face or plate across a week of footage in seconds rather than hours.
AI Coding — 25%+ Less Storage
Dahua's AI Coding analyses the scene and dedicates bitrate only to objects of interest (people, vehicles) — delivering ≥25% additional compression efficiency over standard Smart H.265+. Longer retention on the same NVR drive.
Smart Features for Real-World Australian Sites
Dahua TiOC PRO Highlight — WizColor · AcuPick · SMD 4.0 (English)
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
Two-Way Audio & Custom Voice
Dual built-in microphones and an on-board speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice.
Edge Recording — MicroSD up to 512 GB
On-camera MicroSD records days of 6MP footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut.
Lens Distortion Correction (LDC)
The PRO adds on-camera LDC — automatic correction of the slight barrel distortion natural to wide-angle 2.8 mm lenses. Straight walls stay straight on playback, especially important for evidential footage.
Cyber-Hardened by Design
Trusted boot, HTTPS, 802.1x, IP/MAC filtering, X.509 certificate import and syslog — the same enterprise hardening Dahua deploys on government and critical-infrastructure cameras.
Plug & Play + Third-Party VMS
Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, two-way audio and the full TiOC PRO deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. For any new installation we strongly recommend pairing the 3649H-AS-PV-PRO-ANZ with one of the recorders below.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC PRO cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3649H PRO. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload.
Technical Specifications
DH-IPC-HDW3649H-AS-PV-PRO-ANZ · Full Specifications
SKU
DH-IPC-HDW3649H-AS-PV-PRO-ANZ (White) · DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK (Black)
Camera Type
6MP TiOC PRO WizColor WizSense IP Network Turret · Active Deterrence
Image Sensor
1/1.8" Progressive Scan CMOS
Max Resolution
3288 × 1850 (6MP) @ 25/30 fps
Lens Type
Fixed-focal, 2.8 mm · M16 mount (3.6 mm option available)
Maximum Aperture
F1.0 (2.5× the light gathering of F1.6)
Angular Field of View
H: 109° · V: 59° · D: 131° (2.8 mm)
DORI Distance (2.8 mm)
Detect 70.2 m · Observe 28.1 m · Recognise 14.0 m · Identify 7.0 m
Min. Illumination
Colour: 0.0005 Lux @ F1.0 · B/W: 0.0004 Lux · 0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Dynamic Range
120 dB True WDR
Day & Night
Auto (ICR) / Colour / B&W
Illuminators
2 × Multi-core (IR + warm) light · 30 m IR · 30 m warm light · WizColor Smart Dual-Light auto switching
Image Enhancement
3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · LDC · Image Rotation
Active Deterrence
Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported)
Intelligent Video
AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · AI SSA · Smart Search
Video Compression
AI H.265 · AI H.264 · Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream)
AI Coding
≥25% additional compression efficiency
Streaming
3 streams — Main 3288×1850 · Sub 1920×1080 · Third 1920×1080
Video Bitrate
H.264 / H.265: 3 kbps – 16,384 kbps
Audio Compression
G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio)
IP Camera Protocol
ONVIF Profile S/G/T · CGI · P2P · RTMP
Network Protocols
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · NFS · PPPoE · SNMP · 802.1x
Cyber Security
Trusted boot · Trusted execution · Trusted upgrade · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption · account lockout
Ethernet
RJ-45 (10/100BASE-T)
Alarm I/O
1 alarm in (wet contact) · 1 alarm out (wet contact)
Audio I/O
Dual built-in MIC · 1-channel built-in speaker · 1 × RCA in / 1 × RCA out
Edge Storage
MicroSD up to 512 GB · NAS · FTP / SFTP
Weatherproof Rating
IP67
Operating Temperature
−40 °C to +60 °C · ≤ 95% RH
Power Source
12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage · Dual-power backup
Power Consumption
Basic 4.1 W (12 V DC) / 6 W (PoE) · Max 10 W (PoE) / 8.2 W (12 V DC)
Memory
ROM 256 MB · RAM 2 GB
Mobile App
DMSS · Smart PSS Lite · DSS · DoLynk Care (iOS & Android)
Approvals
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU
Housing
Metal · White or Black
Dimensions
Φ 122.0 mm × 116.1 mm
Weight
0.8 kg (net) · 1.0 kg (gross)
Warranty
3-Year Australian Warranty (back-to-base)
3649 PRO vs 3649 Standard — Is the PRO Worth the Upgrade?
Both cameras share the same chassis, the same TiOC 3.0 deterrence chain, the same AcuPick AI and the same Smart Dual-Light system. The PRO's upgrades are concentrated in the parts that matter at night and at long range — the sensor, the lens, the AI engine and the image processing. If the camera's main job is to capture clean colour evidence in low light, the PRO is the right call. If the site has plenty of ambient light or the budget is tight, the standard 3649 still does the job.
Dahua 3649H-AS-PV-PRO-ANZ vs 3649H-AS-PV-ANZ-S2
Feature
DH-IPC-HDW3649H-AS-PV-PRO-ANZ (this PRO model)
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (standard)
Image Sensor
1/1.8" CMOS
1/2.7" CMOS
Max Aperture
F1.0
F1.6
Light Gathering vs Standard
~2.5× more light
Baseline
Min Illumination (Colour)
0.0005 Lux @ F1.0
0.003 Lux @ F1.6
Max Resolution
6MP · 3288 × 1850
6MP · 3200 × 1800
Horizontal FOV (2.8 mm)
109°
97°
DORI Detect (2.8 mm)
70.2 m
66 m
DORI Identify (2.8 mm)
7.0 m
6.6 m
WizColor Branding
Yes — TiOC PRO + WizColor
TiOC 3.0
Smart Dual-Light
Yes — multi-core IR + warm
Yes — IR + warm
Red/Blue Strobe · Siren · Voice
Yes
Yes
Two-Way Audio
Yes — dual MIC + speaker
Yes — dual MIC + speaker
AcuPick AI Search
Yes — with 5-Series NVR
Yes — with 5-Series NVR
AI Coding
Yes — ≥25% extra efficiency
Smart H.265+ only
Lens Distortion Correction (LDC)
Yes
No
Memory (RAM)
2 GB
512 MB
Max Video Bitrate
16,384 kbps (16 Mbps)
8,192 kbps (8 Mbps)
Sub-Stream Resolution
1920 × 1080 (Full HD)
704 × 576 (D1)
WDR
120 dB True WDR
120 dB True WDR
MicroSD
Up to 512 GB
Up to 512 GB
Power (Max PoE)
10 W
8.8 W
Ingress Protection
IP67
IP67
Operating Temperature
−40 °C to +60 °C
−40 °C to +60 °C
Colour Options
White & Black
White & Black
Australian Warranty
3 years back-to-base
3 years back-to-base
Best For
Premium homes, commercial frontages, undercover carparks, long dark driveways — any site where night-time colour image quality is the deciding factor.
Solid all-round 6MP TiOC choice for sites with reasonable ambient lighting where the budget is tighter.
Compatible Mounts & Accessories
Dahua PFA137 Waterproof Junction Box
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Available in white and black to match the camera. View product →
Dahua PFB205W-E Wall Mount Bracket
Purpose-built wall arm for soffit, eave and external wall mounting. Available in white and black. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3649H PRO turret onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with PFB205W-E and PFA137. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC PRO turrets. View WD Purple 256 GB →
Frequently Asked Questions
What does "PRO" mean on the 3649H-AS-PV-PRO-ANZ?
PRO designates the higher-tier hardware variant in the 3649 line. Compared to the standard 3649, the PRO uses a larger 1/1.8" sensor, an F1.0 aperture (vs F1.6), 2 GB RAM (vs 512 MB), adds AI Coding and Lens Distortion Correction, and produces clean colour image at 0.0005 Lux (vs 0.003 Lux — a 6× improvement).
Is the PRO worth the extra cost over the standard 3649?
For sites where night-time image quality is critical — dark driveways, undercover carparks, commercial perimeters at the edge of street lighting — yes, the F1.0 aperture and 1/1.8" sensor make a visible difference. For well-lit sites, the standard 3649 delivers most of the same TiOC 3.0 capability at a lower price.
Why pick the 6MP PRO over the 8MP PRO?
Two reasons. First, better low-light — 0.0005 Lux on the 6MP PRO vs 0.0008 Lux on the 8MP PRO, because larger pixels gather more light. Second, cheaper storage — 6MP files are about 30% smaller than 4K files, so the same NVR drive holds 30% more days of footage. If you don't need 4K-level zoom-in capability, the 6MP PRO often makes more sense.
What is WizColor?
WizColor is Dahua's branding for full-colour night vision powered by a high-CRI warm-light LED combined with a large-aperture lens and high-sensitivity sensor. The 3649H-AS-PV-PRO is one of the WizSense 3-Series cameras that carries the WizColor designation.
Do I need a special NVR for AcuPick?
Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC PRO deterrence chain, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR. Shop AcuPick NVRs here →
Will the camera deter intruders automatically?
Yes. The TiOC PRO deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What is the difference between the White and Black versions?
Specifications are identical. DH-IPC-HDW3649H-AS-PV-PRO-ANZ is white; DH-IPC-HDW3649H-AS-PV-PRO-ANZ-BLK is black. Choose black for dark eaves and charcoal fascia; white for traditional cream/render walls.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 6MP footage independently of the NVR. The PRO also supports dual-power backup (PoE + 12 V DC) so the camera keeps running if one power source fails.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −40 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-PRO-ANZ Datasheet
Dahua Turret Quick Start Guide
Order the Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua TiOC PRO cameras. Order the 6MP TiOC PRO WizColor AcuPick turret today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
Dahua TiOC 3.0 · Motorised Vari-Focal · AcuPick · WizSenseTiOC Vari-Focal
Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 — 8MP 4K TiOC 3.0 Motorised Vari-Focal AcuPick Turret
The Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 is the motorised vari-focal sibling of Dahua's 8MP TiOC 3.0 line — same red/blue strobe, siren and voice deterrence chain, same AcuPick AI and same Smart Dual-Light system as the fixed-lens 3849, but with a remotely-adjustable 2.7–13.5 mm zoom lens and substantially longer reach. At wide-angle it covers a full driveway with a 100°+ field of view; at telephoto it can identify a face at 25.7 m and detect motion out to 257 m — turning a single camera into both a perimeter wide-shot and a high-zoom evidence camera.
Combined with extended 50 m IR + 40 m warm-light illumination (versus 30 m on the fixed-lens 3849), AcuPick attribute target search, SMD 4.0 false-alarm filtering, two-way audio and full TiOC 3.0 active deterrence, this is the camera Australian installers reach for when they need both wide coverage and long-range identification from one mounting point. Available in White (DH-IPC-HDW3849H-ZAS-PV-ANZ-S2) and Black (DH-IPC-HDW3849H-ZAS-PV-ANZ-S2-BLK). Australian stock with 3-year warranty.
Resolution
8MP · 4K · 3840 × 2160
Motorised Zoom
2.7–13.5 mm · 5× Optical
Night Vision
50 m IR · 40 m Warm
Active Deterrence
Strobe · Siren · Voice
Protection
IP67 · −40 °C to +60 °C
Power
PoE 802.3af · Max 12.1 W
3-Year Australian Warranty
Fast Australia-Wide Shipping
Australian Tech Support
Why Choose the Motorised Vari-Focal 3849H-ZAS-PV-ANZ-S2
The vari-focal upgrade matters when one camera needs to do two jobs — cover a wide approach and pull tight on a number plate or face at the end of the driveway. Where the fixed-lens 3849 commits to a single 2.8 mm field of view forever, the ZAS lets you dial the zoom remotely after install, after a fence is built, after vegetation grows in, or after you change your mind. It's the camera Australian installers reach for on long rural driveways, carparks, loading docks, school perimeters and anywhere field-of-view requirements change over time.
2.7–13.5 mm Motorised Vari-Focal
Five times optical zoom with remote focus and zoom control via DMSS or a Dahua NVR. Set the field of view once at install, then re-tune from your phone whenever the scene changes — no ladder, no scaffolding, no re-aiming.
Massive DORI Reach at Tele
At maximum zoom the 3849 ZAS will detect motion at 257 m, recognise a person at 51.5 m, and identify a face at 25.7 m — three times the identification range of the fixed-lens 3849. One camera can secure a footy-field-sized property.
50 m IR + 40 m Warm Light
Extended Smart Dual-Light reach matches the longer optical range — IR illumination out to 50 m, warm-light LED to 40 m. Enough to fully illuminate a long driveway or a typical carpark in pitch darkness.
TiOC 3.0 — Three-in-One Active Deterrence
Same active deterrence chain as the fixed-lens 3849: red/blue strobe, on-board siren and custom voice broadcast fire automatically the moment SMD 4.0 confirms a human or vehicle. No operator, no extra hardware.
AcuPick AI Target Search
Paired with a Dahua 5-Series AcuPick NVR, AcuPick indexes every human and vehicle event by attribute. Combined with the 4K resolution and 5× optical zoom, target search is faster and sharper than on any fixed-lens 8MP camera.
Built Tough for Australia
IP67 ingress protection, metal housing, ±30% wide-voltage tolerance and a −40 °C to +60 °C operating range mean it shrugs off coastal salt, outback heat, Tasmanian frost and unstable rural mains.
Smart Features for Real-World Australian Sites
Dahua TiOC 3 & PRO Webinar 2024 — Official English Walkthrough
Remote Zoom & Auto-Focus
Adjust the 2.7–13.5 mm zoom from the DMSS app or a Dahua NVR. The motor handles focus automatically as the lens zooms — no manual focus turret to fiddle with at the camera.
IVS Tripwire & Intrusion Zones
Define a virtual line across the driveway or a no-go zone around the shed — get a notification (and trigger the deterrence chain) only when a human or vehicle actually crosses it.
Two-Way Audio & Custom Voice
Dual built-in MICs and an on-board speaker support live two-way talk via DMSS or a Dahua NVR. Pre-loaded plus uploadable voice files let you record a site-specific warning in your own voice.
Edge Recording — MicroSD up to 512 GB
On-camera MicroSD records days of 4K footage independently of the NVR — a critical redundancy layer if the network drops, the recorder is stolen or power is cut.
One-Press Arming / Disarming
A single tap in the DMSS app arms or disarms the full TiOC chain. Disarm for parties and deliveries; rearm with one button for overnight and holidays.
Plug & Play + Third-Party VMS
Drops into any Dahua NVR via plug-and-play, and works over ONVIF Profile S/G/T with Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris and Synology Surveillance Station.
Pair with a Dahua 5-Series NVR for the Full AcuPick Experience
SMD 4.0, IVS rules, two-way audio and the full TiOC 3.0 deterrence chain all run on-camera — they work with any Dahua AI NVR, or even an ONVIF third-party recorder. But to unlock AcuPick — attribute-based human and vehicle target search, similar-image cross-camera tracking and AI-accelerated playback — you need a compatible Dahua 5-Series AcuPick NVR. With a long-zoom 4K camera the AcuPick payoff is even bigger: search jumps that would take an hour on a 6MP fleet finish in seconds, and the long-tele footage carries enough pixel density for clean facial-attribute search at distance.
DHI-NVR5208-8P-AI/ANZ — 8 Channel · 8 PoE
Compact 1U 5-Series AcuPick NVR with 8 built-in PoE ports — ideal for a single-home or small-business install with 4–8 TiOC cameras. Full AcuPick target search and AI playback. View NVR5208-8P →
DHI-NVR5216-16P-AI/ANZ — 16 Channel · 16 PoE
16-channel 5-Series AcuPick NVR with 16 PoE ports and dual-HDD bays — the sweet-spot recorder for most residential and SMB Dahua TiOC fleets. Plug-and-play with the 3849H ZAS. View NVR5216-16P →
DHI-NVR5432-16P-AI/ANZ — 32 Channel · 16 PoE
32-channel 1.5U AcuPick NVR with 16 PoE and 4 HDD bays — the standard choice for medium commercial sites, retail chains and multi-building campuses. View NVR5432-16P →
DHI-NVR5432-AI/ANZ — 32 Channel · No PoE
32-channel AcuPick NVR without built-in PoE — for sites running a separate managed PoE switch (preferred in larger commercial deployments). Same AcuPick capability, more flexible network design. View NVR5432-AI →
Need help sizing? Browse the complete Dahua AcuPick NVR range → or contact our Australian team for a tailored recommendation based on your camera count, recording retention and AcuPick search workload.
Technical Specifications
DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 · Full Specifications
SKU
DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 (White) · DH-IPC-HDW3849H-ZAS-PV-ANZ-S2-BLK (Black)
Camera Type
8MP 4K TiOC 3.0 WizSense IP Network Turret · Motorised Vari-Focal · Active Deterrence
Image Sensor
1/2.8" Progressive Scan CMOS
Max Resolution
3840 × 2160 (8MP / 4K) @ 25/30 fps
Lens Type
Motorised vari-focal · 2.7–13.5 mm (5× optical zoom) · Auto-focus
Angular Field of View
Wide (2.7 mm): ~100° H · Tele (13.5 mm): ~28° H
DORI — Wide Angle (2.7 mm)
Detect 89.9 m · Observe 36.0 m · Recognise 18.0 m · Identify 9.0 m
DORI — Telephoto (13.5 mm)
Detect 257.4 m · Observe 103.0 m · Recognise 51.5 m · Identify 25.7 m
Min. Illumination
Colour: 0.003 lux @ F1.5 · B/W: 0.0003 lux · 0 lux (IR ON)
Dynamic Range
120 dB True WDR
Day & Night
Auto (ICR) / Colour / B&W
Illuminators
IR LED up to 50 m · Warm-light LED up to 40 m · Smart Dual-Light auto switching
Image Enhancement
3D NR · HLC · BLC · Defog · AI SSA · Smart Illumination · Image Rotation
Active Deterrence
Red/blue flashing warning lights · Built-in siren · Voice broadcast (custom audio supported)
Intelligent Video
AcuPick · SMD 4.0 · IVS (Tripwire, Intrusion · human/vehicle classification) · Quick Pick · AI SSA
Video Compression
Smart H.265+ · Smart H.264+ · H.265 · H.264 · MJPEG (sub-stream)
Streaming
Triple Streaming — Main 3840×2160 · Sub 704×576 · Third 1920×1080
Audio Compression
G.711a · G.711Mu · G.726 · G.723 · PCM (Two-Way Audio)
IP Camera Protocol
ONVIF Profile S/G/T · CGI · Milestone · P2P · RTMP
Network Protocols
IPv4/v6 · HTTP/HTTPS · TCP/UDP · RTP/RTSP/RTCP/RTMP · SMTP · FTP/SFTP · DHCP · DDNS · UPnP · NTP · ICMP · IGMP · SNMP · 802.1x
Cyber Security
Trusted boot · HTTPS · 802.1x · IP/MAC filtering · X.509 import · syslog · video/firmware/config encryption
Ethernet
RJ-45 (10/100BASE-T)
Alarm I/O
1 alarm in · 1 alarm out
Audio I/O
Dual built-in MIC · 1-channel speaker · 1 × RCA in / 1 × RCA out
Edge Storage
MicroSD up to 512 GB
Weatherproof Rating
IP67
Operating Temperature
−40 °C to +60 °C · < 95% RH
Power Source
12 V DC · PoE (IEEE 802.3af) · ±30% wide voltage
Power Consumption
Basic 4.5 W (PoE) · Max 10.3 W (12 V DC) / 12.1 W (PoE) · with motor/strobe/siren active
Mobile App
DMSS (iOS & Android) · Smart PSS · DSS
Approvals
CE-LVD (EN 62368-1) · CE-EMC 2014/30/EU · FCC Part 15 Subpart B · UL/CUL 62368-1
Housing
Metal · White or Black
Warranty
3-Year Australian Warranty (back-to-base)
3849H-ZAS (Motorised) vs 3849H-AS (Fixed) — Which 8MP TiOC Should You Choose?
Both cameras share the same chassis, the same TiOC 3.0 deterrence chain, the same AcuPick AI and the same Smart Dual-Light system. The deciding question is the lens: do you need a single fixed field of view, or the flexibility to zoom in remotely? If the site has long sightlines, changing conditions, or you want one camera to cover both wide approach and high-zoom evidence, choose the ZAS. If you only need a fixed 106° wide view and the budget is tight, the fixed-lens 3849 is the cheaper pick.
Dahua 3849H-ZAS-PV-ANZ-S2 vs 3849H-AS-PV-ANZ-S2
Feature
DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 (this motorised model)
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (fixed lens)
Lens
Motorised vari-focal · 2.7–13.5 mm (5× zoom)
Fixed-focal · 2.8 mm
Remote Zoom & Focus
Yes — via DMSS or NVR
No — fixed at install
FOV — Wide
~100° H
106° H (fixed)
FOV — Tele
~28° H
n/a
DORI Detect (max reach)
257.4 m (at tele)
91 m (fixed)
DORI Identify (max reach)
25.7 m (at tele)
9.1 m (fixed)
IR Distance
50 m
30 m
Warm Light Distance
40 m
30 m
Image Sensor
1/2.8" CMOS
1/2.7" CMOS
Max Resolution
8MP · 3840 × 2160 (4K)
8MP · 3840 × 2160 (4K)
Red/Blue Strobe · Siren · Voice
Yes
Yes
AcuPick AI Search
Yes — with 5-Series NVR
Yes — with 5-Series NVR
SMD Version
SMD 4.0
SMD 4.0
Two-Way Audio
Yes — dual MIC + speaker
Yes — dual MIC + speaker
WDR
120 dB True WDR
120 dB True WDR
MicroSD
Up to 512 GB
Up to 512 GB
Power (Max PoE)
12.1 W
9.5 W
Ingress Protection
IP67
IP67
Operating Temperature
−40 °C to +60 °C
−40 °C to +60 °C
Colour Options
White & Black
White & Black
Australian Warranty
3 years back-to-base
3 years back-to-base
Best For
Long driveways, rural properties, carparks, loading docks, school perimeters, sites where field-of-view requirements change over time.
Tight residential entrances, narrow side passages and budget-conscious installs where a fixed 2.8 mm wide-angle is enough.
Compatible Mounts & Accessories
Dahua PFA137 Waterproof Junction Box
Recessed IP66 junction box for clean cable concealment on exposed brick, render or weatherboard. Available in white and black to match the camera. View product →
Dahua PFB205W-E Wall Mount Bracket
Purpose-built wall arm for soffit, eave and external wall mounting. Available in white and black. View product →
Dahua PFA109 Mount Adapter
Required adapter to fit the 3849H ZAS turret onto Dahua wall and pole brackets. View product →
Dahua PFB220C Ceiling Mount
Drop-down ceiling bracket for retail awnings, undercover car parks and warehouse interiors. View product →
Dahua PFA152-E Pole Mount
Heavy-duty pole bracket for fence posts, light poles and gate columns. Pairs with PFB205W-E and PFA137. View product →
WD Purple 256 GB Surveillance MicroSD Card
Western Digital Purple — purpose-built for 24/7 surveillance read/write cycles, far longer endurance than consumer microSD cards. The recommended edge-recording card for Dahua TiOC motorised vari-focal turrets. View WD Purple 256 GB →
Frequently Asked Questions
What does the "Z" in 3849H-ZAS mean?
"Z" stands for motorised zoom — this is the motorised vari-focal lens version of the 8MP TiOC 3.0 line. The fixed-lens equivalent is the 3849H-AS-PV-ANZ-S2. Both share the same chassis, AcuPick AI, TiOC 3.0 deterrence and Smart Dual-Light; the ZAS adds a 2.7–13.5 mm zoom lens with auto-focus you can drive remotely.
Is the motorised vari-focal version worth the extra cost?
If the site has long sightlines (driveways, perimeters, carparks) or if field-of-view requirements are likely to change (new fences, vegetation, signage), yes — the ability to remotely re-zoom from the app saves a service call every time. For a fixed shop entrance or a narrow doorway, the fixed-lens 3849 is the cheaper choice.
Can the camera pan and tilt remotely too, or just zoom?
The 3849H-ZAS is a motorised vari-focal turret, not a PTZ. The lens supports remote zoom and auto-focus, but the camera body itself does not pan or tilt remotely — the housing is aimed manually at install time. For a fully remote pan/tilt/zoom camera, look at a Dahua PTZ.
Do I need a special NVR for AcuPick?
Yes — AcuPick target search requires a compatible Dahua 5-Series AcuPick NVR. The TiOC 3.0 deterrence chain, SMD 4.0, IVS and two-way audio all work on any Dahua AI NVR. Shop AcuPick NVRs here →
How much PoE budget does this camera need?
The ZAS draws a maximum of 12.1 W on PoE when the motor, strobe, siren and warm light are simultaneously active — well within the 802.3af PoE budget of 15.4 W. Most installs sit at 5–6 W in normal operation. Make sure your PoE switch budgets for the peak, especially on multi-camera switches.
Will the camera deter intruders automatically?
Yes. The TiOC 3.0 deterrence chain fires the instant SMD 4.0 confirms a human or vehicle inside the rule zone — strobe lights, siren and voice broadcast all run on-camera, 24/7, without any operator, NVR command or mobile-app interaction.
What is the difference between the White and Black versions?
Specifications are identical. DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 is white; DH-IPC-HDW3849H-ZAS-PV-ANZ-S2-BLK is black. Choose black for dark eaves and charcoal fascia; white for traditional cream/render walls.
Will it keep recording if the NVR or internet goes down?
Yes. The on-board MicroSD slot accepts cards up to 512 GB and records 4K footage independently of the NVR. Combined with DMSS cloud push notifications, you have three redundant recording paths: NVR, MicroSD and event clips to your phone.
Is the camera suitable for Australian outdoor conditions?
Yes. It is rated IP67 and −40 °C to +60 °C — comfortably covering every Australian climate from a Hobart winter to a Karratha summer. The metal housing and ±30% wide-voltage tolerance also handle dirty mains power common on rural sites.
Does it work with Hikvision NVRs or third-party VMS?
Basic recording, streaming and motion work over ONVIF Profile S/G/T on most third-party NVRs and VMS platforms (Milestone, Genetec, Hanwha WAVE, ExacqVision, Blue Iris, Synology). However, TiOC deterrence, AcuPick, SMD 4.0 and two-way audio require a Dahua NVR or DMSS to be triggered correctly.
What is the warranty and where is it serviced?
This camera ships with a 3-year Australian Dahua warranty, serviced back-to-base by Dahua Australia. CCTV Guru handles the entire RA process and provides Australian-based technical support for the life of the product.
Do you ship Australia-wide and is stock genuine?
Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses.
Downloads & Resources
DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 Datasheet
Dahua Turret Quick Start Guide
Order the Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 from CCTV Guru
CCTV Guru is an authorised Australian reseller of Dahua TiOC 3.0 cameras. Order the 8MP 4K TiOC 3.0 motorised vari-focal AcuPick turret today in White or Black for fast Australia-wide dispatch, expert pre-sales advice, project pricing for larger rollouts and full local warranty support. For multi-camera projects, contact our Australian team for a tailored quote, NVR sizing and installation guidance — request a free quote or contact the team.
Dahua · 2 × 6MP TiOC 3.0 + 2 × 6MP Smart Dual-Light · 4CH / 8CH / AcuPick NVR
TiOC + Dual Light
Dahua 4 × 6MP 24/7 Full-Colour CCTV Kit — 2 × TiOC 3.0 Active Deterrence + 2 × Smart Dual-Light + 4CH, 8CH or AcuPick AI NVR
This Dahua 4-camera 6MP (3K) kit pairs active deterrence with full-colour coverage: 2 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning at your key entries, while 2 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets film in true full colour 24/7. All four run SMD 4.0 AI on your choice of recorder: the 4-Channel NVR4104 or 8-Channel NVR4108 with fast Quick Pick target search, or the 8-Channel AcuPick NVR5208 for full attribute search — find a person or vehicle by clothing colour, vehicle type and direction. The 8CH options leave 4 spare PoE ports to expand; the TiOC and Dual-Light cameras are AcuPick-native.
Cameras
2 × TiOC + 2 × Dual Light
Recorder
4CH · 8CH · AcuPick
Resolution
6MP · 3K Full Colour
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
2 × TiOC 3.0 — Deter at the Entries
Place the TiOC cameras at your busiest entries. When WizSense AI detects a person or vehicle they fire a siren, red/blue strobe and two-way voice warning — most intruders leave before they've taken a step.
2 × Smart Dual-Light — 24/7 Full Colour
The Dual-Light turrets run invisible IR until WizSense classifies a target, then flip to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
Pick the 4-Channel NVR4104 for a tidy system, the 8-Channel NVR4108 for 4 spare PoE ports, or the AcuPick NVR5208 for attribute smart search (find people or vehicles by colour, clothing and direction). All are fanless, silent WizSense AI NVRs with free DMSS remote viewing.
What's Included
2 × TiOC Cameras
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black.
2 × Dual-Light Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light, built-in mic, SMD 4.0, IP67. Full-colour coverage for the rest of the property.
1 × Recorder (your choice)
4CH Quick Pick — DHI-NVR4104HS-P-AI/ANZ (4 PoE).8CH Quick Pick — DHI-NVR4108HS-8P-AI/ANZ (8 PoE, 4 spare).8CH AcuPick — DHI-NVR5208-8P-AI/ANZ (8 PoE, 2 SATA bays, attribute search).
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data. Network cabling is not included; Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 6MP cameras for around 3 weeks on motion-only.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Choose Your AI NVR
4CH AI NVR — NVR4104
4-channel 4K WizSense AI NVR · 4 PoE ports · 1 SATA bay · Quick Pick target search. Tidy four-camera system.
8CH AI NVR — NVR4108
8-channel 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · Quick Pick target search. 4 spare ports to expand.
AcuPick AI NVR — NVR5208
8-channel 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the cameras are AcuPick-native.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3667EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and Dual-Light cameras?The 2 TiOC cameras add active deterrence — a siren, red/blue strobe and two-way voice warning. The 2 Dual-Light cameras give continuous full-colour coverage. All four are 6MP.
Which NVR should I choose?The 4CH NVR4104 suits a fixed four-camera system; the 8CH NVR4108 leaves 4 spare PoE ports to expand. Choose the AcuPick NVR5208 if you want attribute smart search — find people or vehicles by colour, clothing and direction in seconds.
Do all cameras record in colour at night?Yes — all four use a warm-light illuminator for 24/7 full colour, with a selectable IR-only mode.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. ~2 TB gives roughly 3 weeks on motion-only for four 6MP cameras.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 4 × TiOC · 6 × Smart Dual-Light · 8MP · 16CH AI NVR — Standard or AcuPick
TiOC + Dual Light
Dahua 10 × 8MP 4K Full-Colour CCTV Kit — 4 × TiOC 3.0 Active Deterrence + 6 × Smart Dual-Light + 16-Channel AI NVR
A complete 10-camera 8MP (4K) system for larger homes and commercial sites: 4 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fire a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle at your key entries, while 6 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets give continuous full-colour coverage across the rest of the property. All ten are 8MP 4K with SMD 4.0 AI. Both recorder options are 16-channel AI NVRs — the difference is search: the Standard AI NVR (NVR4216-16P) gives fast Quick Pick target search, while the AcuPick AI NVR (NVR5216-16P) adds full AcuPick attribute search — find a person or vehicle by clothing colour, vehicle type and direction. Both have dual HDD bays and 6 spare channels; the TiOC and Dual-Light cameras are AcuPick-native, so the 5216 unlocks their full forensic search.
Cameras
4 × TiOC + 6 × Dual Light
Recorder
16CH AI NVR · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
4 × TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, the TiOC cameras fire a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Place them at your busiest entries.
6 × Smart Dual-Light — 24/7 Full Colour
Each Dual-Light turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
16-Channel AI NVR — Standard or AcuPick
16 built-in PoE ports and two SATA bays for big, redundant storage. Choose the Standard AI NVR (NVR4216 · Quick Pick) or the AcuPick AI NVR (NVR5216 · attribute search). Fanless 4K HDMI, free DMSS remote viewing, 6 spare channels.
What's Included
4 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Best at gates and entries.
6 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light, built-in mic, IP67. Continuous full-colour coverage across the property.
1 × Recorder (your choice)
Standard: DHI-NVR4216-16P-AI/ANZ — 16CH 4K WizSense AI NVR, 16 PoE, 2 SATA bays, Quick Pick target search.AcuPick upgrade: DHI-NVR5216-16P-AI/ANZ — 16CH AcuPick AI NVR, 16 PoE, 2 SATA bays, attribute smart search. 10 channels used, 6 spare either way.
Power
16 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
2 SATA bays (HDD up to 10 TB each) — not included. Add surveillance-grade Seagate SkyHawk or WD Purple drives; ~6–8 TB suits ten 8MP cameras for around 1–2 weeks of recording, or fit two drives for longer retention.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Large homes & estates
Ten cameras cover every entry, side, driveway and outbuilding with active deterrence up front.
Retail & hospitality
TiOC deters at entries; Dual-Light covers the floor, counters and stockroom in full colour.
Warehouses & yards
Active deterrence at every dock and gate; 8MP detail across large open areas and aisles.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Schools & childcare
24/7 colour for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Strata & multi-tenant
Cover shared entries, car parks and bin areas; spare channels for future cameras.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×4)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ (×6)
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
AI
SMD · AcuPick (with 5-Series NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone (one-way)
Power / Ingress
PoE 802.3af · 12 VDC · IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 16-Channel AI NVR
Standard AI NVR — NVR4216-16P
16CH 4K WizSense AI NVR · 16 PoE+ ports · 2 SATA bays · Face, IVS/Perimeter, SMD 4.0 · Quick Pick target search. 10 channels used, 6 spare.
AcuPick AI NVR — NVR5216-16P
16CH AI NVR · 16 PoE · 2 SATA bays · higher bandwidth · AI by recorder & by camera · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC & Dual-Light cameras are AcuPick-native.
Pick the 5216 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: put the 4 TiOC active-deterrence cameras at entry points and the 6 Dual-Light cameras across general coverage.
›Storage sizing: ten 8MP cameras generate a lot of data — use both HDD bays (e.g. 2 × 8 TB) for several weeks of retention.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3867EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4216-16P-AI/ANZ (16CH) Datasheet
DHI-NVR5216-16P-AI/ANZ (16CH AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and Dual-Light cameras?The 4 TiOC cameras add active deterrence — a siren, red/blue strobe and two-way voice warning. The 6 Dual-Light cameras give continuous full-colour coverage. All ten are 8MP 4K.
Why a 16-channel NVR for 10 cameras?It leaves 6 spare PoE channels so you can expand later without replacing the recorder, and the two HDD bays give you room for long retention across ten 8MP streams.
Does this kit do AcuPick?Yes — choose the AcuPick AI NVR (NVR5216-16P) option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The Standard AI NVR (NVR4216-16P) option gives Quick Pick target search. Both are 16-channel AI NVRs; the cameras are AcuPick-native.
How much storage do I need?No HDD is included. For 10 × 8MP on motion-only, ~6–8 TB gives 1–2 weeks; fit both bays (e.g. 2 × 8 TB) for several weeks or continuous recording.
Do all cameras record in colour at night?Yes — all ten use a warm-light illuminator for 24/7 full colour. The Dual-Light cameras can also switch to IR-only mode for discreet black-and-white at night.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
WizSense 2 · 5 MP · WizColor F1.0 · 30 m Warm Light
Dahua 5MP WizColor Turret
Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ — 5 MP WizColor PRO Fixed-Focal Eyeball Turret WizSense Network Camera with Built-In Mic (2549 Series)
The Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ is the 2549 series 5 MP WizColor turret — built around a 1/1.8" CMOS Starlight sensor paired with Dahua's brightest F1.0 large-aperture WizColor lens for class-leading full-colour low-light performance. The native 5 MP output (2960 × 1668) captures more than twice the pixel density of 1080p; a 30 m warm-light array delivers full-colour 24/7 surveillance without the harsh white-light pop-on of an active-deterrence camera, while the WizSense 2 deep-learning chip runs SMD Plus (Smart Motion Detection) with human and vehicle classification at the edge. The compact eyeball turret form factor (HDW chassis) mounts cleanly under Australian eaves, soffits, awnings and undercover ceilings; built-in microphone, 120 dB WDR, IP67 sealing and standard PoE (802.3af) round out the spec. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
How to Add the HDW2549EMP-S-PRO-ANZ to a Dahua NVR
Dahua's official walkthrough for adding any Dahua IP camera to a Dahua AI NVR.
Why Choose the Dahua HDW2549EMP-S-PRO-ANZ WizColor Turret
F1.0 WizColor — 24/7 Full Colour
The 1/1.8" CMOS Starlight sensor paired with Dahua's brightest F1.0 large-aperture WizColor optics captures usable full-colour video at low light levels where standard cameras flip to IR black-and-white. The 30 m warm-light array kicks in when ambient drops below the F1.0 sensitivity threshold.
True 5 MP Detail
Native 2960 × 1668 at 20 fps (4 MP at 25/30 fps) — more than twice the pixel density of 1080p.
Discreet Eyeball Turret
Compact HDW chassis mounts cleanly to eaves, soffits, awnings and undercover ceilings.
SMD Plus — Human / Vehicle Classification
WizSense 2 deep-learning chip runs Smart Motion Detection at the edge, classifying every motion event as human, vehicle or "other".
120 dB WDR for AU Sun
Wide dynamic range holds detail in both the bright sky and the dark interior in a single frame.
Standard PoE — Runs on Anything
IEEE 802.3af compliant with a modest power budget. Works on any quality PoE switch.
Important Install Note
The HDW2549EMP is a fixed-focal turret — frame the camera carefully at install time, as there's no remote re-framing later. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation. For outdoor installs in exposed coastal or humid positions, pair with the DH-PFA137 in-ceiling junction box.
AI & Smart Detection Capabilities
WizSense 2 Edge AI
Dedicated AI chip running Dahua's deep-learning algorithms for human and vehicle classification.
SMD Plus — Smart Motion Detection
Motion alerts triggered only by humans and vehicles.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification.
WizColor Full-Colour Night Mode
The F1.0 large-aperture lens captures colour video at minimum illumination far below standard IR cameras.
Abnormality Detection
SD card status, network disconnection, IP conflict, illegal access, video tampering, audio detection.
Built-In Microphone — Audio Recording
Built-in mic captures audio alongside video for forensic playback.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HDW2549EMP-S-PRO-ANZ
Form Factor
Eyeball turret (HDW chassis)
Image Sensor
1/1.8" CMOS Starlight
Maximum Resolution
2960 × 1668 (5 MP)
Frame Rate
5 MP @ 20 fps · 4 MP @ 25/30 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
BLC / HLC
Yes / Yes
Noise Reduction
3D NR
WizColor
Yes — F1.0 large-aperture full-colour low-light
Lens & Illumination
Lens Type
Fixed-focal
Focal Length
2.8 mm (standard) · 3.6 mm variant also available
Maximum Aperture
F1.0 (WizColor large aperture)
Warm Light Illumination
Up to 30 m
Smart Illumination
Yes
Intelligence & Video
AI Engine
WizSense 2 Series (WizColor PRO)
IVS — Perimeter Protection
Tripwire, intrusion (with human + vehicle classification)
Smart Motion Detection
SMD Plus (SMD 3.0)
Video Compression
H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG
Main Stream
2960 × 1668 @ 1–20 fps
Audio & Network
Built-in Microphone
Yes
Audio Compression
G.711a · G.711Mu · G.726 · AAC
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
FTP · SFTP · NAS · Micro SD card up to 256 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE (IEEE 802.3af)
Power Consumption
Basic ~4 W · Max ~7 W
Operating Temperature
−30 °C to +60 °C
Protection Rating
IP67
Certifications
CE-LVD · CE-EMC · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
Frequently Asked Questions
What does "WizColor" mean?
WizColor is Dahua's name for cameras built around a large-aperture lens (F1.0 here) paired with a 1/1.8" or larger Starlight CMOS. The result is class-leading full-colour low-light performance.
Does the camera support AcuPick attribute search?
No. AcuPick is reserved for the higher-tier WizSense 3 Smart Dual Light cameras.
Does it have IR or just warm light?
Warm light only — 30 m built-in warm-light array for full-colour night vision.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant.
How far can it see at night?
The 30 m warm-light array delivers usable full-colour video at the lit zone.
Does it have a microphone?
Yes — the "EM" in the SKU indicates built-in microphone.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T are supported.
What temperature range is it rated for?
−30 °C to +60 °C.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android.
Downloads
DH-IPC-HDW2549EMP-S-PRO-ANZ Datasheet
Order Your Dahua HDW2549EMP-S-PRO-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. Phone, email or live chat us through cctvguru.com.au/pages/contact.
Dahua · DH-HAC-HDW2501TMQP-A · 5MP HDCVI Turret · 120dB WDR · 60m Smart IR · Built-in Mic
5MP HDCVI Turret
Dahua DH-HAC-HDW2501TMQP-A — 5MP Starlight Pro HDCVI Turret Camera
The Dahua DH-HAC-HDW2501TMQP-A is the go-to 5MP HDCVI turret camera for Australian installers who need exceptional low-light performance, wide dynamic range, and coaxial simplicity in a compact, weatherproof housing. Powered by Dahua's Starlight Pro sensor technology, it delivers clear, detailed colour imagery in near-darkness — without the cost or complexity of IP cameras. With a 2.8mm fixed wide-angle lens, 60m Smart IR, 120dB True WDR, and a built-in microphone, it connects directly to any HDCVI, AHD, TVI or CVBS DVR/XVR over existing coaxial cable.
Resolution
5MP · 2592×1944
Night Vision
60m Smart IR
WDR
120dB True WDR
Technology
HDCVI/AHD/TVI/CVBS
Audio
Built-in Mic
Protection
IP67 · DC12V
Key Features
5MP Starlight Pro SensorDahua's Starlight Pro technology captures clear, detailed colour imagery in near-zero light conditions — far beyond what standard 5MP HDCVI cameras can achieve. Ideal for dimly lit car parks, corridors and entry points where colour detail matters at night.
120dB True Wide Dynamic Range120dB True WDR balances exposure across extreme lighting contrasts — bright sunlight through a window, headlights at a gate, or a backlit doorway. No more washed-out or silhouetted subjects.
60m Smart IR Night VisionSmart IR automatically adjusts infrared intensity based on subject distance, preventing overexposure at close range and maintaining clarity at up to 60 metres.
Built-in MicrophoneThe integrated microphone captures on-site audio alongside video — useful for retail, reception areas and any site where audio context adds investigative value. No separate audio cable required.
Penta-brid Compatibility (CVI/AHD/TVI/CVBS)Switchable between HDCVI, AHD, TVI and CVBS output modes. Compatible with virtually any modern DVR or XVR — including all Dahua Penta-brid XVRs and Hikvision Turbo HD DVRs.
IP67 WeatherproofFully sealed against dust ingress and water jets — rated for outdoor installation in all Australian weather conditions including coastal salt air, tropical rain and outback dust.
Specifications — DH-HAC-HDW2501TMQP-A
Sensor & Resolution
5MP CMOS · 2592 × 1944 · max 25 fps @ 5MP (16:9) · Starlight Pro
Lens
2.8mm fixed · ~103° horizontal field of view
Night Vision
Smart IR · max 60m · auto IR intensity adjustment
Image Processing
120dB True WDR · 3D NR · BLC · HLC · digital defog
Video Output
HDCVI / AHD / TVI / CVBS switchable · coaxial output
Audio
Built-in microphone · audio over coaxial (compatible XVR required)
Protection & Build
IP67 · eyeball turret housing · white finish
Power
DC 12V · max 4.7W · operating temp –40°C to +60°C
Cable Distance
Up to 500m over RG59 coaxial in HDCVI mode
XVR Firmware (for 5MP 16:9)
Dahua XVR firmware V4.001.0000001.0.R.200908 or later
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DH-HAC-HDW2501TMQP-A Datasheet
HDCVI Eyeball Quick Start Guide
HDCVI Camera User Manual
Frequently Asked Questions
Does this camera work with my existing DVR?Yes — it is switchable between HDCVI, AHD, TVI and CVBS modes, making it compatible with virtually all modern DVRs and XVRs. For 5MP 16:9 output, your Dahua XVR must be on firmware V4.001.0000001.0.R.200908 or later. Pair it with a Dahua WizSense XVR for best performance.
Does it need PoE?No — this is an HDCVI analogue camera powered by DC 12V. A separate power cable is required alongside the coaxial video cable. It does not support PoE.
How far can the IR reach?Up to 60 metres with Smart IR, which automatically adjusts intensity to prevent overexposure at close range.
Can I run this over long cable distances?Yes — HDCVI supports up to 500m over RG59 coaxial cable, far exceeding the 100m limit of IP cameras over Cat6.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
WizSense 3 · 8 MP 4K · Motorised 2.7–13.5 mm · BlackDahua WizSense 3 · 8 MP 4K Motorised TurretDahua DH-IPC-HDW3866TP-ZS-AUS-BLK — 8 MP 4K Motorised Vari-Focal Starlight IR Eyeball Turret WizSense 3 Network Camera Black (3866 Series)
The Dahua DH-IPC-HDW3866TP-ZS-AUS-BLK is the 3866 series 8 MP 4K WizSense 3 motorised eyeball turret in black housing — built around a 1/2.7" CMOS Starlight sensor capturing 3840 × 2160 (true 4K) at 15 fps and 4 MP at full 25/30 fps. The motorised 2.7–13.5 mm vari-focal lens delivers a wide 102° field at 2.7 mm down to a tight 27° pull at 13.5 mm — re-frameable from DMSS. Built-in IR reaches up to 40 m; WDR is 120 dB; the compact metal turret housing is IP67 sealed. WizSense 3 deep-learning Pro AI runs perimeter protection (tripwire, intrusion, fast-moving, loitering) with human and vehicle classification, plus SMD 4.0 and AcuPick attribute search. Built-in microphone, 1/1 RCA audio I/O. The black housing blends into dark eaves, soffits, awnings and architectural feature surfaces — a popular choice for modern residential, retail and architectural commercial installs. Backed by a 3-year Australian warranty through CCTV Guru. SKU 3866 series.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HDW3866TP-ZS-AUS-BLK WizSense 3 4K Motorised Turret
True 4K Detail (8 MP)
Native 3840 × 2160 at 15 fps, or 4 MP at full 25/30 fps. 4× the pixel density of 1080p — identification-grade detail at distance.
Motorised 5× Vari-Focal
2.7–13.5 mm motorised vari-focal — install wide, then pull tight on the area of interest via DMSS.
Discreet Black Eyeball Form
Black metal turret blends into dark eaves, soffits, awnings and architectural feature surfaces. The discreet matte black aesthetic suits modern architecture.
WizSense 3 + AcuPick
Perimeter protection, SMD 4.0 and AcuPick attribute search on the WizSense 3 chip.
40 m IR + Starlight
1/2.7" Starlight sensor with usable colour in moonlight; 40 m IR for fully-dark coverage.
Built-in Mic + Audio I/O
Built-in microphone plus RCA audio I/O for two-way talk integration.
Important Install Note
The motorised vari-focal lens is remote-controllable via DMSS. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation for flexible install alignment. At full 4K resolution, frame rate caps at 15 fps — drop to 4 MP for full 25/30 fps motion. Available also in white as DH-IPC-HDW3866TP-ZS-AUS.
AI & Smart Detection
AcuPick Attribute Search
Search recorded video by colour, clothing, vehicle type — with a Dahua AcuPick NVR.
SMD 4.0 Smart Motion
Motion alerts triggered only by humans and vehicles.
Perimeter Protection
Tripwire, intrusion, fast-moving and loitering with human/vehicle classification.
AI SSA
Scene self-adaptation for rain, fog, backlight.
Abnormality Detection
SD card, network, IP conflict, tampering events.
Two-Way Audio
Built-in mic + RCA audio I/O.
Technical Specifications
Camera, Lens & Illumination
Model
DH-IPC-HDW3866TP-ZS-AUS-BLK
Form Factor
Eyeball turret (HDW chassis) — Black
Image Sensor
1/2.7" CMOS Starlight
Maximum Resolution
3840 × 2160 (8 MP / 4K)
Frame Rate
4K @ 15 fps · 4 MP @ 25/30 fps
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
Lens Type
Motorised vari-focal
Focal Length
2.7–13.5 mm
Field of View
H: 102°–27°
IR Illumination
Up to 40 m
Intelligence, Audio & Network
AI Engine
WizSense 3 Series
IVS
Tripwire · intrusion · fast-moving · loitering (human/vehicle)
SMD
SMD 4.0
AcuPick
Yes (with Dahua AcuPick NVR)
Built-in Mic
Yes
Audio I/O
1 in / 1 out (RCA)
Network Port
RJ-45 (10/100)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
Micro SD up to 512 GB
Mobile Client
DMSS
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af)
Operating Temperature
−40 °C to +60 °C
Protection
IP67
Casing
Metal — Black
Australian Warranty
3 Years (via CCTV Guru)
Recommended NVR Pairings
Dahua DHI-NVR5208-8P-AI/ANZ
View NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
View NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
View NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
View NVR5432-AI →
Frequently Asked Questions
True 4K?
Yes — native 3840 × 2160 at 15 fps. Drop to 4 MP for 25/30 fps motion.
Re-frame after install?
Yes — motorised vari-focal via DMSS.
AcuPick?
Yes — pair with a Dahua AcuPick NVR.
Standard PoE?
Yes — 802.3af.
Available in white?
Yes — DH-IPC-HDW3866TP-ZS-AUS.
Night vision?
Up to 40 m IR.
Audio?
Built-in mic + RCA audio I/O.
Third-party NVRs?
Yes — ONVIF Profile S, G, T.
Mobile viewing?
Yes — DMSS app.
Downloads
DH-IPC-HDW3866TP-ZS-AUS-BLK DatasheetDahua IP Turret Camera Quick Start GuideDahua IP Turret Camera Installation Guide
Order Your Dahua HDW3866TP-ZS-AUS-BLK from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 3-year Australian warranty. cctvguru.com.au/pages/contact.
Dahua · 4 × 8MP Smart Dual-Light · 4CH, 8CH or AcuPick AI NVR
4× Dual Light 4K
Dahua 4 × 8MP 4K Full-Colour Smart Dual-Light CCTV Kit — 4CH, 8CH or AcuPick NVR
This Dahua 4-camera 8MP (4K) kit films in true full colour around the clock. Each of the 4 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets runs invisible IR after dark, then flips to warm white light the instant WizSense AI classifies a person or vehicle — capturing clothing colour, vehicle colour and faces that IR-only cameras miss. Your choice of recorder — a 4-channel NVR4104 (Quick Pick), an 8-channel NVR4108 (Quick Pick) or an 8-channel AcuPick NVR5208 for full attribute search — powers and records every camera over a single Cat6 cable each.
Cameras
4 × 8MP Dual-Light
Recorder
4CH · 8CH · AcuPick
Resolution
8MP · 4K 3840×2160
Night Vision
24/7 Full Colour
AI
SMD 4.0 · AcuPick Ready
Weatherproof
IP67 Rated
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Built-In Mic · AcuPick Ready
Every camera has a built-in microphone for audio capture, and AcuPick-native firmware lets you search footage by person or vehicle when paired with a Dahua 5-Series NVR.
Your Choice of NVR
Pick the 4-channel NVR4104 or 8-channel NVR4108 for a tidy Quick-Pick system, or step up to the 8-channel AcuPick NVR5208 — full attribute search, face detection and 2 HDD bays, with spare PoE ports to expand.
What's Included
4 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light 30 m, built-in mic, SMD 4.0, IP67. Full-colour coverage day and night.
1 × Recorder
Your choice: DHI-NVR4104HS-P-AI/ANZ (4CH, Quick Pick, 1 SATA bay), the DHI-NVR4108HS-8P-AI/ANZ (8CH, Quick Pick, 8 PoE) or the DHI-NVR5208-8P-AI/ANZ (8CH 5-Series AcuPick, full attribute search, face detection, 2 SATA bays). All are WizSense AI NVRs with built-in PoE.
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 8MP cameras for roughly 2–3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Homes & townhouses
Full-colour cover of the four key approaches — front, back, drive and side gate.
Shops & cafes
Capture faces and clothing colour at the counter and entry in 8MP, day and night.
Small offices
Plug-and-play PoE and a silent fanless NVR suit comms cupboards and reception areas.
Airbnb & rentals
Clear full-colour coverage of entries and shared areas; remote monitoring via DMSS.
Garages & sheds
Full-colour coverage of vehicles, tools and access points overnight.
Childcare (small)
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ (×4)
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7 (IR mode selectable)
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone (one-way)
Compression
Smart H.265+ / H.265 / H.264+ / H.264
Edge Storage
MicroSD up to 512 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: mount at 2.5–3 m so the warm-light array reaches the target zone for full-colour capture at night.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›Full-colour mode: leave Smart Dual-Light on auto for IR-to-colour hand-off, or force full-colour where you always want colour footage.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW3867EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the standard and AcuPick NVR?The 4-channel NVR4104 and 8-channel NVR4108 give Quick Pick target search. The 8-channel AcuPick NVR5208 adds full attribute search — find a person or vehicle by colour, clothing and direction — plus face detection, 2 HDD bays and room to add cameras.
What is Smart Dual-Light?The cameras use both IR and warm white light. They run on invisible IR until WizSense AI detects a person or vehicle, then switch to warm light for full-colour footage — so you get colour evidence only when it matters, without lighting up the property all night.
Do they record in colour at night?Yes — full colour 24/7 via the warm-light array. You can also lock them to IR-only mode for discreet black-and-white at night if you prefer no visible light.
Does this kit do AcuPick?The cameras are AcuPick-native. The 4-channel NVR4104 or 8-channel NVR4108 (Quick Pick) options give target search; choose the 8-channel AcuPick NVR5208 option for full AcuPick attribute search — find a person or vehicle by colour, clothing and direction.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 4 × 8MP on motion-only, ~2 TB gives roughly 2–3 weeks; choose more for continuous recording.
Can I add more cameras later?Yes — choose an 8-channel NVR (NVR4108 or AcuPick NVR5208) option and it has 4 spare PoE ports, so you can add up to 4 more cameras. The 4-channel NVR4104 option uses all 4 ports.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 10 × 8MP 4K Smart Dual Light · 16CH AI NVR · AcuPick-Ready
10 × 8MP Kit
Dahua 10 × 8MP (4K) Full-Colour CCTV Kit with 16-Channel AI NVR
The Dahua 10 × 8MP (4K) Full-Colour CCTV Kit pairs ten DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turret cameras with a 16-channel WizSense AI NVR for true 24/7 colour surveillance across larger Australian sites — supermarkets, childcare centres, warehouses, offices and factories. Smart Dual Light runs silent 30 m IR by night, then snaps a warm white LED on the instant WizSense AI detects a person or vehicle, capturing full-colour, evidence-grade 4K footage of every incident. Choose the standard NVR4216-16P-AI/ANZ, or step up to the NVR5216-16P-AI/ANZ to unlock AcuPick attribute search.
Cameras
10 × 8MP Smart Dual Light
Recorder
16CH AI NVR · 16 PoE
Resolution
8MP · 4K 3840×2160
AI Search
AcuPick-Ready
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
True 24/7 Full Colour
Smart Dual Light blends a 30 m IR illuminator with a 30 m warm-white LED. IR holds the scene at night with minimal light pollution; the warm light triggers on AI detection to record full-colour evidence of faces, clothing and number plates. Prefer no visible light? Switch to IR mode for discreet black-and-white night recording.
8MP 4K Detail
A 1/2.8" 8MP sensor outputs 3840×2160 — forensic-quality detail on faces and licence plates, well beyond standard HD, meeting evidential needs for insurance and law enforcement.
AcuPick-Ready Search
Pair the cameras with the 5-Series NVR5216-16P-AI/ANZ to unlock AcuPick — attribute-based search that finds every red car or every person in a hoodie across hours of footage in seconds.
16-Channel PoE Recorder
The 16CH AI NVR ships with 16 built-in PoE ports for true plug-and-play install, dual SATA bays for high-capacity surveillance storage, 4K HDMI output and remote viewing via the DMSS app.
What's Included
10 × Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP 4K Smart Dual-Light WizSense turret, 2.8 mm, IR 30 m, built-in mic, IP67. Each ships with eave/soffit bracket, drill template, screw pack, waterproof RJ-45 connector & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ (16CH AI NVR, 16 PoE) with power adaptor, USB mouse, SATA cables & quick start guide — or upgrade to DHI-NVR5216-16P-AI/ANZ for AcuPick.
Power
16 × PoE+ ports built into the NVR — each camera runs on a single Cat6 network cable that carries both power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Included brackets suit eave/soffit installs. For brick or flush-wall mounting, add a Dahua DH-PFB204W wall-mount bracket per camera; a DH-PFA139 junction box is also available for tidy cable management.
Storage
Dual SATA bays — HDD not included. For ~30 days of 24/7 recording from all ten 8MP cameras (Smart H.265+) fit 2 × 12 TB Seagate SkyHawk or WD Purple; up to 16 TB per bay (32 TB total). Motion-only recording stretches this much further.
Warranty
3-Year Australian warranty · local CCTV Guru tech support.
Best For
Supermarkets & grocery
Full-colour 4K faces and number plates across tills, aisles and the loading dock.
Childcare centres
Clear colour coverage of entries, sign-in desks and play areas, day and night.
Offices & reception
Identify visitors and deliveries in colour, with AI alerts triggered after hours.
Warehouses & factories
Wide 105° 4K views of racking, roller doors and yards with vehicle detection.
Retail shopfronts
Deter theft and capture evidence-grade 4K colour footage in any lighting.
Car parks & yards
Person and vehicle AI detection with plate-readable 4K detail over open areas.
Camera Specifications — DH-IPC-HDW3867EM-S-IL-ANZ
Camera Type
8MP 4K Smart Dual-Light Turret (Eyeball) WizSense Network Camera
Image Sensor
1/2.8" 8MP Progressive CMOS
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
Smart Dual-Light · IR up to 30 m · Warm White LED up to 30 m
AI Features
AcuPick (with 5-Series NVR) · SMD · IVS (Tripwire, Intrusion, Abandoned Object)
Audio
Built-in microphone (one-way)
Compression
H.265+ / H.265 / H.264+ / H.264
Ingress Protection
IP67
Operating Temp.
–30 °C to +60 °C
Power
12 VDC · PoE (IEEE 802.3af)
Dimensions
Φ109.9 × 100.9 mm
Colours
White · Black
Compatibility
Dahua 5-Series AcuPick NVRs · ONVIF-compliant systems
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 16-Channel AI NVR
NVR4216-16P-AI/ANZ
16CH 4K WizSense AI NVR · 16 PoE+ (130 W) · 2 SATA bays (to 32 TB) · Face, IVS/Perimeter, SMD Plus, ANPR · Quick Pick target search · ONVIF 21.12
NVR5216-16P-AI/ANZ
16CH AI NVR · 16 PoE · 2 SATA bays · 1U · higher bandwidth · AI by recorder & by camera · AcuPick search supported
Pick the 5216 if…
You want AcuPick attribute search and higher recording bandwidth. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›NVR placement: mount the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW3867EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4216-16P-AI/ANZ (16CH) Datasheet
DHI-NVR5216-16P-AI/ANZ (16CH AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
Is this kit really full colour at night?Yes. Smart Dual Light runs IR by default, then switches to a 30 m warm-white LED the moment AI detects a person or vehicle — recording full-colour 4K footage of the event before returning to IR.
Can I turn off the white light at night?Yes. Smart Dual Light has three modes — Smart Dual (IR by default, warm light only on AI detection), full-colour (warm light always on) and IR-only. If you'd rather avoid any visible spotlight, set IR mode and the cameras keep recording clear black-and-white footage at night with no white light at all.
What's the difference between the two NVR options?The NVR4216 is the standard 16CH AI recorder. The NVR5216 adds AcuPick attribute search and higher bandwidth. AcuPick only runs on the 5-Series, so choose the 5216 if fast footage search matters to you.
Does a hard drive come included?No — the NVR has two SATA bays but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD, available as an add-on above.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera.
Can I view it on my phone?Yes. Remote live view, playback and AI alerts are free through the Dahua DMSS app on iOS and Android, plus Smart PSS Lite on desktop.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 4 × 8MP TiOC 3.0 · 4CH / 8CH / AcuPick AI NVR
4× TiOC Full Colour
Dahua 4 × 8MP TiOC 3.0 Full-Colour CCTV Kit — Active Deterrence, Two-Way Audio + 4CH or 8CH AI NVR
This Dahua 4-camera 8MP (4K) TiOC 3.0 kit doesn't just record — it actively warns intruders off. Each of the 4 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fires a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, and films in true full colour around the clock. Choose your recorder: a 4-channel or 8-channel AI NVR with fast Quick Pick target search, or step up to the 8-channel AcuPick NVR5208 for full AcuPick attribute search — find a person or vehicle by clothing colour, vehicle type and direction across hours of footage. The 8CH options leave 4 PoE ports free to grow later; the TiOC cameras are AcuPick-native, so the 5208 unlocks their full forensic search.
Cameras
4 × 8MP TiOC 3.0
Recorder
4CH · 8CH · AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
A warm-light illuminator delivers true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
Pick the 4-channel NVR for a tidy system, the 8-channel for 4 spare PoE ports, or the AcuPick NVR5208 for attribute smart search (find people or vehicles by colour, clothing and direction). All are fanless, silent and include free DMSS remote viewing.
What's Included
4 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black.
1 × Recorder (your choice)
Quick Pick: DHI-NVR4104HS-P-AI/ANZ (4CH, 4 PoE) or DHI-NVR4108HS-8P-AI/ANZ (8CH, 8 PoE) — 4K WizSense AI NVR, Quick Pick target search.AcuPick: DHI-NVR5208-8P-AI/ANZ (8CH, 8 PoE, 2 SATA bays) — 5-Series AcuPick AI NVR with full attribute search.
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 8MP cameras for roughly 2–3 weeks on motion-only recording.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Cameras available in white or black.
Best For
Homes & townhouses
Cover the four corners of a home with active deterrence at the front and back entries.
Shops & cafes
Visible siren and strobe deter shoplifters; full colour captures faces at the counter.
Driveways & entries
Two-way audio lets you warn off trespassers or greet visitors from your phone.
Small offices
Plug-and-play PoE and a silent fanless NVR suit comms cupboards and reception areas.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
Warehouses (compact)
Deterrence at the roller door plus full-colour coverage of the immediate yard.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×4)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection · Tripwire
WDR / Compression
120 dB WDR · Smart H.265+
Edge Storage
MicroSD up to 256 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your AI NVR
4CH AI NVR — NVR4104
4-channel 4K WizSense AI NVR · 4 PoE ports · 1 SATA bay · Quick Pick target search. Tidy four-camera system.
8CH AI NVR — NVR4108
8-channel 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · Quick Pick target search. 4 spare ports to expand.
AcuPick AI NVR — NVR5208
8-channel 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC cameras are AcuPick-native.
Installation Notes
›Camera placement: position each TiOC camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›Audio & alarm: set siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
Which NVR should I choose?The 4CH NVR suits a fixed four-camera system; the 8CH leaves 4 spare PoE ports to expand. Choose the AcuPick NVR5208 if you want attribute smart search — find people or vehicles by colour, clothing and direction in seconds.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The 4CH and 8CH NVR options give Quick Pick target search. The TiOC cameras are AcuPick-native.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. For 4 × 8MP on motion-only, ~2 TB gives roughly 2–3 weeks; choose more for continuous recording.
Do the cameras record in colour at night?Yes — a warm-light illuminator gives 24/7 full colour. You can also switch to IR-only mode for discreet black-and-white at night if you prefer no visible light.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · DH-HAC-HDW2501TP-Z-A-DP · 5MP HDCVI Turret · Starlight · 2.7-13.5mm / IR 60m
5MP Motorised Turret
Dahua DH-HAC-HDW2501TP-Z-A-DP 5MP Starlight HDCVI Motorised Turret Camera
The Dahua DH-HAC-HDW2501TP-Z-A-DP is a 5MP Starlight HDCVI eyeball turret with a 2.7-13.5mm motorised vari-focal lens, so you can set the framing and zoom remotely. The Starlight sensor delivers clear colour in low light, Smart IR reaches up to 60m at night, and 120dB true WDR balances harsh contrast. A built-in microphone records audio over coax. As an HDCVI camera it connects to a Dahua XVR (Penta-brid DVR) over coax — not an IP NVR.
Resolution
5MP
Lens
2.7-13.5mm Motorised
Night Vision
Smart IR 60m
Technology
HDCVI Starlight
Audio
Built-in Mic
Weatherproof
IP67
Motorised Vari-Focal
The 2.7-13.5mm powered lens lets you set framing and zoom from the recorder — dial in a wide or tight view without touching the camera.
Starlight Low-Light
The Starlight sensor keeps footage in colour under low light where standard turrets drop to grainy mono.
Built-in Audio
An integrated microphone records sound over the same coax cable to a compatible Dahua XVR.
Discreet Turret Form
The compact eyeball housing resists glare and is easy to aim, with IP67 weatherproofing for eaves and walls.
Specifications — DH-HAC-HDW2501TP-Z-A-DP
Model
DH-HAC-HDW2501TP-Z-A-DP (2.7-13.5mm)
Resolution
5MP (up to 25 fps, 16:9)
Lens
2.7-13.5mm motorised vari-focal
Night Vision
Smart IR up to 60m
Low-Light
Starlight technology
WDR
120dB true WDR, 3D NR
Audio
Built-in mic (audio-over-coax)
Form Factor
Eyeball turret, IP67
Power
12V DC (24V AC supported)
Signal Type
HDCVI (also AHD/TVI/CVBS) — connect to a Dahua XVR
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DH-HAC-HDW2501TP-Z-A-DP DatasheetDahua HDCVI Eyeball Quick Start GuideDahua HDCVI Camera User Manual
What recorder do I need?A Dahua HDCVI XVR (Penta-brid DVR) that supports 5MP input. 5MP 16:9 mode may require an XVR firmware update (V4.001.0000001.0.R.200908 or later).
Can I adjust the zoom remotely?Yes, the 2.7-13.5mm motorised vari-focal lens is adjusted from a compatible Dahua XVR, so you can fine-tune the view after installation.
Does it record audio?Yes, it has a built-in microphone that sends audio over the same coax cable.
How far does the IR reach?Smart IR illuminates up to 60m, and the Starlight sensor keeps detail under low ambient light.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 1 × 6MP TiOC 3.0 + 1 × 6MP Smart Dual-Light · 4CH / 8CH / AcuPick NVR
TiOC + Dual Light
Dahua 2 × 6MP 24/7 Full-Colour CCTV Kit — 1 × TiOC 3.0 Active Deterrence + 1 × Smart Dual-Light + 4CH, 8CH or AcuPick AI NVR
A compact 2-camera 6MP (3K) starter kit with room to grow. The 1 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turret fires a siren, red/blue strobe and two-way voice warning when WizSense AI detects a person or vehicle at your front entry, while the 1 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turret films in true full colour 24/7. Choose your recorder: the 4-channel NVR4104 (Quick Pick), the 8-channel NVR4108 (Quick Pick, 6 spare PoE ports to expand), or the 8-channel AcuPick NVR5208 for attribute smart search — find a person or vehicle by colour, clothing and direction. The TiOC camera is AcuPick-native.
Cameras
1 × TiOC + 1 × Dual Light
Recorder
4CH · 8CH · AcuPick
Resolution
6MP · 3K Full Colour
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
1 × TiOC 3.0 — Deter at the Entry
Place the TiOC camera at your front door or driveway. When WizSense AI detects a person or vehicle it fires a siren, red/blue strobe and two-way voice warning — most intruders leave before they've taken a step.
1 × Smart Dual-Light — 24/7 Full Colour
The Dual-Light turret runs invisible IR until WizSense classifies a target, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — only real events reach your phone.
Your Choice of NVR
Pick the 4-channel NVR4104 (2 spare ports), the 8-channel NVR4108 (6 spare ports to expand), or the AcuPick NVR5208 for attribute smart search. All are WizSense AI NVRs with free DMSS remote viewing.
What's Included
1 × TiOC Camera
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67.
1 × Dual-Light Camera
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light, built-in mic, SMD 4.0, IP67.
1 × Recorder (your choice)
4CH Quick Pick — DHI-NVR4104HS-P-AI/ANZ (4 PoE, 2 spare).8CH Quick Pick — DHI-NVR4108HS-8P-AI/ANZ (8 PoE, 6 spare).8CH AcuPick — DHI-NVR5208-8P-AI/ANZ (8 PoE, 2 SATA bays, attribute search).
Power
4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data. Network cabling is not included; Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB covers two 6MP cameras for many weeks.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3667EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
Which NVR should I choose?The 4-Channel NVR4104 (Quick Pick) suits this two-camera kit. The 8-Channel NVR4108 (Quick Pick) adds 6 spare PoE ports to expand. The 8-Channel AcuPick NVR5208 adds full attribute search — find a person or vehicle by colour, clothing and direction. The TiOC camera is AcuPick-native.
What's the difference between the two cameras?The TiOC camera adds active deterrence — a siren, red/blue strobe and two-way voice warning — ideal at the front entry. The Dual-Light camera gives continuous full-colour coverage. Both are 6MP.
Can I add more cameras later?Yes — the 4-channel NVR4104 leaves 2 spare PoE ports; the 8-channel options (NVR4108 or AcuPick NVR5208) leave 6 spare ports for future cameras.
Do both cameras record in colour at night?Yes — both use a warm-light illuminator for 24/7 full colour, with a selectable IR-only mode if you prefer black-and-white at night.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. ~2 TB covers two 6MP cameras for many weeks on motion-only.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 4 × 6MP TiOC 3.0 · 4CH, 8CH or AcuPick NVR
4× TiOC Full Colour
Dahua 4 × 6MP TiOC 3.0 Full-Colour CCTV Kit — Active Deterrence, Two-Way Audio + 4CH, 8CH or AcuPick NVR
This Dahua 4-camera 6MP (3K) TiOC 3.0 kit doesn't just record — it actively warns intruders off. Each DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turret fires a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, and films in true full colour around the clock. Choose the compact 4-channel NVR, the 8-channel NVR (Quick Pick) for extra ports, or step up to the 8-channel AcuPick NVR for full attribute search and spare ports to grow.
Cameras
4 × 6MP TiOC 3.0
Recorder
4CH · 8CH · AcuPick
Resolution
6MP · 3K Full Colour
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
Dual illuminators (IR 30 m + warm light 30 m) deliver true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — so only real events reach your phone.
Your Choice of NVR
Pick the 4-channel NVR4104 or 8-channel NVR4108 for a tidy Quick-Pick system, or step up to the 8-channel AcuPick NVR5208 to search recorded footage by appearance — colour, clothing and direction — plus face detection and spare PoE ports to expand.
What's Included
4 × TiOC Cameras
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black.
1 × Recorder
Your choice: DHI-NVR4104HS-P-AI/ANZ (4CH, Quick Pick), the DHI-NVR4108HS-8P-AI/ANZ (8CH, Quick Pick, 8 PoE) or the DHI-NVR5208-8P-AI/ANZ (8CH AcuPick, 2 HDD bays, face detection, 4 spare PoE ports).
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
HDD not included. The 4CH and 8CH Quick-Pick NVRs have 1 SATA bay (up to 10 TB); the AcuPick NVR has 2 bays (up to 16 TB each). Add a surveillance-grade Seagate SkyHawk or WD Purple drive.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Cameras available in white or black.
Best For
Homes & townhouses
Active deterrence at every entry — front, back, drive and side gate — in full colour.
Shops & cafes
Visible siren and strobe deter shoplifters; full colour captures faces at the counter.
Driveways & entries
Two-way audio lets you warn off trespassers or greet visitors from your phone.
Small offices
Choose the AcuPick NVR for face detection and fast attribute search.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
Warehouses (compact)
Deterrence at the roller door plus full-colour coverage of the immediate yard.
TiOC 3.0 Camera — DH-IPC-HDW3649H-AS-PV-ANZ-S2 (×4)
Camera Type
6MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Image Sensor
1/2.7" CMOS
Max. Resolution
6MP · 3072 × 2048 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with AcuPick NVR) · Perimeter Protection
Edge Storage
MicroSD up to 256 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: position each TiOC camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›AcuPick: choose the 8CH AcuPick NVR for full attribute search — the 4CH and 8CH Quick-Pick NVRs still give Quick Pick target search.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
Which NVR should I choose?The 4CH NVR4104 and 8CH NVR4108 are tidy, affordable Quick-Pick recorders — pick the 8CH if you want spare ports to add cameras later. The 8CH AcuPick NVR5208 adds full attribute search, face detection and 2 HDD bays — choose it if you want AcuPick smart search.
Why is this called 3K?6MP (3072 × 2048) sits between 1080p and 4K — commonly marketed as 3K. More detail than 1080p, lower storage and bandwidth than 4K.
Do the cameras record in colour at night?Yes — warm-light illuminators give 24/7 full colour. You can switch to IR-only mode for discreet black-and-white at night if you prefer no visible light.
Does a hard drive come included?No — add a surveillance-grade drive sized to your retention. For 4 × 6MP on motion-only, ~2 TB gives roughly 2–3 weeks; choose more for continuous recording.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 1 × TiOC 3.0 + 3 × Smart Dual-Light · 6MP · 4CH/8CH AcuPick NVR
TiOC + Dual Light
Dahua 4 × 6MP 24/7 Full-Colour CCTV Kit — 1 × TiOC 3.0 Active Deterrence + 3 × Smart Dual-Light + 4CH, 8CH or AcuPick NVR
This Dahua 4-camera 6MP (3K) kit puts active deterrence at your main entry and full-colour coverage everywhere else: 1 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turret fires a siren, red/blue strobe and two-way voice warning when WizSense AI detects a person or vehicle, while 3 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets film in true full colour 24/7. All four run SMD 4.0 AI on your choice of recorder: the 4-channel NVR4104 (Quick Pick), the 8-channel NVR4108 (Quick Pick, with 4 spare PoE ports to expand), or the 8-channel AcuPick NVR5208 for full attribute search.
Cameras
1 × TiOC + 3 × Dual Light
Recorder
4CH or 8CH AcuPick
Resolution
6MP · 3K Full Colour
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
1 × TiOC 3.0 — Deter at the Entry
Place the TiOC camera at your busiest entry. When WizSense AI detects a person or vehicle it fires a siren, red/blue strobe and a two-way voice warning — most intruders leave before they've taken a step.
3 × Smart Dual-Light — 24/7 Full Colour
The Dual-Light turrets run invisible IR until WizSense classifies a target, then flip to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — only real events reach your phone.
Your Choice of NVR
Pick the standard 4-channel NVR4104 for a tidy Quick-Pick system, step up to the 8-channel NVR4108 for the same Quick Pick search plus 4 spare PoE ports to expand, or choose the 8-channel AcuPick NVR5208 for full attribute search and face detection. This kit's cameras are AcuPick-native, so the NVR5208 unlocks true AcuPick search — plus 2 HDD bays and 4 spare PoE ports to expand.
What's Included
1 × TiOC Camera
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black.
3 × Dual-Light Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm F1.4, IR 30 m + warm light, built-in mic, SMD 4.0, IP67. Full-colour coverage for the rest of the property.
1 × Recorder
Your choice: DHI-NVR4104HS-P-AI/ANZ (4CH, Quick Pick, 1 SATA bay), the DHI-NVR4108HS-8P-AI/ANZ (8CH, Quick Pick, 4 spare PoE ports, 1 SATA bay) or the DHI-NVR5208-8P-AI/ANZ (8CH 5-Series AcuPick, full attribute search, face detection, 2 SATA bays). All three are WizSense AI NVRs with built-in PoE.
Power
4 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data. Network cabling is not included; Cat6 patch leads are available separately.
Storage
1 SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 6MP cameras for around 3 weeks on motion-only.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
AcuPick — quick, accurate video search — Dahua ANZ (official)
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3667EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the standard and AcuPick NVR?The 4-channel NVR4104 and 8-channel NVR4108 both give Quick Pick target search — the 8-channel NVR4108 adds 4 spare PoE ports to expand. The 8-channel AcuPick NVR5208 unlocks full attribute search — find a person or vehicle by colour, clothing and direction — plus face detection, 2 HDD bays and room to add more cameras.
What's the difference between the TiOC and Dual-Light cameras?The TiOC camera adds active deterrence — a siren, red/blue strobe and two-way voice warning. The 3 Dual-Light cameras give continuous full-colour coverage. All four are 6MP.
Why is this called 3K?6MP (3072 × 2048) sits between 1080p and 4K — commonly marketed as 3K. More detail than 1080p, lower storage than 4K.
Do all cameras record in colour at night?Yes — all four use a warm-light illuminator for 24/7 full colour, with a selectable IR-only mode.
Does a hard drive come included?No — the NVR has one SATA bay (up to 10 TB) but ships without storage. ~2 TB gives roughly 3 weeks on motion-only for four 6MP cameras.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
TiOC PRO · WizColor · 8 MP 4K · AcuPick · Motorised
Dahua 8MP 4K TiOC Turret
Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ — 8 MP 4K TiOC PRO WizColor AcuPick Motorised Vari-focal Eyeball Turret WizSense Network Camera (3849 PRO Series)
The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ is the top-of-tier TiOC PRO turret in the 3849 series — combining Dahua's brightest F1.2 large-aperture WizColor lens with motorised 2.7–12 mm vari-focal optics, full 8 MP 4K (3840 × 2160) imaging, native AcuPick attribute search, and the complete TiOC PRO active-deterrence stack (red/blue strobe, 110 dB built-in siren, dual-mic two-way talk). The 1/1.8" CMOS Starlight sensor pulls usable colour down to 0.0006 lux through the F1.2 aperture. The motorised vari-focal range covers 112° wide down to a 48° tight pull, with smart dual-light (50 m IR + 50 m warm light) handing off the moment WizSense classifies a target. WDR is 120 dB; the housing is IP67 sealed; power is 12 VDC or PoE+ (802.3at) with 13.8 W peak draw. Edge AcuPick lets a paired Dahua 5-Series AcuPick NVR search recorded footage by colour, top/bottom clothing, vehicle type and direction. Built for Australian premium residential, commercial frontage, school grounds, NDIS sites, council reserves and retail back-of-house. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller.
Optical Zoom
2.7–12 mm Motorised
Resolution
8 MP 4K @ 25/30 fps
F1.2 WizColor
0.0006 lux Colour
AI Engine
WizSense 3 + AcuPick
Active Deterrence
TiOC PRO · 110 dB Siren
Power
PoE+ 802.3at / 12 VDC
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
See the Dahua TiOC PRO Active Deterrence Platform in Action
Dahua's official TiOC PRO highlight — the same active-deterrence platform that runs on the HDW3849H-ZAS-PV-PRO-ANZ. Red/blue strobe lighting, a 110 dB audible siren, dual-mic two-way talk and WizSense human/vehicle classification working together to challenge intruders the moment they're detected.
Why Choose the Dahua HDW3849H-ZAS-PV-PRO-ANZ TiOC PRO Turret
F1.2 WizColor — Brightest Lens in Class
The 2.7–12 mm motorised vari-focal lens opens to F1.2 — a stop and a half wider than the standard 3849 series. Combined with the 1/1.8" CMOS Starlight sensor, the camera captures 0.0006 lux colour at the wide end. Real-world result: usable full-colour evidence at twilight and under moonlight.
True 8 MP 4K Detail
The 1/1.8" CMOS captures a native 3840 × 2160 raster — four times the pixel density of 1080p. Combined with the motorised tele setting and AcuPick attribute search, faces, number plates and signage stay readable across the camera's full hemisphere.
Re-Frame Remotely via DMSS App
The motorised 2.7–12 mm vari-focal is fully app-controllable. Re-frame the scene from anywhere with internet — no ladder visits, no tradesperson callout.
TiOC PRO — Built-In 110 dB Siren
Most active-deterrence cameras integrate an external speaker amplifier. The HDW3849H-ZAS-PV-PRO has the speaker built into the housing — peaking at 110 dB at 10 cm. Combined with red/blue strobe and dual-mic two-way talk, this is the loudest TiOC PRO package in Dahua's WizSense 3 catalogue.
AcuPick Attribute Search Native
Paired with a Dahua 5-Series AcuPick NVR, the camera lets you search hours of recorded video by attributes — "red top, white sedan, walking east" — and pull matching clips in seconds.
Smart Dual Light — 50 m IR + 50 m Warm
4 multi-core LEDs deliver the longest dual-light reach in the 3849 family. The camera runs invisible IR after dark until WizSense classifies a person or vehicle, then the warm-light array switches on the target.
Important Install Note — PoE+ Required
This camera draws up to 13.8 W on PoE. It requires 802.3at PoE+, not standard 802.3af, or a local 12 VDC supply. For coastal or humid Australian installs, pair with the DH-PFA137 in-ceiling junction box. Network: 100 Base-T RJ-45.
AI & Smart Detection Capabilities
WizSense 3 Edge AI
Independent AI chip running Dahua's latest deep-learning algorithms for human and vehicle classification.
AcuPick Attribute Search
Deep-learning attribute matching across people and vehicles when paired with a compatible Dahua 5-Series AcuPick NVR.
Face Detection (Full Image)
Face-detection mode supports full-image face capture across the scene.
Perimeter Protection (IVS)
Tripwire, intrusion, stay detection, loitering detection — all with human-and-vehicle classification.
SMD 4.0 Smart Motion
Smart Motion Detection 4.0 filters wind-blown branches, possums on fences, shadows and small animals at the edge.
Two-Way Talk — Dual Mic + 110 dB Speaker
The dual built-in microphone array supports clearer two-way audio, and the 110 dB built-in speaker means you can challenge intruders without an external amplifier.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ
Form Factor
Eyeball turret (HDW chassis)
Image Sensor
1/1.8" CMOS (Starlight)
Maximum Resolution
3840 × 2160 (8 MP 4K)
Minimum Illumination
0.0006 lux @ F1.2 (Colour) · 0.0003 lux @ F1.2 (B/W) · 0 lux (illuminator on)
S/N Ratio
> 56 dB
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
WizColor
Yes (F1.2 large-aperture full-colour low-light)
Lens & Illumination
Lens Type
Motorised vari-focal
Focal Length
2.7 mm – 12 mm
Maximum Aperture
F1.2 (WizColor)
Field of View
H: 112° – 48° · V: 58° – 27° · D: 137° – 55°
IR Illumination
Up to 50 m
Warm Light Illumination
Up to 50 m
Illuminator Configuration
4 × multi-core LEDs (IR + warm light)
Intelligence, Active Deterrence & Video
AI Engine
WizSense 3 (TiOC PRO platform · AcuPick-native)
IVS — Perimeter Protection
Tripwire · intrusion · stay detection · loitering · face detection · human + vehicle classification
Smart Motion Detection
SMD 4.0
AcuPick
Yes (with compatible Dahua AcuPick NVR)
Active Deterrence — Light
Red & blue strobe warning
Active Deterrence — Sound
Built-in speaker, max 110 dB at 10 cm
Video Compression
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG
Main Stream
3840 × 2160 @ 1 – 25/30 fps
Audio, Alarm & Network
Built-in Microphone
Yes — dual mic
Built-in Speaker
Yes — max 110 dB at 10 cm · 2 W max
Two-Way Talk
Yes (via DMSS app)
Alarm Input / Output
1 in / 1 out
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
FTP · SFTP · NAS · Micro SD card up to 512 GB
Mobile Client
DMSS (iOS / Android)
Power, Environment & Build
Power Supply
12 VDC / PoE+ (IEEE 802.3at)
Power Consumption (Max.)
11.3 W (12 VDC) · 13.8 W (PoE+)
Operating Temperature
–30 °C to +60 °C
Protection Rating
IP67
Product Dimensions
127.6 mm × Φ122.0 mm
Net Weight
0.94 kg
Australian Warranty
3 Years (via CCTV Guru)
Recommended AcuPick NVR Pairings
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE+ ports · 2 HDD bays. View →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports · 2 HDD bays. View →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports. View →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays. View →
Frequently Asked Questions
What does "TiOC PRO" mean?
TiOC stands for "Three-in-One Camera" — combining 24/7 video surveillance, real-time AI alarms and active deterrence. TiOC PRO adds WizColor F1.2 optics, longer-reach Smart Dual Light, dual built-in microphones and a 110 dB built-in speaker.
What does "WizColor" mean?
WizColor pairs an F1.0/F1.2 lens with a 1/1.8" or larger Starlight CMOS for class-leading full-colour low-light. This camera's 0.0006 lux colour minimum is the practical advantage.
Does it include AcuPick attribute search?
Yes — built into the WizSense 3 firmware. To search recorded footage by attributes you must record to a compatible Dahua 5-Series AcuPick NVR running V5 firmware.
Does it require PoE+ or will standard PoE work?
PoE+ (IEEE 802.3at) is required. The camera draws up to 13.8 W. Use an 802.3at PoE+ switch or a local 12 VDC supply.
Can I re-frame the camera after install without a ladder?
Yes — the 2.7 – 12 mm vari-focal lens is motorised and fully controllable from the DMSS mobile app.
How loud is the built-in siren?
Maximum 110 dB at 10 cm. Volume and play count are configurable via the DMSS app.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T. Note AcuPick attribute search and SMD 4.0 alarm push work end-to-end only on Dahua AI NVRs.
Can I view the camera live on my phone?
Yes — via Dahua's free DMSS app on iOS and Android.
Downloads
DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ Datasheet
Dahua IP Turret Camera Installation Guide
Dahua Camera Installation Method
Order Your Dahua HDW3849H-ZAS-PV-PRO-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing or NVR compatibility check. We are authorised Australian Dahua resellers and back every 3849 PRO series camera with a 3-year Australian warranty and Australian-based tech support. Contact us via cctvguru.com.au/pages/contact.
Dahua WizSense · 16 × 5MP AI Starlight · 16CH 4K NVR
16 × 5MP Kit
Dahua 16 × 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR
The Dahua 16-Camera 5MP AI CCTV Kit is a complete, fully-populated 16-channel system for larger Australian homes, offices, warehouses, industrial yards and multi-tenant retail. It pairs sixteen DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Starlight turret cameras with a DHI-NVR4216-16P-AI/ANZ 16-channel 4K NVR. The kit ships without a hard drive — add the surveillance drive that suits your retention needs from the storage selector below. Every one of the NVR's 16 built-in PoE ports is used — each camera powered and connected over a single Cat6 run, for maximum coverage with no spare channels left idle.
Cameras
16 × 5MP AI Starlight
Recorder
16CH 4K NVR · 16 PoE
Night Vision
30 m Smart IR + Starlight
Storage
Add HDD Below
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
5MP Starlight Low-Light Imaging
A 1/2.7" Starlight sensor with 120 dB WDR captures clear, low-noise colour in very low light. In full darkness, Smart IR to 30 m takes over for crisp black-and-white footage.
WizSense AI — SMD 4.0
Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video back to the NVR's 16 built-in PoE ports — no separate power supplies, no extra PoE switch, commissioning in minutes.
Full 16-Channel Coverage
A complete 16-camera system with dual SATA bays ready for the surveillance drive of your choice. Every channel is used for maximum site coverage.
What's Included
16 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense AI Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense NVR with 16 built-in PoE ports, dual SATA bays, 4K HDMI/VGA output and DMSS remote access.
Storage
Ships without a hard drive. Add a surveillance-grade Seagate SkyHawk or WD Purple drive from the storage selector below (2 SATA bays, up to 16 TB per bay / 32 TB total). For a full 16-camera system we'd suggest an 8–16 TB drive for longer retention.
Power
16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Large residential estates
Driveways, gates, fence lines and outdoor blind spots across multi-storey homes.
Warehouses & distribution
Loading docks, racking aisles, logistics offices, fire exits and equipment yards.
Commercial offices
Multiple floors, reception halls, lift lobbies, server rooms and basement parking.
Supermarkets & retail
Aisles, POS registers, stockrooms, high-theft corridors and entrance zones.
Car parks & yards
Person and vehicle AI detection with usable detail across large open areas.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ
Camera Type
5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
5MP · 2592 × 1944
Streams
Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR
True 120 dB hardware WDR
AI Functions
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio
Built-in microphone · G.711a / G.711mu / G.726
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection
IP67 · cast-aluminium housing
Dimensions
Ø121.9 × 99.1 mm · ~500 g
Compliance
RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DHI-NVR4216-16P-AI/ANZ
Channels
16 IP channels · up to 16 MP input
Bandwidth
256 Mbps incoming / recording / outgoing
PoE
16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage
2 × SATA III (up to 16 TB per bay) · no HDD included
Video Output
1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions
Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App
DMSS (iOS & Android) · P2P · ONVIF 21.12
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage & NVR placement: for 16 cameras consider an 8–16 TB drive, and mount the recorder in a cool, dust-free, ventilated spot for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
DHI-NVR4216-16P-AI/ANZ Datasheet
Dahua Camera Quick Start Guide
Does this kit include a hard drive?No — the kit ships without a drive so you can size storage to your site. Add a surveillance-grade Seagate SkyHawk or WD Purple HDD from the storage selector below and we'll fit it before dispatch.
How much storage do I need for 16 cameras?For continuous 24/7 recording across all 16 cameras we'd suggest 8–16 TB. The NVR takes up to 16 TB per bay (32 TB total), so you can fit one or two drives — add the drive you need from the storage selector below.
Are these official Australian-stock models?Yes. Every component is genuine Dahua ANZ stock with regional firmware and a local Australian warranty backed by CCTV Guru — not grey import.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera. Cat6 cabling is run on site and not included.
Can I add more than 16 cameras later?This kit uses all 16 channels. To go beyond 16 cameras you'd move to a 32-channel NVR (and a PoE switch for the extra cameras) — our team can spec the right upgrade.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua AcuPick · 8MP Smart Dual-Light · 8CH AcuPick AI NVR · 2–8 Cameras
AcuPick Dual Light
Dahua AcuPick Full-Colour CCTV Kit — 2–8 × 8MP Smart Dual-Light Turrets + 8-Channel AcuPick AI NVR
A scalable 8MP (4K) full-colour AcuPick system — choose anywhere from 2 to 8 cameras from the dropdown. Each DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turret films in true full colour 24/7, and the included DHI-NVR5208-8P-AI/ANZ AcuPick NVR lets you search recorded footage by appearance — find a person or vehicle by colour, clothing and direction across hours of footage in seconds. Eight PoE ports and two HDD bays mean room to grow.
Cameras
2–8 × 8MP Dual-Light
Recorder
8CH AcuPick · 8 PoE
Resolution
8MP · 4K 3840×2160
AI Search
Full AcuPick
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
Full AcuPick — Search by Appearance
The NVR5208 AcuPick NVR lets you select a person or vehicle from any snapshot and instantly find every matching clip across all cameras — by clothing colour, vehicle type and direction. No scrubbing the timeline.
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights.
Scalable 2–8 Cameras
Pick the camera count that suits your site. The 8-channel NVR has 8 PoE ports and two HDD bays, so you can start small and add cameras later.
What's Included
2–8 × Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light 30 m, built-in mic, SMD 4.0, AcuPick-native, IP67. Choose 2 to 8 from the dropdown.
1 × AcuPick Recorder
DHI-NVR5208-8P-AI/ANZ — 8-channel 5-Series AcuPick AI NVR, 8 built-in PoE ports, 2 SATA bays, full AcuPick attribute search, face detection, supports up to 32 MP, DMSS remote access.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
2 SATA bays (HDD up to 16 TB each) — not included. Add surveillance-grade Seagate SkyHawk or WD Purple drives sized to your camera count and retention needs.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes wanting room to grow
Start with 2–4 cameras and add more later on the spare PoE ports.
Retail & hospitality
AcuPick finds a shoplifter or vehicle across the whole system in seconds.
Warehouses & yards
Full-colour coverage of open areas; AcuPick vehicle search for deliveries and incidents.
Offices & commercial
Face detection and attribute search for access review and investigations.
Schools & childcare
24/7 colour footage and fast AcuPick review for duty-of-care incidents.
Strata & multi-tenant
Cover shared entries and car parks; scale camera count to the building.
Smart Dual-Light Camera — DH-IPC-HDW3867EM-S-IL-ANZ
Camera Type
8MP 4K Smart Dual-Light Turret WizSense Network Camera
Max. Resolution
3840 × 2160 (8MP / 4K) @ 20 fps
Lens
Fixed 2.8 mm · 105° horizontal FOV
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
AI
SMD 4.0 · AcuPick (native) · IVS (Tripwire, Intrusion)
Audio
Built-in microphone
Edge Storage
MicroSD up to 512 GB
Power / Ingress
PoE 802.3af · 12 VDC · IP67
Warranty (Australia)
3 years · CCTV Guru Australia
AcuPick NVR — DHI-NVR5208-8P-AI/ANZ
Channels
8 IP channels · supports up to 32 MP
Built-in PoE
8 × PoE ports (802.3af/at)
AcuPick
Full support — search by person/vehicle appearance
AI
Face detection & recognition · SMD+ · perimeter protection · ANPR
HDD Bays
2 × SATA (up to 16 TB each)
Bandwidth
384 Mbps incoming · N+M cluster · iSCSI
Output / Remote
4K HDMI + VGA · DMSS app (AcuPick search in app)
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Choose your camera count: select 2 to 8 cameras from the dropdown — the NVR has 8 PoE ports so you can add more later.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape.
›AcuPick: record to the NVR5208 to use full attribute search — it's built into the camera and NVR firmware.
Set It Up — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3867EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is AcuPick?AcuPick is Dahua's AI footage-search engine. Select a person or vehicle from any snapshot and the NVR finds every matching clip across all cameras — by clothing colour, vehicle type and direction — in seconds. This kit includes the AcuPick NVR5208, so it's fully supported.
How many cameras do I get?Whatever you choose from the dropdown — 2 to 8 cameras, all 8MP Smart Dual-Light turrets, with the same 8-channel AcuPick NVR.
Do the cameras record in colour at night?Yes — full colour 24/7 via the warm-light array. They can also switch to IR-only mode for discreet black-and-white at night.
Does a hard drive come included?No — the NVR has two SATA bays (up to 16 TB each) but ships without storage. Size your drive(s) to your camera count and retention needs — ask our team.
Can I add more cameras later?Yes — the NVR has 8 PoE ports, so if you start with fewer cameras you can add more up to 8 without a new recorder.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 1 × TiOC 3.0 + 3 × Smart Dual-Light · 8MP · 4CH/8CH AcuPick NVR
TiOC + Dual Light
Dahua 4 × 8MP 24/7 Full-Colour CCTV Kit — 1 × TiOC 3.0 Active Deterrence + 3 × Smart Dual-Light + 4-Channel, 8-Channel or AcuPick AI NVR
This Dahua 4-camera 8MP (4K) kit puts active deterrence at your main entry and full-colour coverage everywhere else: 1 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turret fires a siren, red/blue strobe and two-way voice warning when WizSense AI detects a person or vehicle, while 3 × DH-IPC-HDW3867EM-S-IL-ANZ Smart Dual-Light turrets film in true full colour 24/7. All four are 8MP 4K with SMD 4.0 AI. Choose your recorder: the 4-Channel NVR4104 (Quick Pick) for fast target search on a tidy four-camera install, the 8-Channel NVR4108 (Quick Pick) for the same fast search with 4 spare PoE ports to expand, or step up to the 8-Channel AcuPick NVR5208 for full attribute search (search by clothing colour, vehicle type and more) plus 4 spare PoE ports to expand later.
Cameras
1 × TiOC + 3 × Dual Light
Recorder
4CH or 8CH AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren (TiOC)
Night Vision
24/7 Full Colour
Weatherproof
IP67 Rated
1 × TiOC 3.0 — Deter at the Entry
Place the TiOC camera at your busiest entry. When WizSense AI detects a person or vehicle it fires a siren, red/blue strobe and a two-way voice warning — most intruders leave before they've taken a step.
3 × Smart Dual-Light — 24/7 Full Colour
The Dual-Light turrets run invisible IR until WizSense classifies a target, then flip to warm white light for full-colour evidence — capturing clothing and vehicle colour that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights.
Your Choice of NVR — Quick Pick or AcuPick
The 4-Channel NVR4104 gives fast Quick Pick target search on a compact fanless recorder. The 8-Channel NVR4108 keeps that Quick Pick search and adds 4 spare PoE ports to grow the system. Step up to the 8-Channel AcuPick NVR5208 for full attribute search — find a person or vehicle by colour and type in seconds — plus 4 spare PoE ports to grow the system.
What's Included
1 × TiOC Camera
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators, SMD 4.0, IP67.
3 × Dual-Light Cameras
DH-IPC-HDW3867EM-S-IL-ANZ — 8MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light, built-in mic, IP67. Full-colour coverage for the rest of the property.
1 × Recorder (your choice)
Standard (4CH): DHI-NVR4104HS-P-AI/ANZ — 4-channel 4K WizSense AI NVR, 4 built-in PoE, 1 SATA bay, Quick Pick.Standard (8CH): DHI-NVR4108HS-8P-AI/ANZ — 8-channel 4K WizSense AI NVR, 8 PoE (4 spare), 1 SATA bay, Quick Pick.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8-channel AcuPick AI NVR, 8 PoE, 2 SATA bays, attribute smart search, 4 spare channels to expand.
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is not included; Cat6 patch leads are available separately.
Storage
SATA bay (HDD up to 10 TB) — not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB suits four 8MP cameras for around 2–3 weeks on motion-only.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Cameras at a Glance
TiOC 3.0 (×1)
DH-IPC-HDW3849H-AS-PV-ANZ-S2 · 8MP 3840×2160 · IR 30 m + warm 30 m · siren + strobe + two-way talk · SMD 4.0 · IP67
Dual-Light (×3)
DH-IPC-HDW3867EM-S-IL-ANZ · 8MP 3840×2160 · IR 30 m + warm 30 m · full-colour 24/7 · built-in mic · SMD 4.0 · IP67
Recorder options
4CH NVR4104 (Quick Pick, 4 PoE), 8CH NVR4108 (Quick Pick, 8 PoE / 4 spare) or 8CH AcuPick NVR5208 (attribute search, 8 PoE, 2 bays)
Warranty
3 years · CCTV Guru Australia
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera to your NVR — Dahua Technology (official)
AcuPick — quick, accurate video search — Dahua ANZ (official)
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3867EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the standard and AcuPick NVR?The 4-Channel NVR4104 and 8-Channel NVR4108 both do fast on-recorder Quick Pick target search — the 8-Channel NVR4108 adds 8 PoE ports (4 spare) to expand. The 8-Channel AcuPick NVR5208 adds full attribute search — find a person or vehicle by clothing colour, type and direction in seconds — and has 8 PoE ports (4 spare) plus a second drive bay to expand.
What's the difference between the TiOC and Dual-Light cameras?The TiOC camera adds active deterrence — a siren, red/blue strobe and two-way voice warning. The 3 Dual-Light cameras give continuous full-colour coverage. All four are 8MP 4K.
Do all cameras record in colour at night?Yes — all four use a warm-light illuminator for 24/7 full colour, with a selectable IR-only mode if you prefer discreet black-and-white at night.
Does a hard drive come included?No — the NVR ships without storage. ~2 TB gives roughly 2–3 weeks on motion-only for four 8MP cameras; the AcuPick NVR5208 takes two drives for longer retention.
Can I add more cameras later?Yes — both 8-Channel options (the Standard NVR4108 Quick Pick and the AcuPick NVR5208) have 8 PoE ports with 4 spare, so you can add up to 4 more cameras; the AcuPick NVR5208 also adds attribute smart search. The 4-Channel NVR4104 option uses all 4 ports.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 4 × TiOC · 6 × Smart Dual-Light · 16CH AI NVR — Standard or AcuPick
TiOC + Dual Light
Dahua 6MP 16-Channel CCTV Kit — 4 × TiOC Active Deterrence + 6 × Smart Dual-Light + 16CH AI NVR
This Dahua 10-camera 6MP kit blends two camera types for a smarter security strategy: 4 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC active-deterrence turrets that don't just record but actively scare intruders off with red/blue strobe, a siren and two-way talk-down — placed at gates, driveways and entries — plus 6 × DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turrets for true full-colour coverage everywhere else. All ten run on a 16-channel WizSense AI NVR with 6 channels still free to expand. Every camera shoots 6MP full colour day and night. Both recorder options are 16-channel AI NVRs — the difference is search. The standard Standard AI NVR (NVR4216-16P) gives fast Quick Pick target search; the AcuPick AI NVR (NVR5216-16P) adds full AcuPick attribute search — find a person or vehicle by clothing colour, vehicle type and direction across hours of footage. The TiOC and Dual-Light cameras are AcuPick-native, so the 5216 unlocks their full forensic-search potential.
Cameras
4 × TiOC + 6 × Dual Light
Recorder
16CH AI NVR · Standard or AcuPick
Night Vision
30 m IR + Full Colour
Active Deterrence
Strobe + Siren (TiOC)
Audio
Two-Way Talk + Mic
Weatherproof
IP67 Rated
4 × TiOC — Deter, Don't Just Record
When WizSense AI spots a person or vehicle in a protected zone, the TiOC cameras fire red/blue strobe lighting and an audible siren, and let you talk down the intruder live through the DMSS app — stopping the break-in instead of just filming it.
6 × Smart Dual-Light Full Colour
The Smart Dual-Light turrets run silent 30 m IR by night, then snap a warm white LED on the instant AI detects activity — recording full-colour, evidence-grade footage of faces, clothing and number plates.
WizSense AI On Every Camera
SMD 4.0 and Perimeter Protection classify people and vehicles, filtering out animals, foliage and shadows — so alarms and active deterrence only fire on real threats, not the neighbour's cat.
16-Channel AI NVR — Standard or AcuPick
All ten cameras plug into the NVR's 16 built-in PoE ports over a single Cat6 cable each — 6 channels still free to grow. Choose the Standard AI NVR (NVR4216 · Quick Pick) or the AcuPick AI NVR (NVR5216 · attribute search). 4K HDMI output and free DMSS remote viewing.
What's Included
4 × TiOC Cameras
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3 active-deterrence turret: red/blue strobe + siren, two-way audio, full-colour Starlight, 140 dB WDR, AcuPick-ready, IP67. Best at gates, doors and driveways.
6 × Turret Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light WizSense turret, 2.8 mm, IR 30 m + warm light, built-in mic, IP67. Full-colour coverage for the rest of the property.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense AI NVR, 16 built-in PoE ports, dual SATA bays, DMSS remote access. 6 spare channels for expansion — or upgrade to DHI-NVR5216-16P-AI/ANZ for AcuPick search.
Power
16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
Dual SATA bays — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive (up to 16 TB per bay, 32 TB total); ~8 TB suits 10 cameras for around a month of continuous recording.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Best For
Larger homes & estates
TiOC deterrence on gates and driveways; full-colour Dual-Light coverage everywhere else.
Retail shopfronts
Strobe, siren and live talk-down at entrances; colour evidence across the shop floor.
Hospitality venues
Deter loitering at entries and car parks while recording full-colour all night.
Depots & yards
Active deterrence on the perimeter line; wide coverage of racking, gates and stock.
NDIS & residential
Configurable alarm volume and two-way audio for safe, low-disturbance deterrence.
Small business
Deter and record in one system, with 6 spare channels to scale up later.
TiOC Camera — DH-IPC-HDW3649H-AS-PV-ANZ-S2 (×4)
Camera Type
6MP TiOC 3 AcuPick Active-Deterrence Full-Colour Starlight Turret (WizSense)
Image Sensor
1/1.8" CMOS Starlight
Max. Resolution
6MP · 3288 × 1850 @ 25/30 fps
Lens
Fixed 2.8 mm · F1.6 · H ~106°
Min. Illumination
0.0015 lux Colour · 0 lux (warm light on)
Smart Dual Light
IR up to 30 m + Warm Light up to 30 m · target-triggered
WDR
140 dB
Active Deterrence
Red & blue strobe + built-in siren/speaker · configurable volume & play count · custom sounds
Audio
Built-in mic + speaker · two-way talk via DMSS
AI
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle) · AcuPick (with compatible NVR)
Alarm I/O
1 in / 1 out
Power
12 VDC / PoE (IEEE 802.3af) · ~10 W max
Ingress / Temp.
IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Turret Camera — DH-IPC-HDW3667EM-S-IL-ANZ (×6)
Camera Type
6MP Smart Dual-Light Fixed-focal Eyeball WizSense Network Camera
Image Sensor
1/2.7" CMOS, progressive scan
Max. Resolution
6MP · 3288 × 1850 @ 25/30 fps
Lens
Fixed 2.8 mm · F1.4 · H 110°
Smart Dual Light
30 m IR + 30 m Warm Light · Multi-core LED · Auto / Manual
WDR
120 dB
AI
WizSense · SMD 4.0 · Perimeter Protection · AcuPick (with compatible NVR)
Audio
Built-in microphone
Power
12 VDC / PoE (IEEE 802.3af) · Max 9.5 W
Ingress / Temp.
IP67 · –40 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 16-Channel AI NVR
Standard AI NVR — NVR4216-16P
16CH 4K WizSense AI NVR · 16 PoE+ ports · 2 SATA bays · Face, IVS/Perimeter, SMD Plus · Quick Pick target search · ONVIF 21.12. 10 channels used, 6 spare.
AcuPick AI NVR — NVR5216-16P
16CH AI NVR · 16 PoE · 2 SATA bays · higher bandwidth · AI by recorder & by camera · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC & Dual-Light cameras are AcuPick-native.
Pick the 5216 if…
You want AcuPick attribute search — find a person or vehicle by colour, clothing, type and direction across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: put the 4 TiOC active-deterrence cameras at entry points (gates, doors, driveways) and the 6 Dual-Light turrets across the rest of the property.
›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set TiOC alarm volume to ~30–50% for residential, and check local audio-recording laws before enabling sound recording.
See It In Action & Set It Up — Official Dahua
TiOC active deterrence in action — Dahua Technology (official)
First-time NVR setup, step by step — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DH-IPC-HDW3667EM-S-IL-ANZ (Dual-Light) Datasheet
DHI-NVR4216-16P-AI/ANZ (16CH) Datasheet
DHI-NVR5216-16P-AI/ANZ (16CH AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What's the difference between the TiOC and turret cameras?The 4 TiOC cameras add active deterrence — red/blue strobe, a siren and two-way talk-down — so they scare intruders off, not just record. The 6 turrets are full-colour Smart Dual-Light cameras for wide everyday coverage.
Which NVR should I choose — 4216 or 5216?Both are 16-channel AI NVRs. The standard NVR4216 gives Quick Pick target search. The NVR5216 adds AcuPick, which lets you search footage by attributes (clothing colour, vehicle type, direction) — and since these TiOC cameras are AcuPick-native, the 5216 unlocks their full forensic-search potential.
Is the alarm too loud for a home?No — the TiOC siren volume is adjustable from 0–100% and the play count from 1–10 per trigger. Most homes run it at 30–50% to challenge intruders without disturbing neighbours.
Can I talk through the cameras?Yes. The 4 TiOC cameras have a built-in mic and speaker for full two-way audio through the free DMSS app — greet a courier or warn off an intruder from anywhere.
Does a hard drive come included?No — the NVR has two SATA bays but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD; around 8 TB suits 10 cameras for roughly a month of recording.
Can I add more cameras later?Yes. The NVR has 16 PoE ports and you're using 10, so you can add up to 6 more cameras by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 6 × 8MP TiOC 3.0 · 8CH NVR4108 or AcuPick NVR5208
6× TiOC + 8CH NVR
Dahua 6 × 8MP TiOC 3.0 Full-Colour CCTV Kit — 8-Channel AI NVR (NVR4108)
This Dahua 6-camera 8MP (4K) TiOC 3.0 kit doesn't just record — it actively warns intruders off. Each of the 6 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 turrets fires a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, and films in true full colour around the clock. Choose your recorder: the standard DHI-NVR4108HS-8P-AI/ANZ (8-channel WizSense AI NVR, Quick Pick target search), or step up to the DHI-NVR5208-8P-AI/ANZ AcuPick NVR for full attribute search — find a person or vehicle by clothing colour, vehicle type and direction. Both have 8 PoE ports and the TiOC cameras are AcuPick-native. Add a surveillance hard drive from the storage selector below to suit your retention needs.
Cameras
6 × 8MP TiOC 3.0
Recorder
8CH · Standard or AcuPick
Resolution
8MP · 4K 3840×2160
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Storage
Add HDD Below
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
A warm-light illuminator delivers true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
8MP 4K · SMD 4.0 AI
3840×2160 on every channel — four times the detail of 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
The standard NVR4108 gives fast Quick Pick target search; the AcuPick NVR5208 adds attribute smart search (find people or vehicles by colour, clothing and direction). Both have 8 PoE ports (2 free). Add a surveillance hard drive from the storage selector below to suit your retention needs.
What's Included
6 × TiOC Cameras
DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black — ask our team.
1 × Recorder (your choice)
Standard: DHI-NVR4108HS-8P-AI/ANZ — 8CH 4K WizSense AI NVR, 8 PoE, Quick Pick target search.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8CH 5-Series AcuPick AI NVR, 8 PoE, 2 SATA bays, attribute smart search. 6 channels used, 2 spare either way.
Storage
Ships without a hard drive. Add a surveillance-grade Seagate SkyHawk or WD Purple drive from the storage selector below (1 SATA bay, up to 10 TB); ~4 TB suits six 8MP cameras for around 2–3 weeks on motion-only.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes & acreage
Active deterrence at every entry, driveway, side gate and yard, in full colour.
Retail & hospitality
Visible siren and strobe deter shoplifters; full colour captures faces at the counter.
Warehouses & yards
Deterrence at loading docks and gates; 8MP detail across large open areas.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
TiOC 3.0 Camera — DH-IPC-HDW3849H-AS-PV-ANZ-S2 (×6)
Camera Type
8MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
8MP · 3840 × 2160 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
WDR / Compression
120 dB WDR · Smart H.265+
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 8-Channel AI NVR
Standard AI NVR — NVR4108
8CH 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · SMD 4.0 · Quick Pick target search. 2 channels spare.
AcuPick AI NVR — NVR5208
8CH 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC cameras are AcuPick-native.
Pick the 5208 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: position each TiOC camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
TiOC active deterrence in action — Dahua Technology (official)
DMSS app & remote viewing overview — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3849H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
How much footage does 4TB hold?Roughly 2–3 weeks for six 8MP cameras on motion-only recording with Smart H.265+. Fit a larger drive for continuous recording or longer retention.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The standard NVR4108 option gives Quick Pick target search. The TiOC cameras are AcuPick-native.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua WizSense · 12 × 5MP AI Starlight · 16CH 4K NVR
12 × 5MP Kit
Dahua 12 × 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR
The Dahua 12-Camera 5MP AI CCTV Kit is a ready-to-install bundle for larger Australian homes, offices, warehouses, industrial yards and multi-tenant retail. It pairs twelve DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Starlight turret cameras with a DHI-NVR4216-16P-AI/ANZ 16-channel 4K NVR. The kit ships without a hard drive — add the surveillance drive that suits your retention needs from the storage selector below. The NVR's 16 built-in PoE ports power and connect every camera over a single Cat6 run — and with 4 channels still free, you can scale to 16 cameras later without replacing the recorder.
Cameras
12 × 5MP AI Starlight
Recorder
16CH 4K NVR · 16 PoE
Night Vision
30 m Smart IR + Starlight
Storage
Add HDD Below
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
5MP Starlight Low-Light Imaging
A 1/2.7" Starlight sensor with 120 dB WDR captures clear, low-noise colour in very low light. In full darkness, Smart IR to 30 m takes over for crisp black-and-white footage.
WizSense AI — SMD 4.0
Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video back to the NVR's 16 built-in PoE ports — no separate power supplies, no extra PoE switch, commissioning in minutes.
Room to Grow
Dual SATA bays ready for the surveillance drive of your choice. Twelve cameras run today with 4 spare channels to scale to 16 later.
What's Included
12 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense AI Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense NVR with 16 built-in PoE ports, dual SATA bays, 4K HDMI/VGA output and DMSS remote access.
Storage
Ships without a hard drive. Add a surveillance-grade Seagate SkyHawk or WD Purple drive from the storage selector below (2 SATA bays, up to 16 TB per bay / 32 TB total); we'd suggest a 6–12 TB drive for twelve cameras.
Power
16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Large residential estates
Driveways, gates, fence lines and outdoor blind spots across multi-storey homes.
Warehouses & distribution
Loading docks, racking aisles, logistics offices, fire exits and equipment yards.
Commercial offices
Multiple floors, reception halls, lift lobbies, server rooms and basement parking.
Supermarkets & retail
Aisles, POS registers, stockrooms, high-theft corridors and entrance zones.
Car parks & yards
Person and vehicle AI detection with usable detail across large open areas.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ
Camera Type
5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
5MP · 2592 × 1944
Streams
Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR
True 120 dB hardware WDR
AI Functions
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio
Built-in microphone · G.711a / G.711mu / G.726
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection
IP67 · cast-aluminium housing
Dimensions
Ø121.9 × 99.1 mm · ~500 g
Compliance
RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DHI-NVR4216-16P-AI/ANZ
Channels
16 IP channels · up to 16 MP input
Bandwidth
256 Mbps incoming / recording / outgoing
PoE
16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage
2 × SATA III (up to 16 TB per bay) · no HDD included
Video Output
1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions
Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App
DMSS (iOS & Android) · P2P · ONVIF 21.12
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage & NVR placement: for 12 cameras consider a 6–12 TB drive, and mount the recorder in a cool, dust-free, ventilated spot for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
DHI-NVR4216-16P-AI/ANZ Datasheet
Dahua Camera Quick Start Guide
Does this kit include a hard drive?No — the kit ships without a drive so you can size storage to your site. Add a surveillance-grade Seagate SkyHawk or WD Purple HDD from the storage selector below and we'll fit it before dispatch.
Can I fit a larger hard drive later?Yes. The NVR has two SATA bays and supports up to 16 TB per bay (32 TB total), so you can add a second drive or upgrade for longer retention at any time.
Are these official Australian-stock models?Yes. Every component is genuine Dahua ANZ stock with regional firmware and a local Australian warranty backed by CCTV Guru — not grey import.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera. Cat6 cabling is run on site and not included.
Can I expand past 12 cameras?Yes. The NVR has 16 PoE ports, so you can add up to 4 more cameras simply by plugging them into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · 10 × 6MP Smart Dual Light · 16CH AI NVR · AcuPick-Ready
10 × 6MP Kit
Dahua 10 × 6MP (3K) Full-Colour CCTV Kit with 16-Channel AI NVR
The Dahua 10 × 6MP (3K) Full-Colour CCTV Kit pairs ten DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turret cameras with a 16-channel WizSense AI NVR for true 24/7 colour surveillance across larger Australian sites — supermarkets, childcare centres, warehouses, offices and factories. Smart Dual Light runs silent 30 m IR by night, then snaps a warm white LED on the instant WizSense AI detects a person or vehicle, capturing full-colour, evidence-grade footage of every incident. Choose the standard NVR4216-16P-AI/ANZ, or step up to the NVR5216-16P-AI/ANZ to unlock AcuPick attribute search.
Cameras
10 × 6MP Smart Dual Light
Recorder
16CH AI NVR · 16 PoE
Night Vision
30 m IR + Full Colour
AI Search
AcuPick-Ready
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
True 24/7 Full Colour
Smart Dual Light blends a 30 m IR illuminator with a 30 m warm-white LED. IR holds the scene at night with minimal light pollution; the warm light triggers on AI detection to record full-colour evidence of faces, clothing and number plates. Prefer no visible light? Switch to IR mode for discreet black-and-white night recording.
WizSense AI On Every Camera
A dedicated deep-learning chip runs SMD 4.0 and Perimeter Protection (tripwire + intrusion) with true human-and-vehicle classification — cutting false alarms from trees, rain, insects and shadows.
AcuPick-Ready Search
Pair the cameras with the 5-Series NVR5216-16P-AI/ANZ to unlock AcuPick — attribute-based search that finds every red car or every person in a hoodie across hours of footage in seconds.
16-Channel PoE Recorder
The 16CH AI NVR ships with 16 built-in PoE ports for true plug-and-play install, dual SATA bays for high-capacity surveillance storage, 4K HDMI output and remote viewing via the DMSS app.
What's Included
10 × Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light WizSense turret, 2.8 mm, IR 30 m, built-in mic, IP67. Each ships with eave/soffit bracket, drill template, screw pack, waterproof RJ-45 connector & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ (16CH AI NVR, 16 PoE) with power adaptor, USB mouse, SATA cables & quick start guide — or upgrade to DHI-NVR5216-16P-AI/ANZ for AcuPick.
Power
16 × PoE+ ports built into the NVR — each camera runs on a single Cat6 network cable that carries both power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Included brackets suit eave/soffit installs. For brick or flush-wall mounting, add a Dahua DH-PFB204W wall-mount bracket per camera; a DH-PFA139 junction box is also available for tidy cable management.
Storage
Dual SATA bays — HDD not included. For ~30 days of 24/7 recording from all 10 cameras (Smart H.265+) fit 2 × 8 TB Seagate SkyHawk or WD Purple; up to 16 TB per bay (32 TB total). Motion-only recording stretches this to 2–3 months.
Warranty
3-Year Australian warranty · local CCTV Guru tech support.
Best For
Supermarkets & grocery
Full-colour faces and number plates across tills, aisles and the loading dock.
Childcare centres
Clear colour coverage of entries, sign-in desks and play areas, day and night.
Offices & reception
Identify visitors and deliveries in colour, with AI alerts triggered after hours.
Warehouses & factories
Wide 110° views of racking, roller doors and yards with vehicle detection.
Retail shopfronts
Deter theft and capture evidence-grade colour footage in any lighting.
Car parks & yards
Person and vehicle AI detection with plate-readable detail over open areas.
Camera Specifications — DH-IPC-HDW3667EM-S-IL-ANZ
Camera Type
6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
Image Sensor
1/2.7" CMOS, progressive scan
Max. Resolution
6MP · 3288 × 1850 @ 25/30 fps
Lens
Fixed-focal 2.8 mm · M12 mount · F1.4
Field of View
H 110° · V 58° · D 132°
DORI
Detect 84.8 m · Observe 33.9 m · Recognise 17.0 m · Identify 8.5 m
Min. Illumination
0.007 lux Colour · 0.0007 lux B/W · 0 lux (illuminator on)
Smart Dual Light
30 m IR + 30 m Warm Light · Multi-core LED · Auto / Manual
WDR / S/N
120 dB WDR · >56 dB S/N
AI Engine
WizSense 3-Series · Dedicated AI chip · Deep-learning
AI Functions
SMD 4.0 · Perimeter Protection (Tripwire, Intrusion — human & vehicle) · AI SSA · Smart Illumination · AcuPick (with compatible NVR)
Compression
H.265 · H.264 · Smart H.265+/H.264+ · AI H.265/H.264 · MJPEG
Audio
Built-in microphone · G.711 / G.726 / G.723 / PCM
Network
RJ-45 10/100 · IPv4/IPv6 · ONVIF Profile S/G/T/M · 802.1x · HTTPS
Storage (edge)
MicroSD up to 512 GB · FTP / SFTP / NAS
Power
12 VDC / PoE (IEEE 802.3af) · Basic 5.3 W · Max 9.5 W
Operating Temp.
–40 °C to +60 °C · ≤95% RH
Ingress Protection
IP67
Software
DMSS · DoLynk Care · Smart PSS Lite · DSS
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 16-Channel AI NVR
NVR4216-16P-AI/ANZ
16CH 4K WizSense AI NVR · 16 PoE+ (130 W) · 2 SATA bays (to 32 TB) · Face, IVS/Perimeter, SMD Plus, ANPR · Quick Pick target search · ONVIF 21.12
NVR5216-16P-AI/ANZ
16CH AI NVR · 16 PoE · 2 SATA bays · 1U · higher bandwidth · AI by recorder & by camera · AcuPick search supported
Pick the 5216 if…
You want AcuPick attribute search and higher recording bandwidth. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›NVR placement: mount the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW3667EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4216-16P-AI/ANZ (16CH) Datasheet
DHI-NVR5216-16P-AI/ANZ (16CH AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
Is this kit really full colour at night?Yes. Smart Dual Light runs IR by default, then switches to a 30 m warm-white LED the moment AI detects a person or vehicle — recording full-colour footage of the event before returning to IR.
Can I turn off the white light at night?Yes. Smart Dual Light has three modes — Smart Dual (IR by default, warm light only on AI detection), full-colour (warm light always on) and IR-only. If you'd rather avoid any visible spotlight, set IR mode and the cameras keep recording clear black-and-white footage at night with no white light at all.
What's the difference between the two NVR options?The NVR4216 is the standard 16CH AI recorder. The NVR5216 adds AcuPick attribute search and higher bandwidth. AcuPick only runs on the 5-Series, so choose the 5216 if fast footage search matters to you.
Does a hard drive come included?No — the NVR has two SATA bays but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD, available as an add-on above.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera.
Can I view it on my phone?Yes. Remote live view, playback and AI alerts are free through the Dahua DMSS app on iOS and Android, plus Smart PSS Lite on desktop.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Clearance. Limited supplier stock, available while stocks last.Dahua Security Camera 4MP WizSense Motorised Starlight Turret, 2.7–13.5 mm, Perimeter, SMD, SD Card, WDR, IR40m, Built-in Mic, IP67, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion , tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDW3466TP-ZS-AUS DatasheetDahua Eyeball Network Camera_Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua WizSense Series · SMD 4.0 AI · Australian Stock
Dahua 6MP WizSense Turret
Dahua DH-IPC-HDW3666TP-ZS-AUS — 6MP Motorised Varifocal Turret Camera
The Dahua DH-IPC-HDW3666TP-ZS-AUS is a high-performance 6MP WizSense AI turret camera purpose-built for Australian commercial, retail, education and government installations where detail, flexibility and intelligent detection are non-negotiable. Powered by a 1/2.7" CMOS sensor and a 2.7–13.5 mm motorised varifocal lens, it delivers crisp 3072 × 2048 resolution across a wide zoom range — all without climbing a ladder to adjust the lens. Dahua's Starlight low-light technology and 40 m Smart IR ensure clear, usable footage around the clock, while the IP67 weatherproof housing handles Australia's harshest outdoor conditions.
As part of the WizSense Series, the DH-IPC-HDW3666TP-ZS-AUS features SMD 4.0 (Smart Motion Detection) and Perimeter Protection — accurately classifying humans and vehicles to slash false alarms from animals, foliage and lighting changes. A built-in microphone, onboard microSD card slot (up to 256 GB) and standard PoE power make it a complete, cost-effective solution for any Australian site.
Resolution
6MP · 3072 × 2048
Lens
2.7–13.5 mm Motorised
Night Vision
40 m Smart IR · Starlight
AI Detection
SMD 4.0 · Perimeter
Protection
IP67 · WDR
Power
PoE 802.3af · 12V DC
Dahua WizSense AI
Australian Stock & Support
3-Year Dahua Warranty
Why Choose the Dahua DH-IPC-HDW3666TP-ZS-AUS in Australia
Australian integrators and security professionals choose the DH-IPC-HDW3666TP-ZS-AUS because it combines the flexibility of a motorised zoom lens with the intelligence of Dahua's WizSense AI platform — all in a robust, weatherproof turret housing. Whether you're covering a large retail car park, a school perimeter, a warehouse loading dock or a residential estate, the 5× optical zoom range means one camera model covers multiple scene types without compromise.
6MP Motorised Varifocal Flexibility
The 2.7–13.5 mm motorised lens lets installers dial in the exact field of view remotely — no physical lens adjustment required. One SKU covers wide-angle entry shots and long-range licence plate capture alike.
SMD 4.0 — Smarter Motion Detection
Smart Motion Detection 4.0 accurately distinguishes humans and vehicles from irrelevant motion (animals, trees, headlights), dramatically reducing false alarms and operator fatigue on Australian sites.
Perimeter Protection AI
Tripwire and intrusion detection with human/vehicle classification deliver actionable alerts — not noise. Ideal for after-hours perimeter monitoring at schools, warehouses and retail centres.
Starlight Low-Light Performance
Dahua's Starlight technology produces vivid colour images in near-darkness — critical for Australian dawn/dusk patrol shifts and poorly lit car parks where colour detail aids identification.
40 m Smart IR Night Vision
Adaptive IR intensity prevents overexposure at close range while maintaining reach to 40 m — delivering clean, usable night footage across driveways, yards and open perimeters.
Built-In Mic + Edge Storage
The integrated microphone captures audio evidence without extra cabling, while the microSD slot (up to 256 GB) provides failover edge recording if the network or NVR goes offline.
Technical Specifications
SKU / Model
DH-IPC-HDW3666TP-ZS-AUS
Camera Type
6MP WizSense Motorised Varifocal Turret Camera
Image Sensor
1/2.7" CMOS
Max Resolution
3072 × 2048 @ 25/30 fps
Lens Type
Motorised Varifocal, 2.7–13.5 mm
IR Distance
40 m Smart IR
Dynamic Range
WDR
Video Compression
H.265 / H.265+ / H.264 / H.264+ / MJPEG
AI Features
SMD 4.0 · Perimeter Protection (Tripwire, Intrusion) · Human & Vehicle Classification
Abnormality Detection
Motion Detection · Privacy Masking · Scene Change · Audio Detection · SD Card Alerts · Network Disconnection · IP Conflict · Illegal Access · Voltage Detection
Audio
Built-in Microphone
Edge Storage
microSD / microSDHC / microSDXC (up to 256 GB)
Weatherproof Rating
IP67
Power Source
12V DC · PoE (IEEE 802.3af)
Colour
White
Warranty
3-Year Dahua Warranty (Australia)
Downloads & Resources
DH-IPC-HDW3666TP-ZS-AUS Datasheet
Quick Start Guide (PDF)
Installation Guide (PDF)
Web 5.0 Operation Manual (PDF)
Order the Dahua DH-IPC-HDW3666TP-ZS-AUS from CCTV Guru
CCTV Guru is an authorised Australian distributor of Dahua security cameras. Order the DH-IPC-HDW3666TP-ZS-AUS today for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera rollouts, and full local warranty support. Contact our Australian team for tailored quotes on larger installations.
Dahua · 2 × 6MP Smart Dual-Light Turret · 4CH / 8CH / AcuPick AI NVR
2× Dual Light Turret
Dahua 2 × 6MP 3K Full-Colour Smart Dual-Light Turret CCTV Kit — 4-Channel, 8-Channel or AcuPick AI NVR
A compact 2-camera 6MP (3K) turret kit that films in true full colour around the clock. Each DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual-Light turret runs invisible IR after dark, then flips to warm white light the instant WizSense AI classifies a person or vehicle — capturing clothing colour, vehicle colour and faces that IR-only cameras miss. Choose your recorder: the 4-Channel NVR4104 (Quick Pick), the 8-Channel NVR4108 (Quick Pick) with room to expand, or the 8-Channel AcuPick NVR5208 for full attribute search — find a person or vehicle by colour, clothing and direction in seconds.
Cameras
2 × 6MP Dual-Light Turret
Recorder
4CH · 8CH · AcuPick
Resolution
6MP · 3K Full Colour
Night Vision
24/7 Full Colour
AI
SMD 4.0 · AcuPick Option
Weatherproof
IP67 Rated
Smart Dual-Light — 24/7 Full Colour
Each turret runs invisible IR until WizSense classifies a person or vehicle, then flips to warm white light for full-colour evidence — capturing clothing and vehicle colour with no permanent light pollution.
6MP 3K · SMD 4.0 AI
3072×2048 detail with SMD 4.0 that classifies people and vehicles and ignores animals, foliage and headlights — so only real events reach your phone.
Your Choice of NVR
Pick the 4-channel NVR4104 (Quick Pick) for a tidy two-camera system, the 8-channel NVR4108 (Quick Pick) for 6 spare PoE ports to expand, or the AcuPick NVR5208 for attribute smart search.
Fixed-Focal Turret · Easy Install
The 2.8 mm fixed lens gives a wide ~105° view with no focusing to set up — plug in one Cat6 cable per camera and you're recording. IP67-rated for exposed walls and eaves.
What's Included
2 × Dual-Light Turret Cameras
DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual-Light turret, 2.8 mm, IR 30 m + warm light, built-in mic, SMD 4.0, IP67. Available in white or black.
1 × Recorder (your choice)
4CH Quick Pick — DHI-NVR4104HS-P-AI/ANZ (4 PoE).8CH Quick Pick — DHI-NVR4108HS-8P-AI/ANZ (8 PoE, 6 spare).8CH AcuPick — DHI-NVR5208-8P-AI/ANZ (8 PoE, 2 SATA bays, attribute search).
Power
PoE ports built into the NVR — one Cat6 cable per camera carries power and data. Network cabling is not included; Cat6 patch leads are available separately.
Storage
HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~2 TB covers two 6MP cameras for many weeks.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock. Available in white or black.
Choose Your AI NVR
4CH AI NVR — NVR4104
4-channel 4K WizSense AI NVR · 4 PoE ports · 1 SATA bay · Quick Pick target search. 2 spare ports.
8CH AI NVR — NVR4108
8-channel 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · Quick Pick target search. 6 spare ports to expand.
AcuPick AI NVR — NVR5208
8-channel 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the cameras are AcuPick-native.
See It In Action & Set It Up — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
AcuPick — quick, accurate video search — Dahua ANZ (official)
Downloads & Resources
DH-IPC-HDW3667EM-S-IL-ANZ (Turret) Datasheet
DHI-NVR4104HS-P-AI/ANZ (4CH) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What is Smart Dual-Light?The cameras use both IR and warm white light — invisible IR by default, then warm light the instant WizSense AI detects a person or vehicle, for full-colour evidence only when it matters.
Which NVR should I choose?The 4-Channel NVR4104 (Quick Pick) suits a fixed two-camera system. The 8-Channel NVR4108 (Quick Pick) adds 6 spare PoE ports to expand. The 8-Channel AcuPick NVR5208 adds full attribute search plus a second HDD bay.
Do the cameras record in colour at night?Yes — a warm-light illuminator gives 24/7 full colour, with a selectable IR-only mode for discreet black-and-white.
Does a hard drive come included?No — the NVR ships without storage. ~2 TB covers two 6MP cameras for many weeks on motion-only.
Can I add more cameras later?Yes — the 4-channel NVR leaves 2 spare PoE ports; the 8-channel options leave 6 spare ports.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua WizMind 5 Series
Dahua DH-IPC-HDW5842EMP-ASE-S3 8MP WizMind AI Eyeball Camera
If you want a premium 8MP Dahua eyeball camera with stronger low-light performance and smarter search tools, the DH-IPC-HDW5842EMP-ASE-S3 is a strong step up from standard fixed cameras. It combines sharp 4K video with a larger 1/1.8" sensor, built-in WizMind analytics, face detection, perimeter protection, people counting and video metadata for faster event review on compatible systems.
For CCTV Guru customers, this model is a great fit for higher-end homes, commercial sites, offices, warehouses, retail stores and projects where image quality and smarter incident filtering matter. With PoE and ePoE support, built-in microphone, alarm input/output, audio input/output and edge recording, it is designed for more capable professional CCTV systems.
Resolution
8MP 4K
Analytics
WizMind AI
Low Light
1/1.8" Sensor
Audio
Built-in Mic
Why this Dahua WizMind camera stands out
Sharper 4K detail with stronger low-light performance
The 8MP resolution and larger 1/1.8" sensor help deliver clearer facial detail, vehicle detail and wider scene coverage than many entry-level cameras, making this a better fit for premium residential and commercial jobs.
Built for smarter event review
This model suits customers who want more than standard motion alerts. Dahua WizMind functions such as video metadata, face detection, people counting and perimeter protection help narrow down footage faster on supported recorders.
Better for premium NVR systems
When paired with a compatible Dahua Smart NVR, this camera supports smarter search workflows that make it much easier to find relevant event footage without scrubbing through long recordings manually.
Flexible installation for professional systems
With PoE and ePoE support, built-in microphone, alarm input/output, audio input/output and edge recording support, this camera suits more advanced CCTV installations where reliability and integration matter.
Recommended Dahua NVR pairing
8 Channel
Best for most homes and small businesses
If you are installing a standard CCTV system and want reliable recording with smart AI features,
the Dahua 8 Channel WizMind NVR (DHI-NVR5208-8P-AI/ANZ)
is a great match.
It gives you smooth playback, smart motion detection and enough capacity for most residential or small commercial setups.
16 Channel
Best for larger systems and advanced AI search
For bigger installations or when you want to unlock the full power of WizMind analytics,
go with the Dahua 16 Channel WizMind NVR (DHI-NVR5216-16P-AI/ANZ).
This option is ideal for commercial upgrades, new builds and customers who want faster event search,
better filtering and a more powerful CCTV system overall.
Official Dahua videos
Dahua IPC WizMind S Series Highlight Video
Technical specifications
Model
DH-IPC-HDW5842EMP-ASE-S3
Series
Dahua WizMind 5 Series S Series
Camera type
8MP fixed-focal eyeball WizMind network camera
Image sensor
1/1.8" CMOS
Maximum resolution
3840 × 2160
Lens
Fixed lens, commonly sold in 2.8mm or 3.6mm depending on supplier variant
Low-light performance
Large sensor design for stronger night performance and improved detail retention
Video compression
H.265, H.264, H.264H, H.264B, MJPEG
Built-in intelligence
Perimeter protection, face detection, smart motion detection, people counting, video metadata and other WizMind analytics
Audio
Built-in microphone, audio input and audio output
Alarm
Alarm input and alarm output
Storage
MicroSD edge recording support
Network
RJ45 Ethernet, PoE, ePoE
Power
12V DC and PoE
Weather rating
IP67
Impact rating
IK10
Housing
Metal housing for professional indoor or outdoor installation
Use case
Premium homes, retail, offices, warehouses, commercial sites and projects needing better AI search capability
Frequently asked questions
Is this camera suitable for home use?
Yes. It is a premium option for customers who want stronger image quality and smarter event filtering than standard home CCTV cameras, especially for larger homes or higher-value properties.
Does this camera record audio?
Yes. It includes a built-in microphone and also supports audio input and output for broader integration in more advanced systems.
Can it be used without an NVR?
Yes, edge recording to microSD is supported. However, most customers will get the best overall experience by pairing it with a suitable Dahua NVR for centralised recording and smarter playback workflows.
Does this camera support facial recognition?
No, not in the same way as Dahua’s dedicated face recognition camera range. It supports face detection, which helps identify when a face appears in the scene, but it is not positioned as a full facial recognition camera.
What makes WizMind different from standard Dahua cameras?
WizMind cameras are aimed at smarter AI use cases. They help reduce false alerts and make footage easier to review with tools like metadata search, face detection, perimeter protection and people counting on supported systems.
What recorder should I buy with it?
For customers buying this as part of a new premium CCTV system, pair it with a compatible Dahua Smart NVR so the camera’s analytics and search functions deliver more practical day-to-day value.
More information
Datasheet
DH-IPC-HDW5842EMP-ASE-S3 Datasheet
Quick Start Guide
Dahua Eyeball Network Camera Quick Start Guide
Installation Guide
Eyeball Network Camera Installation Guide
Free AU Shipping Over $199
3-Year Manufacturer Warranty
Sydney-Based Expert Support
Dahua · DH-IPC-HDW5541TMP-ASE-0280B · 5MP WizMind Eyeball · Face & Perimeter AI · PoE
5MP WizMind AI
Dahua DH-IPC-HDW5541TMP-ASE-0280B 5MP WizMind IR Eyeball Camera
The Dahua DH-IPC-HDW5541TMP-ASE-0280B is a 5MP WizMind AI eyeball (turret) camera with a fixed 2.8mm wide lens, 50m IR night vision and 120dB true WDR. Dahua's WizMind deep-learning engine delivers face detection, perimeter protection and human/vehicle classification with very low false alarms. Powered over a single PoE cable and fully ONVIF compatible, it pairs with any Dahua NVR.
Resolution
5MP (2592×1944)
Lens
2.8mm fixed
Night Vision
IR up to 50m
AI Engine
WizMind deep learning
Analytics
Face & perimeter
Weatherproof
IP67
WizMind Deep-Learning AI
On-camera AI delivers face detection, perimeter protection (tripwire and intrusion) and human/vehicle classification, filtering out animals and weather so you get accurate, low-false-alarm alerts.
5MP Clarity with 50m IR
A 5MP sensor captures crisp detail, and smart IR up to 50m lights the scene at night without blowing out close subjects — ideal for entries, driveways and car parks.
True WDR for Tricky Light
120dB true WDR balances bright and dark areas in the same frame, keeping faces and plates legible at glass doorways and shaded entrances.
Single-Cable PoE
One Cat6 run carries power and data. ONVIF compatibility records to any compatible Dahua NVR with full WizMind smart events.
Specifications — DH-IPC-HDW5541TMP-ASE-0280B
Resolution
5MP · 2592×1944
Sensor
1/2.7" progressive-scan CMOS
Lens
2.8mm fixed
Night Vision
Smart IR up to 50m
WDR
120dB true WDR
AI
WizMind · face detection, perimeter protection, human/vehicle classification
Protection
IP67
Power
PoE 802.3af / 12V DC
Interoperability
ONVIF · pairs with a Dahua NVR
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DH-IPC-HDW5541TM-ASE Datasheet
What does WizMind add over a standard camera?WizMind is Dahua's deep-learning AI. It delivers face detection, perimeter protection and human/vehicle classification on-camera, so alerts focus on real threats and footage is faster to search.
How far does the IR reach?Smart IR illuminates up to 50m and automatically adjusts brightness so near subjects are not over-exposed while distant detail stays visible.
Is the 2.8mm lens wide or zoomed?2.8mm is a wide-angle fixed lens, giving a broad field of view suited to entries, driveways and open areas rather than long-distance detail.
How is it powered?A single Cat6 cable provides PoE (802.3af) power and data, or you can use a 12V DC supply.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
DAHUA · IP SECURITY CAMERASDahua DH-IPC-HDW5859H-ASE-PV-PRO-ANZ 8MP WizColor Active Deterrence Turret Camera
Bring brighter low-light footage and proactive warnings to a demanding CCTV installation. The Dahua DH-IPC-HDW5859H-ASE-PV-PRO-ANZ is a 8MP WizColor WizMind turret with an F1.0 lens, AI image processing, dual microphones and a built-in speaker for two-way communication and active deterrence.
Resolution
8MP, 3840 × 2160 at up to 25/30 fps
Lens
2.8 mm fixed, F1.0
Horizontal view
109°
Image technology
WizColor, AI ISP
Designed for your installation
The large-aperture lens and WizColor processing target improved colour detail in dim scenes. Intelligent perimeter rules, metadata, people counting and AcuPick provide more flexible event review when configured with compatible Dahua recording equipment.
Wide dynamic range
130 dB
Night illumination
Up to 60 m IR, 50 m warm light
Detection
SMD 4.0, intelligent perimeter rules, AI rule assistance
Analytics
AcuPick, video metadata, people counting
Technical Specifications
Model
DH-IPC-HDW5859H-ASE-PV-PRO-ANZ
Resolution
8MP, 3840 × 2160 at up to 25/30 fps
Lens
2.8 mm fixed, F1.0
Horizontal view
109°
Image technology
WizColor, AI ISP
Wide dynamic range
130 dB
Night illumination
Up to 60 m IR, 50 m warm light
Detection
SMD 4.0, intelligent perimeter rules, AI rule assistance
Analytics
AcuPick, video metadata, people counting
Audio
Dual microphones, built-in speaker, two-way talk
Interfaces
1 audio input/output and 1 alarm input/output
Local storage
microSD up to 1 TB, sold separately
Power
12 VDC, IEEE 802.3at PoE+, ePoE
Maximum PoE consumption
24.2 W under specified maximum-load conditions
Protection
IP67 and IK10
Setup and compatibility
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Official product family video
Dahua WizColor technology overview
Downloads
DH-IPC-HDW5859H-ASE-PV-PRO-ANZ Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HDW5859H-ASE-PV-PRO-ANZ record to a microSD card?
Yes. microSD up to 1 TB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Where can I download the DH-IPC-HDW5859H-ASE-PV-PRO-ANZ datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
DAHUA · IP SECURITY CAMERASDahua DH-IPC-HDW5659H-ASE-PV-PRO-ANZ 6MP WizColor Active Deterrence Turret Camera
Bring brighter low-light footage and proactive warnings to a demanding CCTV installation. The Dahua DH-IPC-HDW5659H-ASE-PV-PRO-ANZ is a 6MP WizColor WizMind turret with an F1.0 lens, AI image processing, dual microphones and a built-in speaker for two-way communication and active deterrence.
Resolution
6MP, 3072 × 2048 at up to 25/30 fps
Lens
2.8 mm fixed, F1.0
Horizontal view
109°
Image technology
WizColor, AI ISP
Designed for your installation
The large-aperture lens and WizColor processing target improved colour detail in dim scenes. Intelligent perimeter rules, metadata, people counting and AcuPick provide more flexible event review when configured with compatible Dahua recording equipment.
Wide dynamic range
130 dB
Night illumination
Up to 60 m IR, 50 m warm light
Detection
SMD 4.0, intelligent perimeter rules, AI rule assistance
Analytics
AcuPick, video metadata, people counting
Technical Specifications
Model
DH-IPC-HDW5659H-ASE-PV-PRO-ANZ
Resolution
6MP, 3072 × 2048 at up to 25/30 fps
Lens
2.8 mm fixed, F1.0
Horizontal view
109°
Image technology
WizColor, AI ISP
Wide dynamic range
130 dB
Night illumination
Up to 60 m IR, 50 m warm light
Detection
SMD 4.0, intelligent perimeter rules, AI rule assistance
Analytics
AcuPick, video metadata, people counting
Audio
Dual microphones, built-in speaker, two-way talk
Interfaces
1 audio input/output and 1 alarm input/output
Local storage
microSD up to 1 TB, sold separately
Power
12 VDC, IEEE 802.3at PoE+, ePoE
Maximum PoE consumption
24.2 W under specified maximum-load conditions
Protection
IP67 and IK10
Setup and compatibility
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Official product family video
Dahua WizColor technology overview
Downloads
DH-IPC-HDW5659H-ASE-PV-PRO-ANZ Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HDW5659H-ASE-PV-PRO-ANZ record to a microSD card?
Yes. microSD up to 1 TB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Allow for the camera’s maximum power draw when sizing a PoE switch or NVR. Optional mounts include PFA137, PFA106, PFB220C, PFB305W and PFB2203W in the combinations specified by Dahua. Full-colour results require available scene light or illumination; this is not a guarantee of colour in complete darkness without lighting.
Where can I download the DH-IPC-HDW5659H-ASE-PV-PRO-ANZ datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
Dahua · 6 × 6MP TiOC 3.0 · 8CH NVR4108 or AcuPick NVR5208
6× TiOC + 8CH NVR
Dahua 6 × 6MP TiOC 3.0 Full-Colour CCTV Kit — 8-Channel AI NVR (NVR4108)
This Dahua 6-camera 6MP (3K) TiOC 3.0 kit doesn't just record — it actively warns intruders off. Each of the 6 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 TiOC 3.0 turrets fires a siren, red/blue strobe and two-way voice warning the moment WizSense AI detects a person or vehicle, and films in true full colour around the clock. Choose your recorder: the standard DHI-NVR4108HS-8P-AI/ANZ (8-channel WizSense AI NVR, Quick Pick target search), or step up to the DHI-NVR5208-8P-AI/ANZ AcuPick NVR for full attribute search — find a person or vehicle by clothing colour, vehicle type and direction. Both have 8 PoE ports and the TiOC cameras are AcuPick-native. Add a surveillance hard drive from the storage selector below to suit your retention needs.
Cameras
6 × 6MP TiOC 3.0
Recorder
8CH · Standard or AcuPick
Resolution
6MP · 3K 3072×2048
Active Deterrence
Strobe + Siren
Night Vision
24/7 Full Colour
Storage
Add HDD Below
TiOC 3.0 — Deter, Don't Just Record
When WizSense AI detects a person or vehicle, each camera fires a siren, red/blue strobe and a two-way voice warning at once — most intruders leave before they've taken a step. Talk down visitors live from the DMSS app.
24/7 Full Colour
A warm-light illuminator delivers true full-colour footage in complete darkness — capturing clothing colour, vehicle colour and faces that IR-only cameras miss.
6MP 3K · SMD 4.0 AI
3072×2048 on every channel — well beyond 1080p. SMD 4.0 classifies people and vehicles and ignores animals, foliage and headlights, so only real events reach your phone.
Your Choice of NVR — Quick Pick or AcuPick
The standard NVR4108 gives fast Quick Pick target search; the AcuPick NVR5208 adds attribute smart search (find people or vehicles by colour, clothing and direction). Both have 8 PoE ports (2 free). Add a surveillance hard drive from the storage selector below to suit your retention needs.
What's Included
6 × TiOC Cameras
DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC 3.0 active-deterrence turret: siren, red/blue strobe, two-way audio, dual illuminators (IR 30 m + warm 30 m), SMD 4.0, IP67. Available in white or black — ask our team.
1 × Recorder (your choice)
Standard: DHI-NVR4108HS-8P-AI/ANZ — 8CH 4K WizSense AI NVR, 8 PoE, Quick Pick target search.AcuPick upgrade: DHI-NVR5208-8P-AI/ANZ — 8CH 5-Series AcuPick AI NVR, 8 PoE, 2 SATA bays, attribute smart search. 6 channels used, 2 spare either way.
Storage
Ships without a hard drive. Add a surveillance-grade Seagate SkyHawk or WD Purple drive from the storage selector below (1 SATA bay, up to 10 TB); ~4 TB suits six 6MP cameras for around 3–4 weeks on motion-only.
Power
8 × PoE ports built into the NVR — one Cat6 cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes & acreage
Active deterrence at every entry, driveway, side gate and yard, in full colour.
Retail & hospitality
Visible siren and strobe deter shoplifters; full colour captures faces at the counter.
Warehouses & yards
Deterrence at loading docks and gates; 6MP detail across large open areas.
Offices & commercial
Full-colour footage captures clothing and vehicle colour for insurance and police reports.
Childcare & schools
24/7 colour footage for incident review and duty-of-care; SMD 4.0 cuts nuisance alerts.
Airbnb & rentals
Active deterrence at entry points discourages damage; remote monitoring via DMSS.
TiOC 3.0 Camera — DH-IPC-HDW3649H-AS-PV-ANZ-S2 (×6)
Camera Type
6MP TiOC 3.0 AcuPick Active-Deterrence Full-Colour Turret (WizSense)
Max. Resolution
6MP · 3072 × 2048 @ 25/30 fps
Lens
Fixed 2.8 mm
Night Vision
IR 30 m + Warm Light 30 m · full-colour 24/7
Active Deterrence
Siren · red/blue strobe lights · voice warning
Audio
Built-in dual mic · 1-ch speaker · two-way talk
AI
SMD 4.0 · AcuPick (with 5-Series NVR) · Perimeter Protection
WDR / Compression
120 dB WDR · Smart H.265+
Power / Ingress
PoE 802.3af · 12 VDC · IP67 · –30 °C to +60 °C
Warranty (Australia)
3 years · CCTV Guru Australia
Choose Your 8-Channel AI NVR
Standard AI NVR — NVR4108
8CH 4K WizSense AI NVR · 8 PoE ports · 1 SATA bay · SMD 4.0 · Quick Pick target search. 2 channels spare.
AcuPick AI NVR — NVR5208
8CH 5-Series AI NVR · 8 PoE · 2 SATA bays · AcuPick attribute search — search by clothing colour, vehicle type & direction; the TiOC cameras are AcuPick-native.
Pick the 5208 if…
You want AcuPick attribute search across hours of footage. AcuPick only works with Dahua 5-Series NVRs.
Installation Notes
›Camera placement: position each TiOC camera to cover an entry or approach — the active deterrence works best where people pass close to the lens.
›Cabling & sealing: run solid-copper Cat6 (max 100 m per camera) and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›Audio & alarm: set siren volume to suit the site, and check local audio-recording laws before enabling sound recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add IP cameras to your NVR — Dahua Technology (official)
TiOC active deterrence in action — Dahua Technology (official)
DMSS app & remote viewing overview — Dahua Technology UK & Ireland
Downloads & Resources
DH-IPC-HDW3649H-AS-PV-ANZ-S2 (TiOC 3.0) Datasheet
DHI-NVR4108HS-8P-AI/ANZ (8CH) Datasheet
DHI-NVR5208-8P-AI/ANZ (AcuPick) Datasheet
Dahua Network Camera Quick Start Guide
Dahua Network Video Recorder User Manual
What does TiOC 3.0 mean?TiOC stands for Three-in-One Camera: full-colour night vision, active deterrence (siren + red/blue strobe) and two-way audio in a single device — so the camera responds to intruders rather than just recording them.
How much footage does 4TB hold?Roughly 3–4 weeks for six 6MP cameras on motion-only recording with Smart H.265+. Fit a larger drive for continuous recording or longer retention.
Does this kit do AcuPick?Yes — choose the AcuPick NVR5208 option for full AcuPick attribute search (find a person or vehicle by clothing colour, vehicle type and direction). The standard NVR4108 option gives Quick Pick target search. The TiOC cameras are AcuPick-native.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras into the spare ports — no recorder upgrade needed.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
