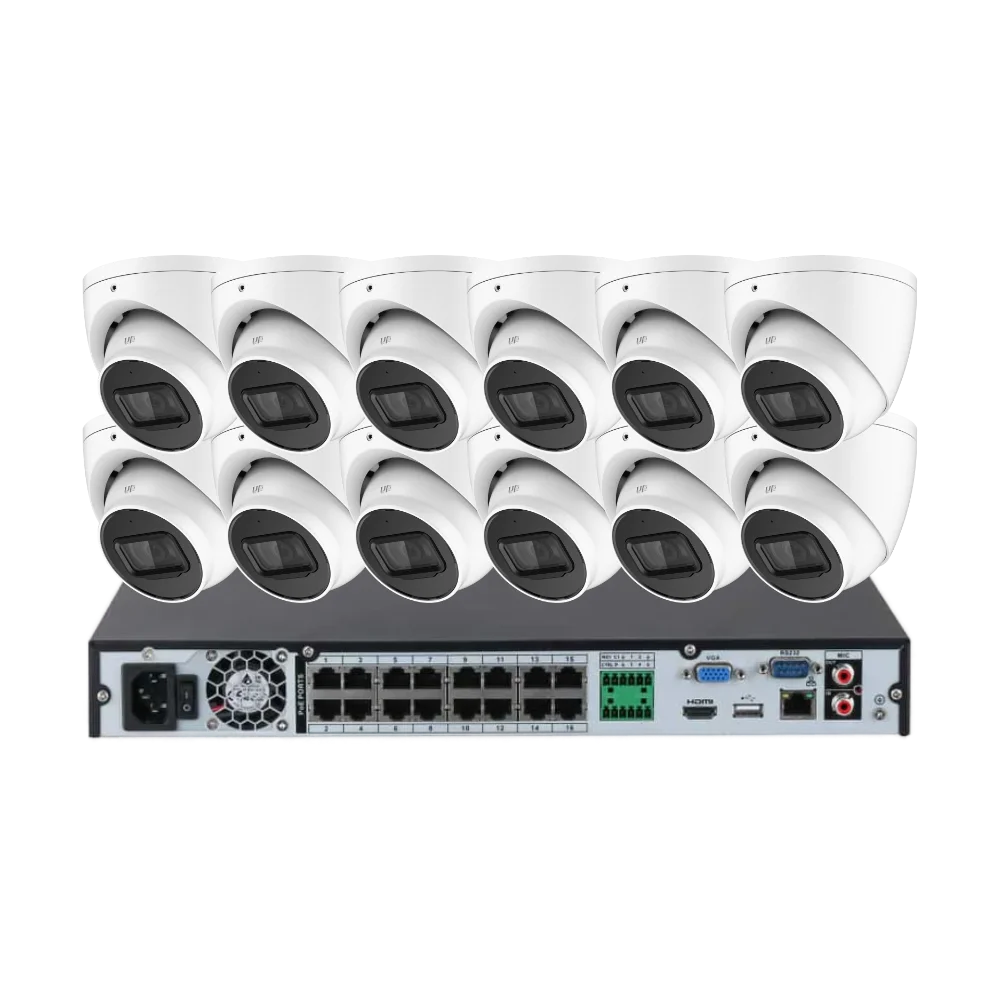

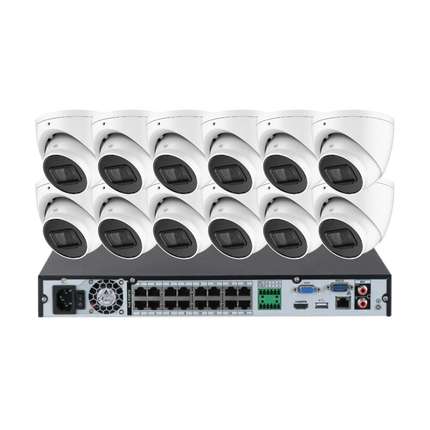

Dahua 12-Camera 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR — Ready-to-Install Bundle
The Dahua 12-Camera AI CCTV Kit is an enterprise-grade security deployment tailored for mid-to-large Australian homes, commercial properties, corporate offices, distribution warehouses, industrial yards, and multi-tenant retail spaces. This comprehensive bundle pairs twelve premier DH-IPC-HDW2541EMP-AS-ANZ 5MP AI Turret Cameras with the heavy-lifting DHI-NVR4216-16P-AI/ANZ 16-Channel WizSense 4K NVR, complete with a pre-installed 4TB surveillance-grade HDD (or select "None" for custom storage upgrades).
Engineered for seamless architectural integration, this kit leverages Dahua’s native plug-and-play architecture. The NVR’s 16 built-in PoE ports supply video data and reliable power over a single Cat6 network run per camera, bypassing the need for secondary local power drops or complex IP assignments. Commissioning takes under 60 seconds. With 4 unallocated channels remaining on the NVR, your system features a seamless, cost-effective future upgrade path to 16 full channels without needing a replacement recorder.
Cameras
12 × 5MP AI Turret
NVR Recorders
16-CH 4K WizSense
PoE Connectivity
16 Built-In Ports
Night Vision
30m Starlight IR
AI Engine
SMD 4.0 Perimeter
Audio Support
Built-in Mic & Audio
What’s in the Box
12 × Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Fixed Focal Eyeball Turret Camera · 1/2.7" CMOS Image Sensor · 2.8mm fixed wide-angle lens (111° FOV) · True 120dB WDR · 30m Smart IR Night Vision with Starlight technology · Built-in Microphone · IP67 Weatherproof · Deep learning perimeter protection & SMD 4.0 reduction of false alerts.
1 × Dahua DHI-NVR4216-16P-AI/ANZ 16-Channel 1U WizSense Network Video Recorder · 16 x Built-in PoE Ports · Up to 4K UHD Decoding & Output · High 256 Mbps bandwidth ceiling · H.265+ high-efficiency compression smart codecs · 2 × SATA III Hard Drive bays · Dual HDMI/VGA concurrent outputs · Full support for face recognition, perimeter guards, and automated metadata analytics.
1 × Pre-Installed 4TB Surveillance Hard Drive Equipped with a high-durability, continuous duty cycle Western Digital Purple or Seagate SkyHawk surveillance HDD. Note: If you plan to customize your array with alternative drive models, ensure you select the "None" storage configuration variant dropdown prior to adding to your shopping cart.
Dahua Manufacturer Warranty Kit Includes certified 12V DC chassis power cable harnesses, camera wall alignment drilling templates, quick-start setup documentation, and your local Australian-backed product warranty certifications. (Excludes Cat6 structured cabling runs).
Why This Bundle Beats Buying Separately
Procuring extensive surveillance components individually introduces compatibility risks, mismatched firmware profiles, or conflicting technical specifications. This 12-camera kit has been curated and verified by our engineering desk to guarantee fluid cross-component interaction, out-of-the-box hardware optimization, and wholesale system pricing.
Wholesale Pre-Packaged Savings Enjoy significant cost advantages compared to sourcing individual edge cameras, discrete storage components, and central recorders as isolated line-items.
100% Native ANZ Firmware Harmony Zero third-party protocol translation faults or ONVIF drops. Firmware builds sync flawlessly across the edge nodes and central backplane.
Single Point of Local Accountability No multi-brand finger-pointing during technical diagnostics. Our dedicated technical support desk handles your deployment end-to-end.
Smart H.265+ Bandwidth Optimization Engineered to achieve up to a 70% reduction in streaming bandwidth and physical drive storage requirements relative to legacy, uncompressed streams.
Built-In 16-Port Local PoE Backplane Avoid cluttered server racks. The NVR drives direct power and high-speed data transmission through its onboard 16-port PoE network interface switch.
Future-Proof 4-Channel Overhead Deploy 12 high-performance endpoints today while maintaining 4 free, unassigned operational channels to scale your coverage tomorrow.
Recommended For
Large-Scale Residential Estates Complete perimeter protection for larger multi-story residential designs, capturing driveways, access gates, property lines, fence lines, and outdoor blind spots.
Warehouses & Distribution Hubs Simultaneously monitor high-traffic dispatch loading docks, deep racking aisles, logistics offices, fire exits, and exterior equipment yards.
Multi-Department Commercial Offices Cover multiple floors, shared corporate spaces, elevator banks, reception halls, server suites, and basement parking structures.
Supermarkets & Retail Showrooms Comprehensive tracking across long shopping aisles, point-of-sale registers, stock rooms, high-theft corridors, and customer entrance zones.
Key Features Explained
WizSense SMD 4.0 Advanced Human & Vehicle Filtering
Say goodbye to the constant nuisance of false motion notifications triggered by stray animals, falling leaves, severe wind, or shadows. Dahua's integrated WizSense Smart Motion Detection (SMD 4.0) processor applies deep learning target-recognition models to isolate real threats. It immediately filters environment noise to accurately detect human intruders and moving vehicles, tracking event targets with real-time pushes directly to your phone.
Starlight Low-Light Imaging Performance
Where typical camera lenses produce dark or noisy video in low-light conditions, Dahua’s advanced Starlight Technology sensor remains active. Utilizing a larger physical sensor backplane and a wide-open aperture array, these edge turrets capture clear, high-fidelity color details in near-total darkness, shifting to smart IR illumination only when required.
Downloads & Technical Documentation
Technical Specifications
Camera — Dahua DH-IPC-HDW2541EMP-AS-ANZ · Qty: 12
| Image Sensor |
1/2.7" Progressive Scan CMOS Sensor |
| Max Resolution |
5 Megapixel (2592 × 1944) effective active array |
| Lens Configuration |
2.8 mm Fixed Focal Length · Horizontal FOV ~111° |
| Electronic Shutter |
Auto/Manual 1/3 s–1/100,000 s mechanical adaptation |
| Night Vision Coverage |
Smart IR Auto-ranging matrix up to 30 meters · Starlight Mode Min. Illumination 0.005 Lux |
| Wide Dynamic Range |
True Hardware WDR (120 dB) backplane balancing |
| Streaming Bitrates |
Main Stream: 5MP @ 20 fps / 4MP @ 25 fps · Sub Stream: D1 @ 25 fps |
| Audio Interface |
Built-in high-sensitivity physical Microphone · G.711a / G.711mu / G.726 codec options |
| Ingress Protection |
IP67 Weatherproof rating · Heavy-duty cast aluminum build alloy housing |
| Power Input |
PoE IEEE 802.3af (Class 0) / Alternative local 12V DC drop · Maximum load 6.1W |
| Dimensions & Weight |
Ø121.9 mm × 99.1 mm · Physical Weight approx 500g net weight |
| Compliance & Certs |
RCM Approved, CE-LVD, FCC Part 15 Subpart B, Full Australian Local Stock Assurance |
NVR — Dahua DHI-NVR4216-16P-AI/ANZ · Qty: 1
| Channel Count |
16 Channels of synchronized IP video network connectivity |
| Processing Bandwidth |
256 Mbps incoming network ceiling access, 256 Mbps internal recording loop, 256 Mbps outgoing |
| Decoding Performance |
2-Channel @ 4K (30 fps) · 4-Channel @ 4MP (30 fps) · 8-Channel @ 1080p (30 fps) concurrent loops |
| Compression Support |
Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG dynamically allocated streams |
| Integrated PoE Ports |
16 × High-speed RJ-45 10/100 Mbps PoE ports · 130W total power budget (Max 25.5W singular port) |
| Storage Drive Bays |
2 × Internal SATA III Expansion slots · Supports hard drives up to 16 Terabytes per bay slot (4TB Pre-Installed) |
| Video Output Array |
1 × HDMI Output (Up to 4K resolution mapping) · 1 × VGA Output · Concurrent view configuration |
| External Interfaces |
1 × Front USB 2.0 port · 1 × Rear USB 3.0 port · 1 × Gigabit RJ-45 uplink terminal port |
| AI Core Features |
Face detection & matching, up to 10 localized database profiles, 20,000 face images template storage capacity |
| Mobile App Integration |
DMSS Mobile Application (iOS & Android platforms) · Free P2P cloud service cloud pairing matrix |
| Physical Enclosure |
1U Rack-mountable form chassis structure · 375.0 mm × 327.9 mm × 53.0 mm |
Installation Notes & Site Best Practices
To maximize your new system's life cycle and performance, review these foundational installation strategies:
-
Cable Runs: Use standard solid copper Cat6 networking cable runs to ensure stable PoE transmission over longer paths. For clean outdoor cable runs, protect connection couplers using dedicated Dahua matching junction brackets.
-
Sealing: Even with an IP67 rating, treating termination connections with professional weatherproof silicone tape protects structural metal contacts from salt air degradation and moisture ingress.
-
NVR Ventilation: Commercial recorders handle constant reading and writing workloads. Install the central processing NVR in a cool, low-dust environment or media rack away from direct sunlight.
Frequently Asked Questions
Can I change or replace the 4TB storage drive with a larger capacity hard drive?
Yes. If your retention strategy dictates extended storage lifecycles (such as corporate compliance mandates), select the "None" variant option from our product configuration selection menu and add your required storage choice (e.g., 8TB or 16TB enterprise surveillance hard drive) straight to your online shopping cart.
Are these products grey-imported models or official Australian channel stock?
Every component sold by CCTV Guru is sourced via official Dahua Australia authorized trade distribution channels. Our inventory contains genuine ANZ regional hardware featuring factory-unlocked regional firmware, local vendor updates, and an official local Australian warranty network.
Does the bundle package arrive with structural Cat6 link cables?
No. Because architectural layouts vary drastically from site to site, bulk networking cable lengths are not included in the generic box. Installers can easily integrate their own cabling or choose matching structured network cable spools right here at checkout.
How do I view my system streams remotely on my mobile phone?
Simply download the official Dahua DMSS Application on your iOS or Android mobile device. Use the app to scan the encrypted P2P QR cloud barcode displayed on your NVR monitor console to register access. There's no need for complex firewall rules or router port-forwarding modifications.
Does this configuration support independent internal audio streaming?
Yes. Each of the twelve DH-IPC-HDW2541EMP-AS-ANZ cameras features an integrated physical microphone. This allows you to monitor and record localized ambient audio right alongside the HD video stream over the same single network cable run.
What happens if I need to expand my camera layout past 12 cameras later?
This system is built to grow. Your bundled DHI-NVR4216-16P-AI/ANZ recorder includes 16 built-in physical PoE connection ports. You can seamlessly add up to 4 more cameras down the road by simply plugging them directly into the remaining open network ports.
Secure Your Dahua 12-Camera AI CCTV Bundle Today
CCTV Guru is an authorized Australian trade partner for premier Dahua surveillance products. Order the Dahua 12-Camera 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR today for fast dispatch from local Australian warehouses. Need assistance calculating custom storage retention pools, selecting compatible mounting accessories, or exploring volume project pricing for commercial rollouts? Reach out to our expert Australian sales and support team today.
