Dahua 16 × 5MP WizSense AI CCTV Kit — 16CH 4K NVR + 4TB HDD Bundle

Description

Dahua WizSense · 16 × 5MP AI Starlight · 16CH 4K NVR · 4TB Included 16 × 5MP Kit

Dahua 16 × 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR & 4TB HDD

The Dahua 16-Camera 5MP AI CCTV Kit is a complete, fully-populated 16-channel system for larger Australian homes, offices, warehouses, industrial yards and multi-tenant retail. It pairs sixteen DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Starlight turret cameras with a DHI-NVR4216-16P-AI/ANZ 16-channel 4K NVR and a pre-installed 4TB surveillance HDD. Every one of the NVR's 16 built-in PoE ports is used — each camera powered and connected over a single Cat6 run, for maximum coverage with no spare channels left idle.

Cameras
16 × 5MP AI Starlight
Recorder
16CH 4K NVR · 16 PoE
Night Vision
30 m Smart IR + Starlight
Storage
4TB HDD Included
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated

5MP Starlight Low-Light Imaging

A 1/2.7" Starlight sensor with 120 dB WDR captures clear, low-noise colour in very low light. In full darkness, Smart IR to 30 m takes over for crisp black-and-white footage.

WizSense AI — SMD 4.0

Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.

16-Port PoE — Plug & Play

One Cat6 cable per camera carries power and video back to the NVR's 16 built-in PoE ports — no separate power supplies, no extra PoE switch, commissioning in minutes.

Full 16-Channel Coverage

A complete 16-camera system with a pre-installed 4TB drive and a second free SATA bay for a storage upgrade. Every channel is used for maximum site coverage.

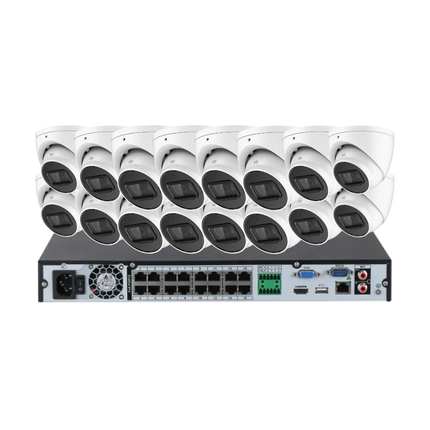

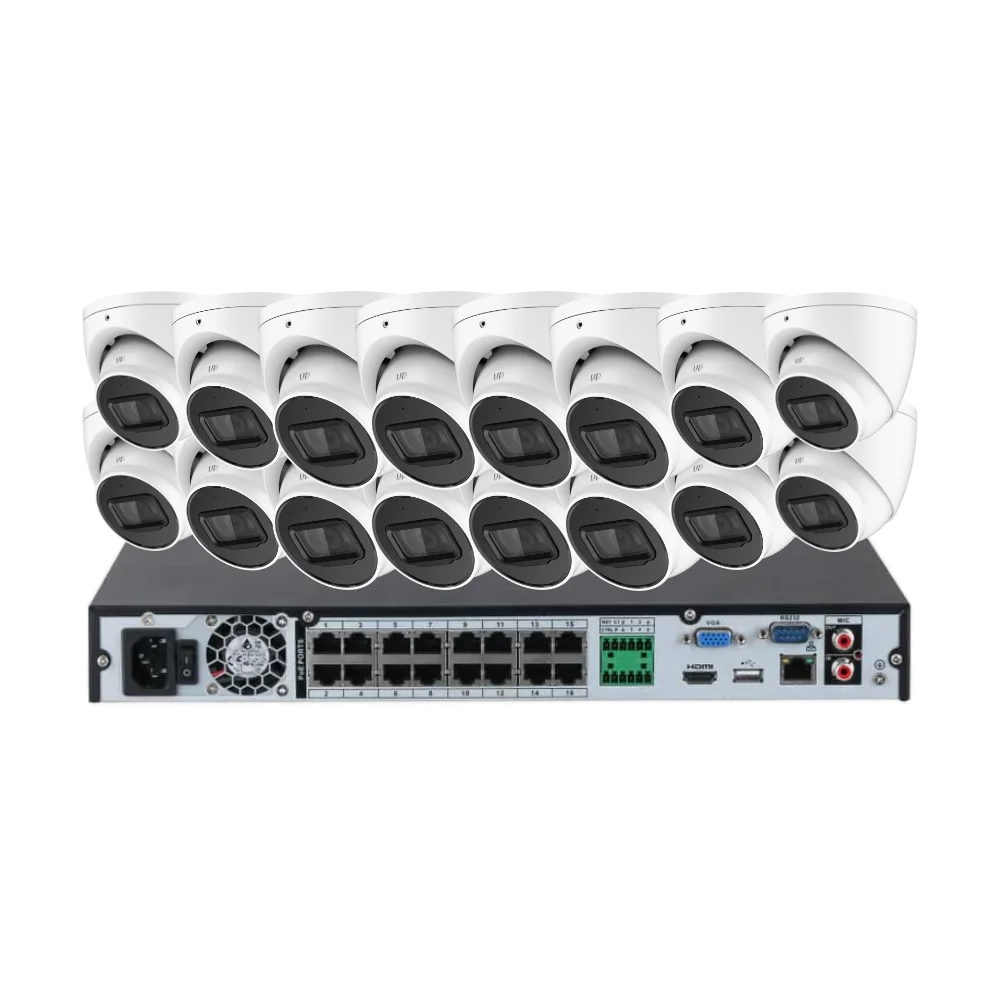

What's Included
16 × Cameras DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense AI Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense NVR with 16 built-in PoE ports, dual SATA bays, 4K HDMI/VGA output and DMSS remote access.
Storage Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). For a full 16-camera system we'd suggest upgrading to an 8–16 TB drive for longer retention — select "Barebone — No HDD" and add the drive you need (up to 16 TB per bay, 32 TB total).
Power 16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Large residential estates
Driveways, gates, fence lines and outdoor blind spots across multi-storey homes.
Warehouses & distribution
Loading docks, racking aisles, logistics offices, fire exits and equipment yards.
Commercial offices
Multiple floors, reception halls, lift lobbies, server rooms and basement parking.
Supermarkets & retail
Aisles, POS registers, stockrooms, high-theft corridors and entrance zones.
Car parks & yards
Person and vehicle AI detection with usable detail across large open areas.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ
Camera Type 5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 5MP · 2592 × 1944
Streams Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens Fixed 2.8 mm · ~111° horizontal FOV
Night Vision Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR True 120 dB hardware WDR
AI Functions WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio Built-in microphone · G.711a / G.711mu / G.726
Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
Power 12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection IP67 · cast-aluminium housing
Dimensions Ø121.9 × 99.1 mm · ~500 g
Compliance RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia) 3 years · CCTV Guru Australia
Recorder Specifications — DHI-NVR4216-16P-AI/ANZ
Channels 16 IP channels · up to 16 MP input
Bandwidth 256 Mbps incoming / recording / outgoing
PoE 16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage 2 × SATA III (up to 16 TB per bay) · 4TB pre-installed
Video Output 1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App DMSS (iOS & Android) · P2P · ONVIF 21.12
Installation Notes
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
  • ›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
  • ›Storage & NVR placement: for 16 cameras consider an 8–16 TB drive, and mount the recorder in a cool, dust-free, ventilated spot for reliable 24/7 recording.

Setup & Installation Guides — Official Dahua

First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)

Downloads & Resources

DH-IPC-HDW2541EMP-AS-ANZ Datasheet DHI-NVR4216-16P-AI/ANZ Datasheet Dahua Camera Quick Start Guide
Does the 4TB drive come pre-installed?
Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
Is 4TB enough for 16 cameras?
4TB gives a solid baseline on motion recording. For continuous 24/7 recording across all 16 cameras we'd suggest 8–16 TB. The NVR takes up to 16 TB per bay (32 TB total), so you can add a second drive any time.
Are these official Australian-stock models?
Yes. Every component is genuine Dahua ANZ stock with regional firmware and a local Australian warranty backed by CCTV Guru — not grey import.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera. Cat6 cabling is run on site and not included.
Can I add more than 16 cameras later?
This kit uses all 16 channels. To go beyond 16 cameras you'd move to a 32-channel NVR (and a PoE switch for the extra cameras) — our team can spec the right upgrade.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
