4-Camera Kit · Dahua 5MP WizSense · SMD+ AI · IR 30m · 4CH PoE NVR

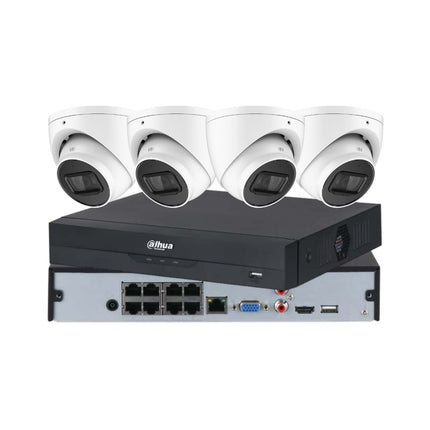

Dahua 4 × 5MP WizSense AI CCTV Kit — 4 Turret Cameras + 4CH PoE AI NVR
The Dahua 4 × 5MP WizSense AI CCTV Kit is the ideal plug-and-play surveillance solution for Australian homes and small businesses that want genuine AI-powered detection, clear 5MP footage, and a clean single-cable installation — without the complexity or cost of enterprise systems. Four DH-IPC-HDW2541EMP-AS-ANZ WizSense turret cameras deliver 5MP resolution with Smart Motion Detection Plus (SMD+) to filter out false alerts from animals, foliage, and weather — you only get notified when a real person or vehicle is detected.
The included DHI-NVR4104HS-P-AI/ANZ 4-channel PoE AI NVR powers and connects all four cameras over a single Cat6 cable each — no separate power supplies, no extra switches. 4K HDMI output , remote access via the free DMSS app , and support for up to 10TB HDD (not included) make this a complete, scalable system ready to grow with your needs. ANZ-certified firmware, Australian stock, local technical support.
NVR
4CH · 4× PoE · 4K HDMI
Protection
IP67 Weatherproof
Australian Stock · Fast Dispatch
Expert Australian Tech Support
What’s Included in This Kit

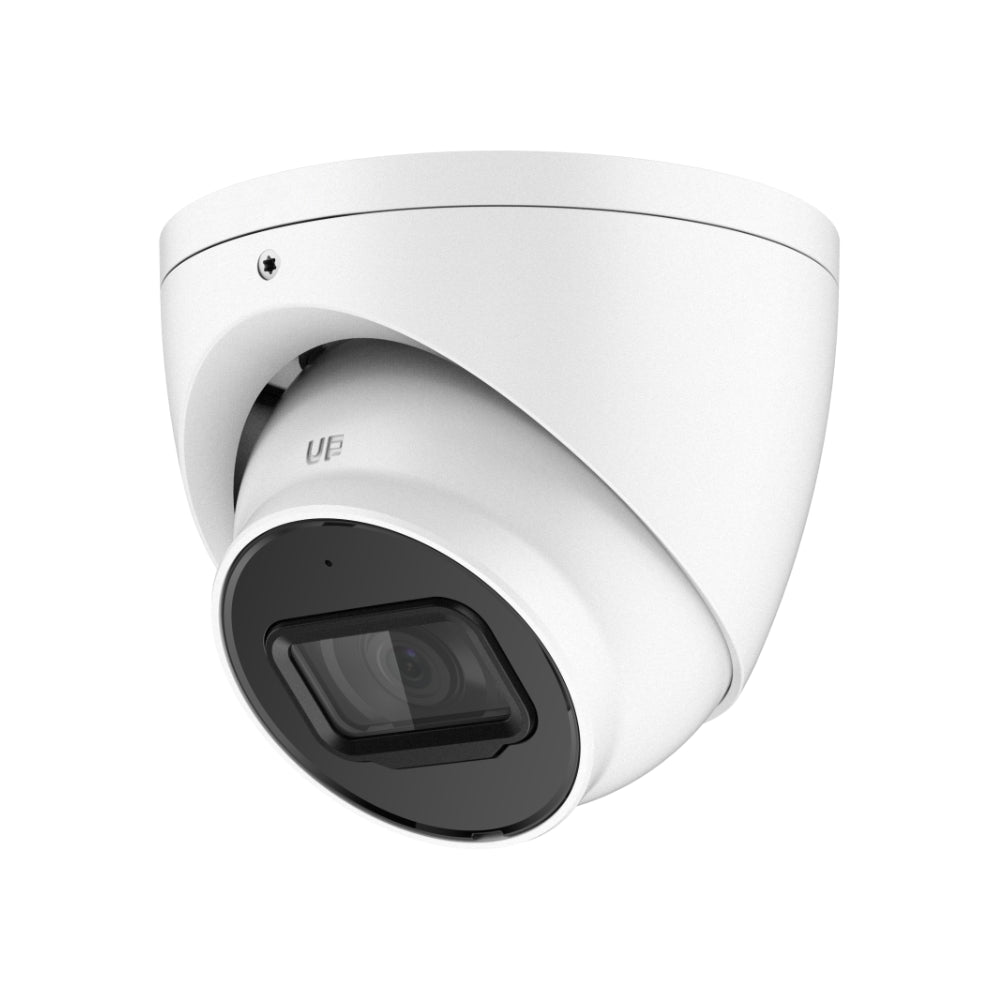

4 × Dahua DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense Turret Camera 5MP (2960 × 1668) WizSense turret camera with SMD+ human and vehicle detection , IR night vision up to 30m, built-in microphone, microSD up to 256GB, IP67 weatherproof housing, Smart H.265+ compression, WDR, and 3D-NR. PoE or 12V DC powered.
1 × Dahua DHI-NVR4104HS-P-AI/ANZ — 4-Channel PoE AI NVR 4-channel compact AI NVR with 4 built-in PoE ports , supports cameras up to 16MP, 4K HDMI output, SMD 4.0, perimeter protection, 1× SATA HDD bay (up to 10TB, not included), DMSS remote access, ONVIF, fanless compact 1U design.
What You’ll Need to Complete the Install HDD (not included): 1× SATA surveillance-grade HDD up to 10TB — we recommend WD Purple or Seagate SkyHawk. Cable (not included): Cat5e or Cat6 Ethernet cable — one run per camera, max 100m each. Monitor (optional): Any HDMI display for local viewing.
Plug-and-Play Setup Connect each camera to the NVR with a single Cat6 cable — the NVR’s built-in PoE ports power the cameras automatically. Add a HDD, connect to your router, and the system is live. No electrician required for most installations. DMSS app setup takes under 5 minutes.
Key Features
5MP Resolution — See Faces & Plates Clearly At 2960 × 1668 pixels , each camera captures significantly more detail than 1080p cameras — faces at the front door, licence plates in the driveway, and product labels at the counter are all clearly identifiable in recorded footage. 20fps recording at full 5MP resolution.
SMD+ — AI That Only Alerts on Humans and Vehicles Dahua’s Smart Motion Detection Plus uses deep learning to classify motion as human or vehicle only — ignoring animals, foliage, rain, and passing headlights. You get push notifications only when a real person or vehicle is detected. Dramatically reduces alarm fatigue compared to standard motion detection cameras.
IR Night Vision — 30m Range Built-in IR LEDs provide clear black-and-white night vision up to 30 metres in complete darkness. Automatic IR cut filter switches seamlessly between day and night modes. Suitable for driveways, car parks, and outdoor areas with no ambient lighting.
Built-In Microphone — Audio Recording Each camera includes a built-in microphone for audio recording alongside video — useful for capturing conversations at entry points, retail counters, and reception areas. Audio is recorded and stored on the NVR alongside the video stream.
4 Built-In PoE Ports — One Cable Per Camera The NVR’s 4 built-in PoE ports deliver both power and video over a single Cat6 cable to each camera — no separate power supplies, no power boards, no extra cabling. Clean, professional installs with no spare ports wasted.
IP67 Weatherproof — Built for Australian Conditions All cameras are fully sealed against dust and water jets — IP67 rated for outdoor installation in all Australian weather conditions including coastal salt air, tropical rain, and outback dust and heat. Suitable for eaves, soffits, walls, and poles.
Smart H.265+ — Store More, Spend Less on HDDs Smart H.265+ compression reduces storage consumption by up to 75% versus standard H.264 — meaning a 2TB drive goes as far as an 8TB drive would with older cameras. Maximises your HDD retention without sacrificing image quality.
MicroSD Edge Storage — Backup Per Camera Each camera supports up to 256GB microSD for local edge storage — footage is saved directly to the camera even if the NVR is disconnected or powered off. An additional layer of redundancy for critical recording scenarios.
DMSS Remote Access — No Port Forwarding Required The free DMSS app (iOS/Android) connects via Dahua’s P2P cloud — no static IP, no DDNS, no port forwarding. Live view, playback, and push notifications from anywhere with an internet connection. Works on 4G/5G and Wi-Fi.
Perimeter Protection — Tripwire & Intrusion Detection Draw virtual lines or zones on any camera view via the NVR or DMSS app. Alerts trigger only when a classified human or vehicle crosses the boundary — ideal for driveways, gates, yard perimeters, and restricted areas.
Recommended For
Residential Homes 4 cameras covers the typical home — front door, driveway, side gate, and backyard. SMD+ means you only get alerted when a person or vehicle is detected. DMSS keeps you informed from anywhere.
Small Retail & Convenience Stores 5MP resolution captures faces and clothing detail at the entry and POS counter. Built-in microphone records audio at the counter. SMD+ reduces nuisance alerts during business hours.
Small Offices & Commercial Premises Plug-and-play PoE simplifies installation. Fanless NVR runs silently in comms rooms. DMSS remote access lets owners monitor from anywhere. Perimeter protection secures after-hours entry points.
Childcare Centres & Schools 5MP footage provides the detail needed for incident review and duty-of-care compliance. SMD+ reduces nuisance alerts in busy environments. Audio recording captures verbal incidents.
Airbnb & Rental Properties Remote monitoring via DMSS. MicroSD edge storage provides a backup if the NVR is tampered with. IP67 cameras handle outdoor installation at entry points.
Warehouses & Workshops IP67 cameras handle dusty and wet environments. 5MP resolution covers wide areas with enough detail to identify faces and licence plates. Perimeter protection secures after-hours yard boundaries.
HDD Retention Guide
HDD Not Included — Choose Your Capacity The NVR has 1 × SATA HDD bay supporting drives up to 10TB. We recommend a WD Purple or Seagate SkyHawk surveillance-grade drive — purpose-built for 24/7 NVR workloads with vibration compensation and extended write cycles. Do not use desktop or laptop drives.
Estimated Retention (4 × 5MP @ 15fps, H.265+, Motion-Only) 1TB ≈ 10–14 days · 2TB ≈ 20–28 days · 4TB ≈ 40–56 days · 6TB ≈ 60–84 days · 8TB ≈ 80–112 days
Technical Specifications
Camera — DH-IPC-HDW2541EMP-AS-ANZ · Qty: 4
Image Sensor
1/2.7" CMOS
Resolution
5MP · 2960 × 1668 @ 20fps
Lens
2.8 mm fixed
Night Vision
IR LEDs · Up to 30m
Compression
Smart H.265+ / H.265 / H.264+ / H.264
AI Detection
SMD+ · Human/vehicle filtering · Tripwire · Intrusion
Audio
Built-in microphone
MicroSD
Up to 256GB
WDR
Yes · 120dB
3D-NR
Yes
Power
PoE 802.3af · 12V DC
Protection
IP67
Operating Temp
−30°C to +60°C
Compliance
ANZ-certified firmware · CE · FCC
NVR — DHI-NVR4104HS-P-AI/ANZ · Qty: 1
Channels
4 IP channels
Max Resolution
Up to 16MP
Video Output
1 × HDMI (4K UHD) · 1 × VGA
Built-in PoE
4 × PoE ports · IEEE 802.3af/at
HDD Bays
1 × SATA (up to 10TB)
Compression
Smart H.265+ / H.265 / H.264+ / H.264
AI Features
SMD 4.0 · Perimeter protection · Tripwire · Face detection
Remote Access
DMSS app (iOS / Android) · P2P
Third-Party
ONVIF Profile S/G/T
Form Factor
Compact 1U · Fanless
Power
DC 48V · AC adapter included
Operating Temp
−10°C to +55°C
Compliance
ANZ-certified firmware · CE · FCC · ONVIF
Downloads
Frequently Asked Questions
Does this kit include a hard drive?
What is SMD+ and why does it matter?
Do I need a separate PoE switch?
How do I access it remotely?
Can I add more cameras later?
Do the cameras record audio?
What cable do I need?
Are the cameras suitable for outdoor use?
What’s the warranty?
Do you ship Australia-wide?
Order the Dahua 5MP 4-Camera WizSense Kit from CCTV Guru
CCTV Guru is an authorised Australian distributor of Dahua surveillance products. Order the Dahua 4 × 5MP WizSense AI CCTV Kit today for fast Australia-wide dispatch, expert pre-sales advice on HDD sizing and installation planning, and full local warranty support. Contact our Australian team to add a surveillance HDD, extra cameras, or cable accessories to complete your installation.
