Genuine Hikvision · Monitor Mount · Steel · VESA 200Hikvision DS-DM1940WA Solid Wall Mount for Your CCTV Monitor
The Hikvision DS-DM1940W is a genuine steel base bracket for wall-mounting LCD monitors. Its solid SPCC cold-rolled steel build prevents screen bending or twisting, and the VESA 200 × 200 pattern makes installation quick and easy.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Solid steel structure — prevents screen bending or twisting for a secure hold.
VESA 200 × 200 — standard pattern fits a wide range of compatible monitors.
Cold-rolled SPCC steel — strong, durable construction.
Quick & easy install — straightforward wall mounting.
Specifications
Model
DS-DM1940W
Category
LCD Monitor Base Bracket
Material
Cold-Rolled Steel Plate (SPCC)
VESA
200 × 200 mm
Dimensions (W × H × D)
250 × 220 × 25 mm (9.84" × 8.66" × 0.98")
Net Weight
0.75 kg (1.65 lb)
Colour
Black
Warranty
3 Years (AU)
DS-DM1940W Datasheet
Frequently Asked Questions
What monitors does it fit?Any monitor with a standard VESA 200 × 200 mm mounting pattern.
Is it sturdy?Yes — it's built from solid SPCC cold-rolled steel to prevent screen bending or twisting.
Is it easy to install?Yes — it's designed for quick and easy wall mounting.
Is this a genuine Hikvision part?Yes — this is the genuine Hikvision DS-DM1940W LCD monitor base bracket.
WizSense PTZ TiOC · 4 MP · 25× Zoom · Active Deterrence · 150 m IRDahua WizSense TiOC PTZ · 25× ZoomDahua DH-SD6C3425GB-HNR-A-PV1 — 4 MP 25× Optical Zoom Pro AI TiOC Network PTZ Camera WizSense (6-Series, 150 m IR + Active Deterrence)
The Dahua DH-SD6C3425GB-HNR-A-PV1 is the 6-Series flagship WizSense PTZ with TiOC Active Deterrence — combining a project-grade 4 MP Starlight PTZ with red/blue strobe warning lights, a 50 m white-light supplement and a customisable voice alarm in one chassis. Built around a 1/2.8" CMOS sensor capturing 2560 × 1440 (4 MP) at 25/30 fps. The 25× optical zoom lens (5–125 mm motorised vari-focal, F1.6–F3.6) delivers a wide 52° field at the wide end down to a tight 3° pull at full zoom — identification-grade reach at well over 150 m. Dual-light fusion — two 150 m IR LEDs paired with two 50 m white-light LEDs — lets the camera switch seamlessly between stealth IR and full-colour active deterrence. WizSense Pro AI runs Auto Tracking 3.0, SMD 4.0, AcuPick attribute search, face detection with attributes, video metadata capture, construction safety detection (helmet/uniform) and the full perimeter protection IVS suite with human/vehicle classification. Red/blue police-style warning lights activate on AI alarm; customisable voice prompts deter intruders. The metal housing is IP66 sealed across an alpine −40 °C to +70 °C operating range with TVS 6000 V surge protection. Pan-tilt-zoom controlled via DMSS, Dahua DSS or any ONVIF VMS. Built for project-grade Australian deployments where active deterrence matters — carparks, council reserves, sports fields, council CCTV programs, freight yards, transport corridors, large retail and high-risk perimeter sites. Backed by a 3-year Australian warranty through CCTV Guru. SKU SD6C3425 series.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua SD6C3425GB-HNR-A-PV1 TiOC Pro AI PTZ
TiOC Active Deterrence on a PTZ
Red/blue police-style strobe lights plus customisable voice alarm trigger automatically when WizSense classifies a human or vehicle inside a protected zone — not passive recording, active prevention.
25× Optical Zoom — ANPR-Grade Reach
5–125 mm motorised vari-focal optical zoom resolves licence plates and faces at well over 150 m. Wide-to-tight surveillance from a single PTZ install.
150 m IR + 50 m White Light
Dual-light fusion — two 150 m IR LEDs paired with two 50 m white-light LEDs. Stealth IR at idle, full-colour white light on alarm. Configurable 5–30 second flash pattern.
Auto Tracking 3.0 + Full IVS Suite
WizSense Auto Tracking 3.0 locks on people and vehicles automatically. Full IVS: tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking, people gathering — all with human/vehicle classification.
Video Metadata + Construction Safety
Vehicle metadata capture (10 attributes), face attributes (6 + 8 expressions), human attributes and construction safety detection (helmet/uniform compliance) — on-camera.
Alpine-Rated IP66 Metal Housing
−40 °C to +70 °C operating range, IP66 sealed, TVS 6000 V surge protection — built for harsh outdoor Australian sites, tropical or alpine.
Important Install Note
This is a full project-grade PTZ — pan-tilt-zoom controlled via DMSS, Dahua DSS or any third-party ONVIF VMS. Power supply requires either the supplied 24 VDC 2.5 A PSU or PoE+ (802.3at) — not standard 802.3af. The TiOC active-deterrence settings (red/blue strobe pattern, voice prompt content) are fully configurable via DMSS. Best mounted high (pole or building-corner, 6–10 m above ground) for unobstructed sight lines and effective deterrence projection. For end-to-end AI workflow including AcuPick attribute search, pair with a Dahua 5-Series AcuPick AI NVR.
AI & Smart Detection
Auto Tracking 3.0
WizSense automatic pan-tilt-zoom follow for people and vehicles — locks on and tracks the target across the scene.
Perimeter Protection (Full IVS)
Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking, people gathering — all with human/vehicle classification and linkage tracking.
AcuPick + SMD 4.0
AcuPick attribute search via Dahua AcuPick NVR — search recorded video by clothing colour, vehicle type. SMD 4.0 motion classification for humans and vehicles.
Face & Video Metadata
Face detection with 6 attributes + 8 expressions. Video metadata: 10 vehicle attributes (type, colour, brand, etc.), human attributes.
Construction Safety Detection
On-camera detection of helmet and uniform compliance — for construction sites, mine sites and WHS-regulated industrial environments.
Auto Patrol + Privacy Masking
300 presets, 8 tours (up to 32 presets per tour), 5 patterns, 5 scans with privacy masking for sensitive zones.
Technical Specifications
Camera, Sensor & Optical Zoom
Model
DH-SD6C3425GB-HNR-A-PV1
Form Factor
Network PTZ TiOC (SD6 chassis)
Image Sensor
1/2.8" CMOS Starlight
Maximum Resolution
2560 × 1440 (4 MP)
Frame Rate
4 MP @ 25/30 fps
WDR
Yes (true WDR)
S/N Ratio
≥ 55 dB
Day / Night
Auto (ICR) / Colour / B&W
Optical Zoom
25× (16× digital)
Focal Length
5–125 mm motorised vari-focal
Aperture
F1.6 – F3.6
Field of View
H: 52° – 3° · V: 40° – 2°
IR Illumination
Up to 150 m (2 IR LEDs)
White Light Illumination
Up to 50 m (2 white LEDs)
Dual-Light Fusion
Yes — IR + white light
TiOC Active Deterrence
Red/Blue Strobe
Yes · configurable 5–30 sec flash
Flash Frequency
High / medium / low
White Light Range
Up to 50 m
Voice Alarm
Customisable sound alarm
Built-in Speaker
Yes
PTZ Performance
Pan Range
0°–360° endless continuous
Tilt Range
−20° to +90° (auto flip 180°)
Pan Speed
0°/s – 300°/s
Tilt Speed
0°/s – 100°/s
Presets
300
Tours
8 (up to 32 presets per tour)
Patterns
5
Scans
5
Protocol
DH-SD
Pro AI, Audio & Network
AI Engine
WizSense PTZ (6-Series)
Auto Tracking
Auto Tracking 3.0
IVS
Tripwire · intrusion · crossing fence · loitering · abandoned/missing object · fast moving · parking · people gathering (human/vehicle classification · linkage tracking)
SMD
SMD 4.0
AcuPick
Yes (with Dahua AcuPick NVR)
Face Detection
Yes · 6 attributes + 8 expressions
Video Metadata
Vehicle (10 attributes) · face · human
Construction Safety
Helmet · uniform detection
Audio I/O
1 in / 1 out
Alarm I/O
2 in / 1 out
Built-in Speaker
Yes
Network Port
RJ-45 (10/100 Base-T)
Interoperability
ONVIF (Profile S, G, T) · CGI · SDK
Storage
Micro SD up to 512 GB · FTP/SFTP · NAS
Mobile Client
DMSS
Power, Environment & Build
Power Supply
24 VDC / 2.5 A (included) or PoE+ (802.3at)
Power Consumption
Basic 13 W · Max 23 W
Operating Temperature
−40 °C to +70 °C
Humidity
≤ 95%
Protection
IP66
Surge Protection
TVS 6000 V
Casing
Metal
Certifications
CE · FCC · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
Typical Applications
Carparks & Council Reserves
25× zoom + red/blue strobe deterrent on intruders. One TiOC PTZ replaces 4–6 fixed cameras + strobe lights.
Sports Fields & Town Centres
Wide-area situational awareness with PTZ tracking + voice warnings for after-hours trespass.
Freight Yards & Mine Sites
Long-range 150 m IR + construction safety detection (helmet/uniform compliance) for WHS-regulated sites.
Council CCTV & Public Spaces
Active deterrence with customisable voice prompts — not passive recording, real-time prevention.
Recommended NVR Pairings
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 PoE+ ports.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports.
View Dahua NVR4216-16P-AI →
Frequently Asked Questions
What is TiOC active deterrence?
Red/blue police-style strobe lights + 50 m white light + customisable voice alarm that activates automatically when WizSense AI classifies a human or vehicle in a protected zone — not just passive recording.
Will standard PoE run it?
No — requires PoE+ (802.3at) or the supplied 24 VDC 2.5 A power supply. Standard 802.3af is not sufficient.
Auto Tracking 3.0?
WizSense automatic pan-tilt-zoom follow for people and vehicles — the PTZ locks on and tracks the target across the scene.
Number plate reading?
At 25× optical zoom, licence plates are readable at well over 150 m under daylight; for ANPR-grade workflow at high speed, pair with a dedicated Dahua ANPR camera.
IR range?
Up to 150 m IR + 50 m white light. Dual-light fusion auto-switches.
Construction safety detection?
Yes — on-camera detection of helmet and uniform compliance for WHS-regulated industrial sites.
Third-party VMS?
Yes — ONVIF Profile S, G, T. AI features (AcuPick, attribute search) only work end-to-end on Dahua AI NVRs.
Temperature?
−40 °C to +70 °C — full alpine and tropical Australia rated.
Privacy zones & sensitive areas?
Yes — the PTZ supports multiple configurable privacy masks for windows, neighbouring properties or restricted zones.
Mobile viewing?
Yes — DMSS app with full PTZ control.
Downloads
DH-SD6C3425GB-HNR-A-PV1 DatasheetDahua PTZ Camera Quick Start GuideDahua PTZ Camera User Manual (Web 5.0)Dahua PTZ Camera Operational Manual
Order Your Dahua SD6C3425GB-HNR-A-PV1 from CCTV Guru
This is a project-grade TiOC PTZ — please contact our Australian team to discuss site design, mounting, networking, NVR sizing and active-deterrence configuration. We are authorised Australian Dahua resellers, hold stock locally, and back every 6-Series PTZ with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries answered the same business day.
Genuine Dahua · Mount Adapter · AluminiumDahua DH-PFA114The Link Between Your Camera and Its Bracket
The Dahua DH-PFA114 is a genuine aluminium mount adapter that connects your camera to a wall or ceiling bracket. Compact and strong, it makes for a tidy, secure install in almost any environment.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Connects camera to bracket — pairs cameras with wall or ceiling mount brackets.
Aluminium-alloy build — strong, corrosion-resistant and lightweight at 0.15 kg.
7kg load capacity — securely holds the camera in place.
G1½ thread — standard fitment for fast, reliable installation.
Specifications
Model
DH-PFA114
Category
Camera Mount Adapter
Material
Aluminium Alloy
Dimensions
79.0 × 72.0 × 50.0 mm (3.11" × 2.84" × 1.97")
Net Weight
0.15 kg (0.33 lb)
Load Bearing
7.0 kg (15.43 lb)
Thread Type
G1½
Operating Temperature
−40°C to +60°C
Colour
White
Warranty
3 Years (AU)
DH-PFA114 Datasheet
Frequently Asked Questions
What is the PFA114 for?It's an adapter that joins a camera to a wall or ceiling mount bracket — check your Dahua camera's accessory selection guide to confirm the PFA114 is listed.
Can it be used outdoors?Yes — it's rated −40°C to +60°C and built from corrosion-resistant aluminium alloy.
What thread does it use?It uses a standard G1½ thread for connecting to compatible Dahua brackets.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-PFA114 aluminium mount adapter.
Genuine Dahua · Junction Box · IP66 AluminiumDahua DH-PFA126Tidy, Weatherproof Cable Management for Your Camera
The Dahua DH-PFA126 is a genuine IP66-rated aluminium junction box that hides and protects your camera cabling for a clean, professional finish. Its quick-install, anti-dropping design makes mounting fast and safe, indoors or out.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
IP66 weatherproof — sealed against dust and rain for reliable outdoor use.
Aluminium-alloy build — strong, corrosion-resistant and built to last.
8kg load capacity — securely supports the camera and its bracket.
Quick, anti-drop install — fast to fit with a safe anti-dropping structure.
Specifications
Model
DH-PFA126
Category
Camera Junction Box
Material
Aluminium Alloy
IP Rating
IP66
Dimensions
228.4 × 160.4 × 84.7 mm (8.99" × 6.31" × 3.33")
Weight
1.56 kg (3.44 lb)
Load Bearing
8.0 kg (17.64 lb)
Operating Temperature
−40°C to +60°C
Colour
White
Warranty
3 Years (AU)
DH-PFA126 Datasheet
Frequently Asked Questions
Is it suitable for outdoors?Yes — it's IP66 rated and operates from −40°C to +60°C, ideal for outdoor camera installs.
Which cameras does it fit?It's a camera-mount junction box — check your Dahua camera's accessory selection guide to confirm the PFA126 is listed.
What's in the box?The junction box, M8 screws and metal expansion bolts, two water joints, a wrench and instructions.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-PFA126 aluminium junction box.
Genuine Dahua · Surface Mount Box · AluminiumDahua DH-VTM115Surface-Mount Your Dahua Video Door Station
The Dahua DH-VTM115 is a genuine aluminium surface-mounting box for Dahua VTO video door stations. It lets you mount a flush-design door station neatly onto a wall surface, with a waterproof gel pad and sealing rings included for a weather-resistant outdoor install.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Surface-mount conversion — mounts a flush-design Dahua VTO door station onto a wall surface.
Weather-resistant — includes a waterproof silica gel pad and sealing rings for outdoor use.
Durable AL5052 aluminium — strong 2.0mm aluminium-alloy box built to last.
Complete fixing kit — supplied with expansion screws, self-tapping screws and waterproof rings.
Specifications
Model
DH-VTM115
Category
Surface Mount Box (Video Door Station)
Material
AL5052 Aluminium Alloy (2.0mm)
Dimensions
129.0 × 95.0 × 28.5 mm (5.08" × 3.74" × 1.12")
Application
Surface mounting for Dahua VTO video door stations
Warranty
3 Years (AU)
DH-VTM115 Datasheet
Frequently Asked Questions
What is the VTM115 for?It's a surface-mounting box that lets a flush-design Dahua VTO video door station be mounted on a wall surface. Check your VTO model's mounting spec to confirm the VTM115 is listed.
Is it suitable for outdoors?Yes — it ships with a waterproof silica gel pad and sealing rings for a weather-resistant outdoor installation.
What's included for installation?Expansion screws, ST4×25 self-tapping screws, waterproof rings and M3×8 fixing screws, per the datasheet.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-VTM115 aluminium surface-mount box.
Hikvision QR Access Intercom Kit · PoE · Hik-Connect
DS-K1T502DBWX-CQRE1 Terminal + 7" Indoor Monitor + Hikvision 4-Port PoE Switch — Australian Stock & 3-Year Warranty
The Hikvision QR Code Access Control Intercom Kit is a complete, fully PoE-powered door entry solution for Australian offices, apartments, strata entries, warehouses, clinics, retail stores and gated commercial sites. It pairs the DS-K1T502DBWX-CQRE1 Pro access & intercom terminal, the DS-KH6350-WTE1 7" indoor monitor and a Hikvision DS-3E1105P-EI 4-port smart PoE switch into one matched, ready-to-install package.
Visitors and staff unlock with a QR code, RFID card, PIN or Bluetooth, while the built-in 2MP camera and SIP intercom let you see and speak to callers on the indoor monitor or through the Hik-Connect app and unlock remotely. Because both the terminal and the monitor are PoE, a single network cable carries power and data to each device from the included switch — a cleaner, more reliable install than Wi-Fi-only video doorbells.
Door Terminal
QR · Card · PIN
Monitor
7" Touchscreen
Power
Smart PoE · 60W
Remote Access
Hik-Connect App
Protection
IP65 · IK09
Unlock
QR · Card · App · Monitor
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
What's Included
1 × Hikvision DS-K1T502DBWX-CQRE1
Pro access & intercom door terminal with QR code, RFID card, PIN and Bluetooth entry, a 2MP intercom camera, SIP video calling and Hik-Connect. PoE-powered, IP65 / IK09, zinc-alloy body for outdoor entries.
1 × Hikvision DS-KH6350-WTE1
7" capacitive touchscreen IP indoor station (1024 × 600) to answer calls, view the door terminal and public-area cameras, and release the door. Wi-Fi + PoE, Hik-Connect, black or white panel.
1 × Hikvision DS-3E1105P-EI
4-port smart managed PoE switch (60W budget, 802.3af/at) with a 1-port uplink. Powers and networks both the door terminal and indoor monitor over single cables, with PoE watchdog auto-restart, VLAN and STP/RSTP for a more stable, professional setup.
Ready-to-Install Bundle
Pre-matched genuine Hikvision components remove compatibility guesswork and give your installer the core hardware for a clean, professional wired PoE entry system.
Why Choose This Access Control Intercom Kit?
Access Control + Intercom in One
The terminal handles door access (QR, card, PIN, Bluetooth) and two-way video intercom from a single unit — far more capable than a basic doorbell or standalone card reader.
QR Codes for Visitors
Issue scannable QR passes for tenants, contractors and guests for temporary or scheduled access, without handing out a permanent card to everyone.
All-Hikvision, One Cable Per Device
Terminal, monitor and switch are all genuine Hikvision. Both endpoints are PoE, so the smart switch carries power and data over a single Cat5e/Cat6 run to each — no plug-packs, no weak Wi-Fi.
See & Answer Anywhere
Use the 7" indoor monitor at home or the office, or Hik-Connect on your phone to view, talk and unlock remotely when the system is configured by your installer.
Built for Australian Entries
IP65 weather sealing and IK09 impact resistance suit exposed front doors, gates, loading docks and high-traffic commercial entrances.
Smarter, More Reliable PoE
The DS-3E1105P-EI adds PoE watchdog auto-restart, VLAN segmentation and STP/RSTP loop protection — and up to 300 m long-range PoE for distant gates and doors.
Recommended For
Offices & Staff Doors
Card, PIN or QR access for employees with controlled, logged visitor entry at the front door.
Apartments & Strata
Intercom calling, QR visitor passes and remote unlock for shared lobby and gate entrances.
Warehouses & Industrial
Rugged IP65 / IK09 terminal for staff doors, loading docks and secure storage zones.
Clinics & Studios
Manage appointments, after-hours visitors and controlled entry with flexible authentication.
Retail & Back-of-House
Secure stockrooms, offices and rear entries with QR and card access plus event logging.
Gated Entries
Pair with a compatible electric strike, maglock or gate controller for controlled vehicle and pedestrian access.
Optional Add-Ons
RFID Cards & Fobs
Add Hikvision DS-PT-M1 MIFARE tags for staff, tenants and regular users who unlock by card or fob.
Extra Indoor Monitor
Add another DS-KH6350-WTE1 for upstairs, reception or a second office so calls can be answered in more than one room.
Cat6 Patch Leads
Quality 8ware Cat6 leads for clean, reliable PoE power and data between the switch, terminal and monitor.

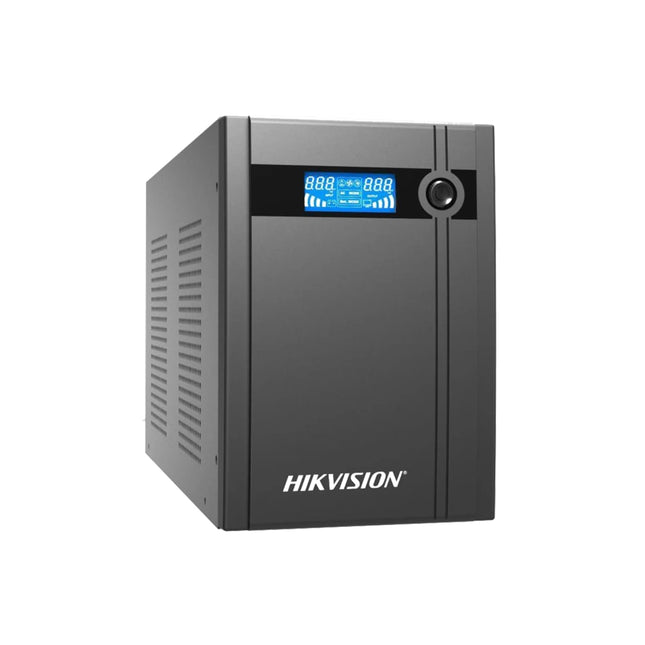

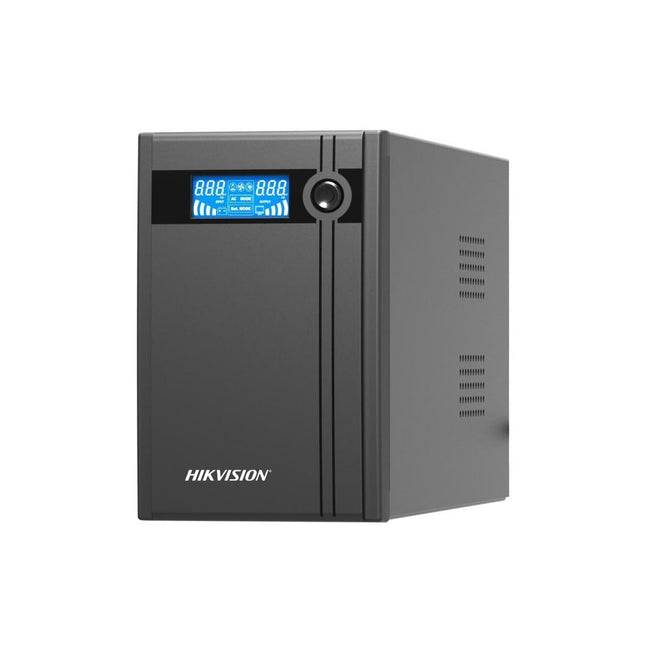

Backup UPS
Keep the entry system online during power cuts with a Hikvision DS-UPS3000 line-interactive UPS.
Technical Specifications
Door Terminal — Hikvision DS-K1T502DBWX-CQRE1
Type
Pro access control terminal with video intercom
Authentication
QR code, RFID card (M1 / DESFire), PIN, Bluetooth
Intercom Camera
2MP · HFOV 110° · VFOV 81° · DFOV 122°
Video Compression
H.264 / H.265
Intercom
Two-way SIP video (3CX, Asterisk, FreePBX & compatible) · Hik-Connect
Network
1 × RJ-45 10/100 Mbps · Wi-Fi 2.4 GHz · Bluetooth
Access I/O
2 lock relays · exit button · door contact · 2 alarm in / 1 out · tamper
Integration
Wiegand (Hik 26/34-bit) · RS-485 · SD card slot
Power
PoE 802.3at · ≤ 24 W
Protection
IP65 weather · IK09 impact · zinc-alloy body
Operating Temp.
−40 °C to +65 °C
Indoor Monitor — Hikvision DS-KH6350-WTE1
Display
7" colour TFT capacitive touch, 1024 × 600
Type
G2 IP network indoor station
Network
1 × RJ-45 10/100 Mbps · Wi-Fi 2.4 GHz
App
Hik-Connect — remote answer, live view, unlock
Functions
Door & camera live view · voice messages · alarm linkage · elevator control
I/O
8 alarm in · 2 alarm out · 2 lock relays · RS-485 · TF card (to 128 GB)
Panel Colour
Black or White (selectable)
Power
12 VDC 1 A or Standard PoE 802.3af · ≤ 5 W
Operating Temp.
−10 °C to +50 °C (indoor)
PoE Switch — Hikvision DS-3E1105P-EI
Ports
4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 uplink
PoE Standard
IEEE 802.3af / 802.3at · up to 30 W per port
Total PoE Budget
60 W
Smart Features
PoE watchdog · 802.1Q VLAN · STP / RSTP · cable diagnostics
Long Range
Up to 300 m (Ports 1–4)
Surge Protection
6 kV on PoE ports
Build
Metal housing · desk or wall mount
Installation Notes
Power Budget
The terminal (≤ 24 W) and monitor (≤ 5 W) draw about 29 W combined — well inside the switch's 60 W budget, leaving two PoE ports free for an extra monitor or device.
Plan the Door Hardware
Door locks, exit buttons, door contacts and any high-current maglock supply are selected separately to suit your door type and fail-safe / fail-secure requirements.
Use Quality Cat6
Run quality Cat5e/Cat6 from the switch to the terminal and monitor for reliable PoE power and data. Keep the switch in a dry, ventilated comms location.
Professional Setup
We recommend commissioning by a licensed security or data-cabling technician for lock wiring, Hik-Connect/SIP configuration and access-control programming.
Downloads & Resources
Official Hikvision datasheets and documentation for every component in this kit.
DS-K1T502DBWX-CQRE1 Datasheet
DS-KH6350-WTE1 Datasheet
DS-3E1105P-EI Datasheet
Hikvision Access Terminal Quick Start Guide
Hikvision Access Terminal User Manual
Frequently Asked Questions
What's included in this kit?The Hikvision DS-K1T502DBWX-CQRE1 door terminal, the DS-KH6350-WTE1 7" indoor monitor and a Hikvision DS-3E1105P-EI 4-port smart PoE switch.
Is the whole kit PoE-powered?Yes. The terminal (802.3at) and the monitor (802.3af) are both powered and networked from the included smart PoE switch — one cable per device, no plug-packs at the door.
How do people unlock the door?By QR code, RFID card, PIN or Bluetooth at the terminal, from the indoor monitor, or remotely through the Hik-Connect app when configured.
Can I answer from my phone?Yes. Hik-Connect lets you receive calls, see the visitor, talk and unlock remotely once the system is set up by your installer.
Can it be used outdoors?The door terminal is rated IP65 for weather and IK09 for impact, suitable for many outdoor entries. The indoor monitor is for indoor use only.
Does it include the door lock?No. Electric strikes, maglocks, exit buttons, door contacts and lock power are selected separately to match your door and access design.
Can I add more indoor monitors?Yes. The switch's 60 W budget and spare ports let you add compatible Hikvision indoor stations for multi-room or multi-floor setups, and you can link CCTV and elevator control.
Do you ship Australia-wide?Yes. CCTV Guru ships genuine Hikvision hardware Australia-wide with local technical support and a 3-year warranty.
Order Your Hikvision Access Control Intercom Kit from CCTV Guru
Order the Hikvision QR Code Access Control Intercom Kit — DS-K1T502DBWX-CQRE1 terminal, DS-KH6350-WTE1 7" monitor and Hikvision DS-3E1105P-EI smart PoE switch — from CCTV Guru for a complete, fully PoE wired entry system with QR, card, PIN and app access. Ideal for Australian offices, apartments, warehouses and gated entries needing a professional upgrade from a basic doorbell.
Hikvision · 1 DeepinView ANPR Plate-Capture Bullet + 4 AcuSense 4K Turrets · 8CH PoE NVR
5-Camera ANPR Kit
Hikvision 5-Camera ANPR Number-Plate CCTV Kit — 1 DeepinView Plate-Capture Bullet + 4 × 8MP AcuSense Turrets with 8-Channel PoE NVR
The Hikvision ANPR Number-Plate Kit is a ready-to-install bundle for Australian driveways, gated estates, car parks, dealerships and depots. It pairs one iDS-2CD7A46G2/P-IZHSY 4MP DeepinView ANPR bullet — purpose-built for on-camera licence-plate recognition day and night — with four DS-2CD2386G2-IU 8MP 4K AcuSense turrets for sharp overview and detail, plus a DS-7608NI-M2/8P 8-channel PoE NVR. Aim the ANPR bullet down your entry lane to read every plate that comes and goes, and place the AcuSense turrets for human/vehicle coverage everywhere else. All cameras run on the NVR's 8 built-in PoE ports over a single Cat6 cable per camera, with three spare channels to grow.
Cameras
5 (1 ANPR + 4 × 4K)
Plate Capture
On-Camera ANPR · ≥98%
Recorder
8CH NVR · 8 PoE
Night Plates
DarkFighter 2.0 · 150 dB WDR
Smart AI
AcuSense Human/Vehicle
Storage
Dual SATA · up to 32 TB
Read Plates Day & Night
The DeepinView ANPR bullet runs licence-plate recognition entirely on-camera with ≥98% accuracy, while DarkFighter 2.0 and 150 dB WDR pull clean plates at 0.0005 lux and through headlight glare.
4K AI on the Rest
Four 8MP AcuSense turrets deliver detailed 4K coverage with human and vehicle classification, filtering out leaves, animals and shadows so you only get the alerts that matter.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, with three spare channels to grow.
Room to Store
The DS-7608NI-M2/8P has dual SATA bays for up to 32 TB total — add a surveillance HDD sized to your retention needs.
What's Included
1 × Number-Plate Camera
iDS-2CD7A46G2/P-IZHSY (2.8–12 mm) — 4MP DeepinView ANPR moto-varifocal bullet, on-camera LPR ≥98% accuracy, DarkFighter 2.0, 150 dB AWDR, built-in heater, IP67 + IK10 + NEMA 4X.
4 × Overview Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, fixed 2.8 mm, 120 dB WDR, 30 m IR, built-in mic, human & vehicle classification, IP67.
1 × Recorder
DS-7608NI-M2/8P — 8-channel M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output, AcuSense-ready and Hik-Connect remote access.
Storage
Add a surveillance-grade HDD sized to your retention. Two SATA bays support up to 32 TB total — choose a drive to suit.
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Note the ANPR bullet needs PoE+ (802.3at). Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Turret brackets and templates included. The ANPR bullet ships with its standard bracket; for poles, fence posts or coastal sites add a Hikvision pole/corner or anti-corrosion (-Y) mount.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Driveways & homes
Read every plate entering the driveway, with 4K coverage of the house and yard.
Gated estates
Log tenant and visitor plates at the gate; allowlist tenants to trigger the boomgate.
Dealerships
Capture every plate on the lot entrance, with overview cameras on stock and showroom.
Car parks
Plate-log entries and exits for dispute evidence and dwell tracking; AI coverage of bays.
Depots & yards
Track trucks and vehicles in and out of the gate; 4K cover on plant, stock and dock.
Businesses
Plate capture at the car-park entry, with AcuSense AI on entries, aisles and rear lanes.

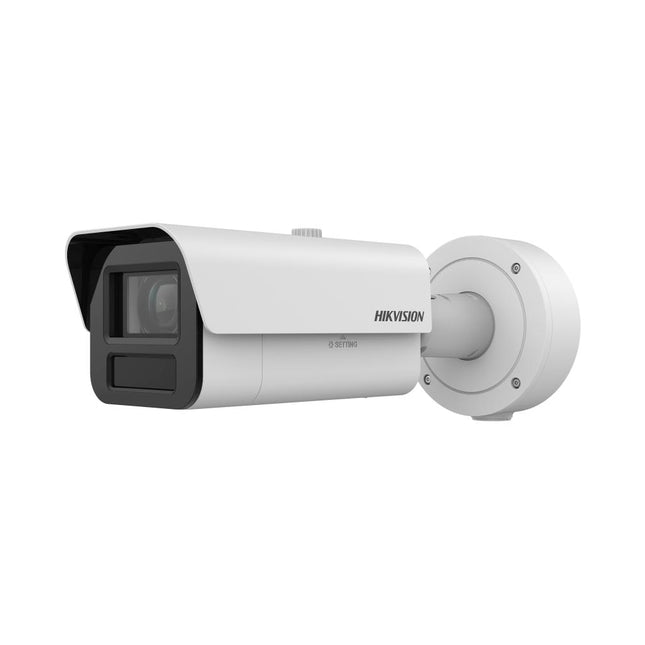

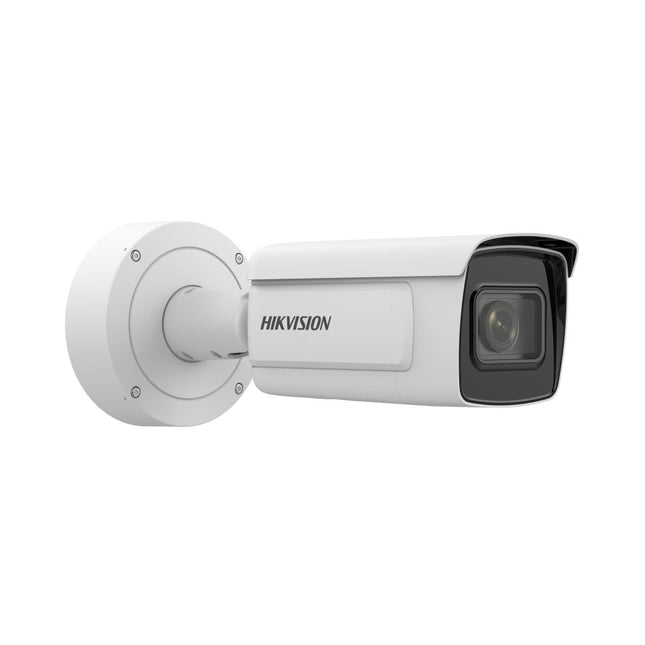

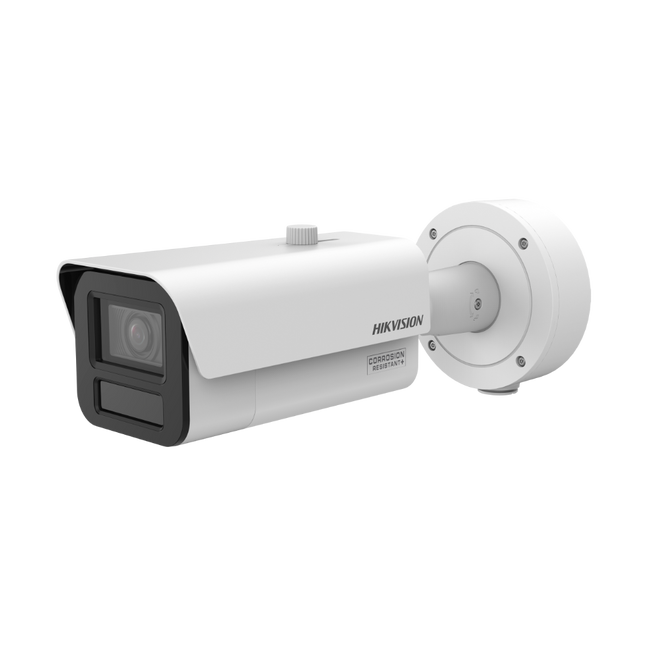

Number-Plate Camera — iDS-2CD7A46G2/P-IZHSY
Camera Type
4MP DeepinView ANPR Moto Varifocal Bullet (-Y NEMA 4X)
Image Sensor
1/1.8" Progressive Scan CMOS · DarkFighter 2.0
Max. Resolution
4MP · 2688 × 1520 (up to 4MP @ 60 fps)
Lens
2.8–12 mm motorised varifocal · P-iris · F1.38–F2.53
Min. Illumination
Colour 0.0005 lux @ F1.2 · 0 lux with IR
IR Range / WDR
Up to 60 m smart IR · 150 dB AWDR
ANPR / LPR
On-camera · ≥98% accuracy · 124+ countries · blocklist/allowlist to 10,000 records
Vehicle Capture
Front (checkpoint) up to 120 km/h · side up to 80 km/h · type / colour / brand / direction
Integration
Wiegand & RS-485 (-Y) for boomgate / access control · ONVIF · ISAPI
Power / Protection
PoE+ 802.3at / 12 VDC / 24 VAC · max 22.6 W · IP67 · IK10 · NEMA 4X
Overview Camera — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense Powered-by-DarkFighter Turret
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160
Lens
Fixed 2.8 mm · F1.6 · ~111° HFOV
IR Range
Up to 30 m smart IR
WDR / AI
120 dB WDR · AcuSense human & vehicle classification
Audio / Storage
Built-in mic · microSD up to 256 GB
Power / Protection
12 VDC / PoE (802.3af) · IP67
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · receives camera-side LPR / ANPR metadata
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Mount the ANPR bullet low and shallow: aim it down the entry lane so the plate fills a good share of the frame, and keep the vertical angle under ~30° — steep top-down angles distort the plate and drop read accuracy.
›Set the right capture distance: the 2.8–12 mm ANPR lens reads plates best when mounted roughly 3–10 m from the plate line. For longer lanes or boomgates 10–40 m back, use the 8–32 mm variant instead.
›Tame headlight glare at night: let the 150 dB WDR and a faster shutter handle oncoming headlights — the camera's plate-capture / checkpoint mode raises shutter speed to freeze fast plates and cut bloom from reflective plates.
›Power and cabling: the ANPR bullet needs PoE+ (802.3at) for its heater and motor — the DS-7608NI-M2/8P supplies this on its ports. Run solid-copper Cat6 from each camera back to the NVR; seal outdoor RJ-45 joins even at IP67.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
NVR setup & Hik-Connect remote access
Downloads & Resources
iDS-2CD7A46G2/P-IZHSY ANPR Datasheet
DS-2CD2386G2-IU Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Will it read plates at night and at speed?Yes. The ANPR bullet's DarkFighter 2.0 sensor pulls a clean plate at 0.0005 lux in colour and 0 lux on IR, and 150 dB WDR cuts headlight glare. Front-installation checkpoint mode captures vehicles up to 120 km/h (side up to 80 km/h) with ≥98% recognition accuracy — though for best results at highway speed, mount it as a dedicated front-facing checkpoint camera.
Does the ANPR need a separate server or licence?No. The licence-plate recognition runs entirely on the camera. The NVR just receives and stores the plate metadata — no per-channel ANPR licence and no recurring cloud fee.
Does it recognise Australian plates?Yes. Hikvision's G2 LPR engine covers 124+ countries including all Australian state and territory plate formats, plus custom, motorcycle and stacked-character plates.
Is a hard drive included?No — the NVR ships without an HDD so you can size storage to your retention. The dual SATA bays take up to 32 TB total; add a surveillance-grade drive to suit.
Can I add more cameras later?Yes. The 8-channel NVR runs 5 cameras here, leaving 3 spare channels and PoE ports for additional Hikvision cameras with no extra hardware.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision AcuSense · 16 × 8MP 4K · 32CH NVR · Expandable to 32 Cameras
16 × 8MP · 32CH Enterprise Kit
Hikvision 16 × 8MP 4K AcuSense Enterprise CCTV Kit with 32-Channel NVR
The Hikvision 16-Camera 8MP Enterprise Kit is a large-site surveillance system built for multi-building Australian projects — warehouses, factories, distribution centres, campuses, council facilities and industrial estates. It pairs sixteen DS-2CD2386G2-IU 8MP 4K AcuSense turret cameras with a DS-7732NI-M4/16P 32-channel 8K NVR. Sixteen built-in PoE ports power the supplied cameras directly, while a further 16 channels stay free — so you can double the camera count to 32 as the site grows. AcuSense deep-learning AI classifies people and vehicles to cut false alarms across every channel.
Cameras
16 × 8MP 4K
Recorder
32CH 8K NVR · 16 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
Audio
Built-in Mic
Storage
4 × SATA · Up to 64 TB
True 4K (8MP) Detail
A 1/1.8" sensor captures 3840 × 2160 detail with the headroom to digitally zoom into recorded footage and still identify a face or number plate.
AcuSense AI — Fewer False Alarms
Deep-learning classification separates people and vehicles from animals, foliage and shadows across all 32 channels, so only real events trigger alerts and recording.
32 Channels — Room to Double Up
Ships with 16 cameras on the NVR's built-in PoE ports, and 16 channels stay free — add ANPR, ColorVu, fisheye or third-party ONVIF cameras to scale to 32 without changing the recorder.
Quad-SATA, Up to 64 TB
Four internal SATA bays accept surveillance HDDs up to 16 TB each, delivering month-long retention even with all channels running at full 4K. RAID 0/1/5/6/10 supported.
What's Included
16 × Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, 2.8 mm (~111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7732NI-M4/16P — 32-channel 8K M-Series NVR with 16 built-in PoE ports, 4 × SATA bays (up to 64 TB), up to 32 MP per channel, 8K HDMI output, RAID support and Hik-Connect remote access. Expandable to 32 IP cameras.
Storage
No HDD included — the NVR ships as a chassis with 4 free SATA bays. Add surveillance-grade drives (Seagate SkyHawk or WD Purple) up to 16 TB each, for a maximum of 64 TB total.
Power
The NVR has 16 × built-in PoE ports (IEEE 802.3 af/at, 200 W budget) — one Cat6 cable per camera carries power and data to the supplied 16 cameras, no separate power supplies. To run more than 16 cameras (up to the 32-channel limit), add an external PoE switch for the extra cameras. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Large warehouses
Loading docks, racking aisles, perimeters and offices with 4K plate and face detail.
Factories & production
Production lines, plant rooms, dispatch and yards with IP67 weatherproof cameras.
Campuses & schools
Entries, hallways, ovals and car parks across multiple blocks on one recorder.
Multi-building sites
Separate structures, gates, driveways and yards consolidated to a single 32CH NVR.
Councils & facilities
Depots, community centres, car parks and public buildings with privacy masking.
Industrial estates
Wide perimeter coverage with headroom to add ANPR and panoramic cameras later.
Camera Specifications — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.003 lux @ F1.6 · 0 lux with IR
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m
WDR
120 dB True WDR
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Audio
Built-in microphone
On-Board Storage
microSD / SDHC / SDXC up to 256 GB
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · max 8 W
Ingress Protection
IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7732NI-M4/16P
Channels
32 IP channels · up to 32 MP input
Incoming Bandwidth
320 Mbps
PoE
16 × PoE ports (IEEE 802.3 af/at) · 200 W budget · add a PoE switch for cameras 17–32
Storage
4 × SATA (up to 16 TB per bay, 64 TB total) · RAID 0/1/5/6/10 · no HDD included
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Form Factor
1.5U desktop / rack-mount compatible
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR for stable power and video over long distances — typical across multi-building sites.
›PoE switch for expansion: the NVR powers 16 cameras on its built-in PoE ports. To use channels 17–32, connect the extra cameras through an external PoE switch on the same network — no NVR upgrade needed.
›Storage sizing: 16–32 channels of 4K use significant bandwidth — for 30+ days of continuous retention, fit multiple drives across the 4 SATA bays for up to 64 TB total.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering
Downloads & Resources
DS-2CD2386G2-IU Datasheet
DS-7732NI-M4/16P Datasheet
Hikvision Camera Quick Start Guide
Can I expand this kit to 32 cameras?Yes — the DS-7732NI-M4/16P is a 32-channel NVR. It powers the 16 supplied cameras on its built-in PoE ports, and you can add up to 16 more IP cameras (AcuSense, ColorVu, ANPR, fisheye or ONVIF) through an external PoE switch — no recorder upgrade required.
Does the NVR include hard drives?No — it ships as a chassis with 4 free SATA bays. Add surveillance-grade drives up to 16 TB each, for up to 64 TB total, sized to your retention and channel count.
How does AcuSense reduce false alarms?Deep-learning AI classifies motion as human, vehicle or other across all 32 channels, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
How are the cameras powered?The 16 supplied cameras each run on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. For cameras 17–32, use an external PoE switch. Cat6 cabling is run on site and not included.
Can I mix in other Hikvision cameras?Yes — the NVR works with AcuSense, ColorVu, ANPR, PanoVu and other Hikvision IP cameras, plus third-party ONVIF cameras. Talk to us to build a custom variant.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision · 1 PTZ Auto-Tracking + 4 × 8MP AcuSense Turrets · 8CH 8K PoE NVR
5-Camera Hikvision PTZ Kit
Hikvision 5-Camera PTZ Auto-Tracking CCTV Kit — 1 PTZ + 4 × 8MP AcuSense Turrets with 8-Channel 8K NVR
The Hikvision PTZ Auto-Tracking Kit is built for large open areas where one fixed camera can never see everything. A DS-2DE7A425IW-AEB 4MP AcuSense PTZ with 25× optical zoom sits at the centre — it auto-tracks moving people and vehicles across the whole scene, zooming in to capture detail as a target moves. Around it, four DS-2CD2386G2-IU 8MP 4K AcuSense turrets lock down the entries, gates and fixed detail points so nothing slips past while the PTZ is tracking elsewhere. Everything records to a DS-7608NI-M2/8P 8-channel 8K NVR with Hik-Connect remote access. Ideal for yards, car parks, acreage, building sites and other wide open coverage.
Cameras
1 PTZ + 4 × 8MP
PTZ Zoom
25× Optical · 200m IR
Auto-Tracking
Follows People & Vehicles
Recorder
8CH 8K NVR · 8 PoE
Smart AI
AcuSense Human/Vehicle
Storage
Dual SATA · Add HDD
PTZ Auto-Tracking
The DS-2DE7A425IW-AEB locks onto a moving person or vehicle and pans, tilts and zooms to follow it across the whole scene — turning one camera into active wide-area coverage with detailed close-ups as the target moves.
Fixed Detail Where It Matters
Four 8MP 4K AcuSense turrets cover the gates, entries and choke points 24/7 so the critical spots are always recorded — even while the PTZ is tracking something at the far end of the site.
25× Zoom + 200 m Night Vision
The PTZ reaches across large yards and car parks with 25× optical zoom and DarkFighter low-light, and an IR range up to 200 m for clear images across big open areas after dark.
AcuSense on Every Camera
On-camera deep learning classifies events as human or vehicle and filters out foliage, rain and headlight false alarms — fewer nuisance alerts across all five cameras.
What's Included
1 × PTZ Camera
DS-2DE7A425IW-AEB — 4MP Pro Series AcuSense PTZ speed dome, 25× optical zoom (4.8–120 mm), 360° endless pan, DarkFighter low-light, IR up to 200 m, AcuSense human/vehicle classification & auto-tracking, IP66 + IK10.
4 × Fixed Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense IR turret, 2.8 mm F1.6 lens, 111° HFOV, 120 dB WDR, 30 m Smart IR, built-in mic, IP67.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
No HDD included by default — add a surveillance-grade drive to suit your retention. Dual SATA bays support up to 32 TB total. Add a surveillance HDD at checkout.
Power
The four turrets run on standard PoE (802.3af) straight from the NVR's built-in PoE ports. The PTZ draws more power and is best run on a Hi-PoE / 802.3at source or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ alongside four 8MP turrets. Use a Hikvision PoE injector for PTZ or a separate PSU for the PTZ. See Installation Notes below.
Cabling
Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Turret brackets and templates included. The PTZ suits a wall, pole or parapet mount (sold separately) for an elevated, unobstructed view across the site.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Yards & storage compounds
PTZ auto-tracks anyone moving through the yard while turrets guard the gates and roller doors.
Car parks & forecourts
Track vehicles across the lot with 25× zoom for plates, with fixed turrets on the entry and exit lanes.
Acreage & rural property
One elevated PTZ sweeps the paddocks and driveway; turrets cover the house, sheds and gate.
Building & construction sites
Auto-track movement around plant and materials after hours; turrets watch the site entry and compound.
Industrial & logistics
Cover loading docks, hardstand and laydown areas with active tracking plus fixed detail on the docks.
Large retail & dealerships
Track customers and vehicles across an outdoor display lot, with turrets on the showroom and entrances.
PTZ Camera — DS-2DE7A425IW-AEB
Camera Type
4MP Pro Series AcuSense PTZ Network Speed Dome · DarkFighter
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
4MP · 2560 × 1440
Optical Zoom
25× (4.8–120 mm) · 16× digital
Min. Illumination
Colour 0.005 lux · B/W 0.001 lux · 0 lux with IR
Night Vision
IR up to 200 m · DarkFighter low-light
Pan / Tilt
Pan 360° endless · Tilt −15° to +90° · auto-tracking
Smart AI
AcuSense human/vehicle classification & face capture · audio-visual alarm
Power
12 VDC or PoE (IEEE 802.3af/at) — Hi-PoE / 802.3at or separate PSU recommended
Protection
IP66 · IK10

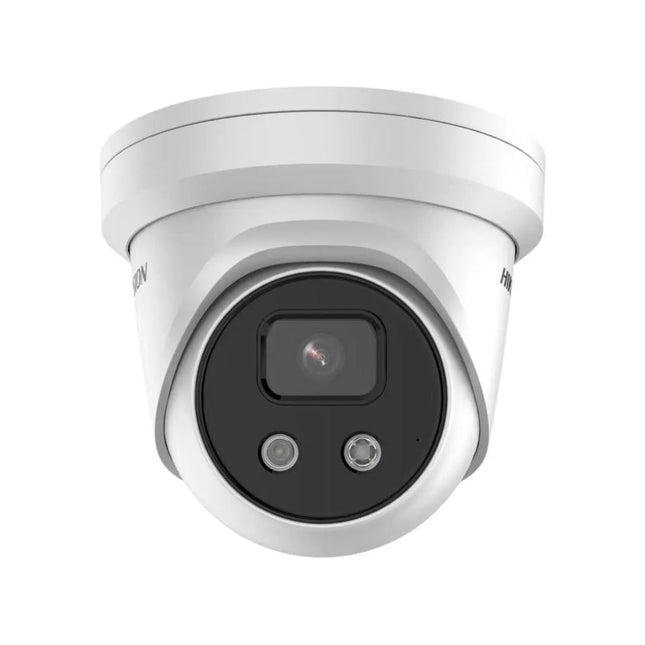

Fixed Camera — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense IR Fixed Turret · Pro Series G2
Image Sensor
1/2.5" Progressive Scan CMOS · DarkFighter Lite
Max. Resolution
8MP · 3840 × 2160 (4K UHD)
Min. Illumination
Colour 0.005 lux @ F1.6 · 0 lux with IR
Lens
2.8 mm fixed · F1.6 · 111° HFOV
Supplement Light
Smart IR · 850 nm · up to 30 m
WDR / AI
120 dB True WDR · AcuSense human & vehicle
Audio / Storage
Built-in mic · microSD up to 256 GB
Power / Protection
12 VDC / PoE (802.3af) · IP67
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · no HDD by default
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›PTZ power: the PTZ pan/tilt motors and 200 m IR draw far more than a fixed turret. Run the PTZ on a Hi-PoE / 802.3at injector (e.g. the Hikvision PoE injector for PTZ) or its own 12 VDC power supply — the 8-port NVR's shared PoE budget may not reliably power a PTZ plus four 8MP turrets. Always confirm the PTZ's power class against its datasheet.
›PTZ placement: mount the PTZ high and central with a clear, unobstructed view so auto-tracking can follow targets across the whole site; place the four turrets on gates, entries and choke points.
›Cabling: run solid-copper Cat6 from each camera back to the NVR (or PTZ injector) for stable power and video over long distances.
›Weatherproofing: seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air, even at IP66/IP67.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
PTZ auto-tracking — follow people & vehicles
Downloads & Resources
DS-2DE7A425IW-AEB Datasheet
DS-2CD2386G2-IU Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
How does PTZ auto-tracking work?When AcuSense detects a person or vehicle, the PTZ automatically pans, tilts and zooms to follow it across the scene — giving you wide-area awareness plus detailed close-ups from a single camera, without anyone driving the joystick.
Does the PTZ run on the NVR's PoE ports?It can support PoE, but a PTZ draws much more power than a fixed turret. We recommend running the PTZ on a Hi-PoE / 802.3at injector or its own 12 VDC supply so the NVR's shared PoE budget comfortably powers the four 8MP turrets. Always confirm against the PTZ datasheet.
What do the four fixed turrets do?The DS-2CD2386G2-IU 8MP 4K turrets cover your fixed detail points — gates, doors, entries and choke points — 24/7, so those critical areas are always recorded even while the PTZ is tracking elsewhere.
Is a hard drive included?No HDD is fitted by default so you can size storage to your retention needs. The NVR has two SATA bays (up to 32 TB total) — add a surveillance-grade drive at checkout.
Can I add more cameras later?Yes — the 8-channel NVR has spare channels and PoE ports, so you can add more Hikvision cameras as the site grows.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision AcuSeek AI · 8 × 8MP 4K · 8CH AI NVR · Search by Description
8 × 8MP AI-Search Kit
Hikvision 8 × 8MP 4K AI-Search CCTV Kit with AcuSeek VPro NVR & 8 AcuSense Turrets
The Hikvision 8-Camera 8MP AI-Search Kit is a premium, evidence-grade bundle for Australian businesses that need to find footage fast — retail, offices, clinics, hospitality, warehouses and multi-tenant sites. It pairs eight DS-2CD2386G2-IU 8MP 4K AcuSense turret cameras with the DS-7608NXI-I2/8P/VPro 8-channel AcuSeek AI NVR. Instead of scrubbing through hours of recordings, you simply describe what you're looking for in plain English — "a person in a red jacket near the front gate" — and the NVR returns matching clips across all 8 channels in seconds. AcuSense AI on every camera classifies people and vehicles to cut false alarms, and the NVR's 8 built-in PoE ports power each camera over a single Cat6 run.
AI Search
AcuSeek · Search by Text
Cameras
8 × 8MP 4K
Recorder
8CH AI NVR · 8 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
Audio
Built-in Mic
AcuSeek — Search Footage by Description
Powered by Hikvision's Guanlan large-scale AI model, AcuSeek lets you type what you're looking for in plain English and returns matching clips across all 8 channels in seconds — no manual scrubbing, no event tagging in advance. Image-based AcuSearch also finds every other appearance of a person or vehicle from a single reference photo.
True 4K (8MP) Evidence Detail
A 3840 × 2160 sensor on every camera captures the detail needed to digitally zoom into recorded footage and still identify a face or number plate — court-ready 4K evidence across the whole site.
AcuSense AI — Fewer False Alarms
On-camera deep-learning classification separates people and vehicles from animals, foliage and shadows, so only real events trigger alerts and recording — typically ~90% fewer nuisance notifications than motion-only systems.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch. Two SATA bays accept up to 32 TB total for weeks to months of 4K retention.
What's Included
8 × Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, 2.8 mm (~111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × AI Recorder
DS-7608NXI-I2/8P/VPro — 8-channel AcuSeek AI NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 4K HDMI output, Guanlan AI natural-language search, facial recognition and Hik-Connect remote access.
Storage
Add a surveillance-grade HDD per bay — choose 4TB pre-fitted at the NVR checkout or fit your own. Two SATA bays accept a drive each for up to 32 TB total (HDD not included with this kit).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Retail & hospitality
Find an incident by description in seconds — "person in red hoodie at the till" — across shopfloor, POS and back-of-house.
Offices & clinics
Reception, lift lobbies, car parks and server rooms with face recognition alerts and natural-language review.
Warehouses & logistics
Loading docks, racking aisles and gates — locate a specific vehicle or person across cameras instantly.
Schools & childcare
Entries, hallways and playgrounds with privacy masking, watchlist alerts and HTTPS secure access.
Multi-tenant & strata
Common areas, entries, basements and bin stores on one searchable AI recorder.
Larger homes & estates
Gates, driveways, sheds and entries with IP67 4K cameras and instant text-search of recorded events.
Camera Specifications — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense Fixed Turret (Pro Series G2)
Image Sensor
1/2.5" Progressive Scan CMOS · DarkFighter Lite
Max. Resolution
8MP · 3840 × 2160 · up to 20 fps
Min. Illumination
Colour 0.005 lux @ F1.6 · 0 lux with IR
Lens
Fixed 2.8 mm · F1.6 · ~111° horizontal FOV
Night Vision
Smart IR · 850 nm · up to 30 m
WDR
120 dB True WDR
AI Functions
AcuSense · human & vehicle classification · perimeter protection · face capture
Audio
Built-in microphone
On-Board Storage
microSD / SDHC / SDXC up to 256 GB · ANR
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af Class 3) · max 7.5 W
Ingress Protection
IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NXI-I2/8P/VPro
Channels
8 IP channels · up to 32 MP per channel
AI Engine
Guanlan Large-Scale AI Model (VPro)
Incoming Bandwidth
320 Mbps
AcuSeek
Natural-language video search across all 8 channels
AcuSearch
Target-image search across all 8 channels
Facial Recognition
All 8 channels · up to 100,000 faces stored locally
PoE
8 × PoE ports (IEEE 802.3 af/at) · 120 W budget
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included
Video Output
1 × HDMI (up to 4K @ 60 Hz) + 1 × VGA · simultaneous
Other AI
Motion Detection 2.0 · perimeter protection · ANPR · people counting · heat map
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances (up to ~100 m).
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage sizing: eight 4K channels use significant bandwidth — fit a surveillance HDD per bay (up to 32 TB total) for weeks to months of retention.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering
Downloads & Resources
DS-2CD2386G2-IU Datasheet
DS-7608NXI-I2/8P/VPro Datasheet
Hikvision Camera Quick Start Guide
What is AcuSeek and how does it work?AcuSeek is Hikvision's natural-language video search powered by the Guanlan AI model. Describe what you're looking for in plain English — "a person in a red jacket at the front gate" — and the NVR returns matching clips across all 8 channels in seconds, no manual scrubbing.
Does the kit come with a hard drive?The NVR ships chassis-only by default. Add a surveillance-grade HDD per bay (2 TB to 16 TB each, up to 32 TB total). We recommend Seagate SkyHawk or WD Purple for 24/7 reliability.
How does AcuSense reduce false alarms?Deep-learning AI on each camera classifies motion as human, vehicle or other, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Are there ongoing subscription fees for the AI?No. AcuSeek, AcuSearch and facial recognition all run on-board the NVR — no cloud fees, no facial data leaving your premises, ever.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision ColorVu 3.0 · 16 × 8MP Live-Guard · 16CH 8K NVR · 4TB Included
16 × 8MP ColorVu Kit
Hikvision 16 × 8MP ColorVu 3.0 Active Deterrence CCTV Kit with 16-Channel 8K NVR & 4TB
The Hikvision 16-Camera 8MP ColorVu 3.0 Kit is a ready-to-install active-deterrence bundle for larger Australian homes, estates, retail, warehouses and multi-building sites. It pairs sixteen DS-2CD2387G3-LIS2UY/SL 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turrets with a DS-7616NI-M2/16P 16-channel 8K NVR and a pre-installed 4TB surveillance HDD. On AcuSense human/vehicle detection every camera can fire a white-light strobe, 110 dB siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All 16 PoE ports power each camera over a single Cat6 run.
Cameras
16 × 8MP ColorVu
Recorder
16CH 8K NVR · 16 PoE
Active Deterrence
Strobe + 110dB Siren
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
Storage
4TB HDD Included
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 30 m) so you capture clothing and number-plate colour all night, not grey IR.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white strobe, sounds a 110 dB warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes.
4TB Included + Room to Grow
Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay (up to 32 TB total) for longer retention across all sixteen 4K channels.
What's Included
16 × Cameras

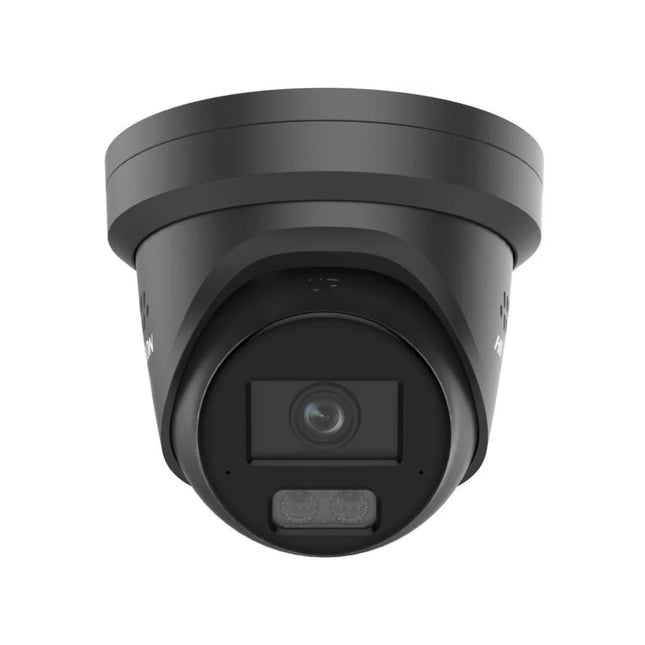

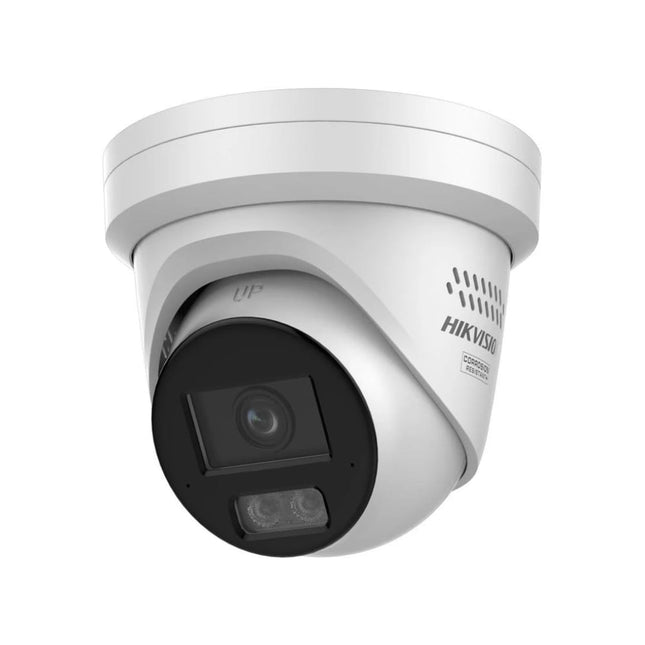

DS-2CD2387G3-LIS2UY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, 2.8 mm (108.8° FOV), white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "Barebone — No HDD" option and add a drive to suit (up to 16 TB per bay).
Power
16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Large homes & estates
Driveways, gates, fence lines and yards with active deterrence on every approach.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & siren after hours, talk-down by day.
Warehouses & yards
Docks, racking aisles, perimeters and equipment yards with full-colour plate capture.
Dealerships & car yards
Deter after-hours theft across open lots with visible strobe and audible warnings.
Schools & childcare
Entries, playgrounds and car parks with privacy masking, HTTPS access and live talk-down.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across multiple buildings on one recorder.
Camera Specifications — DS-2CD2387G3-LIS2UY/SL
Camera Type
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV
Supplement Light
Smart Hybrid Light (white + IR) · up to 30 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Active Deterrence
White-light strobe · built-in 110 dB speaker · two-way audio
Audio
Built-in arrayed dual microphone + speaker
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3at) · max 17 W
Ingress Protection
IP67 · NEMA 4X anti-corrosion
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7616NI-M2/16P
Channels
16 IP channels · up to 32 MP input
Incoming Bandwidth
160 Mbps
PoE
16 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2387G3-LIS2UY/SL Datasheet
DS-7616NI-M2/16P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
What is Live-Guard active deterrence?On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a 110 dB warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I fit a larger hard drive later?Yes — the NVR has two SATA bays and supports up to 16 TB per bay (32 TB total) for longer retention across sixteen 4K channels.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision AcuSense · 16 × 8MP 4K · 16CH 8K NVR · 4TB Included
16 × 8MP AcuSense Kit
Hikvision 16 × 8MP 4K AcuSense CCTV Kit with 16-Channel 8K NVR & 4TB
The Hikvision 16-Camera 8MP AcuSense Kit is a ready-to-install bundle for larger Australian sites — warehouses, factories, schools, multi-tenant buildings and large retail. It pairs sixteen DS-2CD2386G2-IU 8MP 4K AcuSense turret cameras with a DS-7616NI-M2/16P 16-channel 8K NVR and a pre-installed 4TB surveillance HDD. AcuSense deep-learning AI classifies people and vehicles to cut false alarms, and all 16 PoE ports power each camera over a single Cat6 run.
Cameras
16 × 8MP 4K
Recorder
16CH 8K NVR · 16 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
Audio
Built-in Mic
Storage
4TB HDD Included
True 4K (8MP) Detail
A 1/1.8" sensor captures 3840 × 2160 detail with the headroom to digitally zoom into recorded footage and still identify a face or number plate.
AcuSense AI — Fewer False Alarms
Deep-learning classification separates people and vehicles from animals, foliage and shadows, so only real events trigger alerts and recording.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, no extra switch.
4TB Included + Room to Grow
Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay (up to 32 TB total) for longer retention across sixteen 4K channels.
What's Included
16 × Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, 2.8 mm (~109° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). A second SATA bay is free — add a drive for up to 32 TB total.
Power
16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Warehouses & factories
Loading docks, racking aisles, perimeters and offices with 4K plate and face detail.
Schools & childcare
Entries, hallways, playgrounds and car parks with privacy masking and HTTPS access.
Large retail & hospitality
Shopfloor, POS, stockroom, kitchen and back-of-house with built-in audio.
Commercial offices
Multiple floors, reception, lift lobbies, server rooms and basement parking.
Rural & multi-building
Sheds, gates, yards and driveways across separate structures on one recorder.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.003 lux @ F1.6 · 0 lux with IR
Lens
Fixed 2.8 mm · ~109° horizontal FOV
Night Vision
Smart IR up to 30 m
WDR
120 dB True WDR
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Audio
Built-in microphone
On-Board Storage
microSD / SDHC / SDXC up to 512 GB
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · max 8 W
Ingress Protection
IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7616NI-M2/16P
Channels
16 IP channels · up to 32 MP input
Incoming Bandwidth
160 Mbps
PoE
16 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage sizing: sixteen 4K channels use significant bandwidth — for 30+ days of continuous retention, add a second drive for up to 32 TB total.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering
Downloads & Resources
DS-2CD2386G2-IU Datasheet
DS-7616NI-M2/16P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — a surveillance-grade Seagate SkyHawk or WD Purple HDD ships already fitted and ready to record. A second SATA bay is free for expansion.
How does AcuSense reduce false alarms?Deep-learning AI classifies motion as human, vehicle or other, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
How much storage do 16 × 4K cameras need?4 TB covers roughly a couple of weeks of continuous H.265+ recording (longer on motion). For 30+ days, add a second drive for up to 32 TB total.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I mix in other Hikvision cameras?Yes — the 16-channel NVR works with AcuSense, ColorVu and other Hikvision IP cameras. Talk to us to build a custom variant.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
4G LTE · Solar + Battery · 3+3 MP · WizColor · Hybrid-Zoom PTDahua DH-IPC-PTS2649C-3E3Z-4GB20 — 3+3 MP WizColor Hybrid-Zoom Pan-Tilt 4G LTE Solar-Powered Network Camera with Battery (2649 Series)
The Dahua DH-IPC-PTS2649C-3E3Z-4GB20 is a fully off-grid surveillance camera that runs on a built-in 65 Wh lithium battery recharged by an included 8 W solar panel and connects to the internet via 4G LTE on Australian mobile networks (Telstra, Optus, Vodafone) using a standard data SIM. The dual-lens design pairs a 2.8 mm fixed wide-angle lens for permanent scene awareness with a motorised pan-tilt 3.6 mm / 8.4 mm hybrid-zoom lens that slews up to 350° horizontally and 90° vertically — when the fixed lens detects a target, the PT lens auto-tracks it. Both lenses are 3 MP 1/2.8" CMOS with Dahua's brightest F1.0 WizColor large-aperture optics, pulling usable colour video down to 0.0005 lux. Smart Dual Light pairs the warm-light arrays (30 m on the fixed lens, 50 m on the PT lens) with white-light active deterrence and a built-in speaker with 3 sound alarms. AOV Mode (Always-On Video) enables 24/7 recording on ultra-low power — yes, battery and solar do actually record around the clock.
Built for Australian sites with no mains power and no Wi-Fi — rural farms, remote sheds, holiday properties, construction sites, building yards, weekenders, boat ramps and bush blocks where running a PoE cable or installing a Wi-Fi extender simply isn't an option. IP66 sealed, TVS 2000 V lightning protection, operating range −20 °C to +60 °C. SMD 3.0 with human and vehicle classification filters animal motion (kangaroos, cattle, possums) so only the right type of target raises alerts. View, talk back, control pan-tilt and review footage from anywhere via the free DMSS mobile app on 4G or Wi-Fi. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 2649 series — the off-grid 4G solar PT solution for Australian rural, remote and project sites.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua PTS2649C-3E3Z-4GB20 — Off-Grid 4G Solar PT Camera
Truly Off-Grid — Solar + Battery + 4G
Built-in 65 Wh lithium battery recharged by the included 8 W solar panel. Connects to the internet via 4G LTE on any Australian mobile carrier (Telstra, Optus, Vodafone) using a standard data SIM. No mains power, no Wi-Fi, no Ethernet cable — install it on a paddock fence post, a builder's site shed, a holiday-house gable or a remote shed and walk away.
Dual Lens — Always Watching + Auto-Tracking
The fixed 2.8 mm wide-angle lens monitors the whole scene 24/7. When SMD 3.0 detects a person or vehicle, the motorised 3.6 / 8.4 mm pan-tilt lens automatically pans (0–350°), tilts (0–90°) and slews onto the target to capture detail.
F1.0 WizColor — Best Low-Light in Class
Both lenses use 1/2.8" CMOS sensors paired with Dahua's brightest F1.0 large-aperture WizColor optics. Minimum illumination of 0.0005 lux colour — usable full-colour video at twilight and under moonlight.
AOV Mode — 24/7 Recording on Battery
Always-On Video mode keeps the camera recording continuously, not just on motion events, while sipping battery at a low enough rate that the 8 W solar panel can keep up indefinitely in normal Australian sun conditions.
Active Deterrence — Built-In
White-light warning array plus a built-in speaker with 3 configurable sound alarms (volume 1–100%, play 1–10 times). When SMD detects a person or vehicle inside an IVS zone, the camera challenges them on the spot.
Built for Harsh Australian Outdoor
IP66 sealed, TVS 2000 V lightning + surge protection, −20 °C to +60 °C operating range. The solar panel pre-warms the battery in cold conditions to prevent damage at low temperatures.
Important Install Note — 4G SIM & Solar Orientation
This camera needs a standard nano-SIM with a data plan on a 4G LTE Australian carrier — Telstra, Optus or Vodafone. A 5 GB/month plan is plenty for AOV-Mode recording; heavier remote-viewing usage may push to 10–20 GB. Most Australian rural carriers offer "M2M" or "device" SIM plans at low cost — confirm 4G coverage at the install site first using your carrier's coverage map. Solar orientation: for year-round AU sun, face the 8 W panel north (Southern Hemisphere) at roughly local-latitude tilt — for example, ~33° in Sydney, ~28° in Brisbane. The mount allows directional adjustment. Standard charging is USB Type-C with QC 2.0 support.
AI & Smart Detection Capabilities
SMD 3.0 Smart Motion Detection
On-device deep-learning algorithms classify every motion event as human, vehicle or "other". Filters out kangaroos, cattle, wallabies, sheep, possums and wind-blown branches — the rural Australian false-alarm sources that overwhelm generic 4G cameras.
Auto Tracking Lite + Linkage Tracking
When the fixed wide-angle lens detects a classified target, the PT lens auto-slews onto it and follows. Linkage tracking maintains the target across the camera's full 350° pan range.
White-Light Active Deterrence
Configurable white-light warning array triggers on detected human/vehicle events. Combined with the built-in speaker's 3 sound alarms, the camera challenges intruders the moment they enter the scene.
Two-Way Audio via DMSS
Built-in microphone and speaker support full-duplex two-way audio through Dahua's free DMSS mobile app over 4G. Instruct delivery drivers, warn off trespassers, or talk to family at the holiday house.
50 Presets + Power-off Memory
Store up to 50 named pan-tilt positions for quick recall. Power-off memory keeps positions on battery cycles. Ideal for "driveway view", "shed door", "front gate" and "horse paddock" as one-tap presets in DMSS.
Edge Recording — Micro SD Up to 512 GB
Records locally to a Micro SD card (up to 512 GB). AOV-Mode 24/7 recording at 1080p sub-stream stretches a 512 GB card to roughly 4–6 weeks of continuous footage.
Technical Specifications
Camera & Dual Lens System
Model
DH-IPC-PTS2649C-3E3Z-4GB20
Form Factor
Hybrid-zoom Pan-Tilt (PTS) 4G LTE outdoor
Image Sensors
Fixed lens: 1/2.8" CMOS · PT lens: 1/2.8" CMOS
Resolution (each)
3 MP — 2304 × 1296 (Fixed) · 3 MP — 2304 × 1296 (PT)
Minimum Illumination
0.0005 lux @ F1.0 (colour) · 0 lux (illuminator on)
WDR
DWDR (both lenses)
WizColor
Yes — F1.0 large-aperture full-colour low-light
AOV Mode (Always-On Video)
Yes — 24/7 recording on battery
Lens & Illumination
Fixed Lens
2.8 mm · F1.0 · FOV H 93.5° / V 51.9° / D 110.1°
PT Lens
Hybrid-zoom 3.6 mm + 8.4 mm · F1.0 · FOV at 3.6 mm H 81.5° / V 44.3°; at 8.4 mm H 15.1° / V 8.4°
Warm Light (Fixed)
Up to 30 m
Warm Light (PT)
Up to 50 m
Illuminators
4 × warm-light LEDs per lens
Pan-Tilt & Intelligence
PT Lens Pan
0° to 350° (electric)
PT Lens Tilt
0° to +90° (electric)
Fixed Lens Pan/Tilt
0° to 210° pan / −7° to +20° tilt (manual)
Manual + Preset Speed
Pan 40°/s · Tilt 40°/s
Presets
50
Power-off Memory
Yes
Smart Tracking
Auto Tracking Lite + Linkage Tracking (fixed → PT)
SMD
SMD 3.0
Alarm Events
Motion · human detection · vehicle detection
Active Deterrence — Light
White-light warning array
Active Deterrence — Sound
Built-in speaker · 3 sound alarms · volume 1–100% · play 1–10 times
Audio, Connectivity & Storage
Built-in Microphone
Yes
Built-in Speaker
Yes
Two-Way Talk
Yes (via DMSS app)
Carrier Network
4G LTE
Wireless Bands (EAU)
LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 · LTE-TDD: B38 / B40 / B41
SIM
Standard nano-SIM (Telstra / Optus / Vodafone data SIM)
Storage
Micro SD card up to 512 GB
Resolutions
3 MP · 1080p · 720p · 640 × 360 (both lenses)
Mobile Client
DMSS (iOS / Android)
Power, Battery & Environment
Power Supply
Built-in lithium battery + included 8 W solar panel · USB Type-C charging (QC 2.0)
Battery Capacity
65 Wh lithium
Operating Temperature
Unit: −20 °C to +60 °C
Battery Charging Temp
−10 °C to +50 °C (solar panel pre-heats battery to 0 °C before charging in cold conditions)
Battery Discharging Temp
−20 °C to +60 °C
Protection
IP66 · TVS 2000 V lightning protection · surge protection · voltage transient protection
Product Dimensions
223.2 mm × 130.0 mm × 215.0 mm (L × W × H)
Net Weight
1.8 kg
Gross Weight
2.5 kg
Australian Warranty
3 Years (via CCTV Guru)
How It Compares — 4G Solar PT vs Traditional Wired Install
Factor
PTS2649C-3E3Z-4GB20 (this camera)
Traditional Wired Camera Install
Power Source
Solar + battery — fully off-grid
240 V mains power point required
Internet Connection
4G LTE SIM — works anywhere with mobile coverage
Wired Ethernet or Wi-Fi extender from the house
Trade Required
One install pass — bolt to a fence post or pole, insert SIM, scan QR code
Electrician for power + tradesperson for cable run
Time to First Footage
~30 minutes from box-open to live view in DMSS
1–3 days depending on site complexity
Best For
Rural farms, holiday homes, weekenders, construction sites, builders' yards, sheds, paddocks, jetties, boat ramps
Permanent installations near the house with mains power and existing network infrastructure
Recommended Australian Use Cases
Rural Farms & Cattle Paddocks
Mount on a fence post overlooking the gate, the cattle race, the bore pump or the equipment shed. 4G LTE works wherever Telstra rural coverage reaches.
Holiday Houses & Weekenders
The classic off-grid use case. Install at the holiday house and check on it any time from Sydney/Melbourne/Brisbane. Two-way talk lets you greet rental guests or warn off trespassers.
Construction & Building Sites
Powered up before site infrastructure is. Bolt to scaffolding, a builder's compound fence, a portable office or a temporary shed. Active deterrence + DMSS push alerts catch tool theft and unauthorised after-hours access.
Remote Sheds, Stables & Storage
Sheds at the back of the property, horse stables 200 m from the house, container storage in the paddock — anywhere a Cat6 cable would cost more than the camera.
Jetties, Boat Ramps & Marinas
Watch your boat, jet ski or trailer when it's stored off-property. IP66 + TVS 2000 V protects against marine spray and lightning.
Builders & Trades Yards
Watch the back lot at the builder's yard, the panel beater's overflow car park, the landscaping supplies yard or the wrecker.
Frequently Asked Questions
Is the Dahua PTS2649C-3E3Z-4GB20 NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate, choose a NDAA-compliant brand from our range instead.
Does it really run on solar alone?
Yes — under normal Australian sun conditions, the included 8 W solar panel keeps the 65 Wh battery topped up indefinitely while running AOV-Mode 24/7 recording at 1080p sub-stream. Heavy remote-viewing usage on 4G consumes more battery.
What 4G carriers does it work on in Australia?
The camera supports all major LTE bands used by Australian carriers — Telstra (B1, B3, B5, B7, B8, B28, B40), Optus and Vodafone. Use a standard nano-SIM with a data plan from any carrier with coverage at your install site.
How much mobile data does it use?
Typical AOV-Mode 24/7 recording with cloud thumbnail upload + occasional DMSS viewing: ~3–6 GB/month. Heavy remote viewing via DMSS on 4G: 10–20 GB/month. Most Australian M2M / "device" SIM plans offer 5–10 GB/month at $10–25/month.
Why dual-lens instead of a single zoom lens?
The fixed wide-angle lens continuously monitors the scene at full sensor resolution. When SMD detects a target, the PT zoom lens slews onto it. Single-lens PT cameras lose situational awareness when the lens zooms in — the dual-lens design solves that.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android. Add the camera by scanning the QR code on the housing. You get live view, PT control, two-way talk, motion alerts and recorded-footage playback over 4G or Wi-Fi.
Will the battery survive Australian winter cold?
Yes — operating temperature is −20 °C to +60 °C. The solar panel pre-warms the battery to 0 °C before charging in cold conditions, preventing the damage that low-temperature charging would cause to a lithium cell.
Can I record locally as well as cloud?
Yes — the camera records to a Micro SD card (up to 512 GB) inside the housing. AOV-Mode 24/7 sub-stream gives roughly 4–6 weeks of continuous footage on a 512 GB card before overwrite.
What's the warranty in Australia?
3 years, supplied through CCTV Guru as an authorised Australian Dahua reseller. We handle warranty claims locally — no overseas shipping required.
How long does install take?
About 30 minutes for someone comfortable with a cordless drill. Bolt the pole bracket to a fence post or pole, attach the camera, mount the solar panel north-facing, insert the SIM and SD card, scan the QR code in DMSS — done. No electrician, no cable run.
Downloads
DH-IPC-PTS2649C-3E3Z-4GB20 DatasheetDahua Hybrid-zoom PT 4G Quick Start GuideDahua Hybrid-zoom PT 4G Installation MethodDahua 4G Camera Dimensions
Order Your Dahua PTS2649C-3E3Z-4GB20 from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing, multi-camera fleet deployments, rural property advice or 4G carrier selection guidance. We are authorised Australian Dahua resellers, hold stock locally, and back every 2649 series 4G solar PT camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
TiOC PRO · WizColor · 8 MP 4K · AcuPick · Motorised
Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ — 8 MP 4K TiOC PRO WizColor AcuPick Motorised Vari-focal Eyeball Turret WizSense Network Camera (3849 PRO Series)
The Dahua DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ is the top-of-tier TiOC PRO turret in the 3849 series — combining Dahua's brightest F1.2 large-aperture WizColor lens with motorised 2.7–12 mm vari-focal optics, full 8 MP 4K (3840 × 2160) imaging, native AcuPick attribute search, and the complete TiOC PRO active-deterrence stack (red/blue strobe, 110 dB built-in siren, dual-mic two-way talk). The 1/1.8" CMOS Starlight sensor pulls usable colour down to 0.0006 lux through the F1.2 aperture — class-leading low-light performance that the standard fixed-lens 3849 series can't match. The motorised vari-focal range covers 112° wide for broad shopfront / driveway coverage down to a 48° tight pull for plate-grade evidence on long approaches, with smart dual-light (50 m IR + 50 m warm light) handing off the moment WizSense classifies a target. WDR is 120 dB; the housing is IP67 sealed; power is 12 VDC or PoE+ (802.3at) with 13.8 W peak draw. Edge AcuPick lets a paired Dahua 5-Series AcuPick NVR search recorded footage by colour, top/bottom clothing, vehicle type and direction — the attribute filter that turns hours of footage into seconds of investigation. Built for Australian premium residential, commercial frontage, school grounds, NDIS sites, council reserves and retail back-of-house where the project brief demands every inch of camera-side performance the WizSense 3 series can deliver. Backed by a 3-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 3849 PRO series.
Optical Zoom
2.7–12 mm Motorised
Resolution
8 MP 4K @ 25/30 fps
F1.2 WizColor
0.0006 lux Colour
AI Engine
WizSense 3 + AcuPick
Active Deterrence
TiOC PRO · 110 dB Siren
Power
PoE+ 802.3at / 12 VDC
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
See the Dahua TiOC PRO Active Deterrence Platform in Action
Dahua's official TiOC PRO highlight — the same active-deterrence platform that runs on the HDW3849H-ZAS-PV-PRO-ANZ. Red/blue strobe lighting, a 110 dB audible siren, dual-mic two-way talk and WizSense human/vehicle classification working together to challenge intruders the moment they're detected — not after the fact when reviewing footage.
Why Choose the Dahua HDW3849H-ZAS-PV-PRO-ANZ TiOC PRO Turret
This is the camera Australian project specifiers reach for when every other constraint — budget, install location, switch budget — has been signed off and the brief is simply "the best 8 MP turret Dahua makes for active deterrence". Below are the six reasons it earns that brief.
F1.2 WizColor — Brightest Lens in Class
The 2.7–12 mm motorised vari-focal lens opens to F1.2 — a stop and a half wider than the standard 3849 series. Combined with the 1/1.8" CMOS Starlight sensor, the camera captures 0.0006 lux colour at the wide end. Real-world result: usable full-colour evidence at twilight and under moonlight, without forcing the warm light on and announcing the camera's position.
True 8 MP 4K Detail
The 1/1.8" CMOS captures a native 3840 × 2160 raster — four times the pixel density of 1080p. Combined with the motorised tele setting and AcuPick attribute search, faces, number plates and signage stay readable across the camera's full hemisphere.
Re-Frame Remotely via DMSS App
The motorised 2.7–12 mm vari-focal is fully app-controllable. Re-frame the scene from anywhere with internet — no ladder visits, no tradesperson callout. Install at 2.7 mm wide for general site coverage, then pull tight to 12 mm on the driveway approach if you need plate-grade evidence after a break-in.
TiOC PRO — Built-In 110 dB Siren
Most active-deterrence cameras integrate an external speaker amplifier. The HDW3849H-ZAS-PV-PRO has the speaker built into the housing — peaking at 110 dB at 10 cm. Combined with red/blue strobe and dual-mic two-way talk, this is the loudest TiOC PRO active-deterrence package in Dahua's WizSense 3 catalogue.
AcuPick Attribute Search Native
Paired with a Dahua 5-Series AcuPick NVR (NVR5208-8P, NVR5216-16P or NVR5432), the camera lets you search hours of recorded video by attributes — "red top, white sedan, walking east" — and pull matching clips in seconds. The single feature that turns a 4 K recording into an actually-useful investigation tool.
Smart Dual Light — 50 m IR + 50 m Warm
4 multi-core LEDs deliver the longest dual-light reach in the 3849 family. The camera runs invisible IR after dark until WizSense classifies a person or vehicle, then the warm-light array switches on the target to capture full-colour evidence. No constant white-light wash for neighbours.
Important Install Note — PoE+ Required
This camera draws up to 13.8 W on PoE when illuminator, warm light, active deterrence and AI are all active. It requires 802.3at PoE+, not standard 802.3af, or a local 12 VDC supply at the camera. A standard 802.3af switch will undervolt the active-deterrence siren on event. The eyeball gimbal supports flexible install framing, but once tightened the lens is locked at the chosen zoom — re-frame remotely via DMSS instead. For coastal or humid Australian installs, pair with the DH-PFA137 in-ceiling junction box to keep condensation off the RJ-45 termination. Network: 100 Base-T RJ-45.
AI & Smart Detection Capabilities
WizSense 3 Edge AI
Independent AI chip running Dahua's latest deep-learning algorithms for human and vehicle classification. The most accurate WizSense generation Dahua ships — filters out animals, branches and shadows so only the right type of target raises an alert and triggers active deterrence.
AcuPick Attribute Search
Deep-learning attribute matching across people and vehicles. When paired with a compatible Dahua 5-Series AcuPick NVR, you can search recorded video by clothing colour, top/bottom, vehicle type and direction. The forensic-investigation feature.
Face Detection (Full Image)
Face-detection mode supports full-image face capture across the scene — useful for retail customer counting, NDIS visitor logs and shopfront analytics where local privacy law permits.
Perimeter Protection (IVS)
Tripwire, intrusion, stay detection, loitering detection — all with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert (and active-deterrence trigger) when the right type of target crosses it.
SMD 4.0 Smart Motion
Smart Motion Detection 4.0 filters wind-blown branches, possums on fences, shadows and small animals at the edge — only people and vehicles raise alerts. Slashes false-alarm volume on residential, NDIS and rural sites.
Two-Way Talk — Dual Mic + 110 dB Speaker
The dual built-in microphone array supports clearer two-way audio than single-mic competitors, and the 110 dB built-in speaker means you can challenge intruders or instruct delivery drivers without an external amplifier. Operate via the free DMSS mobile app from anywhere with internet.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ
Form Factor
Eyeball turret (HDW chassis)
Image Sensor
1/1.8" CMOS (Starlight)
Maximum Resolution
3840 × 2160 (8 MP 4K)
Scanning System
Progressive
Minimum Illumination
0.0006 lux @ F1.2 (Colour) · 0.0003 lux @ F1.2 (B/W) · 0 lux (illuminator on)
S/N Ratio
> 56 dB
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
BLC / HLC
Yes / Yes
Noise Reduction
3D NR
Smart Illumination
Yes
Smart Dual Light
Yes (target-triggered IR / warm-light hand-off)
WizColor
Yes (F1.2 large-aperture full-colour low-light)
Lens & Illumination
Lens Type
Motorised vari-focal
Focal Length
2.7 mm – 12 mm
Maximum Aperture
F1.2 (WizColor)
Field of View
H: 112° – 48° · V: 58° – 27° · D: 137° – 55°
IR Illumination
Up to 50 m
Warm Light Illumination
Up to 50 m
Illuminator Configuration
4 × multi-core LEDs (IR + warm light)
Illuminator Control
Auto · Manual · Zoom Priority
Intelligence, Active Deterrence & Video
AI Engine
WizSense 3 (TiOC PRO platform · AcuPick-native)
IVS — Perimeter Protection
Tripwire · intrusion · stay detection · loitering detection · face detection (full image) · human + vehicle classification
Smart Motion Detection
SMD 4.0
AcuPick
Yes (with compatible Dahua AcuPick NVR)
Active Deterrence — Light
Red & blue strobe warning · configurable duration and frequency
Active Deterrence — Sound
Built-in speaker, max 110 dB at 10 cm, multiple alarm sounds + custom upload
Video Compression
Smart H.265+ · H.265 · Smart H.264+ · H.264 · H.264H · H.264B · MJPEG (sub stream)
Resolutions
8 MP · 6 MP · 5 MP · 4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF
Main Stream
3840 × 2160 @ 1 – 25/30 fps
Bit Rate Control
VBR · CBR
Audio, Alarm & Network
Built-in Microphone
Yes — dual mic
Built-in Speaker
Yes — max 110 dB at 10 cm · 2 W max
Two-Way Talk
Yes (via DMSS app)
Audio Compression
PCM · G.711a · G.711Mu · G.726 · G.723
Audio Input
1 channel (RCA)
Audio Output
1 channel (RCA)
Alarm Input
1 channel — wet contact, 5 mA, 3–5 VDC
Alarm Output
1 channel — dry contact, 1,000 mA 30 VDC / 500 mA 50 VAC
Network Port
RJ-45 (10/100 Base-T)
Network Protocols
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · Bonjour · 802.1x
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
FTP · SFTP · NAS · Micro SD card up to 512 GB
Mobile Client
DMSS (iOS / Android)
Management Software
SmartPSS Lite · DSS · DMSS
Power, Environment & Build
Power Supply
12 VDC / PoE+ (IEEE 802.3at)
Power Consumption (Basic)
4.1 W (12 VDC) · 5.3 W (PoE+)
Power Consumption (Max.)
11.3 W (12 VDC) · 13.8 W (PoE+) with H.265 + WDR + warm light + active deterrence + AI
Dual-Power Backup
Yes (12 VDC and PoE+ simultaneously supported)
Operating Temperature
–30 °C to +60 °C
Operating Humidity
≤ 95% RH (non-condensing)
Protection Rating
IP67
Product Dimensions
127.6 mm × Φ122.0 mm
Net Weight
0.94 kg
Gross Weight
1.17 kg
Certifications
CE-LVD (EN62368-1) · CE-EMC · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
How It Compares — HDW3849H-ZAS-PV-PRO-ANZ vs HDW3849H-AS-PV-PRO-ANZ
The closest sibling is the Dahua DH-IPC-HDW3849H-AS-PV-PRO-ANZ — the fixed 2.8 mm version of the same TiOC PRO camera. Same sensor, same TiOC PRO active deterrence, same WizColor positioning. The decision is whether you want motorised re-framing (this camera) or a fixed lens at a lower price (sibling).
Feature
HDW3849H-ZAS-PV-PRO-ANZ (this camera — motorised)
HDW3849H-AS-PV-PRO-ANZ (sibling — fixed)
Resolution
8 MP 4K (3840 × 2160)
8 MP 4K (3840 × 2160)
Sensor
1/1.8" CMOS Starlight
1/1.8" CMOS Starlight
Lens
Motorised vari-focal 2.7 – 12 mm · F1.2
Fixed 2.8 mm · F1.0
FOV (wide)
112° H wide → 48° H tele
~109° H (fixed)
AI Engine
WizSense 3 + AcuPick
WizSense 3 + AcuPick
Smart Dual Light
IR 50 m + warm light 50 m
IR 30 m + warm light 30 m
WDR
120 dB
120 dB
Built-in Speaker (110 dB)
Yes — TiOC PRO
Yes — TiOC PRO
Dual Mic
Yes
Single mic
Remote Re-Framing
Yes — re-frame from DMSS app
No — fixed install framing
Power Draw (PoE max)
13.8 W (PoE+ 802.3at)
~10 W (PoE 802.3af)
IP Rating
IP67
IP67
Best For
Project specifiers who want every WizSense 3 feature, longest reach, and remote re-framing
Predictable install framing with TiOC PRO and WizColor at lower power and price
Recommended AcuPick NVR Pairings
For full AcuPick attribute search on recorded footage, this camera should be paired with a Dahua 5-Series AcuPick NVR running V5 firmware. Below are four CCTV Guru-stocked recorders sized to the most common Australian deployments.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE+ ports · 2 HDD bays · 1U. The most popular pairing for residential and small-business sites running 4–8 cameras — runs this PoE+ camera off built-in power, leaves channel headroom for fixed cameras.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. Sized for medium commercial sites and multi-building yards.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. Value-pick build for sites where AcuPick is nice-to-have rather than essential.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick — warehouses, schools, multi-tenant strata, large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA137 — In-Ceiling Junction Box
The most popular accessory for this turret — protects the RJ-45 termination from condensation behind ceiling/soffit mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA106 — Surface Junction Box
Surface-mounted junction box for tidy cable management on rendered or brick walls when ceiling mounting isn't an option.
DH-PFB203W — Wall Mount Bracket
Wall mount bracket for vertical-wall installs — turns the turret into an angled-down façade camera. Useful for shopfront and entry-point coverage.
DH-PFA152-E — Pole Mount Bracket
Pole mount bracket fitting 60 – 110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
DH-PFA101 — Corner Mount
Corner mount bracket for external building corners — useful for double-frontage coverage where the turret needs to see both adjacent façades.
DH-PFM320D-EN — 12 VDC 2 A Adapter
Genuine Dahua 12 VDC 2 A power adapter. Use when running the camera on local DC instead of PoE+, or as a backup supply alongside PoE+.
Frequently Asked Questions
Is the Dahua HDW3849H-ZAS-PV-PRO-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
What does "TiOC PRO" mean and how is it different from standard TiOC?
TiOC stands for "Three-in-One Camera" — Dahua's name for cameras that combine 24/7 video surveillance, real-time AI alarms and active deterrence in one housing. TiOC PRO adds WizColor large-aperture optics (F1.2 here), longer-reach Smart Dual Light (50 m vs 30 m on standard TiOC), dual built-in microphones and a 110 dB built-in speaker. It's the top-tier TiOC tier in Dahua's WizSense 3 line-up.
What does "WizColor" mean?
WizColor is Dahua's name for cameras built around a large-aperture lens (F1.0 or F1.2) paired with a 1/1.8" or larger Starlight CMOS. The result is class-leading full-colour low-light performance — usable colour video at illumination levels where standard cameras flip to black-and-white. This camera's 0.0006 lux colour minimum is the practical advantage WizColor delivers.
Does the camera include AcuPick attribute search?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes (colour, top/bottom clothing, vehicle type, direction) you must record to a compatible Dahua 5-Series AcuPick NVR running V5 firmware.
Does it require PoE+ or will standard PoE work?
PoE+ (IEEE 802.3at) is required. The camera draws up to 13.8 W with illuminator, warm light, active deterrence and AI all active — that's over the 12.95 W ceiling of standard 802.3af. A standard PoE switch will undervolt and the active-deterrence siren may not trigger reliably. Use an 802.3at PoE+ switch or a local 12 VDC supply.
Can I re-frame the camera after install without a ladder?
Yes — that's the main reason to choose the ZAS motorised version over the fixed AS sibling. The 2.7 – 12 mm vari-focal lens is motorised and fully controllable from the free DMSS mobile app. Re-frame, zoom, focus and auto-focus all from your phone, anywhere with internet.
How loud is the built-in siren?
Maximum 110 dB at 10 cm distance (Dahua lab spec). The volume and play count are configurable from 0–100% and 1–10 plays per trigger via the DMSS app. Most residential installs run at 40–60% volume to challenge intruders without disturbing neighbours. Custom sound files can be uploaded for site-specific challenges.
How does it compare to the standard 3849H-ZAS-PV-ANZ-S2 (non-PRO)?
This PRO variant adds the WizColor F1.2 aperture (vs F1.6), longer Smart Dual Light reach, dual-microphone array and 110 dB built-in speaker. If WizColor low-light and TiOC PRO deterrence stack matter for the brief, choose this. If you're cost-sensitive and the standard TiOC platform is enough, the S2 non-PRO variant is the more economical pick.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T are supported, so the camera will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR, and active-deterrence triggers from IVS events only fire on Dahua firmware.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts, recorded-footage playback and remote lens re-framing from anywhere with internet. No subscription required.
Downloads
DH-IPC-HDW3849H-ZAS-PV-PRO-ANZ Datasheet
Dahua IP Turret Camera Installation Guide
Dahua Camera Installation Method
Order Your Dahua HDW3849H-ZAS-PV-PRO-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. We are authorised Australian Dahua resellers, hold stock locally, and back every 3849 PRO series camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
Dahua WizSense · 2 × 5MP WizColor · 4 × 5MP Starlight · 8CH AI NVR 6 × 5MP Kit
Dahua 6 × 5MP CCTV Kit — 2 WizColor Full-Colour + 4 Starlight IR Turret + 8-Channel AI NVR
This Dahua 6-camera 5MP kit mixes two camera types so you put the right eyes in the right places: 2 × DH-IPC-HDW2549EMP-S-PRO-ANZ WizColor turrets deliver guaranteed 24/7 full-colour with a built-in warm light — perfect for front doors, driveways and tills where you need to identify faces and clothing in colour — while 4 × DH-IPC-HDW2541EMP-AS-ANZ Starlight turrets give discreet low-light coverage everywhere else, with no visible light at night. All six run on a DHI-NVR4108HS-8P-AI/ANZ 8-channel WizSense AI NVR with 2 channels still free.
Cameras
2 × WizColor + 4 × Starlight
Recorder
8CH AI NVR · 8 PoE
Night Vision
24/7 Colour + 30 m IR
AI Engine
WizSense · SMD Plus
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
2 × WizColor — Always Full Colour
The WizColor cameras use a 1/1.8" sensor and a built-in warm light to keep recording true full colour right down to near-darkness — so you capture clothing colour, faces and number plates at the spots that matter most.
4 × Starlight — Discreet Low-Light IR
The Starlight turrets deliver clear colour in low light and switch to silent 30 m IR in full darkness — no visible light, ideal for side passages, backyards and general perimeter coverage.
WizSense AI — SMD Plus
Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.
8-Channel PoE NVR
Compact, fanless and silent, the 8CH WizSense AI NVR has 8 built-in PoE ports for plug-and-play install, 4K HDMI output and free DMSS remote viewing — with 2 channels still free.
What's Included
2 × WizColor Cameras
DH-IPC-HDW2549EMP-S-PRO-ANZ — 5MP WizColor full-colour turret, 1/1.8" sensor, 30 m warm light, SMD Plus, built-in mic, IP67. Best at front doors, driveways and tills.
4 × Starlight Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Discreet coverage for the rest of the property.
1 × Recorder
DHI-NVR4108HS-8P-AI/ANZ — 8-channel 4K WizSense AI NVR, 8 built-in PoE ports, 1 SATA bay, 4K HDMI, DMSS remote access. 6 channels used, 2 spare.
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Storage
1 SATA bay — HDD not included. Add a surveillance-grade Seagate SkyHawk or WD Purple drive; ~4–6 TB suits six 5MP cameras for around a month of continuous recording.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Homes & residential
WizColor on the front door and driveway; discreet Starlight IR around the sides and back.
Retail shopfronts
Full-colour at the till and entry; IR coverage across aisles and the stockroom.
Offices & reception
Colour ID at reception and entries, with IR cover of corridors and back exits.
Warehouses & yards
Colour on the loading dock; IR perimeter coverage of racking and equipment.
Car parks
Full-colour at the gate or entry boom; IR coverage across the bays.
Small business
A flexible 6-camera mix with 2 spare channels to scale up later.
WizColor Camera — DH-IPC-HDW2549EMP-S-PRO-ANZ (×2)
Camera Type
5MP WizColor Full-Colour Fixed-focal Eyeball Turret (WizSense 2-Series)
Image Sensor
1/1.8" CMOS
Max. Resolution
5MP · 2960 × 1668 @ 20 fps · 2688 × 1520 @ 25/30 fps
Night Vision
Built-in warm light up to 30 m · 24/7 full colour
AI Functions
SMD Plus · IVS Perimeter (Tripwire, Intrusion — human & vehicle)
WDR · 3D NR · HLC · BLC · digital watermarking
Audio
Built-in microphone
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Storage (edge)
MicroSD up to 256 GB
Power
12 VDC / PoE
Ingress Protection
IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Starlight Camera — DH-IPC-HDW2541EMP-AS-ANZ (×4)
Camera Type
5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
5MP · 2592 × 1944
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR
True 120 dB hardware WDR
AI Functions
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio
Built-in microphone
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection
IP67 · cast-aluminium housing
Warranty (Australia)
3 years · CCTV Guru Australia
Installation Notes
›Camera placement: put the 2 WizColor cameras where colour ID matters most (entry, driveway, till) and the 4 Starlight cameras across general coverage.
›Cabling & sealing: run solid-copper Cat6 to each camera and seal outdoor RJ-45 joins with a junction box or weatherproof tape against moisture and salt air.
›NVR placement: mount the recorder in a cool, dust-free, ventilated spot away from direct sunlight for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2549EMP-S-PRO-ANZ Datasheet DH-IPC-HDW2541EMP-AS-ANZ Datasheet DHI-NVR4108HS-8P-AI/ANZ Datasheet
What's the difference between the WizColor and Starlight cameras?The 2 WizColor cameras keep recording in full colour 24/7 using a built-in warm light — best where you need to identify colour and faces. The 4 Starlight cameras give colour in low light and switch to silent IR (black-and-white) in full darkness, with no visible light.
Do the WizColor cameras have a visible light at night?Yes — WizColor uses a soft warm light to keep colour in darkness. The Starlight cameras use infrared instead, so they stay discreet with no visible glow.
Does a hard drive come included?No — the NVR has one SATA bay but ships without storage. We recommend a surveillance-grade Seagate SkyHawk or WD Purple HDD; around 4–6 TB suits six 5MP cameras for roughly a month of recording.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies or powerpoints at the camera.
Can I add more cameras later?Yes. The NVR has 8 PoE ports and you're using 6, so you can add up to 2 more cameras by plugging them into the spare ports — no recorder upgrade needed.
Is this kit NDAA compliant?No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
43" FHD Commercial Monitor
The Hikvision DS-D5043F3-1V0S is a 43-inch Full HD (1920 × 1080) commercial monitor built for control rooms, retail displays and large-format surveillance walls. Its ultra-thin VA panel delivers a 178° ultra-wide viewing angle and deep 4000:1 contrast, is rated for 24/7 continuous operation, and pairs HDMI, VGA and USB inputs with built-in 10 W stereo speakers and a low-blue-light, eye-care design.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
43" Full HD VA Panel
1920 × 1080 resolution with 8-bit colour and a 72% NTSC gamut in an ultra-thin, 3-side narrow-bezel body.
178° Ultra-Wide Viewing
178° horizontal and vertical viewing with a deep 4000:1 contrast ratio — clear from anywhere in the room.
Rated for 24/7 Operation
7 × 24H reliability rating for continuous, always-on surveillance and signage duty.
HDMI 1.4 + VGA + USB 2.0
Connect an NVR, DVR or PC directly, plus a USB 2.0 port for local media playback.
Built-in 2 × 10 W Speakers
Integrated 8Ω stereo speakers with a 3.5 mm line-out — audio with no external gear.
Low Blue Light & 3D NR
Low-blue-light eye-care design and 3D noise reduction for comfortable, cleaner long-shift viewing.
Specifications
Screen Size
43 inch
Resolution
1920 × 1080 @ 60 Hz (Full HD)
Panel / Backlight
VA / D-LED
Brightness
300 cd/m²
Contrast Ratio
4000 : 1
Viewing Angle
178° (H) / 178° (V)
Response Time
6.5 ms (typ)
Colour Depth / Gamut
8 bit / 72% NTSC
Reliability
7 × 24H (continuous operation)
Video & Audio Input
VGA × 1, HDMI 1.4 × 1
Audio Output
Line Out × 1, Speaker Out × 2 (8Ω 10 W)
Data Interface
USB 2.0 × 1
Speakers
8Ω 10 W × 2
VESA Mount
200 × 200 mm
Power Supply
100–240 VAC, 50/60 Hz, 1.0 A Max
Power Consumption
≤ 80 W (standby ≤ 0.5 W)
Working Temperature
0°C to 50°C
Dimensions (with base)
954.3 × 616.21 × 242.11 mm
Net Weight
6.85 kg
In the Box
Monitor, base, power cable, HDMI cable (1.5 m), remote control, user manual, mounting screws
Downloads
DS-D5043F3-1V0S Datasheet
Hikvision Monitor Quick Start Guide
Hikvision Monitor User Manual
Frequently Asked Questions
Can I connect this monitor directly to a Hikvision NVR?
Yes. The DS-D5043F3-1V0S has an HDMI 1.4 input and a VGA input, so it connects directly to any Hikvision NVR or DVR HDMI/VGA output for live viewing.
Is it rated for 24/7 use?
Yes — it carries a 7 × 24H reliability rating, making it suitable for always-on control rooms and digital signage within its 0°C–50°C operating range.
Does it have built-in speakers?
Yes — two 8Ω 10 W speakers plus a 3.5 mm line-out, so you get audio from your recorder or PC without external speakers.
What is the USB port for?
The USB 2.0 port supports local media playback, so you can show images or video directly from a USB drive without a separate source.
Can I wall mount it?
Yes. It supports a standard 200 × 200 mm VESA bracket and also ships with a desk stand and base.
Do you ship Australia-wide and is it covered by warranty?
Yes. We ship Australia-wide with fast dispatch, local tech support and a 3-year Australian warranty on this monitor.
32" FHD Commercial Monitor
The Hikvision DS-D5032F3-1V0S is a 32-inch Full HD (1920 × 1080) commercial monitor built for control rooms, retail counters and continuous surveillance display. Its VA panel delivers a 178° ultra-wide viewing angle, a deep 4000:1 contrast ratio and a smooth 75 Hz refresh rate, while dual HDMI and VGA inputs plus built-in 10 W stereo speakers make it a clean, plug-and-play display for any NVR or PC source.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Key Features
32" Full HD VA Panel
1920 × 1080 resolution with 8-bit colour and a 72% NTSC gamut for crisp, accurate images.
178° Ultra-Wide Viewing
178° horizontal and vertical viewing with a deep 4000:1 contrast ratio — consistent across a shared monitoring space.
75 Hz Refresh & 8 ms Response
Fluid motion for live camera feeds and everyday PC use.
HDMI 1.4 + VGA Inputs
Connect an NVR, DVR or computer directly — no extra adapters required.
Built-in 2 × 10 W Speakers
Integrated 8Ω stereo audio output for two-way or alarm sound without external gear.
VESA Mount & Low Power
100 × 100 mm wall mount, desk stand included, and just ≤ 48 W in use (≤ 0.5 W standby).
Specifications
Screen Size
32 inch
Resolution
1920 × 1080 (Full HD)
Panel / Backlight
VA / D-LED
Brightness
300 cd/m²
Contrast Ratio
4000 : 1
Viewing Angle
178° (H) / 178° (V)
Refresh Rate
Typ. 60 Hz / Max. 75 Hz
Response Time
8 ms
Colour Depth / Gamut
8 bit / 72% NTSC
Video & Audio Input
VGA × 1, HDMI 1.4 × 1, Audio Output × 1
Speakers
8Ω 10 W × 2
VESA Mount
100 × 100 mm (4 - M6 × 10 mm)
Power Supply
100–240 VAC, 50/60 Hz
Power Consumption
≤ 48 W (standby ≤ 0.5 W)
Working Temperature
0°C to 40°C
Dimensions (with base)
735.08 × 489.16 × 207.95 mm
Net Weight
4.55 kg
In the Box
Monitor, base, HDMI cable (1.5 m), remote control, user manual, mounting screws
Downloads
DS-D5032F3-1V0S Datasheet
Hikvision Monitor User Manual
Frequently Asked Questions
Can I connect this monitor directly to a Hikvision NVR?
Yes. The DS-D5032F3-1V0S has an HDMI 1.4 input and a VGA input, so it connects directly to any Hikvision NVR or DVR HDMI/VGA output for live viewing.
Does it have built-in speakers?
Yes — it includes two 10 W (8Ω) speakers, so you get audio from your recorder or PC without adding external speakers.
Is it rated for 24/7 use?
It is a commercial-grade display designed for extended monitoring duty. For continuous mission-critical operation we recommend adequate ventilation and keeping it within its 0°C–40°C operating range.
Can I wall mount it?
Yes. It supports a standard 100 × 100 mm VESA bracket (M6 screws) and also ships with a desk stand and base.
What resolution and refresh rate does it run?
Full HD 1920 × 1080 at up to 75 Hz, with a 178°/178° viewing angle and 4000:1 contrast for clear images across the room.
Do you ship Australia-wide and is it covered by warranty?
Yes. We ship Australia-wide with fast dispatch, local tech support and a 3-year Australian warranty on this monitor.
Genuine Dahua · Aluminium Alloy · PTZ Ceiling Mount
Dahua PFB301C
A Clean, Professional Ceiling Mount for Dahua PTZ Cameras
Mount your camera the right way with the Dahua DH-PFB301C Aluminium Ceiling Mount Bracket. This genuine Dahua accessory pairs a strong, lightweight aluminium-alloy build with concealed cable routing and a simple, elegant design — for a tidy, secure ceiling installation that looks the part.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Genuine Dahua aluminium alloy — strong, corrosion-resistant and lightweight at just 0.21 kg.
Concealed cable routing — hides cabling inside the mount for a clean, professional finish.
Wide temperature range — rated −40°C to +60°C for indoor and sheltered outdoor use.
Simple, elegant design — quick ceiling installation engineered for Dahua PTZ cameras.
Specifications
Model
DH-PFB301C
Category
Ceiling Mount Bracket
Material
Aluminium Alloy
Dimensions
φ128.8 × 35.5 mm (5.07" × 1.40")
Net Weight
0.21 kg
Operating Temperature
−40°C to +60°C
Mounting
Ceiling
Warranty
3 Years (AU)
DH-PFB301C Datasheet
Frequently Asked Questions
Which cameras does it fit?It's designed as a ceiling mount for Dahua PTZ cameras and compatible mounts — check your camera's installation guide to confirm the PFB301C is listed.
Can I use it outdoors?Yes — it's rated −40°C to +60°C, suitable for indoor and sheltered or covered outdoor positions.
Does it hide the cabling?Yes — the bracket features concealed cable routing for a tidy, professional finish.
Is this a genuine Dahua part?Yes — this is the genuine Dahua DH-PFB301C aluminium-alloy ceiling mount bracket.
Genuine Dahua Accessory
The Dahua PFA7711 is a genuine aluminium mount adapter with a G1½" pipe thread, designed to connect compatible Dahua cameras and brackets to pole, pendant and wall mounts. Its clean, aesthetic white finish blends with Dahua housings, while the corrosion-resistant aluminium body is rated from –40 °C to +60 °C for reliable indoor and outdoor installs across Australia.
Genuine Dahua Part
Fast AU-Wide Shipping
AU Tech Support
Specifications
Type
Camera Mount Adapter
Casing Material
Aluminium
Pipe Thread
G1½"
Product Dimensions
Φ53 mm × 47.8 mm (Φ2.09" × 1.88")
Weight
0.14 kg (0.31 lb)
Colour
White
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Humidity
< 90% RH
In the Box
Mount adapter × 1
PFA7711 Datasheet
What thread does the PFA7711 use?It has a G1½" pipe thread, the standard fitting for connecting Dahua cameras and brackets to pole, pendant and wall mounts.
Is the PFA7711 suitable for outdoor use?Yes. The aluminium body is corrosion resistant and rated from –40 °C to +60 °C with up to 90% humidity, making it suitable for sheltered outdoor installs.
Which cameras is it compatible with?The PFA7711 fits Dahua models listed under the Camera Accessories Selection guide. If you're unsure, contact our Australian support team with your camera model and we'll confirm compatibility.
Dahua WizSense · 16 × 5MP AI Starlight · 16CH 4K NVR · 4TB Included
16 × 5MP Kit
Dahua 16 × 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR & 4TB HDD
The Dahua 16-Camera 5MP AI CCTV Kit is a complete, fully-populated 16-channel system for larger Australian homes, offices, warehouses, industrial yards and multi-tenant retail. It pairs sixteen DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Starlight turret cameras with a DHI-NVR4216-16P-AI/ANZ 16-channel 4K NVR and a pre-installed 4TB surveillance HDD. Every one of the NVR's 16 built-in PoE ports is used — each camera powered and connected over a single Cat6 run, for maximum coverage with no spare channels left idle.
Cameras
16 × 5MP AI Starlight
Recorder
16CH 4K NVR · 16 PoE
Night Vision
30 m Smart IR + Starlight
Storage
4TB HDD Included
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
5MP Starlight Low-Light Imaging
A 1/2.7" Starlight sensor with 120 dB WDR captures clear, low-noise colour in very low light. In full darkness, Smart IR to 30 m takes over for crisp black-and-white footage.
WizSense AI — SMD 4.0
Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video back to the NVR's 16 built-in PoE ports — no separate power supplies, no extra PoE switch, commissioning in minutes.
Full 16-Channel Coverage
A complete 16-camera system with a pre-installed 4TB drive and a second free SATA bay for a storage upgrade. Every channel is used for maximum site coverage.
What's Included
16 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense AI Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense NVR with 16 built-in PoE ports, dual SATA bays, 4K HDMI/VGA output and DMSS remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). For a full 16-camera system we'd suggest upgrading to an 8–16 TB drive for longer retention — select "Barebone — No HDD" and add the drive you need (up to 16 TB per bay, 32 TB total).
Power
16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Large residential estates
Driveways, gates, fence lines and outdoor blind spots across multi-storey homes.
Warehouses & distribution
Loading docks, racking aisles, logistics offices, fire exits and equipment yards.
Commercial offices
Multiple floors, reception halls, lift lobbies, server rooms and basement parking.
Supermarkets & retail
Aisles, POS registers, stockrooms, high-theft corridors and entrance zones.
Car parks & yards
Person and vehicle AI detection with usable detail across large open areas.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ
Camera Type
5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
5MP · 2592 × 1944
Streams
Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR
True 120 dB hardware WDR
AI Functions
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio
Built-in microphone · G.711a / G.711mu / G.726
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection
IP67 · cast-aluminium housing
Dimensions
Ø121.9 × 99.1 mm · ~500 g
Compliance
RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DHI-NVR4216-16P-AI/ANZ
Channels
16 IP channels · up to 16 MP input
Bandwidth
256 Mbps incoming / recording / outgoing
PoE
16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage
2 × SATA III (up to 16 TB per bay) · 4TB pre-installed
Video Output
1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions
Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App
DMSS (iOS & Android) · P2P · ONVIF 21.12
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage & NVR placement: for 16 cameras consider an 8–16 TB drive, and mount the recorder in a cool, dust-free, ventilated spot for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
DHI-NVR4216-16P-AI/ANZ Datasheet
Dahua Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
Is 4TB enough for 16 cameras?4TB gives a solid baseline on motion recording. For continuous 24/7 recording across all 16 cameras we'd suggest 8–16 TB. The NVR takes up to 16 TB per bay (32 TB total), so you can add a second drive any time.
Are these official Australian-stock models?Yes. Every component is genuine Dahua ANZ stock with regional firmware and a local Australian warranty backed by CCTV Guru — not grey import.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera. Cat6 cabling is run on site and not included.
Can I add more than 16 cameras later?This kit uses all 16 channels. To go beyond 16 cameras you'd move to a 32-channel NVR (and a PoE switch for the extra cameras) — our team can spec the right upgrade.
Is this kit NDAA compliant?No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua WizSense · 12 × 5MP AI Starlight · 16CH 4K NVR · 4TB Included
12 × 5MP Kit
Dahua 12 × 5MP WizSense AI CCTV Kit with 16-Channel 4K NVR & 4TB HDD
The Dahua 12-Camera 5MP AI CCTV Kit is a ready-to-install bundle for larger Australian homes, offices, warehouses, industrial yards and multi-tenant retail. It pairs twelve DH-IPC-HDW2541EMP-AS-ANZ 5MP WizSense AI Starlight turret cameras with a DHI-NVR4216-16P-AI/ANZ 16-channel 4K NVR and a pre-installed 4TB surveillance HDD. The NVR's 16 built-in PoE ports power and connect every camera over a single Cat6 run — and with 4 channels still free, you can scale to 16 cameras later without replacing the recorder.
Cameras
12 × 5MP AI Starlight
Recorder
16CH 4K NVR · 16 PoE
Night Vision
30 m Smart IR + Starlight
Storage
4TB HDD Included
Audio
Built-in Mic (one-way)
Weatherproof
IP67 Rated
5MP Starlight Low-Light Imaging
A 1/2.7" Starlight sensor with 120 dB WDR captures clear, low-noise colour in very low light. In full darkness, Smart IR to 30 m takes over for crisp black-and-white footage.
WizSense AI — SMD 4.0
Deep-learning Smart Motion Detection and perimeter protection classify people and vehicles, filtering out animals, foliage and shadows so only real events reach your phone.
16-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video back to the NVR's 16 built-in PoE ports — no separate power supplies, no extra PoE switch, commissioning in minutes.
4TB Included + Room to Grow
Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay. Twelve cameras run today with 4 spare channels to scale to 16 later.
What's Included
12 × Cameras
DH-IPC-HDW2541EMP-AS-ANZ — 5MP WizSense AI Starlight turret, 2.8 mm (111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DHI-NVR4216-16P-AI/ANZ — 16-channel 4K WizSense NVR with 16 built-in PoE ports, dual SATA bays, 4K HDMI/VGA output and DMSS remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "Barebone — No HDD" option and add a drive to suit (up to 16 TB per bay).
Power
16 × PoE+ ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Dahua wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Official Dahua ANZ stock.
Best For
Large residential estates
Driveways, gates, fence lines and outdoor blind spots across multi-storey homes.
Warehouses & distribution
Loading docks, racking aisles, logistics offices, fire exits and equipment yards.
Commercial offices
Multiple floors, reception halls, lift lobbies, server rooms and basement parking.
Supermarkets & retail
Aisles, POS registers, stockrooms, high-theft corridors and entrance zones.
Car parks & yards
Person and vehicle AI detection with usable detail across large open areas.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DH-IPC-HDW2541EMP-AS-ANZ
Camera Type
5MP WizSense AI Fixed-focal Eyeball Turret (Starlight)
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
5MP · 2592 × 1944
Streams
Main 5MP @ 20 fps / 4MP @ 25 fps · Sub D1 @ 25 fps
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m · Starlight min. illumination 0.005 lux
WDR
True 120 dB hardware WDR
AI Functions
WizSense · SMD 4.0 · Perimeter Protection (human & vehicle)
Audio
Built-in microphone · G.711a / G.711mu / G.726
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · Max 6.1 W
Ingress Protection
IP67 · cast-aluminium housing
Dimensions
Ø121.9 × 99.1 mm · ~500 g
Compliance
RCM · CE-LVD · FCC Part 15 Subpart B
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DHI-NVR4216-16P-AI/ANZ
Channels
16 IP channels · up to 16 MP input
Bandwidth
256 Mbps incoming / recording / outgoing
PoE
16 × PoE+ ports · 130 W total · max 25.5 W per port
Storage
2 × SATA III (up to 16 TB per bay) · 4TB pre-installed
Video Output
1 × HDMI (4K) + 1 × VGA · simultaneous
AI Functions
Face detection, IVS/Perimeter, SMD Plus · Quick Pick target search
Compression
Smart H.265+ / H.265 / Smart H.264+ / H.264
Remote / App
DMSS (iOS & Android) · P2P · ONVIF 21.12
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Storage & NVR placement: for 12 cameras consider a 6–12 TB drive, and mount the recorder in a cool, dust-free, ventilated spot for reliable 24/7 recording.
Setup & Installation Guides — Official Dahua
First-time NVR setup, step by step — Dahua Technology UK & Ireland
How to add an IP camera — Dahua Technology (official)
Downloads & Resources
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
DHI-NVR4216-16P-AI/ANZ Datasheet
Dahua Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
Can I fit a larger hard drive later?Yes. The NVR has two SATA bays and supports up to 16 TB per bay (32 TB total), so you can add a second drive or upgrade for longer retention at any time.
Are these official Australian-stock models?Yes. Every component is genuine Dahua ANZ stock with regional firmware and a local Australian warranty backed by CCTV Guru — not grey import.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies or powerpoints at the camera. Cat6 cabling is run on site and not included.
Can I expand past 12 cameras?Yes. The NVR has 16 PoE ports, so you can add up to 4 more cameras simply by plugging them into the spare ports — no recorder upgrade needed.
Is this kit NDAA compliant?No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinView G2 · 4MP · DarkFighter 2.0 · 150 dB AWDR · Face Capture
Hikvision iDS-2CD7146G2-IZS — 4MP DeepinView G2 Moto Varifocal Dome with DarkFighter 2.0, 150 dB AWDR, Face Capture & HEOP (2.8-12 mm)
The Hikvision iDS-2CD7146G2-IZS is a Generation-2 DeepinView Series dome — Hikvision's enterprise AI tier, sitting between the Pro Series turrets and the Ultra Series PTZs. 1/1.8" CMOS sensor + DarkFighter 2.0 imaging stack delivers 0.0005 lux colour at F1.2; 150 dB AWDR handles the worst backlit gateways, sun-on-glass foyers and dock aprons without losing shadow or highlight detail. The on-camera deep-learning engine adds Face Capture (120 simultaneous faces), Face Comparison (10 libraries × 30,000 faces = 150,000 total), AcuSense human + vehicle classification, and ShotN high-speed motion capture for vehicles and people at variable speeds. Up to 4 MP @ 60 fps or 2 MP @ 120 fps main-stream rates, 5 simultaneous streams, Gigabit Ethernet, TPM 2.0 (FIPS 140-2 Level 2) cyber security and HEOP open platform for third-party application deployment. Motorised 2.8-12 mm varifocal lens with remote zoom and focus, IP67 + IK10, three power options (PoE+, 12 VDC, 24 VAC). Australian stock, 3-year Australian warranty.
Resolution / FPS
4MP @ 60 fps · 2MP @ 120 fps
Low Light
DarkFighter 2.0 · 0.0005 lux
Motorised Lens
2.8-12 mm · F1.2 · Vari-focal
AI Engine
DeepinView · Face Capture 120
Cyber Security
TPM 2.0 · FIPS 140-2 L2
Power Options
PoE+ · 12 VDC · 24 VAC
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
See DarkFighter 2.0 — The Imaging Engine on This Camera
DarkFighter 2.0 is the headline imaging technology on the Gen-2 DeepinView Series. It combines AI Image Signal Processing (ISP), high-frame-rate capture, ShotN motion-tracking and Auto Wide Dynamic Range into a single sensor pipeline. Hikvision's official DarkFighter 2.0 introduction shows the imaging chain that powers this iDS-2CD7146G2-IZS.
What DeepinView G2 Brings Over Consumer / Pro Series Cameras
The DeepinView Series is built for sites that need on-camera face recognition, high-frame-rate evidence capture, and open-platform third-party AI. If your site only needs human / vehicle motion filtering, a Pro Series turret with AcuSense is enough. If your site needs to identify faces against a watchlist, capture fast-moving subjects (vehicles, sport, mining haul roads), or run a custom AI application directly on the camera, DeepinView is the tier you want.
Face Capture — 120 Simultaneous
The DeepinView engine detects up to 120 faces simultaneously in frame, captures up to 40 face pictures per frame, and uploads up to 10 best-frame face pics per second to your VMS or NVR. Useful for crowded entrances, transit stations, hotel lobbies, school gates and event venues.
Face Comparison — 150,000 Face DB
10 face libraries × 30,000 = 150,000 total faces with encrypted on-camera storage. Watchlist match runs at the camera — even if the VMS is offline. Enterprise-scale identity verification without a separate face server.
DarkFighter 2.0 + 150 dB AWDR
F1.2 lens · DarkFighter 2.0 sensor · HikAI-ISP noise reduction + 150 dB Auto WDR. Handles the worst Australian lighting transitions — sunset behind a doorway, dock aprons under floodlight, gold-coast sun-on-glass foyers — without overexposing highlights or losing shadow detail.
High Frame Rate — 60 fps @ 4MP / 120 fps @ 2MP
Capture fast-moving subjects without motion blur — vehicles entering carparks, sport, mining haul-truck traffic, courier deliveries, retail loss-prevention. ShotN technology captures vehicles and people at variable speeds in the same frame clearly.
HEOP — Hikvision Embedded Open Platform
Deploy third-party AI applications directly on the camera — Hikvision technology partners ship apps for niche use cases (queue analytics, dwell time, custom retail analytics, industry-specific safety monitoring) that run on-device without external infrastructure.
TPM 2.0 (FIPS 140-2 Level 2)
Hardware-backed cyber security with TPM 2.0 meeting FIPS 140-2 Level 2. Required language for government, council, school-campus, healthcare and corporate RFI compliance — a level Pro Series and EasyIP cameras don't claim.
Which Variant: Why We Stock the IZS (not IZHSY or /1T)
The iDS-2CD7146G2 family ships in several variants — IZ, IZS, IZHS, IZHSY, IZS/1T, IZHSY/1T — and the trailing suffix letters matter. We stock the IZS (2.8-12 mm) as our Australian default because it gives you the full DeepinView G2 imaging chain and AI feature set without paying for niche-case add-ons that most Australian sites don't need.
iDS-2CD7146G2 — Variant Suffix Decoder
Suffix
What it adds
When you need it
IZ
Motorised varifocal + IR — base configuration
Common starting point — but missing audio I/O most installs need
IZS (ours)
Adds audio I/O + built-in dual mic + speaker on top of the base IZ
What you want for most Australian commercial / hospitality / education installs — full audio, full AI, no niche add-ons
-H (IZHS)
Adds heater for cold-weather operation
Alpine / sub-zero sites only — extends operating-temp low from −30°C to −40°C. Not needed for any standard Australian site
-Y (IZHSY)
Adds NEMA 4X moderate anti-corrosion housing
Coastal Australian sites within ~2 km of the shoreline (Sydney Harbour, Wollongong, Gold Coast etc.) — important if your site is genuinely coastal
/1T (IZS/1T or IZHSY/1T)
Adds 1 TB built-in eMMC SSD storage
Sites where you need guaranteed local recording at the camera independent of the network — high-security or regulated retention. Most installs use microSD or NVR storage instead
If you need anti-corrosion (coastal site within 2 km of the shoreline) or onboard 1 TB SSD storage, contact our Australian team — we can special-order the IZHSY or IZHSY/1T variant. For the vast majority of Australian commercial, education, hospitality, council and body-corporate installs, the IZS we stock is the right call.
DeepinView AI — Face Capture, Face Comparison, Perimeter Protection
Perimeter Protection
Line crossing, region entrance, intrusion and region exiting — each filtered by target type (human, vehicle) using on-camera deep learning. Suppresses ~90% of nuisance alarms vs traditional motion-only cameras.
Multi-Target-Type Detection
Simultaneous detection across three target classes with rich feature extraction: face, human body and vehicle. Feeds searchable metadata into your NVR for fast post-incident review.
Face Capture & Quality Grading
Up to 120 simultaneous faces, 40 captures per frame, 10 best-frame uploads per second. On-camera quality grader picks the best angle and focus from the burst — only the usable face frame uploads to your VMS.
Face Comparison & Watchlists
10 encrypted face libraries × 30,000 faces = 150,000 total. Authorised-staff lists, watchlists, banned-customer lists, or contractor-of-record lists — match runs on the camera in real-time.
ShotN High-Speed Motion Capture
Captures fast-moving vehicles and people clearly in single frames — without the motion blur a 30 fps camera leaves on courier vans, security gate vehicles or mining haul trucks. 4 MP @ 60 fps or 2 MP @ 120 fps.
HEOP Third-Party Apps
The Hikvision Embedded Open Platform lets technology partners deploy custom AI applications on the camera — queue analytics, dwell time, retail conversion measurement, industrial safety monitoring — running on-device with no external compute.
Technical Specifications
iDS-2CD7146G2-IZS (2.8-12 mm) · Full Specifications
SKU
iDS-2CD7146G2-IZS (2.8-12 mm motorised varifocal — AU-stocked default)
Camera Type
Hikvision DeepinView Series Gen 2 · 4 MP DarkFighter 2.0 Moto Varifocal Network Dome
Image Sensor
1/1.8" Progressive Scan CMOS · DarkFighter 2.0 · HikAI-ISP
Max Resolution
2688 × 1520 (4 MP)
Min. Illumination
Colour 0.0005 lux @ F1.2 (AGC ON) · B/W 0.0001 lux @ F1.2 · 0 lux with IR
Shutter Speed
1 s to 1/100,000 s
Lens
Motorised varifocal · 2.8-12 mm · F1.2 (wide) – F2.53 (tele) · auto-focus
Field of View
Horizontal 114.6° → 41.8° · varies through zoom
Day & Night
ICR (IR cut filter, mechanical)
Wide Dynamic Range
150 dB AWDR · BLC · HLC · 3D DNR · digital defog
SNR
≥ 52 dB
IR Illumination
Built-in EXIR · adaptive smart IR
Frame Rate (Main)
50/60 Hz: up to 60 fps @ 4 MP · up to 120 fps @ 2 MP (high frame rate)
Streams
5 simultaneous (vs Pro Series 3)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG
Video Bit Rate
32 Kbps – 16 Mbps · CBR / VBR · SVC · ROI
Deep-Learning AI
DeepinView — perimeter protection (line crossing / intrusion / region entry & exit · human + vehicle filter)
Multi-Target Detection
Simultaneous face · human · vehicle classification
Face Capture
120 simultaneous faces · 40 captures per frame · 10 best-frame uploads per second
Face Comparison
10 libraries × 30,000 faces = 150,000 total · encrypted on-camera DB
ShotN Motion Capture
Yes — high-speed clear capture of vehicles + people at variable speeds
HEOP (Open Platform)
Yes — Hikvision Embedded Open Platform for third-party AI apps
G-sensor
Yes — vibration / tamper detection
Power Meter
Yes — historical power consumption statistics on-camera
Basic Events
Motion · video tampering · vibration · exception
Linkage
FTP / NAS / microSD upload · centre notify · email · trigger recording · capture
Audio
Built-in dual microphone + built-in speaker · 1 line-in · 1 line-out · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC / MP3
Alarm I/O
1 input · 1 output
Ethernet
1 × RJ-45 10/100/1000 Mbps Gigabit self-adaptive
On-Board Storage
microSD / SDHC / SDXC slot (no built-in /1T SSD on our IZS variant)
API & Protocols
ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP · 32 users
Network
TCP/IP · ICMP · HTTP · HTTPS · FTP · SFTP · DHCP · DNS · DDNS · SRTP · RTP/RTSP/RTCP · PPPoE · NTP · UPnP · SMTP · SNMP · IGMP · 802.1X · QoS · IPv4/IPv6 · UDP · Bonjour · SSL/TLS · ARP · WebSocket · WebSockets
Cyber Security
TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.2 + 1.3 · HTTPS · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · IP filter · watermark · MAC host authentication · audit log · password protection
Client Software
iVMS-4200 · Hik-Connect · HikCentral Pro
Web Browser
Chrome · Firefox · Safari · Edge · IE 10+ / IE 11
Power Source
12 VDC (15.3 W) · 24 VAC (13.7 W) · PoE 802.3at Class 4 (15.2 W) — three options
Dimensions / Weight
Ø 144 mm × 114 mm · ≈ 970 g
Operating Temperature
−30 °C to +65 °C · humidity ≤ 95 % non-condensing (no -H heater on our variant)
Weatherproof Rating
IP67 (IEC 60529-2013)
Vandal Resistance
IK10
Anti-Corrosion
Not on IZS variant — special-order the -Y / IZHSY for NEMA 4X coastal installs
Approvals
CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · IC ICES-003 · KC · CB · RoHS
Warranty
5-Year Australian Warranty (DeepinView tier · back-to-base)
Recording NVRs — Pair with an AcuSeek or DeepinMind AI NVR
The iDS-2CD7146G2-IZS generates rich AI metadata — face capture frames, face comparison results, multi-target classification, perimeter events, ShotN high-frame-rate clips. To get the full value of that metadata, pair the camera with a VPro AcuSeek or DeepinMind AI NVR — these NVRs index the metadata and let you run natural-language search across the recording ("show me all faces matching this watchlist entry between 4 pm and 6 pm yesterday"). Standard M-Series NVRs will record the stream, but they don't surface the AI metadata in search.
DS-7608NXI-I2/8P/VPro — 8CH · AcuSeek AI
Eight-channel VPro AcuSeek AI NVR with 8 built-in PoE ports — sized for a single high-AI site with this camera as the centrepiece plus perimeter coverage. Indexes face capture + multi-target detection metadata for natural-language AcuSeek search. View DS-7608NXI-I2/8P/VPro →
DS-7616NXI-I2/16P/VPro — 16CH · AcuSeek AI
Sixteen channels at full PoE — body-corporate site, school campus, hotel front-of-house with multiple face-capture cameras plus general coverage. AcuSeek metadata indexing across the full fleet. View DS-7616NXI-I2/16P/VPro →
DS-7732NXI-I4/16P/VPro — 32CH · AcuSeek AI
Thirty-two channels with 16 PoE and 4 HDD bays — standard mid-tier VPro AcuSeek platform for council CBD, port, mining, hospital and multi-building campus rollouts with several DeepinView cameras. View DS-7732NXI-I4/16P/VPro →
iDS-7716NXI-M4/16P/X — 16CH · DeepinMind
Hikvision's most capable 16-channel AI NVR — DeepinMind X-Series for face-recognition workloads and AcuSearch natural-language search. The right pairing if face DB matching is the centre of your project. View iDS-7716NXI-M4/16P/X →
Browse the full Hikvision AI NVR range: Hikvision Network Video Recorders →. Not sure whether AcuSeek or DeepinMind is the right tier? Request a free system quote — we'll size the NVR, storage and switch correctly for the AI metadata workload.
Compatible Mounts & Accessories
The DeepinView G2 dome supports wall, pendant, pole, corner and in-ceiling mounting. Choose the geometry that fits your install — most Australian commercial installs use the standard wall or pendant mount, with pole and corner brackets for perimeter overwatch.
Wall Mount
Hikvision wall-mount bracket sized for the 970 g G2 DeepinView dome — for façade, column or building-wall installs looking outward across a perimeter or approach.
Pendant / Ceiling Mount
Pendant mount for hanging from horizontal surfaces — eave, ceiling, carport gantry, hotel-lobby soffit. Common for over-the-door face-capture installs where the camera looks down on entrants.
Pole & Corner Mounts
Pole-mount brackets for street poles, gate columns and fence posts. Corner-mount brackets for placing the camera at a building corner overlooking two perimeter zones at once.
microSD Card for Local Storage
Supports microSD / SDHC / SDXC for edge recording during network outages, with ANR (Auto Network Replenishment) back-filling the NVR automatically when the link returns. For larger guaranteed-onboard retention, special-order the /1T variant.
Frequently Asked Questions
How is DeepinView different from AcuSense?
AcuSense (on Pro Series and Value Series cameras) is the filtering AI — it classifies motion as human, vehicle or other and triggers only on the targets that matter. DeepinView is the recognition AI — adding face capture, face comparison against a watchlist, ShotN high-speed motion, HEOP open-platform third-party apps, and ANPR (on the dedicated ANPR-suffix variants). DeepinView includes AcuSense's filtering capabilities, plus much more.
Why the IZS and not the IZHSY or /1T?
The IZS gives you the full DeepinView G2 imaging chain and AI feature set without paying for niche add-ons. -H (heater) is only needed for alpine / sub-zero installs (rare in Australia). -Y (NEMA 4X anti-corrosion) is for coastal sites within ~2 km of the shoreline. /1T (built-in 1 TB SSD) is for sites needing guaranteed on-camera local recording independent of the network. If you need any of those, we can special-order — talk to our team.
Can I install this within 2 km of the coast?
Our stocked IZS variant does not have the NEMA 4X anti-corrosion housing. For genuinely coastal Australian installs (Sydney Harbour, Wollongong, Newcastle, Gold Coast, Perth waterfront, etc.), special-order the IZHSY variant which adds anti-corrosion. Or mount the IZS under deep cover (eave, carport, sheltered porch) so it doesn't see direct salt spray. Contact our team for guidance.
Does it support face recognition out of the box?
Yes — 120 simultaneous faces detected, 40 captures per frame, 10 best uploads per second, comparison against 10 libraries of 30,000 faces each (150,000 total) with encrypted on-camera storage. The face DB is configured directly on the camera via iVMS-4200 or HikCentral Pro — no separate face server required.
What is HEOP and do I need it?
HEOP — Hikvision Embedded Open Platform — lets Hikvision technology partners deploy custom AI applications directly on the camera. Most buyers don't deploy a HEOP app, but the platform availability matters if you're planning queue analytics, dwell-time measurement, custom retail conversion tracking, or industrial safety monitoring with a vendor's specific app. Useful future-proofing.
What power supply do I need?
Three options: PoE 802.3at Class 4 (15.2 W) from any Hikvision NVR PoE port, 12 VDC (15.3 W) from a dedicated power supply, or 24 VAC (13.7 W) from existing AC infrastructure. PoE+ is the cleanest install — single Cat 6 cable into the NVR.
How does ShotN motion capture work?
ShotN is Hikvision's high-frame-rate motion technology — it captures fast-moving vehicles, people, mining trucks, sport, etc. clearly in single frames at 4 MP @ 60 fps or 2 MP @ 120 fps, without the motion blur that 30 fps cameras leave. Useful for vehicle gate identification, courier delivery records, dock truck movements, and any site where targets routinely move faster than walking pace.
Will it work with my existing Hikvision NVR?
Yes — ONVIF Profile S / G / T plus Hikvision ISAPI means it streams to any modern Hikvision NVR. However, to surface face capture, face comparison and AI metadata in NVR search, you'll want an AcuSeek (VPro) or DeepinMind NVR. Standard M-Series NVRs record the stream but don't index the DeepinView AI metadata.
Is this NDAA Section 889 compliant?
No. Hikvision is not NDAA Section 889 compliant. For NDAA-required projects (typically US federally-funded), we stock alternative brands — contact our team. For Australian residential, commercial, council, school, retail, hospitality, body-corporate and most state-government projects without an NDAA contractual requirement, this camera is freely usable.
Downloads & Resources
iDS-2CD7146G2-IZS Datasheet
Hikvision DeepinView Quick Start Guide
Hikvision DeepinView User Manual
Order the Hikvision iDS-2CD7146G2-IZS from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision DeepinView Series. The iDS-2CD7146G2-IZS (2.8-12 mm) is the enterprise-tier face-capture dome for Australian commercial, education, hospitality, council and body-corporate sites that need on-camera face recognition, high-frame-rate evidence capture and HEOP open-platform AI. Australian stock, 5-year Australian DeepinView warranty, fast Australia-wide dispatch, multi-camera project pricing, and pre-sales advice from our Sydney team. Designing a face-recognition project for an entry, transit station, hotel, school campus or council CBD? Request a free quote or contact our Australian team for camera-and-AI-NVR sizing — we'll spec the right number of DeepinView cameras and the right AcuSeek / DeepinMind NVR for your AI workload.
Ultra Series · Backup Battery Support · Up To 128 Doors
Hikvision DS-K2704X(P) Enterprise Access Controller with Backup Battery Support
The Hikvision DS-K2704X(P) is an enterprise-grade 4-door access controller designed for large commercial access control projects requiring centralised management, high reliability and backup power capability. It controls 4 doors natively and can expand to 128 doors through compatible DS-K2M002X access modules.
Unlike standard controller deployments, the DS-K2704X(P) supports backup battery charging and discharging, helping maintain access control operation during power interruptions. Combined with anti-passback, multi-door interlocking, RS-485 redundancy and web-based management, it provides a scalable access control platform for schools, hospitals, strata buildings, warehouses, airports, commercial facilities and critical infrastructure projects.
Model
DS-K2704X
Native Doors
4 Door Control
Expansion
Up to 128 Doors
Users
100,000 Users
Security
Anti-Passback
Backup Power
Battery Ready
Genuine Hikvision
Commercial Grade
Australian Support
Why Choose the Hikvision DS-K2704X(P)?
Built for Multi-Door Projects
The DS-K2704X controls 4 doors directly and can scale up to 128 doors with DS-K2M002X modules. That makes it ideal for staged projects where the access control system needs to grow over time.
Enterprise Access Control Backbone
Instead of relying on standalone readers at every door, the DS-K2704X gives your site a centralised controller for door permissions, events, alarms and system management.
Web Browser Configuration
Configure the controller through a web browser without needing a separate software application for basic setup and management.
Large User & Event Capacity
Supports up to 100,000 users, 200,000 cards, 10,000 fingerprints and 600,000 events, making it suitable for large staff, tenant, contractor and visitor environments.
Professional Access Control Features
Supports anti-passback, multi-door interlocking, multi-factor authentication and first-person-in access control workflows for higher-security sites.
Reliable RS-485 Expansion
Five downstream RS-485 interfaces support access module expansion, redundancy and stable communication across larger deployments.
Designed for Backup Power Applications
Supports battery charging and discharging functionality, helping maintain access control operation during power interruptions when used with compatible backup batteries.
Recommended For
Commercial Buildings
Control staff entrances, lift lobby doors, back-of-house areas, secure offices, plant rooms and tenancy access points.
Schools & Education Sites
Manage administration buildings, staff rooms, classrooms, gates, libraries and restricted areas with centralised access permissions.
Warehouses & Industrial Facilities
Secure loading docks, staff doors, stock rooms, cages, offices and after-hours access points.
Strata & Apartment Buildings
Use as the access control foundation for multi-door residential buildings, car parks, lobbies, bin rooms and shared amenities.
Healthcare & Clinics
Restrict access to treatment areas, medication rooms, back offices, staff-only zones and after-hours entry points.
Government & Critical Sites
Suitable for controlled access deployments where centralised event history, door status and access rules matter.
<
Critical Access Applications
Ideal for sites where maintaining door control during power outages is important, including healthcare facilities, commercial buildings, industrial sites and critical infrastructure.
Recommended Accessories
DS-K2M002X Expansion Module
DS-K1T502DBWX-CQRE1
Electric Strikes
Magnetic Locks
Exit Buttons
Door Contacts
Typical 32-Door Deployment Example
The DS-K2704X is often used as the core controller in larger staged access control projects. For example, a 32-door commercial site may use the controller with expansion modules, readers, locks, exit buttons and door contacts to create a complete Hikvision access control system.
1 × DS-K2704X Controller
Central controller for the access control system, user database, events and door management.
DS-K2M002X Expansion Modules
Add compatible access modules to expand beyond the native 4 doors and scale the project as required.
Readers or Terminals
Pair with Hikvision card readers, QR terminals or intercom terminals depending on the entry point and user workflow.
Locks, Exit Buttons & Door Contacts
Complete each door with the correct electric strike, magnetic lock, request-to-exit button and door reed switch.
Recommended Accessories
DS-K2M002X Access Module
Essential expansion module for growing the system beyond the controller’s native door capacity.
DS-K1T502DBWX-CQRE1 Terminal
Smart access terminal for QR code, card, PIN, Bluetooth and intercom-style entry points.
Hikvision Card Readers
Add compatible Hikvision readers for staff doors, secure rooms, car park entries and high-traffic access points.
LOX Electric Strike or Magnetic Lock
Choose the correct locking hardware based on the door type, frame, fail-safe/fail-secure requirement and fire compliance.
Exit Button & Door Contact
Add request-to-exit buttons and reed switches for proper access control logic and door status monitoring.
Backup Power
Use suitable backup power to help maintain controlled access during power interruptions.
Watch the DS-K2704X in Action
Official Hikvision overview of the DS-K2704X Ultra Series enterprise access controller, covering scalability, system architecture and deployment capabilities.
Learn how the DS-K2700X Series supports large-scale access control projects with expansion modules, advanced door management and centralised control.
Technical Specifications
Hikvision DS-K2704X · Enterprise Access Controller
Model
DS-K2704X
Product Type
Enterprise Access Controller
Operating System
Linux
Native Door Capacity
4 doors
Extended Door Capacity
Up to 128 doors with compatible access modules
Access Module Support
Supports up to 62 DS-K2M002X access modules
Network Interface
1 × RJ45, 10/100/1000 Mbps self-adaptive
Lock Control
4
Exit Button Input
4
Door Contact Input
4
Alarm Input
8
Alarm Output
4
Tamper Input
1
Fire Interface
1
RS-485
7 total: 2 for card readers and 5 for access modules, including redundancy support
Wiegand
4 inputs, standard 26/34-bit with custom Wiegand support
USB
1 × USB 2.0
User Capacity
100,000 users
Card Capacity
200,000 cards
Fingerprint Capacity
10,000 fingerprints
Event Capacity
600,000 events
Supported Functions
Web configuration, multi-factor authentication, first-person-in, anti-passback and multi-door interlocking
Indicators
12 indicators for power, running status, network, RS-485 and door status
Battery
Charge and discharge support
Power Supply
100 VAC to 240 VAC
Power Consumption
≤ 102 W
Operating Temperature
−10°C to +55°C
Operating Humidity
0% to 90%, non-condensing
Installation
Wall mounting
Battery Support
Battery charging and discharging supported
Status Indicators
Power supply, communication, operation and system health indicators
Downloads & Resources
Download the official Hikvision datasheet or view the product page for manuals, firmware, configuration files and updated technical resources.
Download DS-K2704X(P) Datasheet
DS-K2704X(P) Quick Start Guide
User Manual
Installation Notes
Professional Installation Recommended
This is a commercial access control controller and should be installed by a qualified security technician or licensed professional where required.
Plan the Door Hardware First
Confirm every door’s lock type, exit method, door contact, fire trip requirement and power design before ordering.
Use the Right Reader Layout
Decide whether each door needs entry-only, entry/exit readers, QR terminals, card readers or intercom terminals.
Allow Room for Expansion
If the site may grow later, design RS-485 module locations, enclosure space and power capacity from the start.
Frequently Asked Questions
How many doors does the DS-K2704X control?
It controls 4 doors natively and can expand up to 128 doors with compatible DS-K2M002X access modules.
Is this suitable for a single door?
It can be used for smaller projects, but it is best suited to multi-door commercial and enterprise access control systems.
Does it support web configuration?
Yes. The DS-K2704X supports configuration through a web browser.
Does it support anti-passback?
Yes. Anti-passback is supported for professional access control applications.
Can it work with Hikvision card readers?
Yes. It supports compatible Hikvision RS-485 and Wiegand card readers.
Can it connect to electric strikes and maglocks?
Yes. It provides lock control outputs, but the correct lock and power design must be selected for each door.
Does it support backup battery?
Yes. The DS-K2704X supports battery charging and discharging.
What software should I use with it?
It can be configured through a web browser and can be used within Hikvision access control ecosystems depending on the final system design.
Is this better than a standalone access terminal?
For multi-door sites, yes. A controller-based system gives better central management, event history, expansion and door logic.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision access control products across Australia with local support.
What expansion module is required to increase door capacity?
The DS-K2704X supports expansion using Hikvision DS-K2M002X access modules, allowing the system to scale from 4 doors up to 128 doors for larger commercial deployments.
Can I use the DS-K2704X with QR code terminals?
Yes. The controller can be integrated with compatible Hikvision access terminals including QR code, card, PIN, Bluetooth and intercom-based devices depending on the project requirements.
What is the difference between the DS-K2704X and DS-K2704X(P)?
The DS-K2704X(P) supports backup battery charging and discharging functionality, making it suitable for installations requiring backup power capability and enhanced system resilience.
Can the DS-K2704X(P) continue operating during a power outage?
When installed with a compatible battery backup system, the controller can support continued access control operation during mains power interruptions.
Order the Hikvision DS-K2704X from CCTV Guru
Order the Hikvision DS-K2704X Enterprise Access Controller from CCTV Guru for genuine Hikvision hardware, fast Australia-wide dispatch and local advice on compatible readers, terminals, expansion modules, electric strikes, magnetic locks, exit buttons, reed switches and backup power design.
Access Control Module · 2-Door Expansion · DS-K2700X Ready
Hikvision DS-K2M002X 2-Door Access Control Expansion Module
The Hikvision DS-K2M002X is a professional 2-door access control expansion module designed to extend compatible Hikvision access controllers, including the DS-K2700X / DS-K2704X platform. It connects to the main access controller via RS-485 and provides lock control, exit button input, door contact input, alarm input/output and reader connection for additional doors.
This module is ideal for Australian commercial buildings, schools, warehouses, strata sites, offices and multi-door access control projects where the system needs to expand beyond the controller’s native door capacity. It supports card readers via RS-485 OSDP or Wiegand, installs neatly with guide rail mounting and supports battery charge/discharge through the access control system design.
Model
DS-K2M002X
Door Control
2 Doors
Controller Link
RS-485
Readers
OSDP · Wiegand
Lock Outputs
2 Lock Controls
Power
12V DC
Genuine Hikvision
Commercial Grade
Australian Support
Why Choose the DS-K2M002X?
Expand Hikvision Controller Capacity
Add 2 additional doors to compatible Hikvision access controller systems, making it a practical expansion module for staged commercial projects.
Designed for DS-K2700X Projects
Ideal companion module for DS-K2700X / DS-K2704X access controller deployments where the system needs to scale beyond the controller’s native doors.
Reader Flexibility
Connect compatible readers via RS-485 OSDP or Wiegand, giving installers flexibility across different door and reader layouts.
Complete Door I/O
Each module provides lock control, exit button input, door contact input, alarm input/output and tamper input for professional access control wiring.
Guide Rail Installation
Designed for neat installation inside access control enclosures, equipment cabinets and commercial security panels.
Battery Charge / Discharge Support
Supports battery charge and discharge functions as part of a correctly designed access control power system.
Recommended For
Commercial Buildings
Expand door control across staff entries, tenancy doors, lift lobbies, plant rooms and restricted areas.
Schools & Education Sites
Add controlled access to classrooms, administration areas, gates, libraries and staff-only zones.
Warehouses & Industrial Sites
Secure loading docks, cages, stockrooms, staff doors and office entries with centralised access control.
Strata & Apartment Buildings
Expand access control for car parks, lobbies, bin rooms, shared amenities and back-of-house service doors.
Healthcare & Clinics
Add access-controlled doors for treatment rooms, medication areas, staff corridors and secure administration areas.
Large Multi-Door Projects
Use multiple DS-K2M002X modules to build scalable access control systems across larger sites.
Typical Deployment Example
The DS-K2M002X is commonly used with a Hikvision access controller when a site needs additional doors beyond the controller’s built-in capacity. Each module supports 2 linked doors and connects back to the controller via RS-485.
1 × Main Access Controller
Use with a compatible Hikvision access controller such as a DS-K2700X Series controller to manage users, events and access rules.
1 × DS-K2M002X Module
Adds 2 linked doors with lock control, exit button input, door contact input and reader connection.
Readers or Terminals
Connect compatible card readers via RS-485 OSDP or Wiegand depending on the project design.
Door Hardware
Complete each door with electric strike or magnetic lock, exit button, reed switch and suitable access control power supply.
Recommended Accessories
DS-K2704X Enterprise Controller
Main access controller for larger commercial systems where multiple DS-K2M002X modules may be required.
Hikvision Card Readers
Pair with compatible RS-485 OSDP or Wiegand card readers for staff entry and secure door access.
DS-K1T502DBWX-CQRE1 Terminal
Use QR, card, PIN, Bluetooth and intercom-style access terminals where smarter door entry is required.
LOX Electric Strike or Magnetic Lock
Select the correct lock based on door type, compliance requirements and fail-safe or fail-secure operation.
Exit Button & Door Contact
Add request-to-exit buttons and reed switches for correct door status and access control logic.
Access Control Power Supply
Use a suitable 12V DC power supply and battery backup design for reliable door operation.
Downloads & Resources
Download the official Hikvision resources for installation planning, dimensions and technical setup.
View Hikvision Product Page
Download DS-K2M002X Datasheet
DS-K2M002X Quick Start Guide
Technical Specifications
Hikvision DS-K2M002X · 2-Door Access Control Module
Model
DS-K2M002X
Product Type
Access Control Expansion Module
Operating System
MCU
Linked Door Capacity
2 doors
Lock Control
2
Exit Button Input
2
Door Contact Input
2
Alarm Input
4
Alarm Output
2
Tamper
1
RS-485
4 total: 2 for card readers and 2 for access controller connection
Wiegand
2 inputs, standard 26/34-bit with custom Wiegand support
Linked Reader Capacity
4 × RS-485 card readers using OSDP protocol and 2 × Wiegand card readers
Indicators
6 indicators: power, running status, communication status and door status
Battery
Charge and discharge support
Power Supply
12 ± 15% VDC
Power Consumption
≤ 50 W
Operating Temperature
−10°C to +55°C
Operating Humidity
0% to 90%, non-condensing
Installation
Guide rail installation
Functions via Controller
Web configuration, multi-factor authentication, first-person-in and multi-door interlocking via access controller
Installation Notes
Use With a Compatible Controller
The DS-K2M002X is an expansion module, not a standalone controller. It should be used with a compatible Hikvision access controller.
Plan RS-485 Addressing
For multi-module systems, plan RS-485 wiring, addressing and module placement before installation.
Confirm Door Hardware
Each door still requires the correct lock, exit button, door contact and power design.
Professional Installation Recommended
This module is intended for commercial access control systems and should be installed by a qualified security/access control technician.
Frequently Asked Questions
What does the Hikvision DS-K2M002X do?
It is a 2-door access control expansion module that connects to a compatible Hikvision access controller via RS-485.
How many doors does one DS-K2M002X support?
One DS-K2M002X supports 2 linked doors.
Is the DS-K2M002X a standalone controller?
No. It is an expansion module and must be used with a compatible Hikvision access controller.
Does it support Wiegand readers?
Yes. It supports 2 Wiegand inputs with standard 26/34-bit and custom Wiegand settings.
Does it support OSDP readers?
Yes. It supports RS-485 card readers using OSDP protocol.
Can it connect to electric strikes and magnetic locks?
Yes. It provides 2 lock control outputs, but the correct lock and power supply must be selected for each door.
What power does it require?
The DS-K2M002X uses 12 ± 15% VDC power.
Does it support door contacts and exit buttons?
Yes. It includes 2 exit button inputs and 2 door contact inputs.
Is it suitable for large access control systems?
Yes. It is designed for expanding compatible Hikvision access control systems across multiple doors.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision access control accessories across Australia with local support.
Order the Hikvision DS-K2M002X from CCTV Guru
Order the Hikvision DS-K2M002X 2-Door Access Control Expansion Module from CCTV Guru for genuine Hikvision hardware, fast Australia-wide dispatch and local advice on compatible controllers, readers, locks, exit buttons, door contacts and access control power design.
Hikvision Pro Series · Face · Card · QR · PIN · Intercom
Hikvision DS-K1T502DBWX Pro Face & Card Access Terminal — Card, PIN, QR, Bluetooth, SIP Intercom & Hik-Connect
The Hikvision DS-K1T502DBWX is a professional access control and video intercom terminal for Australian offices, apartments, warehouses, schools, clinics, retail stores and secure commercial entry points. It combines card access, PIN entry, Bluetooth unlocking, Hik-Connect remote control and SIP intercom into one clean, vandal-resistant unit with a built-in 2MP camera.
This listing covers the full DS-K1T502DBWX range in one place. Choose your reader (card-only, or card plus QR code authentication) and your power method (local 12–24 VDC or PoE) using the options above — each combination ships as its own genuine Hikvision SKU.
Choose Your Model
DS-K1T502DBWX Range — 4 Configurations
Model (SKU)
QR Code
Power
Best For
DS-K1T502DBWX-C
No
12–24 VDC
Card & PIN entry with local power
DS-K1T502DBWX-E1
No
PoE
Card & PIN entry with single-cable PoE
DS-K1T502DBWX-CQR
Yes
12–24 VDC
QR/visitor access with local power
DS-K1T502DBWX-CQRE1
Yes
PoE
QR/visitor access with single-cable PoE
Range
4 Configurations
Authentication
QR · Card · PIN
Door Control
Dual Relay Support
Connectivity
Wi-Fi · Bluetooth · LAN
Power
12V DC or PoE
Protection
IP65 · IK09
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the DS-K1T502DBWX?
One Device for Access Control & Intercom
Manage door access and visitor calling from a single professional terminal — ideal for offices, apartment entries, strata gates, staff doors and commercial sites that need more than a basic card reader.
Flexible Authentication
All models support card, PIN and Bluetooth access. The CQR and CQRE1 models add QR code entry for visitor and temporary access workflows.
12V DC or PoE — Your Choice
Pick local 12–24 VDC power (C / CQR) or single-cable PoE 802.3at (E1 / CQRE1) to suit your cabling, lock design and site layout.
Hik-Connect Remote Control
Use Hik-Connect for mobile app integration, remote unlock and visitor handling where supported by the system design and configuration.
Built for Australian Conditions
IP65 weather protection and IK09 impact resistance make every model suitable for exposed entrances, outdoor gates, warehouses and high-traffic commercial environments.
Installer-Friendly Integration
Includes Wiegand, RS-485, door contact input, exit button input, alarm input/output and dual lock control for professional access control installations.
Recommended For
Office & Staff Entry Doors
Give employees card, PIN or QR access while keeping visitor entry controlled and logged.
Apartment & Strata Entrances
Use intercom calling, QR access and remote management for shared building entrances and controlled lobby access.
Warehouses & Industrial Sites
Strong housing, wide operating temperature and vandal resistance make it practical for loading docks, staff doors and secure storage zones.
Retail & Back-of-House Access
Secure staff-only areas, stockrooms, office doors and rear entries with professional event logging.
Schools, Clinics & Community Sites
Manage controlled entry points with flexible authentication and remote unlock options.
Visitor & Contractor Access
QR code (CQR / CQRE1) and PIN options make it easier to manage temporary access without issuing permanent cards to every visitor.
Technical Specifications
Hikvision DS-K1T502DBWX · Pro Face & Card Terminal
Product Type
Pro access control terminal with video intercom
Models
DS-K1T502DBWX-C / -E1 / -CQR / -CQRE1
Video Resolution
2 MP
Field of View
HFOV 110° · VFOV 81° · DFOV 122°
Video Compression
H.264 / H.265
Authentication
Card, PIN, Bluetooth (all models) · QR code (CQR & CQRE1)
Card Types
M1 card, M1 card content, DESFire card
Wired Network
1 × RJ-45 10/100 Mbps self-adaptive
Wi-Fi
2.4 GHz, 802.11b/g/n
Bluetooth
Supported
Lock Control
2 lock controls / dual relay support
Exit Button Input
1
Door Contact Input
1
Alarm Input / Output
2 in / 1 out
Tamper
1
RS-485
1 × RS-485, half duplex
Wiegand
1 × Wiegand, Hik 26-bit / Hik 34-bit
SD Card Slot
1
Hik-Connect
Supported
Video & SIP Intercom
Supported (incl. 3CX, Asterisk, FreePBX & other compatible SIP platforms)
Power Supply
12–24 VDC, 1 A (C / CQR) · PoE 802.3at (E1 / CQRE1)
Power Consumption
≤ 24 W
Lock Output Power
12 V, 1 A
Operating Temperature
−40°C to +65°C
Protection Rating
IP65 weather protection · IK09 impact resistance
Body Material
Zinc alloy
Installation Notes
Use Professional Access Control Wiring
For reliable operation, use suitable cable, correct power supply sizing, proper lock wiring and a qualified security/access control installer where required.
Plan the Door Hardware First
Confirm your electric strike, maglock, request-to-exit button, door contact and fail-safe/fail-secure requirements before installation.
12–24 VDC or PoE
Choose the C / CQR (local 12–24 VDC) or E1 / CQRE1 (PoE 802.3at) model based on your door lock, cable route and site design.
Hikvision Ecosystem Ready
Best suited for Hikvision access control, Hik-Connect, HikCentral and compatible intercom environments where correct configuration is performed.
Watch the DS-K1T502 Series in Action
How to configure QR code access, Hik-Partner Pro and Hik-Connect integration on the DS-K1T502DBWX series.
Product unboxing and demonstration of the Hikvision vandal-resistant DS-K1T502 Series access control terminal.
Downloads & Resources
Official Hikvision datasheets and documentation for the DS-K1T502DBWX range.
DS-K1T502DBWX-CQR Datasheet
DS-K1T502DBWX-CQRE1 Datasheet
DS-K1T502 Series Quick Start Guide
DS-K1T502 Series User Manual
Frequently Asked Questions
What's the difference between the four models?
They share the same terminal and features. The difference is QR code support (the CQR and CQRE1 add QR entry) and power (the E1 and CQRE1 are PoE; the C and CQR use 12–24 VDC). Pick your combination using the Reader and Power options above.
Should I choose 12V DC or PoE?
Choose PoE (E1 / CQRE1) for a single-cable install where you have a PoE switch or injector. Choose 12–24 VDC (C / CQR) when you're powering the door locally or already have a DC supply at the door.
Do I need the QR model?
Choose a QR model (CQR / CQRE1) if you want to issue scannable QR passes for visitors, tenants or temporary access. If you only need card, PIN and Bluetooth, the C / E1 models are ideal.
Is it an access control reader or an intercom?
Both. Every model combines access control authentication with 2MP video intercom functionality in one device.
Can it be used outdoors?
Yes. All models are rated IP65 for weather protection and IK09 for impact resistance, suitable for many outdoor entry applications.
Does it support Hik-Connect and SIP?
Yes. Hik-Connect is supported for remote control, and SIP intercom integration works with compatible platforms including 3CX, Asterisk and FreePBX.
Does it include the door lock?
No. Door locks, exit buttons, door contacts, power supplies and cabling are normally selected separately based on the door type and installation design.
Do you ship Australia-wide?
Yes. CCTV Guru ships genuine Hikvision access control products Australia-wide with local support.
Order the Hikvision DS-K1T502DBWX from CCTV Guru
Order the Hikvision DS-K1T502DBWX Pro Face & Card Access Terminal from CCTV Guru — choose your reader and power configuration above for genuine Hikvision hardware, fast Australia-wide dispatch, local technical support and expert advice on compatible locks, exit buttons, door contacts and access control system design.
Dahua · DHI-VTNS2003B-2-A · 2-Door Network Intercom Server · IPIntercom ServerDahua DHI-VTNS2003B-2-A 2-Door Network Video Intercom Server
The Dahua DHI-VTNS2003B-2-A is a 2-door network video intercom server designed to be the intelligent backbone of an IP intercom system. It manages communication between Dahua VTO door stations and VTH indoor monitors over your existing network, giving you centralised configuration, remote management and a scalable foundation for residential, commercial or multi-tenant deployments — without complicated wiring runs.
Doors
2 Supported
Interface
IP Network
Manages
VTO + VTH
Control
Centralised
Scalable
Multi-Tenant
Management
Remote
The backbone of IP intercom
Coordinates calls and routing between door stations and indoor monitors over your network, keeping the whole system in sync.
No complicated wiring
Built for IP infrastructure, it integrates into your existing network instead of demanding dedicated intercom cabling runs.
Centralised and remote
Configure and manage the system from one place, with remote management for sites you do not visit every day.
Scales with the building
A flexible foundation for residential, commercial and multi-tenant properties that can grow as your needs do.
Specifications — DHI-VTNS2003B-2-A
Model
DHI-VTNS2003B-2-A
Type
Network video intercom server
Doors Supported
2
Interface
IP network
Compatibility
Dahua VTO door stations, VTH indoor monitors
Management
Centralised configuration, remote management
Deployment
Residential, commercial, multi-tenant
Warranty
3 years · CCTV Guru Australia
Downloads
DHI-VTNS2003B-2-A Datasheet
What does this intercom server do?It is the management hub of an IP intercom system, routing calls and managing communication between Dahua VTO door stations and VTH indoor monitors over your network.
How many doors does it support?The VTNS2003B-2-A supports up to 2 doors.
Does it need special cabling?No. It works over your existing IP network infrastructure, avoiding dedicated intercom wiring runs.
Can I manage it remotely?Yes. It supports centralised configuration and remote management.
Is Dahua NDAA compliant?No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant gear for government or federally funded projects, contact our team about Uniview, Hanwha or Axis options.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua · VTM23A · Inclined bracket for VTO1000J
Inclined bracket
Dahua DH-AC-VTM23A Vertically Inclined Bracket
The DH-AC-VTM23A is a vertically inclined mounting bracket for the Dahua VTO1000J door station. It tilts the intercom up or down so visitors are framed correctly when the mounting surface needs a vertical angle. Moulded from PC+ABS in a matte black finish to match the VTO1000J, with a compact, low-profile form.
Specifications — VTM23A
Type
Vertically inclined bracket
Compatible With
Dahua VTO1000J
Material
PC + ABS
Finish / Colour
Matte black
Warranty (Australia)
3 years · CCTV Guru Australia
VTM23A Datasheet
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Dahua Analogue Video Intercom Kit · 7" Monitor · Local Unlock
Dahua DHI-KTA02M-V2 7" Analogue Video Intercom Kit
The Dahua DHI-KTA02M-V2 is a simple and reliable analogue video intercom kit for Australian homes, townhouses, villas, small offices and entry points that need clear visitor communication without network setup. It includes a 7-inch indoor TFT monitor and a Dahua outdoor door station, allowing you to see visitors, speak with them and unlock a compatible door locally from the monitor.
This is a practical choice for customers who want a straightforward front-door intercom system without app configuration, cloud setup or IP networking. For smartphone answering and DMSS app access, consider upgrading to a Dahua IP intercom kit such as the KTP03 or KTP03W-S2.
Indoor Monitor
7" TFT Screen
Door Station
1.3MP Camera
Unlock
Remote Unlock
Night Support
Auto IR · DWDR
Authorised Dahua Reseller
Fast Australia-Wide Shipping
Expert Intercom Advice
What’s in the Box
1 × Dahua DHI-VTH1020J Indoor Monitor
7.0-inch TFT indoor monitor with 1024 × 600 resolution, touch buttons, analogue communication, doorway monitoring, volume adjustment and surface-mount installation.
1 × Dahua DHI-VTO1000JM Outdoor Station
Outdoor analogue door station with 1.3MP CMOS camera, mechanical call button, DWDR, auto IR illumination, built-in microphone and speaker.
Power Adapter & Cable Included
The kit includes the power adapter, bracket and 5 m cable, giving you the core components required for a simple analogue intercom setup.
Expandable Analogue System
Supports up to 2 door stations and 3 indoor monitors, making it suitable for homes with more than one entry point or multiple indoor answering locations.
Why Choose the Dahua KTA02M-V2?
Simple Front Door Communication
See who is at the door, speak to visitors and release a compatible lock from the indoor monitor without relying on a mobile app or internet connection.
Clear 7" Indoor Display
The 7-inch TFT monitor provides a larger viewing area than compact intercom screens, making it easier to identify visitors and operate the system.
No Network Setup Required
As an analogue intercom kit, the KTA02M-V2 is ideal for customers who want basic visitor communication without IP addressing, WiFi pairing or cloud setup.
Good Budget Alternative to IP Intercoms
If you do not need smartphone notifications or remote answering, this kit gives you a lower-cost Dahua intercom option with reliable local operation.
KTA02M-V2 vs Dahua IP Intercom
DHI-KTA02M-V2
Analogue video intercom kit with 7-inch monitor, local visitor answering and remote unlock from the indoor screen. Best for simple homes, units and offices that do not need smartphone app access.
Dahua KTP03 / KTP03W-S2
IP video intercom kits with DMSS app support, smartphone answering, remote unlocking and better expansion options. Recommended if you want app notifications and remote access from your phone.
Recommended For
Homes & Townhouses
A simple way to view and speak to visitors from inside before unlocking a compatible door or gate.
Units & Villas
Ideal for single-entry properties that need a clear indoor monitor and basic local door control.
Small Offices
Useful for reception entries, staff doors and small business entry points where basic visitor screening is required.
Budget Intercom Upgrades
A cost-effective Dahua option for replacing or upgrading older basic door communication systems.
Technical Specifications
Indoor Monitor — DHI-VTH1020J
Display
7.0" TFT
Resolution
1024 × 600
Button Type
Touch button
Communication Method
Analogue
Indicator Light
1 indicator light; green for power on
Power Supply
DC 12V / 1A
Power Adapter
Included
Installation
Surface mount
Accessory
Bracket included, 5 m cable included
Dimensions
133.90 mm × 182.70 mm × 17.70 mm
Operating Temperature
-10°C to +55°C
Operating Humidity
10% RH – 95% RH
Power Consumption
≤ 2W standby, ≤ 5W working
Colour
White
Certifications
CE / FCC
Outdoor Station — DHI-VTO1000JM
Camera
1/4" 1.3MP CMOS
Field of View
Horizontal 70° · Vertical 40°
Button Type
Mechanical
WDR
DWDR
Illuminator Type
Auto IR
Day/Night
ICR auto switch
Audio Input
1 channel to microphone, pickup distance 0.5 m
Audio Output
1 channel to speaker
Communication Method
Analogue
Unlock Mode
Remote unlock
Unlock Button
1
Door Status Detection
1
Casing
ADC12
Colour
Black
FAQs
Does the Dahua DHI-KTA02M-V2 work with the DMSS mobile app?
No. The DHI-KTA02M-V2 is an analogue video intercom kit and does not support Dahua DMSS app connectivity. Visitor calls are answered from the included indoor monitor only. If you require smartphone notifications, remote answering and app-based unlocking, consider the Dahua KTP03 IP intercom series.
What monitor is included with the KTA02M-V2?
The kit includes the Dahua DHI-VTH1020J 7-inch TFT indoor monitor with 1024 × 600 resolution.
Can I unlock a door from the monitor?
Yes. The system supports remote unlock when connected to a compatible electric lock or door release setup.
Can I add more monitors?
Yes. The system supports up to 3 indoor monitors and 2 door stations, depending on system design and installation.
Is this an IP intercom?
No. This is a 4-wire analogue intercom kit. It is designed for simple local use, not IP networking or app-based remote access.
Who should choose this kit instead of the KTP03?
Choose the KTA02M-V2 if you want a simple, affordable intercom with local monitor operation. Choose the KTP03 or KTP03W-S2 if you want DMSS app support and smartphone answering.
More Information
Datasheet
Order Your Dahua DHI-KTA02M-V2 from CCTV Guru Australia
CCTV Guru supplies genuine Dahua intercom products for Australian homes, units, townhouses and small businesses. Order the Dahua DHI-KTA02M-V2 7" Analogue Video Intercom Kit today for fast Australia-wide shipping, local product support and expert advice when choosing between analogue intercom kits and Dahua IP intercom systems.
Hikvision ColorVu 3.0 · 6 × 8MP Vandal Dome · 8CH 8K NVR
6 × 8MP ColorVu Kit
Hikvision 6 × 8MP ColorVu 3.0 Vandal Dome CCTV Kit with 8-Channel 8K NVR
The Hikvision 6-Camera 8MP ColorVu 3.0 Vandal Dome Kit is a ready-to-install 4K bundle for Australian homes, shopfronts, offices and storage yards where cameras need to be tamper-proof. It pairs six DS-2CD2187G3-LIS2UY 8MP ColorVu 3.0 Smart Hybrid Light vandal domes — each in an IK10 impact-rated, IP67 weatherproof housing — with a DS-7608NI-M2/8P-M 8-channel 8K NVR. Every camera delivers true 24/7 colour down to 0.0005 lux, AcuSense human/vehicle detection and built-in two-way audio, while all eight PoE ports power each camera over a single Cat6 run.
Cameras
6 × 8MP ColorVu
Recorder
8CH 8K NVR · 8 PoE
Vandal-Resistant
IK10 · IP67 Dome
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
AI Detection
AcuSense Human/Vehicle
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 40 m) so you capture clothing and number-plate colour all night, not grey IR.
IK10 Vandal-Resistant Dome
A ruggedised metal base and impact-absorbing polycarbonate dome carry a strict IK10 rating, shrugging off knocks, brick throws and tampering — ideal for low-mounted and accessible positions.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes, with two spare ports to scale to eight cameras.
AcuSense AI + Two-Way Audio
On-board AcuSense classifies people and vehicles to cut false alerts from rain, shadows and animals, while built-in dual mic and speaker let you talk down visitors live via Hik-Connect.
What's Included
6 × Cameras
DS-2CD2187G3-LIS2UY — 8MP ColorVu 3.0 Smart Hybrid Light vandal dome, 2.8 mm (108° FOV), F1.0 24/7 colour, AcuSense, two-way audio, IK10 + IP67. Each ships with weatherproof RJ45 gland, mounting screws, drill template & quick start guide.
1 × Recorder
DS-7608NI-M2/8P-M — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "None HDD Storage" barebone option and add a drive to suit (dual bays, up to 32 TB total).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit and wall installs. For pendant or pole mounting, add a Hikvision dome mount per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Homes & apartments
Entries, driveways and yards with tamper-proof domes mounted within easy reach.
Retail & hospitality
Shopfloor, counters, entries and store rooms with discreet vandal-resistant domes.
Warehouses & yards
Docks, aisles, perimeters and equipment yards with full-colour plate capture.
Offices & reception
Foyers, corridors and car parks with two-way audio talk-down at the front desk.
Schools & childcare
Entries, playgrounds and car parks with privacy masking, HTTPS access and live audio.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across common property on one recorder.
Camera Specifications — DS-2CD2187G3-LIS2UY
Camera Type
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Fixed Vandal Dome
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108° horizontal FOV
Supplement Light
Smart Hybrid Light (white + IR) · up to 40 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Audio
Built-in dual microphone + speaker · two-way audio
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af)
Ingress / Impact
IP67 weatherproof · IK10 vandal-resistant
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
128 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with the supplied gland or a junction box to keep out moisture and salt air.
›Detection zones: set AcuSense detection lines on the highest-risk approaches so alerts trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2187G3-LIS2UY Camera Page
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "None HDD Storage" if you'd rather supply your own drive.
Why a vandal dome instead of a turret?The IK10 dome locks the lens under a metal ring and shatter-resistant polycarbonate cover, so it withstands knocks, brick throws and tampering — ideal for low-mounted, accessible positions where a turret could be pushed away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR up to 40 m as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I add more cameras or a larger drive later?Yes — the 8-channel NVR has two spare PoE ports for two extra cameras, plus dual SATA bays supporting up to 32 TB total for longer retention across all channels.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision ColorVu 3.0 · 6 × 8MP Motorised Varifocal Live-Guard · 8CH 8K NVR · 4TB Included
6 × 8MP ColorVu Kit
Hikvision 6 × 8MP ColorVu 3.0 Motorised Varifocal Bullet Active Deterrence CCTV Kit with 8-Channel 8K NVR & 4TB
The Hikvision 6-Camera 8MP ColorVu 3.0 Motorised Varifocal Kit is a ready-to-install active-deterrence bundle for Australian homes, acreage, retail, warehouses and commercial sites that need flexible long-range coverage. It pairs six DS-2CD3687G3-LIZSUY/SL 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard bullet cameras — each with a remote 2.7–13.5 mm motorised varifocal lens — with a DS-7608NI-M2/8P 8-channel 8K NVR and a pre-installed 4TB surveillance HDD. On AcuSense human/vehicle detection every camera can fire a white-light strobe, audible siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All 8 PoE ports power each camera over a single Cat6 run.
Cameras
6 × 8MP ColorVu
Lens
2.7–13.5mm Motorised Zoom
Recorder
8CH 8K NVR · 8 PoE
Active Deterrence
Strobe + Audio Siren
Colour Night
24/7 ColorVu · 0.0005 lux
Storage
4TB HDD Included
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 60 m) so you capture clothing and number-plate colour all night, not grey IR.
Motorised Varifocal — Remote Zoom & Focus
Each bullet runs a 2.7–13.5 mm motorised varifocal lens, so you set the field of view remotely via Hik-Connect or the NVR — a wide 112° panorama for forecourts or a tight 34° view for long-range gates and plates, no ladder required.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white strobe, sounds an audible warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
4TB Included + Room to Grow
Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay (up to 32 TB total) for longer retention across all six 4K channels — with two spare PoE ports for future cameras.
What's Included
6 × Cameras
DS-2CD3687G3-LIZSUY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard bullet, 2.7–13.5 mm motorised varifocal lens (112°–34° FOV, remote zoom/focus), white strobe + audio siren + two-way audio, F1.0 24/7 colour, AcuSense, IP67. Each ships with mounting plate, weatherproof cable adapter, drill template, screws & quick start guide.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "None HDD Storage" option and add a drive to suit (up to 16 TB per bay).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Integrated bullet mounting plates and templates included for eave/soffit and wall installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Homes & acreage
Driveways, gates, fence lines and long approaches — zoom in on distant entries with motorised lenses.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & siren after hours, talk-down by day.
Warehouses & yards
Docks, racking aisles, perimeters and equipment yards with full-colour plate capture at range.
Dealerships & car yards
Deter after-hours theft across open lots with visible strobe and audible warnings.
Tradies & sites
Compounds, plant storage and access points with long-range zoom and active deterrence.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across multiple buildings on one recorder.
Camera Specifications — DS-2CD3687G3-LIZSUY/SL
Camera Type
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Motorised Varifocal Bullet
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Motorised varifocal 2.7–13.5 mm · F1.0 · 112°–34° horizontal FOV · remote zoom & auto-focus
Supplement Light
Smart Hybrid Light (white + IR) · up to 60 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Active Deterrence
White-light strobe · built-in speaker / audio alarm · two-way audio
Audio
Built-in dual microphone + speaker · G.711 / AAC
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · max 12 W
Ingress Protection
IP67 weatherproof · metal housing
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Lens framing: the motorised varifocal lens is adjusted remotely in Hik-Connect or on the NVR — set zoom and focus once cabling is in, no ladder trips.
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD3687G3-LIZSUY/SL Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "None HDD Storage" if you'd rather supply your own drive.
How do I set the zoom on these cameras?Each camera has a 2.7–13.5 mm motorised varifocal lens. You adjust zoom and focus remotely in the Hik-Connect app or on the NVR — wide for forecourts, tight for distant gates and plates — with no ladder or housing access.
What is Live-Guard active deterrence?On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds an audible warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR up to 60 m as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision ColorVu 3.0 · 6 × 6MP Live-Guard · 8CH 8K NVR · 4TB Option
6 × 6MP ColorVu Kit
Hikvision 6 × 6MP ColorVu 3.0 Active Deterrence CCTV Kit with 8-Channel 8K NVR
The Hikvision 6-Camera 6MP ColorVu 3.0 Kit is a ready-to-install active-deterrence bundle for Australian homes, retail shopfronts, hospitality venues, offices and small business sites. It pairs six DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 Smart Hybrid Light Live-Guard turrets with a DS-7608NI-M2/8P 8-channel 8K M-Series NVR, leaving two PoE ports free for later expansion. On AcuSense human/vehicle detection every camera can fire a white-light strobe, 110 dB siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All cameras run on a single Cat6 run to the NVR's built-in PoE ports. The 4TB variant ships with a surveillance HDD pre-installed.
Cameras
6 × 6MP ColorVu
Recorder
8CH 8K NVR · 8 PoE
Active Deterrence
Strobe + 110dB Siren
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
Storage
4TB HDD Option
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 30 m) so you capture clothing and number-plate colour all night, not grey IR.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white strobe, sounds a 110 dB warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes, with two ports spare for expansion.
4TB Option + Room to Grow
Choose the pre-installed 4TB surveillance HDD or supply your own. A second free SATA bay (up to 32 TB total) gives longer retention across all six 6MP channels.
What's Included
6 × Cameras
DS-2CD2367G3-LIS2UY/SL — 6MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, 2.8 mm (108.8° FOV), white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
The 4TB variant ships with a surveillance-grade HDD (Seagate SkyHawk or WD Purple) pre-installed and ready to record. Prefer to supply your own? Select the "None HDD Storage" option and add a drive to suit (up to 16 TB per bay).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Family homes
Driveways, front doors, gates and back yards with active deterrence on every approach.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & siren after hours, talk-down by day.
Small offices
Entries, reception, server rooms and car parks with full-colour evidence and live talk-down.
Cafés & restaurants
Counters, dining areas and rear access — deter after-hours theft with visible strobe and audible warnings.
Schools & childcare
Entries, playgrounds and car parks with privacy masking, HTTPS access and live talk-down.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across shared buildings on one recorder.
Camera Specifications — DS-2CD2367G3-LIS2UY/SL
Camera Type
6MP ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
6MP · 3200 × 1800 (16:9 widescreen)
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV
Supplement Light
Smart Hybrid Light (white + IR) · up to 30 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Active Deterrence
White-light strobe · built-in 110 dB speaker · two-way audio
Audio
Built-in arrayed dual microphone + speaker
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3at) · max 17 W
Ingress Protection
IP67 · NEMA 4X anti-corrosion
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed on 4TB variant
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2367G3-LIS2UY/SL Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "None HDD Storage" if you'd rather supply your own drive.
What is Live-Guard active deterrence?On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a 110 dB warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I add more cameras later?Yes — six cameras on an 8-channel NVR leaves two PoE ports free, so you can add up to two more Hikvision cameras without changing the recorder.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision ColorVu 3.0 · 6 × 8MP Live-Guard · 8CH 8K NVR · 4TB Option
6 × 8MP ColorVu Kit
Hikvision 6 × 8MP ColorVu 3.0 Active Deterrence CCTV Kit with 8-Channel 8K NVR
The Hikvision 6-Camera 8MP ColorVu 3.0 Kit is a ready-to-install active-deterrence bundle for mid-sized Australian homes, retail, hospitality and small-business sites. It pairs six DS-2CD2387G3-LIS2UY/SL 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turrets with a DS-7608NI-M2/8P 8-channel 8K M-Series NVR, with the option of a pre-installed 4TB surveillance HDD. On AcuSense human/vehicle detection every camera can fire a white-light strobe, 110 dB siren and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All 8 PoE ports power each camera over a single Cat6 run, with two spare ports for later expansion.
Cameras
6 × 8MP ColorVu
Recorder
8CH 8K NVR · 8 PoE
Active Deterrence
Strobe + 110dB Siren
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
Storage
4TB HDD Option
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 30 m) so you capture clothing and number-plate colour all night, not grey IR.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white strobe, sounds a 110 dB warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes, with two spare ports for later expansion.
4TB Option + Room to Grow
Choose the pre-installed 4TB surveillance HDD or barebone, with a second free SATA bay (up to 32 TB total) for longer retention across all six 4K channels.
What's Included
6 × Cameras
DS-2CD2387G3-LIS2UY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, 2.8 mm (108.8° FOV), white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Optional pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). Prefer to supply your own? Select the "None HDD Storage" option and add a drive to suit (up to 16 TB per bay).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Family homes
Driveways, gates, yards and entries with active deterrence on every approach.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & siren after hours, talk-down by day.
Small business & offices
Entries, reception, stockrooms and car parks with full-colour identification footage.
Cafés & restaurants
Front of house, kitchens, deliveries and rear access with visible deterrence after close.
Childcare & clinics
Entries, waiting areas and car parks with privacy masking, HTTPS access and live talk-down.
Workshops & trade sites
Yards, roller doors, tool stores and perimeters with full-colour plate capture.
Camera Specifications — DS-2CD2387G3-LIS2UY/SL
Camera Type
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV
Supplement Light
Smart Hybrid Light (white + IR) · up to 30 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Active Deterrence
White-light strobe · built-in 110 dB speaker · two-way audio
Audio
Built-in arrayed dual microphone + speaker
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3at) · max 17 W
Ingress Protection
IP67 · NEMA 4X anti-corrosion
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed option
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and siren trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2387G3-LIS2UY/SL Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?The 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "None HDD Storage" if you'd rather supply your own drive.
What is Live-Guard active deterrence?On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a 110 dB warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I add more cameras later?Yes — six cameras on this 8-channel NVR leaves two PoE ports spare, so you can add two more ColorVu cameras without changing the recorder.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision ColorVu 3.0 · 8 × 6MP Live-Guard · 8CH 8K NVR · 4TB Option
8 × 6MP ColorVu Kit
Hikvision 8 × 6MP ColorVu 3.0 Active Deterrence CCTV Kit with 8-Channel 8K NVR
The Hikvision 8-Camera 6MP ColorVu 3.0 Kit is a ready-to-install active-deterrence bundle for Australian homes, retail, hospitality, schools and small business. It pairs eight DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 Smart Hybrid Light Live-Guard turrets with a DS-7608NI-M2/8P 8-channel 8K M-Series NVR. On AcuSense human/vehicle detection every camera can fire a white-light strobe, 110 dB warning and live two-way audio — stopping intruders instead of just recording them — while delivering true 24/7 colour to 0.0005 lux. All 8 PoE ports power each camera over a single Cat6 run. Choose the 4TB option for a pre-installed surveillance HDD, or barebone to supply your own drive.
Cameras
8 × 6MP ColorVu
Recorder
8CH 8K NVR · 8 PoE
Active Deterrence
Strobe + 110dB Warning
Colour Night
24/7 ColorVu · 0.0005 lux
Audio
2-Way · Mic + Speaker
Storage
4TB HDD Option
ColorVu 3.0 — True 24/7 Colour
A 1/1.8" sensor and F1.0 super-aperture deliver full-colour images down to 0.0005 lux. Smart Hybrid Light adds white light or IR (up to 30 m) so you capture clothing and number-plate colour all night, not grey IR.
Live-Guard Active Deterrence
On AcuSense human/vehicle detection each camera flashes a white strobe, sounds a 110 dB warning and lets you talk down live via Hik-Connect — turning intruders away before they reach the door.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, no extra switch, commissioning in minutes.
4TB Option + Room to Grow
Select the 4TB option for a pre-installed surveillance HDD, with a second free SATA bay (up to 32 TB total) for longer retention across all eight 6MP channels.
What's Included
8 × Cameras
DS-2CD2367G3-LIS2UY/SL — 6MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, 2.8 mm (108.8° FOV), white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Select the 4TB option for a pre-installed surveillance-grade HDD (Seagate SkyHawk or WD Purple) ready to record. Prefer to supply your own? Select the Barebone — No HDD option and add a drive to suit (up to 16 TB per bay).
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Homes & large homes
Driveways, gates, fence lines and yards with active deterrence on every approach.
Retail & hospitality
Shopfloor, entries, car parks and rear lanes — strobe & warning after hours, talk-down by day.
Small business & offices
Entries, reception, store rooms and perimeters with full-colour evidence and AI alerts.
Warehouses & yards
Docks, racking aisles, perimeters and equipment yards with full-colour plate capture.
Schools & childcare
Entries, playgrounds and car parks with privacy masking, HTTPS access and live talk-down.
Body corporate & strata
Lobbies, basements, bin areas and perimeters across multiple buildings on one recorder.
Camera Specifications — DS-2CD2367G3-LIS2UY/SL
Camera Type
6MP ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
6MP · 3200 × 1800 (16:9 widescreen)
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108.8° horizontal FOV
Supplement Light
Smart Hybrid Light (white + IR) · up to 30 m · 3 modes
WDR
130 dB scene-adaptive
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Active Deterrence
White-light strobe · built-in 110 dB speaker · two-way audio
Audio
Built-in arrayed dual microphone + speaker
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3at) · max 17 W
Ingress Protection
IP67 · NEMA 4X anti-corrosion
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB option pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
›Deterrence zones: set AcuSense detection zones on the highest-risk approaches so the strobe and warning trigger on real human/vehicle events only.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2367G3-LIS2UY/SL Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — the 4TB option ships with a surveillance-grade Seagate SkyHawk or WD Purple HDD already fitted and ready to record. Choose "Barebone — No HDD" if you'd rather supply your own drive.
What is Live-Guard active deterrence?On AcuSense human/vehicle detection each camera flashes a white-light strobe, sounds a 110 dB warning and lets you open live two-way audio via Hik-Connect — actively turning intruders away.
Do these really see colour at night?Yes — ColorVu 3.0 with an F1.0 super-aperture delivers full-colour images down to 0.0005 lux, with Smart Hybrid Light adding white light or IR as needed.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Can I fit a larger hard drive later?Yes — the NVR has two SATA bays and supports up to 16 TB per bay (32 TB total) for longer retention across eight 6MP channels.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision · 2 ColorVu Live-Guard + 4 AcuSense · 8CH 8K NVR · 4TB Included
6 × 8MP Hikvision Kit
Hikvision 6 × 8MP CCTV Kit — 2 ColorVu Live-Guard + 4 AcuSense Turrets with 8-Channel 8K NVR & 4TB
The Hikvision 6-Camera 8MP Kit is a ready-to-install bundle for Australian homes, retail, offices, cafés and warehouses. It pairs two DS-2CD2387G3-LIS2UY/SL ColorVu Live-Guard active-deterrence turrets with four DS-2CD2386G2H-IU AcuSense DarkFighter turrets, a DS-7608NI-M2/8P 8-channel 8K NVR and a pre-installed 4TB surveillance HDD. Put the Live-Guard cameras on your highest-risk approaches — strobe, siren and two-way audio on AcuSense detection — and the AcuSense turrets everywhere else for sharp 4K coverage. All cameras run on the NVR's 8 built-in PoE ports over a single Cat6 cable.
Cameras
6 × 8MP 4K
Active Deterrence
2 × Live-Guard Strobe+Siren
Recorder
8CH 8K NVR · 8 PoE
Colour Night
ColorVu · 0.0005 lux
Smart AI
AcuSense Human/Vehicle
Storage
4TB HDD Included
Two-Tier Coverage
Live-Guard ColorVu cameras actively deter intruders on the approaches that matter; AcuSense DarkFighter turrets deliver detailed 4K everywhere else — prevention and evidence in one kit.
True 24/7 Colour
The ColorVu turrets see full colour down to 0.0005 lux with an F1.0 lens, while the DarkFighter turrets hold colour in very low light — clothing and plate colour, not grey IR.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, with two spare channels to grow.
4TB Included + Room to Grow
Ships with a pre-installed 4TB surveillance HDD and a second free SATA bay (up to 32 TB total) for longer retention.
What's Included
2 × Deterrence Cameras
DS-2CD2387G3-LIS2UY/SL — 8MP ColorVu 3.0 Smart Hybrid Light Live-Guard turret, white strobe + 110 dB speaker + two-way audio, F1.0 24/7 colour, AcuSense, IP67 + NEMA 4X.
4 × Detail Cameras
DS-2CD2386G2H-IU — 8MP 4K AcuSense powered-by-DarkFighter turret, Smart Hybrid Light, 120 dB WDR, built-in mic, IP67.
1 × Recorder
DS-7608NI-M2/8P — 8-channel 8K M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage
Pre-installed 4TB surveillance-grade HDD (Seagate SkyHawk or WD Purple). A second SATA bay is free — add a drive for up to 32 TB total.
Power
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Family homes & estates
Deterrence on the driveway and back gate, detailed 4K coverage everywhere else.
Retail & convenience
Entrance, POS, aisles and stockroom in 4K, with Live-Guard at the rear door after hours.
Cafés & restaurants
Dining floor, register, kitchen pass and rear lane with built-in audio.
Small offices & warehouses
Entry, reception, loading dock and yard, with deterrence guarding roller doors.
Tradie yards & workshops
Protect plant, tools and stock with strobe-and-siren deterrence plus 4K plate capture.
Medical & professional
Reception, corridors and external entries with privacy masking and HTTPS access.
Deterrence Camera — DS-2CD2387G3-LIS2UY/SL
Camera Type
8MP 4K ColorVu 3.0 Smart Hybrid Light AcuSense Live-Guard Turret
Image Sensor
1/1.8" Progressive Scan CMOS · ColorVu 3.0
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0005 lux @ F1.0 · 0 lux with white light
Lens
Fixed 2.8 mm · F1.0 · 108.8° FOV
Active Deterrence
White-light strobe · 110 dB speaker · two-way audio
WDR / AI
130 dB · AcuSense human & vehicle · perimeter
Power
12 VDC / PoE (IEEE 802.3at) · max 17 W
Protection
IP67 · NEMA 4X
Detail Camera — DS-2CD2386G2H-IU
Camera Type
8MP 4K AcuSense Powered-by-DarkFighter Turret · Smart Hybrid Light
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.0008 lux @ F1.0
Lens
Fixed 2.8 mm · ~108° FOV
Supplement Light
Smart Hybrid Light (IR + white)
WDR / AI
120 dB · AcuSense human & vehicle
Audio / Storage
Built-in mic · microSD up to 512 GB
Power / Protection
12 VDC / PoE (802.3af) · IP67
Recorder Specifications — DS-7608NI-M2/8P
Channels
8 IP channels · up to 32 MP input
Incoming Bandwidth
80 Mbps
PoE
8 × PoE ports (IEEE 802.3 af/at)
Storage
2 × SATA (up to 16 TB per bay, 32 TB total) · 4TB pre-installed
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Camera placement: put the two Live-Guard ColorVu turrets on the highest-risk approaches (driveway, rear gate) and the four AcuSense turrets on general coverage zones.
›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
Setup & Demo Videos — Hikvision
Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection
Downloads & Resources
DS-2CD2387G3-LIS2UY/SL Datasheet
DS-2CD2386G2H-IU Datasheet
DS-7608NI-M2/8P Datasheet
Hikvision Camera Quick Start Guide
Does the 4TB drive come pre-installed?Yes — a surveillance-grade Seagate SkyHawk or WD Purple HDD ships already fitted and ready to record. A second SATA bay is free for expansion.
What's the difference between the two camera models?The DS-2CD2387G3-LIS2UY/SL adds Live-Guard strobe + siren and two-way audio for high-risk approaches; the DS-2CD2386G2H-IU is a detail-focused AcuSense DarkFighter camera for general 4K coverage.
What is Live-Guard active deterrence?On AcuSense detection the ColorVu cameras flash a white strobe, sound a 110 dB warning and let you talk down via Hik-Connect — turning intruders away rather than just recording them.
Can I add more cameras later?Yes — the 8-channel NVR has two spare channels and PoE ports, so you can add up to two more Hikvision cameras with no extra hardware.
How are the cameras powered?Each camera runs on a single Cat6 cable to one of the NVR's 8 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision Ultra Series · 256 CH · 24 SATA · Dual PSU · 4U Enterprise
The Hikvision DS-96256NXI-S24R is the largest single-chassis NVR Hikvision builds — a 256-channel 4U enterprise recorder with 24 SATA bays for up to 480 TB of internal storage, dual hot-swappable redundant power supplies, and quad 2.5 Gbps Ethernet ports for the highest sustained network throughput in the range. This is the recorder you specify when one box has to replace a stack of four or eight smaller NVRs.
Built for Australia's largest mission-critical sites — major ports, mining operations, prisons, large hospitals, government facilities, transport hubs, casinos, university campuses, multi-tenant high-rises and enterprise retail chains. The DS-96256NXI-S24R combines AcuSense smart detection, AcuSearch image-based search, facial recognition, perimeter protection, video structuralisation and ANPR across all 256 channels — managing what would otherwise require a whole rack of recorders. Ships as a chassis only — choose your HDD configuration at checkout up to a full 480 TB enterprise RAID stack.
Channels
256 CH · Up to 32 MP
Network
4 × 2.5 Gbps Ethernet
Power
Dual Redundant PSU
Storage
24 × SATA · Up to 480 TB
One recorder. 256 cameras. Half a petabyte of footage.
Most enterprise CCTV systems running 100+ cameras end up with a stack of three or four 64-channel NVRs — three rack units of hardware, three power feeds, three firmware update cycles, three user databases, three separate footage archives that have to be cross-referenced when an incident spans multiple cameras. The DS-96256NXI-S24R replaces all of that with one 4U chassis, one login, one timeline, one search interface. Combined with dual redundant PSUs and N+M hot-spare RAID, it's purpose-built for sites where downtime isn't measured in hours — it's measured in dollars per minute.
256-Channel IP Input
Connect up to 256 IP cameras at resolutions up to 32 MP per channel — mix PanoVu, fisheye, ColorVu, AcuSense and PTZ cameras across one recorder without throttling resolution or framerate.
480 TB Maximum Storage
Twenty-four internal SATA bays accept enterprise drives up to 20 TB each — delivering year-round 4K retention across hundreds of cameras without external SAN or extra licensing.
Dual Redundant PSU
Two hot-swappable power supplies — if one fails or a circuit drops, the second keeps the NVR running with zero downtime. Critical for data centres, government and 24/7 mission-critical sites.
Quad 2.5 Gbps Ethernet
Four self-adaptive 2.5 Gbps RJ45 ports — 2.5× the bandwidth of standard Gigabit. Configure for redundancy, load balancing, or VLAN segregation across camera + viewing + management networks.
RAID + N+M Hot Spare
Full RAID 0/1/5/6/10 across the 24 SATA bays plus N+M hot-spare drives that automatically replace failed disks — zero operator intervention, zero footage at risk.
AcuSense + AcuSearch + ANPR
On-board deep-learning analytics — human/vehicle classification, facial recognition, AcuSearch image-based search, ANPR, perimeter protection and video structuralisation across all 256 channels.
Recommended AI-ready cameras
To get the most out of the NVR's AcuSense, AcuSearch and facial recognition stack, pair it with cameras from our verified Hikvision AcuSeek Cameras collection. Every model on the list runs the latest AcuSense Gen 2H or ColorVu Gen 3 platform — the high-quality structured video the AI engine needs for sharp face crops, accurate ANPR and reliable perimeter alerts. Browse the full collection or start with these enterprise favourites:
ColorVu 3.0 Turret — DS-2CD2387G3-LIS2UY/SL
8MP, true 24/7 full-colour night vision, Smart Hybrid Light, built-in mic, speaker and strobe. The ideal partner for face capture at entrances and counters in any light. View this camera →
ColorVu 3.0 Bullet — DS-2CD2T87G3-LIS2UY/SL
Long-range 8MP bullet with active strobe and audio deterrence — perfect for driveways, gates, loading docks and perimeters where vehicle and person classification matters most. View this camera →
AcuSense G2H Turret — DS-2CD2366G2H-IU
6MP AcuSense Gen 2H with DarkFighter low-light sensor and built-in mic — the value choice for high camera counts where sharp face capture has to stay reliable in dim light. View this camera →
Smart Hybrid Light Bullet — DS-2CD2087G3-LI2UY/SL
8MP ColorVu 3.0 with Smart Hybrid Light — switches automatically between IR (stealth) and white light (deterrent) based on what it sees. Ideal for driveways and perimeter gates. View this camera →
Browse the full Hikvision AcuSeek Cameras collection for every verified-AI-compatible turret, bullet and dome — all in Australian stock with full warranty.
Enterprise-class display, network & redundancy
The DS-96256NXI-S24R is built for 24/7 control-room operation. True 8K HDMI output drives a wall-mounted overview display while additional HDMI and VGA outputs feed independent operator workstations. Four 2.5 Gbps Ethernet ports deliver the network headroom needed when hundreds of cameras stream high-bitrate footage simultaneously, and dual hot-swappable PSUs ensure the recorder stays online through power-feed failures, UPS swaps, and circuit maintenance.
Hik-Connect & Hik-Central Pro
Free remote viewing on Hik-Connect, or integrate into a Hik-Central Pro VMS for centralised management across multiple sites, multiple NVRs and unified operator workflows.
ONVIF Compatible
Works with the full Hikvision IP range and most third-party ONVIF cameras — flexibility for hybrid, multi-vendor enterprise sites that mix Hikvision with legacy or specialty cameras.
IP Speaker Integration
Up to 8 IP speakers connectable for site-wide audio warnings, scheduled announcements or live talk-down from the control room — turning the NVR into a complete security platform.
N+M Hot Spare
Designated spare drives automatically replace failed working drives and rebuild the array — no operator intervention, no downtime, no footage at risk. Critical for enterprise compliance.
Full technical specifications
Hikvision Ultra Series NVR — DS-96256NXI-S24R
Model
DS-96256NXI-S24R
Series
Hikvision Ultra Series (Enterprise NVR)
Form Factor
4U Rack-Mount (19" rack-mount ears included)
Video Inputs
256-channel IP, up to 32 MP per channel
Video Compression
H.265+ / H.265 / H.264+ / H.264
Decoding Capability
Up to 32-ch @ 1080p (30 fps) · multi-stream 4K decoding
Recording Resolution
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA
AI Functions
AcuSense · AcuSearch · Facial Recognition · Perimeter Protection · Video Structuralisation · ANPR
AcuSearch
Image-based target search across recorded footage
HDMI 1 / 3 Output
8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz
Additional HDMI & VGA
Multiple independent outputs for multi-monitor control rooms
Audio In / Out
1-ch RCA in · 2-ch RCA out · Two-way audio
IP Speaker Support
Up to 8-ch IP speakers connectable
Network Interface
4 × RJ45 2.5 Gbps Self-Adaptive Ethernet
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
HDD Bays
24 × SATA, up to 20 TB per drive (480 TB total capacity)
eSATA
1 × eSATA for additional storage expansion
RAID
RAID 0, 1, 5, 6, 10 supported · N+M hot spare
USB Interfaces
2 × USB 3.0 (front and rear)
Alarm In / Out
16 in / 8 out
Power Supply
Dual hot-swappable redundant PSU · 100–240 V AC, 50/60 Hz
Working Temperature
−10 °C to 55 °C
Working Humidity
10% – 90%
Mobile Apps
Hik-Connect, Hik-Central Pro, iVMS-4200
Australian Warranty
5 Years — CCTV Guru / Hikvision Australia
Downloads & resources
Download official Hikvision documents for setup, specifications, and recorder details.
DS-96256NXI-S24R Datasheet
Quick Start Guide PDF
User Manual PDF
LiveGuard Setup (Web GUI)
LiveGuard Setup (NVR GUI)
Frequently asked questions
Is this really 256 channels in one recorder?
Yes — the DS-96256NXI-S24R is Hikvision's largest single-chassis NVR. It supports up to 256 IP cameras and replaces what would otherwise be a stack of three or four 64-channel recorders. Designed for ports, mining sites, hospitals, casinos, prisons and major commercial properties.
Does it come with hard drives?
The recorder ships as a chassis only. CCTV Guru offers pre-fitted enterprise surveillance drives — Seagate SkyHawk Enterprise, WD Purple Pro or Exos — from 8 TB up to 20 TB per bay. For full 480 TB capacity, fit 24 × 20 TB drives in RAID 6 configuration.
How does the dual PSU work?
Two redundant power supplies run in parallel. If one fails (or a circuit drops), the second instantly takes the full load — the NVR doesn't reboot, drop a frame or miss any footage. Failed PSUs are hot-swappable while the NVR keeps running.
Why 2.5 Gbps Ethernet instead of 10 GbE?
2.5 Gbps NICs deliver 2.5× the throughput of standard Gigabit while remaining compatible with standard Cat6 cabling and most managed enterprise switches — no fibre infrastructure required. Configure all four ports for aggregate throughput or use them for network segregation.
What AI features does it run?
AcuSense smart detection, facial recognition, AcuSearch (image-based search), perimeter protection, video structuralisation, ANPR and people counting — all running on-device across all 256 channels. For text-based AcuSeek search, see the DeepinMind Pro range (iDS-9632/9664NXI-P series).
Do you ship and install Australia-wide?
We ship Australia-wide from our local warehouse, and enterprise customers can request white-glove delivery and installation support via our local team. Sydney, Melbourne, Brisbane, Perth, Adelaide and major regional centres covered. Contact us for an enterprise quote.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinMind Pro · AcuSeek AI · 64 CH · 8 PoE · 3U · 256 TB
The Hikvision iDS-9664NXI-P8 is a 64-channel DeepinMind Pro NVR built for enterprise sites that already run a managed PoE switch backbone. Same quad-GPU AI engine, same 16 SATA bays for up to 256 TB of storage, same true 8K HDMI output as the larger P16 sibling — but with 8 built-in PoE ports instead of 16, for sites where the recorder powers only the most critical perimeter and entrance cameras directly.
This is the recorder you specify for Australia's largest enterprise sites — hospitals, casinos, ports, large hotels, multi-building campuses, prisons, mining operations and government facilities. The iDS-9664NXI-P8 connects up to 64 IP cameras at resolutions up to 32 MP and runs AcuSeek, AcuSearch, facial recognition, perimeter protection, video structuralisation and ANPR across every channel — all from a single 3U rack chassis. Ships as a chassis only — choose your HDD configuration at checkout from 16 TB through to a full 256 TB RAID 6 stack.
AcuSeek
Search by Text
Face Recognition
16 Live · 64 Compare
PoE Ports
8 × PoE (af/at)
Storage
16 × SATA · Up to 256 TB
The most powerful single-chassis NVR Hikvision makes
The iDS-9664NXI-P8 sits at the absolute top of Hikvision's recorder range — a quad-GPU AI engine driving real-time deep-learning analytics across 64 simultaneous channels, with 16 internal SATA bays for footage retention measured in months. One GPU is dedicated to AcuSeek and on-device decoding; three more run intelligent algorithms in parallel — facial recognition, perimeter protection, video structuralisation, ANPR and people counting — without throttling each other.
AcuSeek Natural-Language Search
Type *"a person in a red jacket at the loading dock yesterday"* and the NVR finds matching clips across all 64 channels in seconds — no manual scrubbing, no event tagging in advance.
16-Ch Live Face Recognition
Real-time facial recognition runs on 16 live camera streams. Add 64 channels of face-picture comparison from recorded footage for forensic review across the entire site.
100,000 Face Library
32 organised face libraries holding up to 100,000 enrolled faces between them — staff, VIPs, watch-lists, contractors and visitor history at the largest enterprise sites.
Quad-GPU AI Engine
Four dedicated GPU engines run intelligent algorithms in parallel — face recognition, perimeter, ANPR and structuralisation all run simultaneously without bottlenecking each other.
AcuSearch by Image
Upload a reference photo of a person or vehicle and AcuSearch finds every other appearance in your footage across all 64 channels. Days of investigation collapsed into seconds.
256 TB Maximum Storage
Sixteen internal SATA bays accept enterprise drives up to 16 TB each, delivering 6+ months of continuous 4K retention across all 64 cameras — no external SAN, no extra licensing.
Face recognition that works like your phone — but for your CCTV
You know how your iPhone Photos app automatically groups pictures of "Mum," "James," or "the kids"? The iDS-9664NXI-P8 does exactly the same thing — but for your live security cameras. Enrol photos of staff, family, regulars, couriers or contractors and add their names. From then on, when the NVR sees them on any of your 64 cameras, you get a push notification on your phone that says "James arrived at the front door" instead of just *"motion detected."*
It also works the other way around. Add a banned customer, a former employee or anyone you don't want on the premises to a watchlist — and the NVR alerts you the instant they appear on any of your 64 cameras. Up to 100,000 faces across 32 organised libraries are stored locally on the recorder itself — no cloud subscription, no facial data leaving your premises, no monthly fees, ever.
Unlike battery-powered "smart" doorbells that only recognise faces at one entrance (and lose accuracy over time), the DeepinMind Pro NVR runs Hikvision's enterprise-grade AI engine across every camera, every angle, around the clock.
Recommended AcuSeek-compatible cameras
To unlock the full AcuSeek, AcuSearch and face-recognition stack, pair this NVR with cameras from our verified Hikvision AcuSeek Cameras collection. Every model is independently confirmed on Hikvision's official compatibility checklist (April 2026), ships from our Australian warehouse, and runs the firmware AcuSeek needs out of the box. Four of the most popular picks:
ColorVu 3.0 Turret — DS-2CD2387G3-LIS2UY/SL
The current-gen flagship: 8MP, true 24/7 full-colour night vision, Smart Hybrid Light, built-in mic, speaker and strobe. The ideal partner for AcuSeek face capture in any light. View this camera →
ColorVu 3.0 Bullet — DS-2CD2T87G3-LIS2UY/SL
Long-range 8MP bullet with active strobe and audio deterrence — perfect for driveways, side gates and perimeters where AcuSeek vehicle and person classification matters most. View this camera →
AcuSense G2H Turret — DS-2CD2366G2H-IU
6MP AcuSense Gen 2H with DarkFighter low-light sensor and built-in mic — the smart value choice for front doors, entries and counters where face capture has to stay sharp in dim light. View this camera →
Smart Hybrid Light Bullet — DS-2CD2087G3-LI2UY/SL
8MP ColorVu 3.0 with Smart Hybrid Light — switches automatically between IR (stealth) and white-light (deterrent) based on what it sees. The smartest choice for driveways and front gates. View this camera →
Browse the full Hikvision AcuSeek Cameras collection for every verified-compatible turret, bullet and dome — all in Australian stock with 3-year warranty.
Enterprise hardware backing the AI brain
Eight onboard PoE ports (IEEE 802.3 af/at) power your most critical entrance and front-of-house cameras directly; the remaining 56 channels accept IP cameras from your existing managed switch infrastructure — perfect for enterprise sites that already run a PoE backbone. Sixteen hot-swappable SATA bays with full RAID 0/1/5/6/10 plus N+M hot-spare protect footage from drive failure without operator intervention. True 8K HDMI output drives a flagship control-room monitor, with a second 4K HDMI for spot monitors and dual VGA for additional workstations.
8K + 4K Dual HDMI
HDMI 1 drives a true 8K monitor; HDMI 2 a 4K display — perfect for multi-operator 24/7 control rooms.
RAID + N+M Hot Spare
Sixteen SATA bays with full RAID and N+M hot-spare — designated spares automatically replace failed drives. Zero downtime, zero footage loss.
Hik-Connect & Hik-Central
Remote live view via Hik-Connect, or integrate into Hik-Central Pro VMS for centralised management across multiple sites.
ONVIF Compatible
Works with the full Hikvision IP range and most third-party ONVIF cameras — flexibility for hybrid, multi-vendor enterprise sites.
Full technical specifications
Hikvision DeepinMind Pro NVR — iDS-9664NXI-P8
Model
iDS-9664NXI-P8
Series
Hikvision DeepinMind Pro AI NVR
Form Factor
3U Rack-Mount (19" rack-mount ears included)
AI Engine
Quad GPU — 1 for AcuSeek/OVD + 3 for intelligent algorithms (Guanlan Large-Scale AI Model)
Video Inputs
64-channel IP, up to 32 MP per channel
Video Compression
H.265+ / H.265 / H.264+ / H.264
Decoding Capability
2-ch @ 32 MP · 2-ch @ 24 MP · 4-ch @ 16 MP · 8-ch @ 8 MP · 16-ch @ 4 MP · 32-ch @ 2 MP
Recording Resolution
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA
AcuSeek
Natural-language video search across all 64 channels
AcuSearch
Up to 16-channel @ 2 MP image-based search
Facial Recognition (Live)
Up to 16 channels — real-time live stream
Face Picture Comparison
Up to 64 channels — recorded footage
Face Library
32 libraries · up to 100,000 face pictures total
Perimeter Protection
Line-crossing, intrusion, region entry/exit (multi-channel)
Video Structuralisation
Multi-channel deep-learning metadata extraction
Other AI Features
ANPR · People Counting · Heat Map · Motion Detection 2.0 · VCA
HDMI 1 Output
8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz
HDMI 2 Output
4K (3840 × 2160) @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz · independent source
VGA Outputs
2 × 1920 × 1080 @ 60 Hz (independent sources)
Audio In / Out
1-ch RCA in · 2-ch RCA out · Two-way audio
IP Speaker Support
Connectable IP speakers for audio warnings & talk-down
Network Interface
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
PoE Interfaces
8 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at)
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
HDD Bays
16 × SATA, up to 16 TB per drive (256 TB total capacity)
eSATA
1 × eSATA for additional storage expansion
RAID
RAID 0, 1, 5, 6, 10 supported · N+M hot spare
USB Interfaces
2 × USB 3.0 (front and rear)
Alarm In / Out
16 in / 8 out
Power Supply
100–240 V AC, 50/60 Hz (single PSU — see iDS-9664NXI-P8R for redundant dual PSU)
Working Temperature
−10 °C to 55 °C
Working Humidity
10% – 90%
Mobile Apps
Hik-Connect, Hik-Central, iVMS-4200
Australian Warranty
5 Years — CCTV Guru / Hikvision Australia
iDS-9664NXI-P8 vs iDS-9664NXI-P16 — which should you choose?
The P8 and P16 share exactly the same DeepinMind Pro AI engine, channel count, storage capacity and warranty. The only meaningful difference is built-in PoE port count.
DeepinMind Pro 64CH — P8 vs P16
Specification
iDS-9664NXI-P8 (this product)
iDS-9664NXI-P16
Camera Channels
64
64
Built-in PoE Ports
8 × PoE (af/at)
16 × PoE (af/at)
AI Tier
DeepinMind Pro (Quad GPU)
DeepinMind Pro (Quad GPU)
Live Facial Recognition
16 channels
16 channels
Face Picture Comparison
64 channels
64 channels
AcuSeek / AcuSearch
✔ All 64 channels
✔ All 64 channels
Storage
16 × SATA · Up to 256 TB
16 × SATA · Up to 256 TB
RAID Support
RAID 0/1/5/6/10 · N+M Hot Spare
RAID 0/1/5/6/10 · N+M Hot Spare
Display Outputs
Dual HDMI (8K + 4K) · Dual VGA
Dual HDMI (8K + 4K) · Dual VGA
Form Factor
3U Rack-Mount
3U Rack-Mount
Australian Warranty
5 Years
5 Years
Choose the P8 if your site already runs a managed PoE switch backbone and you only need 8 cameras powered directly from the recorder. Choose the P16 if you'd rather plug 16 cameras straight into the NVR and skip a separate PoE switch entirely.
View the iDS-9664NXI-P16 (16-PoE Version)
Browse AcuSeek-Compatible Cameras
Downloads & resources
Download official Hikvision documents for setup, specifications, and recorder details.
iDS-9664NXI-P8 Datasheet
Quick Start Guide PDF
User Manual PDF
LiveGuard Setup (Web GUI)
LiveGuard Setup (NVR GUI)
Frequently asked questions
What's the difference between DeepinMind Pro and the M Series DeepinMind?
The Pro tier uses a quad-GPU accelerated AI engine that's an order of magnitude more powerful — runs face recognition, perimeter, AcuSeek and structuralisation simultaneously without throttling. The M Series uses a smaller AI engine more suited to single-task workloads.
Is there a redundant-power version available?
Yes — the iDS-9664NXI-P8R has dual hot-swappable PSUs for sites where power redundancy is mandatory (data centres, critical infrastructure, government). Contact our Australian team for /R variant pricing and stock.
Does it come with hard drives?
The recorder ships as a chassis only. CCTV Guru offers pre-fitted enterprise surveillance drives — Seagate SkyHawk, WD Purple or Exos — from 8 TB up to 16 TB per bay. Choose your RAID configuration at checkout.
What is N+M hot spare?
It's a step beyond standard RAID: configure N working drives plus M designated hot-spare drives. If any working drive fails, a spare automatically replaces it and rebuilds the array — no operator intervention, no downtime, no footage at risk.
Do I need special cameras to use the AI features?
No. The NVR processes video from any compatible Hikvision or ONVIF IP camera. Pair with cameras from our Hikvision AcuSeek Cameras collection for the sharpest face crops and best recognition accuracy.
Do you ship to my city?
We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. Larger enterprise orders shipped by carrier with tracking and signature.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinMind Pro · AcuSeek AI · 64 CH · 16 PoE · 3U · 256 TB
The Hikvision iDS-9664NXI-P16 is Hikvision's most powerful single-chassis NVR — a 64-channel DeepinMind Pro recorder with 16 built-in PoE ports, 16 SATA bays for up to 256 TB of storage, and a quad-GPU AI engine running AcuSeek, AcuSearch, facial recognition, perimeter protection, video structuralisation and ANPR — all from a single 3U rack chassis. This is the recorder you specify when nothing smaller will do.
Built for Australia's most demanding enterprise sites — hospitals, casinos, ports, large hotels, multi-building campuses, prisons, mining operations and government facilities — the iDS-9664NXI-P16 connects up to 64 IP cameras at resolutions up to 32 MP, with true 8K HDMI output driving a flagship 24/7 control-room monitor. Ships as a chassis only — choose your HDD configuration at checkout from 16 TB through to a full 256 TB RAID 6 stack.
AcuSeek
Search by Text
Face Recognition
16 Live · 64 Compare
PoE Ports
16 × PoE (af/at)
Storage
16 × SATA · Up to 256 TB
The most powerful single-chassis NVR Hikvision makes
The iDS-9664NXI-P16 sits at the absolute top of Hikvision's recorder range — a quad-GPU AI engine driving real-time deep-learning analytics across 64 simultaneous channels, with 16 internal SATA bays for footage retention measured in months. One GPU is dedicated to AcuSeek and on-device decoding; three more run intelligent algorithms in parallel — facial recognition, perimeter protection, video structuralisation, ANPR and people counting — without throttling each other.
AcuSeek Natural-Language Search
Type *"a person in a red jacket at the loading dock yesterday"* and the NVR finds matching clips across all 64 channels in seconds — no manual scrubbing, no event tagging in advance.
16-Ch Live Face Recognition
Real-time facial recognition runs on 16 live camera streams. Add 64 channels of face-picture comparison from recorded footage for forensic review across the entire site.
100,000 Face Library
32 organised face libraries holding up to 100,000 enrolled faces between them — staff, VIPs, watch-lists, contractors and visitor history at the largest enterprise sites.
Quad-GPU AI Engine
Four dedicated GPU engines run intelligent algorithms in parallel — face recognition, perimeter, ANPR and structuralisation all run simultaneously without bottlenecking each other.
AcuSearch by Image
Upload a reference photo of a person or vehicle and AcuSearch finds every other appearance in your footage across all 64 channels. Days of investigation collapsed into seconds.
256 TB Maximum Storage
Sixteen internal SATA bays accept enterprise drives up to 16 TB each, delivering 6+ months of continuous 4K retention across all 64 cameras — no external SAN, no extra licensing.
Face recognition that works like your phone — but for your CCTV
You know how your iPhone Photos app automatically groups pictures of "Mum," "James," or "the kids"? The iDS-9664NXI-P16 does exactly the same thing — but for your live security cameras. Enrol photos of staff, family, regulars, couriers or contractors and add their names. From then on, when the NVR sees them on any of your 64 cameras, you get a push notification on your phone that says "James arrived at the front door" instead of just *"motion detected."*
It also works the other way around. Add a banned customer, a former employee or anyone you don't want on the premises to a watchlist — and the NVR alerts you the instant they appear on any of your 64 cameras. Up to 100,000 faces across 32 organised libraries are stored locally on the recorder itself — no cloud subscription, no facial data leaving your premises, no monthly fees, ever.
Unlike battery-powered "smart" doorbells that only recognise faces at one entrance (and lose accuracy over time), the DeepinMind Pro NVR runs Hikvision's enterprise-grade AI engine across every camera, every angle, around the clock.
Recommended AcuSeek-compatible cameras
To unlock the full AcuSeek, AcuSearch and face-recognition stack, pair this NVR with cameras from our verified Hikvision AcuSeek Cameras collection. Every model is independently confirmed on Hikvision's official compatibility checklist (April 2026), ships from our Australian warehouse, and runs the firmware AcuSeek needs out of the box. Four of the most popular picks:
ColorVu 3.0 Turret — DS-2CD2387G3-LIS2UY/SL
The current-gen flagship: 8MP, true 24/7 full-colour night vision, Smart Hybrid Light, built-in mic, speaker and strobe. The ideal partner for AcuSeek face capture in any light. View this camera →
ColorVu 3.0 Bullet — DS-2CD2T87G3-LIS2UY/SL
Long-range 8MP bullet with active strobe and audio deterrence — perfect for driveways, side gates and perimeters where AcuSeek vehicle and person classification matters most. View this camera →
AcuSense G2H Turret — DS-2CD2366G2H-IU
6MP AcuSense Gen 2H with DarkFighter low-light sensor and built-in mic — the smart value choice for front doors, entries and counters where face capture has to stay sharp in dim light. View this camera →
Smart Hybrid Light Bullet — DS-2CD2087G3-LI2UY/SL
8MP ColorVu 3.0 with Smart Hybrid Light — switches automatically between IR (stealth) and white-light (deterrent) based on what it sees. The smartest choice for driveways and front gates. View this camera →
Browse the full Hikvision AcuSeek Cameras collection for every verified-compatible turret, bullet and dome — all in Australian stock with 3-year warranty.
Enterprise hardware backing the AI brain
Sixteen onboard PoE ports (IEEE 802.3 af/at) power your critical perimeter and entrance cameras directly; the other 48 channels accept IP cameras from anywhere on your network. Sixteen hot-swappable SATA bays with full RAID 0/1/5/6/10 plus N+M hot-spare protect footage from drive failure without operator intervention. True 8K HDMI output drives a flagship control-room monitor, with a second 4K HDMI for spot monitors and dual VGA for additional workstations.
8K + 4K Dual HDMI
HDMI 1 drives a true 8K monitor; HDMI 2 a 4K display — perfect for multi-operator 24/7 control rooms.
RAID + N+M Hot Spare
Sixteen SATA bays with full RAID and N+M hot-spare — designated spares automatically replace failed drives. Zero downtime, zero footage loss.
Hik-Connect & Hik-Central
Remote live view via Hik-Connect, or integrate into Hik-Central Pro VMS for centralised management across multiple sites.
ONVIF Compatible
Works with the full Hikvision IP range and most third-party ONVIF cameras — flexibility for hybrid, multi-vendor enterprise sites.
Full technical specifications
Hikvision DeepinMind Pro NVR — iDS-9664NXI-P16
Model
iDS-9664NXI-P16
Series
Hikvision DeepinMind Pro AI NVR
Form Factor
3U Rack-Mount (19" rack-mount ears included)
AI Engine
Quad GPU — 1 for AcuSeek/OVD + 3 for intelligent algorithms (Guanlan Large-Scale AI Model)
Video Inputs
64-channel IP, up to 32 MP per channel
Video Compression
H.265+ / H.265 / H.264+ / H.264
Decoding Capability
2-ch @ 32 MP · 2-ch @ 24 MP · 4-ch @ 16 MP · 8-ch @ 8 MP · 16-ch @ 4 MP · 32-ch @ 2 MP
Recording Resolution
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA
AcuSeek
Natural-language video search across all 64 channels
AcuSearch
Up to 16-channel @ 2 MP image-based search
Facial Recognition (Live)
Up to 16 channels — real-time live stream
Face Picture Comparison
Up to 64 channels — recorded footage
Face Library
32 libraries · up to 100,000 face pictures total
Perimeter Protection
Line-crossing, intrusion, region entry/exit (multi-channel)
Video Structuralisation
Multi-channel deep-learning metadata extraction
Other AI Features
ANPR · People Counting · Heat Map · Motion Detection 2.0 · VCA
HDMI 1 Output
8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz
HDMI 2 Output
4K (3840 × 2160) @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz · independent source
VGA Outputs
2 × 1920 × 1080 @ 60 Hz (independent sources)
Audio In / Out
1-ch RCA in · 2-ch RCA out · Two-way audio
IP Speaker Support
Connectable IP speakers for audio warnings & talk-down
Network Interface
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
PoE Interfaces
16 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at)
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
HDD Bays
16 × SATA, up to 16 TB per drive (256 TB total capacity)
eSATA
1 × eSATA for additional storage expansion
RAID
RAID 0, 1, 5, 6, 10 supported · N+M hot spare
USB Interfaces
2 × USB 3.0 (front and rear)
Alarm In / Out
16 in / 8 out
Power Supply
100–240 V AC, 50/60 Hz (single PSU — see iDS-9664NXI-P16R for redundant dual PSU)
Working Temperature
−10 °C to 55 °C
Working Humidity
10% – 90%
Mobile Apps
Hik-Connect, Hik-Central, iVMS-4200
Australian Warranty
5 Years — CCTV Guru / Hikvision Australia
iDS-9664NXI-P16 vs iDS-9664NXI-P8 — which should you choose?
The P16 and P8 share exactly the same DeepinMind Pro AI engine, channel count, storage capacity and warranty. The only meaningful difference is built-in PoE port count.
DeepinMind Pro 64CH — P16 vs P8
Specification
iDS-9664NXI-P16 (this product)
iDS-9664NXI-P8
Camera Channels
64
64
Built-in PoE Ports
16 × PoE (af/at)
8 × PoE (af/at)
AI Tier
DeepinMind Pro (Quad GPU)
DeepinMind Pro (Quad GPU)
Live Facial Recognition
16 channels
16 channels
Face Picture Comparison
64 channels
64 channels
AcuSeek / AcuSearch
✔ All 64 channels
✔ All 64 channels
Storage
16 × SATA · Up to 256 TB
16 × SATA · Up to 256 TB
RAID Support
RAID 0/1/5/6/10 · N+M Hot Spare
RAID 0/1/5/6/10 · N+M Hot Spare
Display Outputs
Dual HDMI (8K + 4K) · Dual VGA
Dual HDMI (8K + 4K) · Dual VGA
Form Factor
3U Rack-Mount
3U Rack-Mount
Australian Warranty
5 Years
5 Years
Choose the P16 if you'd rather plug 16 cameras straight into the NVR and skip a separate PoE switch entirely. Choose the P8 if your site already runs a managed PoE switch backbone and you only need 8 cameras powered directly from the recorder.
View the iDS-9664NXI-P8 (8-PoE Version)
Browse AcuSeek-Compatible Cameras
Downloads & resources
Download official Hikvision documents for setup, specifications, and recorder details.
iDS-9664NXI-P16 Datasheet
Quick Start Guide PDF
User Manual PDF
LiveGuard Setup (Web GUI)
LiveGuard Setup (NVR GUI)
Frequently asked questions
What's the difference between DeepinMind Pro and the M Series DeepinMind?
The Pro tier uses a quad-GPU accelerated AI engine that's an order of magnitude more powerful — runs face recognition, perimeter, AcuSeek and structuralisation simultaneously without throttling. The M Series uses a smaller AI engine more suited to single-task workloads.
Is there a redundant-power version available?
Yes — the iDS-9664NXI-P16R has dual hot-swappable PSUs for sites where power redundancy is mandatory (data centres, critical infrastructure, government). Contact our Australian team for /R variant pricing and stock.
Does it come with hard drives?
The recorder ships as a chassis only. CCTV Guru offers pre-fitted enterprise surveillance drives — Seagate SkyHawk, WD Purple or Exos — from 8 TB up to 16 TB per bay. Choose your RAID configuration at checkout.
What is N+M hot spare?
It's a step beyond standard RAID: configure N working drives plus M designated hot-spare drives. If any working drive fails, a spare automatically replaces it and rebuilds the array — no operator intervention, no downtime, no footage at risk.
Do I need special cameras to use the AI features?
No. The NVR processes video from any compatible Hikvision or ONVIF IP camera. Pair with cameras from our Hikvision AcuSeek Cameras collection for the sharpest face crops and best recognition accuracy.
Do you ship to my city?
We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. Larger enterprise orders shipped by carrier with tracking and signature.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinMind Pro · AcuSeek AI · 32 CH · 8 PoE · 8K
The Hikvision iDS-9632NXI-P8 is Hikvision's flagship DeepinMind Pro AI NVR in its 8-PoE configuration — the same enterprise-class AI brain as the larger P16, but tuned for sites that already have managed PoE switching for most of their cameras and just need a handful (up to 8) powered directly from the recorder. It combines AcuSeek natural-language video search, AcuSearch image-based search, 16-channel live facial recognition, 32-channel face picture comparison, perimeter protection, video structuralisation and ANPR — all running on GPU-accelerated AI engines that can model up to 600,000 targets per day.
Designed for serious Australian sites — large hotels, hospitals, casinos, schools, gated estates, retail flagship stores, car dealerships and government facilities — this enterprise NVR connects up to 32 IP cameras (8 via built-in PoE, the rest via your network). True 8K HDMI output drives a flagship control-room monitor, and eight SATA bays accept up to 16 TB drives each (128 TB total) with full RAID 0/1/5/6/10 redundancy. Ships as a chassis only — choose your HDD configuration at checkout.
AcuSeek
Search by Text
Face Recognition
16 Live · 32 Compare
PoE Ports
8 × PoE (af/at)
Storage
8 × SATA · Up to 128 TB
The most intelligent NVR Hikvision makes
This isn't a standard NVR with AI bolted on. The DeepinMind Pro tier is Hikvision's top-of-range AI recorder, with GPU-accelerated processing that's an order of magnitude more powerful than the M Series DeepinMind chassis. It runs AcuSeek natural-language search (a feature usually exclusive to the VPro line), Hikvision's full DeepinMind facial recognition stack, and can model 600,000 detected targets every day — meaning every person, vehicle and licence plate that crosses your site is automatically indexed and searchable.
AcuSeek Natural-Language Search
Type *"a person in a red jacket at the loading dock yesterday"* and the NVR finds matching clips across all 32 channels in seconds — no manual scrubbing, no event tagging in advance.
16-Ch Live Face Recognition
Real-time facial recognition runs on 16 live camera streams. Add another 16 channels of face-picture comparison from recorded footage for forensic review.
100,000 Face Library
32 organised face libraries holding up to 100,000 enrolled faces between them — enough for staff, VIPs, watch-lists, contractors and visitor history at any commercial site.
600,000 Targets/Day Modelling
GPU-accelerated AI engine indexes up to 600,000 detected people, vehicles and licence plates every 24 hours — building a structured, searchable database of everything that happens on site.
AcuSearch by Image
Upload a reference photo of a person or vehicle and AcuSearch finds every other appearance in your footage across all 32 channels. Hours of investigation collapsed into seconds.
Perimeter, ANPR & Structuralisation
Built-in deep-learning perimeter protection, automatic number-plate recognition and video structuralisation — all running on-device, no separate analytics server required.
Face recognition that works like your phone — but for your CCTV
You know how your iPhone Photos app automatically groups pictures of "Mum," "James," or "the kids"? The iDS-9632NXI-P8 does exactly the same thing — but for your live security cameras. Enrol photos of staff, family, regulars, couriers or contractors and add their names. From then on, when the NVR sees them on any of your 32 cameras, you get a push notification on your phone that says "James arrived at the front door" instead of just *"motion detected."*
It also works the other way around. Add a banned customer, a former employee or anyone you don't want on the premises to a watchlist — and the NVR alerts you the instant they appear on any camera. Up to 100,000 faces across 32 organised libraries are stored locally on the recorder itself — no cloud subscription, no facial data leaving your premises, no monthly fees, ever.
Unlike battery-powered "smart" doorbells that only recognise faces at one entrance (and lose accuracy over time), the DeepinMind Pro NVR runs Hikvision's enterprise-grade AI engine across every camera, every angle, around the clock.
Recommended AcuSeek-compatible cameras
To unlock the full AcuSeek, AcuSearch and face-recognition stack, pair this NVR with cameras from our verified Hikvision AcuSeek Cameras collection. Every model is independently confirmed on Hikvision's official compatibility checklist (April 2026), ships from our Australian warehouse, and runs the firmware AcuSeek needs out of the box. Four of the most popular picks:
ColorVu 3.0 Turret — DS-2CD2387G3-LIS2UY/SL
The current-gen flagship: 8MP, true 24/7 full-colour night vision, Smart Hybrid Light, built-in mic, speaker and strobe. The ideal partner for AcuSeek face capture in any light. View this camera →
ColorVu 3.0 Bullet — DS-2CD2T87G3-LIS2UY/SL
Long-range 8MP bullet with active strobe and audio deterrence — perfect for driveways, side gates and perimeters where AcuSeek vehicle and person classification matters most. View this camera →
AcuSense G2H Turret — DS-2CD2366G2H-IU
6MP AcuSense Gen 2H with DarkFighter low-light sensor and built-in mic — the smart value choice for front doors, entries and counters where face capture has to stay sharp in dim light. View this camera →
Smart Hybrid Light Bullet — DS-2CD2087G3-LI2UY/SL
8MP ColorVu 3.0 with Smart Hybrid Light — switches automatically between IR (stealth) and white-light (deterrent) based on what it sees. The smartest choice for driveways and front gates. View this camera →
Browse the full Hikvision AcuSeek Cameras collection for every verified-compatible turret, bullet and dome — all in Australian stock with 3-year warranty.
Enterprise hardware backing the AI brain
The DeepinMind Pro isn't just smart — it's seriously built. Eight onboard PoE ports (IEEE 802.3 af/at) power your critical entrance and front-of-house cameras directly; the remaining 24 channels accept IP cameras from anywhere on your network — perfect for sites that already run a managed switch backbone. Eight hot-swappable SATA bays with full RAID 0/1/5/6/10 protect footage from drive failure. True 8K HDMI output drives a flagship control-room monitor, with a second 4K HDMI for spot monitors and dual VGA for additional workstation displays.
8K + 4K Dual HDMI
HDMI 1 drives a true 8K monitor; HDMI 2 a 4K display — perfect for control rooms running a wall-mounted overview plus a workstation.
RAID 0/1/5/6/10
Octa-SATA design with full RAID support for redundancy and performance — critical for enterprise sites where footage loss isn't acceptable.
Hik-Connect & Hik-Central
Remote live view and playback via Hik-Connect, or integrate into Hik-Central Pro VMS for centralised management across multiple sites.
ONVIF Compatible
Works with the full Hikvision IP range and most third-party ONVIF cameras — flexibility for hybrid, multi-vendor enterprise sites.
Full technical specifications
Hikvision DeepinMind Pro NVR — iDS-9632NXI-P8
Model
iDS-9632NXI-P8
Series
Hikvision DeepinMind Pro AI NVR
Form Factor
2U Rack-Mount (19" rack-mount ears included)
AI Engine
GPU-accelerated DeepinMind Pro · Guanlan Large-Scale AI Model
Target Modelling
Up to 600,000 targets per day
Video Inputs
32-channel IP, up to 32 MP per channel
Video Compression
H.265+ / H.265 / H.264+ / H.264
Recording Resolution
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA
AcuSeek
Natural-language video search across all 32 channels
AcuSearch
Target-image search across all 32 channels
Facial Recognition (Live)
Up to 16 channels — real-time live stream
Face Picture Comparison
Up to 32 channels — recorded footage
Face Library
32 libraries · up to 100,000 face pictures total
Perimeter Protection
Line-crossing, intrusion, region entry/exit (multi-channel)
Video Structuralisation
Multi-channel deep-learning metadata extraction
Other AI Features
ANPR · People Counting · Heat Map · Motion Detection 2.0 · VCA
HDMI 1 Output
8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz
HDMI 2 Output
4K (3840 × 2160) @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz · independent source
VGA Outputs
2 × 1920 × 1080 @ 60 Hz (independent sources)
Audio In / Out
1-ch RCA in · 2-ch RCA out · Two-way audio
IP Speaker Support
Connectable IP speakers for audio warnings & talk-down
Network Interface
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
PoE Interfaces
8 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at)
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
HDD Bays
8 × SATA, up to 16 TB per drive (128 TB total capacity)
eSATA
1 × eSATA for additional storage expansion
RAID
RAID 0, 1, 5, 6, 10 supported
USB Interfaces
2 × USB 3.0 (front and rear)
Alarm In / Out
16 in / 8 out
Power Supply
100–240 V AC, 50/60 Hz
Working Temperature
−10 °C to 55 °C
Working Humidity
10% – 90%
Mobile Apps
Hik-Connect, Hik-Central, iVMS-4200
Australian Warranty
5 Years — CCTV Guru / Hikvision Australia
iDS-9632NXI-P8 vs iDS-9632NXI-P16 — which should you choose?
The P8 and P16 share exactly the same DeepinMind Pro AI engine, channel count, storage capacity and warranty. The only meaningful difference is built-in PoE port count.
DeepinMind Pro — P8 vs P16
Specification
iDS-9632NXI-P8 (this product)
iDS-9632NXI-P16
Camera Channels
32
32
Built-in PoE Ports
8 × PoE (af/at)
16 × PoE (af/at)
AI Tier
DeepinMind Pro
DeepinMind Pro
Target Modelling
600,000/day
600,000/day
Live Facial Recognition
16 channels
16 channels
Face Picture Comparison
32 channels
32 channels
AcuSeek / AcuSearch
✔ All 32 channels
✔ All 32 channels
Storage
8 × SATA · Up to 128 TB
8 × SATA · Up to 128 TB
RAID Support
RAID 0/1/5/6/10
RAID 0/1/5/6/10
Display Outputs
Dual HDMI (8K + 4K) · Dual VGA
Dual HDMI (8K + 4K) · Dual VGA
Form Factor
2U Rack-Mount
2U Rack-Mount
Australian Warranty
5 Years
5 Years
Choose the P8 if your site already runs a managed PoE switch backbone and you only need a handful of cameras powered directly from the recorder. Choose the P16 if you'd rather plug 16 cameras straight into the NVR and skip a separate PoE switch entirely.
View the iDS-9632NXI-P16 (16-PoE Version)
Browse AcuSeek-Compatible Cameras
Downloads & resources
Download official Hikvision documents for setup, specifications, and recorder details.
iDS-9632NXI-P8 Datasheet
Quick Start Guide PDF
User Manual PDF
LiveGuard Setup (Web GUI)
LiveGuard Setup (NVR GUI)
Frequently asked questions
What's the difference between the P8 and the P16?
Same DeepinMind Pro AI brain, same 32-channel capacity, same 128 TB storage. The P16 has 16 PoE ports; the P8 has 8. Choose the P8 if your site already has a managed PoE switch backbone and you only need a handful of cameras powered directly from the recorder.
What's the difference between DeepinMind Pro and the regular DeepinMind M Series?
The Pro tier uses a GPU-accelerated AI engine that's an order of magnitude more powerful — modelling 600,000 targets per day vs the M Series' typical 100,000–200,000. It also adds AcuSeek (text-based search), which is normally exclusive to the VPro line.
Do I need special cameras for AcuSeek and face recognition?
No. The NVR processes video from any compatible Hikvision or ONVIF IP camera. Pair with cameras from our Hikvision AcuSeek Cameras collection for the sharpest face crops and best recognition accuracy.
Are there subscription fees?
No. All AI processing — AcuSeek, AcuSearch, facial recognition, ANPR, perimeter — runs on-board the NVR. No recurring cloud fees, no per-user licensing, ever.
Does it come with hard drives?
The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk, WD Purple or enterprise Exos drives from 8 TB up to 16 TB per bay — choose your RAID configuration at checkout.
Do you ship to my city?
We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. Enterprise orders shipped by carrier with tracking and signature.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Hikvision DeepinMind Pro · AcuSeek AI · 32 CH · 16 PoE · 8K
The Hikvision iDS-9632NXI-P16 is Hikvision's flagship DeepinMind Pro AI NVR — the most powerful single-chassis recorder Hikvision builds for 32-camera deployments. It combines AcuSeek natural-language video search, AcuSearch image-based search, 16-channel live facial recognition, 32-channel face picture comparison, perimeter protection, video structuralisation and ANPR — all running on GPU-accelerated AI engines that can model up to 600,000 targets per day.
Designed for serious Australian sites — large hotels, hospitals, casinos, schools, gated estates, retail flagship stores, car dealerships and government facilities — this enterprise NVR connects up to 32 IP cameras (16 via built-in PoE) and outputs true 8K via HDMI. Eight SATA bays accept up to 16 TB drives each (128 TB total), with full RAID 0/1/5/6/10 redundancy for footage protection. Ships as a chassis only — choose your HDD configuration at checkout.
AcuSeek
Search by Text
Face Recognition
16 Live · 32 Compare
PoE Ports
16 × PoE (af/at)
Storage
8 × SATA · Up to 128 TB
The most intelligent NVR Hikvision makes
This isn't a standard NVR with AI bolted on. The DeepinMind Pro tier is Hikvision's top-of-range AI recorder, with GPU-accelerated processing that's an order of magnitude more powerful than the M Series DeepinMind chassis. It runs AcuSeek natural-language search (a feature usually exclusive to the VPro line), Hikvision's full DeepinMind facial recognition stack, and can model 600,000 detected targets every day — meaning every person, vehicle and licence plate that crosses your site is automatically indexed and searchable.
AcuSeek Natural-Language Search
Type *"a person in a red jacket at the loading dock yesterday"* and the NVR finds matching clips across all 32 channels in seconds — no manual scrubbing, no event tagging in advance.
16-Ch Live Face Recognition
Real-time facial recognition runs on 16 live camera streams. Add another 16 channels of face-picture comparison from recorded footage for forensic review.
100,000 Face Library
32 organised face libraries holding up to 100,000 enrolled faces between them — enough for staff, VIPs, watch-lists, contractors and visitor history at any commercial site.
600,000 Targets/Day Modelling
GPU-accelerated AI engine indexes up to 600,000 detected people, vehicles and licence plates every 24 hours — building a structured, searchable database of everything that happens on site.
AcuSearch by Image
Upload a reference photo of a person or vehicle and AcuSearch finds every other appearance in your footage across all 32 channels. Hours of investigation collapsed into seconds.
Perimeter, ANPR & Structuralisation
Built-in deep-learning perimeter protection, automatic number-plate recognition and video structuralisation — all running on-device, no separate analytics server required.
Face recognition that works like your phone — but for your CCTV
You know how your iPhone Photos app automatically groups pictures of "Mum," "James," or "the kids"? The iDS-9632NXI-P16 does exactly the same thing — but for your live security cameras. Enrol photos of staff, family, regulars, couriers or contractors and add their names. From then on, when the NVR sees them on any of your 32 cameras, you get a push notification on your phone that says "James arrived at the front door" instead of just *"motion detected."*
It also works the other way around. Add a banned customer, a former employee or anyone you don't want on the premises to a watchlist — and the NVR alerts you the instant they appear on any camera. Up to 100,000 faces across 32 organised libraries are stored locally on the recorder itself — no cloud subscription, no facial data leaving your premises, no monthly fees, ever.
Unlike battery-powered "smart" doorbells that only recognise faces at one entrance (and lose accuracy over time), the DeepinMind Pro NVR runs Hikvision's enterprise-grade AI engine across every camera, every angle, around the clock.
Recommended AcuSeek-compatible cameras
To unlock the full AcuSeek, AcuSearch and face-recognition stack, pair this NVR with cameras from our verified Hikvision AcuSeek Cameras collection. Every model is independently confirmed on Hikvision's official compatibility checklist (April 2026), ships from our Australian warehouse, and runs the firmware AcuSeek needs out of the box. Four of the most popular picks:
ColorVu 3.0 Turret — DS-2CD2387G3-LIS2UY/SL
The current-gen flagship: 8MP, true 24/7 full-colour night vision, Smart Hybrid Light, built-in mic, speaker and strobe. The ideal partner for AcuSeek face capture in any light. View this camera →
ColorVu 3.0 Bullet — DS-2CD2T87G3-LIS2UY/SL
Long-range 8MP bullet with active strobe and audio deterrence — perfect for driveways, side gates and perimeters where AcuSeek vehicle and person classification matters most. View this camera →
AcuSense G2H Turret — DS-2CD2366G2H-IU
6MP AcuSense Gen 2H with DarkFighter low-light sensor and built-in mic — the smart value choice for front doors, entries and counters where face capture has to stay sharp in dim light. View this camera →
Smart Hybrid Light Bullet — DS-2CD2087G3-LI2UY/SL
8MP ColorVu 3.0 with Smart Hybrid Light — switches automatically between IR (stealth) and white-light (deterrent) based on what it sees. The smartest choice for driveways and front gates. View this camera →
Browse the full Hikvision AcuSeek Cameras collection for every verified-compatible turret, bullet and dome — all in Australian stock with 3-year warranty.
Enterprise hardware backing the AI brain
The DeepinMind Pro isn't just smart — it's seriously built. Sixteen onboard PoE ports (IEEE 802.3 af/at) power your critical perimeter and entrance cameras directly; the other 16 channels accept IP cameras from anywhere on your network. Eight hot-swappable SATA bays with full RAID 0/1/5/6/10 protect footage from drive failure. True 8K HDMI output drives a flagship control-room monitor, with a second 4K HDMI for spot monitors and dual VGA for additional workstation displays.
8K + 4K Dual HDMI
HDMI 1 drives a true 8K monitor; HDMI 2 a 4K display — perfect for control rooms running a wall-mounted overview plus a workstation.
RAID 0/1/5/6/10
Octa-SATA design with full RAID support for redundancy and performance — critical for enterprise sites where footage loss isn't acceptable.
Hik-Connect & Hik-Central
Remote live view and playback via Hik-Connect, or integrate into Hik-Central Pro VMS for centralised management across multiple sites.
ONVIF Compatible
Works with the full Hikvision IP range and most third-party ONVIF cameras — flexibility for hybrid, multi-vendor enterprise sites.
Full technical specifications
Hikvision DeepinMind Pro NVR — iDS-9632NXI-P16
Model
iDS-9632NXI-P16
Series
Hikvision DeepinMind Pro AI NVR
Form Factor
2U Rack-Mount (19" rack-mount ears included)
AI Engine
GPU-accelerated DeepinMind Pro · Guanlan Large-Scale AI Model
Target Modelling
Up to 600,000 targets per day
Video Inputs
32-channel IP, up to 32 MP per channel
Video Compression
H.265+ / H.265 / H.264+ / H.264
Recording Resolution
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA
AcuSeek
Natural-language video search across all 32 channels
AcuSearch
Target-image search across all 32 channels
Facial Recognition (Live)
Up to 16 channels — real-time live stream
Face Picture Comparison
Up to 32 channels — recorded footage
Face Library
32 libraries · up to 100,000 face pictures total
Perimeter Protection
Line-crossing, intrusion, region entry/exit (multi-channel)
Video Structuralisation
Multi-channel deep-learning metadata extraction
Other AI Features
ANPR · People Counting · Heat Map · Motion Detection 2.0 · VCA
HDMI 1 Output
8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz
HDMI 2 Output
4K (3840 × 2160) @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz · independent source
VGA Outputs
2 × 1920 × 1080 @ 60 Hz (independent sources)
Audio In / Out
1-ch RCA in · 2-ch RCA out · Two-way audio
IP Speaker Support
Connectable IP speakers for audio warnings & talk-down
Network Interface
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
PoE Interfaces
16 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at)
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP
HDD Bays
8 × SATA, up to 16 TB per drive (128 TB total capacity)
eSATA
1 × eSATA for additional storage expansion
RAID
RAID 0, 1, 5, 6, 10 supported
USB Interfaces
2 × USB 3.0 (front and rear)
Alarm In / Out
16 in / 8 out
Power Supply
100–240 V AC, 50/60 Hz
Working Temperature
−10 °C to 55 °C
Working Humidity
10% – 90%
Mobile Apps
Hik-Connect, Hik-Central, iVMS-4200
Australian Warranty
5 Years — CCTV Guru / Hikvision Australia
iDS-9632NXI-P16 vs iDS-9632NXI-P8 — which should you choose?
The P16 and P8 share exactly the same DeepinMind Pro AI engine, channel count, storage capacity and warranty. The only meaningful difference is built-in PoE port count.
DeepinMind Pro — P16 vs P8
Specification
iDS-9632NXI-P16 (this product)
iDS-9632NXI-P8
Camera Channels
32
32
Built-in PoE Ports
16 × PoE (af/at)
8 × PoE (af/at)
AI Tier
DeepinMind Pro
DeepinMind Pro
Target Modelling
600,000/day
600,000/day
Live Facial Recognition
16 channels
16 channels
Face Picture Comparison
32 channels
32 channels
AcuSeek / AcuSearch
✔ All 32 channels
✔ All 32 channels
Storage
8 × SATA · Up to 128 TB
8 × SATA · Up to 128 TB
RAID Support
RAID 0/1/5/6/10
RAID 0/1/5/6/10
Display Outputs
Dual HDMI (8K + 4K) · Dual VGA
Dual HDMI (8K + 4K) · Dual VGA
Form Factor
2U Rack-Mount
2U Rack-Mount
Australian Warranty
5 Years
5 Years
Choose the P16 if you'd rather plug 16 cameras straight into the NVR and skip a separate PoE switch entirely. Choose the P8 if your site already runs a managed PoE switch backbone and you only need a handful of cameras powered directly from the recorder.
View the iDS-9632NXI-P8 (8-PoE Version)
Browse AcuSeek-Compatible Cameras
Downloads & resources
Download official Hikvision documents for setup, specifications, and recorder details.
iDS-9632NXI-P16 Datasheet
Quick Start Guide PDF
User Manual PDF
LiveGuard Setup (Web GUI)
LiveGuard Setup (NVR GUI)
Frequently asked questions
What's the difference between DeepinMind Pro and the regular DeepinMind M Series?
The Pro tier uses a GPU-accelerated AI engine that's an order of magnitude more powerful — modelling 600,000 targets per day vs the M Series' typical 100,000–200,000. It also adds AcuSeek (text-based search), which is normally exclusive to the VPro line. The Pro is the flagship for sites that take AI seriously.
Do I need special cameras to use AcuSeek and face recognition?
No. The NVR processes video from any compatible Hikvision or ONVIF IP camera. Pair with cameras from our Hikvision AcuSeek Cameras collection for the sharpest face crops and best recognition accuracy.
Are there subscription fees?
No. All AI processing — AcuSeek, AcuSearch, facial recognition, ANPR, perimeter — runs on-board the NVR. No recurring cloud fees, no per-user licensing, ever.
Does it come with hard drives?
The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk, WD Purple or enterprise Exos drives from 8 TB up to 16 TB per bay — choose your RAID configuration at checkout.
How does facial recognition handle 32 cameras?
16 channels run live real-time facial recognition (the heaviest workload). The remaining 16 channels run face picture comparison against recorded footage — slightly slower but covers forensic review across every camera.
Do you ship to my city?
We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. Enterprise orders shipped by carrier with tracking and signature.
5-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Genuine Hikvision · Wall Mount · For PTZHikvision DS-1294ZJ-PTRock-Solid Wall Mounting for Full-Size PTZ Speed Domes
The Hikvision DS-1294ZJ-PT is a heavy-duty wall mount bracket engineered to carry the larger Hikvision PTZ speed dome range. Built for car parks, warehouses and building perimeters, it keeps your camera precisely positioned day in, day out with the structural integrity a full-size PTZ demands.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why You'll Love It
Built for full-size PTZ — engineered to support Hikvision's larger PTZ speed dome cameras.
Heavy-duty construction — reliable long-term support that keeps your camera locked in position.
Hikvision White finish — clean, professional appearance that blends with the camera range.
Commercial & industrial ready — ideal for wall-mount installs across demanding environments.
Specifications
Model
DS-1294ZJ-PT
Category
Wall Mount
Material
Steel / Heavy-duty construction
Finish/Colour
Hikvision White
Application/Mounting
Wall mount for full-size PTZ speed domes
Warranty
3 Years (AU)
Frequently Asked Questions
Which cameras is this bracket for?Designed for Hikvision full-size PTZ speed dome cameras — please verify the bracket against your specific camera's mounting spec before purchase.
Can it be used outdoors?Yes — it suits wall-mount installations in commercial and industrial environments. For exposed sites, position to shield connections from direct weather.
Is this a genuine Hikvision part?Yes — this is a genuine Hikvision DS-1294ZJ-PT bracket supplied with a 3-year Australian warranty.
Is it easy to install?Yes — installation is straightforward using standard mounting hardware for a secure, rock-solid fit.
Hikvision Wi-Fi PTZ · 4MP 4× Zoom · AcuSense · 20 m IR
Hikvision DS-2DE2A404IWG1-E/W — 4MP 4× Zoom Wi-Fi AcuSense Mini PTZ (2.4 GHz, 2.8-12 mm, 20 m IR, IP66/IK10)
The Hikvision DS-2DE2A404IWG1-E/W is the Wi-Fi variant of Hikvision's most affordable PTZ — same compact 2-inch Value Series chassis, same motorised 2.8-12 mm F1.8 lens, same 4× optical zoom, same 4 MP imaging, same 20 m smart IR, same AcuSense human + vehicle filtering, same built-in mic + speaker — plus integrated 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) with WPA / WPA2 / WPA-PSK / WPA2-PSK encryption. Designed for installs where running Cat 6 is impractical or unwanted — apartment balconies, heritage buildings, rental properties, fence-corner posts, garden sheds and undercover carports where you'd rather not pull data cable across the ceiling. PoE 802.3af and 12 VDC power are still supported as fall-backs. IP66 weather-rated, IK10 vandal-rated, ~560 g. Australian stock, 3-year Australian warranty.
Wireless
Wi-Fi 2.4 GHz · 802.11b/g/n
Optical Zoom
4× · 2.8-12 mm · F1.8
Resolution
4 MP · 2560 × 1440 · 25/30 fps
AI Engine
AcuSense · Human + Vehicle
Audio
Built-in Mic + Speaker · 2-Way
Power
PoE 802.3af · 12 VDC · 11.2 W
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
See Hikvision AcuSense in Action
AcuSense is the on-camera deep-learning engine that makes this PTZ useful instead of noisy — it classifies every motion event as human, vehicle, or "other" (foliage, possums, headlight glare) and filters out the false alarms. Hikvision's official AcuSense demo shows how it works on the same AI engine that powers this Wi-Fi Value Series PTZ.
Why Choose the Wi-Fi DS-2DE2A404IWG1-E/W
The "/W" suffix adds integrated 2.4 GHz Wi-Fi to Hikvision's most affordable PTZ. The use-case is install flexibility: residential sites where pulling Cat 6 across the ceiling isn't practical, rental properties where you can't run cable through walls, heritage buildings with restrictions, fence-corner posts and garden sheds where data cable would need a long underground trench. Wi-Fi gets the PTZ on-line without a network cable.
Integrated 2.4 GHz Wi-Fi
IEEE 802.11b/g/n, 20/40 MHz channel bandwidth, WPA / WPA2 / WPA-PSK / WPA2-PSK encryption. Pairs to your existing 2.4 GHz home or office Wi-Fi — no separate access point needed.
4× Optical Zoom · 2.8-12 mm F1.8
Motorised wide-to-tele: 99.4° wide (whole driveway / shopfront) to 32.8° tele (face at the gate). 16× digital on top. ~2 s zoom transit.
AcuSense — Real Notifications
On-camera deep learning filters every motion event as human, vehicle or other. Only human/vehicle classifications trigger alerts — ~90 % fewer false alarms vs motion-only cameras.
PoE 802.3af Fallback Still Supported
Wi-Fi is the install convenience — but the camera also supports PoE 802.3af and 12 VDC wired. If your network changes or Wi-Fi range becomes a problem, you can revert to wired without buying a new camera.
Honest Wi-Fi Positioning — Read This Before You Buy
Wi-Fi is genuinely useful — but it's not magic, and we'd rather set expectations correctly up front than have you surprised on install day. Three things to know:
You Still Need a Power Cable
Wi-Fi handles data only — it can't deliver power. The camera draws up to 11.2 W and needs a 12 VDC supply or a PoE injector at the install location. "Wi-Fi" doesn't mean wireless — it means no data cable. You'll still run a single power cable to the camera location, or place a power-over-Ethernet injector nearby. Plan for it.
2.4 GHz Only — Plan for Bandwidth
The camera supports 2.4 GHz Wi-Fi only (no 5 GHz). 2.4 GHz reaches further through walls but is more congested (microwaves, baby monitors, IoT devices all share the band) and has lower peak throughput than 5 GHz. A 4 MP @ 25 fps stream uses ~4-8 Mbps — typically fine on 802.11n 2.4 GHz, but place the camera within reasonable range of your router (under ~15 m through one wall).
Initial Pairing Needs Ethernet
Per the datasheet: "Wi-Fi connection with Hik-Connect directly is not possible." Translation: you can't pair the camera to Wi-Fi using only the Hik-Connect mobile app. Initial setup requires a one-time Ethernet connection (or Hikvision's SADP / iVMS-4200 desktop tools) to enter the Wi-Fi credentials. After that, you can disconnect the Ethernet cable and the camera operates over Wi-Fi normally.
Wired Is Still Better If You Can Run Cable
If running a Cat 6 cable to the install point is practical, choose the wired-only DS-2DE2A404IWG1-E variant instead — slightly cheaper, no Wi-Fi setup, single PoE cable handles both power and data, no Wi-Fi range or congestion concerns. The Wi-Fi /W variant exists for installs where cable just isn't feasible.
For sites with longer night-time scenes, step up to the 3-inch sibling with 50 m IR: DS-2DE3A404IWG-E/W (3-inch · Wi-Fi · 50 m IR) →
Pan / Tilt / Zoom — Operator Control
355° Pan · 0°-90° Tilt
Pan 0° to 355° (5° slip-ring dead-zone — irrelevant on most ceiling / eave / wall mounts). Tilt 0° to 90° straight down for ground-level coverage from a mounted vantage.
300 Presets · Patrol Scan
300 presets + patrol scan automation. Set angles for driveway, gate, shopfront, carpark; recall with one tap. Schedule automated overnight patrol routes.
3D Positioning — Click to Zoom
Click any point on the live view to centre-frame and zoom in one motion — fastest operator workflow for investigating wide-scene events in Hik-Connect, iVMS-4200 or HikCentral Pro.
Proportional Pan + Power-Off Memory
Pan speed auto-scales with zoom (fine control at tele, fast at wide). Returns to last orientation after brown-out, power cycle or NVR restart.
Technical Specifications
DS-2DE2A404IWG1-E/W · Full Specifications
SKU
DS-2DE2A404IWG1-E/W (PoE / 12 VDC + integrated 2.4 GHz Wi-Fi)
Camera Type
Hikvision Value Series · 4 MP 4× IR AcuSense Mini PTZ Network Speed Dome (Wi-Fi)
Image Sensor
1/2.8" Progressive Scan CMOS · Powered-by-DarkFighter
Max Resolution
2560 × 1440 (4 MP 16:9)
Min. Illumination
Colour 0.005 lux @ F1.8 · B/W 0.001 lux @ F1.8 · 0 lux with IR
Shutter Speed
1/1 s to 1/30,000 s · Slow Shutter
Lens
Motorised · 2.8-12 mm · 4× optical zoom · 16× digital · max F1.8 aperture · auto / semi-auto / manual focus
Field of View
Horizontal 99.4° → 32.8° · Vertical 51.7° → 18.4° · Diagonal 119.9° → 37.5°
Zoom Speed
Approximately 2 s (wide ↔ tele)
Regional Focus / Exposure
Yes / Yes
IR Illumination
Smart IR up to 20 m · 850 nm wavelength
Day & Night
ICR (IR cut filter, mechanical)
Wide Dynamic Range
120 dB · BLC · HLC · 3D DNR · digital defog
SNR
> 52 dB
Pan Range / Speed
0° to 355° · 0.1°-50°/s configurable · preset 50°/s · proportional pan
Tilt Range / Speed
0° to 90° · 0.1°-50°/s · preset 50°/s
Presets / Patrols
300 presets · patrol scan
Park Action
Preset · patrol scan
3D Positioning
Yes — click-to-frame on live view
Power-Off Memory
Yes
Scheduled Task
Patrol scan · preset · dome reboot · dome adjust
Frame Rate (Main)
50 Hz: 25 fps @ 4 MP · 60 Hz: 30 fps @ 4 MP
Streams
3 simultaneous (main / sub / third)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG (sub / third)
Video Bit Rate
32 Kbps – 16 Mbps · CBR / VBR · SVC (H.264 + H.265) · 1 ROI region
Deep-Learning AI
AcuSense — human + vehicle classification
Smart Events
Line crossing · intrusion · region entrance · region exiting
Basic Events
Motion · video tampering · network disconnect · IP conflict · illegal login · HDD full · HDD error
Linkage
FTP / NAS / microSD upload · centre notify · email · trigger recording · audible warning
Audio
Built-in microphone (5 m pickup) · built-in speaker (10 m effective) · 1 line-in (2–2.4 Vpp, 1 KΩ ±10%) · 1 line-out (600 Ω) · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Ethernet
1 × RJ-45 10/100 Mbps self-adaptive
Wi-Fi Protocols
IEEE 802.11b · 802.11g · 802.11n
Wi-Fi Frequency
2.4 GHz – 2.4835 GHz (no 5 GHz support)
Wi-Fi Channel Bandwidth
20 / 40 MHz
Wi-Fi Encryption
64 / 128-bit WEP · WPA / WPA2 · WPA-PSK / WPA2-PSK
Wi-Fi Transfer Rate
802.11b: up to 11 Mbps · 802.11g: up to 54 Mbps · 802.11n: MCS 0-7
Wi-Fi Pairing Note
Initial Wi-Fi configuration requires one-time Ethernet connection (SADP / iVMS-4200) — direct Hik-Connect Wi-Fi pairing not supported.
On-Board Storage
microSD / SDHC / SDXC up to 512 GB · NAS (NFS / SMB-CIFS) · ANR auto network replenishment
API & Protocols
ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP · 6 concurrent live-view sessions · 32 users (3 levels)
Cyber Security
HTTPS · IP filter · watermark · TLS 1.2 · MAC host authentication · audit log · password protection
Client Software
iVMS-4200 · Hik-Connect · HikCentral Pro
Web Browser
Chrome 80+ · Firefox 80+ · Safari 13+ · Edge 89+
Power Source
12 VDC max 11.2 W OR PoE IEEE 802.3af — wired Ethernet still supported alongside Wi-Fi
Dimensions / Weight
Ø 130.7 mm × 103.6 mm · ≈ 560 g
Operating Condition
−20 °C to +60 °C · humidity ≤ 90 % non-condensing
Weatherproof Rating
IP66 (IEC 60529-2013)
Vandal Resistance
IK10
Lightning Protection
TVS 4,000 V · surge + voltage transient protection
Anti-Corrosion
Not rated — no -Y / NEMA 4X variant in this family. Avoid coastal sites within ~2 km of shoreline.
DORI (Tele · 12 mm)
Detect 180 m · Observe 71.4 m · Recognise 36 m · Identify 18 m
Approvals
RCM (Australia / NZ) · IP66 / IK10 protection
Warranty
3-Year Australian Warranty (back-to-base)
DS-2DE2A404IWG1-E/W (Wi-Fi) vs DS-2DE2A404IWG1-E (Wired) — Should You Pay for Wi-Fi?
Both variants are physically identical — same sensor, same lens, same chassis, same AcuSense AI, same audio, same IR. The only difference is the integrated 2.4 GHz Wi-Fi radio on the /W variant. Pick based on whether running a Cat 6 cable to the install point is practical: yes → save money with the wired-only version; no → pay for the Wi-Fi flexibility.
DS-2DE2A404IWG1-E/W (Wi-Fi · this) vs DS-2DE2A404IWG1-E (Wired only)
Feature
DS-2DE2A404IWG1-E/W (this — Wi-Fi)
DS-2DE2A404IWG1-E (wired-only sibling)
Integrated Wi-Fi
Yes — IEEE 802.11b/g/n · 2.4 GHz
No
Wi-Fi Encryption
WPA / WPA2 · WPA-PSK / WPA2-PSK · WEP 64/128-bit
—
Wired Ethernet
Yes — 10/100 Mbps (fallback / initial pairing)
Yes — 10/100 Mbps
Image Sensor
1/2.8" CMOS · Powered-by-DarkFighter
1/2.8" CMOS · Powered-by-DarkFighter
Resolution
4 MP · 2560 × 1440
4 MP · 2560 × 1440
Optical Zoom
4× · 2.8-12 mm · F1.8
4× · 2.8-12 mm · F1.8
IR Range
Up to 20 m
Up to 20 m
WDR
120 dB
120 dB
AI Engine
AcuSense · human + vehicle
AcuSense · human + vehicle
Built-in Audio
Mic (5 m) + Speaker (10 m) · 2-way
Mic (5 m) + Speaker (10 m) · 2-way
Pan / Tilt Speed
50°/s preset
50°/s preset
Power
PoE 802.3af · 12 VDC · 11.2 W
PoE 802.3af · 12 VDC · 11.2 W
Power Cable Required
Yes — Wi-Fi handles data only, not power
No (single PoE cable covers both)
Initial Setup
One-time Ethernet pairing via SADP / iVMS-4200
Plug into NVR PoE — done
Dimensions / Weight
Ø 130.7 × 103.6 mm · ~560 g
Ø 130.7 × 103.6 mm · ~560 g
Protection
IP66 · IK10
IP66 · IK10
Anti-Corrosion
Not rated
Not rated
Warranty
3-Year Australian Warranty
3-Year Australian Warranty
Best For
Apartments, rentals, heritage buildings, fence-corner posts, garden sheds, undercover carports — anywhere a long data cable run is impractical. Single power cable + Wi-Fi for data.
Standard installs where Cat 6 to the NVR is straightforward — main residence, retail shopfront, small office, hospitality venue. Cheaper, simpler, no Wi-Fi setup.
If your site has reasonable IR night-time coverage requirements and you want Wi-Fi plus longer IR reach, the 3-inch sibling offers both: DS-2DE3A404IWG-E/W (3-inch · Wi-Fi · 50 m IR) →
Recording NVRs — Wi-Fi Camera Pairs with Any Hikvision NVR
The DS-2DE2A404IWG1-E/W appears on your Hikvision NVR as a standard IP camera over the network, regardless of whether it's connected by Wi-Fi or Ethernet. The NVR doesn't need to know it's a Wi-Fi camera — it just sees an ONVIF Profile S / G / T device on the LAN. The Hikvision M-Series NVRs are the right partner for most installs: 4K HDMI output, H.265+ compression, plug-and-play, and pricing that keeps a complete system within reach. Step up to AcuSeek / DeepinMind only when you need natural-language AI search.
DS-7604NI-M1/4P — 4CH · 4 PoE · Budget Pick
Four-channel M-Series NVR with 4 built-in PoE ports, 4K HDMI output, single HDD bay (up to 10 TB). The Wi-Fi camera joins via your home / office network rather than the NVR's PoE port — leaves all 4 PoE ports free for additional wired fixed cameras. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD Bay
Eight-channel M-Series NVR with 8 built-in PoE ports, 4K HDMI output, two HDD bays (up to 20 TB). Sweet spot for small business, retail, hospitality and larger homes — Wi-Fi PTZ at the awkward install spot, wired fixed cameras everywhere else. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD Bay
Sixteen channels at full PoE, 160 Mbps M-Series engine for stutter-free 4K playback. Standard pairing for larger homes, body-corporate sites, schools and multi-shop installs running multiple Value PTZs across a campus. View DS-7616NI-M2/16P →
Need AI Search? AcuSeek / DeepinMind NVRs
For sites where you need natural-language search across the recording fleet ("show me people in red jackets near the front gate yesterday"), step up to a Hikvision AcuSeek (VPro) or DeepinMind AI NVR. Useful for commercial, school-campus and gated-estate deployments — overkill for most homes. Browse AcuSeek & DeepinMind NVRs →
Browse the full Hikvision NVR range: Hikvision Network Video Recorders →. Not sure which tier is right? Request a free system quote.
Compatible Mounts & Accessories
The camera ships with a standard ceiling / wall bracket. Below are the official Hikvision accessory options for specific install geometries.
DS-1294ZJ-PT — Wall Mount
Wall-mount bracket sized for the 2-inch PTZ — house wall, shopfront column, garage facade or fence column install.
DS-1297ZJ — Pendant Mount
Pendant-style mount for hanging from an eave, ceiling, carport gantry or awning soffit — most common residential front-of-house geometry.
DS-1297ZJ-M / -ES / DS-1299ZJ — Pendant Variants
Alternative pendant-mount geometries — pick the reach and bracket profile that matches your install substrate. Talk to our AU team if unsure.
microSD Card for Local Storage
Supports microSD / SDHC / SDXC up to 512 GB with ANR auto-back-fill — camera keeps recording locally during Wi-Fi or NVR outages, back-fills automatically when network returns.
Frequently Asked Questions
Do I still need a cable if I'm using Wi-Fi?
Yes — but only a power cable, not a data cable. The camera draws up to 11.2 W and Wi-Fi can't deliver power. You'll either run a 12 VDC cable from a power adapter, or place a PoE injector at the install location. Wi-Fi gets you out of running Cat 6 across ceilings, but doesn't eliminate the cable entirely.
How do I pair the camera to my Wi-Fi?
Initial Wi-Fi setup requires a one-time Ethernet connection. Plug the camera into your router or switch with a Cat 5e/6 cable, use Hikvision's SADP tool or iVMS-4200 on a Windows / Mac computer to enter your Wi-Fi SSID and password, then unplug the Ethernet cable — the camera will reconnect over Wi-Fi. You can't currently pair Wi-Fi directly from the Hik-Connect mobile app.
Will the camera work on 5 GHz Wi-Fi?
No — this camera supports 2.4 GHz Wi-Fi only (IEEE 802.11b/g/n). If your router is dual-band, make sure 2.4 GHz is enabled and that your network's SSID is reachable on the 2.4 GHz band where the camera will sit. Most home and office routers run both 2.4 and 5 GHz automatically.
How far from the router can the camera be?
2.4 GHz Wi-Fi typically reaches ~15 m through one wall or up to ~30 m with line-of-sight. The camera streams at ~4-8 Mbps which is comfortable for 802.11n 2.4 GHz at reasonable signal strength. For longer-distance installs or installs with multiple walls between camera and router, add a Wi-Fi mesh node or access point closer to the camera.
Why choose Wi-Fi vs the wired-only version?
Choose Wi-Fi (/W) for install flexibility: apartments, rentals, heritage buildings, fence corners, garden sheds, undercover carports — any site where running a Cat 6 data cable would mean punching through walls or trenching. Choose the wired-only (/E) for install simplicity: typical home, shopfront or small office where a single PoE cable from the NVR is straightforward. The wired version is slightly cheaper and has no Wi-Fi setup at all.
Will the Wi-Fi stream record to my Hikvision NVR?
Yes. The Wi-Fi PTZ appears on your NVR as a standard ONVIF / ISAPI IP camera on the LAN — the NVR doesn't distinguish Wi-Fi from Ethernet. Add it using its IP address as you would any other camera, then schedule recording, motion detection and AcuSense alarms normally.
Can I install this within 2 km of the coast?
Honestly — not directly exposed. This camera does not have anti-corrosion housing (no -Y variant exists in this family). For coastal Australian installs within 2 km of saltwater, either choose a NEMA 4X-rated camera (look for the "-Y" suffix on Hikvision turrets) or mount this PTZ under deep cover (eave, undercover carport, sheltered porch) so it doesn't see direct salt-spray exposure.
Does AcuSense work the same over Wi-Fi as Ethernet?
Yes — AcuSense classification happens on the camera itself, not on the network. The deep-learning model runs locally, decides whether the motion is human / vehicle / other, then sends only the qualified alerts and metadata over Wi-Fi (or Ethernet) to the NVR or Hik-Connect. Bandwidth use is the same; false-alarm filtering is identical.
Is this NDAA Section 889 compliant?
No. Hikvision is not NDAA Section 889 compliant. For NDAA-required projects (typically US federally-funded), we stock alternative brands — contact our team. For Australian residential, commercial, council, school, retail, hospitality, body-corporate and most state-government projects without an NDAA contractual requirement, this camera is freely usable.
Downloads & Resources
DS-2DE2A404IWG1-E/W Datasheet
Hikvision PTZ Quick Start Guide
Hikvision PTZ User Manual
Order the Hikvision DS-2DE2A404IWG1-E/W from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision Value Series PTZ range. The DS-2DE2A404IWG1-E/W is the Wi-Fi-enabled variant of Hikvision's most affordable PTZ — built for installs where running Cat 6 data cable isn't practical. 4 MP imaging, 4× optical zoom, AcuSense AI, full two-way audio, integrated 2.4 GHz Wi-Fi, all in a compact 560 g body. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Designing a Wi-Fi camera install for a rental, apartment, fence corner or heritage site? Request a free quote or contact our Australian team for system sizing and Wi-Fi placement advice.
Hikvision Value PTZ · 4MP 4× Zoom · AcuSense · 20 m IR
Hikvision DS-2DE2A404IWG1-E — 4MP 4× Zoom AcuSense Mini PTZ (2.8-12 mm, 20 m IR, IP66/IK10)
The Hikvision DS-2DE2A404IWG1-E is the most affordable Hikvision PTZ on the Australian market — a compact 2-inch Value Series speed dome with a motorised 2.8-12 mm F1.8 lens, 4× optical + 16× digital zoom, 4 MP 2560 × 1440 imaging, 20 m smart IR, 120 dB WDR, on-camera AcuSense human + vehicle filtering, and a built-in mic + speaker for full two-way audio via Hik-Connect. Standard PoE 802.3af means it plugs straight into any Hikvision PoE NVR port — no injector, no Hi-PoE, no special supply. IP66 weather-rated, IK10 vandal-rated, ~560 g compact chassis. Australian stock, 3-year Australian warranty.
Optical Zoom
4× · 2.8-12 mm · F1.8
Resolution
4 MP · 2560 × 1440 · 25/30 fps
Smart IR
Up to 20 m · 850 nm
AI Engine
AcuSense · Human + Vehicle
Audio
Built-in Mic + Speaker · 2-Way
Power
PoE 802.3af · 12 VDC · 11.2 W
3-Year AU Warranty
Fast AU Shipping
Australian Tech Support
See Hikvision AcuSense in Action
AcuSense is the on-camera deep-learning engine that makes this PTZ useful instead of noisy — it classifies every motion event as human, vehicle, or "other" (foliage, possums, headlight glare) and filters out the false alarms. Hikvision's official AcuSense demonstration video shows how it works on the same AI engine that powers this Value Series PTZ.
Why Choose the DS-2DE2A404IWG1-E Value PTZ
For most Australian homes, retail shops, hospitality venues and small offices, a single Value Series PTZ replaces three or four fixed cameras and gives the operator something fixed cameras can't: the ability to actively investigate a scene at zoom while keeping the wide view available on-demand.
4× Optical Zoom · 2.8-12 mm F1.8
Motorised wide-to-tele lens covers 99.4° wide (whole driveway / shopfront) to 32.8° tele (face at the gate / plate at the carpark). 16× digital on top. ~2 s zoom transit.
AcuSense — Real Notifications
On-camera deep learning filters every motion event as human, vehicle or other. Only human/vehicle classifications trigger alerts. Typical sites see ~90 % fewer false alarms than motion-only cameras.
Built-in Mic + Speaker · 2-Way Audio
Mic picks up audio within 5 m. Speaker projects voice to 10 m. Live talk-down via Hik-Connect from your phone — no external mic, speaker or audio adapter required.
Standard PoE 802.3af — Plug and Play
Runs on the same standard PoE every Hikvision NVR delivers. No PoE+ injector, no Hi-PoE switch, no 36 VDC supply. Single Cat 6 cable into the NVR port, done.
Honest Positioning — What This Camera Is, and What It Isn't
We sell a lot of PTZ cameras in Australia, and we'd rather steer you to the right one than oversell this one. The DS-2DE2A404IWG1-E is the genuine entry-level Hikvision PTZ — incredible value for the right scenario, but with real limits you should know about up front.
This Camera IS Right For…
• Residential front door, driveway and reception• Retail shopfront, hospitality venues, restaurants and cafés• Small office, school classroom, warehouse roller door• Anywhere you want one camera doing the work of three• Sites that already have a Hikvision PoE NVR• Indoor or weather-protected outdoor placement• Inland and most metro Australian sites
This Camera Is NOT The Right Pick If…
• You're within ~2 km of the coast (no anti-corrosion variant — choose a -Y turret instead)• You need IR coverage beyond 20 m (step up to 3-inch sibling with 50 m IR)• You need facial recognition / face library matching (Pro / DeepinView series)• You need automatic target tracking (Ultra Series PTZ — DS-2DF6A or 7A)• You need long-range zoom > 4× (Ultra Series with 36-42× optical)• The site is in alpine / sub-zero conditions year-round (this is rated to −20 °C)
For sites that need more than the Value Series provides, we'd recommend stepping up to the DS-2DE3A404IWG-E/W (3-inch sibling, 50 m IR), or to the Hikvision Ultra Series PTZ range for long-range identification work. Not sure which fits your site? Contact our Australian team — we'll size it correctly.
Pan / Tilt / Zoom — Operator Control
355° Pan · 0°-90° Tilt
Pan 0° to 355° (5° slip-ring dead-zone — irrelevant on most ceiling / eave / wall mounts). Tilt 0° to 90° straight down for ground-level coverage from a mounted vantage.
300 Presets · Patrol Scan
300 presets + patrol scan automation. Set angles for driveway, gate, shopfront, carpark; recall with one tap. Schedule automated overnight patrol routes.
3D Positioning — Click to Zoom
Click any point on the live view to centre-frame and zoom in one motion — fastest operator workflow for investigating wide-scene events in Hik-Connect, iVMS-4200 or HikCentral Pro.
Proportional Pan + Power-Off Memory
Pan speed auto-scales with zoom (fine control at tele, fast at wide). Returns to last orientation automatically after brown-out, power cycle or NVR restart.
Technical Specifications
DS-2DE2A404IWG1-E · Full Specifications
SKU
DS-2DE2A404IWG1-E (PoE / 12 VDC, no Wi-Fi)
Camera Type
Hikvision Value Series · 4 MP 4× IR AcuSense Mini PTZ Network Speed Dome
Image Sensor
1/2.8" Progressive Scan CMOS · Powered-by-DarkFighter
Max Resolution
2560 × 1440 (4 MP 16:9)
Min. Illumination
Colour 0.005 lux @ F1.8 (AGC ON) · B/W 0.001 lux @ F1.8 · 0 lux with IR
Shutter Speed
1/1 s to 1/30,000 s · Slow Shutter
Lens
Motorised · 2.8-12 mm · 4× optical zoom · 16× digital · max F1.8 aperture · auto / semi-auto / manual focus
Field of View
Horizontal 99.4° → 32.8° · Vertical 51.7° → 18.4° · Diagonal 119.9° → 37.5°
Zoom Speed
Approximately 2 s (wide ↔ tele)
Regional Focus / Exposure
Yes / Yes
IR Illumination
Smart IR up to 20 m · 850 nm wavelength
Day & Night
ICR (IR cut filter, mechanical)
Wide Dynamic Range
120 dB · BLC · HLC · 3D DNR · digital defog
SNR
> 52 dB
Pan Range / Speed
0° to 355° · 0.1°-50°/s configurable · preset 50°/s · proportional pan
Tilt Range / Speed
0° to 90° · 0.1°-50°/s · preset 50°/s
Presets / Patrols
300 presets · patrol scan
Park Action
Preset · patrol scan
3D Positioning
Yes — click-to-frame on live view
Power-Off Memory
Yes
Scheduled Task
Patrol scan · preset · dome reboot · dome adjust
Frame Rate (Main)
50 Hz: 25 fps @ 4 MP · 60 Hz: 30 fps @ 4 MP
Streams
3 simultaneous (main / sub / third)
Video Compression
H.265+ · H.265 · H.264+ · H.264 · MJPEG (sub / third)
Video Bit Rate
32 Kbps – 16 Mbps · CBR / VBR · SVC (H.264 + H.265) · 1 ROI region
Deep-Learning AI
AcuSense — human + vehicle classification
Smart Events
Line crossing · intrusion · region entrance · region exiting
Basic Events
Motion · video tampering · network disconnect · IP conflict · illegal login · HDD full · HDD error
Linkage
FTP / NAS / microSD upload · centre notify · email · trigger recording · audible warning
Audio
Built-in microphone (5 m pickup) · built-in speaker (10 m effective) · 1 line-in (2–2.4 Vpp, 1 KΩ ±10%) · 1 line-out (600 Ω) · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Ethernet
1 × RJ-45 10/100 Mbps self-adaptive
On-Board Storage
microSD / SDHC / SDXC up to 512 GB · NAS (NFS / SMB-CIFS) · ANR auto network replenishment
API & Protocols
ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP · 6 concurrent live-view sessions · 32 users (3 levels)
Cyber Security
HTTPS · IP filter · watermark · TLS 1.2 · MAC host authentication · audit log · password protection
Client Software
iVMS-4200 · Hik-Connect · HikCentral Pro
Web Browser
Chrome 80+ · Firefox 80+ · Safari 13+ · Edge 89+
Power Source
12 VDC max 11.2 W OR PoE IEEE 802.3af — runs on standard PoE port of any Hikvision NVR · power output 12 VDC max 60 mA
Dimensions / Weight
Ø 130.7 mm × 103.6 mm · ≈ 560 g
Operating Condition
−20 °C to +60 °C · humidity ≤ 90 % non-condensing
Weatherproof Rating
IP66 (IEC 60529-2013)
Vandal Resistance
IK10
Lightning Protection
TVS 4,000 V · surge + voltage transient protection
Anti-Corrosion
Not rated — no -Y / NEMA 4X variant in this family. Avoid coastal sites within ~2 km of shoreline.
DORI (Tele · 12 mm)
Detect 180 m · Observe 71.4 m · Recognise 36 m · Identify 18 m
Approvals
RCM (Australia / NZ) · IP66 / IK10 protection
Warranty
3-Year Australian Warranty (back-to-base)
DS-2DE2A404IWG1-E (2-Inch · 20 m IR) vs DS-2DE3A404IWG-E/W (3-Inch · 50 m IR)
The 3-inch sibling DS-2DE3A404IWG-E/W is the natural step up — same Value Series family, same 4 MP 4× lens, same AcuSense AI, same built-in audio. The differences are chassis size, IR range, and integrated Wi-Fi. Pick the 2-inch for tight installs and short night-time reach; pick the 3-inch when the scene runs out past 20 m at night or where Wi-Fi placement is needed.
DS-2DE2A404IWG1-E (2-inch · this) vs DS-2DE3A404IWG-E/W (3-inch sibling)
Feature
DS-2DE2A404IWG1-E (this — 2-inch)
DS-2DE3A404IWG-E/W (3-inch sibling)
Chassis Size
2-inch · Ø 130.7 mm · ~560 g
3-inch · larger body
Image Sensor
1/2.8" CMOS · Powered-by-DarkFighter
1/2.8" CMOS · Powered-by-DarkFighter
Resolution
4 MP · 2560 × 1440
4 MP · 2560 × 1440
Optical Zoom
4× · 2.8-12 mm · F1.8
4× · 2.8-12 mm · F1.6
IR Range
Up to 20 m
Up to 50 m
WDR
120 dB
120 dB
AI Engine
AcuSense · human + vehicle
AcuSense · human + vehicle · auto-tracking
Built-in Audio
Mic + Speaker · 2-way
Mic + Speaker · 2-way
Pan / Tilt Speed
50°/s preset
80°/s preset
Wi-Fi
No (PoE / 12 VDC only)
Yes — IEEE 802.11b/g/n 2.4 GHz
Power
PoE 802.3af · 12 VDC
PoE 802.3af · 12 VDC
Protection
IP66 · IK10
IP66 · IK10
Anti-Corrosion
Not rated
Not rated
Warranty
3-Year Australian Warranty
3-Year Australian Warranty
Best For
Indoor / short-range outdoor: front door, reception, retail shopfront, restaurant, small driveway, side gate, undercover carport. The most affordable Hikvision PTZ.
Larger driveways, longer carparks, school perimeters, body-corporate courtyards. The 50 m IR ring is the difference. Also adds Wi-Fi for installs where running Cat 6 is awkward.
View the 3-inch sibling: DS-2DE3A404IWG-E/W →
Recording NVRs — Pair with an Affordable M-Series PoE NVR
The DS-2DE2A404IWG1-E runs on standard PoE 802.3af and plugs directly into any Hikvision NVR's built-in PoE port — no separate injector needed. For most residential, retail and small-business installs, the Hikvision M-Series NVRs are the right partner: 4K HDMI output, H.265+ compression, PoE built-in, plug-and-play, and pricing that keeps a complete system within reach. Step up to AcuSeek / DeepinMind only when you specifically need natural-language AI search across the recording fleet.
DS-7604NI-M1/4P — 4CH · 4 PoE · Budget Pick
Four-channel M-Series NVR with 4 built-in PoE ports, 4K HDMI output and a single HDD bay (up to 10 TB). The most cost-effective Hikvision NVR for a typical 4-camera install with this PTZ as the centrepiece plus 3 fixed turrets around the property. View DS-7604NI-M1/4P →
DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD Bay
Eight-channel M-Series NVR with 8 built-in PoE ports, 4K HDMI output and two HDD bays (up to 20 TB total). The sweet spot for small business, retail, hospitality and larger homes running this PTZ alongside 4-7 fixed cameras. View DS-7608NI-M2/8P →
DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD Bay
Sixteen channels at full PoE, 160 Mbps M-Series engine for stutter-free 4K playback, 2 HDD bays. Standard pairing for larger homes, body-corporate sites, schools and multi-shop installs running multiple Value PTZs plus a fleet of fixed cameras. View DS-7616NI-M2/16P →
Need AI Search? AcuSeek / DeepinMind NVRs
For sites where you need natural-language search across the recording fleet ("show me people in red jackets near the front gate yesterday afternoon"), step up to a Hikvision AcuSeek (VPro) or DeepinMind AI NVR. Useful for larger commercial, school-campus and gated-estate deployments — overkill for most homes and small businesses. Browse AcuSeek & DeepinMind NVRs →
Browse the full Hikvision NVR range: Hikvision Network Video Recorders →. Not sure which tier is right? Request a free system quote — we'll size the NVR, storage and switch correctly the first time.
Compatible Mounts & Accessories
The camera ships with a standard ceiling / wall bracket. Below are the official Hikvision accessory options for specific install geometries.
DS-1294ZJ-PT — Wall Mount
Wall-mount bracket sized for the 2-inch PTZ — house wall, shopfront column, garage facade or fence column install.
DS-1297ZJ — Pendant Mount
Pendant-style mount for hanging from an eave, ceiling, carport gantry or awning soffit — most common residential front-of-house geometry.
DS-1297ZJ-M / -ES / DS-1299ZJ — Pendant Variants
Alternative pendant-mount geometries — pick the reach and bracket profile that matches your install substrate. Talk to our AU team if unsure.
microSD Card for Local Storage
Supports microSD / SDHC / SDXC up to 512 GB with ANR auto-back-fill — camera keeps recording locally during NVR outages, back-fills automatically when network returns.
Frequently Asked Questions
Why choose a PTZ over multiple fixed cameras?
A PTZ replaces three or four fixed cameras for the same site coverage and adds the ability to investigate a scene live — zoom in on a face, follow a vehicle as it leaves, talk down to a courier. For a single front-of-house or shopfront install, a Value PTZ often costs less than the equivalent multi-camera fixed setup. For wide static perimeter coverage where you need every angle recorded simultaneously, fixed cameras are still the right answer.
Will it run on my existing Hikvision NVR's PoE port?
Yes. The camera uses standard PoE (IEEE 802.3af), the same PoE class delivered by every Hikvision PoE NVR's built-in port. No injector, no Hi-PoE, no special supply — single Cat 6 cable from the NVR port to the camera.
Is 20 m IR enough for my driveway / shopfront?
For typical Australian suburban driveways (10-15 m), retail shopfronts, reception areas, undercover carports and side-gate zones, 20 m IR is sufficient. For longer driveways or larger carparks where you need night identification beyond 20 m, step up to the 3-inch DS-2DE3A404IWG-E/W with 50 m IR, or move up to the Ultra Series with 300 m IR.
Can I use the two-way audio with my phone?
Yes. Open the live view in Hik-Connect on your phone, tap the audio button, and you can hear and speak directly through the camera's built-in mic + speaker — talk to a courier, warn off an intruder, or check what's happening at the gate.
Can I install this within 2 km of the coast?
Honestly — no, not directly exposed. This camera does not have anti-corrosion housing (there's no -Y variant in this family). For coastal Australian installs (Sydney CBD, Wollongong, Newcastle, Gold Coast, Perth, etc.) within 2 km of saltwater, either choose a NEMA 4X-rated camera (look for the "-Y" suffix on Hikvision turrets) or mount this PTZ under genuine cover (a deep eave, undercover carport, sheltered porch) so it doesn't see direct salt-spray exposure.
Why is the pan range 355°, not full 360°?
The 2-inch Value Series uses a slip-ring design with a 5° dead-zone for the cabling. For ceiling, eave and wall mounts overlooking a single scene, this is irrelevant — you don't need the 5° anyway. For corner mounts where you want a full continuous sweep, plan the orientation so the dead-zone faces away from the scene of interest (e.g. toward the wall behind the camera).
Does it support face recognition or auto-tracking?
No — those are Pro / DeepinView / Ultra Series features. This camera covers human and vehicle classification and perimeter detection only. For facial recognition against a watchlist, choose a Hikvision DeepinView model. For automatic PTZ target tracking, step up to the Ultra Series PTZ range.
Is this NDAA Section 889 compliant?
No. Hikvision is not NDAA Section 889 compliant. For NDAA-required projects (typically US federally-funded), we stock alternative brands — contact our team. For Australian residential, commercial, council, school, retail, hospitality, body-corporate and most state-government projects without an NDAA contractual requirement, this camera is freely usable.
Downloads & Resources
DS-2DE2A404IWG1-E Datasheet Hikvision PTZ Quick Start Guide Hikvision PTZ User Manual
Order the Hikvision DS-2DE2A404IWG1-E from CCTV Guru
CCTV Guru is an authorised Australian reseller of the Hikvision Value Series PTZ range. The DS-2DE2A404IWG1-E is the most affordable Hikvision pan / tilt / zoom camera available in Australia — and for the right install (residential front-of-house, retail shopfront, hospitality venue, small office, reception area, undercover carport), it's the right call. 4 MP imaging, 4× optical zoom, AcuSense AI, full two-way audio and standard PoE plug-and-play, all in a compact 560 g body. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Designing a complete PTZ-plus-fixed-camera system? Request a free quote or contact our Australian team for system sizing — we'll get the right number of cameras, the right NVR and the right brackets specified the first time.
WizSense 3 · 6 MP · Smart Dual Light · AcuPick Ready
Dahua DH-IPC-HFW3667E-AS-IL-ANZ — 6 MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera
The Dahua DH-IPC-HFW3667E-AS-IL-ANZ is a 6 MP WizSense 3 outdoor bullet IP camera with a fixed-focal 2.8 mm F1.4 lens (3.6 mm option also available). The 1/2.7" CMOS sensor outputs 3288 × 1850 at 25/30 fps with Smart H.265+ encoding, and Dahua's Smart Dual Light engine pairs a 30 m IR illuminator with a 30 m warm-light array — the camera defaults to invisible IR after dark, then flips to full-colour white light the instant WizSense classifies a person or vehicle in the scene. WDR is rated at 120 dB, the housing is IP67 sealed across –40 °C to +60 °C (Alpine-rated), and the on-board electronics include a built-in microphone, 1/1 RCA audio I/O and a 1/1 alarm wet-contact pair. Edge AcuPick, SMD 4.0 and perimeter protection run on the WizSense 3 deep-learning chip; peak draw is 10 W on standard 802.3af PoE. Built for Australian residential and small-business installs with predictable framing — single-driveway homes, shopfronts, NDIS dwellings, small carparks and rural sheds. Backed by a 3-year Australian warranty through CCTV Guru.
Lens
2.8 mm F1.4 Fixed
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 30 m + Warm 30 m
AI Engine
WizSense 3 + AcuPick
Protection
IP67 · –40 to +60 °C
Power
12 VDC / PoE 802.3af · 10 W max
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW3667E-AS-IL-ANZ
This is the WizSense 3 6 MP bullet for installs that have predictable framing and don't need a motorised lens. Below are the six reasons it outperforms generic fixed-lens 6 MP bullets in Australian deployments.
True 6 MP Image, Not Upscaled
The 1/2.7" CMOS captures a native 3288 × 1850 raster — more than double the pixel density of 1080p — so digital zoom into faces, plates and signage stays usable instead of dissolving into a noise field.
Smart Dual Light, No Light Pollution
30 m IR runs invisibly until WizSense classifies a person or vehicle, then the 30 m warm-light array switches on the target to capture full-colour evidence. No constant white-light wash for neighbours to complain about.
120 dB WDR for AU Sun
Strong WDR holds detail in both the bright sky and the dark interior in a single frame — important for north-facing entries, colourbond-shaded driveways and glass shopfronts where lesser cameras blow out one side.
110° Wide Coverage from a Single Mount
The 2.8 mm lens delivers a 110° horizontal field of view — wide enough to cover a typical Australian double driveway, a shopfront awning or an entire small carpark from one camera. DORI Identify range extends to 8.5 m.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, this camera lets you search hours of recorded video by attributes — "red top, blue trousers, walking east" — and pulls matching clips in seconds rather than scrubbing the timeline by hand.
Best-in-Class Cold-Weather Rating
Rated –40 °C to +60 °C — a 10 °C colder floor than the motorised-zoom HFW3667T variant. The right WizSense 3 bullet for Alpine NSW, Tasmanian highland, and any site that sees overnight frost.
Important Install Note
This camera draws a maximum of 10 W on PoE — comfortable on any 802.3af switch, including the integrated PoE ports on Dahua's compact NVRs. The lens is fixed-focal, so frame the camera carefully at install time — there's no remote re-framing later. For outdoor installs in exposed positions (coastal, humid, or where the RJ-45 termination sits behind the camera in still air), we strongly recommend pairing with the DH-PFA130-E water-proof junction box to keep condensation off the connector.
AI & Smart Detection Capabilities
AcuPick Target Search
Deep-learning attribute matching across people and vehicles. Find a target across hours of recorded video by colour, top/bottom clothing, vehicle type and direction — when paired with a compatible Dahua AcuPick NVR.
SMD 4.0 — Smart Motion Detection
Motion alerts triggered only by humans and vehicles. Wind-blown branches, small animals, possums on a fence and shadows are filtered out at the edge — slashing false-alarm volume on residential and small-business sites.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert when the right type of target crosses it.
Smart Dual Light Deterrence
When WizSense classifies a person in the warm-light zone, the white-light array triggers automatically — leaving subjects in no doubt they have been captured in full colour. A passive deterrent that costs nothing extra in licensing or hardware.
AI SSA — Scene Self-Adaptation
The camera detects environmental conditions like rain, fog, backlight, low light and flicker, and automatically adjusts image parameters to keep the scene clear — without an operator touching the settings.
Smart Search & Event Extraction
Pairs with a Smart NVR to refine intelligent search, extract and merge event video. Skip past hours of empty footage and jump straight to the moments where something the AI flagged as relevant happened.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HFW3667E-AS-IL-ANZ
Form Factor
Bullet (metal casing)
Image Sensor
1/2.7" CMOS
Maximum Resolution
3288 × 1850 (6 MP)
Scanning System
Progressive
Minimum Illumination
0.005 lux @ F1.4 (Colour) · 0.0005 lux @ F1.4 (B/W) · 0 lux (illuminator on)
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
BLC / HLC
Yes / Yes
Noise Reduction
3D NR
Smart Illumination
Yes
Smart Dual Light
Yes
Privacy Masking
Multiple areas
Lens & Illumination
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm (this listing) · 3.6 mm variant also available
Maximum Aperture
F1.4
Field of View (2.8 mm)
H: 110° · V: 58° · D: 132°
Close Focus Distance
1.4 m
IR Illumination
Up to 30 m
Warm Light Illumination
Up to 30 m
Illuminator Configuration
2 × multi-core LEDs (IR + warm light)
Smart Dual Light
Yes (target-triggered IR / warm light hand-off)
DORI (2.8 mm)
Detect 84.8 m · Observe 33.9 m · Recognise 17.0 m · Identify 8.5 m
Intelligence & Video
AI Engine
WizSense 3 Series
IVS — Perimeter Protection
Tripwire, intrusion (with human + vehicle classification)
Smart Motion Detection
SMD 4.0
AcuPick
Yes (with compatible Dahua AcuPick NVR)
AI SSA
Yes (scene self-adaptation)
Smart Search
Yes (paired with Smart NVR)
Video Compression
H.265 · H.264 · H.264H · H.264B · MJPEG (sub stream)
Smart Codec
Smart H.265+ · Smart H.264+
AI Coding
AI H.265 · AI H.264
Resolutions
6 MP · 5 MP · 4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF
Main Stream
3288 × 1850 @ 1–25/30 fps
Bit Rate Control
VBR · CBR · ABR
Audio, Alarm & Network
Built-in Microphone
Yes
Audio Input
1 channel (RCA)
Audio Output
1 channel (RCA)
Audio Compression
PCM · G.711a · G.711Mu · G.726 · G.723
Alarm Input
1 channel — wet contact, 5 mA, 3–5 VDC
Alarm Output
1 channel — wet contact, 300 mA, 12 VDC
Network Port
RJ-45 (10/100 Base-T)
Network Protocols
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · 802.1x
Interoperability
ONVIF (Profile S, G, T) · CGI
Storage
FTP · SFTP · NAS · Micro SD card up to 512 GB
Mobile Client
DMSS (iOS / Android)
Management Software
SmartPSS Lite · DSS · DMSS
Cyber Security
Trusted boot · trusted execution · trusted upgrade · video encryption · firmware encryption · 802.1x · HTTPS · IP/MAC filtering · WSSE · X.509
Recommended Firmware
Dahua V5.x (enables AcuPick, ONVIF 23.12, iSCSI, N+M with compatible NVRs)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af)
Power Consumption (Basic)
3.7 W (12 VDC) · 5.4 W (PoE)
Power Consumption (Max.)
8 W (12 VDC) · 10 W (PoE) with H.265 + WDR + warm light + AI
Dual-Power Backup
Yes (12 VDC and PoE simultaneously supported)
Operating Temperature
–40 °C to +60 °C
Operating Humidity
≤ 95% RH (non-condensing)
Storage Temperature
–40 °C to +60 °C
Protection Rating
IP67
Casing Material
Metal
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
How It Compares — HFW3667E-AS-IL-ANZ vs HFW3667T-ZAS-IL-ANZ
The closest sibling is the Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ — the motorised-zoom 2.7–13.5 mm sibling. Same sensor, same WizSense 3 AI, same audio I/O, same IP67 build. The decision is whether you need a fixed lens (cheaper, lower power, simpler install) or motorised optics (re-frameable from the app, longer-range IR/warm light, better cold-tolerance for premium sites).
Feature
DH-IPC-HFW3667E-AS-IL-ANZ (this camera)
DH-IPC-HFW3667T-ZAS-IL-ANZ (sibling)
Resolution
6 MP (3288 × 1850)
6 MP (3288 × 1850)
Sensor
1/2.7" CMOS
1/2.7" CMOS
Lens
Fixed-focal 2.8 mm (3.6 mm option) · F1.4
Motorised vari-focal 2.7–13.5 mm · F1.4
AI Engine
WizSense 3
WizSense 3
AcuPick
Yes
Yes
Smart Dual Light
IR 30 m + warm 30 m
IR 60 m + warm 60 m
Illuminators
2 × multi-core LEDs
4 × multi-core LEDs
DORI — Identify
8.5 m (at 2.8 mm)
8.5 m wide · 28 m tele
WDR
120 dB
120 dB
Audio
Built-in mic + 1/1 RCA audio I/O
Built-in mic + 1/1 RCA audio I/O
Power Draw (PoE max)
10 W (lighter — runs on any 802.3af)
12.5 W
Operating Temperature
–40 °C to +60 °C (better cold rating)
–30 °C to +60 °C
IP Rating
IP67
IP67
Best For
Predictable framing — single-driveway homes, shopfronts, NDIS dwellings, Alpine sites
Variable framing — long driveways, carparks, sites where you may want to re-frame later
Recommended NVR Pairings
For AcuPick attribute search on recorded footage, this camera should be paired with a Dahua 5-Series AI NVR running V5 firmware. Below are four CCTV Guru-stocked recorders sized for the most common Australian deployments — from single-home through to enterprise.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U · perimeter protection and SMD Plus. The most popular pairing for residential and small-business sites running 4–8 cameras.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. Sized for medium commercial sites and multi-building yards.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. The value-pick 16-channel build for sites that don't need full AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — warehouses, schools, multi-tenant strata and large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA130-E
Water-proof junction box — the most popular accessory for this camera. Protects the RJ-45 termination from condensation behind outdoor mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA135
Standard junction box for tidy in-wall cable management on rendered or brick walls. Use when no waterproofing of the termination is required.
DH-PFA151
Corner mount bracket — for mounting the camera onto external building corners. Matches the camera's white powder-coat finish.
DH-PFA152-E
Pole mount bracket — fits 60–110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
G3416GW
G3/4" water joint — protects the cable gland on outdoor installs with conduit termination. Use with surface-mounted PVC or metal conduit runs.
DH-PFM321D-EN / DH-PFM320D-EN
Genuine Dahua 12 VDC power adapters — 1 A and 2 A options. Use when running the camera on local DC instead of PoE, or as a backup supply alongside PoE.
Frequently Asked Questions
Is the Dahua HFW3667E-AS-IL-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
What's the difference between the 2.8 mm and 3.6 mm lens options?
2.8 mm gives a wider 110° horizontal field of view — best for shopfronts, single driveways and small carparks where coverage matters more than range. 3.6 mm narrows the field but pushes more pixels onto distant targets — better for longer driveways and front-fence approaches.
Does this camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR running V5 firmware.
Is this a TiOC camera?
No. TiOC SKUs carry the "PV" infix in the model number. This camera is a Smart Dual Light WizSense 3 model — it can illuminate a target on detection but does not have a red/blue strobe or built-in siren. For TiOC active deterrence, see our HFW3849T1-ZAS-PV-ANZ range instead.
How far can it see at night?
Smart Dual Light gives 30 m on IR and 30 m on warm light. DORI Identify range (where a face is recognisable) is 8.5 m at the 2.8 mm lens. For longer range, the motorised-zoom HFW3667T-ZAS-IL-ANZ variant pushes Identify out to 28 m at its tele setting.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of only 10 W. Any quality 802.3af switch with budget headroom will run it comfortably.
Does it have a microphone?
Yes, the camera has a built-in microphone, plus 1 × RCA audio in and 1 × RCA audio out for connecting an external mic or speaker. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G and T, so it will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR.
What temperature range is it rated for?
–40 °C to +60 °C — a 10 °C wider cold-tolerance window than the motorised-zoom variant. Suitable for Alpine NSW, Tasmanian highland, and any AU site that sees overnight frost.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts and recorded-footage playback from anywhere with internet. No subscription required.
Downloads
DH-IPC-HFW3667E-AS-IL-ANZ Datasheet
Dahua IP Bullet Camera Quick Start Guide
Dahua IP Bullet Camera Installation Guide
Dahua IP Bullet Camera Operational Manual
Order Your Dahua HFW3667E-AS-IL-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. We are authorised Australian Dahua resellers, hold stock locally, and back every camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
X-Spans Panoramic PTZ · 8+4 MP · 25× Zoom · TiOC · Xinghan AI
Dahua DH-SDT4E425-8P-GB-APV1 — 8+4 MP 25× X-Spans Panoramic TiOC PTZ Camera with Xinghan AI & Active Deterrence
The Dahua DH-SDT4E425-8P-GB-APV1 is an X-Spans series multi-sensor panoramic PTZ — two cameras inside one IP66, surge-protected housing. The overview channel is an 8 MP 1/2.7" CMOS with a 2.8 mm F1.4 lens spliced across a true 180° horizontal field of view, capturing the entire scene at all times. The detail channel is a 4 MP 1/2.8" CMOS PTZ with 5 – 125 mm F1.6 – F3.6 motorised optics, 25× optical zoom and 16× digital zoom — capable of detecting a target at 2500 m and identifying it at 250 m. Starlight low-light sensors push usable colour down to 0.005 lux. Dual-light arrays give the panoramic head 30 m IR + 30 m white, and the PTZ head 100 m IR + 50 m warm-light reach.
This camera is built for Australian sites where you would otherwise install two cameras — large carparks, school grounds, freight yards, transport hubs, depots, mining laydowns and council reserves — and want one head that maintains constant 180° awareness while a second head slews onto whatever the AI flags. Smart Tracking links the two channels so the PTZ automatically zooms onto any target the overview detects, then keeps tracking after the target leaves the panoramic FOV using Dahua's X-Spans relay tracking. Edge AI runs the new Xinghan Large-Scale AI Models with WizSense perimeter protection, SMD 4.0 and AcuPick. Active deterrence stacks red/blue light warning with 11 built-in alarms (plus 10 custom uploads) and a built-in speaker. Power is PoE+ (802.3at) or 12 VDC 3 A. Backed by a 3-year Australian warranty through CCTV Guru.
Optical Zoom
25× + 16× Digital
Dual Sensor
8 MP + 4 MP Starlight
Smart Dual Light+
IR 100 m · Warm 50 m
AI Engine
Xinghan + AcuPick
Active Deterrence
TiOC Strobe + Siren
Power
PoE+ 802.3at / 12 VDC
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
See the Dahua TiOC PRO Platform in Action
This is Dahua's official TiOC PRO highlight — the same active-deterrence platform that runs on the SDT4E425-8P-GB-APV1's PTZ head. Red/blue light warning, audible alarms, smart dual light and full AI classification working together to challenge intruders the moment they're detected.
Why Choose the Dahua SDT4E425-8P-GB-APV1
Buying a panoramic PTZ replaces two traditional cameras with one head. Below are the six reasons this specific X-Spans build is the one Australian integrators ask for when they want the dual-camera concept to actually work in the field — not the corner-case PoC demos.
180° Awareness, Always-On
The 8 MP overview channel is permanently recording a true 180° splice — so when the PTZ is steered onto a target, you don't lose situational awareness of the rest of the scene like you would with a single PTZ alone.
25× Optical Zoom · 250 m Identify Range
The detail PTZ runs 5 – 125 mm motorised optics with auto and semi-auto focus. DORI identify distance is 250 m at the tele end — long enough to read clothing and recognise faces across an entire carpark or paddock approach.
Smart Tracking Without Operator Intervention
WizTracking, relay tracking and linkage tracking work together so the PTZ automatically slews, zooms and follows whatever the overview channel's AI classifies as a person or vehicle — then keeps tracking after the target leaves the panoramic FOV.
TiOC Active Deterrence on a PTZ
Most active-deterrence cameras are fixed bullets or turrets. This camera mounts the full TiOC stack — red/blue strobe, 11-sound audible alarm library and built-in speaker — on a 25× PTZ that can challenge an intruder anywhere in its hemisphere.
Xinghan AI on the Edge
Xinghan Large-Scale AI Models bring transformer-architecture AI to the edge — joint inference between small and large models lets a single camera classify, track and respond on-device rather than depending on server-side compute.
Built for Harsh Australian Outdoor
IP66 sealed against driving rain, TVS 6000 V lightning + surge + voltage-transient protection, and rated operating range from –40 °C to +65 °C. Suitable for everything from Alpine highway sites through to the Pilbara.
Important Install Note — PoE+ Required
This camera draws a maximum of 25 W when illuminator, heater, active deterrence, ICR and PTZ are all active. It requires 802.3at PoE+, not standard 802.3af. On any deployment longer than 90 m, factor in cable resistance — for runs approaching the 100 m Ethernet limit we recommend either a local 12 VDC 3 A supply at the camera or a quality 802.3at midspan injector rather than relying on an underspecified PoE+ switch budget. The pre-included PFA150 pole-mount bracket is the standard option; wall, ceiling, parapet and corner brackets are listed in the Compatible Mounts section below.
AI & Smart Detection Capabilities
Xinghan Large-Scale AI Models
Dahua's newest edge AI generation — lightweight transformer architecture with model distillation and quantisation. The camera runs joint inference between small and large models to handle multiple simultaneous AI tasks with lower compute draw.
AcuPick Attribute Search
The overview channel supports AcuPick — when paired with a Dahua AcuPick NVR, you can search recorded video by colour, clothing, vehicle type and direction. Massively reduces investigation time.
Smart Tracking — Three Modes
WizTracking handles AI-driven human/vehicle following. Relay tracking (X-Spans exclusive) continues tracking after the target leaves the overview's 180° field. Linkage tracking restricts following to targets visible in the overview.
Full WizSense IVS Library
Tripwire, intrusion, crossing-fence detection, loitering, abandoned/missing object, fast-moving, parking detection, people gathering, human alarm classification and linkage tracking. Each event can trigger a preset, tour, capture, record, email or auto-patrol routine.
TiOC Active Deterrence Stack
Red/blue light warning with three flash frequencies (high/medium/low) and 5 – 30 s duration. 11 built-in sound alarms plus 10 importable custom sounds. Built-in speaker with 0–100% volume and 1–10 play-count control.
SMD 4.0 + Auto Patrol
Smart Motion Detection 4.0 filters animal and foliage motion, leaving alerts on people and vehicles only. After an IVS alarm, the PTZ can auto-patrol up to 5 presets or a scan path to verify the scene without an operator touching the joystick.
PTZ Kinematics
360° Endless Pan
Continuous 360° pan rotation with no mechanical stop — the PTZ can follow a target through any heading without re-homing.
–15° to +90° Tilt with Auto Flip
Tilt range covers straight down to slightly above horizon. Auto-flip 180° lets the camera track a target passing directly underneath the housing without losing the view.
Variable Manual Speed
Manual control speed runs from 0.1°/s for fine framing through 180°/s pan and 90°/s tilt for rapid scene change. Preset speeds are user-configurable across the same range.
300 Presets · 8 Tours · 5 Patterns · 5 Scans
Up to 300 stored presets, 8 multi-stop tours (32 presets each), 5 recorded patterns (joystick-driven motion playback) and 5 line scans. Power-off memory keeps the position on reboot.
Technical Specifications
Overview Channel (Panoramic)
Image Sensor
1/2.7" CMOS
Maximum Resolution
4096 (H) × 1860 (V) — 8 MP
Lens
2.8 mm fixed
Maximum Aperture
F1.4
Field of View
H: 180° · V: 86°
Min. Illumination
0.005 lux @ F1.4 (colour) · 0.0005 lux @ F1.4 (B/W) · 0 lux (illuminator on)
IR / White Light
30 m / 30 m
WDR
DWDR
DORI Distance
Detect 56 m · Observe 22.4 m · Recognise 11.2 m · Identify 5.6 m
ROM / RAM
4 GB / 2 GB
Detail Channel (25× PTZ)
Image Sensor
1/2.8" CMOS
Maximum Resolution
2560 (H) × 1440 (V) — 4 MP
Lens
5 mm – 125 mm motorised vari-focal
Optical Zoom
25×
Digital Zoom
16×
Maximum Aperture
F1.6 – F3.6
Field of View
H: 51.9° – 3.0° · V: 39.7° – 2.2° · D: 63.1° – 3.7°
Focus Control
Auto · Manual · Semi-Auto
Iris Control
Auto · Manual · Iris Priority
Min. Illumination
0.005 lux @ F1.6 (colour) · 0.0005 lux @ F1.6 (B/W) · 0 lux (illuminator on)
IR / Warm Light
100 m / 50 m
WDR
120 dB true WDR
DORI — Wide (5 mm)
Detect 100 m · Observe 40 m · Recognise 20 m · Identify 10 m
DORI — Tele (125 mm)
Detect 2500 m · Observe 1000 m · Recognise 500 m · Identify 250 m
Image Stabilisation
Electronic Image Stabilisation (EIS)
ROM / RAM
4 GB / 1 GB
PTZ & Smart Tracking
Pan Range
0° – 360° endless
Tilt Range
–15° to +90° (auto flip 180°)
Manual Speed
Pan 0.1°/s – 180°/s · Tilt 0.1°/s – 90°/s
Preset Speed
Pan 0.1°/s – 180°/s · Tilt 0.1°/s – 90°/s
Presets
300
Tours
8 (up to 32 presets per tour)
Patterns
5
Scans
5
Idle Motion
Preset · Pattern · Tour · Scan
Power-off Memory
Yes
Smart Tracking
WizTracking · Relay tracking (X-Spans) · Linkage tracking
Intelligence, Video & Active Deterrence
AI Platform
Xinghan Large-Scale AI Models · WizSense
IVS
Tripwire · intrusion · crossing-fence · loitering · abandoned/missing object · fast-moving · parking detection · people gathering · human alarm classification · linkage tracking
SMD
SMD 4.0
AcuPick
Yes (overview channel)
Auto Patrol
Up to 5 presets or scans triggered by IVS / SMD
Active Deterrence — Light
Red/blue light warning · 5 – 30 s flash duration · high/medium/low frequency
Active Deterrence — Sound
11 built-in alarms + 10 custom uploads · volume 0–100% · play 1–10 times
Video Compression
Smart H.265+ · H.265 · Smart H.264+ · H.264B · H.264M · H.264H · MJPEG (sub stream 1)
Streaming
3 streams (per channel)
Overview Main Stream
4096 × 1860 @ 1 – 25/30 fps
Detail Main Stream
2560 × 1440 / 1080p / 720p @ 1 – 25/30 fps
Bit Rate Control
CBR · VBR
Video Bit Rate (Overview)
H.264 128 kbps – 16,384 kbps · H.265 51 kbps – 13,312 kbps
Video Bit Rate (Detail)
H.264 96 kbps – 16,384 kbps · H.265 38 kbps – 10,240 kbps
Privacy Masking
Up to 24 areas (up to 8 in the same view) · multi-colour and mosaic options
Audio, Alarm & Network
Audio Compression
PCM · G.711A · G.711Mu · G.726 · MPEG2-Layer2 · G.722.1 · G.729
Audio Input
1 channel — LINE IN, bare wire
Audio Output
1 channel — LINE OUT bare wire · built-in speaker (mutually exclusive)
Alarm Input
2 channels — on/off 0 – 5 VDC
Alarm Output
1 channel
Alarm Linkage
Capture · recording · email · preset · tour · pattern · alarm digital output · audio · warning light
Network Port
RJ-45 (100 / 1,000 Base-T)
Network Protocols
HTTP · HTTPS · TCP/IP · IPv4 · IPv6 · RTSP · UDP · SMTP · NTP · DHCP · DNS · DDNS · 802.1x · SSL · QoS · FTP · UPnP · ICMP · SNMP · IGMP · ARP · RTCP · RTP · PPPoE · RTMP · Bonjour · NFS
Interoperability
ONVIF (Profile S, G, T) · CGI · SDK · P2P
Streaming Method
Unicast / Multicast
Max Users
20 (total bandwidth 64 Mbps)
Storage
Micro SD up to 512 GB · FTP / SFTP · NAS
Management Software
DMSS · DSS Pro
Mobile Client
iOS · Android (DMSS)
Power, Environment & Build
Power Supply
12 VDC, 3 A ± 10% · PoE+ (IEEE 802.3at)
Power Consumption
Basic 14 W · Max 25 W (illuminator + heating glass + active deterrence + ICR + PTZ)
Operating Temperature
–40 °C to +65 °C
Operating Humidity
≤ 95%
Protection
IP66 · TVS 6000 V lightning protection · surge protection · voltage transient protection
Product Dimensions
194.2 mm × 160 mm × 311 mm (L × W × H)
Net Weight
3.1 kg
Gross Weight
4.6 kg
Certifications
CE — EN 50130-4 · EN 55032 · EN 55035 · EN 61000-3-3 · EN IEC 61000-3-2 · EN 62368-1 · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
How It Compares — X-Spans Dual-Head vs Traditional Two-Camera Install
Most sites that consider a panoramic PTZ are deciding between this one head and the traditional alternative — a fixed multi-sensor / fisheye for situational awareness, plus a separate single-PTZ for zoom and tracking, on two PoE drops. The table below contrasts both approaches on the deployment factors that actually move the budget.
Factor
SDT4E425-8P-GB-APV1 (this camera)
Traditional Two-Camera Install
Heads / Mounts
One housing, one mount, one cable
Two housings, two mounts, two cable runs
PoE Drops Required
1 × PoE+ (802.3at)
2 × PoE / PoE+ ports
NVR Channels Used
2 (one per sensor on the same IP)
2
Tracking Co-ordination
Native — relay + linkage tracking factory-tuned
VMS-side rules or a separate auto-tracking integration
Active Deterrence
On the PTZ head — strobe + siren + 2-way audio
Usually only on the fixed sensor; PTZ remains silent
Power Budget
25 W peak — one budgeted port
2 × budgeted PoE / PoE+ ports
Install Time
Half a day for one tradesperson
Effectively two camera installs and alignments
Outdoor Rating
IP66 · TVS 6000 V · –40 °C to +65 °C
Depends on each camera choice — often weaker
Best For
Carparks, school grounds, freight yards, depots, transport, mines, council reserves
Constrained-budget retrofits where two existing cameras are already cabled
Recommended NVR Pairings
A panoramic PTZ uses two NVR channels and benefits from full AcuPick attribute search on recorded footage. Below are four CCTV Guru-stocked Dahua AI NVRs that suit the deployments where this camera makes sense.
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. The most common pairing — runs the PTZ on PoE+ plus 13 other fixed cameras around the site.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — for sites running multiple X-Spans heads alongside fixed cameras.
View Dahua NVR5432-AI →
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U. Sized for a single-PTZ deployment alongside 4–6 fixed cameras — small business and high-end residential.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI. The value-pick 16-channel build for sites that don't need full 5-Series AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Compatible Mounts & Accessories
PFA150 — Pole Mount
Included in the box. Mounts the camera to 60 – 110 mm diameter poles — light poles, fence posts, perimeter pylons. The default outdoor option for carpark and yard deployments.
PFB305W — Wall Mount
Heavy-duty wall mount bracket sized for the X-Spans housing. Use for façade, brick, render and tilt-slab walls. Pairs with the PFA126 or PFA114 adapters for awkward mounting geometries.
PFB303S — Parapet Mount
Mounts the camera over the edge of a parapet wall — common on flat-roof commercial buildings and warehouse roof-edges where there's no vertical wall to mount against.
PFB301S-E — Plane Mount
Flat-surface plane mount bracket. Use for soffit, overhang or eave installs where the camera needs to hang from a horizontal surface.
PFB300C / PFB301C — Ceiling Mount
Two ceiling-mount options for indoor or covered-area installs — entry lobbies, depot canopies, undercover loading bays.
PFA151 — Corner Mount · DC12V/3A — Power Adapter
PFA151 mounts the camera to an external building corner. The DC12V/3A adapter is the genuine Dahua local-power option when running on 12 VDC instead of PoE+.
Frequently Asked Questions
Is the Dahua SDT4E425-8P-GB-APV1 NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
How many NVR channels does this camera use?
Two. The overview channel and the detail channel each present as a separate IP video stream, so they consume two channels on the NVR. Use a 16-channel NVR if you want this camera plus 12–14 other fixed cameras on the same recorder.
Is this a TiOC camera?
Yes — the APV1 suffix is the TiOC active-deterrence indicator on X-Spans cameras (equivalent to "PV" on bullet and turret SKUs). The PTZ head includes red/blue strobe, 11 sound alarms with custom-sound upload, and a built-in speaker.
Does it support AcuPick?
Yes — AcuPick is supported on the overview channel. For full attribute search across recorded footage, pair with a Dahua 5-Series AcuPick NVR (NVR5208-8P-AI/ANZ, NVR5216-16P-AI/ANZ or NVR5432-AI/ANZ).
What power does it need?
PoE+ (IEEE 802.3at), not standard 802.3af, or 12 VDC at 3 A. Maximum draw is 25 W with illuminator, heater, active deterrence, ICR and PTZ all active. A standard 802.3af PoE switch will not run this camera.
How far can the PTZ see at night?
The PTZ channel has 100 m IR and 50 m warm-light reach, plus Starlight low-light at 0.0005 lux B/W. DORI identify distance at the 125 mm tele setting is 250 m — enough to recognise people and read clothing across a large carpark or yard.
What's the warranty in Australia?
3 years, supplied through CCTV Guru as an authorised Australian Dahua reseller. We handle warranty claims locally — no overseas shipping required.
Can the camera follow a target automatically?
Yes — Smart Tracking runs in three modes. WizTracking does AI-driven human/vehicle following. Relay tracking (X-Spans exclusive) keeps tracking after a target leaves the overview's 180° field. Linkage tracking restricts following to targets currently visible in the overview.
Does it have a built-in speaker?
Yes — built-in speaker for active-deterrence audio playback. Note: the speaker and the line-out audio output are mutually exclusive — use one or the other, not both simultaneously. NDIS, retail and public-space sites should check local audio-recording legislation before enabling sound recording on the audio input.
What temperature range is it rated for?
–40 °C to +65 °C. Built-in heating glass keeps the optics clear at low temperatures. Suitable for Alpine, desert, coastal and mining-site Australian deployments.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T are supported, so the camera will record to any ONVIF-compatible third-party NVR. AcuPick attribute search and Xinghan AI events only push end-to-end on a genuine Dahua AI NVR.
Do you ship Australia-wide?
Yes. Stock orders placed before 3 pm AEST ship the same business day from our Australian warehouse, with tracked delivery to all metro and regional addresses Australia-wide.
Downloads
DH-SDT4E425-8P-GB-APV1 Datasheet
Dahua PTZ Camera Quick Start Guide
Dahua PTZ Camera Installation Guide
Dahua PTZ Camera Operational Manual
Order Your Dahua SDT4E425-8P-GB-APV1 from CCTV Guru
"Add to cart" to order online, or contact our Australian team for project pricing, multi-PTZ configuration advice, NVR sizing and PoE+ switch compatibility checks. We are authorised Australian Dahua resellers, hold stock locally, and back every X-Spans camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
WizSense 3 · 6 MP · Smart Dual Light · AcuPick Ready
Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ — 6 MP Smart Dual Light Motorised Vari-focal Bullet WizSense Network Camera
The Dahua DH-IPC-HFW3667T-ZAS-IL-ANZ is a 6 MP WizSense 3 outdoor bullet IP camera built around a 1/2.7" CMOS sensor delivering 3288 × 1850 at 25/30 fps with Smart H.265+ encoding. A motorised vari-focal 2.7–13.5 mm F1.4 lens covers everything from a 114° wide overview to a tight 32° long-range pull, and Dahua's Smart Dual Light engine combines a 60 m IR illuminator with a 60 m warm-light array so the camera runs in covert IR until a person or vehicle is classified, then flips to full-colour with white light on the target. WDR is rated at a full 120 dB, IP67 sealed, with built-in microphone, 1/1 alarm I/O and 1/1 RCA audio I/O. The WizSense 3 deep-learning chip runs SMD 4.0, perimeter protection (tripwire + intrusion with human/vehicle classification) and edge AcuPick — working with compatible Dahua AcuPick NVRs to search recorded footage by colour, clothing and direction. Dual-power backup accepts 12 VDC or PoE (802.3af, 12.5 W max). Built for Australian properties that need one camera to handle general site surveillance and event-driven evidence capture — driveways, carparks, loading docks, rural sheds, depot perimeters and small business shopfronts. Backed by a 3-year Australian warranty through CCTV Guru.
Optical Zoom
2.7–13.5 mm Motorised
Resolution
6 MP @ 25/30 fps
Smart Dual Light
IR 60 m + Warm 60 m
AI Engine
WizSense 3 + AcuPick
Protection
IP67 · –30 to +60 °C
Power
12 VDC / PoE 802.3af
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Why Choose the Dahua HFW3667T-ZAS-IL-ANZ
This is the Dahua bullet most installers reach for when a site needs one camera that does the job of two — a wide-angle scene camera by day and an evidence-grade target camera at night. Below are the six reasons it consistently outperforms generic 6 MP bullets in Australian deployments.
True 6 MP Image, Not Upscaled
The 1/2.7" CMOS captures a native 3288 × 1850 raster — more than double the pixel density of 1080p — so digital zoom into faces, plates and signage stays usable instead of dissolving into a noise field.
One Camera, Two Lighting Modes
Smart Dual Light runs invisibly on 60 m IR until WizSense classifies a person or vehicle, then automatically switches the 60 m warm light on the target — full-colour evidence on demand without permanent light pollution to neighbours.
120 dB WDR for AU Sun
Driveways shaded by colourbond, north-facing entries, glass-fronted shops — the camera's 120 dB true wide dynamic range holds detail in both the bright sky and the dark interior in a single frame, where lesser cameras blow out one side.
Motorised Vari-focal — Adjust from the App
2.7–13.5 mm with motorised zoom and auto-focus means an installer (or you, via DMSS) can re-frame the scene without climbing a ladder again. Detect range: up to 280 m at the tele end.
AcuPick-Ready Edge AI
Paired with a Dahua AcuPick NVR, this camera lets you search hours of recorded video by attributes — "red top, blue trousers, walking east" — and pulls matching clips in seconds, not hours.
Built for Australian Power
Dual-power backup accepts 12 VDC or PoE simultaneously, and the wide-voltage tolerance shrugs off the unstable rural-grid sag that fries cheap cameras. RCM-marked, AS/NZS-compliant, supplied stock from our AU warehouse.
Important Install Note
This camera draws up to 12.5 W on PoE when WDR, warm light and AI are all active. On longer cable runs (over 90 m) and on PoE switches that share power across many ports, plan for an 802.3at-capable switch or a local 12 VDC supply at the camera. The body is metal and IP67-rated — for outdoor mounting in exposed positions we recommend pairing with the DH-PFA130-E water-proof junction box to protect the RJ-45 termination from condensation.
AI & Smart Detection Capabilities
AcuPick Target Search
Deep-learning attribute matching across people and vehicles. Find a target across hours of recorded video by colour, top/bottom clothing, vehicle type and direction — when paired with a compatible Dahua AcuPick NVR.
SMD 4.0 — Smart Motion Detection
Motion alerts triggered only by humans and vehicles. Wind-blown branches, small animals, possums on a fence and shadows are filtered out at the edge — slashing false-alarm volume.
Perimeter Protection (IVS)
Configurable tripwire and intrusion zones with human-and-vehicle classification. Draw a line across a driveway or a polygon around a yard and only get pushed an alert when the right type of target crosses it.
Smart Dual Light Deterrence
When WizSense classifies a person in the warm-light zone, the 60 m white light triggers automatically, leaving subjects in no doubt they have been captured in full colour — a passive deterrent that costs nothing extra in licensing or hardware.
AI SSA — Scene Self-Adaptation
The camera detects environmental conditions like rain, fog, backlight, low light and flicker, and automatically adjusts image parameters to keep the scene clear without an operator touching the settings.
Smart Search & Event Extraction
Pairs with a Smart NVR to refine intelligent search, extract and merge event video. Skip past hours of empty footage and jump straight to the moments where something the AI flagged as relevant happened.
Technical Specifications
Camera & Image Sensor
Model
DH-IPC-HFW3667T-ZAS-IL-ANZ
Form Factor
Bullet (metal casing)
Image Sensor
1/2.7" CMOS
Maximum Resolution
3288 × 1850 (6 MP)
ROM / RAM
256 MB / 1 GB
Scanning System
Progressive
Electronic Shutter
Auto / Manual, 1/3 s – 1/100,000 s
Minimum Illumination
0.007 lux @ F1.4 (Colour) · 0.0007 lux @ F1.4 (B/W) · 0 lux (illuminator on)
S/N Ratio
> 56 dB
WDR
120 dB
Day / Night
Auto (ICR) / Colour / B&W
BLC / HLC
Yes / Yes
Noise Reduction
3D NR
Image Stabilisation
EIS
Region of Interest
Yes (4 areas)
Privacy Masking
8 areas
Lens & Illumination
Lens Type
Motorised vari-focal, motorised zoom & focus
Focal Length
2.7 mm – 13.5 mm
Maximum Aperture
F1.4
Field of View
H: 114° – 32° · V: 58° – 17° · D: 138° – 36°
Close Focus Distance
0.1 m
IR Illumination
Up to 60 m
Warm Light Illumination
Up to 60 m
Illuminator Configuration
4 × multi-core LEDs (IR + warm light)
Smart Dual Light
Yes (target-triggered IR / warm light hand-off)
DORI — Wide (2.7 mm)
Detect 85.3 m · Observe 34.0 m · Recognise 17.1 m · Identify 8.5 m
DORI — Tele (13.5 mm)
Detect 280 m · Observe 112 m · Recognise 56 m · Identify 28 m
Angle Adjustment
Pan 0°–360° · Tilt 0°–90° · Rotation 0°–360°
Intelligence & Video
AI Engine
WizSense 3 Series
IVS — Perimeter Protection
Tripwire, intrusion (with human + vehicle classification)
Smart Motion Detection
SMD 4.0
AcuPick
Yes (with compatible Dahua AcuPick NVR)
AI SSA
Yes (scene self-adaptation)
Smart Search
Yes (paired with Smart NVR)
Video Compression
H.265 · H.264 · H.264H · H.264B · MJPEG (sub stream)
Smart Codec
Smart H.265+ · Smart H.264+
AI Coding
AI H.265 · AI H.264
Stream Capability
3 streams
Main Stream
3288 × 1850 @ 1–25/30 fps
Sub Stream
1920 × 1080 @ 1–25/30 fps
Third Stream
1920 × 1080 @ 1–25/30 fps
Bit Rate Control
VBR · CBR · ABR
Video Bit Rate
H.264 / H.265: 3 kbps – 16,384 kbps
Motion Detection
4 rectangular areas
Audio, Alarm & Network
Built-in Microphone
Yes
Audio Input
1 channel (RCA)
Audio Output
1 channel (RCA)
Audio Compression
G.711a · G.711Mu · PCM · G.726 · G.723
Alarm Input
1 channel — wet contact, 5 mA, 3–5 VDC
Alarm Output
1 channel — wet contact, 300 mA, 12 VDC
Network Port
RJ-45 (10/100 Base-T)
Network Protocols
IPv4 · IPv6 · HTTP · HTTPS · TCP · UDP · ARP · RTP · RTSP · RTCP · RTMP · SMTP · FTP · SFTP · DHCP · DNS · DDNS · QoS · UPnP · NTP · Multicast · ICMP · IGMP · NFS · SAMBA · PPPoE · SNMP · P2P · 802.1x
Interoperability
ONVIF (Profile S, G, T, M) · CGI
Maximum Users
20 (64 Mbps total bandwidth)
Storage
FTP · SFTP · NAS · Micro SD card up to 512 GB
Mobile Client
DMSS (iOS / Android)
Management Software
SmartPSS Lite · DSS · DMSS
Cyber Security
Trusted boot · trusted execution · trusted upgrade · video encryption · firmware encryption · 802.1x · HTTPS · IP/MAC filtering · WSSE · X.509
Recommended Firmware
Dahua V5.x (enables AcuPick, ONVIF 23.12, iSCSI, N+M with compatible NVRs)
Power, Environment & Build
Power Supply
12 VDC / PoE (802.3af)
Power Consumption (Basic)
3.8 W (12 VDC) · 5.3 W (PoE)
Power Consumption (Max.)
9.9 W (12 VDC) · 12.5 W (PoE) with H.265 + WDR + warm light + AI
Dual-Power Backup
Yes (12 VDC and PoE simultaneously supported)
Operating Temperature
–30 °C to +60 °C
Operating Humidity
≤ 95% RH (non-condensing)
Storage Temperature
–40 °C to +60 °C
Protection Rating
IP67
Casing Material
Metal
Product Dimensions
238.5 mm × 90.7 mm × 90.7 mm (L × W × H)
Net Weight
835 g
Gross Weight
1090 g
Certifications
CE-LVD (EN62368-1) · CE-EMC (2014/30/EU) · RCM (AU)
Australian Warranty
3 Years (via CCTV Guru)
How It Compares — HFW3667T-ZAS-IL-ANZ vs HFW3867T-ZAS-IL-ANZ
The closest sibling is the Dahua DH-IPC-HFW3867T-ZAS-IL-ANZ — the 8 MP version of this exact camera. Same WizSense 3 chassis, same motorised-zoom Smart Dual Light approach, same install profile. The decision comes down to whether you want native 8 MP pixel density for plate-grade evidence and pixel-on-target at long range, or whether the 6 MP build's lighter storage footprint and brighter F1.4 aperture suit the site better.
Feature
DH-IPC-HFW3667T-ZAS-IL-ANZ (this camera)
DH-IPC-HFW3867T-ZAS-IL-ANZ (sibling)
Resolution
6 MP (3288 × 1850)
8 MP (3840 × 2160)
Sensor
1/2.7" CMOS
1/1.8" CMOS (larger photo-site)
Lens
2.7–13.5 mm motorised vari-focal · F1.4
2.7–13.5 mm motorised vari-focal · F1.5
AI Engine
WizSense 3
WizSense 3
AcuPick
Yes
Yes
Lighting
Smart Dual Light — IR 60 m + warm 60 m
Smart Dual Light — IR 60 m + warm 50 m
Active Deterrence
Passive — white-light pop-on + alarm relay
Passive — white-light pop-on + alarm relay
WDR
120 dB
120 dB
Audio
Built-in mic + 1/1 RCA audio I/O
Built-in mic + 1/1 RCA audio I/O
Storage Footprint (24/7 H.265)
Lighter — ~25% less than 8 MP at matched bitrate
Heavier — full 4 K main stream
Low-Light Aperture
F1.4 (slightly brighter)
F1.5
IP Rating
IP67
IP67
Best For
Sites that want full-colour evidence on event with a lighter storage budget and the brightest aperture in class
Sites that need maximum pixel-on-target — long driveways, carpark plate capture, large-frame retail and warehouse coverage
Recommended NVR Pairings
For full AcuPick attribute search to work, this camera should be paired with a Dahua 5-Series AI NVR running V5 firmware. Below are four CCTV Guru-stocked recorders that match the most common Australian deployment sizes — from small business through to enterprise.
Dahua DHI-NVR5208-8P-AI/ANZ
5-Series AcuPick NVR · 8 channels · 8 built-in PoE ports · 2 HDD bays · 1U · perimeter protection and SMD Plus. Ideal for residential and small-business sites running 4–8 cameras with full plug-and-play deployment.
View Dahua NVR5208-8P-AI →
Dahua DHI-NVR5216-16P-AI/ANZ
5-Series AcuPick NVR · 16 channels · 16 PoE+ ports (ports 1–8 ePoE) · 2 HDD bays · 1U · 384 Mbps incoming. The most common pairing for medium commercial sites, multi-building yards and busy shopfronts.
View Dahua NVR5216-16P-AI →
Dahua DHI-NVR4216-16P-AI/ANZ
4-Series WizSense AI NVR · 16 channels · 16 PoE ports · 2 HDD bays · 4K HDMI · Smart 2.0 AI with SMD+ and IVS. The value-pick 16-channel build for sites that don't need full AcuPick attribute search.
View Dahua NVR4216-16P-AI →
Dahua DHI-NVR5432-AI/ANZ
5-Series AcuPick NVR · 32 channels · 4 HDD bays · dual GbE NICs · dual HDMI + dual VGA · 1.5U. Enterprise-scale AcuPick across the entire estate — warehouses, schools, multi-tenant strata and large-format retail.
View Dahua NVR5432-AI →
Compatible Mounts & Accessories
DH-PFA130-E
Water-proof junction box. The most popular accessory for this camera — protects the RJ-45 termination from condensation behind outdoor mounts. Strongly recommended for AU coastal and humid installs.
DH-PFA135
Standard junction box for tidy in-wall cable management on rendered or brick walls. Use when no waterproofing of the termination is required.
DH-PFA151
Corner mount bracket — for mounting the camera onto external building corners. Matches the camera's white powder-coat finish.
DH-PFA152-E
Pole mount bracket — fits 60–110 mm diameter poles. Ideal for carpark light poles, perimeter fence posts and rural driveway pylons.
G3416GW
G3/4" water joint — protects the cable gland on outdoor installs with conduit termination. Use with surface-mounted PVC or metal conduit runs.
DH-PFM321D-EN / DH-PFM320D-EN
Genuine Dahua 12 VDC power adapters — 1 A and 2 A options. Use when running the camera on local DC instead of PoE, or as a backup supply alongside PoE.
Frequently Asked Questions
Is the Dahua HFW3667T-ZAS-IL-ANZ NDAA compliant?
No. Dahua is not certified under NDAA Section 889. If your project has an NDAA mandate (US federal, certain Australian government contracts, or critical-infrastructure tenders that follow the same standard), choose a NDAA-compliant brand from our range instead.
Does this camera include AcuPick?
Yes — AcuPick attribute search is built into the camera's WizSense 3 firmware. To actually search recorded footage by attributes you must record to a compatible Dahua AcuPick NVR running V5 firmware.
Is this a TiOC camera?
No. TiOC SKUs carry the "PV" infix in the model number. This camera is a Smart Dual Light WizSense 3 model — it can illuminate a target on detection but does not have a red/blue strobe or built-in siren. For full TiOC active deterrence, see the HFW3849T1-ZAS-PV-ANZ sibling above.
How far can it see at night?
Smart Dual Light gives 60 m on IR and 60 m on warm light. Identification range (where a face is recognisable) reaches 28 m at the tele end of the zoom under standard conditions.
Can I run this camera on standard PoE?
Yes — it is 802.3af-compliant and pulls a maximum of 12.5 W when warm light, WDR and AI are all active. Any quality 802.3af switch with budget headroom will run it. For long cable runs over 90 m, plan for an 802.3at switch or a local 12 VDC supply.
Does it have a microphone?
Yes, the camera has a built-in microphone, plus 1 × RCA audio in and 1 × RCA audio out for connecting an external mic or speaker. NDIS, retail and bus-stop sites should check local audio-recording legislation before enabling sound recording.
Does it work with third-party NVRs?
Yes — it supports ONVIF Profile S, G, T and M, so it will record to any ONVIF-compatible third-party NVR. Note that AcuPick attribute search and SMD 4.0 alarm push only work end-to-end on a genuine Dahua AI NVR.
Is it certified for the Australian market?
Yes — the ANZ variant is supplied through Dahua's Australian channel with RCM marking, CE-LVD (EN62368-1) and CE-EMC (2014/30/EU) compliance. It is the correct SKU for AU/NZ projects.
Can the camera trigger an external strobe or siren?
Yes. It has a 1-channel alarm output (wet contact, 300 mA, 12 VDC) that can be wired to a 12 V external strobe or siren module. Use IVS perimeter protection or SMD 4.0 events as the trigger source.
Can I view the camera live on my phone?
Yes — the camera works with Dahua's free DMSS app on iOS and Android. Add the device with the QR code on the housing, sign in, and you get live view, two-way audio, motion alerts and recorded-footage playback from anywhere with internet. No subscription required.
Downloads
DH-IPC-HFW3667T-ZAS-IL-ANZ Datasheet
Dahua IP Bullet Camera Quick Start Guide
Dahua IP Bullet Camera Installation Guide
Dahua IP Bullet Camera Operational Manual
Order Your Dahua HFW3667T-ZAS-IL-ANZ from CCTV Guru
"Add to cart" to order online, or contact our Australian team for a bulk quote, project pricing, multi-camera configuration advice or NVR compatibility check. We are authorised Australian Dahua resellers, hold stock locally, and back every camera with a 3-year Australian warranty and Australian-based tech support. Phone, email or live chat us through cctvguru.com.au/pages/contact — most enquiries are answered the same business day.
WizSense + AcuPick · 5-Series · 16-Channel · 16-PoE · 4-HDD · 1.5U
16CH AcuPick NVR
The Dahua DHI-NVR5416-16P-AI/ANZ is a 16-channel 5-Series WizSense AI NVR with AcuPick, 16 built-in PoE+ ports (ports 1–8 ePoE up to 800 m), and a 1.5U chassis with four SATA bays — the perfect middle-ground between the compact 2-HDD 5216-16P and the storage-heavy 8-HDD 5832-16P. Record up to 32 MP per channel, plug 16 cameras straight into the back of the recorder, and scale storage to roughly 64 TB on-board across four 16 TB drives.
This is the official Australia / NZ-market SKU (the AI/ANZ suffix). It's the all-in-one 16-channel option with double the storage of the 5216-16P — same PoE budget, same chassis depth, but room for two extra HDDs and longer retention. Internal 100–240 VAC universal PSU, AS/NZS-compliant kettle cord, and a local 3-year warranty backed by CCTV Guru in Sydney. AcuPick, N+M cluster, iSCSI and ONVIF 23.12 are enabled by Dahua's V5 firmware (current factory ship as of 2025).
16 PoE+ ports + 4-HDD storage — built for upgrades
PoE Ports
16 × · 130 W · 1–8 ePoE 800 m
Storage
4 SATA · up to 64 TB on-board
16 cameras plug straight in
Each Cat6 run carries power and video back to the NVR — no power adaptors at every camera, no separate PoE switch. Full 16-channel PoE coverage with a 130 W total budget — comfortable for typical Dahua WizSense bullets and turrets at 7–9 W each.
ePoE on ports 1–8 (800 m)
Extended PoE on the first 8 ports — 100 Mbps up to 300 m, or 10 Mbps up to 800 m on Cat6. Eliminates intermediate switches and fibre runs on long perimeter or carpark cable runs.
4 SATA bays · 64 TB max
Twice the storage of the smaller 5216-16P. Four surveillance-grade HDDs (WD Purple, Seagate SkyHawk) up to 16 TB each — roughly 90–120 days of 16-channel motion-record at 4 MP H.265+.
Powers PoE+ cameras
25.5 W per port (PoE+ / 802.3at) — handles IR-heavy bullets, mini PTZs, multi-sensor cameras and active-deterrence units that exceed the basic 15 W PoE ceiling. Plan for ~8 W average per camera across the 16 ports.
AcuPick on up to 16 channels — full-licence search
AcuPick Channels
Up to 16 ch · 1 event / channel / sec
Search Method
Image + attribute · front + back AI
Search by reference image
Click any person or vehicle in recorded video, hit AcuPick, and the NVR scans all 16 channels for matches across hours, days or weeks — clothing colour, body shape, vehicle make / model / colour / direction included.
Front- + back-end intelligence
Camera-side AI extracts target attributes during recording; NVR-side AI runs the comparison. Higher accuracy than recorder-only search and orders of magnitude faster than human review.
Investigations finish in minutes
Find a suspect across 16 channels and weeks of footage in a single search. Particularly valuable for retail loss prevention, school investigations and insurance disputes.
Beyond Quick Pick
AcuPick is the next generation of Dahua's Quick Pick — more attributes, more accuracy, and supports both people and vehicles natively. Exclusive to the 5-Series WizSense NVR family.
5-Series WizSense AI — full feature set
Industrial AI Chip
Independent deep-learning processor
Face Database
20 databases · 20,000 images
Face Recognition (16-ch image stream)
16 channels of camera-side face detection feeding NVR-side recognition at 16 face snapshots/sec — full licence coverage. Twenty face databases, 20,000 images, full attribute filtering (gender, age, mask, glasses).
Perimeter Protection (4 ch by NVR)
4 NVR-side channels of tripwire and intrusion analytics (10 IVS rules each), plus 16 channels of camera-side perimeter via WizSense IPCs — human/vehicle classification cuts false alarms from animals, weather and lighting changes.
SMD Plus on 8 channels by NVR
Smart Motion Detection Plus runs a deep-learning second pass on 8 NVR-side channels, plus 16 camera-side channels — classifies targets as person or vehicle so only real events make it to your phone.
ANPR by camera (8 channels)
Pair with Dahua ANPR cameras for 8 channels of licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Ideal for site gates, fleet yards and small carparks.
Video Metadata search
8 channels of camera-side metadata extraction — top colour, bottom colour, hat, bag, umbrella, gender, age, vehicle make / model / colour / plate, helmet wear and more.
N+M cluster failover
Pair multiple 5-Series NVRs in an N+M cluster — backup recorders automatically take over if a primary fails, ensuring zero footage loss for sites where downtime isn't an option.
See AcuPick in action
Dahua AcuPick — Video search technology demonstration
AcuPick — how to configure and search on a Dahua NVR
32 MP recording · dual HDMI · 64 TB on-board storage
Up to 32 MP per channel
True 8K-class input — supports Dahua's highest-resolution cameras, plus 24 MP, 16 MP, 12 MP, 8 MP (4K), 5 MP and 4 MP IP cameras from any ONVIF brand. 384 Mbps total recording bandwidth.
2× HDMI 4K + 2× VGA outputs
Two independent HDMI heads (each up to 4K) with two mirrored VGAs — drive a multi-monitor control room with independent layouts on each screen. Heterogeneous video routing on HDMI1/HDMI2.
16-channel split on main screen
Main monitor supports 1 / 4 / 8 / 9 / 16-split layouts (sub monitor up to 16). Plenty of headroom for the 16-channel licence — every camera on one screen.
4 SATA bays · up to 64 TB
Four surveillance-grade HDDs up to 16 TB each (WD Purple, Seagate SkyHawk) — months of 16-channel recording without touching network storage.
eSATA + iSCSI expansion
External SATA archive port plus iSCSI network-storage support — scale beyond 64 TB without rebuilding the recorder. Hot tier on the 4 on-board bays, archive tier on iSCSI / eSATA.
Smart H.265+ for half the storage
AI-tuned H.265+ encoding cuts bitrate on static background pixels while preserving detail on moving targets — roughly half the storage and bandwidth of standard H.264.
Built for installers, ready for compliance — 16 alarm-in, 12V output
16 alarm-in / 6 alarm-out
Physical terminal block for 16 alarm inputs and 6 alarm outputs — one of the outputs is a 12 V 1 A direct power feed for sirens, strobes or gate solenoids. Wire in PIRs, door sensors, glass-break detectors, panic buttons.
Gigabit network uplink
Single 10/100/1000 Mbps RJ-45 to your managed switch or router for remote viewing, multi-site VMS pulls and NAS backup. Cameras 1–16 power off the built-in PoE; the gigabit uplink handles client traffic.
RS-232 + RS-485
One RS-232 plus one RS-485 (half-duplex) — integrate with POS systems, gate controllers, access control panels, PTZ joysticks or third-party VMS that need legacy serial.
3 × USB (1 × 2.0 + 2 × 3.0)
One front USB 2.0 plus two rear USB 3.0 ports — plug in backup drives, USB mice, keyboards or service tools without juggling cables behind the rack.
ONVIF 23.12 (T / S / G)
Latest ONVIF profile support on V5 firmware — drops into any current VMS, plus native integration for Panasonic, Sony, Axis, Pelco, Arecont, Canon and Samsung as well as Dahua.
DMSS + DSS Pro VMS
Free DMSS mobile app for live view, playback and push notifications. For multi-site enterprise deployments, integrate with Dahua DSS Pro for centralised control of multiple 5-Series NVRs.
NVR5416-16P vs the family — how it compares
The 5416-16P (this model) is the upgraded 16-channel option — same PoE budget and AI features as the 5216-16P but with double the HDD bays and a 1.5U chassis. Choose this when your install needs longer retention or higher-resolution recording but you don't need to jump up to 32 channels. For the most compact build, step down to the 5216-16P; for 32 channels with RAID-protected 8-HDD storage, step up to the 5832-16P.
5-Series 16-PoE Comparison
Specification
NVR5416-16P-AI/ANZ (this model)
NVR5216-16P-AI/ANZ
NVR5832-16P-AI/ANZ
IP channels (licence)
16
16
32
AcuPick channels
Up to 16
Up to 16
Up to 16
Built-in PoE
16 × ports · 130 W · 1-8 ePoE
16 × ports · 130 W · 1-8 ePoE
16 × ports · 150 W · 1-8 ePoE
HDD bays · max storage
4 SATA · ~64 TB
2 SATA · ~32 TB
8 SATA · ~128 TB
Hardware RAID
Disk groups
Disk groups
RAID 0 / 1 / 5 / 6 / 10
Form factor
1.5U · 4.82 kg
1U · 2.66 kg
2U · 6.9 kg
Bandwidth (AI off / on)
384 / 200 Mbps
384 / 200 Mbps
384 / 200 Mbps
Max camera resolution
32 MP
32 MP
32 MP
Face Recognition (NVR)
2 ch · or 16 ch FD-by-cam + FR-by-NVR
2 ch · or 16 ch FD-by-cam + FR-by-NVR
2 ch · or 16 ch FD-by-cam + FR-by-NVR
Face Database
20 DBs · 20,000 images
20 DBs · 20,000 images
20 DBs · 20,000 images
Perimeter (NVR) · SMD Plus (NVR)
4 ch · 8 ch
4 ch · 8 ch
4 ch · 8 ch
ANPR (by camera)
8 channels
8 channels
8 channels
Alarm I/O
16 in / 6 out (incl. 12 V)
4 in / 2 out
16 in / 8 out (incl. 12 V)
RS-485 ports
1 (half-duplex)
1 (half-duplex)
2 (half + full duplex)
USB ports
1 × 2.0 + 2 × 3.0
1 × 2.0 + 1 × 3.0
2 × 2.0 + 2 × 3.0
Network ports
1 × Gigabit
1 × Gigabit
1 × Gigabit
Video outputs
2 × HDMI 4K + 2 × VGA
1 × HDMI 4K + 1 × VGA
2 × HDMI 4K + 2 × VGA
eSATA · iSCSI · N+M (V5 firmware)
Yes / Yes / Yes
No / Yes / Yes
Yes / Yes / Yes
ONVIF (V5 firmware)
23.12 (T / S / G)
22.06 (T / S / G)
23.12 (T / S / G)
Warranty (Australia)
3 years
3 years
3 years
Full Specifications
Model
DHI-NVR5416-16P-AI/ANZ
Series
WizSense · NVR5000-AI/ANZ (Australia / NZ market)
Form factor
1.5U · 4-HDD · rack or desktop · 16 built-in PoE+ ports
IP channels
16 · up to 32 MP per channel
Supported resolutions
32 MP · 24 MP · 16 MP · 12 MP · 8 MP · 5 MP · 4 MP · 1080p · 720p · D1 · CIF · QCIF
Bandwidth (AI off)
384 Mbps incoming / 384 Mbps record / 384 Mbps outgoing
Bandwidth (AI on)
200 Mbps incoming / 200 Mbps record / 200 Mbps outgoing
Decoding (AI off)
2 × 32 MP @ 20 fps · 2 × 24 MP @ 20 fps · 4 × 16 MP @ 30 fps · 5 × 12 MP @ 30 fps · 8 × 8 MP @ 30 fps · 12 × 5 MP @ 30 fps · 16 × 4 MP @ 30 fps
Decoding (AI on)
1 × 32 MP @ 20 fps · 1 × 24 MP @ 20 fps · 2 × 16 MP @ 30 fps · 4 × 12 MP @ 30 fps · 4 × 8 MP @ 30 fps · 8 × 5 MP @ 30 fps · 12 × 4 MP @ 30 fps
Video compression
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG
Audio compression
G.711a · G.711u · PCM · G.726
AI engine
WizSense (industrial AI chip, deep-learning) · AcuPick supported
AcuPick
Up to 16 channels · 1 combined event per channel/sec (V5 firmware)
Face Detection (NVR)
2 channels · up to 12 face snapshots/sec each
Face Recognition (NVR)
16 ch (FD by camera + FR by recorder, 16 fps) · or 2 ch (FD+FR by recorder, 12 fps)
Face Database
20 databases · 20,000 images · 2.5 GB · gender / age / glasses / expression / mask / beard attributes
Perimeter Protection
4 channels by NVR · 16 channels by camera · 10 IVS rules per channel
SMD Plus
8 channels by NVR · 16 channels by camera
Video Metadata
8 channels (camera-side) · human / motor / non-motor vehicle attributes
ANPR (by camera)
8 channels · 20,000-plate database · blocklist / allowlist
AI by Camera (passthrough)
Face detection · Face recognition · Video metadata · Perimeter protection · SMD Plus · Stereo analysis · Crowd distribution · People counting · ANPR · Vehicle density · Heat map
N+M cluster · iSCSI · eSATA
Yes / Yes / Yes
HDD bays
4 × SATA · up to 16 TB per drive (~64 TB max)
Video output
2 × HDMI (4K · 3840×2160) + 2 × VGA (1080p) · heterogeneous HDMI1/HDMI2 · simultaneous VGA1+HDMI1 / VGA2+HDMI2
Multi-screen display
Main screen: 1 / 4 / 8 / 9 / 16 · Sub screen: 1 / 4 / 8 / 9 / 16
Audio I/O
1 × RCA in · 2 × RCA out
Alarm I/O
16 × alarm in · 6 × alarm out (1 × 12 V 1 A power output)
USB
3 ports: 1 × front USB 2.0 + 2 × rear USB 3.0
Network port
1 × RJ-45 Gigabit Ethernet (10 / 100 / 1000 Mbps)
PoE
16 × ports · 10/100 Mbps · IEEE 802.3af/at · 130 W total · 25.5 W per port (max) · ports 1-8 support ePoE (800 m / 100 Mbps to 300 m, 10 Mbps to 800 m)
RS-232 / RS-485
1 RS-232 · 1 RS-485 (half-duplex)
eSATA
1 port (external archive)
Network protocols
HTTP / HTTPS · TCP/IP · IPv4/IPv6 · RTSP · UDP · SNMP · NTP · DHCP · DNS · SMTP · UPnP · IP Filter · PPPoE · FTP · DDNS · Alarm Server · Multicast · P2P · Auto Registration · iSCSI
ONVIF
23.12 on V5 firmware (Profile T / S / G) · CGI · SDK
Third-party camera support
ONVIF · Panasonic · Sony · Axis · Arecont · Pelco · Canon · Samsung
Mobile app
DMSS (iOS / Android)
Record modes
General · motion detection · intelligent · alarm · POS
Backup
USB device · network
Power supply
100 – 240 VAC · 50 – 60 Hz (internal universal-voltage PSU)
Power consumption
≤ 13 W NVR-side (without HDD) · PoE total 130 W
Operating temperature
−10 °C to +55 °C
Operating humidity
10% – 93% RH
Dimensions
440 × 415.6 × 76 mm (1.5U)
Net weight
4.82 kg
Installation
Rack or desktop
Recommended firmware
DH_NVR5XXX-EI_MultiLang V5.001.0000000.0.R.251220 (or later) — required for AcuPick, N+M cluster, iSCSI and ONVIF 23.12
Certifications
FCC Part 15 Subpart B Class A · CE-EMC · CE-LVD · Security Baseline 2.3
Warranty
3 years (CCTV Guru Australia)
Downloads & documentation
Download official Dahua documents for setup, specifications, and recorder details.
DHI-NVR5416-16P-AI/ANZ Datasheet
Dahua NVR Quick Start Guide
Dahua NVR User Manual
Frequently asked questions
What's the real benefit over the smaller NVR5216-16P?
Same 16 channels and same 16 PoE+ ports — but the 5416-16P (this model) doubles the HDD bays from 2 to 4, doubles your on-board storage ceiling (~64 TB vs ~32 TB), upgrades video output from single HDMI/VGA to dual HDMI/VGA, and adds 16 alarm inputs / 6 alarm outputs (vs 4 / 2) plus eSATA. Choose this when you want longer retention or hardware alarm integration on your 16-channel build.
What does ePoE on ports 1–8 give me?
Extended PoE — long-distance Cat6 runs at reduced speed. Ports 1–8 support 100 Mbps up to 300 m or 10 Mbps up to 800 m (most IP cameras work fine at 10 Mbps for sub-stream + main-stream H.265+). Eliminates intermediate switches on long perimeter or carpark runs. Ports 9–16 run standard PoE+ at up to 100 m.
Does this NVR really support AcuPick?
Yes. Dahua's V5 firmware (binary DH_NVR5XXX-EI_MultiLang_V5.001.0000000.0.R.251220 or later) enables AcuPick on the AI/ANZ unit alongside N+M cluster, iSCSI and ONVIF 23.12. The firmware is published on Dahua AU's official product page and ships from CCTV Guru with V5 installed.
How much storage do I need for 16 cameras?
For 16 × 4 MP cameras at H.265+ on motion-record, expect ~12–18 TB for 30 days of retention. Four 6–8 TB surveillance-grade drives (WD Purple, Seagate SkyHawk) gives you ~24–32 TB on-board — roughly 60–90 days. For longer retention or higher resolution, fit 16 TB drives (the maximum supported) for up to 64 TB total.
How does the 16 PoE budget cover 16 cameras?
130 W total ÷ 16 cameras = ~8 W average per camera. That's comfortable for most Dahua WizSense bullets and turrets (5–9 W each). If you're running PTZ, IR-heavy bullets or active-deterrence units (15–25 W each), plan to mix in some lower-draw cameras or use an external PoE injector for the high-power ones.
Is the DHI-NVR5416-16P-AI/ANZ NDAA Section 889 compliant?
No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal, government or defence installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS NVR instead — CCTV Guru can recommend an equivalent.
Can it be rack-mounted?
Yes — 1.5U / 440 mm wide fits a standard 19-inch rack with ears (rack ears sold separately). At 4.82 kg empty (without HDDs), plan for ~8–10 kg fully loaded with four drives.
What's the 12 V alarm output for?
One of the 6 alarm outputs is a direct 12 V 1 A power feed — drive a siren, strobe light or electric strike directly without needing an external relay or power supply. The other 5 outputs are dry-contact relays you can wire to anything that takes a NO/NC trigger.
3-Year Warranty
Australia-Wide Shipping
Australian Tech Support
WizSense AI · Penta-brid · 4-Channel
The Dahua DH-XVR5104HS-I3-S3 is a 4-channel Penta-brid HDCVI recorder that handles five video signals on one box — HDCVI, AHD, TVI, CVBS analog, plus IP. Drop it in to replace an old DVR using the existing coax runs, or expand it later by converting analog channels to IP for up to 6 IP cameras at 6 MP. It records at up to 5 MP HDCVI per channel, supports Smart H.265+ for roughly half the storage of H.264, and ships with Dahua's WizSense AI chip for deep-learning human and vehicle filtering.
Designed for small retail, workshops, residences and offices, the XVR5104HS-I3-S3 fits a compact 1U desktop chassis with one SATA bay (up to 16 TB), HDMI + VGA simultaneous outputs, and free remote viewing through the DMSS mobile app. Backed by a 3-year warranty and Australian tech support from CCTV Guru.
Penta-brid — five signal types, one recorder
Signal Types
HDCVI · AHD · TVI · CVBS · IP
Channel Capacity
4 Analog BNC + up to 6 IP
4 analog BNC inputs
Auto-detect HDCVI, AHD, TVI and CVBS signals on every channel. Plug in any mix — the XVR figures out the format for you.
+ up to 6 IP cameras
Two IP channels by default, plus four more when analog channels are converted to IP. Mix and match analog and IP up to six cameras total.
5 MP HDCVI recording
Full 5 MP @ 25 fps on HDCVI, 4 MP @ 30 fps, or 1080p @ 30 fps — far sharper than legacy 720p / 960H DVRs using the same coax cable.
Coaxial audio on all 4 channels
Carries audio over the same BNC coax — no extra audio cable, no extra RCA runs. Rare at this price point.
WizSense AI — deep-learning detection, fewer false alarms
Dedicated AI Chip
Independent deep-learning processor
Targeted Alerts
Filters out leaves, rain, shadows & lighting
SMD Plus on all 4 channels
Smart Motion Detection Plus runs a second AI pass on every motion event, classifying targets as person or vehicle and discarding false alarms from weather and lighting.
Perimeter Protection
Up to 4 channels of tripwire and intrusion analytics (10 IVS rules per channel) with human/vehicle secondary recognition to suppress nuisance triggers.
Face Detection & Recognition
One channel of face detection (up to 8 face snapshots/sec) and one channel of face recognition with up to 10 face databases and 10,000 stored images.
QuickPick 2.0 search
Find similar targets across recorded footage in seconds — paste a person or vehicle still and QuickPick scans the timeline for matches.
AI Video Quality analytics
Continuously checks all 4 channels for brightness, colour cast, defocus, overexposure and contrast issues — alerts you the moment a camera drifts out of spec.
AI Coding (Smart H.265+)
Smart H.265+ encoding cuts storage and bandwidth by up to 50% versus H.264 by lowering the bitrate on static background pixels and keeping detail on moving targets.
See WizSense in action
Dahua AI XVR — Full Channel SMD Plus demo
WizSense 101 — Dahua's deep-learning AI explained
Built for installers, simple for end-users
1 SATA bay · up to 16 TB
Drop in one surveillance-grade HDD (WD Purple or Seagate SkyHawk recommended) for weeks of continuous 5 MP recording.
HDMI + VGA simultaneous
Drive a wall-mounted spot monitor on HDMI while the on-site PC stays on VGA — both run independently at up to 1080p.
Two-way audio
1× RCA audio in (shared with Ch. 1) and 1× RCA audio out, plus 4-channel coaxial audio over the BNC inputs for talk-back at the gate or counter.
DMSS mobile app
Free iOS and Android viewing app — live view, playback, push notifications and P2P remote access without a static IP or port forwarding.
ONVIF 24.06 (T/S/G)
Integrates with third-party IP cameras and VMS platforms — Panasonic, Sony, Hanwha, Axis, Arecont and any ONVIF-compliant device.
Compact 1U desktop
260 × 237.8 × 47.6 mm, just 0.84 kg — sits neatly on a shelf, in a cabinet or under a desk. 12 VDC PSU included.
Full Specifications
Model
DH-XVR5104HS-I3-S3
Series
WizSense · 5MP Value / 1080p · Penta-brid
Analog channels
4 × BNC — HDCVI / AHD / TVI / CVBS auto-detect
IP channels
Up to 6 (2 by default + 4 from converted analog) · up to 6 MP each
Max HDCVI resolution
5 MP @ 25 fps · 4 MP @ 30 fps · 1080p @ 30 fps
Max TVI / AHD
5 MP @ 20 fps · 4 MP @ 30 fps · 1080p @ 30 fps
Bandwidth
32 Mbps incoming / 32 Mbps record / 32 Mbps outgoing
Video compression
AI Coding · Smart H.265+ / H.265 · Smart H.264+ / H.264
Audio compression
G.711a · G.711u · PCM
AI engine
WizSense (independent AI chip, deep-learning)
SMD Plus
4 channels (human / vehicle classification)
Perimeter Protection
General Mode: 4 ch · Advanced Mode: 2 ch · 10 IVS rules per channel
Face Detection
1 channel · up to 8 face images/sec
Face Recognition
1 channel · 10 face databases · 10,000 images total · 6 attributes
QuickPick 2.0
1 channel (similar-target search)
AI Video Quality Analytics
4 channels (brightness, focus, exposure, contrast, colour cast)
HDD bays
1 × SATA · up to 16 TB
Video output
1 × HDMI + 1 × VGA · simultaneous · max 1920 × 1080
Multi-screen display
1 / 4 (1 / 4 / 6 with IP extension)
Audio I/O
1 × RCA in (shared with Ch. 1) · 1 × RCA out · 4-ch coaxial audio over BNC
Two-way talk
Yes · shares Ch. 1 audio input
USB
2 × USB 2.0 (1 front · 1 rear)
Network
1 × RJ-45 10 / 100 Mbps Ethernet
Protocols
TCP/IP · IPv4 · IPv6 · HTTP / HTTPS · RTSP · UDP · NTP · DHCP · DNS · SMTP · UPnP · IP Filter · FTP · DDNS · SNMP · Alarm Server · P2P · ONVIF 24.06 (Profile T / S / G)
Third-party support
Panasonic · Sony · Hanwha · Axis · Arecont · ONVIF
Record modes
General · alarm · motion detection · intelligent · POS
Backup
USB device · network
Mobile app
DMSS (iOS / Android)
RS-485
1 port
Power supply
12 VDC · 1.5 A (adaptor included)
Power consumption
< 5 W (without HDD)
Operating temperature
−10 °C to +55 °C
Operating humidity
10% – 90% RH (non-condensing)
Dimensions
260.0 × 237.8 × 47.6 mm (Compact 1U)
Net weight
0.84 kg
Certifications
CE-LVD · CE-EMC
Warranty
3 years (CCTV Guru Australia)
Downloads & documentation
Download official Dahua documents for setup, specifications, and recorder details.
DH-XVR5104HS-I3-S3 Datasheet
Dahua XVR Quick Start Guide
Dahua XVR User Manual
Compact & Mini HDD Installation Guide
DMSS Mobile App (iOS / Android)
Frequently asked questions
Will this XVR work with my old analog CCTV cameras?
Yes. Penta-brid means every BNC input auto-detects HDCVI, AHD, TVI and CVBS — so any analog camera using one of those four standards plugs straight in. You don't need to know which format your cameras use; the XVR figures it out.
Can I add IP cameras to it?
Yes — 2 IP channels are available by default, and up to 4 more analog channels can be converted to IP, for a maximum of 6 IP cameras at up to 6 MP each. Note: when IP extension is enabled, the WizSense AI functions are not available on those converted channels.
Does it power my cameras (PoE)?
No. The XVR5104HS-I3-S3 is a HDCVI recorder, not a PoE NVR — your analog and IP cameras each need their own 12 VDC power supply or PoE injector. For a PoE-powered solution, look at the Dahua WizSense NVR4108-P-AI/H series.
What hard drive should I use?
Use a surveillance-rated SATA HDD — Western Digital Purple or Seagate SkyHawk up to 16 TB. Standard desktop drives are not rated for 24/7 recording and will fail prematurely. CCTV Guru stocks compatible drives if you need one bundled.
Is the XVR5104HS-I3-S3 NDAA Section 889 compliant?
No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal or government installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS recorder instead — CCTV Guru can recommend an equivalent.
How do I view it remotely on my phone?
Install the free DMSS app on iOS or Android, scan the QR code on the XVR's local menu, and you'll have live view, playback, push notifications and two-way audio without configuring port forwarding or a static IP.
Does it run hot enough to need a fan or rack?
No — under 5 W idle (without HDD) and a compact 1U desktop chassis. It runs cool on a shelf or in a cabinet. Operating range is −10 °C to +55 °C.
Is the 3-year warranty backed locally?
Yes — CCTV Guru honours a 3-year warranty in Australia, with local tech support and replacement stock held in Sydney. No overseas RMAs, no shipping back to the manufacturer.
3-Year Warranty
Australia-Wide Shipping
Australian Tech Support
Dahua · DHI-ART-ARC3800H-06-FW2 · Wireless Alarm Kit · WiFi + 4G LTEWireless Alarm KitDahua DHI-ART-ARC3800H-06-FW2 Wireless Alarm Kit
The Dahua DHI-ART-ARC3800H-06-FW2 is a complete wireless alarm kit for Australian homes, offices, retail stores and commercial sites. Built around the ARC3800H-FW2 alarm hub, it bundles three wireless PIR motion detectors, a keyfob, an indoor siren and an IP65 outdoor siren — all managed from the DMSS app with WiFi, Ethernet and 4G LTE communication paths for resilient connectivity.
Connectivity
WiFi · LAN · 4G
Encryption
AES128
Wireless Band
433MHz
Sirens
Indoor + Outdoor
Control
DMSS App
Expandable
150 Devices
Triple-Path Communication
Ethernet, WiFi and 4G LTE work together so the alarm stays connected even if one network path drops out.
Indoor + Outdoor Sirens
An indoor siren alerts occupants while the IP65-rated outdoor siren adds strong external deterrence and visibility.
App Control via DMSS
Arm, disarm, monitor events and manage every device remotely through the Dahua DMSS mobile app.
Expandable Platform
The ARC3800H-FW2 hub supports up to 150 wireless peripherals — add PIRs, keypads, repeaters, sirens and keyfobs as you grow.
Specifications — DHI-ART-ARC3800H-06-FW2
Kit Model
DHI-ART-ARC3800H-06-FW2
Alarm Hub
ARC3800H-FW2
Included Devices
1× hub, 1× keyfob (ARA24-W2), 3× PIR (ARD1233-W2), 1× indoor siren (ARA12-W2), 1× outdoor siren (ARA13-W2)
Network
Ethernet (RJ45) · WiFi · 4G LTE
SIM Support
Dual SIM, single standby
Wireless Frequency
433.1MHz – 434.6MHz, two-way RF
Encryption
AES128, with frequency hopping
Wireless Peripherals
Up to 150 devices
Video Verification
8-channel IPC alarm video upload
Notifications
App push, SMS & phone call (up to 5 numbers)
Hub Backup Battery
4,750mAh lithium · up to 12h standby
Outdoor Siren Rating
IP65
Operating Temperature
-10°C to +55°C (indoor devices)
Certifications
CE, RCM
Warranty (Australia)
3 years · CCTV Guru Australia
Downloads & Resources
DHI-ART-ARC3800H-06-FW2 DatasheetDahua Alarm Hub User Manual
Does this kit support 4G backup?Yes. The ARC3800H-FW2 hub supports Ethernet, WiFi and 4G LTE, so the alarm can stay online if one path fails.
Does it include both indoor and outdoor sirens?Yes — one indoor siren and one IP65-rated outdoor siren are included.
How many devices can the system support?The hub supports up to 150 wireless peripherals including PIRs, keyfobs, sirens, keypads and repeaters.
Is this kit NDAA compliant?No. Dahua products are not NDAA-compliant and are intended for residential and commercial use.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
