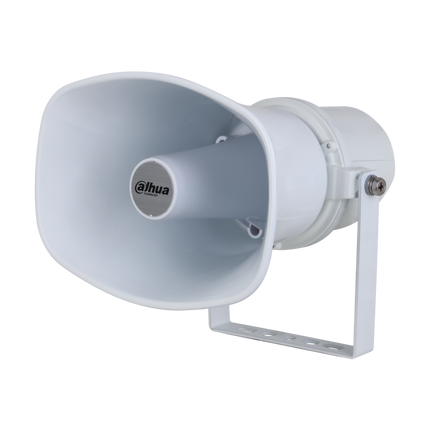

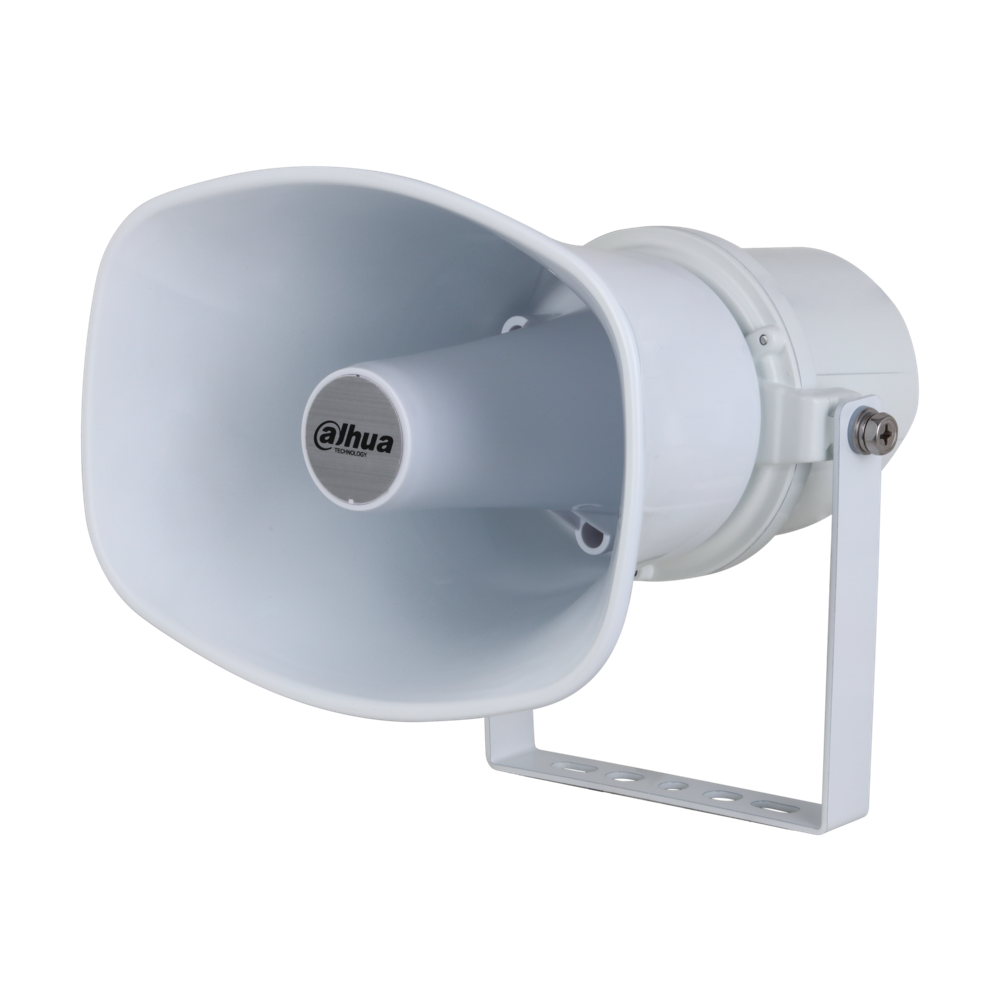

Dahua DH-VCS-SH30 15W IP Horn Speaker with Microphone - PoE+, SIP, ONVIF, IP66

Description

DAHUA · IP HORN SPEAKER

Networked voice announcements for outdoor security sites

The Dahua DH-VCS-SH30 is a 15 W IP horn speaker with a built-in microphone for live talk, scheduled or event-driven audio and stored messages. It supports SIP and ONVIF integration, PoE+ power and IP66 protection for suitable outdoor locations.

Speaker output
15 W · 120 dB max
Protocols
SIP · ONVIF
Power
PoE+ or 24 V DC
Outdoor rating
IP66

Why choose the DH-VCS-SH30

Broadcast live or pre-recorded messages

Use the network connection to issue announcements, store custom audio and integrate a compatible surveillance or intercom workflow.

Add talk-back capability

The built-in microphone has a stated pickup distance of at least 3 m, supporting two-way audio where the overall system supports it.

Plan the mounting direction

The horn pattern is specified at 70° horizontal and 100° vertical. Wall and pole mounting help direct sound into the intended area.

Technical Specifications
Model DH-VCS-SH30
Speaker / amplifier 15 W horn; built-in 15 W, 8 Ω amplifier
Sound pressure Up to 120 dB; SNR ≥75 dB
Audio frequency response Speaker 250 Hz-16 kHz; microphone 50 Hz-12 kHz
Microphone Built-in; stated pickup distance ≥3 m
Network / protocols 1 × RJ45; TCP, UDP, DHCP, HTTP, SIP and ONVIF
Audio formats MP3 and G.711a/u
Storage 512 MB internal; TF card expansion supported
Power PoE+ IEEE 802.3at or 24 V DC, 1 A; 15 W
Protection / environment IP66; -40°C to +60°C; 60%-95% RH
Dimensions / weight 225 × 170 × 250 mm; 1.8 kg
Before you install

Not recommended for high-corrosion sites such as seafronts, ports, chemical plants or thermal power plants. Confirm network, SIP/ONVIF and power requirements before installation.

Official Dahua video

Dahua IP Speaker - VCS-SH30

Downloads

DH-VCS-SH30 Datasheet (PDF)

Dahua DH-VCS-SH30 15W IP Horn Speaker with Microphone - PoE+, SIP, ONVIF, IP66

Product form

SKU: DH-VCS-SH30

$529.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Price Beat Guarantee
    Found it cheaper? We'll beat it by 5% — message us.

    • Shipped today? Order within: Oct 16, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    DAHUA · IP HORN SPEAKER

    Networked voice announcements for outdoor security sites

    The Dahua DH-VCS-SH30 is a 15 W IP horn speaker with a built-in microphone for live talk, scheduled or event-driven audio and stored messages. It supports SIP and ONVIF integration, PoE+ power and IP66 protection for suitable outdoor locations.

    Speaker output
    15 W · 120 dB max
    Protocols
    SIP · ONVIF
    Power
    PoE+ or 24 V DC
    Outdoor rating
    IP66

    Why choose the DH-VCS-SH30

    Broadcast live or pre-recorded messages

    Use the network connection to issue announcements, store custom audio and integrate a compatible surveillance or intercom workflow.

    Add talk-back capability

    The built-in microphone has a stated pickup distance of at least 3 m, supporting two-way audio where the overall system supports it.

    Plan the mounting direction

    The horn pattern is specified at 70° horizontal and 100° vertical. Wall and pole mounting help direct sound into the intended area.

    Technical Specifications
    Model DH-VCS-SH30
    Speaker / amplifier 15 W horn; built-in 15 W, 8 Ω amplifier
    Sound pressure Up to 120 dB; SNR ≥75 dB
    Audio frequency response Speaker 250 Hz-16 kHz; microphone 50 Hz-12 kHz
    Microphone Built-in; stated pickup distance ≥3 m
    Network / protocols 1 × RJ45; TCP, UDP, DHCP, HTTP, SIP and ONVIF
    Audio formats MP3 and G.711a/u
    Storage 512 MB internal; TF card expansion supported
    Power PoE+ IEEE 802.3at or 24 V DC, 1 A; 15 W
    Protection / environment IP66; -40°C to +60°C; 60%-95% RH
    Dimensions / weight 225 × 170 × 250 mm; 1.8 kg
    Before you install

    Not recommended for high-corrosion sites such as seafronts, ports, chemical plants or thermal power plants. Confirm network, SIP/ONVIF and power requirements before installation.

    Official Dahua video

    Dahua IP Speaker - VCS-SH30

    Downloads

    DH-VCS-SH30 Datasheet (PDF)
