Dahua DH-PFM740-4K 4K HDMI Splitter - 1 Input to 2 Outputs, HDMI 2.0b

Description

DAHUA · HDMI SPLITTER

Mirror one 4K HDMI source to two displays

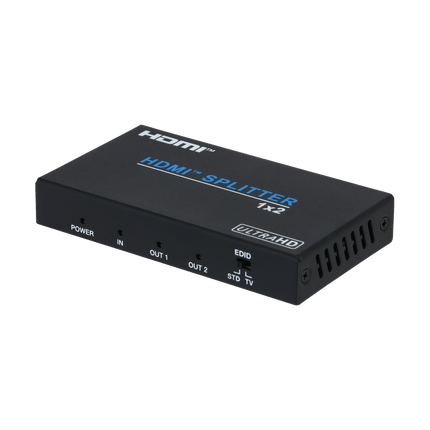

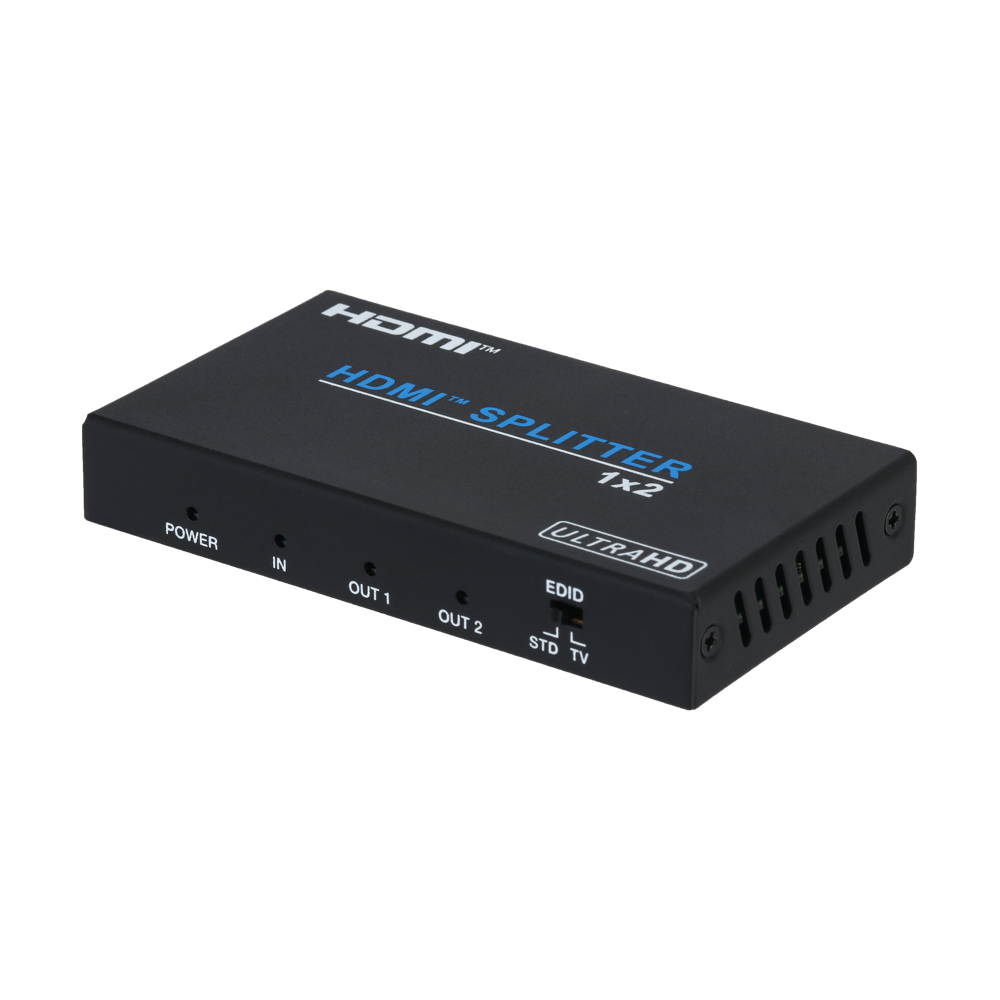

The Dahua DH-PFM740-4K is a compact 1-input, 2-output HDMI splitter for duplicating a recorder, camera decoder or other HDMI source to two displays. It supports 4K/2K at 60 Hz, HDMI 2.0b and HDCP 2.2 for a high-resolution mirrored display setup.

Video
4K/2K @ 60 Hz
Outputs
1 HDMI in · 2 HDMI out
Compatibility
HDMI 2.0b · HDCP 2.2
Power
5 V DC · 2 W

Why choose the DH-PFM740-4K

Show the same source in two places

Use it for a second monitor in a reception, office, training room or security monitoring position.

Maintain a modern 4K signal path

The splitter supports 24-bit RGB/YCbCr 4:4:4 at 4K/2K at 60 Hz, subject to the connected source, displays and cables.

Manage display compatibility

Smart EDID provides standard 1080p and TV copy-from-Output-1 modes; choose displays and cable lengths accordingly.

Technical Specifications
Model DH-PFM740-4K
Configuration 1 × HDMI input; 2 × HDMI output
Video Up to 4K/2K @ 60 Hz; HDMI 2.0b
Protection / compliance HDCP 2.2; Class A anti-interference
Audio LPCM 7.1 channel, Dolby TrueHD and DTS-HD Master Audio
VESA support Up to QSXGA @ 60 Hz
EDID Smart EDID; standard 1080p and TV copy Output-1 modes
Power 5 V DC, 1 A locking adaptor; 2 W
Construction Metal; 56 × 100 × 16 mm
Operating range 0°C to +40°C; 20%-80% RH
Before you install

This unit mirrors one source. It does not create two independent HDMI outputs.

Downloads

DH-PFM740-4K Datasheet (PDF)

Dahua DH-PFM740-4K 4K HDMI Splitter - 1 Input to 2 Outputs, HDMI 2.0b

Product form

SKU: DH-PFM740-4K

$59.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Price Beat Guarantee
    Found it cheaper? We'll beat it by 5% — message us.

    • Shipped today? Order within: Oct 16, 2026 14:00:00 +1100
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    DAHUA · HDMI SPLITTER

    Mirror one 4K HDMI source to two displays

    The Dahua DH-PFM740-4K is a compact 1-input, 2-output HDMI splitter for duplicating a recorder, camera decoder or other HDMI source to two displays. It supports 4K/2K at 60 Hz, HDMI 2.0b and HDCP 2.2 for a high-resolution mirrored display setup.

    Video
    4K/2K @ 60 Hz
    Outputs
    1 HDMI in · 2 HDMI out
    Compatibility
    HDMI 2.0b · HDCP 2.2
    Power
    5 V DC · 2 W

    Why choose the DH-PFM740-4K

    Show the same source in two places

    Use it for a second monitor in a reception, office, training room or security monitoring position.

    Maintain a modern 4K signal path

    The splitter supports 24-bit RGB/YCbCr 4:4:4 at 4K/2K at 60 Hz, subject to the connected source, displays and cables.

    Manage display compatibility

    Smart EDID provides standard 1080p and TV copy-from-Output-1 modes; choose displays and cable lengths accordingly.

    Technical Specifications
    Model DH-PFM740-4K
    Configuration 1 × HDMI input; 2 × HDMI output
    Video Up to 4K/2K @ 60 Hz; HDMI 2.0b
    Protection / compliance HDCP 2.2; Class A anti-interference
    Audio LPCM 7.1 channel, Dolby TrueHD and DTS-HD Master Audio
    VESA support Up to QSXGA @ 60 Hz
    EDID Smart EDID; standard 1080p and TV copy Output-1 modes
    Power 5 V DC, 1 A locking adaptor; 2 W
    Construction Metal; 56 × 100 × 16 mm
    Operating range 0°C to +40°C; 20%-80% RH
    Before you install

    This unit mirrors one source. It does not create two independent HDMI outputs.

    Downloads

    DH-PFM740-4K Datasheet (PDF)
