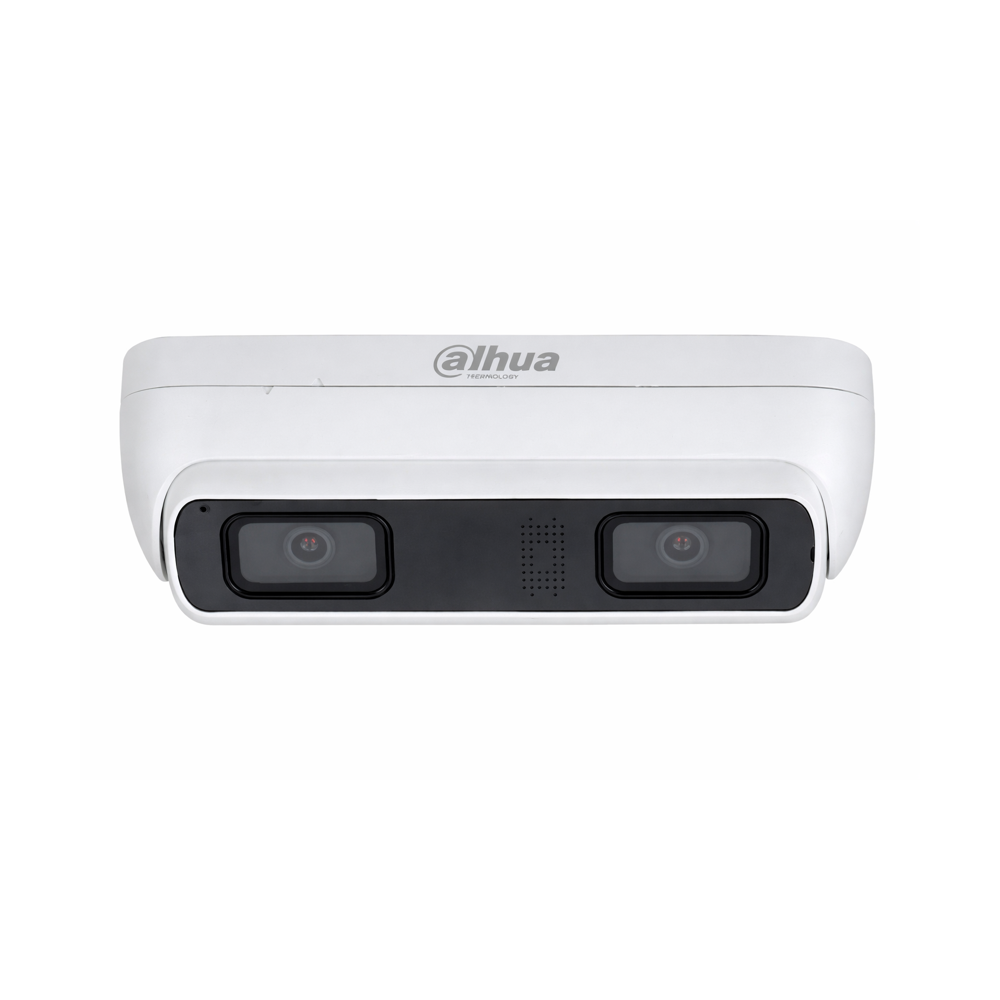

DAHUA · IP SECURITY CAMERASDahua DH-IPC-HDW8441X-BV-3D 4MP Stereo Analysis Security Camera
Add scene-aware monitoring to corridors and managed indoor spaces with Dahua stereo analysis. The DH-IPC-HDW8441X-BV-3D uses a dual-lens design to support behaviour analysis including falls, running, violence and abnormal occupancy events, alongside conventional intrusion monitoring.
Video
4MP, 2688 × 1520 at up to 25/30 fps
Optical design
Dual-lens stereo analysis
Behaviour events
Fall, violence, running, approaching and stay detection
Designed for your installation
Built-in audio and configurable privacy masking make it suitable for projects that need more than standard motion detection. Its compact body can be integrated with compatible alarm and recording systems through network, audio, alarm and RS-485 interfaces.
Abnormal people count and scene-dependent occupancy events
Privacy
Face privacy masking
Built-in microphone and speaker, 2 audio inputs and 1 output
Technical Specifications
| Model |
DH-IPC-HDW8441X-BV-3D |
| Video |
4MP, 2688 × 1520 at up to 25/30 fps |
| Sensor |
1/2.8-inch CMOS |
| Optical design |
Dual-lens stereo analysis |
| Behaviour events |
Fall, violence, running, approaching and stay detection |
| People analysis |
Abnormal people count and scene-dependent occupancy events |
| Privacy |
Face privacy masking |
| IR illumination |
Up to 20 m |
| Audio |
Built-in microphone and speaker, 2 audio inputs and 1 output |
| Alarm interface |
2 inputs and 2 outputs |
| Other interfaces |
RS-485 and BNC |
| Storage |
microSD up to 512 GB, sold separately |
| Power |
12 VDC, IEEE 802.3af PoE, ePoE |
| Protection |
IP67 and IK10 |
| Dimensions |
204 × 78 × 61.6 mm |
Setup and compatibility
Stereo analytics require the correct mounting height, viewing angle, scene geometry and configuration. This camera is not a substitute for a certified life-safety system. Confirm the required fixed-lens version and installation layout before ordering. Dahua lists PFA156 and PFB110W mounting accessories.
Downloads
DH-IPC-HDW8441X-BV-3D Datasheet (PDF)
Frequently asked questions
Can DH-IPC-HDW8441X-BV-3D record to a microSD card?
Yes. microSD up to 512 GB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Stereo analytics require the correct mounting height, viewing angle, scene geometry and configuration. This camera is not a substitute for a certified life-safety system. Confirm the required fixed-lens version and installation layout before ordering. Dahua lists PFA156 and PFB110W mounting accessories.
Where can I download the DH-IPC-HDW8441X-BV-3D datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
