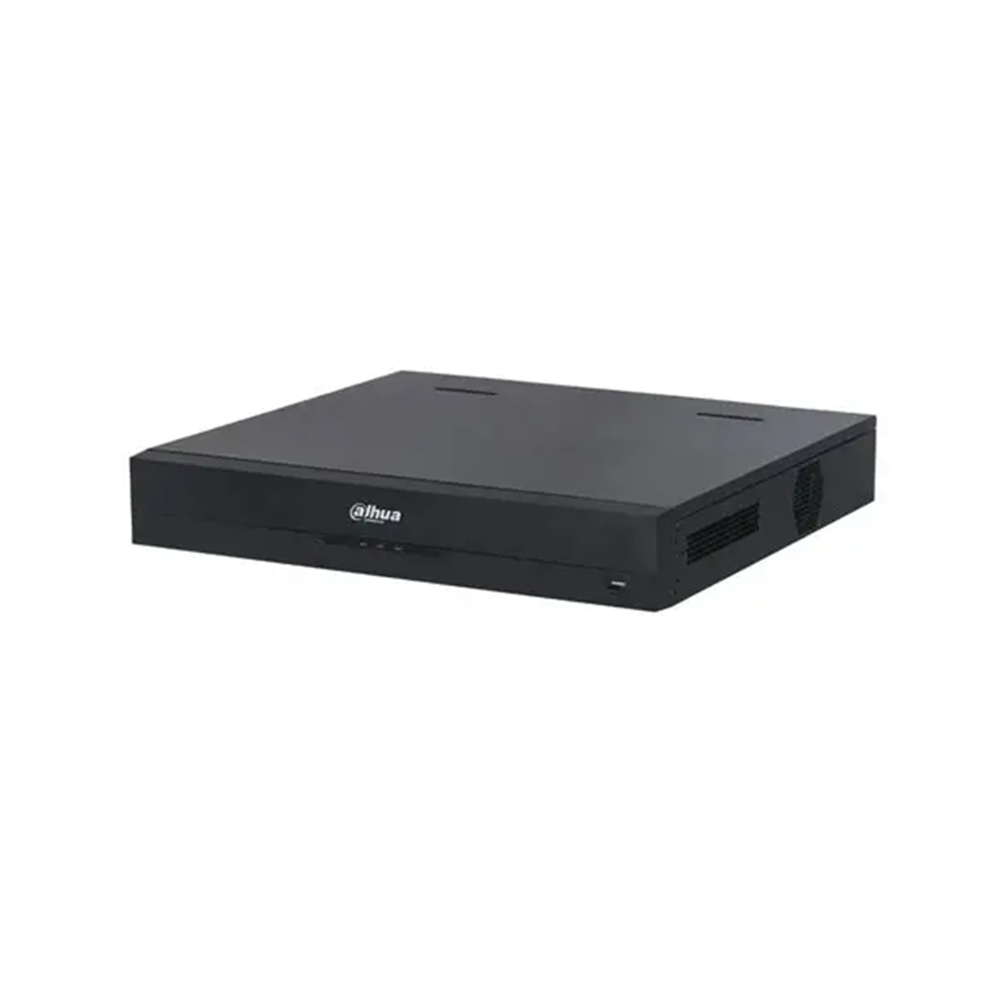

DAHUA · NETWORK VIDEO RECORDERSDahua DHI-NVR5432-16HP-AI/ANZ-PRO 32-Channel NVR NEXT WizSeek 16-PoE 4-HDD Recorder
Build a larger Dahua IP CCTV system around a 32-channel NVR NEXT recorder with WizSeek natural-language search. The DHI-NVR5432-16HP-AI/ANZ-PRO is a PRO-series WizMind model with 4 SATA drive bays and 16 built-in PoE ports.
Internal storage
4 SATA HDD bays, drives sold separately
Recorder platform
NVR NEXT, WizMind, Xinghan AI processing
Designed for your installation
WizSeek is designed to locate relevant people, vehicles, objects and events using descriptive search terms on supported footage. AcuPick, intelligent perimeter analysis and face functions add alternative ways to review incidents. Search capabilities depend on the camera, firmware and recording configuration.
Maximum camera resolution
Up to 32MP
Bandwidth with AI disabled
512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing
Bandwidth with AI enabled
200 Mbps incoming, recording and outgoing
Dual HDMI including up to 8K output, plus 2 VGA outputs
Technical Specifications
| Model |
DHI-NVR5432-16HP-AI/ANZ-PRO |
| IP camera channels |
32 |
| Built-in PoE ports |
16 |
| Internal storage |
4 SATA HDD bays, drives sold separately |
| Recorder platform |
NVR NEXT, WizMind, Xinghan AI processing |
| Maximum camera resolution |
Up to 32MP |
| Bandwidth with AI disabled |
512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing |
| Bandwidth with AI enabled |
200 Mbps incoming, recording and outgoing |
| Display outputs |
Dual HDMI including up to 8K output, plus 2 VGA outputs |
| Smart search |
WizSeek and AcuPick, compatible camera and mode limits apply |
| NVR AcuPick resources |
Up to 8 channels with AI enabled or 16 with AI disabled |
| Perimeter resources |
Up to 16 channels with AI enabled or 32 with AI disabled |
| Face resources |
Up to 8 channels with AI enabled or 16 with AI disabled |
| Face databases |
20 databases, up to 200,000 images |
| System expansion |
N+M cluster and iSCSI |
Setup and compatibility
This PRO model is not the same SKU as the earlier S2 recorder. Maximum AI capacities are mode-dependent and must not be added together. 32 recording channels do not mean 32 powered connections: this unit has 16 PoE ports. Choose surveillance-rated HDDs and confirm the retention target, camera bitrates, display output and search compatibility before purchase.
Downloads
DHI-NVR5432-16HP-AI/ANZ-PRO Datasheet (PDF)
Frequently asked questions
Does DHI-NVR5432-16HP-AI/ANZ-PRO include a hard drive?
No hard drive is included in the base listing. Select compatible surveillance-rated HDDs separately before local recording.
What should I check before installation?
This PRO model is not the same SKU as the earlier S2 recorder. Maximum AI capacities are mode-dependent and must not be added together. 32 recording channels do not mean 32 powered connections: this unit has 16 PoE ports. Choose surveillance-rated HDDs and confirm the retention target, camera bitrates, display output and search compatibility before purchase.
Where can I download the DHI-NVR5432-16HP-AI/ANZ-PRO datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
